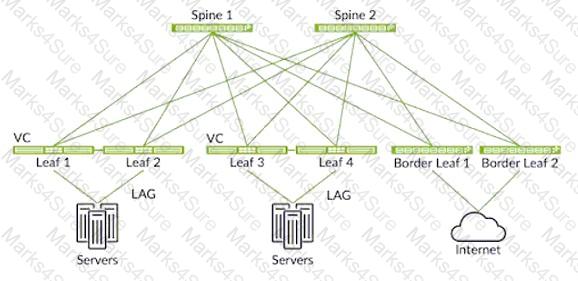

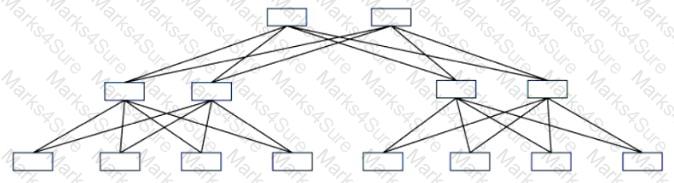

The exhibit shows a leaf-spine architecture with two spine layers and one leaf layer, forming a 3-stage IP Clos topology. It also aligns with a 3-tier architecture (Core, Aggregation/Distribution, Access), commonly used in traditional and modern data center designs to improve scalability and performance.

A Secure Web Gateway (SWG) provides proxy services to inspect and filter web traffic and includes firewall capabilities to enforce security policies, block threats, and control access to internet resources.

The Juniper Connected Security strategy aims to integrate security across the entire network by extending protection to routers, switches, and every point of connection, ensuring that security is enforced holistically - not just at the perimeter.

PTX Series routers are purpose-built for the core network, offering ultra-high throughput, scalability, and low-latency forwarding ideal for service provider and large-scale data center cores.

Using a Virtual Chassis (VC) introduces a single point of failure in the management plane, as all member switches depend on a master for control. Replacing the VC with ESI-LAG (Ethernet Segment Identifier - Link Aggregation Group) allows dual-homed servers to connect to independent leaf switches while maintaining resiliency and independent management planes—thus eliminating the single point of failure.

Fault management helps detect and address potential issues before downtime occurs, while measuring network performance, errors, and security metrics enables administrators to make data-driven decisions for maintaining and optimizing the network.

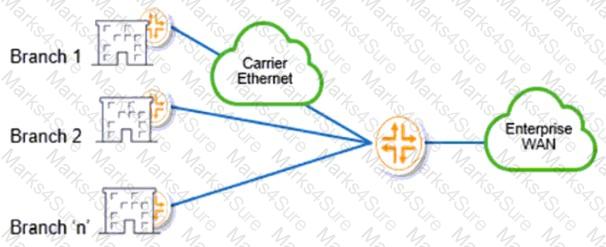

WAN aggregation is represented by the central router that connects multiple branch sites through a Carrier Ethernet service to the enterprise WAN, consolidating traffic.

Private WAN is shown through the use of Carrier Ethernet, which is a private service providing secure, dedicated connectivity between branches and the enterprise WAN.

In Juniper Networks' enterprise network designs, the distribution layer typically uses QFX and EX Series switches. These platforms provide the necessary scalability, performance, and Layer 3 capabilities to aggregate access layer switches and support routing between VLANs.

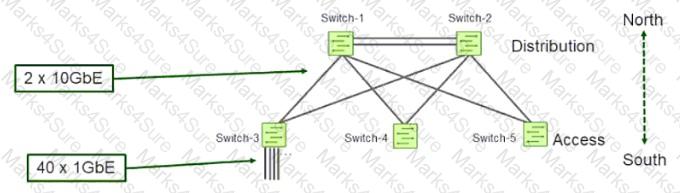

Switch-3 has 40 x 1 GbE (total 40 Gbps) access connections and 2 x 10 GbE uplinks (total 20 Gbps) to the distribution layer. The oversubscription ratio is calculated as access bandwidth to uplink bandwidth:

40 Gbps / 10 Gbps per uplink × 2 = 40:10 = 4:1.

cSRX and vSRX are the virtualized versions of the Juniper SRX Series firewalls designed for deployment in virtual environments. The cSRX is containerized, while the vSRX is a VM-based firewall, both supporting advanced security services in cloud or virtualized data centers.

When placing access points on the same channel, the recommended signal strength threshold to minimize co-channel interference is −65 dBm. This ensures adequate coverage while avoiding signal overlap that can degrade wireless performance.

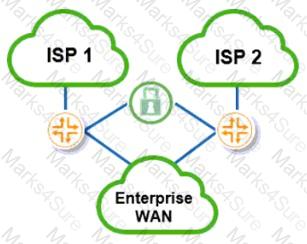

The diagram shows an enterprise WAN connected to two different ISPs through edge routers, with security elements in place. This configuration is characteristic of an Internet edge design, where the enterprise network interfaces with external service providers, providing redundancy and secure access to the internet.

Capacity planning requires a clear view of the current application behavior to assess real-time demands and predicting future traffic projections to ensure the network can scale efficiently and handle increased load over time.

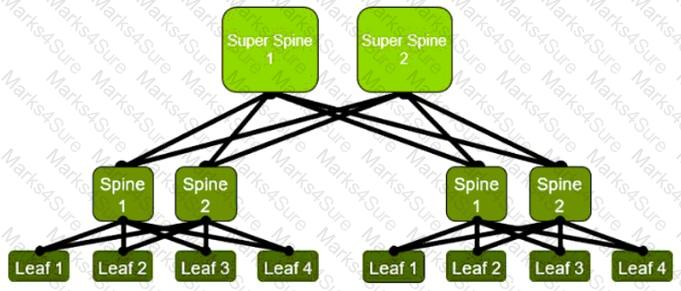

The exhibit shows a hierarchical structure with Leaf, Spine, and Super Spine layers. This architecture is characteristic of a 7-stage IP fabric, which is used in large-scale data centers to provide high scalability and bandwidth. It extends the 3-stage fabric by adding an additional spine layer (Super Spine) for interconnecting multiple spine layers.

VXLAN and MPLS are commonly used to encapsulate frames and provide Layer 2 reachability across an IP fabric. VXLAN enables L2 overlays over L3 infrastructure, while MPLS can also be used in L2VPN services to extend L2 connectivity across IP/MPLS networks.

A greenfield deployment refers to a new deployment in an environment with no existing infrastructure, offering fewer restrictions and greater design flexibility compared to modifying or integrating into an existing network.
