JN0-281 Data Center Associate (JNCIA-DC) Questions and Answers

Generated routes in Junos are used to conditionally create a route in the routing table when specific criteria are satisfied. They are policy-driven and allow operators to inject a prefix only when the device has the necessary supporting reachability or other configured conditions. This is useful in data center environments to ensure that certain aggregate or service prefixes are advertised only when the infrastructure can truly forward traffic toward the intended destinations. For example, a generated route can be used to advertise a summary prefix into BGP only if one or more contributing routes exist, preventing blackholing that could occur if a summary is advertised while downstream reachability is missing.

Generated routes do not create a separate routing table; routing tables are created by routing instances and related configuration constructs. They also are not intended simply to increase the number of advertisements. Their value is correctness and control, not volume. Finally, expanding a single advertisement into multiple routes is not the purpose of generated routes; that behavior is more aligned with route policies that manipulate announcements, prefix lists, or mechanisms that originate multiple prefixes by configuration.

In short, generated routes provide conditional route origination based on defined match conditions, enabling safer summarization and controlled advertisement patterns that are common in scalable data center routing designs.

Spine and leaf architectures improve data center scalability by using a consistent, modular building block. When you need more server ports, you add leaf switches. When you need more fabric capacity, you add spine switches. This horizontal growth model avoids the limitations of traditional three-tier designs that often require larger aggregation devices or complex expansion. Because each leaf connects to every spine, the fabric naturally provides many parallel paths and can use equal-cost multipath forwarding across all uplinks. These properties deliver better scaling characteristics in both bandwidth and port count, which is why option B is correct.

Option C is also correct because spine and leaf fabrics provide low and predictable hop counts. Traffic between endpoints on different leaves typically crosses the fabric with a consistent number of hops, usually one spine hop in a two-tier fabric. This predictability reduces latency variance and improves application performance, especially for east-west traffic patterns common to distributed systems, storage, and microservices. Predictable paths also simplify troubleshooting and capacity planning.

Container and hypervisor management is primarily an orchestration and operations topic rather than a direct network architecture advantage. Finally, making all broadcast domains reachable is not an inherent benefit; modern data centers usually limit Layer 2 flooding domains and prefer routed underlays with overlays for segmentation, rather than expanding broadcast reachability everywhere.

In legacy hierarchical network design, three key layers are used to create a scalable and structured network:

Step-by-Step Breakdown:

Access Layer:

The access layer is where end devices, such as computers and IP phones, connect to the network. It typically involves switches that provide connectivity for devices at the edge of the network.

Aggregation Layer (Distribution Layer):

The aggregation layer (also called the distribution layer) aggregates traffic from multiple access layer devices and applies policies such as filtering and QoS. It also provides redundancy and load balancing.

Core Layer:

The core layer provides high-speed connectivity between aggregation layer devices and facilitates traffic within the data center or between different network segments.

Juniper Reference:

Legacy Hierarchical Design: Juniper networks often follow the traditional three-layer design (Access, Aggregation, and Core) to ensure scalability and high performance.

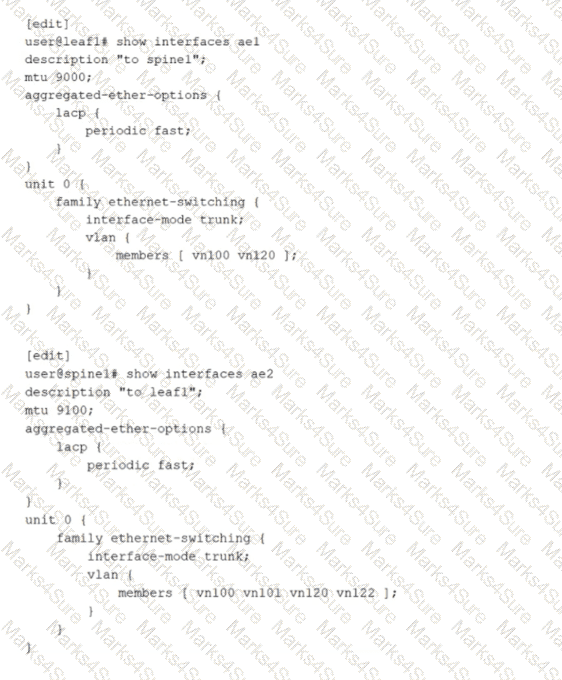

An aggregated Ethernet interface that uses LACP requires at least one side to actively initiate LACP negotiations. In the exhibit, both devices have LACP configured only with periodic fast, but neither side explicitly enables LACP active mode. When both ends operate in passive behavior, each side waits for the other to send LACP Data Units, and no negotiation begins. As a result, the LACP state does not progress to collecting and distributing, and the aggregated link fails to form as expected. Adding the active statement under the LACP hierarchy on one or both ends ensures that LACP frames are transmitted and the bundle can be negotiated and brought up.

The other options are not the root cause for bringing the bundle up. The aggregated Ethernet interface number does not need to match across devices because the bundle is locally significant on each system. VLAN membership differences on a trunk do not prevent LACP from establishing the aggregate; they only affect which tagged VLANs are allowed to pass once the link is operational. MTU differences can cause data plane issues such as fragmentation or drops for jumbo frames, but they do not typically prevent LACP formation because control frames are small and the physical link can still come up.

In Junos, static routes are eligible to be exported into dynamic routing protocols if you configure an export policy that matches them. For management-only routes, especially default routes or specific management subnets used for out-of-band access, you often want to ensure they never leak into the production routing domain. The no-readvertise parameter is designed for this purpose. When you mark a static route as no-readvertise, Junos flags it so other routing protocols do not export or readvertise it, even if an export policy would otherwise match it. This helps keep the management plane isolated from the data plane and prevents accidental propagation of management reachability into the fabric underlay or overlay.

The reject and discard options control how packets are handled if they match the route, not whether the route is eligible to be exported. Preference 255 changes the route’s selection priority relative to other routes, but it does not prevent export. Therefore, no-readvertise is the correct configuration knob when the explicit goal is to prevent propagation of a management static route to other routers.

Nonstop bridging is a high availability capability focused on maintaining Layer 2 switching continuity during a Routing Engine switchover on platforms that support redundant control planes. The intent is to keep Layer 2 forwarding operational and minimize disruption to bridged traffic when the system transitions from a primary to a backup Routing Engine. Achieving this requires Graceful Routing Engine switchover, because GRES is the mechanism that enables a control plane switchover while keeping forwarding and interface state stable. With GRES in place, the forwarding plane can continue switching frames while the backup Routing Engine assumes control, reducing or eliminating traffic loss for Layer 2 domains.

Nonstop bridging is not the feature that preserves Layer 3 protocol sessions and routing information end-to-end. That function is associated with nonstop routing capabilities, which focus on maintaining routing protocol state across Routing Engine events. Therefore, stating that nonstop bridging preserves Layer 3 information and protocol sessions is incorrect. Likewise, nonstop active routing is not a requirement for nonstop bridging; it is a separate feature aimed at routing stability. The flow-control setting under gigether-options is unrelated to Routing Engine redundancy and does not determine whether nonstop bridging operates.

In data center access and aggregation environments where VLANs must remain stable for servers and appliances, nonstop bridging paired with GRES helps protect Layer 2 service continuity during control plane events.

In Junos OS, direct routes are the most preferred routes in the routing table, having the highest priority.

Step-by-Step Breakdown:

Direct Routes:

Direct routes represent networks that are directly connected to the router's interfaces. Since these routes are directly accessible, they are assigned the highest priority and always take precedence over other types of routes.

Preference Values:

Direct routes have a preference of 0, which is the most preferred in Junos. Static routes, OSPF routes, and BGP routes have higher preference values and will only be used if there are no direct routes to the destination.

Juniper Reference:

Direct Route Preference: In Junos, direct routes are always preferred over other routes, ensuring that the router forwards traffic through locally connected networks.

In Junos Ethernet switching, a trunk interface is intended to carry multiple VLANs using 802.1Q tags. The native VLAN ID feature defines how the trunk handles frames that arrive without an 802.1Q tag and how it can transmit untagged frames when required. When a native VLAN is configured on a trunk, untagged inbound frames are mapped into the native VLAN’s Layer 2 broadcast domain. Likewise, traffic belonging to the native VLAN can be sent untagged on that trunk, depending on how the receiving device expects to process untagged frames. This is commonly used in data center environments to interoperate with devices that require one VLAN to be carried untagged, or for specific control-plane or legacy connectivity requirements.

Option A is incorrect because native VLAN does not restrict the trunk to tagged-only traffic; it explicitly provides a mechanism to accept or emit untagged frames on a trunk. Option B is incorrect because access ports are designed for a single VLAN and normally treat traffic as untagged by default; they do not become “tagged access” by using native VLAN. Option C is incorrect because native VLAN does not change the VLAN ID range; VLAN ID ranges are determined by the 802.1Q standard and platform support, not by the native VLAN feature.

In modern data center architectures, an overlay network is a logical or virtual network built on top of an underlay, where the underlay is the physical IP fabric that provides basic Layer 3 transport and reachability between fabric nodes. The overlay abstracts the physical topology and delivers tenant connectivity and segmentation services. This makes the statement that an overlay is a virtual network running on top of a physical network correct.

In EVPN VXLAN based data centers, overlays commonly carry both Layer 2 and Layer 3 services. Layer 2 extension is achieved by encapsulating Ethernet frames inside VXLAN so that a VLAN like segment can span multiple leaf switches across a routed underlay. Layer 3 services are delivered either through symmetric routing at the VTEPs or by advertising IP prefixes and host routes through the overlay control plane. As a result, overlays are not limited to Layer 3 traffic only, and statement D is correct.

The overlay is not defined by being public versus private. It can be built for private multi tenant segmentation inside a single data center, across multiple data centers, or to connect to external services, but public network is not a defining attribute.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/evpn-vxlan/topics/topic-map/evpn-vxlan-overview.html

https://www.juniper.net/documentation/us/en/software/junos/vxlan/topics/topic-map/vxlan-overview.html

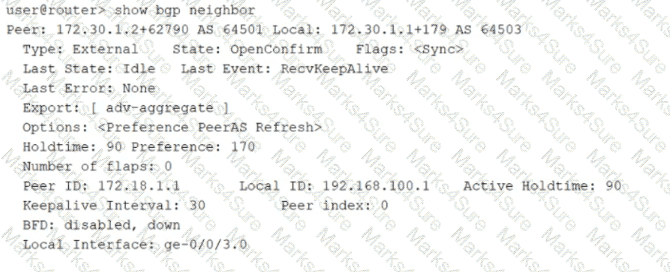

In the BGP finite state machine, OpenConfirm indicates that the TCP session is already established and the BGP OPEN message exchange has successfully completed. At this point, both peers have agreed on critical session parameters such as BGP version, autonomous system numbers, hold time, and the BGP identifier. Because the OPEN messages have been processed, BGP transitions from OpenSent to OpenConfirm and then waits for the next control message that validates the session is operational.

Specifically, in OpenConfirm the local BGP process is waiting to receive a KEEPALIVE message from the neighbor, which confirms that the neighbor accepted the OPEN and is ready to bring the session to the Established state. If instead a NOTIFICATION message is received, it indicates an error condition and the session will be torn down. This is why option D is correct.

Option A describes OpenSent, where the router is waiting to receive an OPEN after sending its own OPEN. Option B aligns more closely with Connect, where BGP is still trying to complete the transport connection. Option C relates to Idle, where BGP waits for a start event or configuration to initiate the session. In data center BGP underlays and EVPN control planes, being stuck in OpenConfirm commonly points to policy mismatch, capability negotiation issues, or keepalive handling problems, rather than basic IP reachability.

The diagram shows multiple autonomous systems, with each device labeled with a different AS number. Because the peers are in different autonomous systems, the correct BGP session type is external BGP. In a typical Juniper data center IP fabric underlay, this design is intentional: EBGP is used between leaf and spine devices to simplify policy boundaries, improve operational clarity, and avoid the additional mechanisms commonly required in large internal BGP designs.

In an EBGP-based underlay, neighbors are most commonly formed over the directly connected point-to-point links between leaf and spine. That means the BGP peering is established using the IP addresses configured on those physical routed interfaces, not loopback addresses. Using physically connected addresses aligns with the default EBGP behavior where the TTL is one hop, and it reduces configuration complexity because no multihop settings or additional reachability dependencies are required to bring up the session.

Peering using loopbacks is possible, but it typically requires EBGP multihop and a routing method to ensure reachability to the remote loopback before BGP can establish. That approach is more common for overlay control-plane sessions or for specific design requirements, rather than for the simplest and most common underlay implementation. Therefore, the two true statements are that the exhibit uses EBGP and that devices should peer using physically connected IP addresses.

Aggregate routes and generated routes are used to create summarized routes in Junos, but they behave differently in terms of forwarding.

Step-by-Step Breakdown:

Aggregate Routes:

An aggregate route summarizes a set of more specific routes, but it does not have a direct forwarding next hop. Instead, it points to the more specific routes for actual packet forwarding.

Generated Routes:

A generated route also summarizes specific routes, but it has a forwarding next hop that is determined based on the availability of contributing routes. The generated route can be used to directly forward traffic.

Juniper Reference:

Aggregate and Generated Routes: In Junos, aggregate routes rely on more specific routes for forwarding, while generated routes can forward traffic directly based on their next-hop information.

Nonstop active routing relies on control-plane state synchronization between the primary and backup Routing Engines so that routing protocol operation can continue across a switchover. To verify whether that synchronization is occurring and to see which protocol processes are participating, Junos provides visibility into the underlying replication framework. The command show task replication displays replication status and synchronization details for replicated tasks, which commonly include routing-related processes when NSR is enabled. This output helps confirm whether the backup Routing Engine is receiving the necessary state updates and whether replication is in sync, catching up, or experiencing issues.

This is the most direct operational validation because NSR effectiveness depends on ongoing state replication. Simply checking general switchover readiness does not prove protocol state is synchronized. Likewise, listing system services does not confirm replication or identify which routing protocols are actively supported for nonstop behavior. High availability statistics under services are oriented toward service-specific HA functions and do not provide the routing protocol replication view that NSR troubleshooting typically requires.

In data center fabrics where underlay routing stability is critical, routinely checking task replication status is a practical way to verify that NSR is actually providing the intended resilience before you perform maintenance or experience an unplanned Routing Engine event.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/high-availability/topics/topic-map/nonstop-active-routing-understanding.html

https://www.juniper.net/documentation/us/en/software/junos/high-availability/topics/reference/command/show-task-replication.html

The exhibit shows BFD liveness detection configured under a BGP group with minimum-interval set to 1000 milliseconds. In Junos, BFD provides rapid failure detection by sending periodic BFD control packets between neighbors. The minimum-interval value is the negotiated minimum transmit and receive interval used for BFD control packets for that session. A neighbor is declared down when the local system fails to receive a certain number of consecutive BFD packets within the expected time window.

That time window is determined by the BFD detection time, which is calculated as the minimum-interval multiplied by the BFD multiplier. The multiplier represents how many BFD control packets can be missed before the session is considered failed. If the multiplier is not explicitly configured, Junos uses the default multiplier value of 3. Therefore, with minimum-interval set to 1000 ms and the default multiplier of 3, the detection time becomes 3000 ms. After approximately 3 seconds without receiving the expected BFD control packets, the BFD session transitions to down and BGP can react by treating the associated peer as unreachable for fast convergence.

This behavior is commonly used in data center underlays and EVPN fabrics to reduce convergence time compared to relying only on BGP hold timers.

On Junos-based Ethernet switching platforms used in data centers, Layer 2 forwarding is handled primarily in the forwarding plane. When a switch receives a frame, it first performs source MAC learning. If the source MAC address is not already present in the Ethernet switching table for that VLAN or bridge domain, the switch creates a new entry that maps the source MAC to the ingress interface and the associated VLAN context. This learning step is fundamental to building the MAC table dynamically and enables efficient forwarding for subsequent frames destined back to that source.

Next, the switch attempts to forward the frame based on the destination MAC lookup in the same VLAN or bridge domain. Because the destination MAC is also not in the Ethernet switching table, the frame is treated as an unknown unicast. The default behavior for unknown unicast in a Layer 2 broadcast domain is to flood the frame out all other interfaces that belong to that VLAN or bridge domain, excluding the ingress interface. Flooding ensures the frame has the best chance of reaching the correct destination host. When the destination responds, the switch then learns that MAC address as a source on the return traffic, allowing future traffic to be forwarded as known unicast instead of flooded.

The switch does not drop the frame by default, and it does not forward the frame to the Routing Engine because this is normal Layer 2 bridging behavior, not a control-plane routing decision.

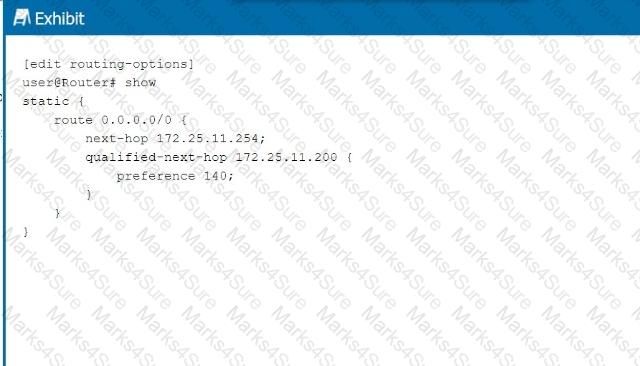

Qualified next hop is the Junos mechanism that lets you configure more than one next hop for the same static route and control which one is preferred. This is most commonly used to build primary and backup forwarding behavior with deterministic selection. You configure a primary next hop and then add one or more qualified next hops with a different preference value. The route installs the best, lowest preference next hop as active, while keeping the alternate next hop available as standby. If the primary next hop becomes unusable, Junos can switch to the qualified next hop so traffic continues to flow.

This approach is widely used in data center edge and services routing, for example toward management networks, service appliances, or external gateways where you want a static default or summary route with predictable failover. It is not the same as resolving a non-directly-connected next hop. That scenario is handled by recursive resolution behavior, not by qualification. Qualified next hop also does not depend on any specific routing protocol, and it is not limited to link-state environments.

Finally, qualified next hop does not rely on sending pings to test reachability. Health tracking can be achieved through other mechanisms such as interface state, next hop resolution changes, or integration with failure detection features, but the qualified next hop feature itself is about preference-ranked redundancy for static routes.

A link aggregation group combines multiple physical Ethernet interfaces into one logical link layer interface, called an aggregated Ethernet interface on Junos. The primary purpose is to improve availability and increase usable bandwidth between two devices without changing the logical topology. If one member link fails, the aggregate can remain up and continue forwarding traffic over the remaining active members, providing redundancy at the link layer. This is especially valuable in data center designs where loss of a single optic or cable should not interrupt server connectivity, leaf to spine uplinks, or connections to service appliances.

LAG also enables load balancing. Instead of forcing all traffic over one physical link, the forwarding plane distributes flows across member links using a hashing algorithm. This allows the aggregate to use the sum of member bandwidth for multiple concurrent flows while keeping packets for a given flow in order. In leaf spine fabrics, this complements ECMP at Layer 3 by delivering parallelism both at the routed path level and within a single adjacency when multiple physical links exist.

LAG does not encrypt traffic. Encryption is provided by separate security features and protocols. It also does not increase the speed of a single physical interface; rather, it increases the total capacity of the logical bundle across multiple links. Finally, it does not assign IP addresses, which is the role of services like DHCP, not link aggregation.
