JN0-364 Service Provider Routing and Switching - Specialist (JNCIS-SP) Questions and Answers

In the IPv6 architecture, the base header is kept at a fixed size of 40 bytes to streamline processing. Any additional features or options are handled by Extension Headers , which are inserted between the IPv6 header and the upper-layer protocol. According to Juniper Networks technical documentation and RFC 8200, when a source node needs to list one or more intermediate nodes to be "visited" on the way to the final destination, it utilizes the Routing extension header (Option B) .

The Routing header is functionally similar to the "Source Route" option in IPv4. When a packet contains a Routing header, it is addressed to the first intermediate node listed in the header. That node examines the header, swaps its own address with the next address in the list, and forwards the packet. This process continues until the packet reaches the final destination. This is a foundational component for technologies like Segment Routing over IPv6 (SRv6) , where the Routing header (specifically the Segment Routing Header or SRH) is used to steer traffic through a specific set of service instructions or nodes.

To distinguish this from the other options:

Hop-by-hop options (Option A): These carry information that must be examined by every node along the path (such as Router Alert), not just specific intermediate nodes.

Fragment (Option C): This is used only when the source node needs to fragment a packet that exceeds the path MTU.

Destination options (Option D): These carry optional information intended specifically for the destination node (or nodes listed in a Routing header), but they do not dictate the path themselves.

In the Border Gateway Protocol (BGP) finite state machine (FSM), the Established state is the final and functional stage of a BGP peering session. According to Juniper Networks technical documentation, once a session reaches this state, the two peers have successfully exchanged Open messages and agreed upon session parameters (such as AS numbers, hold timers, and BGP identifiers). Only after the session is "Established" can the routers begin the actual exchange of network layer reachability information (NLRI).

The most frequent message type exchanged in the Established state is the UPDATE message. These messages are the heart of BGP operations; they are used to advertise new feasible routes to a peer or to withdraw routes that are no longer reachable. An UPDATE message contains path attributes (like AS-Path, Next-Hop, and Local Preference) and the associated prefixes. In a stable network, UPDATE messages are only sent when there is a change in the topology, adhering to BGP’s incremental update philosophy.

The second message type that can be exchanged in this state is the NOTIFICATION message. While ideally, a session stays established, any detected error—such as a hold timer expiration, a malformed update, or a manual "clear" command—will trigger the transmission of a NOTIFICATION message. This message informs the peer of the specific error code and immediately causes the BGP session to transition back to the Idle state, tearing down the TCP connection.

It is important to note that OPEN messages (Option A) are only used during the session initialization phase to transition from the OpenConfirm state to Established. REQUEST (Option B) is not a valid BGP message type defined in the standard (RFC 4271); the closest equivalent in functionality would be a Route-Refresh message, which is a separate extension. Therefore, in the context of standard BGP operations within the Established state, Updates and Notifications are the correct answers.

The Border Gateway Protocol (BGP) operates based on a strict set of advertisement rules designed to prevent routing loops while ensuring global reachability. These rules differ significantly depending on whether the relationship is External BGP (EBGP) or Internal BGP (IBGP) .

1. EBGP Advertisement (Option A): In a standard EBGP scenario, a router acts as an exit/entry point for an Autonomous System. When an EBGP speaker receives a valid route from any peer (Internal or External), it will, by default, advertise that route to all of its other EBGP peers. This is the primary mechanism that allows prefixes to propagate across the global internet from one AS to another.

2. IBGP Split Horizon (Option D):

The most critical rule within an AS is the IBGP Split Horizon rule. To prevent loops within an AS, BGP dictates that a route learned from an IBGP peer must not be advertised to any other IBGP peer. This is why BGP requires a "full mesh" of IBGP sessions or the use of Route Reflectors to ensure all internal routers learn all routes. Without this rule, a route could circulate infinitely within the AS because IBGP does not update the AS_PATH attribute.

3. EBGP to IBGP Propagation (Option B):

When a router learns a route from an EBGP peer, it is permitted to advertise that route to all of its IBGP peers. This ensures that everyone inside the network knows how to reach external destinations. However, it is important to remember that in Junos OS, the BGP Next Hop is not modified by default when sending routes to IBGP peers, often requiring a "next-hop-self" policy to ensure internal reachability.

Options C and E are incorrect because they directly contradict these fundamental BGP loop-prevention and propagation mechanisms.

In a Juniper Networks environment, when a router receives multiple BGP paths for the same destination prefix, it utilizes the BGP Path Selection Algorithm to determine the single "best" path to install in the routing table and advertise to other peers. This selection process follows a strict hierarchy of attributes.

According to Juniper Networks technical documentation, the very first attribute evaluated by the BGP process (after ensuring the next hop is reachable) is the Local Preference . Local preference is a well-known discretionary attribute used to communicate a preference for a specific exit point from the local Autonomous System (AS). A higher local preference value is always preferred over a lower one.

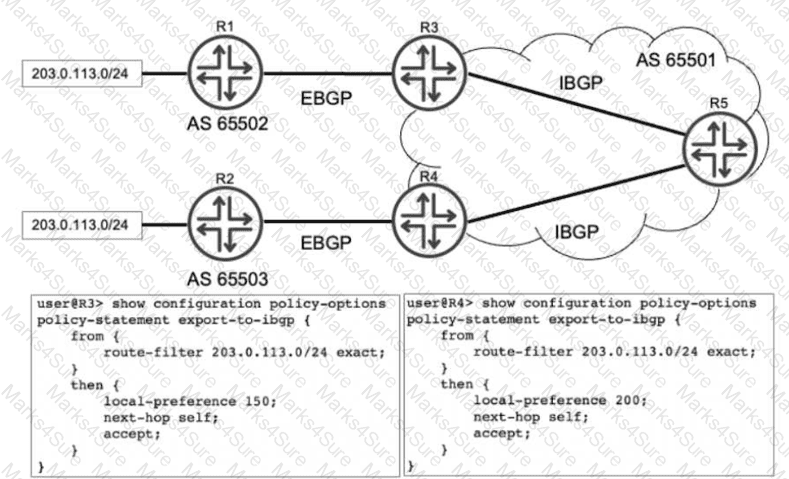

Analyzing the exhibit:

R3 receives the prefix from R1 and applies an export policy to its IBGP session that sets the local preference to 150 .

R4 receives the same prefix from R2 and applies an export policy to its IBGP session that sets the local preference to 200 .

R5 receives both of these IBGP updates from R3 and R4.

When R5 runs the best-path algorithm for the 203.0.113.0/24 prefix, it compares the local preference values. Since the path from R4 has a local preference of 200 and the path from R3 has a local preference of 150, R5 immediately selects the path from R4 as the best route. Because BGP is designed to prevent loops and maintain a consistent view, only this single best path is installed as the active route in R5's routing table (inet.0). Options B and D are incorrect because they imply multiple paths are installed for forwarding, which only occurs if specific multipath load-balancing is configured, which is not indicated here.

In Junos OS, the Routing Engine maintains several different tables to manage various types of reachability and forwarding information. When a router is running MPLS, it must track both IP routes and label-to-label mappings.

The mpls.0 table is the primary repository for the Label Information Base (LIB) and the Label Forwarding Information Base (LFIB) . According to Juniper Networks documentation, mpls.0 is used by transit and egress routers to perform label lookups. When a labeled packet arrives at an interface, the router looks at the top label and references the mpls.0 table to determine the next action. This table stores the mapping of incoming labels to their corresponding operations: Pop (remove the label), Swap (replace the label), or Push (add an additional label).

It is crucial to understand the roles of the other tables to avoid confusion:

inet.0 (Option D): This is the default unicast routing table for IPv4, used for standard IP-to-IP forwarding.

inet.3 (Option C): This is the MPLS Path Table . It stores the egress loopback addresses of LSPs and is used by BGP for next-hop resolution to determine if a destination can be reached via an MPLS tunnel. While inet.3 knows about LSPs, the actual label-switching instructions reside in mpls.0.

inet6.0 (Option A): This is the default unicast routing table for IPv6.

Therefore, for the specific purpose of storing the label base used for transit switching operations, mpls.0 is the correct and only table used in the Junos architecture.

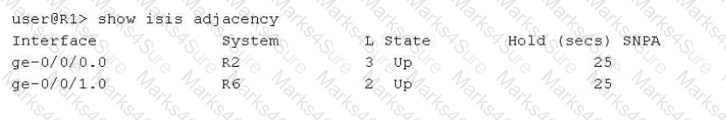

In the IS-IS (Intermediate System to Intermediate System) protocol as implemented in Junos OS, the output of operational commands uses specific numerical representations to denote the hierarchy levels of a neighbor adjacency. Understanding these values is crucial for troubleshooting peering relationships in a multi-level IS-IS network.

According to Juniper Networks technical documentation, the show isis adjacency command displays the status of the neighbors. The "L" column indicates the level of the adjacency:

Level 1: Indicates the adjacency is strictly for intra-area routing.

Level 2: Indicates the adjacency is strictly for backbone/inter-area routing.

Level 3: This is a shorthand representation used by Junos to indicate that a single adjacency has been established for both Level 1 and Level 2 simultaneously .

The critical distinction in this question lies in the interface type. On a broadcast interface (such as standard Ethernet), IS-IS typically establishes and maintains separate adjacencies for Level 1 and Level 2. In the CLI output for a broadcast link, you would generally see two separate lines for the same neighbor—one for Level 1 and one for Level 2.

However, on a point-to-point (P2P) interface, IS-IS can negotiate both levels within a single adjacency. When this occurs, Junos consolidates the output into a single entry and uses Level 3 to signify that the adjacency is functional for both levels. Since the exhibit shows ge-0/0/0.0 as Level 3, it confirms that the link is configured with a point-to-point encapsulation (either natively or via the interface-type p2p command) and is acting as a Level 1/2 adjacency.

Option B is incorrect as the number "3" refers to protocol levels, not the count of neighbors. Option C is a reference to data center architectures that does not influence IS-IS level nomenclature. Option D is incorrect because, as noted, broadcast interfaces display these levels separately rather than using the Level 3 shorthand.

In the OSPF (Open Shortest Path First) protocol, ensuring that all routers within an area have a synchronized Link-State Database (LSDB) is fundamental to building a consistent loop-free topology. During the adjacency formation process—specifically when transitioning from the ExStart state to the Exchange state—routers must determine what information they are missing from their neighbors without sending the entire database at once, which would be highly inefficient.

The Database Description (DBD) packet, also known as a DDP, is the mechanism used for this summary exchange. According to Juniper Networks technical documentation, the DBD packet does not contain full Link-State Advertisements (LSAs). Instead, it contains only the LSA headers , which include the LSA type, the ID of the advertising router, and the sequence number.

By exchanging these headers, a Juniper router can compare the neighbor's database summary against its own local LSDB. If the router identifies a header in the DBD packet that represents a newer or missing entry, it records that LSA in its "Link-State Request List." This collaborative "handshake" ensures that only the necessary, updated information is requested in the subsequent Link-State Request (LSR) phase. It is important to distinguish this from the Link-State PDU (LSP) mentioned in Option D, which is actually the term used in the IS-IS protocol, not OSPF. In OSPF, the functional unit is the LSA, and the transport vehicle for the initial summary is the DBD packet. This methodical synchronization is what allows OSPF to scale effectively in large service provider environments.

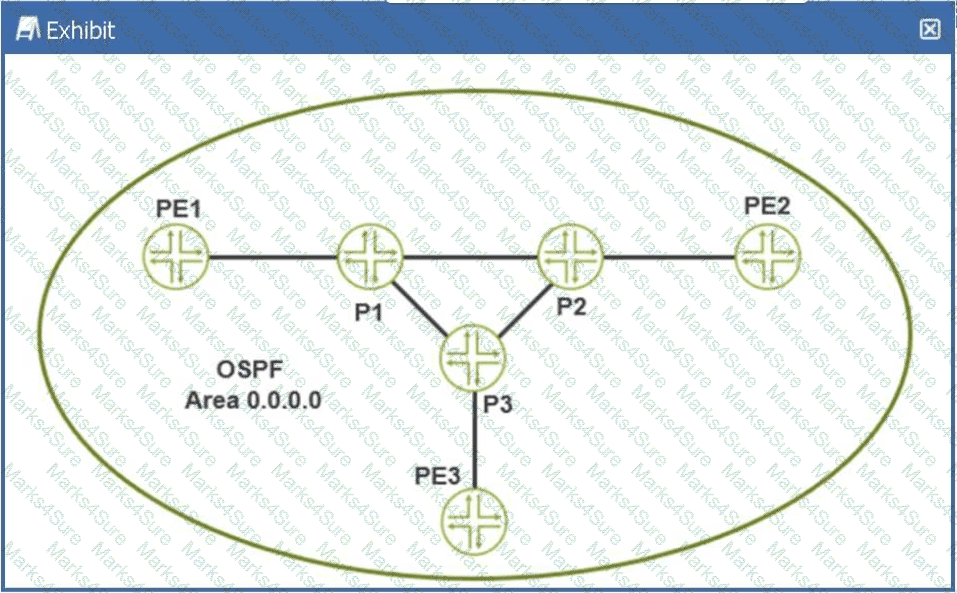

In OSPF, loop prevention within a single area is achieved through the fundamental nature of its link-state architecture. Unlike distance-vector protocols that rely on "routing by rumor," OSPF ensures that every router within an area maintains an identical Link-State Database (LSDB) . This database acts as a complete map of the network topology.

Once the LSDB is synchronized, each router independently executes the Shortest Path First (SPF) algorithm , which is formally known as the Dijkstra algorithm . This mathematical process treats the local router as the "root" of a tree and calculates the shortest path to every other node (router) and prefix in the area based on the cumulative interface costs. Because every router uses the same synchronized map (the LSDB) and the same deterministic algorithm, they all arrive at a consistent, loop-free view of the best paths.

According to Juniper Networks technical documentation, the Dijkstra algorithm is superior to the Bellman-Ford algorithm (used by distance-vector protocols like RIP) in this regard. Bellman-Ford is susceptible to "count-to-infinity" problems and loops because routers only know the distance and direction to a destination provided by their neighbors, rather than the full topology. In OSPF, even if a link fails, the updated Link-State Advertisement (LSA) is flooded rapidly, and the Dijkstra algorithm is re-run to find a new loop-free path. Routing policies (Option B) are used to manipulate path selection or filter routes but are not the primary mechanism for fundamental loop prevention in OSPF. Similarly, forwarding policies (Option D) govern how traffic is handled at the data plane level rather than determining the control plane's loop-free topology.

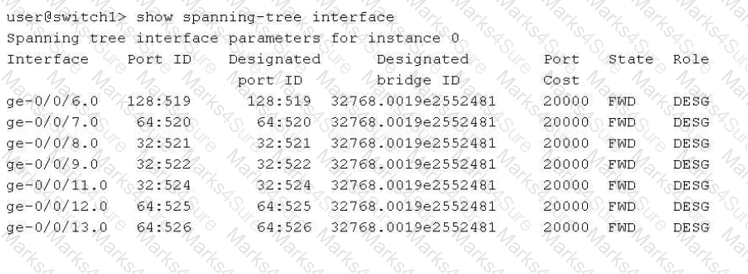

In the provided exhibit, the output of the command show spanning-tree interface for switch1 reveals critical details about the Spanning Tree Protocol (STP) operational state.

The first correct statement is that the switch1 device is the root bridge (Option B). This is determined by comparing the "Port ID" column with the "Designated port ID" column, as well as checking the "Designated bridge ID". In the exhibit, for every interface listed (from ge-0/0/6.0 to ge-0/0/13.0), the Port ID and the Designated port ID are identical. Furthermore, every port is in the "FWD" (Forwarding) state with the "DESG" (Designated) role. In a Spanning Tree topology, the root bridge is the only device where all active participating interfaces serve as designated ports, as it has no need for a "Root" port role (which points toward a root bridge).

The second correct statement is that the bridge priority for switch1 is 32k (Option D). Looking at the "Designated bridge ID" column, we see the value 32768.0019e2552481. In Junos and general networking standards, the Bridge ID is composed of a bridge priority and the device's MAC address. The default priority for most Spanning Tree variants (STP, RSTP, MSTP) is 32,768, which is commonly referred to in shorthand as "32k".

Regarding the incorrect options:

Option A: There is no evidence of VSTP (VLAN Spanning Tree Protocol); the output shows "instance 0," which is typical for IEEE standard RSTP or STP.

Option C: The Port IDs for ge-0/0/8, ge-0/0/9, and ge-0/0/11 all start with "32" (e.g., 32:521), whereas the default port priority is typically 128 (as seen in ge-0/0/6.0 with 128:519). This indicates that the interface priorities for these specific ports have been manually tuned to a non-default value.

To support dual VLAN tagging (often referred to as Q-in-Q or 802.1ad), a Juniper interface must be configured to process more than one 802.1Q header. In Junos OS, this is handled at the physical interface level ([edit interfaces < interface-name > ]).

According to Juniper Service Provider documents, two primary configuration statements enable this capability:

stacked-vlan-tagging (Option D): This is the traditional command used to enable an interface to accept frames with two VLAN tags. When this is enabled, the router expects an outer "service" tag and an inner "customer" tag. This is specifically used in provider edge scenarios where a service provider is tunneling multiple customer VLANs.

flexible-vlan-tagging (Option A): This is a more modern and versatile command. It allows the interface to support a mix of different encapsulation types across different logical units. For example, with flexible-vlan-tagging, you can have one logical unit (unit 10) doing standard single-tagging and another logical unit (unit 20) doing dual-tagging (vlan-tags outer X inner Y). This is the preferred method on newer hardware (like the MX Series) because it provides the highest level of configuration flexibility.

Vlan-tagging (Option C) only enables the interface to support a single 802.1Q tag, and gigether-options (Option B) contains physical-layer settings like auto-negotiation or flow control, which do not influence VLAN encapsulation. Therefore, A and D are the correct mechanisms for enabling dual-tag support.

In a service provider environment, Q-in-Q tunneling (also known as 802.1ad or double-tagging) is the standard solution for transporting multiple customer VLANs over a shared provider backbone while maintaining total separation.

According to Juniper Networks documentation, Q-in-Q works by adding a second 802.1Q tag (the Service Provider tag or S-tag) to the customer’s already tagged frames (the Customer tag or C-tag). This creates a "tunnel" at Layer 2. This solution specifically addresses all the customer's requirements:

Transparent Layer 2 Connectivity: Because the provider simply encapsulates the customer's frames, the customer's internal BPDU traffic (like Spanning Tree) and VLAN tags are preserved and delivered transparently to the remote site.

Separation of Internal VLANs: The customer can run their own internal VLAN IDs (1-4094) without the provider needing to know or manage them.

Conflict Avoidance: Different customers on the same provider infrastructure are assigned unique S-tags. Even if two different customers both use "VLAN 10" internally, they remain isolated because their traffic is encapsulated in different provider S-tags.

Why other options are incorrect:

Layer 3 VPN (Option B): While MPLS L3VPNs are common, they provide Layer 3 (IP) connectivity, not the "transparent Layer 2" connectivity requested.

GRE Tunnels (Option C): GRE is a Layer 3 encapsulation and does not natively provide the transparent VLAN bridging required for a multi-site Layer 2 service.

NAT/Firewall (Option D): These are security and address-translation services for internet access and do not facilitate site-to-site Layer 2 bridging.

The Hello packet is the most basic, yet most vital, component of the OSPF protocol. It serves as the primary mechanism for neighbor discovery, parameter negotiation, and "keepalive" functionality. Per Juniper Networks' routing documentation, OSPF routers use the Hello protocol to dynamically discover other OSPF-enabled routers on their directly connected segments.

When OSPF is enabled on a Junos interface, the router begins multicasting Hello packets (typically to the 224.0.0.5 "All OSPF Routers" address). This initiates the neighbor relationship. For two routers to move beyond the Init state and become neighbors, they must agree on several critical parameters contained within the Hello packet:

Area ID: Routers must be in the same OSPF area.

Authentication: Passwords or keys must match.

Timers: The Hello and Dead intervals must be identical.

Options: Such as Stub area flags.

Beyond the initial "initiation," the Hello packet is used to maintain the relationship. By continuously sending these packets at a fixed interval (the Hello interval), a router signals to its peers that it is still functional. If a router stops receiving Hello packets from a neighbor for a duration exceeding the Dead Interval , it declares the neighbor "down," flushes the associated LSAs from the database, and triggers a new SPF calculation.

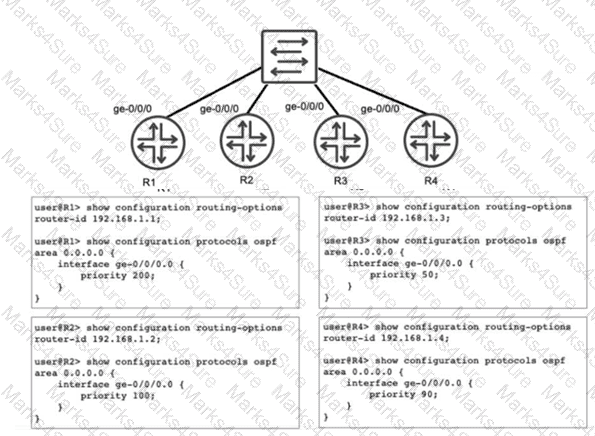

Furthermore, on multi-access networks like Ethernet, the Hello packet is the vehicle for the election of the Designated Router (DR) and Backup Designated Router (BDR) . By exchanging priority values and Router IDs within the Hello packets, the segment can elect a central point of contact to minimize the number of adjacencies required on the wire.

In the IS-IS (Intermediate System to Intermediate System) protocol, the process of forming an adjacency between two neighbors follows a specific sequence of states. While OSPF uses states like "Init," "Two-Way," and "Full," IS-IS uses a slightly different nomenclature within its state machine.

According to Juniper Networks technical documentation, when a router first sends an IS-IS Hello (IIH) PDU and receives one back from a neighbor, but has not yet confirmed that the neighbor "sees" it back, the adjacency enters the Initializing state. Specifically, on a point-to-point link, the state transitions from Down to Initializing as soon as the first PDU is received. On a broadcast network (like Ethernet), the Initializing state indicates that the local router has received a Hello PDU from the neighbor, but the local router's own System ID is not yet listed in the neighbor's list of "seen" neighbors (the neighbor's Hello PDU does not yet contain the local router's MAC address).

The adjacency only moves to the Up state (Option C) once bi-directional communication is confirmed—meaning both routers have seen each other's System IDs in the incoming Hello PDUs.

Why other options are incorrect:

Loading (Option A): This is an OSPF state, not an IS-IS state. In IS-IS, database synchronization happens after the adjacency is Up.

Two-Way (Option D): While functionally similar to the state IS-IS is achieving, "Two-Way" is the specific terminology for OSPF. In IS-IS, the intermediate step between knowing a neighbor exists and having a fully functional adjacency is strictly called Initializing .

One of the most significant architectural improvements in IPv6 is the move from a complex, variable-length header (as seen in IPv4) to a streamlined, fixed-length base header of 40 bytes. Additional functionality that was previously handled by "Options" in IPv4 is now moved to Extension Headers , which are inserted between the IPv6 base header and the upper-layer protocol (TCP/UDP).

According to Juniper Networks technical documentation and RFC 8200, the following are valid IPv6 Extension Headers:

Hop-by-Hop Options (Option B): This header carries optional information that must be examined by every node along the delivery path. It is used for features like the Router Alert and Jumbo Payload options.

Fragment (Option E): Unlike IPv4, where any router can fragment a packet, in IPv6, fragmentation is performed only by the source node. The Fragment header contains the information necessary for the destination to reassemble the packet (Offset, Identification, and More Fragments flag).

Destination Options (Option A): This header carries information intended only for the destination node. It can appear twice: once before a routing header and once after.

Why other options are incorrect:

Protocol (Option C): In IPv4, this was a field in the header. In IPv6, this is replaced by the Next Header field, which identifies the type of the following header (whether it's an extension header or the upper-layer protocol).

Header Checksum (Option D): This field was entirely removed in IPv6. IPv6 relies on the data link layer (Ethernet) and the transport layer (TCP/UDP) to perform error detection, significantly reducing the processing overhead for routers in the core of a service provider network.

When implementing Multiprotocol BGP (MP-BGP) for IPv6, several architectural constants remain consistent with the original BGP design, while others have evolved to accommodate larger network scales.

Router ID (Option C):

A critical point in Juniper's Service Provider documentation is that the BGP Router ID remains a 32-bit value , even when the protocol is carrying 128-bit IPv6 prefixes. The Router ID is typically represented in dotted-quad notation (e.g., 192.168.1.1). In an IPv6-only environment, a Juniper router cannot automatically derive this ID from an interface address, so it must be manually defined under [edit routing-options]. This 32-bit ID is essential for BGP tie-breaking and loop prevention within the AS.

Autonomous System Number (Option D):

The Autonomous System Number (ASN) was originally a 16-bit value (0 to 65535). However, to address the exhaustion of available ASNs, the standard was extended to 32-bit ASNs (documented in RFC 6793). In Junos OS, you can configure BGP using either the older 16-bit format or the newer 32-bit format (often represented in "asplain" or "asdot" notation). While the question mentions a 64-bit value, there is currently no standard for a 64-bit ASN in BGP; the transition from 16-bit to 32-bit satisfies current global scalability needs. Therefore, Option D is the most accurate within the context of current networking standards, as it acknowledges the coexistence of different ASN lengths.

In the BGP Finite State Machine (FSM), the Idle state is the first stage of any BGP connection. When a BGP session is "stuck" in Idle, it typically indicates that the router is unable to even begin the process of establishing a TCP connection with its neighbor. According to Juniper Networks documentation, before BGP can transition to the Connect or Active states, it must have a valid route to the neighbor's IP address in the routing table and be able to initiate a three-way TCP handshake on port 179.

If the peer IP address is incorrect (Option D), the router may not have a route to that destination, or it may be attempting to connect to a non-existent or unreachable host. In many Junos configurations, if the underlying IGP (OSPF/IS-IS) or static routing cannot provide reachability to the neighbor address defined in the BGP configuration, the BGP process will remain in the Idle state and periodically retry the connection.

Regarding the other options:

The local AS number is missing (Option C): In Junos, you cannot commit a BGP configuration if the local autonomous system is not defined at either the [edit routing-options] level or within the BGP group itself. The commit check would fail before the session could even attempt to start.

The BGP group type (Option B): Having a mismatch in group type (internal vs. external) usually results in the session reaching the OpenSent or OpenConfirm state before failing due to an "unacceptable AS" error in the OPEN message.

BGP hold time (Option A): Issues with hold timers or keepalives generally cause a session that is already in the Established state to drop; they do not prevent the session from leaving the Idle state.
