JN0-452 Mist AI Wireless - Specialist (JNCIS-MistAI-Wireless) Questions and Answers

In a Juniper Mist AI deployment, achieving high-fidelity location accuracy is entirely dependent on the digital twin (the floor plan in the Mist UI) accurately reflecting the physical environment. While scaling the map is the foundation, AP orientation is the most critical variable for the vBLE (virtual Bluetooth Low Energy) engine to correctly calculate a client's position.

Mist Access Points, such as the AP43 or AP45, feature a patented 16-element directional vBLE antenna array. This array does not broadcast in a simple omnidirectional circle; instead, it uses eight distinct directional beams to blanket an area. The Mist Cloud uses "probability surfaces" to determine a user's location by examining the RF fingerprints from these specific beams. If an AP is physically mounted with its LED pointing toward a specific hallway, but is oriented in the Mist UI facing a different direction, the location engine will receive signal data that does not match its internal map of the beams. This results in "flipped" locations or "teleporting," where a user appears on the opposite side of the AP from where they actually are.

To ensure accuracy, administrators must use the small green dot on the outer ring of the AP icon in the Mist Live View. This green dot represents the physical LED on the AP hardware. The orientation in the UI must be rotated so that the green dot points in the exact same direction as the physical LED relative to the floor plan's perspective. It is a common misconception that APs must face true north (A) or geographical north (D); the map and APs can be oriented in any way that is convenient for the facility layout, provided the relative alignment between the virtual icon and the physical device is identical.

In 802.11 wireless networking and the Juniper Mist ecosystem, Passive Scanning is one of the two primary methods a client station (STA) uses to discover available wireless networks.4 In this mode, the client radio does not transmit any data to find an Access Point. Instead, it "waits and listens" on each supported channel for a specific period of time to hear Beacon Frames.5

Beacons are management frames sent periodically by an AP (typically every 100ms) to announce the presence and capabilities of a Basic Service Set (BSS).6 These frames contain critical information such as the SSID (Network Name), supported data rates, security protocols (RSN), and PHY requirements.7 Because the client only needs to keep its receiver active and does not have to power up its transmitter to send probe requests, passive scanning is significantly more power-efficient than active scanning, making it ideal for battery-constrained IoT devices.

However, the trade-off for this power efficiency is time. Since a client must stay on each channel long enough to guarantee it hears a beacon (at least one full beacon interval), scanning the entire 2.4 GHz, 5 GHz, and 6 GHz spectrum can take several seconds. In contrast, Active Scanning (options B, C, and D) involves the client sending Probe Requests (either wildcard/null or directed to a specific SSID) and waiting for a much shorter period for a Probe Response.8

From a Mist AI perspective, the dedicated scanning radio in Mist APs (like the AP43/AP45) performs its own version of passive and active scanning to build a complete map of the RF environment. This data is used by Marvis to detect "Neighbor" and "Honeypot" APs. While most modern mobile clients prefer active scanning to speed up the discovery and roaming process, passive scanning remains a fundamental requirement—especially on DFS channels where regulatory rules prohibit a client from transmitting until it has first "listened" to confirm no radar is present.

Transmissions over Wi-Fi are shared medium and half-duplex.

According to the IEEE 802.11 - Wikipedia document2, two terms that correctly describe transmissions over Wi-Fi are:

Shared medium, which means that multiple devices use the same wireless channel and have to compete for access and avoid collisions.

Half-duplex, which means that devices can either transmit or receive data at a time, but not both simultaneously.

In the Juniper Mist AI ecosystem, troubleshooting the mobility experience of a user requires analyzing the transitions between Access Points (APs). When a client reports a "poor experience when moving," it almost always points to a breakdown in the roaming process, such as sticky clients (devices that refuse to move to a closer AP), slow handoffs, or authentication failures during a roam. The Marvis Query Language (MQL) provides a conversational and structured way to extract this specific data using the ROAMINGOF clause.

The ROAMINGOF clause is designed to filter the massive amount of telemetry collected by Mist and focus specifically on the events surrounding a client's transition from one radio to another. When you execute a query like "Roaming of [Client Name]," Marvis returns a detailed visualization of the client's journey. This includes the signal strength (RSSI) at the time of the roam, the duration of the handoff, and whether the roam was "successful," "slow," or "failed".

By using this clause, an administrator can quickly identify if the "poor experience" is caused by poor overlap (where RSSI drops too low before a new AP is found) or if the client is holding onto a distant AP (sticky client behavior). Other clauses like STATUSOF (A) are used for general health checks, UTILIZATIONOF (C) tracks radio or site traffic levels, and RANK (D) is typically used to identify the best or worst performing entities (like "Rank APs by interference"). Only ROAMINGOF provides the temporal and spatial correlation needed to fix issues specifically related to user movement within the office environment.

In Juniper Networks Mist AI Wireless, understanding modulation schemes is essential for designing and operating high-performance Wi-Fi 6 (802.11ax) networks. Modulation directly affects how much data can be transmitted per symbol, and therefore determines the maximum achievable data rates under optimal RF conditions.

802.11ax introduces 1024-QAM (Quadrature Amplitude Modulation) as its highest supported modulation scheme. With 1024-QAM, each symbol encodes 10 bits of data, which represents a significant increase compared to earlier standards. For reference:

64-QAM (used in earlier standards) carries 6 bits per symbol

256-QAM (introduced in 802.11ac) carries 8 bits per symbol

1024-QAM increases this to 10 bits per symbol

This higher bit density allows Wi-Fi 6 devices to achieve higher peak throughput, especially in environments with excellent signal quality. However, 1024-QAM requires very high Signal-to-Noise Ratio (SNR) and low interference to function reliably. As a result, it is typically achieved only when clients are close to the access point and RF conditions are clean.

Mist AI Wireless continuously monitors client RSSI, SNR, retransmissions, and modulation rates through advanced telemetry. Using this data, Mist can determine whether clients are successfully operating at higher modulation levels like 1024-QAM or are falling back to lower schemes due to RF impairments. This insight directly feeds into SLEs and AI-driven recommendations for RF tuning, AP placement, and channel planning.

The incorrect options are explained as follows:

64-QAM and 256-QAM are valid modulation schemes but do not provide the highest data rates in 802.11ax.

4096-QAM is not supported by the 802.11ax standard and is therefore invalid.

Thus, 1024-QAM is the modulation scheme that provides the highest data rate level for 802.11ax devices.

In Juniper Networks Mist AI Wireless, access points must be claimed to an organization in the Mist cloud before they can be configured, monitored, and managed. When deploying APs at scale, Juniper provides an efficient mechanism to onboard multiple access points simultaneously using an activation code.

An activation code is a bulk-claim method generated within the Mist cloud portal. This code is typically associated with a purchase order or shipment and can represent dozens, hundreds, or even thousands of access points. When the activation code is applied to an organization, all APs tied to that code are automatically claimed at once. This approach is especially valuable for enterprise and campus deployments, where manual per-device onboarding would be impractical.

Once claimed using an activation code, APs can be assigned to sites, receive configurations, and leverage Zero-Touch Provisioning (ZTP). As soon as the APs obtain network connectivity and reach the Mist cloud, they automatically download their configuration and become operational without further manual intervention.

The other options are incorrect for the following reasons:

QR codes are used for claiming individual APs, typically during small deployments or troubleshooting scenarios.

Digital certificates are used for secure authentication and communication but are not a method for claiming APs to an organization.

The Juniper Mist Mobile Application can assist with onboarding and visibility but does not provide a bulk-claim mechanism for large numbers of APs.

Therefore, the correct and documented method for claiming multiple Juniper Access Points simultaneously is to use an activation code, making option A the correct answer.

According to the Create a Mist Account and Organization - Mist document1, two fields that are required when creating a new site are:

Site name, which is a unique identifier for the site within the organization.

Time zone, which is used to display the correct time for events and reports related to the site.

In a traditional wireless environment, verifying the functionality of network services like DHCP, DNS, or captive portals requires a physical presence at the site or an active client to report telemetry. However, the Marvis Minis feature within the Juniper Mist AI ecosystem is specifically designed to solve the problem of "empty site" verification. Marvis Minis act as Digital Twins—virtualized client agents that reside directly on the Mist Access Points (APs).

Because they are integrated into the AP firmware, Marvis Minis can simulate client behavior without requiring any actual user devices to be connected to the WLAN. When an administrator wants to verify that DHCP is working on a specific SSID, Marvis Minis perform automated "synthetic testing." The virtual client will attempt to associate with the WLAN, complete the 802.11 authentication/association process, and then request an IP address via DHCP. If the DHCP server is unreachable, the pool is exhausted, or the response is too slow, Marvis Minis will detect this failure and report it to the Mist Cloud.

This proactive validation is part of Mist’s "Always-On" network testing strategy. While Marvis Actions (D) would eventually report a DHCP failure once real clients started failing, and Marvis Query Language (C) could be used to search for historical failures, only Marvis Minis (B) can actively test and verify the service in a scenario where there are currently no clients. This allows engineers to identify and fix "sleeping" issues—such as a misconfigured VLAN on a switch port or a downed DHCP server—before the first user even walks into the building, ensuring a "validated" network state at all times.

Referring to the exhibit and considering that it is in the USA, the WLAN with SSID Eero1234 is not configured to industry best practices while the WLAN with SSID NETGEAR24 is configured to industry best practices.

In Juniper Networks Mist AI Wireless, a rogue access point (AP) is precisely defined to avoid confusion with external or non-threatening wireless devices. Mist qualifies a rogue AP as an unauthorized access point that is physically connected to your wired network infrastructure.

This distinction is critical from a security perspective. A rogue AP represents a direct threat because it bypasses established security controls by providing wireless access into the enterprise wired network without authorization. Such APs are often installed by users without IT approval or, in more serious cases, by malicious actors attempting to gain internal network access.

Mist APs continuously scan the RF environment and correlate wireless observations with wired-side intelligence. If an AP is detected advertising SSIDs and Mist can confirm—through MAC address correlation and wired discovery—that the device is connected to the enterprise’s wired network but is not claimed or authorized in the Mist cloud, it is classified as a rogue AP. This allows administrators to take immediate remediation actions, such as physical removal or switch-port shutdown.

The other options are incorrect for the following reasons:

Neighbor APs are access points belonging to nearby organizations or environments and are not security threats by default. Mist classifies these separately for RF awareness.

APs close to your network as measured by RSSI may simply be physically nearby but not connected to your infrastructure; proximity alone does not make an AP rogue.

Honeypot APs are intentionally deployed decoy access points used in security research or attack detection and are not Mist’s definition of a rogue AP.

Therefore, Mist correctly defines a rogue AP as an unauthorized AP connected to your wired network, making option A the correct answer.

The 37% of Successful Connects suggest that 63% failed – however, these are spread between both LD_Testbed_MD and LD_RS_Support. If the only AP with connection issues was LD_RS_Support then the reverse math may have worked.

According to the Juniper Mist Wireless Deployment Service Datasheet1, a configuration template at the organization level can be applied to a site group, not to an individual site. Therefore, there is no option to mention the site in the config template at the organization level.

Mist Radio Resource Management (RRM) performs several functions including transmit power control and channel assignment which help optimize wireless network performance by dynamically adjusting radio settings based on changing environmental conditions.So,the correct answers are A.transmit power control and C.channel assignment

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide1, two functions of Mist Radio Resource Management (RRM) are:

Transmit power control, which adjusts the transmit power of APs based on their coverage area and interference level.

Channel assignment, which assigns channels to APs based on their location and interference level.

In Juniper Networks Mist AI Wireless, the behavior described in this scenario is explained by dynamic rate shifting. Dynamic rate shifting is the mechanism by which a wireless client and access point automatically adjust the modulation and coding scheme (MCS) based on current RF conditions to maintain a reliable connection.

When a client is close to an access point, RF conditions are optimal—high RSSI, high signal-to-noise ratio (SNR), and low error rates—allowing the client to use higher-order modulation schemes such as 1024-QAM (in 802.11ax). These modulation schemes deliver higher throughput but require very clean RF conditions. As the client moves farther away from the AP, signal strength decreases and noise becomes more impactful, increasing frame errors and retransmissions.

Dynamic rate shifting continuously evaluates transmission success, retry rates, and acknowledgments. When errors increase, the client steps down to lower modulation rates (for example, from 1024-QAM to 256-QAM or 64-QAM) that are more resilient to reduced signal quality. This trade-off sacrifices peak throughput in favor of connection stability and reliability.

The other options describe contributing factors, but not the mechanism itself:

RSSI indicates signal strength but does not control rate selection.

SNR influences modulation decisions but is not the adaptive process.

Free space path loss explains why signal weakens over distance but does not describe how rates are adjusted.

Mist AI Wireless monitors modulation rates, retries, and throughput via advanced telemetry and uses this data in Wireless Assurance SLEs to highlight RF and performance issues. However, the actual process of stepping up or down transmission rates in response to changing RF conditions is governed by dynamic rate shifting.

Therefore, the correct answer is C. Dynamic rate shifting.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, Dynamic Packet Capture is a feature that enables capturing packets from a client device and downloading them as a pcap file. This file can be used for troubleshooting purposes or sent to a vendor for analysis.

Syslog is a protocol that can be used to forward event messages from Mist to an external log collector.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide1, syslog is a feature that enables forwarding event messages from Mist to an external log collector. Syslog messages can be sent over UDP or TCP protocols.

According to the Location - how it works - Mist document1, a Mist AP actually begins transmitting BLE when it is placed on a floor plan. This is because the Mist cloud uses the floor plan information to calculate the optimal BLE transmission pattern for each AP.

The AI VALIDATED status update means that the issue was opened and Marvis confirms it has been closed.

According to the Marvis Virtual Network Assistant Datasheet1, the AI-VALIDATED status update means that the issue was opened and Marvis confirms it has been closed. This status indicates that Marvis has verified that the issue is no longer present and the root cause has been resolved.

As part of the Throughput SLE in the Mist UI, the Coverage classifier indicates the signal strength of the client.

In Juniper Networks Mist AI Wireless, Marvis Minis are purpose-built synthetic clients designed to proactively validate end-user experience by continuously testing the network in the same way a real user device would. To accurately isolate the root cause of connectivity or performance issues, Marvis Minis follow a strict, layered verification sequence that mirrors the logical dependency of network services.

The verification process begins with DHCP. This is the foundational step because, without a valid IP address, no further network communication can occur. Marvis Minis first confirm that the client can successfully complete the DHCP exchange and obtain proper IP configuration, including subnet, gateway, and lease parameters.

Once DHCP is validated, Marvis Minis move to ARP verification. At this stage, the synthetic client confirms it can resolve the MAC address of the default gateway and communicate at Layer 2. ARP issues can prevent traffic from leaving the local network segment even when an IP address is present.

After Layer 2 and Layer 3 reachability are confirmed, Marvis Minis test DNS functionality. DNS resolution is critical for application access, as most modern applications rely on hostname resolution rather than raw IP addresses. Failed or slow DNS responses are a common cause of perceived “application outages.”

Finally, Marvis Minis validate the application layer. This includes testing reachability, response time, and success of specific application transactions such as HTTPS connections, SaaS access, or internal application availability. By the time application testing occurs, all prerequisite network services have already been verified.

The other options are incorrect because they test higher-layer services before validating lower-layer dependencies, which can lead to misleading conclusions. Mist’s ordered approach—DHCP → ARP → DNS → Application—ensures precise fault isolation and actionable insights, allowing Marvis AI to accurately pinpoint where the user experience is breaking down.

In Juniper Networks Mist AI Wireless, Radio Resource Management (RRM) uses multiple decision-making systems to adapt the RF environment intelligently. A channel change triggered by the detection of RADAR on a DFS (Dynamic Frequency Selection) channel is a clear example of an event-driven RRM action.

DFS channels are regulated frequencies that must be shared with weather, military, and aviation radar systems. Regulatory bodies require wireless devices to immediately vacate a DFS channel when radar activity is detected. When a Juniper Mist AP operating on a DFS channel detects radar signatures, it generates a real-time RF event. This event forces the AP to immediately stop transmitting on that channel and move to a new, non-DFS or alternate DFS channel.

Mist classifies this behavior as event-driven RRM because:

The channel change is reactive, not predictive

It is triggered by a specific external RF event (radar detection)

It requires immediate action to maintain regulatory compliance and avoid interference

The other options are incorrect for the following reasons:

FCC compliance defines why the change is required, but it is not an RRM system or decision model.

Global optimization refers to long-term RF tuning across the network based on historical performance data, not immediate forced changes.

Reinforcement learning is used by Mist to optimize RF parameters over time through continuous learning, not for mandatory, instantaneous responses to radar events.

Mist RRM combines event-driven actions, AI-based global optimization, and reinforcement learning to deliver both compliance and performance. In the case of radar detection on a DFS channel, the AP’s channel change is driven by a real-time RF event, making event-driven RRM the correct answer.

In Juniper Networks Mist AI Wireless, accurate location-based services (LBS) depend heavily on proper RF design and access point density. Juniper recommends that devices participating in Mist LBS maintain line-of-sight (LoS) to at least three access points to achieve reliable and consistent location accuracy.

Mist location services use advanced techniques such as RSSI triangulation, virtual BLE (vBLE), and AI-driven probability surface modeling to calculate a device’s position. These algorithms require multiple independent signal measurements to accurately determine a device’s X,Y coordinates. With signals received from three or more APs, Mist can triangulate the device position effectively and minimize errors caused by multipath reflections, attenuation, or transient RF noise.

If a device has line-of-sight to only one or two APs, the system lacks sufficient spatial diversity to calculate a precise location. This can result in ambiguous positioning, reduced accuracy, or excessive location “drift.” While additional APs (four or more) can further improve accuracy and stability—especially in high-value use cases such as asset tracking or wayfinding—three APs is the recommended minimum baseline for dependable LBS performance.

Mist’s AI continuously evaluates signal quality, AP geometry, and environmental factors to refine location estimates, but it cannot compensate for insufficient AP visibility. As a result, Juniper best practices for LBS design emphasize:

Proper AP placement and height

Adequate AP density

Ensuring devices can “see” at least three APs at all times

The other options are incorrect because:

One or two APs do not provide enough data for reliable triangulation.

Four APs may improve accuracy but are not the minimum recommendation.

Therefore, the correct answer is B. 3.

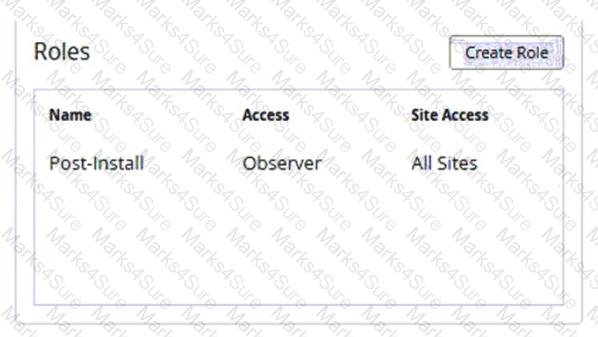

the Post-Install user role is also known as Installer role, which has a minimum level of access to the org, sites, and APs. It can do the initial installation such as claim AP to Org, assign/unassign AP, or place on map, etc., but cannot unclaim or remove the AP from the Org. Site and AP access is allowed based on timed grace period and/or explicit site access.

https://www.mist.com/documentation/mist-ai-mobile-app/

When deploying multiple Mist APs across many sites in your network and grouping similar devices together to easily apply consistent WxLAN policies across multiple sites, you should use device profiles.

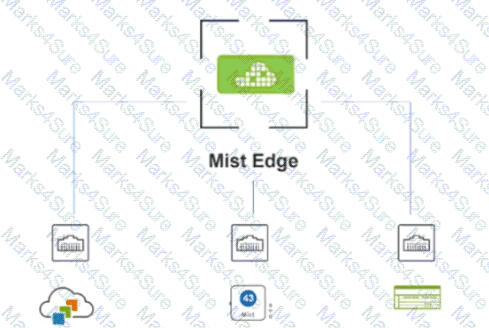

When deploying a Juniper Mist Edge VM (Virtual Machine), the networking architecture is designed to separate different types of traffic to ensure security, scalability, and efficient data handling. Unlike a traditional hardware controller that might use a single trunk port for all traffic, a Mist Edge VM specifically utilizes three primary logical interfaces to function within a data center environment.

The Out-of-Band (OOB) interface (A) is used exclusively for management and control plane traffic. This interface is what connects the Mist Edge to the Mist Cloud via an encrypted tunnel. It is through this port that the Mist Edge receives configuration updates, reports telemetry data to the AI engine, and allows administrators to monitor the health of the VM. By keeping this traffic out-of-band, Juniper ensures that management tasks do not compete with user data throughput.

The Upstream interface (D) is the "northbound" connection. Its primary role is to connect the Mist Edge to the core network or the internet for user data egress. When client traffic is tunneled from the Access Points (APs) to the Mist Edge, the Upstream interface is where that traffic is de-encapsulated and forwarded to the local network resources or the internet gateway. This interface typically connects to a core switch or a DMZ.

The Downstream interface (B) is the "southbound" connection. This is the entry point for the L2TPv3 or Mist Tunnel traffic coming from the Access Points. The APs establish a secure tunnel to this specific interface to transport user data across the Layer 3 network. This separation allows for granular firewall policies and ensures that the tunnel termination point is distinct from the management plane. While the term "Revenue" (E) is often used in carrier-grade routing to describe data-carrying ports, Mist documentation specifically uses the terms Upstream and Downstream to define the data path.

In the Juniper Mist dashboard, managing licenses is handled through the Subscriptions page at the Organization level. This page is critical for ensuring that all deployed hardware (Access Points, Switches, and Gateways) has the necessary cloud services—such as Wi-Fi Assurance, Wired Assurance, or Marvis VNA—to function correctly. The subscription page provides a real-time overview of the organization's licensing health using specific status indicators.

The status Active (D) indicates that the subscription is currently within its valid date range and is being utilized by the hardware in the organization. When a subscription is marked as Active, it means the features associated with that license are fully operational, and the Mist Cloud is actively processing telemetry from the associated devices. This is the primary state for all correctly provisioned licenses.

The status Exceed (B) (often displayed as "Exceeded") is a unique and important state in the Mist ecosystem. Unlike many legacy controllers that might shut down services if a license count is surpassed, Mist uses an "honor-based" system combined with clear visual alerting. The Exceed status appears when the number of physical devices claimed and assigned to a site exceeds the total number of available license seats for a specific service. For example, if an organization has 100 "Wi-Fi Assurance" subscription seats but has deployed 110 Access Points, the status will show as Exceeded.

Mist provides a grace period and persistent notifications to administrators to rectify this by either purchasing more subscriptions or removing excess devices. It is important to note that while terms like "Valid" or "Demo" might be used in general conversation, the specific operational statuses tracked in the subscription table to manage license compliance and expiration are Active, Exceeded, and Expired. These statuses allow IT teams to proactively manage their operational expenditures and ensure uninterrupted service for their wireless users.

In Juniper Networks Mist AI Wireless, controlling client connection quality is a critical part of maintaining high Service Level Expectations (SLEs). One of the most effective ways to ensure good user experience is by enforcing a minimum acceptable RSSI (Received Signal Strength Indication) threshold for client devices. This functionality is implemented using wireless traffic filtering at the WLAN level.

Wireless traffic filtering allows administrators to define minimum and maximum RSSI thresholds that determine whether a client is permitted to associate or remain connected to an SSID. If a client’s RSSI falls below the configured minimum threshold, the AP can deny association requests or deauthenticate the client. This prevents low-signal or “sticky” clients from connecting at poor signal levels, which would otherwise result in excessive retries, low data rates, increased airtime consumption, and degraded performance for all users.

Mist applies these controls intelligently and surfaces their impact through AI-driven analytics. When low-RSSI clients are filtered, Mist can correlate improvements in throughput, latency, and roaming behavior directly to RF health and client quality metrics. This aligns with Mist best practices, which emphasize proactive client quality enforcement rather than reactive troubleshooting.

The incorrect options are explained as follows:

WLAN forwarding determines how traffic is bridged, tunneled, or NATed and has no impact on RSSI enforcement.

Geofencing is used for location-based services and RTLS use cases, not RF signal quality control.

WLAN rate limit restricts bandwidth usage per client or SSID but does not evaluate or enforce signal strength requirements.

Therefore, the correct feature required to set an acceptable minimum RSSI for client devices is wireless traffic filtering, which directly controls association behavior based on signal quality and helps maintain optimal wireless performance.

If a customer wants to broadcast a WLAN at a certain time and day of the week, SSID scheduling should be configured

According to the SSID Scheduling - Mist document1, SSID scheduling is a feature that allows you to customize your WLAN by choosing the exact days and times to broadcast the SSID. This feature can be useful for scenarios where you want to limit the availability of a WLAN to a certain time and day of the week.

According to the Initial AP Connection and VLANs & Static IP addresses - Mist document1, when a Juniper Mist AP boots up for the first time, it will expect to see a trunked port or the native VLAN=1 and will send a DHCP request on that VLAN. The AP will attempt to connect to the Mist cloud using port 443, which is the default HTTPS port.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide3, three types of devices that are counted by default for occupancy analytics are:

Mobile app clients, which are devices that have a mobile app installed with the Mist SDK or BLE beaconing enabled.

Cellular clients, which are devices that have cellular connectivity and can be detected by Mist APs using LTE sensing.

Wi-Fi clients, which are devices that have Wi-Fi connectivity and can be detected by Mist APs using Wi-Fi scanning.
