JN0-650 Enterprise Routing and Switching - Professional (JNCIP-ENT) Questions and Answers

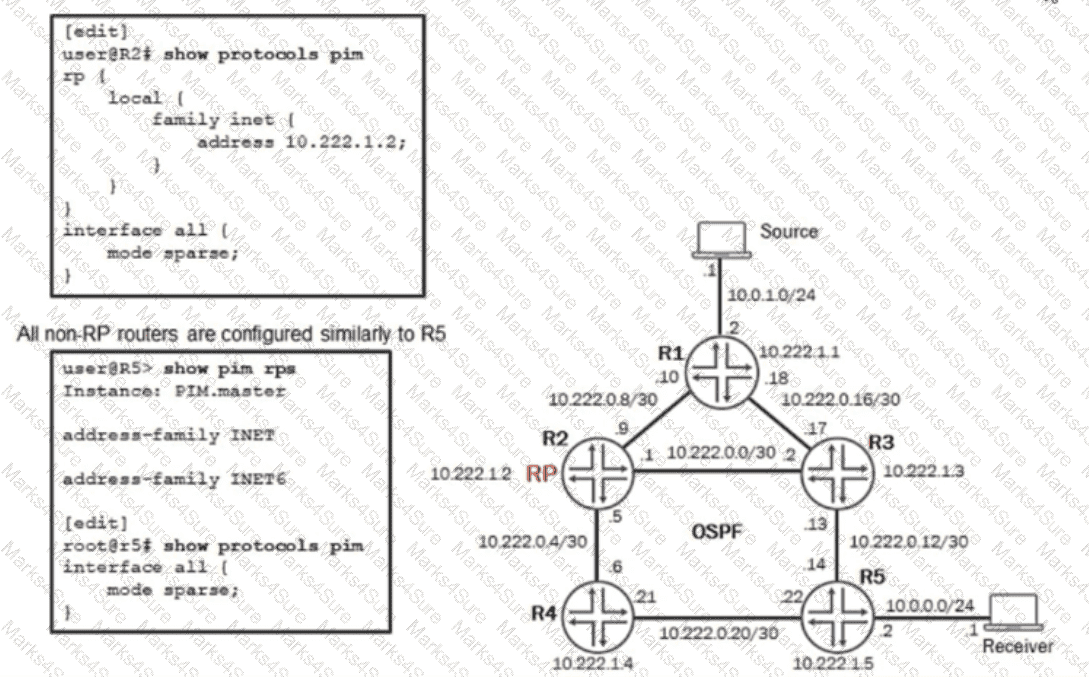

The exhibit shows a multicast network running PIM Sparse Mode where R2 is configured as a local Rendezvous Point (RP). However, the non-RP routers (like R5) show no learned RP in their show pim rps output. To resolve this using standard protocols for dynamic RP discovery, you must implement a mechanism that automates the distribution of RP information across the PIM domain.

Bootstrap Router (BSR) (Option B): BSR is the industry-standard (RFC 5059) mechanism for dynamically electing an RP and distributing that information throughout a PIM-SM domain.

It uses two roles: Candidate-RPs (C-RPs), which announce their desire to be an RP, and Candidate-BSRs (C-BSRs), which collect these announcements and flood them to all other routers in the network via PIM bootstrap messages.

BSR is a " standard protocol " as it is part of the PIMv2 specification. Once configured on R2 (as C-RP) and potentially R1 or R2 (as C-BSR), all other routers will dynamically learn that R2 is the RP for the specified group ranges.

Auto-RP (Option D): While this also provides dynamic RP discovery, it is a proprietary Cisco protocol. Although Junos supports it for interoperability, the question specifically asks for " standard protocols only, " making BSR the preferred choice.

MSDP (Option A): Multicast Source Discovery Protocol (MSDP) is used to share information about active sources between different PIM domains or for Anycast-RP. It does not handle the initial discovery of an RP within a single domain for standard PIM-SM operations.

Anycast RP (Option C): This is a technique used for RP redundancy and load balancing. While it can use BSR or MSDP for synchronization, it is a design architecture rather than a standalone " standard protocol " for the basic dynamic discovery of an RP in the manner requested here.

Configuration Example for BSR in Junos OS 24.4: To enable this, you would add the following to the RP (R2):

set protocols pim rp bootstrap-discovery

set protocols pim rp candidate-rp 10.222.1.2 group-ranges 224.0.0.0/4

set protocols pim rp candidate-bsr 10.222.1.2

When a peer incorrectly floods your router with an excessive number of routes, it can exhaust system resources and crash the routing engine.

Prefix-Limit (Option B): The prefix-limit (or accepted-prefix-limit) parameter is the primary defense against such " route leaks " .

You can set a maximum threshold for the number of prefixes allowed from a specific BGP neighbor or group.

When the limit is reached, Junos can be configured to either just log a warning or tear down the BGP session entirely (using the teardown keyword) to protect the router.

This prevents the " hundreds of thousand routes " from ever being fully processed or installed into the main routing table.

Damping (Option A): Damping is used to suppress unstable, " flapping " routes, but it does not limit the total volume of stable routes received.

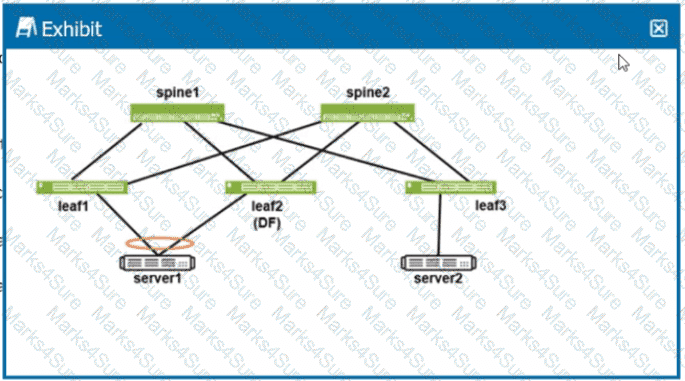

In an EVPN-VXLAN environment, different BGP route types serve distinct purposes in building the control plane. The Ethernet Segment Identifier (ESI) is a unique 10-byte identifier used to represent a multi-homed segment.

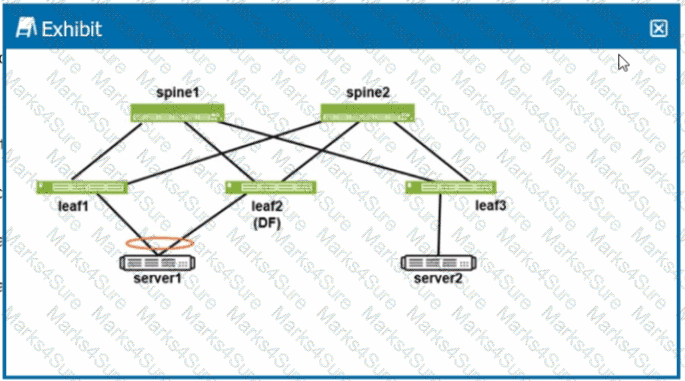

Type 1: Ethernet Auto-Discovery (A-D) Route (Option A): This route type is essential for multi-homing scenarios. It carries the ESI to support features like fast convergence and aliasing. By advertising an A-D route per Ethernet Segment, a PE tells other routers that it is connected to that specific ESI. It does not carry individual host MAC addresses; instead, it provides a " mass withdraw " mechanism to quickly update paths if the entire segment goes down.

Type 4: Ethernet Segment Route (Option D): This route is used exclusively for Designated Forwarder (DF) election. It advertises the existence of an ESI and the ES-Import Route Target to all other PE routers. This allows PE routers connected to the same multi-homed segment to discover each other automatically and elect a DF to handle BUM traffic. Like Type 1, it focuses on the segment identity and does not include MAC addresses.

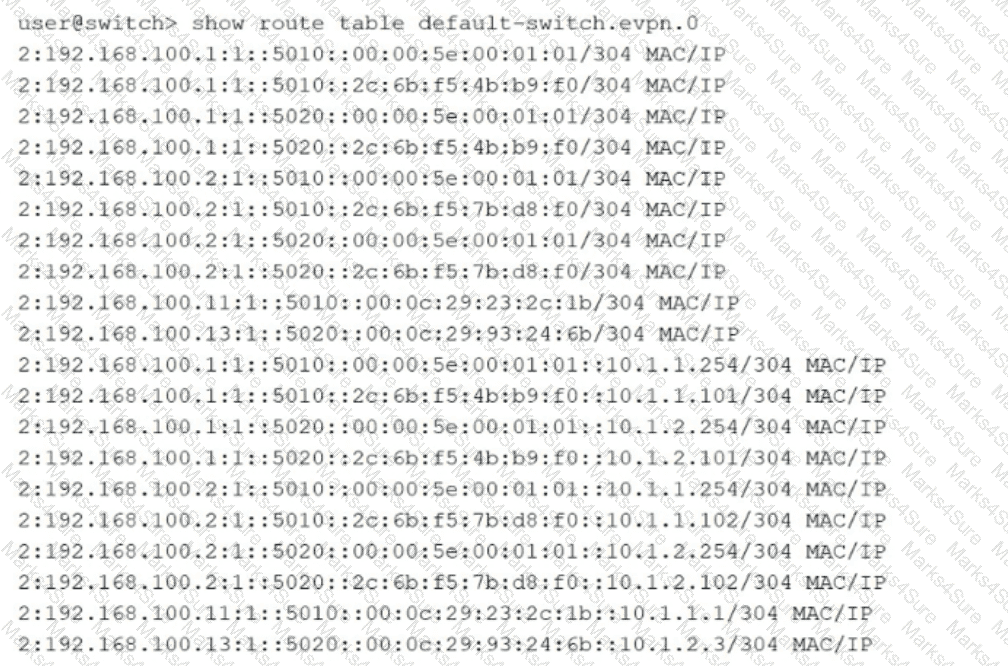

Type 2: MAC/IP Advertisement Route (Option B): This is the primary route used for host reachability. It must include a MAC address (and optionally an IP). While it also includes the ESI to indicate which segment the host is behind, its primary function is MAC advertisement.

Type 3: Inclusive Multicast Ethernet Tag Route (Option C): This route is used for VTEP discovery and building the replication list for BUM traffic. It identifies the VTEP ' s IP and the VNI, but it does not carry the ESI or MAC addresses.

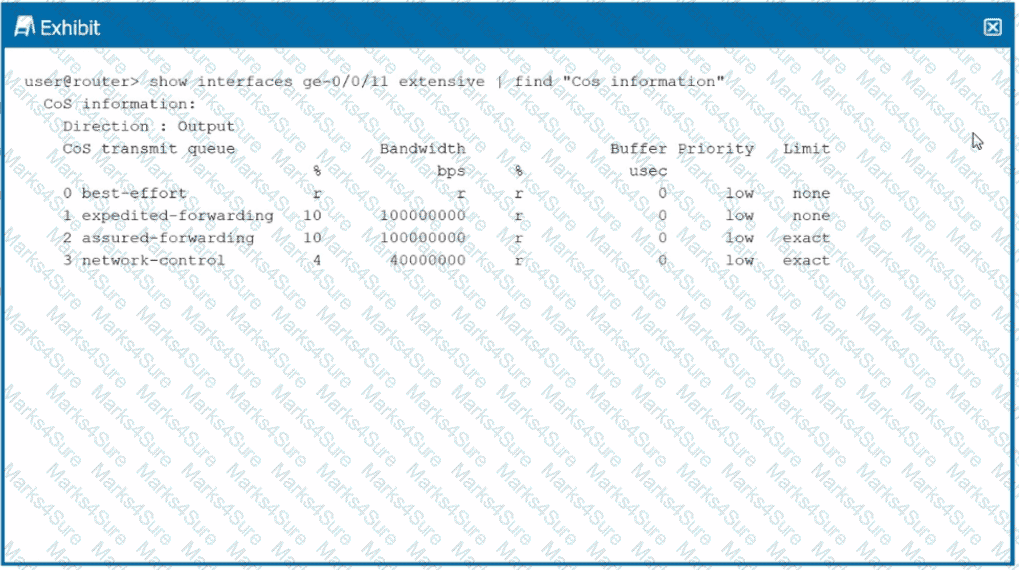

In an end-to-end CoS (Class of Service) design, there is a clear distinction between classification at the ingress and rewrite rules at the egress.

The Problem: Your edge devices are successfully classifying traffic (assigning packets to internal forwarding classes). However, the core devices—which use BA (Behavior Aggregate) classifiers—are not classifying correctly. BA classifiers look at the bits in the packet header (like DSCP or 802.1p) to determine priority.

The Missing Link (Option C): When a packet leaves the edge device, its internal forwarding class and loss priority must be " written " back into the packet header so that the next-hop (the core device) can see it. By default, Junos may not preserve or set these bits correctly on egress. You must apply rewrite rules on the edge switches ' egress interfaces facing the core. These rules ensure the DSCP values in the headers match the forwarding class determined by the edge ' s MF classifier, allowing the core ' s BA classifier to function properly.

Other Options: Option A (policer) handles rate limiting, not classification. Option B is incorrect because core devices often have different hardware or scaling needs than edge switches, and standard BA configuration is preferred over templates in the core. Option D is incorrect because MF classifiers are standard for edge devices where deep packet inspection is needed to identify traffic types.

When 802.1X server fail fallback is enabled with the vlan-name feature, the switch provides a specific survival mechanism for both existing and new sessions when the RADIUS server becomes unreachable.

Existing Clients (Statement B): Clients that have already successfully authenticated are unaffected by the server ' s unavailability in the short term. They maintain their current network access until their specific re-authentication timer expires. Only then will the switch attempt to contact the server again and trigger the fallback action if the server remains down.

New Clients (Statement D): For any new device attempting to connect while the RADIUS server is down, the switch cannot perform a standard authentication. Under the vlan-name fallback configuration, these new clients are automatically placed into the specified fallback VLAN and granted access based on the local policy defined for that VLAN.

Why others are incorrect: Statement A is incorrect because disconnecting active users would cause unnecessary service disruption. Statement C is incorrect because new clients cannot " request " a VLAN during the 802.1X handshake; the switch assigns it based on the fallback configuration.

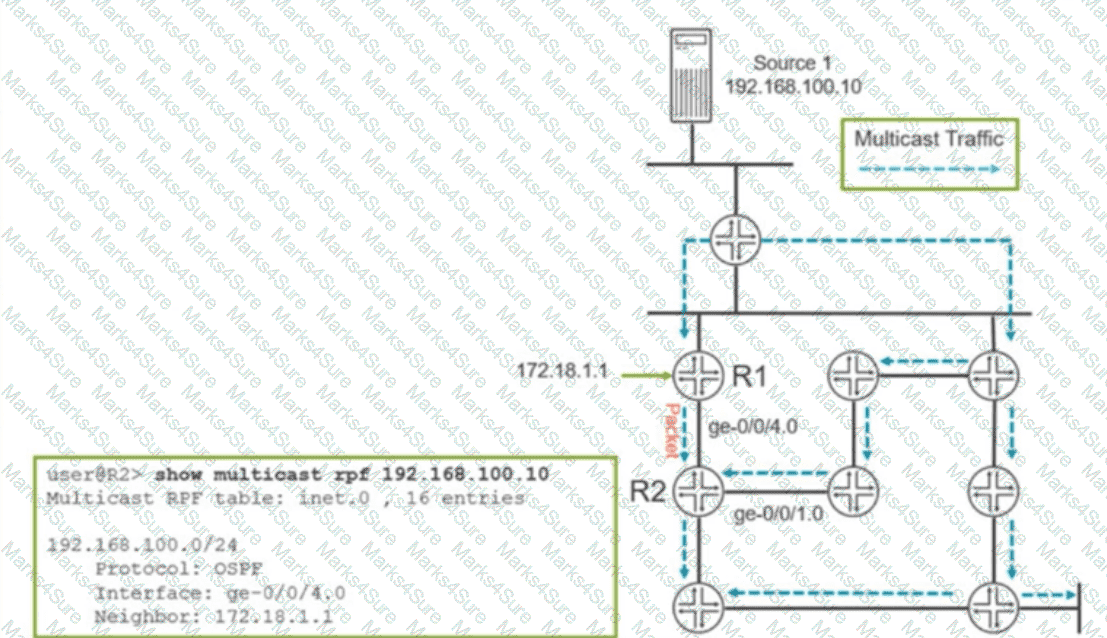

The exhibit illustrates a PIM multicast environment where router R2 has received a multicast packet from Source 1 (192.168.100.10) on its ge-0/0/4.0 interface. To prevent loops, PIM-SM uses a mechanism called Reverse Path Forwarding (RPF).

RPF Check Process (Option A): When a multicast packet arrives, the router performs an RPF check by looking up the source ' s IP address in its unicast routing table (typically inet.0).

The exhibit ' s command output, show multicast rpf 192.168.100.10, explicitly shows that for the source network $192.168.100.0/24$, the RPF interface is ge-0/0/1.0.

Because the packet actually arrived on ge-0/0/4.0 instead of the expected ge-0/0/1.0 interface, the RPF check fails.

Packet Discard (Option C): According to standard PIM-SM operation in Junos OS 24.4, if a multicast packet fails the RPF check—meaning it arrived on an interface that the router does not use to reach the source via unicast—the packet is discarded. This is a fundamental loop-prevention mechanism that ensures multicast traffic is only accepted from the shortest path toward the source.

Option B is incorrect because the router will not add any interfaces to the Outgoing Interface List (OIL) for a packet that fails the initial RPF check.

Option D is incorrect because the exhibit clearly shows the interface in the RPF table (ge-0/0/1.0) is different from the interface where the packet was received (ge-0/0/4.0).

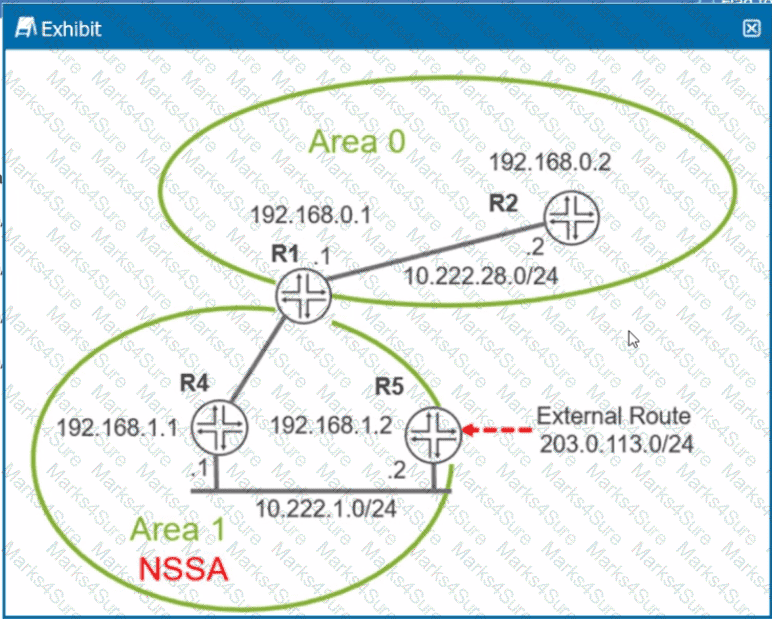

The exhibit shows an OSPF network where Area 1 is configured as a Not-So-Stubby Area (NSSA). R5 is an Autonomous System Boundary Router (ASBR) injecting an External Route (203.0.113.0/24) into this area.

NSSA ASBR Behavior (Option D): Within an OSPF NSSA, external routes cannot be advertised as standard Type 5 LSAs because stubby areas do not support them. Instead, the ASBR (R5) advertises the external prefix using a Type 7 LSA (NSSA External LSA). This LSA is flooded throughout Area 1.

ABR Translation Behavior (Option C): When the Type 7 LSA reaches the Area Border Router (R1), the ABR is responsible for translating it into a Type 5 LSA (AS External LSA). This allows the external route to be propagated into the backbone (Area 0) and subsequently to the rest of the OSPF domain.

Incorrect Statements (A & B): Option A is incorrect because Type 7 LSAs are local to the NSSA and are never advertised into Area 0. Option B is incorrect because Type 5 LSAs are strictly prohibited within an NSSA.

In PIM Sparse Mode (PIM-SM), the Rendezvous Point (RP) is the cornerstone of the multicast distribution model.

The Meeting Point (Option A): The RP serves as a central clearinghouse where multicast sources and receivers meet.

When a source starts transmitting, the first-hop router encapsulates the data and sends it to the RP via a PIM Register message.

When a receiver wants to join a group, its last-hop router sends a (*,G) PIM Join request toward the RP.

The RP then manages the distribution from the source to the receivers until a Shortest Path Tree (SPT) can be established directly between them.

Incorrect Statements: Option B is incorrect because PIM Dense Mode does not use an RP; it uses a " flood and prune " mechanism. Option C is incorrect because the RP only forwards traffic to interfaces that have explicitly requested it via Join messages, which is what makes it " sparse " . Option D is incorrect because SSM (Source-Specific Multicast) specifically avoids using an RP by having receivers join a known source directly.

To simplify VLAN management and automate the creation and pruning of VLANs across a network, Juniper utilizes the Multiple VLAN Registration Protocol (MVRP).

MVRP on Trunk Interfaces (Option C): MVRP is the IEEE 802.1ak standard that replaces the older, proprietary GVRP. It is designed to run on trunk interfaces between switches.

Dynamic Creation: When a VLAN is added to one switch, MVRP advertises its existence to neighboring switches. If those switches need to reach that VLAN, they can dynamically create it in their database.

Pruning: If a switch no longer has any active ports or downstream neighbors interested in a specific VLAN, it stops advertising that VLAN on its trunks. This " prunes " the VLAN traffic from those links, saving bandwidth.

Incorrect Options: Option A and B are incorrect because GVRP is legacy and no longer the recommended protocol for modern Junos deployments. Option D is incorrect because MVRP is meant for inter-switch trunk links to manage the fabric, not for edge access ports where VLAN membership is usually static.

Junos OS uses specific routing tables for handling multicast traffic to ensure loop prevention through Reverse Path Forwarding (RPF) checks:

Multicast RPF (Option C): The inet.0 table is the default unicast routing table. In most standard multicast deployments, Protocol Independent Multicast (PIM) performs its RPF checks against this table to determine the upstream interface toward the multicast source.

Topology Differences (Option A): The inet.2 table is specifically designed for multicast RPF lookups when the multicast forwarding topology differs from the unicast forwarding topology. This is common in environments using Multiprotocol BGP (MBGP) where you might want multicast traffic to follow a different path than standard data traffic.

inet.1 Role (Option B): The inet.1 table is the multicast forwarding cache. It stores (S,G) and (*,G) entries for actual packet forwarding. Routing protocols like MBGP or IS-IS do not place routes directly into inet.1; instead, PIM uses information from inet.0 or inet.2 to populate inet.1.

IS-IS and OSPFv3 (Option D): These protocols place their IPv4/IPv6 unicast routes into inet.0 or inet6.0. They do not place routes into inet.2 " directly " unless specific RIB-group configurations or address families are enabled to share those routes for multicast RPF purposes.

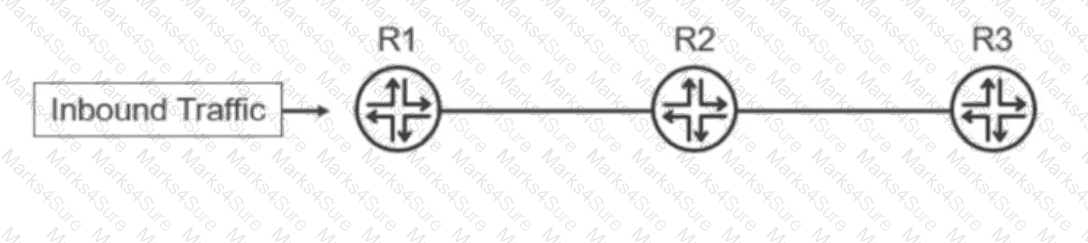

The exhibit illustrates a standard end-to-end Class of Service (CoS) path consisting of an edge router (R1) and core/intermediate routers (R2 and R3).

Edge Classification (Option B): The scenario specifies that video traffic enters the network without any class-of-service markings. Because there are no DSCP or 802.1p bits to inspect, the ingress router (R1) cannot use simple Behavior Aggregate (BA) classification. Instead, it must use Multifield (MF) classification. MF classification allows the router to look deeper into the packet (Source/Destination IP, Protocol, Port numbers) to identify the video stream and assign it to a specific forwarding class. * Core Classification (Option D): Once R1 has identified the traffic, it will typically apply a rewrite rule on its egress interface to mark the packets with a specific CoS value (like a DSCP code). Consequently, the downstream routers (R2 and R3) do not need to perform expensive deep-packet inspection again. They can use Behavior Aggregate (BA) classification, which simply looks at the markings in the packet header to determine the appropriate forwarding priority.

Option A and C: These are incorrect because BA classification is impossible on unmarked ingress traffic, and performing MF classification in the core is inefficient and not a recommended Juniper design practice for high-speed transit.

Private VLANs (PVLANs) allow for granular port isolation within a single broadcast domain. When extending a PVLAN across multiple switches (S1 to S2), the secondary VLANs (Community or Isolated) must be preserved across the trunk links.

802.1Q Tagging (Option B): For traffic from a Community VLAN (RND) to reach members on a different switch, the Community VLAN must have its own 802.1Q VLAN tag (VLAN ID) associated with it. When a frame from a community port on S1 traverses the trunk to S2, it is tagged with this specific secondary VLAN ID. S2 receives the tagged frame, identifies it as belonging to the RND community, and forwards it to the appropriate community or promiscuous ports.

Why it fails without a tag: If the RND community is only defined locally on S1 without a global VLAN ID, the trunk port will not know how to distinguish that traffic from the Primary VLAN or other communities.

Incorrect Options: Option A is incorrect because the community VLAN must have a different tag than the parent (Primary) VLAN to maintain the internal PVLAN logic. Option C is incorrect because stripping tags would lead to the traffic being merged into the native VLAN or dropped. Option D is incorrect because RND is a community VLAN; changing it to an isolated VLAN would change its behavior (preventing communication between members of that same group).

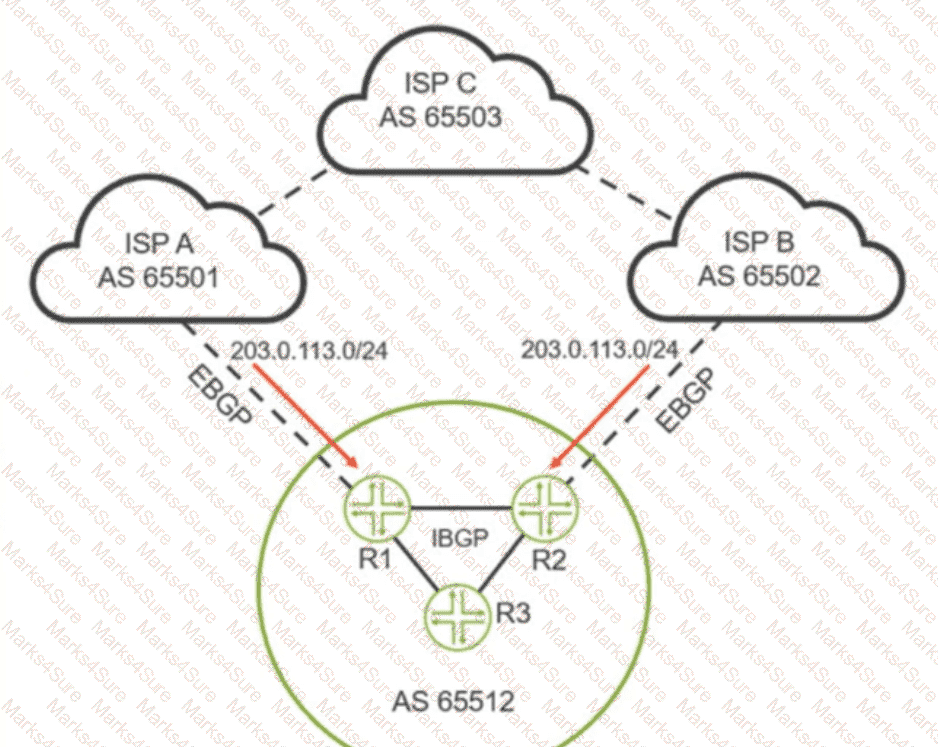

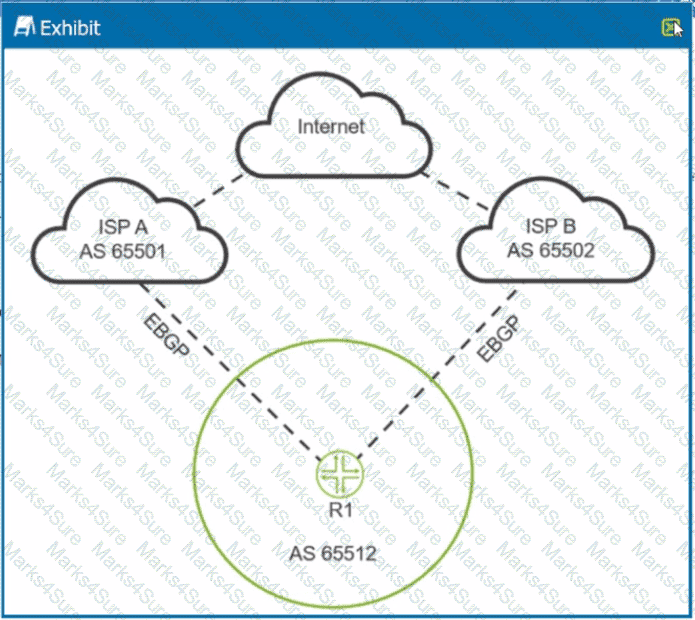

The exhibit illustrates an Autonomous System (AS 65512) receiving the same prefix ($203.0.113.0/24$) from two different neighbors, ISP A and ISP B. To influence outbound traffic from AS 65512 so that ISP A is preferred, you must manipulate the BGP Local Preference attribute.BGP Path Selection and Local Preference: Local preference is the first attribute evaluated by BGP after checking if the next hop is reachable. A higher local preference value is always preferred over a lower one. The default value in Junos OS is 100.Applying the Preference (Option B): By applying an import policy on router R1 to set a local preference higher than 100 (e.g., 200) for routes from ISP A, R1, R2, and R3 will all prefer the path through R1 to reach ISP A.Applying the Preference (Option C): Alternatively, you can achieve the same result by applying an import policy on R2 to set a local preference lower than 100 (e.g., 50) for routes from ISP B. Since the routes from R1 remain at the default of 100, the path through ISP A (100) will be preferred over ISP B (50).Why A and D are incorrect: Setting a lower preference for ISP A (Option A) or a higher preference for ISP B (Option D) would result in ISP B being preferred for outbound traffic, which is the opposite of the requirement.

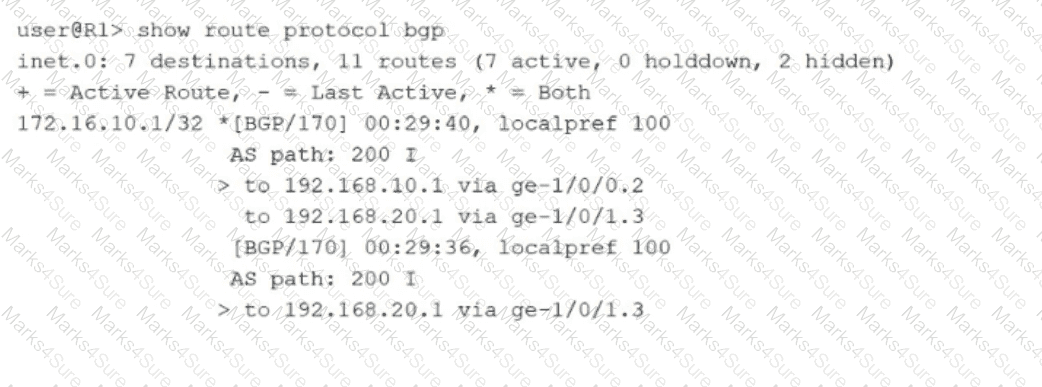

The exhibit shows the output of the command show route protocol bgp on router R1 for the prefix 172.16.10.1/32. To determine the correct characteristics of this route, we analyze the specific BGP attributes and next-hop information provided in the routing table entry:

Multipath Parameter (Option B): The routing table shows two distinct paths for the prefix 172.16.10.1/32. The first path has two next hops (192.168.10.1 and 192.168.20.1) and is marked with the plus symbol (+) and the asterisk (*), indicating it is both an active and the best route. The presence of multiple next hops being used simultaneously for a single BGP path is a clear indication that the multipath parameter is enabled in the BGP configuration. In Junos OS, BGP multipath allows the installation of multiple equal-cost BGP paths into the forwarding table to facilitate load balancing.

Available Next Hops (Option C): The output explicitly lists two functional next hops for the active path: 192.168.10.1 via ge-1/0/0.2 and 192.168.20.1 via ge-1/0/1.3. Both show an outgoing interface, confirming that this route has two next hops available for traffic forwarding.

IBGP vs. EBGP (Option A): The BGP routes shown have an AS path of 200 I. This indicates the routes were learned from an external Autonomous System (AS 200). Furthermore, the protocol preference is 170. In Junos OS, the default preference for External BGP (EBGP) is 170, whereas the default preference for Internal BGP (IBGP) is 200. Therefore, this configuration is for EBGP, not IBGP.

Hidden Next Hops (Option D): The summary line at the top of the exhibit mentions that there are " 2 hidden " routes in the inet.0 table. However, these hidden routes are not the next hops for the 172.16.10.1/32 prefix. A hidden route is a prefix that was rejected by policy or has an unreachable next hop; it is not a " hidden next hop " belonging to an active route.

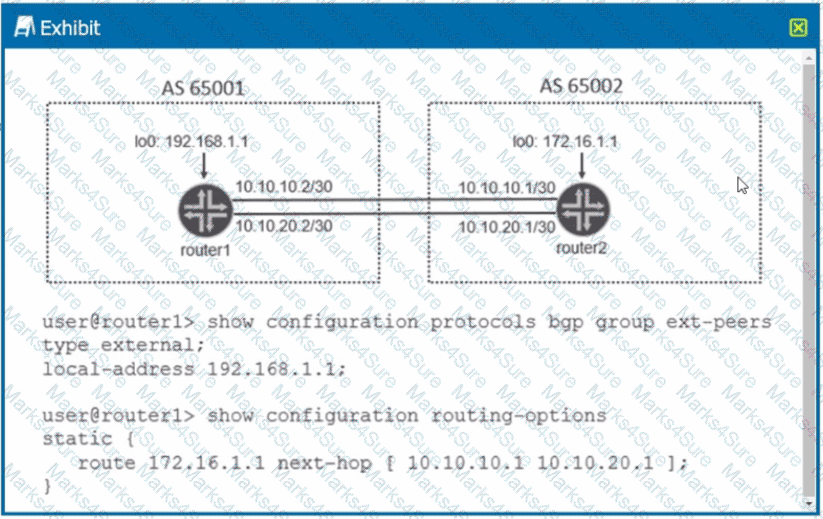

In this scenario, router1 (AS 65001) is attempting to establish an External BGP (EBGP) peering with router2 (AS 65002) using their loopback (lo0) interface addresses (192.168.1.1 and 172.16.1.1).

According to the Junos OS 24.4 documentation on BGP peering sessions:

EBGP TTL Default: By default, EBGP packets are sent with a Time-to-Live (TTL) value of 1. This assumes the peer is directly connected on a shared physical subnet.

Loopback Peering Challenge: When peering between loopback addresses, the destination IP is not on the same subnet as the physical ingress interface. Even if the routers are directly connected physically, the router treats the loopback interface as an additional " hop " . With a TTL of 1, the BGP packet expires before it can be processed by the peer ' s routing engine.

The Multihop Solution (Option D): To allow this session to form, you must configure the multihop statement under the BGP neighbor hierarchy. This tells Junos to increase the TTL (the default becomes 64 when multihop is enabled) and allows the session to establish even though the peer ' s address is not directly connected.

Target Neighbor: The neighbor address specified in the configuration on router1 must be the remote loopback address of router2 (172.16.1.1).

Option A (Multipath) is incorrect because it is used for load balancing across multiple active BGP paths, not for initial session establishment.

Options B and C are incorrect because they reference physical interface addresses (10.10.20.1 or 10.10.10.1) which are not the addresses being used for the loopback-based BGP session.

When integrating a QFX Series switch into an EVPN-VXLAN IP fabric, specific BGP and EVPN hierarchy configurations are required to establish the control and data planes:

EVPN Encapsulation (Option A): In Junos OS, the encapsulation vxlan statement must be explicitly configured under the protocols evpn hierarchy. This defines that the EVPN control plane will use VXLAN as the data plane encapsulation method rather than MPLS.

BGP Address Family (Option C): EVPN uses Multiprotocol BGP (MP-BGP) to distribute reachability information. For the control plane to function, you must enable the EVPN signaling address family under the BGP protocol using the command set protocols bgp group < name > family evpn signaling.

Incorrect Options: Option B is incorrect because family vpls is used for traditional VPLS signaled by BGP, not for EVPN-VXLAN. Option D is incorrect because while the loopback interface must be reachable, it is typically advertised via an IGP (like OSPF or IS-IS) to provide the underlay connectivity that BGP then rides upon; BGP itself does not " advertise " the loopback to establish the initial peerings.

VSTP (VLAN Spanning Tree Protocol) is Juniper ' s implementation that provides a separate spanning tree instance for each VLAN, ensuring compatibility with Cisco ' s PVST+. However, it has significant scaling limitations:

Instance Limits: On many Juniper EX and QFX series switches, VSTP is restricted to a maximum of 253 or 510 VLAN instances depending on the software version (ELS vs. non-ELS). In your scenario, having 450 VLANs exceeds the standard 253-instance limit found on many platforms.

The Solution (Option B): When the number of VLANs exceeds the VSTP capacity, the recommended best practice is to enable RSTP (Rapid Spanning Tree Protocol). Unlike VSTP, RSTP runs a single spanning tree instance for the entire switch, regardless of how many VLANs are configured. This ensures that all 450 VLANs are protected from loops without hitting the hardware ' s instance-count limit.

Other Options: Option A (force-version) only affects the BPDU format for compatibility but doesn ' t solve the instance limit. Option C and Option D are parameter tuning actions that do not address the architectural limitation of the number of running instances.

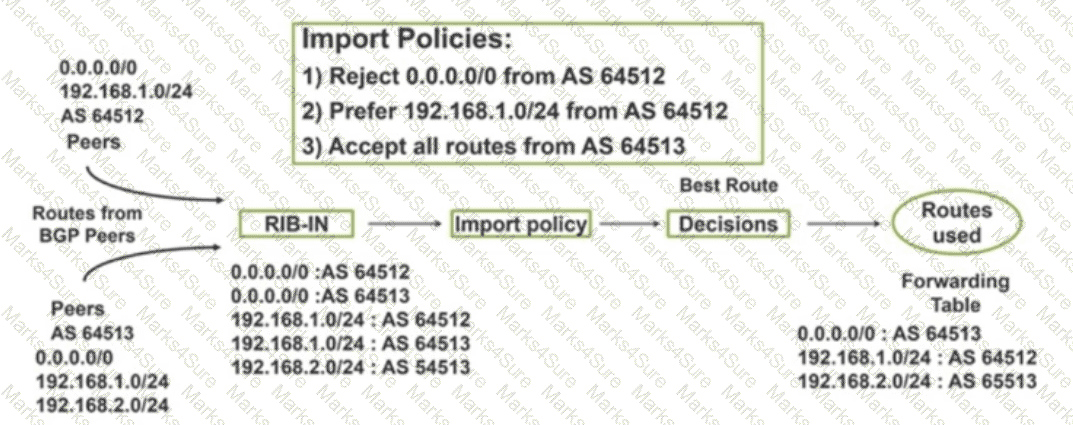

The exhibit shows a BGP routing process where an Import Policy is being applied to routes received in the RIB-IN. Specifically, Policy 1 states: " Reject 0.0.0.0/0 from AS 64512. "

In Junos OS, when a routing policy rejects a route, that route is not placed in the main routing table (inet.0) for active use. Instead, it becomes a hidden route. To verify that a specific peer is actually sending a route that is subsequently being rejected by your policy, you must use specific diagnostic commands:

Understanding " Hidden " Routes: When a BGP route is received but fails to meet policy requirements (or has an unreachable next-hop), Junos keeps it in the BGP RIB-IN but marks it as " hidden. " It will not appear in a standard show route command.

Command Logic (Option D): The command show route receive-protocol bgp < peer ip > hidden allows an administrator to view all routes received from a specific neighbor, including those that were rejected by import policies.

show route receive-protocol bgp < peer ip > : Shows only the routes that passed the import policy and were accepted into the table. Since the 0.0.0.0/0 route from AS 64512 is explicitly rejected in the exhibit, it would not show up here.

Adding the hidden keyword is the essential step to see the rejected default route and verify that AS 64512 is indeed sending it before the policy drops it.

Other Options:

Option A is incorrect because it only shows accepted routes.

Option B and C are used to filter the existing active routing table based on gateway or next-hop attributes, but they cannot show routes that have been rejected and excluded from that table.
