JN0-664 Service Provider Professional (JNCIP-SP) Questions and Answers

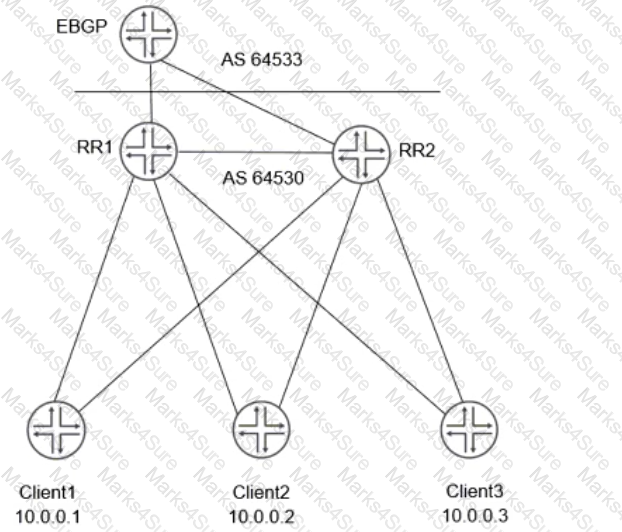

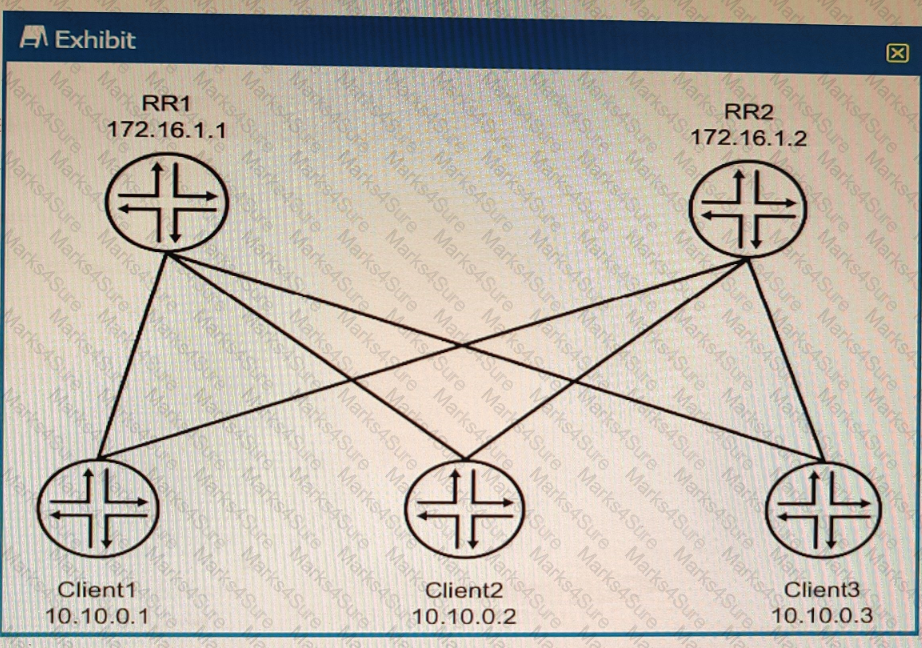

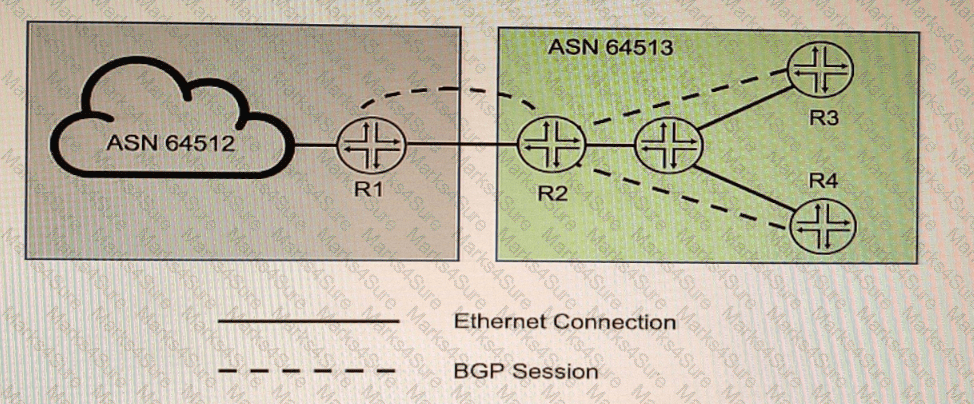

Route reflection is a BGP feature that allows a router to reflect routes learned from one IBGP peer to another IBGP peer, without requiring a full-mesh IBGP topology. Route reflectors do not change any existing BGP attributes by default when advertising routes, unless explicitly configured to do so. A BGP peer does not require any configuration changes to become a route reflector client, only the route reflector needs to be configured with the client parameter under [edit protocols bgp group group-name neighbor neighbor-address] hierarchy level.

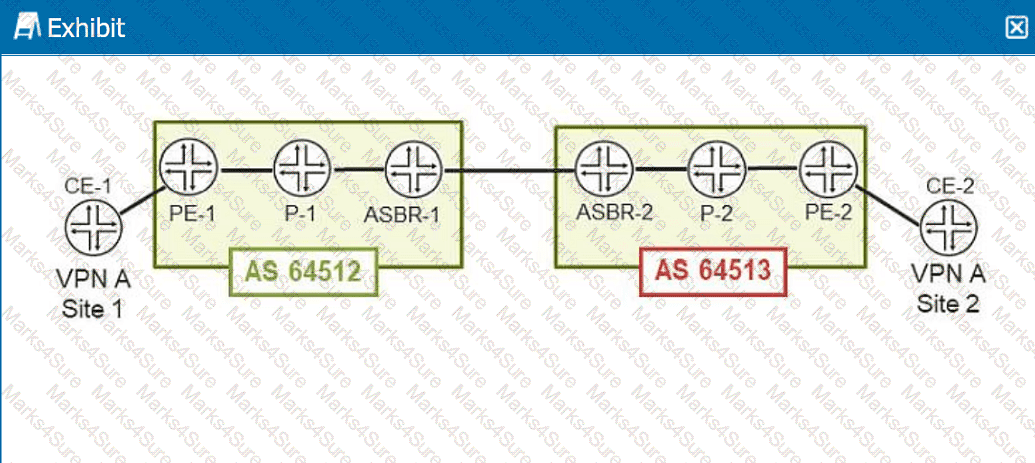

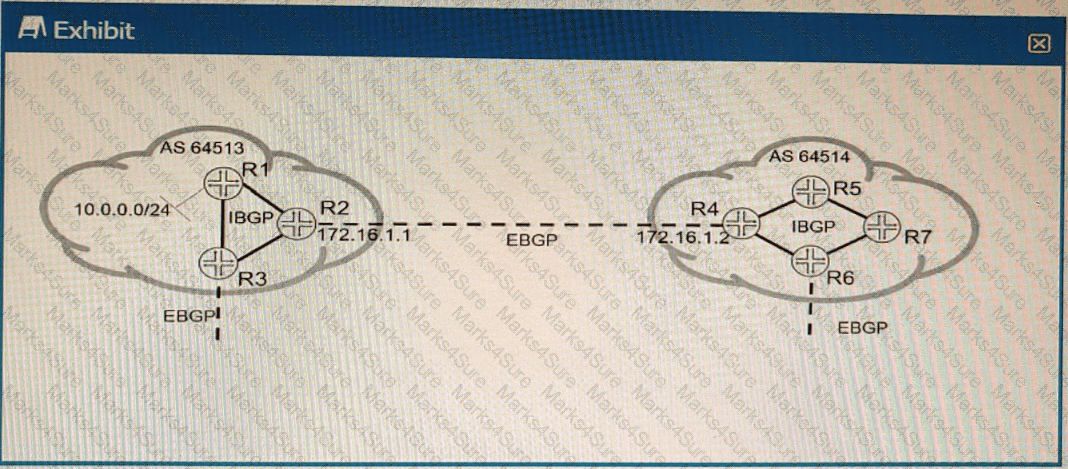

Interprovider Option C for Layer 3 VPNs involves the use of Autonomous System Boundary Routers (ASBRs) to exchange labeled VPN-IPv4 routes between different Autonomous Systems (AS). This option requires BGP sessions between ASBRs, and the VPN routes are carried end-to-end using MPLS labels. Here’s a detailed analysis of the roles of different routers in this scenario:

1. **ASBR Routers**:

- ASBRs are responsible for exchanging VPN-IPv4 routes between different ASes.

- **A. ASBR routers maintain the internal routes from its own AS and the loopback addresses from the other AS PEs.**

- Correct. ASBRs maintain routes to internal destinations within their own AS, and they also need to know the loopback addresses of PEs in the other AS to set up the BGP sessions and MPLS tunnels.

2. **PE Routers**:

- PE routers are responsible for maintaining VPN routes and label information to forward VPN traffic correctly.

- **B. PE routers maintain the internal routes from its own AS, the loopback address from the other AS PEs, and the L3VPN routes.**

- Correct. PE routers need to maintain:

- Internal routes within their AS for routing.

- Loopback addresses of other AS PEs for establishing MPLS LSPs.

- L3VPN routes to provide end-to-end VPN connectivity.

3. **P Routers**:

- P routers are the core routers that do not participate in BGP VPN routing but forward labeled packets based on MPLS labels.

- **C. P routers only maintain the internal routes from their own AS.**

- Correct. P routers maintain the internal routing information to forward packets within the AS and use MPLS labels for forwarding VPN packets. They do not maintain VPN routes or routes from other ASes.

4. **Incorrect Statements**:

- **D. P routers maintain the internal routes from its own AS and the loopback address from the other AS PEs.**

- Incorrect. P routers do not need to maintain the loopback addresses of other AS PEs. They only maintain internal routing and MPLS label information.

- **E. ASBR routers maintain the internal routes from its own AS, the loopback address from the other AS PEs, and the L3VPN routes.**

- Incorrect. ASBR routers do not maintain L3VPN routes. They exchange labeled VPN-IPv4 routes with other ASBRs and forward them to PE routers.

**Conclusion**:

The correct answers are:

**A. ASBR routers maintain the internal routes from its own AS and the loopback addresses from the other AS PEs.**

**B. PE routers maintain the internal routes from its own AS, the loopback address from the other AS PEs, and the L3VPN routes.**

**C. P routers only maintain the internal routes from their own AS.**

**References**:

- Juniper Networks Documentation on Interprovider VPNs: [Interprovider VPN Configuration](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/mpls-vpn-interprovider.html)

- MPLS and VPN Architectures, CCIP Edition by Ivan Pepelnjak and Jim Guichard

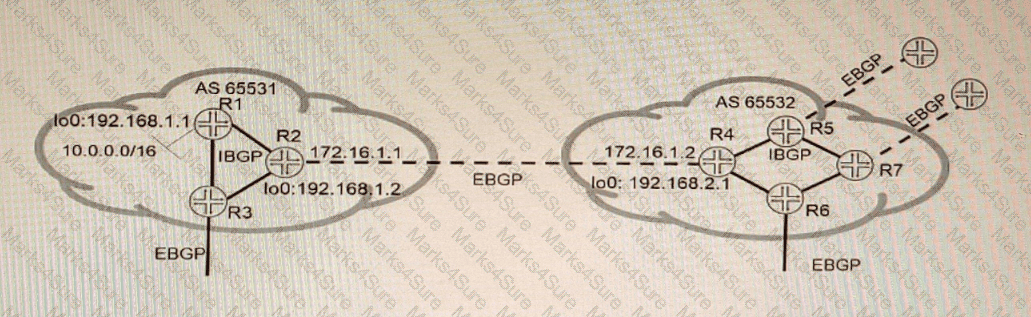

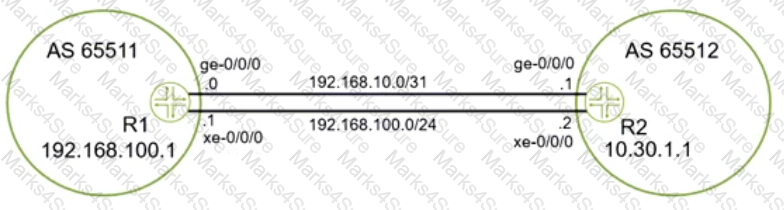

https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/ref/statement/multihop-edit-protocols-bgp.html

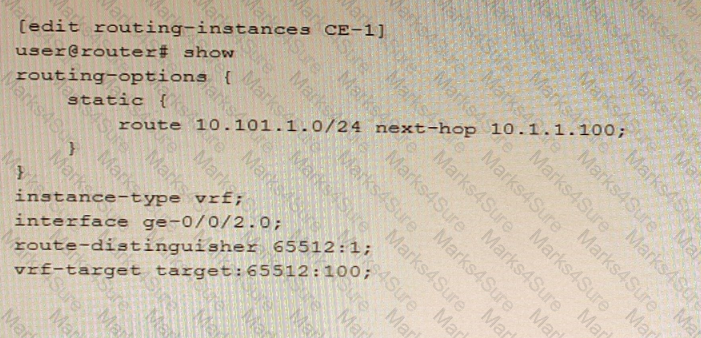

The vrf-target statement is used in routing-instances to define route-target communities for VPN route import and export policies .

vrf-target export → Controls which route targets (RTs) are added to advertised routes (used when sending routes to remote PEs).

vrf-target import → Controls which VPN routes are accepted into the VRF (used when receiving routes from remote PEs).

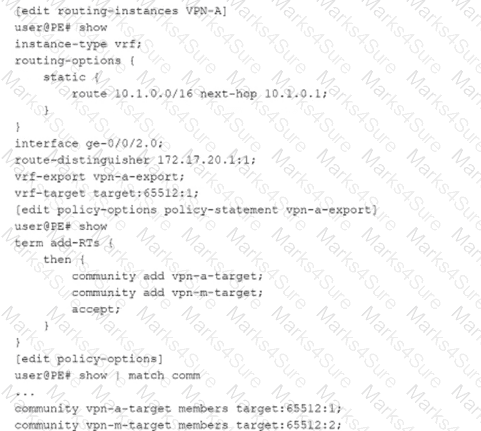

The exhibit shows the configuration of a VRF (Virtual Routing and Forwarding) instance on a Juniper PE router . Let ' s break down the key components:

VRF Configuration (VPN-A)

The instance type is VRF , meaning this is an L3VPN (Layer 3 VPN) .

The routing instance contains a static route (10.1.0.0/16 next-hop 10.1.0.1) .

The interface ge-0/0/2.0 is assigned to the VRF.

Route Distinguisher (RD): 172.17.20.1:1

VRF-Export Policy: vpn-a-export

VRF-Target: target:65512:1 (This defines which routes will be imported into the VRF).

VRF Export Policy (vpn-a-export)

The vpn-a-export policy adds two BGP communities (route targets) to exported VPN routes:

community add vpn-a-target;

community add vpn-m-target;

accept;

The vpn-a-target community corresponds to target:65512:1 .

The vpn-m-target community corresponds to target:65512:2 .

Policy-Options (Community Definitions)

community vpn-a-target members target:65512:1;

community vpn-m-target members target:65512:2;

This confirms that routes exported from this VRF will have BOTH target:65512:1 and target:65512:2 .

Evaluating the Answer Choices

✅ Option A: " VPN routes are exported with the target:65512:1 and target:65512:2 route targets. "

The vpn-a-export policy explicitly adds both vpn-a-target (65512:1) and vpn-m-target (65512:2) to exported routes .

This is correct. ✅

❌ Option B: " You cannot use the vrf-target and vrf-export statements in the same VRF. "

This is incorrect.

Juniper allows the use of both vrf-target and vrf-export in the same VRF :

vrf-target is used for importing routes.

vrf-export defines export policies (which can add additional route targets).

This is incorrect. ❌

❌ Option C: " VPN routes with the target:65512:1 and target:65512:2 route targets are imported. "

The vrf-target target:65512:1; statement only controls importing routes .

The import policy does not include target:65512:2 , so routes tagged with target:65512:2 alone would not be imported into this VRF.

This is incorrect. ❌

❌ Option D: " VPN routes are exported with only the target:65512:1 route target. "

The export policy (vpn-a-export) clearly adds both 65512:1 and 65512:2 .

This is incorrect. ❌

Final Answer:

✅ A. VPN routes are exported with the target:65512:1 and target:65512:2 route targets.

Verification from Juniper Documentation

Juniper MPLS L3VPN Configuration Guide confirms that vrf-target is used for importing , while vrf-export can be used for exporting multiple route targets .

Juniper Routing Policy Documentation states that export policies can add multiple BGP communities (route targets).

RFC 4364 (BGP/MPLS IP VPNs) defines the use of route targets for VPN route control.

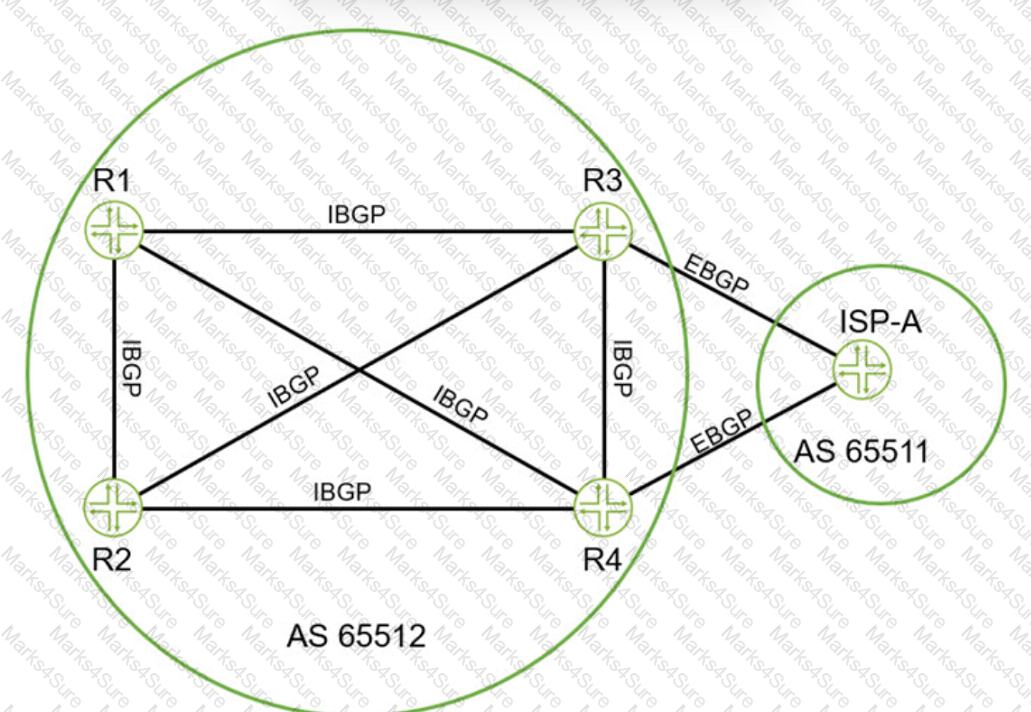

Analyzing the Exhibit

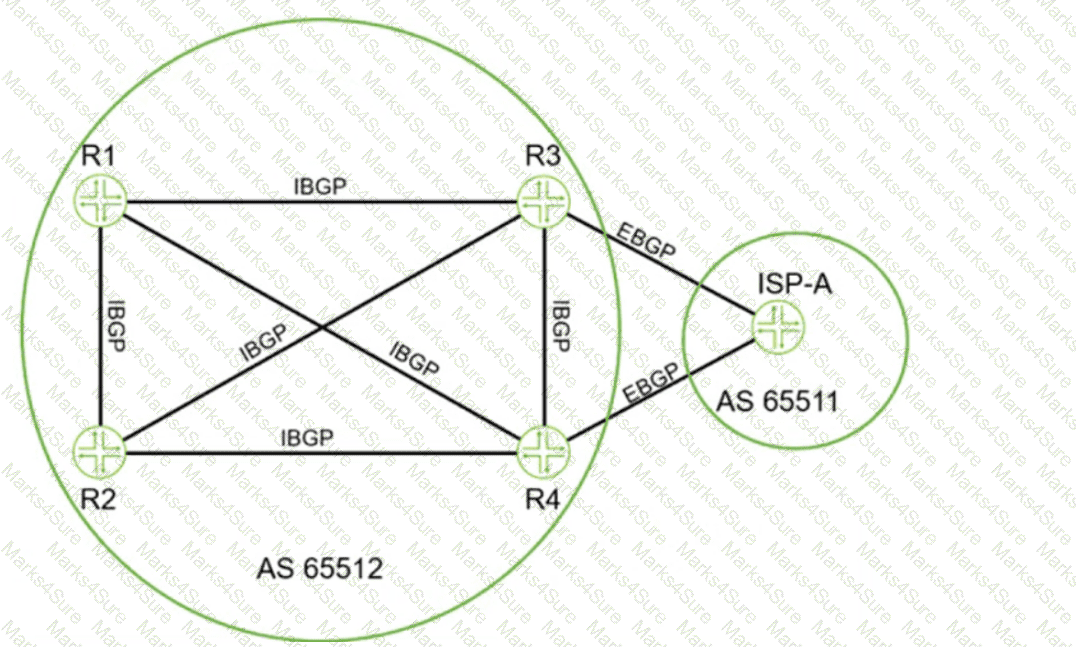

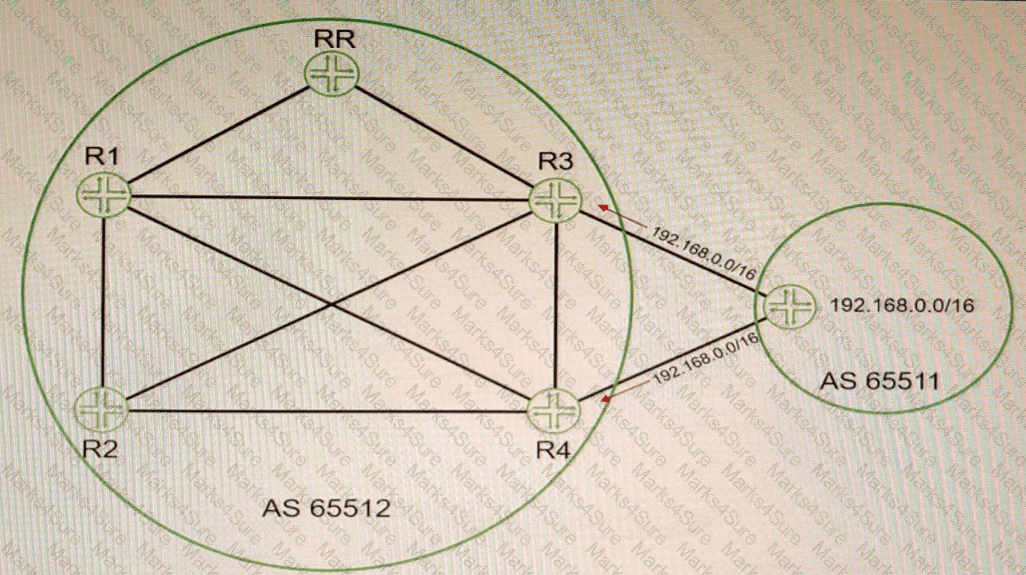

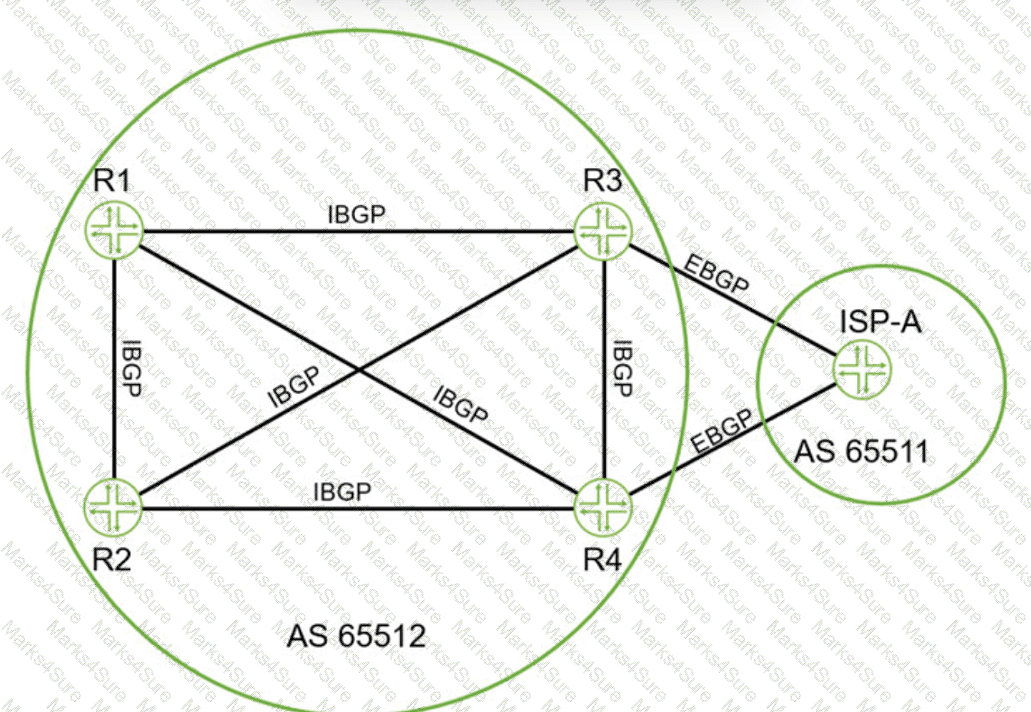

The diagram represents BGP peering between:

AS 65512 (Enterprise Network)

AS 65511 (ISP-A)

R3 and R4 are peering with ISP-A using EBGP .

R1, R2, R3, and R4 are peering within AS 65512 using IBGP .

Understanding BGP Route Behavior

Option A: " By default, the next-hop value for these routes is not changed by ISP-A before being sent to R3. " ❌

Incorrect!

EBGP behavior: When a BGP route is advertised via EBGP , the next-hop IP is changed to the router ' s own IP by default .

Since ISP-A is advertising routes via EBGP to R3, the next-hop is changed to ISP-A’s IP .

Thus, this statement is incorrect.

Option B: " The BGP local-preference value that is used by ISP-A is not advertised to R3. " ✅

Correct!

BGP Local Preference (LOCAL_PREF) is an IBGP-only attribute .

Local Preference is NOT shared over EBGP because it is used within an AS to influence route selection.

ISP-A will not send LOCAL_PREF to R3 , as R3 is in a different AS.

Thus, this statement is correct.

Option C: " All BGP attribute values must be removed before receiving the routes. " ❌

Incorrect!

BGP does not remove all attributes when advertising routes. Some attributes are modified (e.g., next-hop, AS-PATH), but others (like MED, community) may be preserved.

Thus, this statement is incorrect.

Option D: " The next-hop value for these routes is changed by ISP-A before being sent to R3. " ✅

Correct!

As per default EBGP behavior , the next-hop is changed when a route is advertised to an EBGP peer.

This means ISP-A changes the next-hop to its own IP before sending it to R3.

Thus, this statement is correct.

Final Answer:

✅ B. The BGP local-preference value that is used by ISP-A is not advertised to R3.

✅ D. The next-hop value for these routes is changed by ISP-A before being sent to R3.

Verification from Juniper Documentation:

Juniper BGP Configuration Guide confirms that LOCAL_PREF is not advertised over EBGP .

RFC 4271 (BGP-4) specifies that next-hop is changed by default when advertising routes via EBGP .

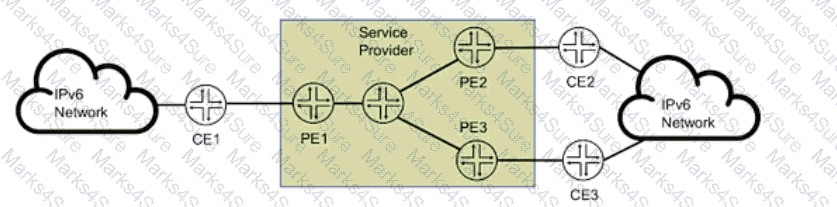

To transport IPv6 traffic over an IPv4-based MPLS network using BGP, you need to configure two address families: family inet6 labeled-unicast and family inet6 unicast. The former is used to exchange IPv6 routes with MPLS labels between PE routers, and the latter is used to exchange IPv6 routes without labels between PE and CE routers. The mpis ipv6-tunneling command enables the PE routers to encapsulate the IPv6 packets with an MPLS label stack and an IPv4 header before sending them over the MPLS network.

https://www.juniper.net/documentation/us/en/software/junos/traffic-mgmt-qfx/topics/concept/cos-qfx-series-default-scheduling-classification-understanding.html

https://www.juniper.net/documentation/us/en/software/junos/cos-security-devices/topics/concept/cos-transmission-scheduling-security-overview.html

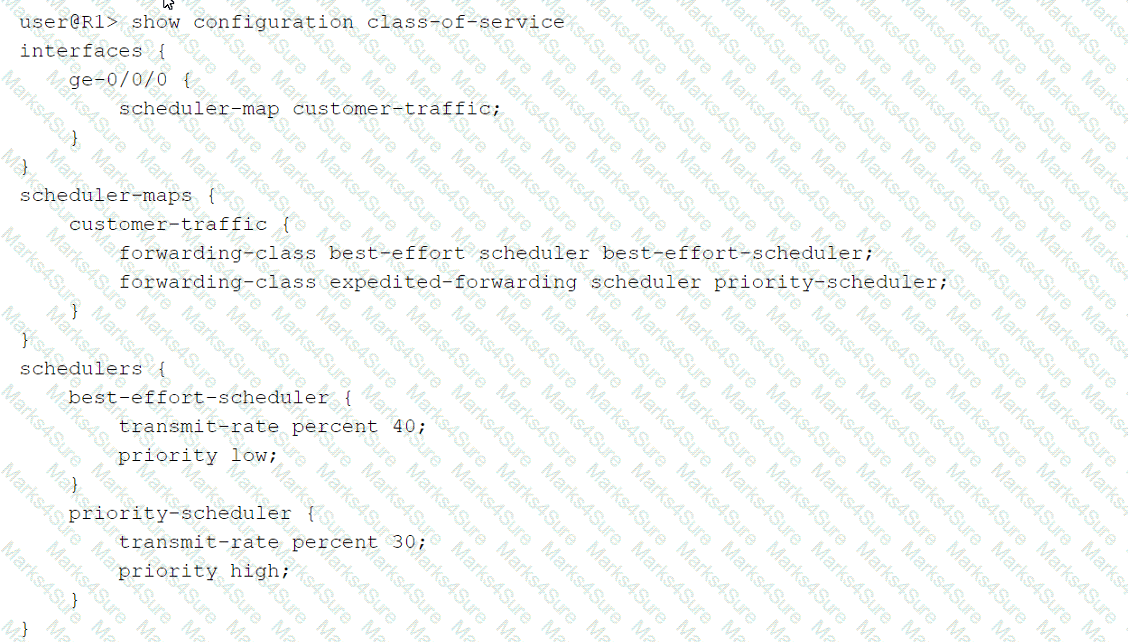

When a Junos device receives a packet on an interface with transmission scheduling , traffic is placed into different queues based on Class of Service (CoS) policies. If a queue exceeds its allocated bandwidth, Junos has default behaviors for handling excess traffic.

Key Junos Behaviors for Transmission Scheduling

Queues Can Borrow Bandwidth from Other Queues ✅

If a queue has excess traffic , it can use bandwidth from underutilized queues , as long as bandwidth is available.

Reference from Juniper Documentation :

" By default, each queue can exceed the assigned bandwidth if additional bandwidth is available from other queues. "

Queues Have Credit-Based Tracking ✅

A queue that stays within its allocated bandwidth is considered to have positive bandwidth credit .

A queue that exceeds its allocation is considered to have negative bandwidth credit .

Reference from Juniper Documentation :

" A queue receiving traffic in excess of its bandwidth allocation is considered to have negative bandwidth credit. "

Evaluating the Answer Choices

✅ B. The exceeding queue will be considered to have negative bandwidth credit.

Correct , because when a queue exceeds its allocated bandwidth , Junos assigns it negative bandwidth credit .

This means the queue is in debt and must recover before it can transmit additional packets.

✅ C. The excess traffic will use bandwidth available from other queues.

Correct , because Junos allows excess traffic to borrow bandwidth from underutilized queues by default .

If a forwarding class does not use its allocated bandwidth, other queues can borrow the unused bandwidth.

Why the Other Answers Are Incorrect?

❌ A. The excess traffic will be discarded.

Incorrect , because Junos does not immediately discard excess traffic unless the queue cannot borrow bandwidth .

By default, Junos allows bandwidth sharing , and only if no bandwidth is available does it drop packets .

❌ D. The exceeding queue will be considered to have positive bandwidth credit.

Incorrect , because when a queue exceeds its assigned bandwidth , it gets negative bandwidth credit , not positive credit.

Verified Juniper Official Reference

???? Junos CoS Transmission Scheduling Overview

" By default, each queue can exceed the assigned bandwidth if additional bandwidth is available from other queues. "

" A queue receiving traffic in excess of its bandwidth allocation is considered to have negative bandwidth credit. "

In IS-IS (Intermediate System to Intermediate System) routing, each router is identified by a unique ISO (International Organization for Standardization) address, also known as a Network Entity Title (NET). The NET consists of three parts:

1. **Area Identifier**: Indicates the area to which the router belongs.

2. **System Identifier**: Uniquely identifies the router within the area.

3. **NSAP Selector (NSEL)**: Typically set to 00 for a router, indicating the Network Service Access Point.

The format of the ISO address is `49.XXXX.YYYY.YYYY.ZZZZ.ZZZZ.00`, where:

- `49` is the AFI (Authority and Format Identifier) indicating a private address.

- `XXXX` is the Area Identifier.

- `YYYY.YYYY.YYYY` is the System Identifier.

- `ZZZZ.ZZZZ` is the NSAP Selector.

Given the address `49.0001.00a0.c96b.c490.00`:

- **Area Identifier**: `49.0001`

- **System Identifier**: `00a0.c96b.c490`

- **NSAP Selector**: `00`

**Explanation**:

- **A. 00a0.c96b.c490 is the system identifier**:

- Correct. The System Identifier in an ISO address is a 48-bit (6-byte) field used to uniquely identify the router. In this address, `00a0.c96b.c490` is the correct 6-byte System Identifier.

- **B. 0001.00a0.c96b.c490 is the system identifier**:

- Incorrect. This includes the Area Identifier as part of the System Identifier, which is not correct.

- **C. c96b.c490 is the system identifier**:

- Incorrect. This is only part of the System Identifier. The full System Identifier must be 6 bytes long.

- **D. c490 is the system identifier**:

- Incorrect. This is an incomplete and incorrect part of the System Identifier.

**Conclusion**:

The correct part of the address that represents the System Identifier is:

**A. 00a0.c96b.c490 is the system identifier.**

**References**:

- Juniper Networks Documentation on IS-IS: [IS-IS Configuration](https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/isis-configuring.html)

- ISO/IEC 10589, the IS-IS routing protocol standard.

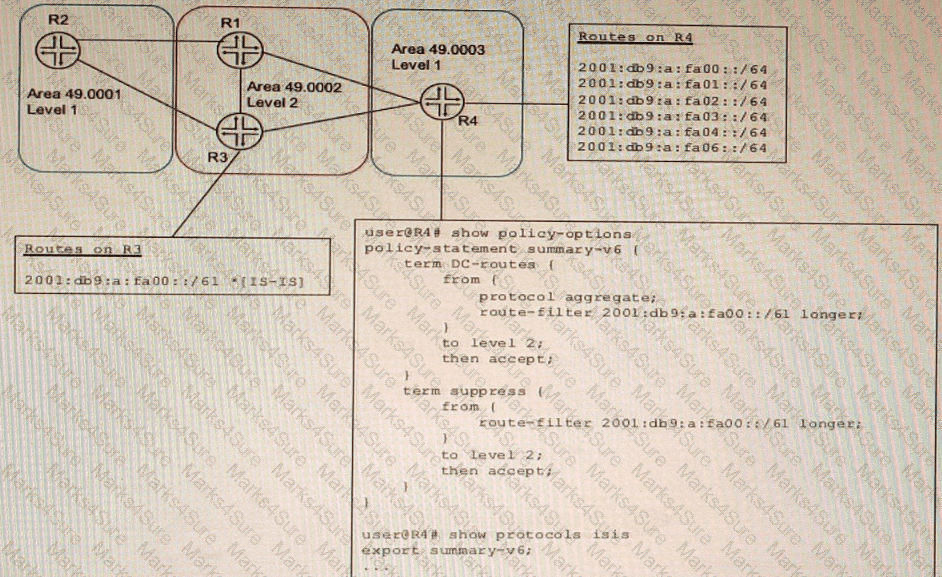

To create a summary route for IS-IS, you need to configure a policy statement that matches the prefixes to be summarized and sets the next-hop to discard. You also need to configure a summary-address statement under the IS-IS protocol hierarchy that references the policy statement. In this case, the policy statement leak-v6 is trying to match the prefix 2001:db9:a:fa00::/61 exactly, but this prefix is not advertised by any router in the network. Therefore, no summary route is created. To fix this, you need to delete the longer keyword from the route-filter term and change the prefix length to /61 exact. This will match any prefix that falls within the /61 range. You also need to delete the export statement under protocols isis, because this will export all routes that match the policy statement to other IS-IS routers, which is not desired for a summary route.

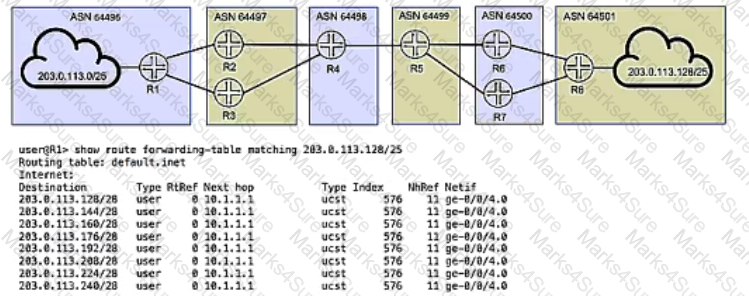

To determine the correct answer, let ' s analyze the BGP path selection process and identify which attribute would be considered next in this scenario.

Background on BGP Path Selection

When multiple paths to the same destination are received via BGP, the router uses a step-by-step process to select the best path. The order of attributes considered is as follows (simplified for this scenario):

Highest Local Preference : The path with the highest local preference is preferred.

Shortest AS Path : The path with the shortest AS path length is preferred.

Lowest Origin Code : Paths with an origin code of IGP are preferred over EGP , and EGP is preferred over Incomplete .

Lowest MED (Multi-Exit Discriminator) : If the first three attributes are identical, the path with the lowest MED value is preferred.

eBGP over iBGP : eBGP paths are preferred over iBGP paths.

IGP Metric to Next Hop : The path with the lowest IGP metric to the next-hop router is preferred.

Router ID : If all else is equal, the path from the router with the lowest Router ID is preferred.

Peer IP Address : As a last tiebreaker, the path from the peer with the lowest IP address is preferred.

Scenario Analysis

In this scenario:

You are receiving the 203.0.113.0/24 network via EBGP from two different autonomous systems ( AS 64500 and AS 64501 ).

Both advertisements have identical local-preference values , AS-path lengths , and BGP origin codes .

Given that the first three attributes in the BGP path selection process are identical, the next attribute to consider is the MED (Multi-Exit Discriminator) value.

Analysis of the Options

Option A: Router ID

Incorrect : The Router ID is considered much later in the BGP path selection process, only after other attributes like MED and IGP metric have been evaluated. Since MED is still relevant here, Router ID is not the next attribute to consider.

Option B: MED value

Correct : The MED value is used to influence inbound traffic from neighboring ASes. When local preference, AS path length, and origin code are identical, the path with the lowest MED value is preferred. This makes MED the next attribute to consider in this scenario.

Option C: Peer IP Address

Incorrect : The peer IP address is a tiebreaker used only at the very end of the BGP path selection process, after all other attributes have been evaluated. It is not relevant here because MED has not yet been considered.

Option D: IGP Metric

Incorrect : The IGP metric to the next-hop router is considered after MED. Since MED is still relevant in this scenario, IGP metric is not the next attribute to evaluate.

Final Answer

The correct answer is:

B. MED value

Summary

When local preference, AS path length, and origin code are identical, the MED value is the next attribute considered in the BGP path selection process.

MED is used to influence how traffic enters your AS from neighboring ASes.

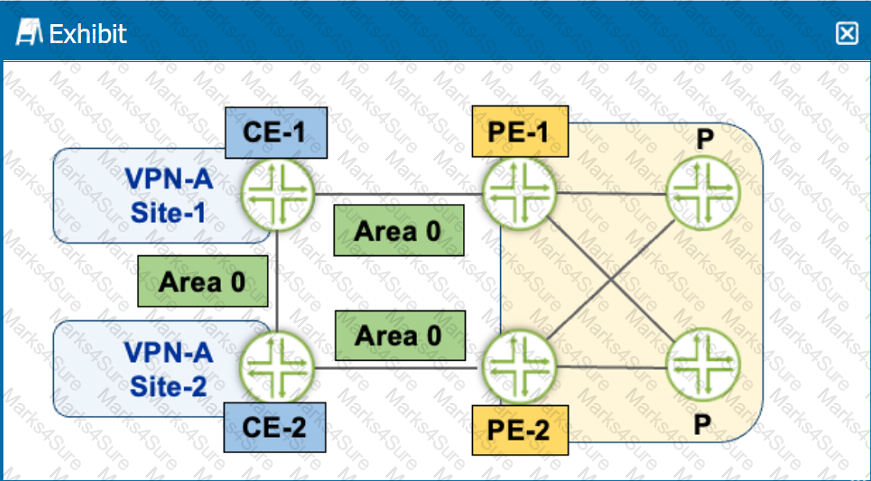

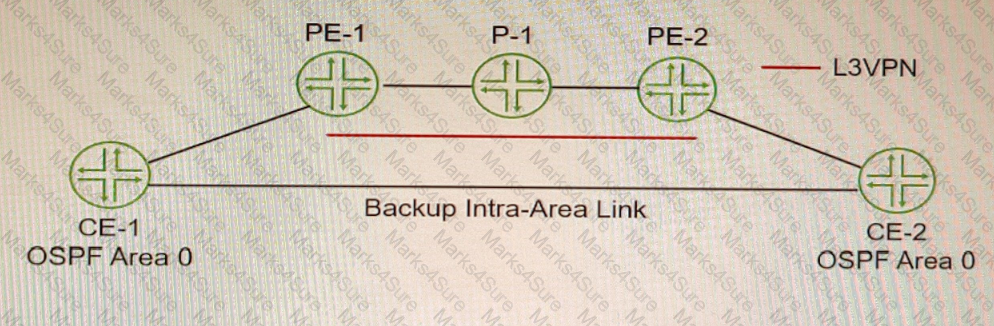

A sham link is a logical link between two PE routers that belong to the same OSPF area but are connected through an L3VPN. A sham link makes the PE routers appear as if they are directly connected, and prevents OSPF from preferring an intra-area back door link over the VPN backbone.  To create a sham link, you need to configure the local and remote addresses of the PE routers under the [edit protocols ospf area area-id] hierarchy level 1 .

https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/topic-map/configuring-ospfv2-sham-links.html

The resolve-vpn parameter is a BGP option that allows a router to resolve labeled VPN-IPv4 routes using unlabeled IPv4 routes received from another BGP peer with family inet labeled-unicast configured. This option enables interprovider VPNs without requiring MPLS labels between ASBRs or using VRF tables on ASBRs. In this scenario, you need to configure the resolve-vpn parameter under [edit protocols bgp group external family inet labeled-unicast] hierarchy level on both ASBRs.

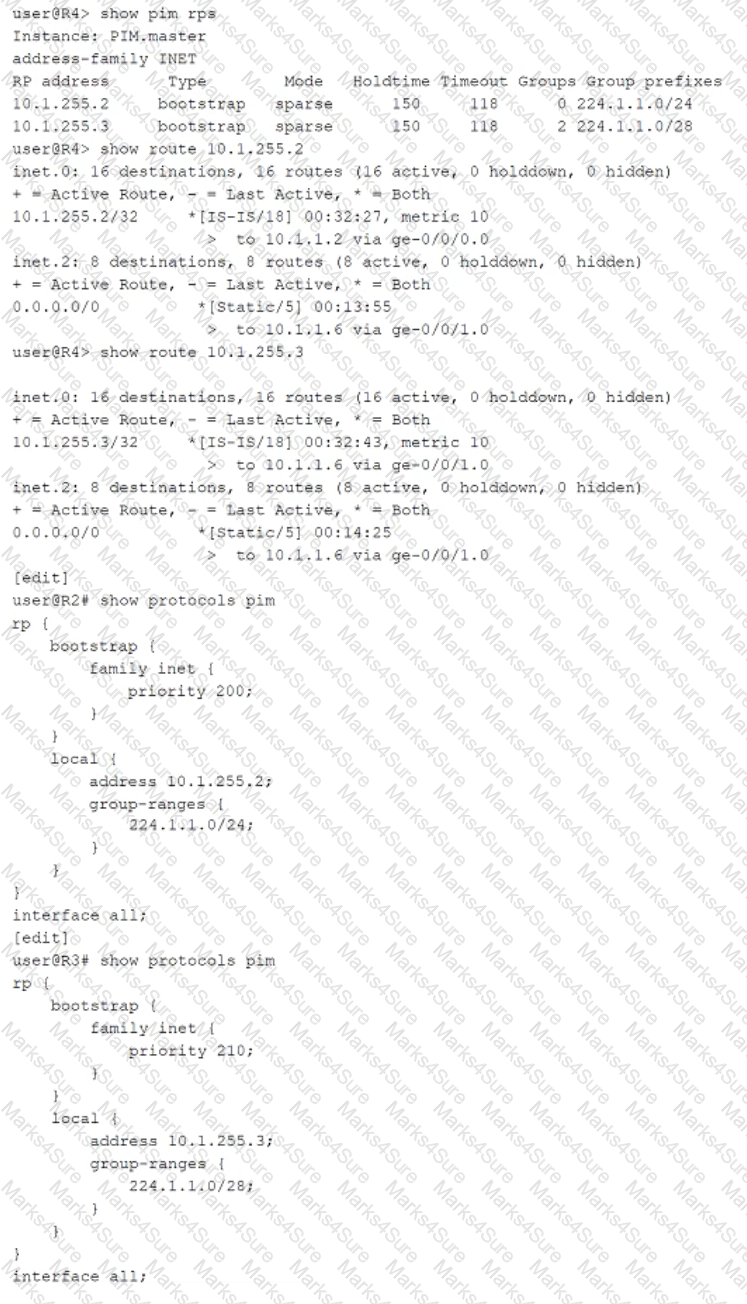

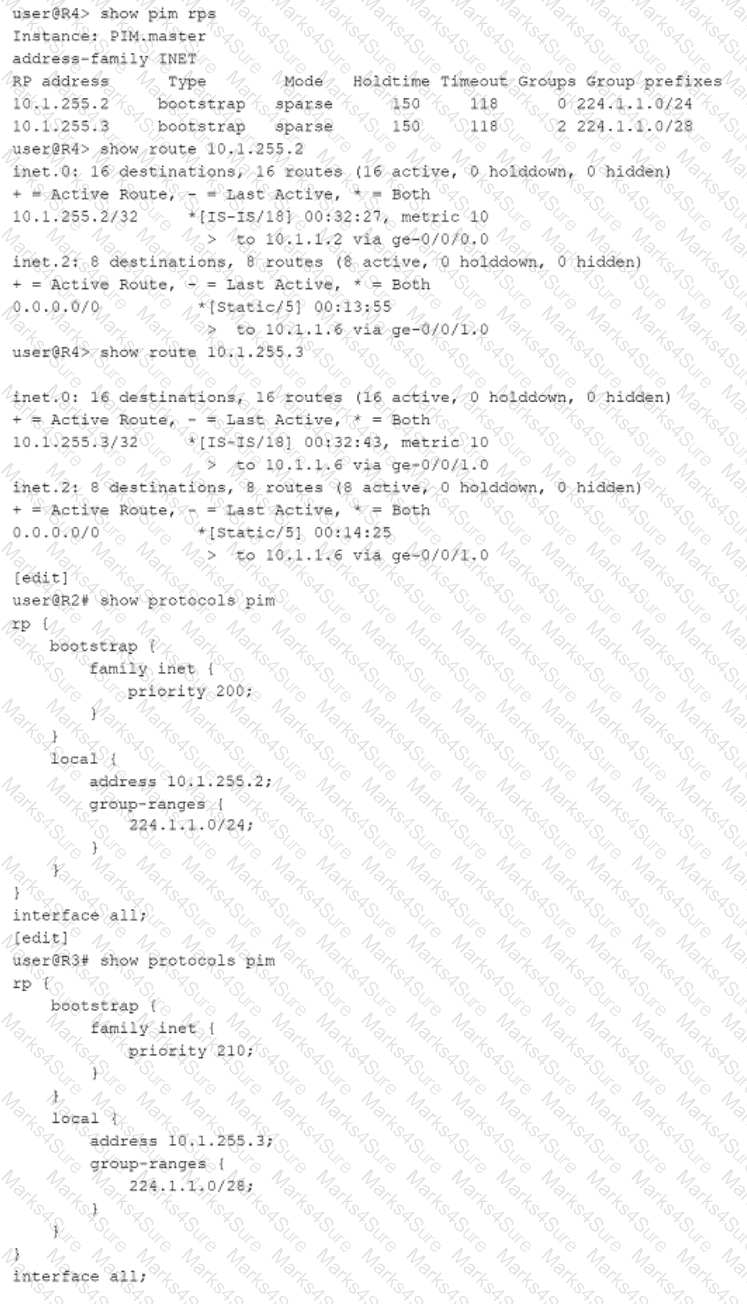

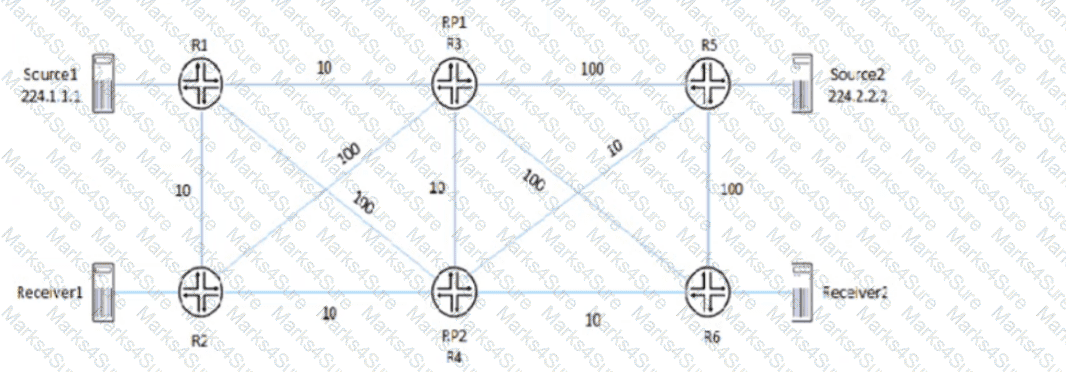

PIM sparse mode (PIM-SM) is a multicast routing protocol that uses a pull model to deliver multicast traffic. In PIM-SM, routers with receivers send join messages to their upstream neighbors toward a rendezvous point (RP) or a source-specific tree (SPT). The RP or SPT acts as the root of a shared distribution tree for a multicast group. Traffic is only forwarded to routers that request to join the distribution tree by sending join messages. PIM-SM does not flood traffic to all routers or prune routers without receivers, as PIM dense mode does.

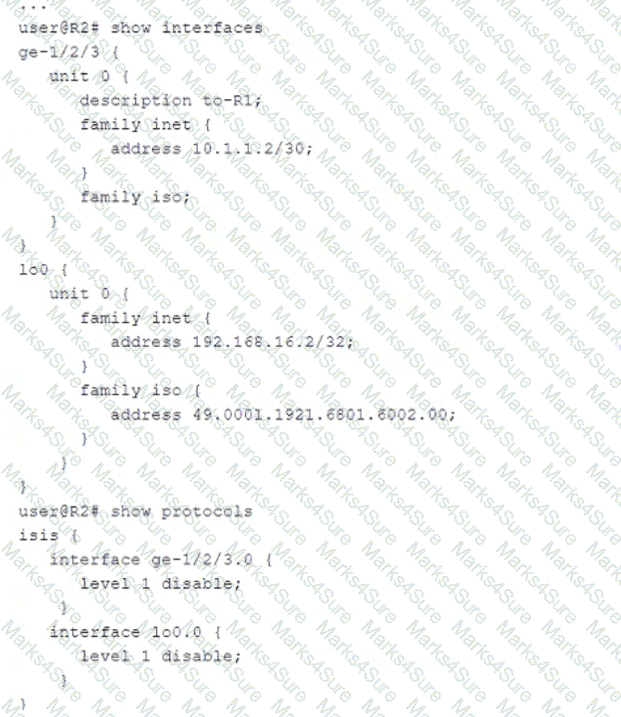

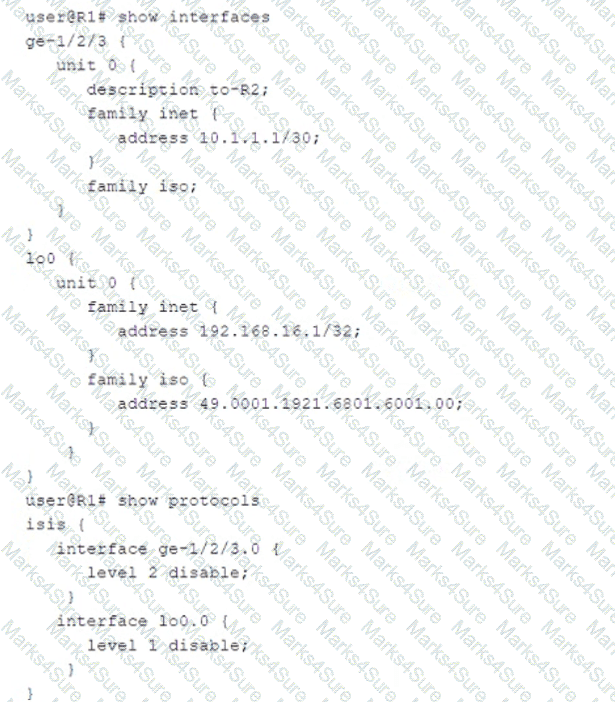

Intermediate System to Intermediate System (IS-IS) is a link-state routing protocol designed to move information efficiently within a computer network, a group of physically connected computers or similar devices. It operates in two levels, Level 1 (L1) and Level 2 (L2), and supports hierarchical routing within a multi-area network.

Let ' s analyze each statement to determine its correctness in the context of IS-IS multi-area networks.

1. **Statement A: Internal L1 PDUs are flooded to the local area ' s L2 routers.**

- This statement is correct. L1 PDUs (Protocol Data Units) are flooded within the L1 area and also to the L2 routers that are present in the same area. These L2 routers act as the boundary routers that connect the local L1 area to other L1 areas via L2.

2. **Statement B: External L2 PDUs are flooded to all L2 routers in other areas.**

- This statement is correct. L2 PDUs are flooded throughout the entire L2 backbone, which includes all L2 routers in different areas. This ensures that inter-area routing information is shared across the network.

3. **Statement C: Internal L1 PDUs are flooded to all L1 routers in other areas.**

- This statement is incorrect. Internal L1 PDUs are only flooded within the local L1 area. They do not cross L1 area boundaries; inter-area communication is handled by L2 routers.

4. **Statement D: Internal L1 PDUs are only flooded to the local area ' s L1 routers.**

- This statement is correct. Internal L1 PDUs are indeed only flooded within their local L1 area, and do not go beyond it.

5. **Statement E: External L2 PDUs are only flooded to the local area ' s L2 routers.**

- This statement is incorrect. External L2 PDUs are flooded to all L2 routers throughout the IS-IS network, not just to those in the local area. This allows L2 routers to maintain a complete map of the network ' s topology.

**Conclusion**:

Given the analysis, the correct answers are:

**A. Internal L1 PDUs are flooded to the local area ' s L2 routers.**

**B. External L2 PDUs are flooded to all L2 routers in other areas.**

**D. Internal L1 PDUs are only flooded to the local area ' s L1 routers.**

**References**:

- Juniper Networks Documentation on IS-IS: [IS-IS Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/is-is-routing-overview.html)

- RFC 1195, Use of OSI IS-IS for Routing in TCP/IP and Dual Environments: [RFC 1195](https://tools.ietf.org/html/rfc1195) which details the operation of IS-IS in multi-area networks.

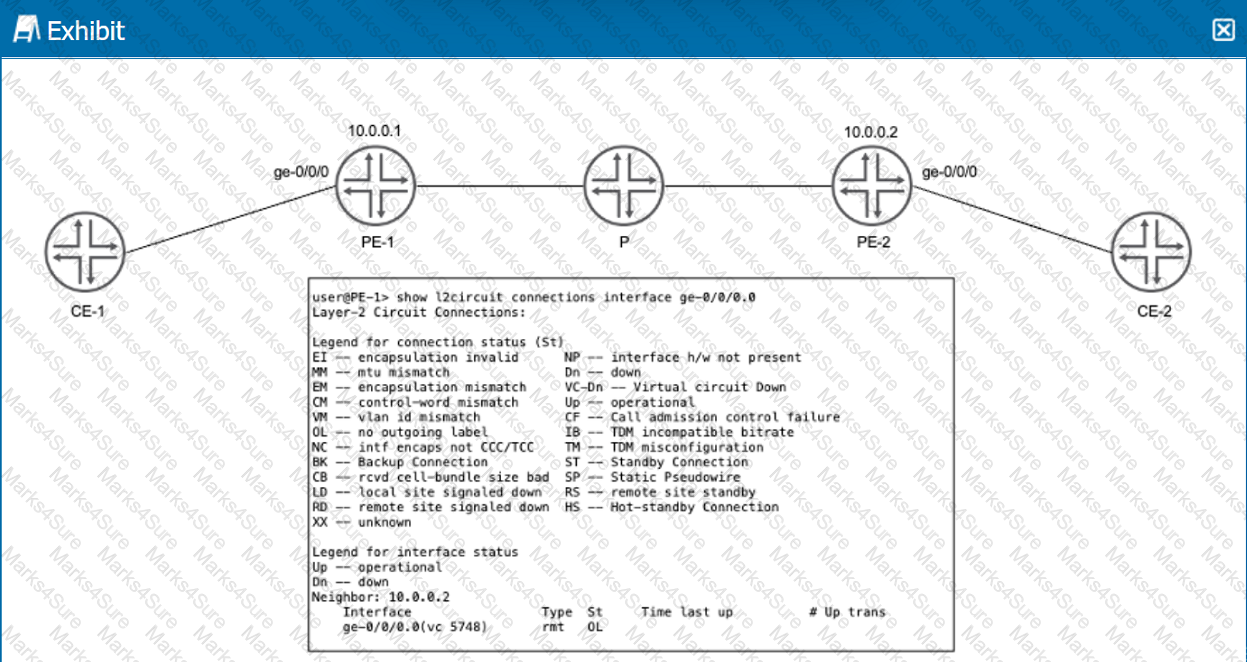

In an L2VPN scenario, the provider network connects two customer edge (CE) devices across a Layer 2 virtual private network. Let ' s analyze how OSPF operates in this setup.

1. **OSPF Neighborship in L2VPN**:

- An L2VPN provides a Layer 2 connection between two sites, making it transparent to Layer 3 protocols like OSPF. This means the CEs can form OSPF adjacencies directly with each other as if they were on the same local network.

2. **OSPF Configuration on CEs and PEs**:

- **Statement A: OSPF neighborship is formed between the CEs and PEs**:

- Incorrect. In an L2VPN, the provider ' s network is transparent to the OSPF running on the CEs. OSPF neighborship forms directly between the CEs, not between the CEs and PEs.

- **Statement B: The CE and PE OSPF areas can be different**:

- Correct. Since OSPF adjacencies form directly between the CEs and not between CEs and PEs, the OSPF areas on the CEs and PEs can be different. The provider network acts as a transparent bridge, and OSPF doesn ' t see the PEs.

- **Statement C: The CE and PE OSPF areas must match**:

- Incorrect. As noted above, because the OSPF neighborship forms directly between the CEs, the OSPF areas on the CEs and PEs do not need to match.

- **Statement D: OSPF neighborship is formed between the two CEs**:

- Correct. The L2VPN makes the connection between the two CEs appear as a direct Layer 2 link, allowing them to form an OSPF adjacency directly.

**Conclusion**:

Given the above analysis, the correct statements are:

**B. The CE and PE OSPF areas can be different.**

**D. OSPF neighborship is formed between the two CEs.**

**References**:

- Juniper Networks Documentation on L2VPNs: [Configuring Layer 2 VPNs](https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/layer-2-vpns-configuring.html)

- OSPF Configuration Guide: [Junos OS OSPF Configuration](https://www.juniper.net/documentation/en_US/junos/topics/concept/ospf-routing-overview.html)

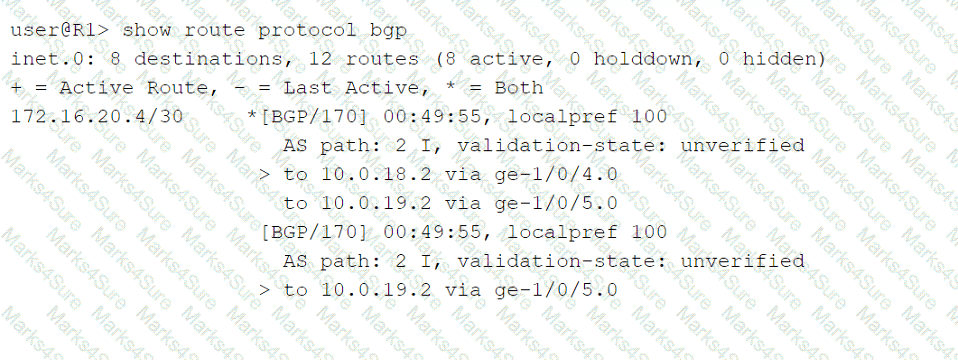

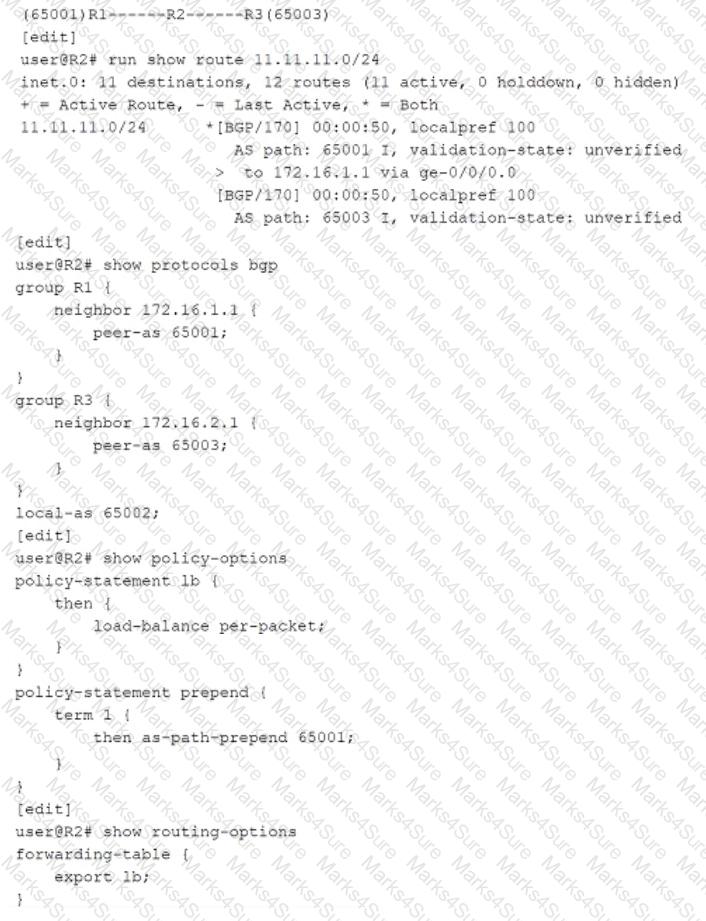

In the exhibit, the output of the `show route protocol bgp` command is shown for the prefix `172.16.20.4/30`. Let ' s analyze the provided BGP routing table to determine which statements are correct.

1. **AS Path Analysis**:

- The AS path for the route `172.16.20.4/30` is shown as `2 I`.

- This indicates that the route was learned from AS 2 and it is an internal (iBGP) route within the same AS.

2. **Multiple Paths**:

- The route has two next-hop IP addresses: `10.0.18.2` via interface `ge-1/0/4.0` and `10.0.19.2` via interface `ge-1/0/5.0`.

- This indicates that BGP multipath is configured, which allows multiple equal-cost paths to be used for load balancing.

- BGP multipath must be explicitly configured to use multiple paths for the same prefix.

3. **Multihop vs. Multipath**:

- **Multihop Configuration**: This is typically used for establishing BGP sessions with peers that are not directly connected. It is not related to load balancing.

- **Multipath Configuration**: This is used to enable load balancing across multiple paths for the same prefix, which is the case here.

**Conclusion**:

Given the above analysis:

- **C. This route is learned from the same AS number**: Correct. The AS path `2 I` indicates the route was learned from the same AS number (AS 2).

- **D. The multipath configuration is used for load balancing**: Correct. The presence of multiple next-hops indicates that BGP multipath is configured for load balancing.

Thus, the correct answers are:

**C. This route is learned from the same AS number.**

**D. The multipath configuration is used for load balancing.**

**References**:

- Junos OS BGP Multipath Documentation: [Junos OS BGP Multipath](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/bgp-multipath.html)

- Junos OS BGP Configuration Guide: [Junos OS BGP Configuration](https://www.juniper.net/documentation/en_US/junos/topics/concept/bgp-routing-overview.html)

A sham link is a logical link between two PE routers that belong to the same OSPF area but are connected through an L3VPN. A sham link makes the PE routers appear as if they are directly connected, and prevents OSPF from preferring an intra-area back door link over the VPN backbone. A sham link creates an OSPF multihop neighborship between the PE routers using TCP port 646.  The PEs exchange Type 1 OSPF LSAs instead of Type 3 OSPF LSAs for the L3VPN routes, which allows OSPF to use the correct metric for route selection 1 .

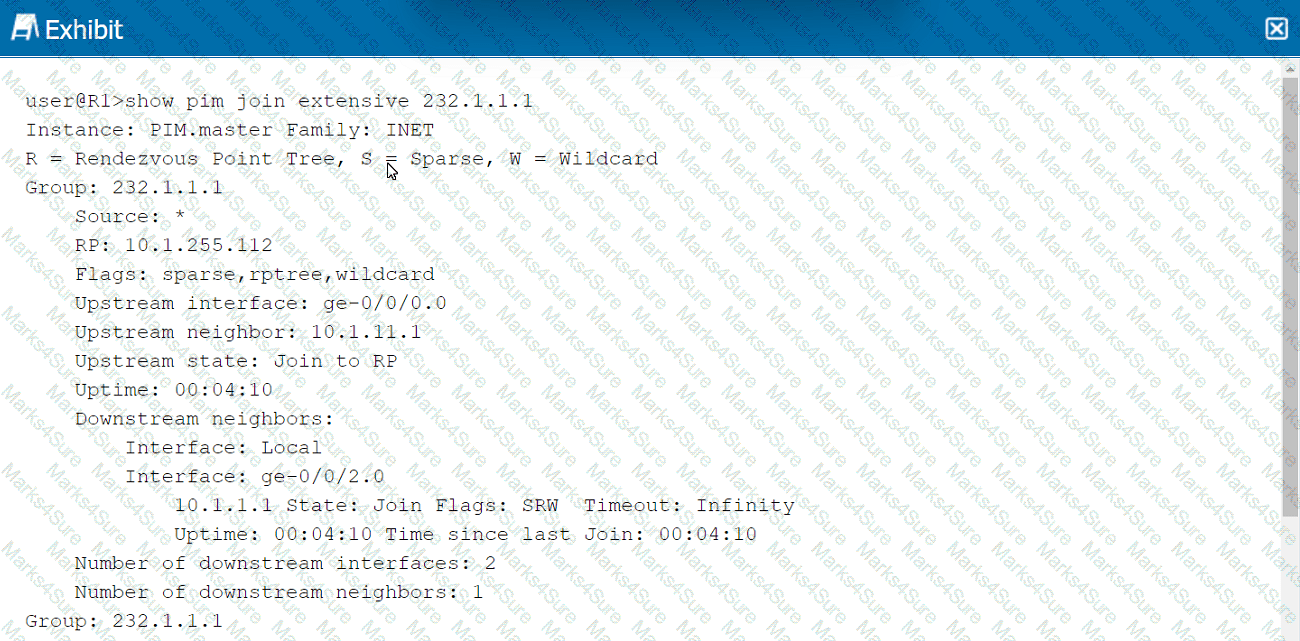

In the provided exhibit, the output of the `show pim join extensive 232.1.1.1` command is shown. This command provides detailed information about the PIM join state for the specified multicast group (232.1.1.1) on the router R1. To determine the correct statements regarding the multicast traffic, let ' s analyze the output and the terms involved:

1. **ASM vs. SSM**:

- **ASM (Any-Source Multicast)**: In ASM, receivers are interested in receiving multicast traffic from any source sending to a particular multicast group.

- **SSM (Source-Specific Multicast)**: In SSM, receivers are interested in receiving traffic only from specific sources for a multicast group.

- **Group Address Range**:

- ASM uses the range 224.0.0.0 to 239.255.255.255.

- SSM uses the range 232.0.0.0 to 232.255.255.255.

Since the group address 232.1.1.1 falls within the SSM range (232.0.0.0/8), there might be confusion. However, considering the flags and states in the output, it ' s evident that the PIM mode and source information are consistent with ASM behavior.

2. **Multicast Trees**:

- **RPT (Rendezvous Point Tree)**: Multicast traffic initially uses the RPT, where the Rendezvous Point (RP) acts as an intermediate point.

- **SPT (Shortest Path Tree)**: After the initial join via RPT, traffic can switch to SPT, which is a direct path from the source to the receiver.

3. **Output Analysis**:

- **Flags**:

- The flags `sparse, rp-tree, wildcard` indicate that the group 232.1.1.1 is currently using RPT. This is typical for ASM, where traffic initially goes through the RP.

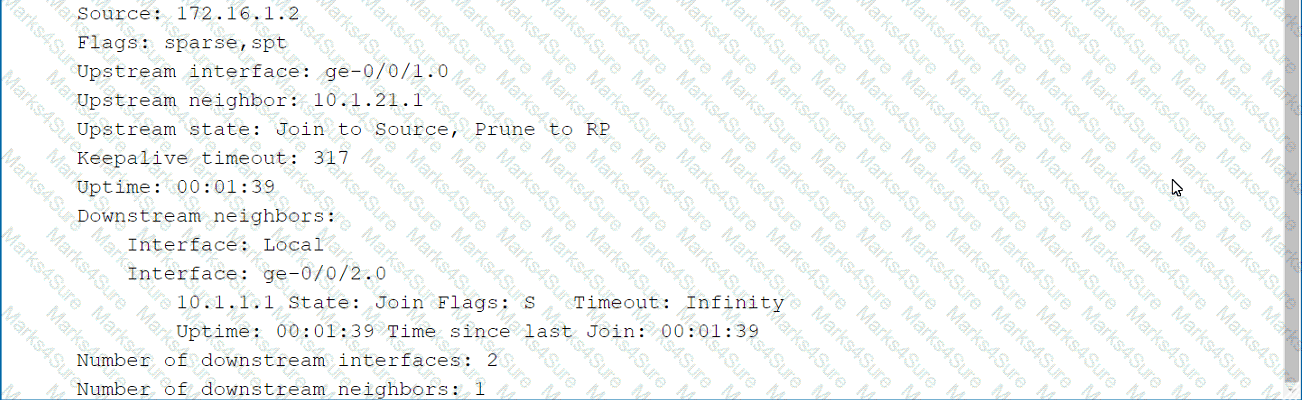

- The flags `sparse, spt` indicate that for the source 172.16.1.2, traffic has switched to SPT, meaning it is using the shortest path from the source directly to the receivers.

**Conclusion**:

Based on the analysis:

- **A. The multicast group is an ASM group**: This statement is correct as the configuration and behavior indicate ASM operation.

- **B. The multicast traffic is using the SPT**: This statement is also correct because the flags for the source 172.16.1.2 indicate that the traffic is using the SPT.

Thus, the correct answers are:

**A. The multicast group is an ASM group.**

**B. The multicast traffic is using the SPT.**

**References**:

- Juniper Networks PIM Documentation: [PIM Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/pim-overview.html)

- Junos OS Multicast Routing Configuration Guide: [Multicast Routing Configuration Guide](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/multicast-routing.html)

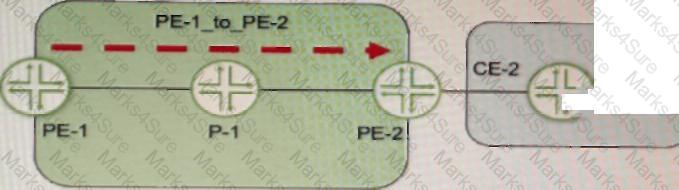

Understanding the Problem in MPLS CoS Classification

How EXP Bits Are Used for CoS in MPLS

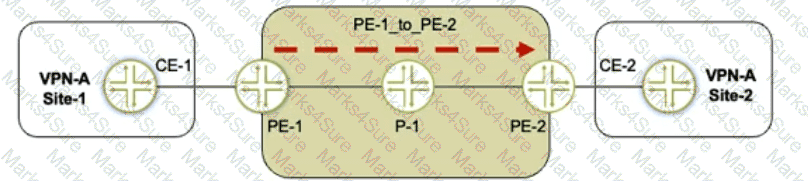

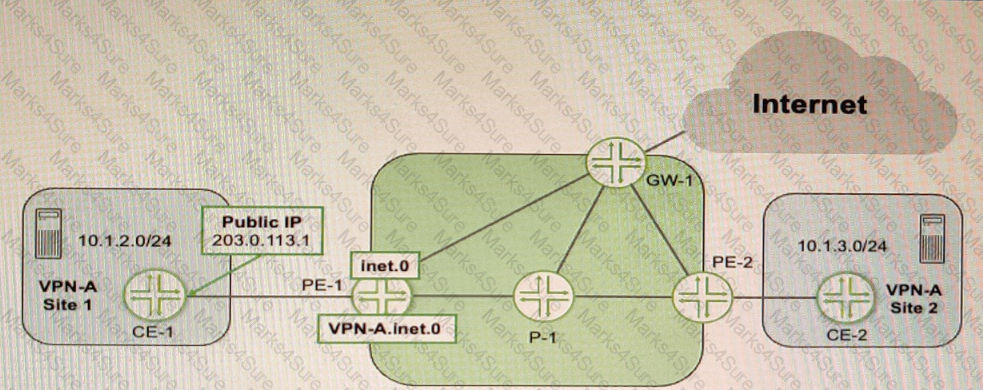

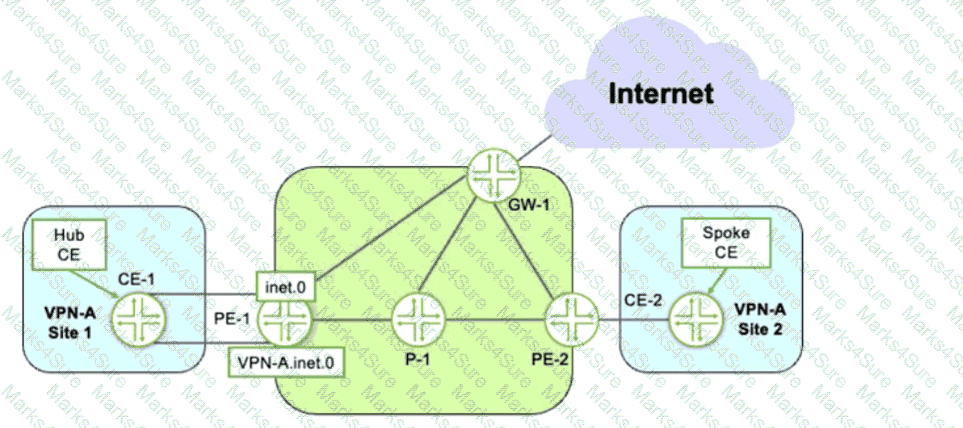

Traffic is sent from VPN-A Site-1 → CE-1 → PE-1 → P-1 → PE-2 → CE-2 .

The MPLS LSP (Label Switched Path) from PE-1 to PE-2 is expected to carry MPLS EXP bits , which are used for Class of Service (CoS) classification .

PE-2 should classify traffic based on EXP bits received in the MPLS label.

What Happens with PHP (Penultimate Hop Popping)?

By default, the penultimate router (P-1) pops the top MPLS label before sending the packet to PE-2.

Since the EXP bits are in the top MPLS label , they get removed along with the label .

This means that PE-2 no longer sees the correct EXP bits , leading to incorrect traffic classification .

Solution: Configure Explicit-Null on PE-2

Explicit Null (explicit-null) must be configured on PE-2 to ensure that P-1 does NOT remove the MPLS label .

Instead of removing the label, P-1 will send a label of 0 (for IPv4) or 2 (for IPv6) to PE-2.

This preserves the MPLS EXP bits , allowing PE-2 to classify the traffic correctly .

Evaluating the Answer Choices Again

✅ B. Configure the explicit-null statement on PE-2.

Correct , because:

PE-2 is the egress LSR , where Ultimate Hop Popping (UHP) must be enabled.

Configuring explicit-null ensures that P-1 does not remove the label , preserving the EXP bits for CoS classification at PE-2.

Configuration on PE-2:

set protocols mpls explicit-null

Juniper Documentation Reference:

" Explicit-null must be configured on the egress LSR to prevent PHP from removing the top MPLS label, thereby preserving the EXP bits. "

❌ A. Configure the explicit-null statement on PE-1.

Incorrect , because:

Explicit-null must be configured on the egress LSR (PE-2), not the ingress LSR (PE-1).

PE-1 only labels the traffic but does not control PHP behavior on P-1.

❌ C. Configure VPN prefix mapping for the PE-1_to_PE-2 LSP.

Incorrect , because:

VPN prefix mapping is used for mapping VPN routes to LSPs but does not solve the EXP bit issue .

The problem here is label removal (PHP), not route mapping .

❌ D. Set a static CoS value for the PE-1_to-PE-2 LSP.

Incorrect , because:

This does not preserve the original EXP bits , it only applies a static CoS value.

It’s a workaround, not a fix .

Final Answer: ✅ B. Configure the explicit-null statement on PE-2.

Key Takeaways

Penultimate Hop Popping (PHP) removes the outer MPLS label at P-1 , which also removes the EXP bits used for CoS classification.

To keep EXP bits intact, configure explicit-null on the egress PE (PE-2).

This forces P-1 to send a label (0 for IPv4, 2 for IPv6) to PE-2, preserving the EXP bits for CoS classification.

Official Juniper Documentation Reference

???? Juniper MPLS CoS and PHP Behavior Guide

" To retain CoS EXP bits at the egress LSR, configure explicit-null on the egress PE. This prevents PHP from stripping the MPLS label before reaching the final PE router. "

https://www.juniper.net/documentation/us/en/software/nce/feature-guide-virtual-private-lan-service/topics/task/vpls-ldp-signaling-solutions.html

https://www.juniper.net/documentation/us/en/software/junos/vpn-l2/topics/concept/vpns-configuring-vpls-routing-instances.html#id-11510150__id-11568648
