JN0-682 Data Center Professional (JNCIP-DC) Questions and Answers

To achieve a lower oversubscription ratio in a spine-leaf architecture, you can increase the number of spine nodes (B) and increase the number of server-facing ports on each leaf node (C). This enhances the overall bandwidth and connectivity, leading to a better ratio of downstream to upstream traffic.

References:

• Juniper Networks - Data Center Network Design Best Practices

In Ethernet VPN (EVPN), MAC mobility and MAC advertisement are crucial route types. MAC mobility is used to handle the movement of MAC addresses between different network locations, ensuring accurate and efficient traffic forwarding. MAC advertisement routes are used to advertise the presence of MAC addresses, enabling the correct forwarding of Ethernet frames in an EVPN environment.

References

• EVPN Overview

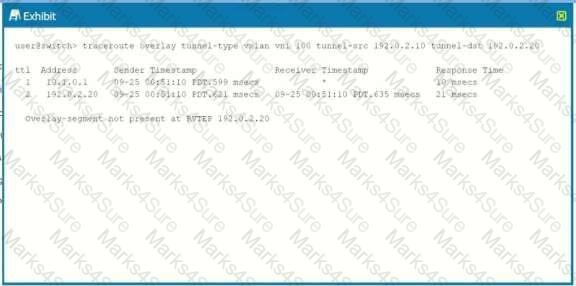

https://www.juniper.net/documentation/us/en/software/junos/ovsdb-vxlan-qfx/topics/example/overlay-ping-traceroute-vxlan.html

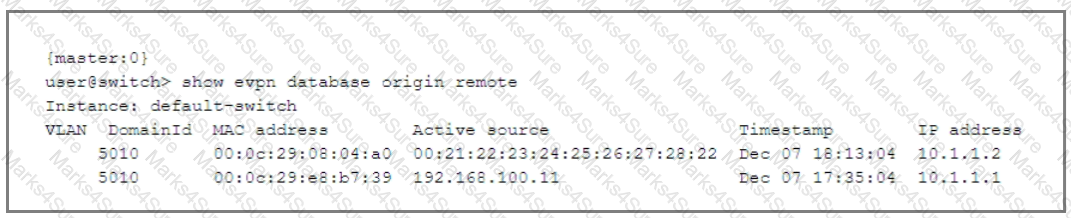

Ethernet VPN (EVPN) provides control plane-based MAC address learning. This means that MAC addresses are exchanged and learned via BGP messages rather than through traditional data plane flooding. This approach is more scalable and reliable compared to multicast-based MAC address learning, where MAC addresses are learned through data plane flooding. Control plane learning with EVPN is less prone to issues like broadcast storms and provides a more efficient and stable mechanism for MAC address dissemination in large-scale networks.References:Juniper Networks EVPN Overview and Configuration Guide.

In a spine and leaf-based IP fabric, when a device or link fails, the traffic is rerouted within the fabric (A), ensuring high availability and resiliency. This architecture is designed to dynamically adapt to changes and reroute traffic as needed. Furthermore, Clos networks, which are the basis for spine-leaf architectures, demonstrate good scaling features (D) as they allow for easy expansion of the network by adding more spine or leaf switches without significant changes to the existing infrastructure.References:

• Juniper Networks - Spine-and-Leaf Architectures
• Understanding Spine-and-Leaf Network Topologies

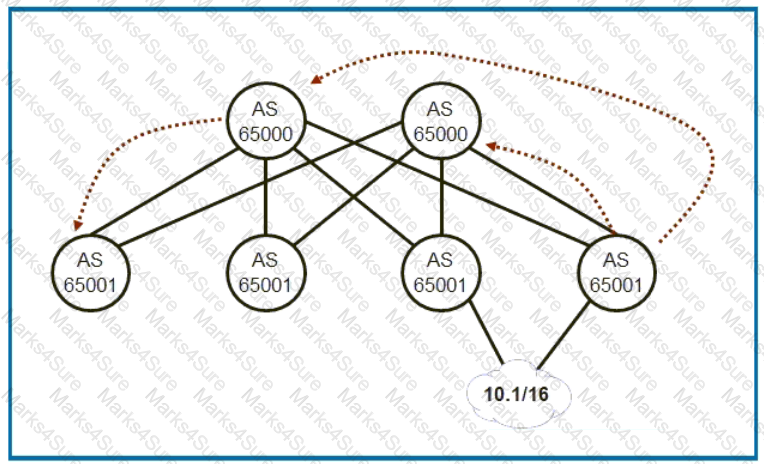

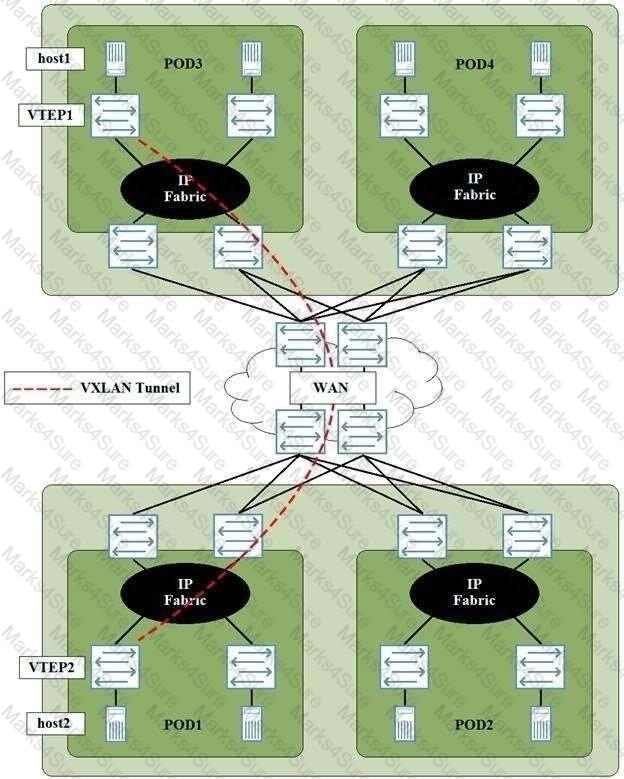

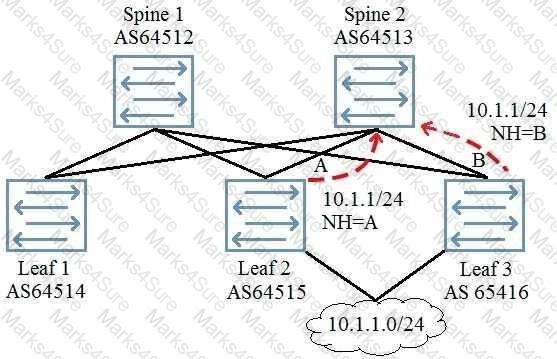

By configuring all spines in a POD to share the same ASN, it simplifies the BGP routing and ensures that more optimal paths are used in a 5-stage EVPN-VXLAN IP fabric.

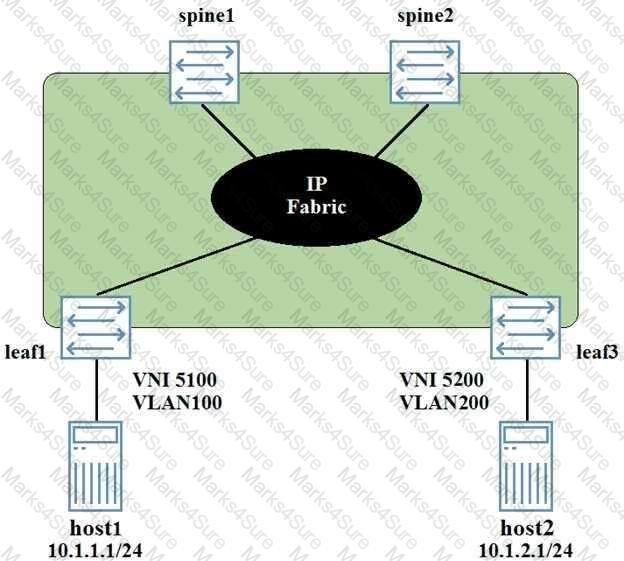

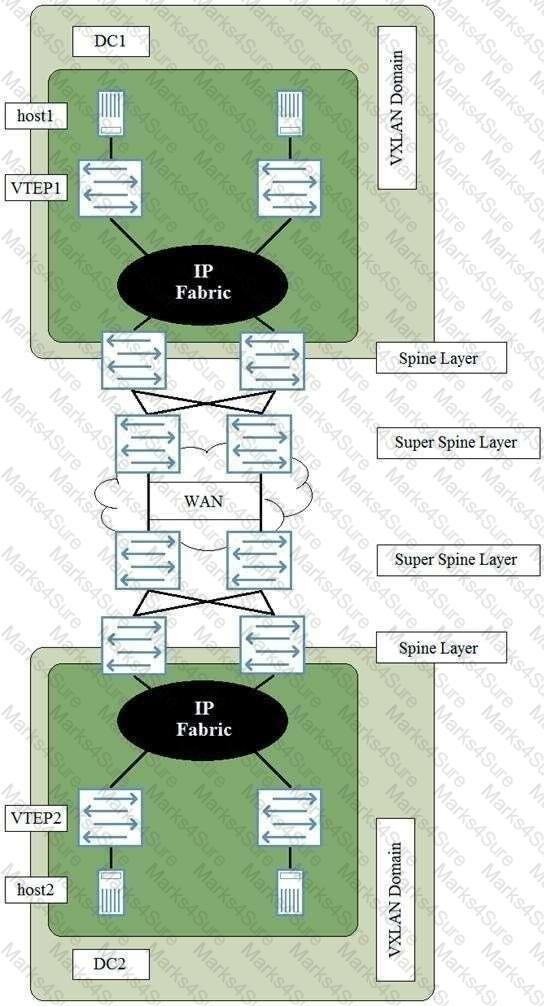

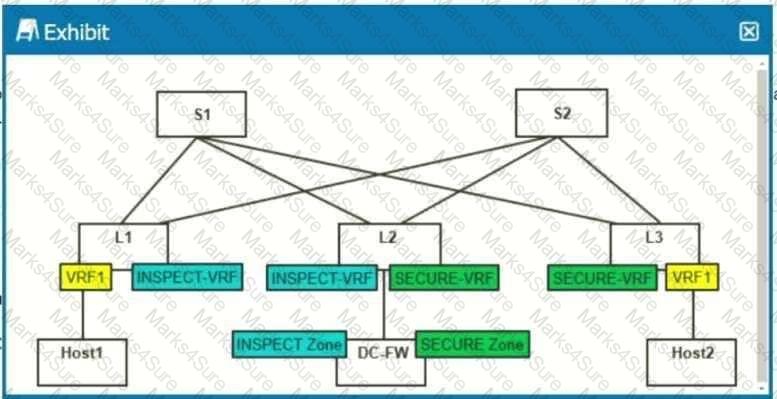

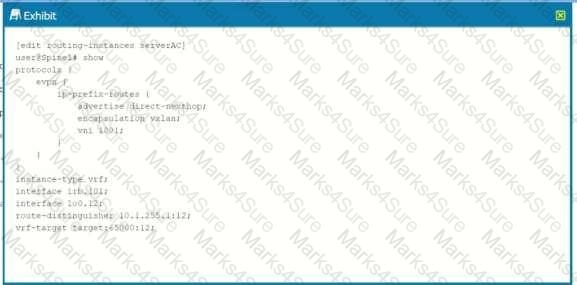

To enable communication between VXLANs in different data centers across a WAN connection using an MX Series router, Integrated Routing and Bridging (IRB) interfaces must be configured. IRB interfaces provide Layer 3 routing capabilities within a VXLAN overlay network, allowing for inter-VXLAN routing. By configuring IRB interfaces on the MX router, you enable it to act as a Layer 3 gateway, routing traffic between the different VXLANs across the data centers.References:Juniper Networks MX Series Documentation - VXLAN and EVPN Configuration.

A. Ensuring that all spine devices are of the same type (switched mode) can contribute to predictable load-balancing behavior due to consistent handling of traffic across all spine nodes.

C. Ensuring that every leaf node has an uplink to every spine node helps in achieving even load distribution and redundancy, contributing to predictable load-balancing in the fabric.

A. VPLS (Virtual Private LAN Service) learns MAC addresses in the data plane, meaning the learning process occurs as the traffic flows through the network.

D. EVPN (Ethernet VPN) differs from VPLS in that it learns MAC addresses in the control plane, using BGP for MAC address dissemination, which offers better scalability and control.

References:

• Juniper Networks - Understanding VPLS
• Juniper Networks - Understanding EVPN

B. Configure virtual-gateway-accept-data under the IRB interface. This configuration is necessary to ensure that the IRB interfaces on the spine devices can handle traffic destined to the virtual gateway IP address.

D. Configure proxy-macip-advertisement under the IRB interface. This enables the advertisement of proxy MAC/IP routes to remote VTEPs. This is essential in a CRB (Centralized Routing and Bridging) topology to ensure that all hosts, including those connected to the spine devices, have reachability to all IRB interface addresses.

References:

• Juniper EVPN Configuration Guide

One of the primary advantages of EVPN (Ethernet VPN) over VPLS (Virtual

Private LAN Service) is the capability of mass MAC withdrawal (A). This feature allows EVPN to quickly remove MAC addresses from the forwarding database when a link or node fails, improving convergence times and network stability. In contrast, VPLS lacks this efficient mechanism for withdrawing MAC addresses en masse, which can lead to slower convergence and potential traffic blackholing in the event of network changes or failures.References:

• Juniper Networks - EVPN Overview
• Understanding EVPN

A. Allowing Junos to dynamically create the virtual MAC address of the IRB interface ensures unique MAC addresses for redundancy and avoids conflicts. C. Configuring both IRB interfaces manually with the same address ensures consistency and helps in creating a redundant Layer 3 gateway setup.

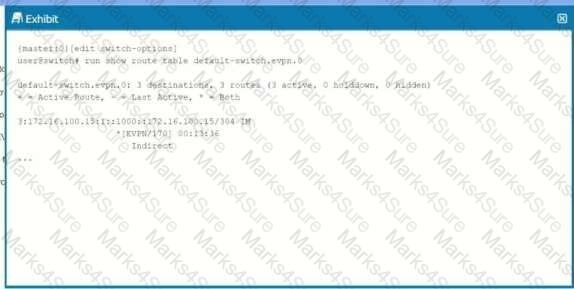

In a scenario where RSVP and LDP are restricted, and routes are not appearing in the inet table, the use of "bgp family inet labeled-unicast per-group-label" becomes necessary. This setting is crucial in environments where label distribution protocols like RSVP or LDP are not used. It enables the use of MPLS labels in BGP without relying on these protocols, which is essential for integrating L3VPN with EVPN over WAN links that do not support RSVP or LDP. The “per-group-label” option ensures that a single label is used for all routes exchanged with a BGP neighbor, which simplifies label management and conserves label space.References:

• Junos OS Routing Protocols Library for Routing Devices

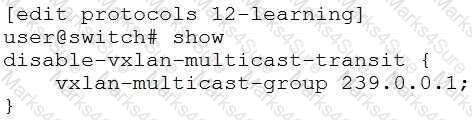

Mesh groups in EVPN environments can control BUM (Broadcast, Unknown unicast, Multicast) flooding. This is particularly useful in scenarios where the network is expanding, as it helps manage the flood of BUM traffic more efficiently.

The endpoint of a VXLAN tunnel is known as a VTEP (VXLAN Tunnel Endpoint). VTEPs are responsible for encapsulating and de-encapsulating the traffic sent over the VXLAN network.

References:

• Juniper Networks - VXLAN Overview

The Junos Telemetry Interface (JTI) is the ideal solution for monitoring and telemetry in an IP fabric using QFX Series devices. JTI uses a push model to stream system event data and statistical data from the devices. It provides real-time, granular monitoring capabilities, which is more efficient and scalable compared to

traditional polling methods like SNMP. By pushing data to a telemetry server, JTI allows for more dynamic and immediate insights into network performance and health.References:Juniper Networks QFX Series Documentation - Junos Telemetry Interface.

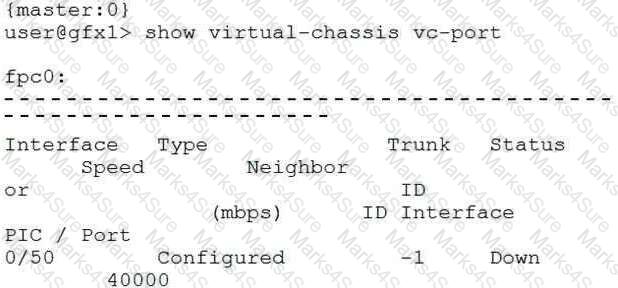

In a Virtual Chassis Fabric (VCF) configuration, both combinations of four spine nodes with 20 leaf nodes, and four spine nodes with 16 leaf nodes are supported. This configuration ensures scalability and flexibility in network design.

References:

• [Juniper Networks - Virtual Chassis Fabric Configuration Guide]

An EVPN Type-4 route, also known as an Ethernet Segment (ES) route, is generated when a new Ethernet Segment Identifier (ESI) is configured. The ESI represents an Ethernet segment for multi-homing purposes in EVPN. When a new ESI is configured on an interface, it triggers the generation of an EVPN Type-4 route to advertise the Ethernet segment's existence and its multi-homed state to other VTEPs in the EVPN instance. This helps in providing redundancy and load balancing in a multi-homed EVPN environment.

References:

• EVPN Type 4 Route (Ethernet Segment Route) Explanation

B. MPLS EVPN provides for local proxy ARP/ND resolution, which improves efficiency and reduces broadcast traffic. C. MPLS EVPN supports point-to-multipoint connectivity, allowing more flexible and scalable network designs. D. MPLS EVPN facilitates MAC learning in the control plane, which leads to more efficient and scalable network operations.

Route reflection and confederations are two methods used to scale IBGP in an IP fabric. Route reflection allows an IBGP router to advertise routes received from one IBGP peer to another, reducing the number of IBGP sessions required. Confederations divide an autonomous system into smaller sub-autonomous systems, simplifying the internal BGP routing policy and management.

References:

• Juniper Networks - BGP Route Reflection
• Juniper Networks - BGP Confederations

The Ethernet segment router in EVPN is responsible for preventing BUM traffic from looping back to a multi-homed host. It ensures that BUM traffic is properly handled in scenarios where hosts are connected to multiple leaf nodes.

The MAC mass withdrawal feature in EVPN-VXLAN environments significantly improves network convergence during link failures. When a link failure occurs, instead of individually withdrawing each MAC address learned on the failed link, EVPN can send a single, consolidated message indicating that all MAC addresses associated with the Ethernet Segment Identifier (ESI) of the failed link are no longer reachable. This accelerates the convergence process by reducing the amount of control plane traffic needed to update the network state.References:Juniper Networks EVPN-VXLAN Technical Documentation.
