JN0-683 Data Center Professional (JNCIP-DC) Exam Questions and Answers

Zero-Touch Provisioning (ZTP):

ZTP is a feature that allows for the automatic provisioning of devices with minimal manual intervention. It is widely used in large-scale deployments to quickly bring new devices online.

Key Requirements for ZTP:

A. DHCP Server: A DHCP server is crucial for ZTP as it provides the necessary information to new devices, such as the IP address, the location of the software image, and configuration files.

D. File Server: The file server is where the software image and configuration files are stored. The device downloads these files during the provisioning process.

Incorrect Options:

B. Syslog Server: While a syslog server is important for logging and monitoring, it is not a requirement for the initial provisioning process.

C. NTP Server: An NTP server is used for time synchronization, which is essential for accurate logging and operation but not specifically required for ZTP.

Data Center References:

ZTP simplifies the deployment process by automating the initial configuration steps, relying heavily on DHCP for communication and a file server for delivering the necessary configuration and software.

Redundant Gateways in EVPN-VXLAN:

In an EVPN-VXLAN environment, providing redundant gateway functionality typically involves the use of Anycast Gateway. This allows multiple PEs (Provider Edge devices) to use the same IP address and MAC address for the gateway, enabling seamless failover and redundancy without IP conflicts.

Conserving Address Space:

Using the same IP address across multiple PEs conserves address space because only one IP address is needed for the gateway function, regardless of the number of PEs. The shared MAC address ensures that ARP resolution and forwarding behavior are consistent across all the PEs.

Conclusion:

Option C: Correct—Using IRB interfaces with the same IP and MAC address across all PEs satisfies the need for redundancy while conserving address space.

Options A, B, and D introduce unnecessary complexity or do not fully utilize the efficient Anycast Gateway approach, which is best practice for conserving IP space and providing redundancy.

Load Balancing in VXLAN:

VXLAN uses UDP encapsulation to transport Layer 2 frames over an IP network. For load balancing across Equal-Cost Multi-Path (ECMP) links, various fields in the packet can be used to ensure even distribution of traffic.

Key Load Balancing Fields:

C. The source port in the UDP header is used to load balance VXLAN traffic: This is correct. The source UDP port in the VXLAN packet is typically calculated based on a hash of the inner packet's fields. This makes the source port vary between packets, enabling effective load balancing across multiple paths.

D. The inner packet fields are used in the hash for load balancing: This is also correct. Fields such as the source and destination IP addresses, source and destination MAC addresses, and possibly even higher-layer protocol information from the inner packet can be used to generate the hash that determines the ECMP path.

Incorrect Statements:

A. The inner packet fields are not used in the hash for load balancing: This is incorrect as the inner packet fields are indeed critical for generating the hash used in load balancing.

B. The destination port in the UDP header is used to load balance VXLAN traffic: This is incorrect because the destination UDP port in VXLAN packets is typically fixed (e.g., port 4789 for VXLAN), and therefore cannot be used for effective load balancing.

Data Center References:

Effective load balancing in VXLAN is crucial for ensuring high throughput and avoiding congestion on specific links. By using a combination of the source UDP port and inner packet fields, the network can distribute traffic evenly across available paths.

Scenario Overview:

Converting an MX Series router from a VXLAN Layer 2 gateway to a VXLAN Layer 3 gateway involves transitioning the router's functionality from simply bridging traffic within a VXLAN segment to routing traffic between different segments.

Key Configuration Requirement:

IRB (Integrated Routing and Bridging) Interface: An IRB interface allows for both Layer 2 switching and Layer 3 routing. To enable routing for a specific VNI (VXLAN Network Identifier), the IRB interface must be associated with the routing function in the corresponding bridge domain.

Correct Command:

C. set bridge-domains VLAN-100 routing-interface irb.100: This command correctly binds the IRB interface to the bridge domain, enabling Layer 3 routing functionality within the VXLAN for VNI 100. This effectively transitions the device from operating solely as a Layer 2 gateway to a Layer 3 gateway.

Data Center References:

This configuration step is essential when converting a Layer 2 VXLAN gateway to a Layer 3 gateway, enabling the MX Series router to route between VXLAN segments.

Telemetry in Data Centers:

Telemetry allows for real-time monitoring of network devices by collecting and exporting data such as interface statistics, routing table updates, and other key metrics.

Vendor-Neutral Data Models:

Option A: JTI (Junos Telemetry Interface) OpenConfig sensors use a vendor-neutral data model, which is important for ensuring compatibility across different network devices and systems. OpenConfig is an industry-standard model, which facilitates integration with various telemetry collection systems.

Conclusion:

Option A: Correct—OpenConfig sensors provide a vendor-neutral solution for telemetry, ensuring broad compatibility and flexibility in data center environments.

Understanding sFlow Monitoring:

sFlow is a packet sampling technology used to monitor traffic in a network. It sends sampled packet data and interface counters to an sFlow collector, which analyzes the traffic patterns.

Information Included in sFlow Datagram:

Option A: The datagram sent to the sFlow collector includes information about the interface through which the packets entered the agent (the switch or router). This is crucial for understanding where in the network the traffic was captured.

Option D: sFlow datagrams also include the source and destination VLAN for the sampled packets. This allows for detailed analysis of the traffic flow within different VLANs.

Conclusion:

Option A: Correct—The ingress interface is included in the sFlow datagram.

Option D: Correct—The source and destination VLANs are also included, providing context for the sampled traffic.

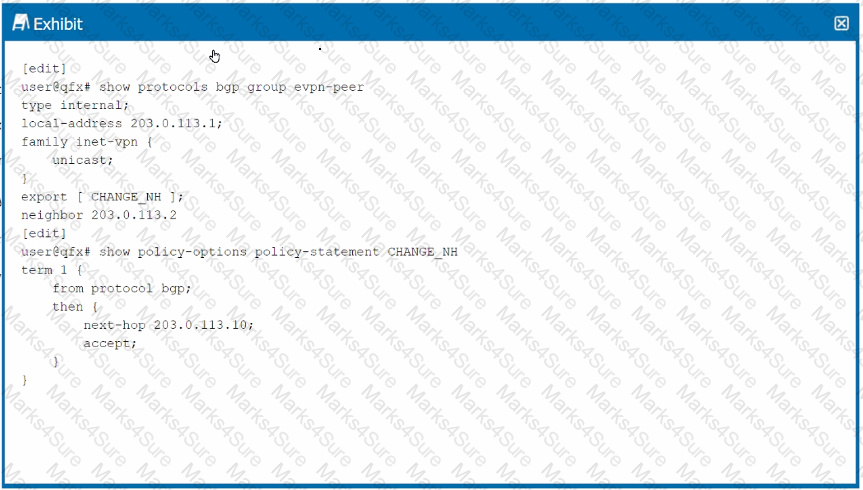

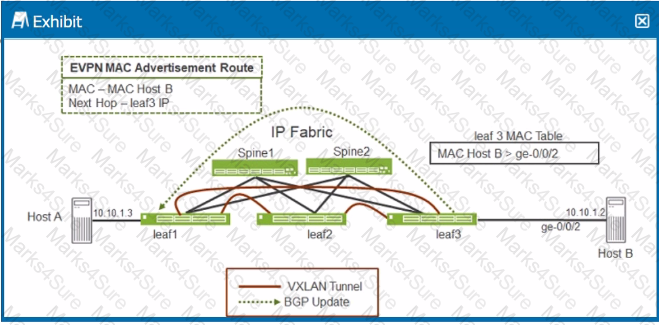

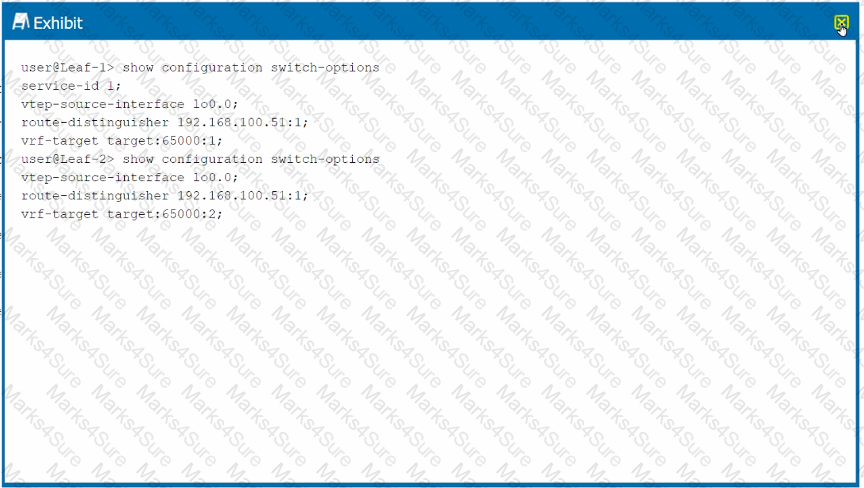

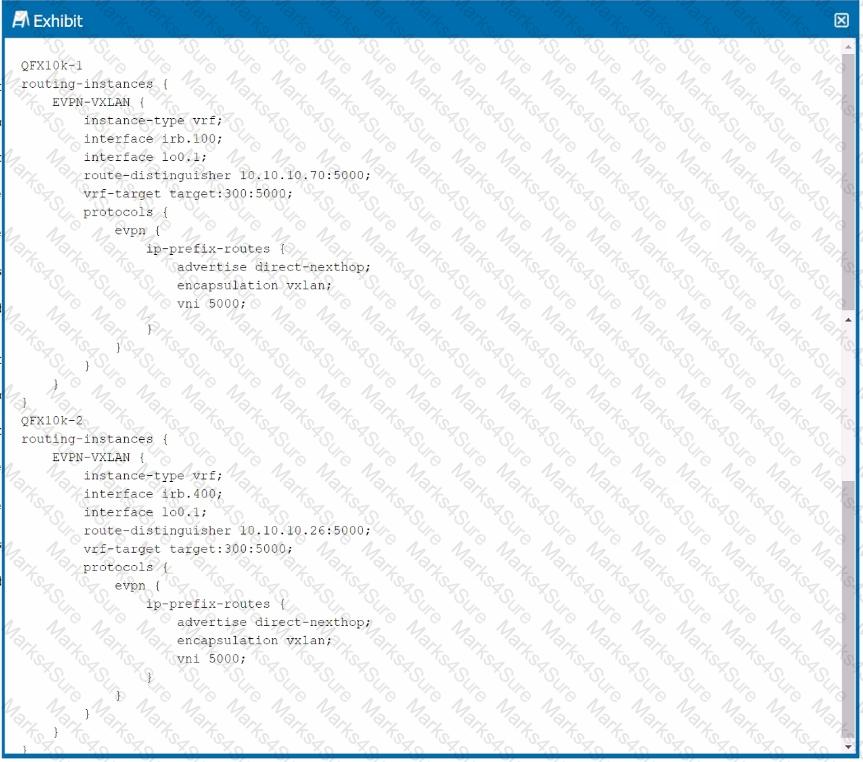

Type 2 EVPN Routes:

Type 2 routes advertise MAC addresses within an EVPN instance and are used primarily for Layer 2 bridging. These routes do not require a VXLAN tunnel to the protocol next hop because they operate within the same Layer 2 domain.

Type 5 EVPN Routes:

Type 5 routes are used to advertise IP prefixes (Layer 3 routes) within EVPN. Similar to Type 2 routes, they do not require a VXLAN tunnel to the protocol next hop because they represent L3 routes, which are managed at the routing layer without the need for VXLAN encapsulation.

Conclusion:

Option B: Correct—Type 2 routes do not need a VXLAN tunnel to the next hop, as they are used for Layer 2.

Option D: Correct—Type 5 routes also do not need a VXLAN tunnel because they operate at Layer 3, handling IP prefixes.

Collapsed Fabric Architecture:

A collapsed fabric refers to a simplified architecture where the spine and leaf roles are combined, often reducing the number of devices and links required.

In this architecture, the spine typically handles core switching, while leaf switches handle both access and distribution roles.

Understanding Border Gateway Functionality:

Border gateway functions include connecting the data center to external networks or other data centers.

In a collapsed fabric, these functions are usually handled at the leaf level, particularly on border leaf devices that manage the ingress and egress of traffic to and from the data center fabric.

Correct Statement:

D. Border gateway functions occur on border leaf devices: This is accurate in collapsed fabric architectures, where the border leaf devices take on the role of managing external connections and handling routes to other data centers or the internet.

Data Center References:

The collapsed fabric model is advantageous in smaller deployments or scenarios where simplicity and cost-effectiveness are prioritized. It reduces complexity by consolidating functions into fewer devices, and the border leaf handles the critical task of interfacing with external networks.

In conclusion, border gateway functions are effectively managed at the leaf layer in collapsed fabric architectures, ensuring that the data center can communicate with external networks seamlessly.

Understanding EBGP in an IP Fabric:

EBGP (External Border Gateway Protocol) is commonly used in IP fabrics to establish peering between routers, such as leaf and spine nodes, without relying on an Interior Gateway Protocol (IGP) like OSPF or IS-IS.

IGP Requirement for EBGP:

Option B: EBGP peering does not require an IGP for adjacency establishment. This is because EBGP peers are typically directly connected, and BGP establishes its own sessions without needing an underlying IGP.

Leaf-to-Spine Peering:

Option C: In a typical IP fabric, each leaf node establishes an EBGP session with every spine node. This ensures full connectivity between leaves and spines, facilitating efficient routing and forwarding within the fabric.

Conclusion:

Option B: Correct—EBGP does not require an IGP for establishing peering sessions.

Option C: Correct—Each leaf node peers with every spine node, which is a standard practice in IP fabrics to ensure connectivity and redundancy.

DHCP Behavior in Factory-Default Configuration:

Option B: In the factory-default configuration, Juniper switches are designed to send DHCP requests on all operational interfaces. This behavior ensures that the switch can obtain an IP address for management and further configuration from any available DHCP server.

Option D: The DHCP server can provide additional configuration parameters, including the required Junos version. This allows for automated provisioning and ensures that the switch is running the correct software version.

Conclusion:

Option B: Correct—The switch will use any operational interface to request an IP address via DHCP.

Option D: Correct—The DHCP server can specify Junos version requirements, enabling automated software management.

VXLAN Control Planes:

VXLAN (Virtual Extensible LAN) uses different control planes to handle MAC learning and traffic forwarding. The control planes include multicast and EVPN (Ethernet VPN).

Multicast and EVPN Comparison:

Option B: Both multicast and EVPN can be used for MAC learning in a VXLAN environment. Multicast is a more traditional approach, while EVPN is more advanced and supports distributed MAC learning.

Option D: EVPN offers benefits such as fast convergence and rapid updates, making it more efficient and scalable for modern data center environments.

Option E: Multicast does not require as many resources because it relies on traditional Layer 3 multicast mechanisms to distribute broadcast, unknown unicast, and multicast (BUM) traffic. However, it can be less flexible and less scalable compared to EVPN.

Conclusion:

Option B: Correct—Both control planes facilitate MAC learning.

Option D: Correct—EVPN provides fast convergence and updates.

Option E: Correct—Multicast is resource-efficient but less flexible.

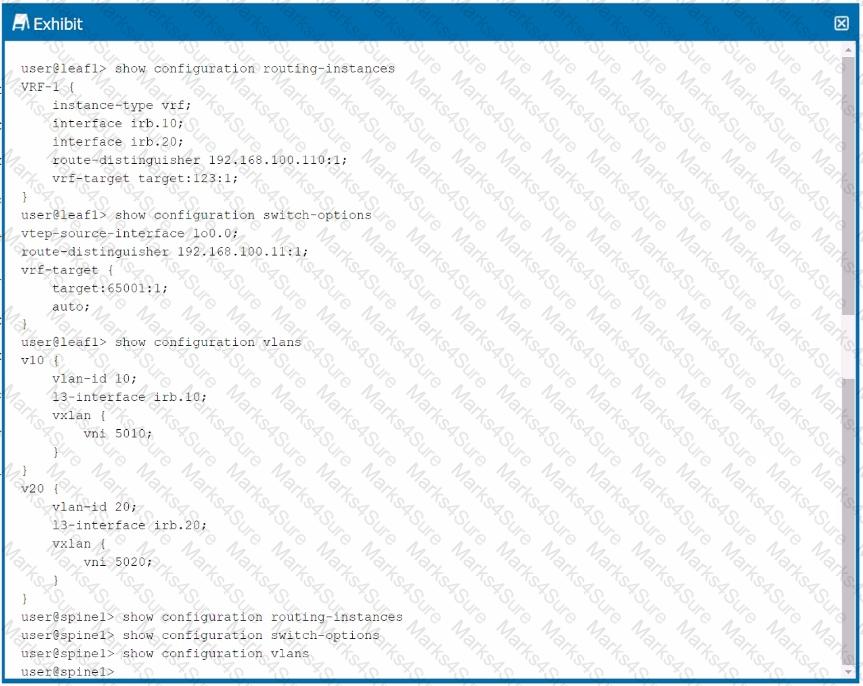

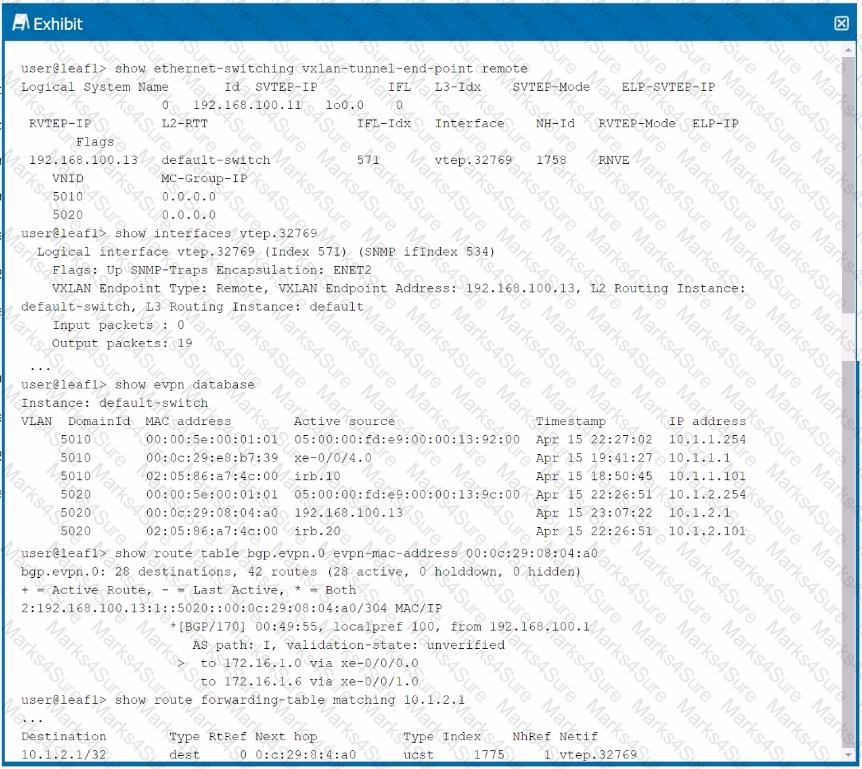

 Understanding the Problem:

Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) within an EVPN-VXLAN environment using ERB architecture.

 Analysis of the Exhibit:

The provided output includes information from the show route forwarding-table matching command for IP 10.1.2.1. The next hop is shown as vtep.32769, which indicates that the traffic destined for 10.1.2.1 is being forwarded into the VXLAN tunnel with the correct VTEP (VXLAN Tunnel Endpoint).

 Conclusion:

Option B: Correct—The traffic from Host1 is entering the VXLAN tunnel, as evidenced by the next hop pointing to a VTEP. However, the issue could lie elsewhere, possibly with the remote VTEP, routing configurations, or the receiving leaf/spine devices.

VXLAN Traffic Verification:

To ensure VXLAN traffic from the xe-0/0/12 interface is correctly encapsulated by the logical vtep.32770 and sent to a remote leaf device, it is essential to monitor the relevant interface statistics.

The command show interfaces terse vtep.32770 statistics provides a concise overview of the traffic statistics for the specific VTEP interface, which can help verify whether traffic is being correctly encapsulated and transmitted.

Explanation:

This command is particularly useful for quickly checking the traffic counters and identifying any potential issues with VXLAN encapsulation or transmission.

It allows you to confirm that traffic is flowing as expected, by checking the transmitted and received packet counters.

Data Center References:

Monitoring interface statistics is a crucial step in troubleshooting and validating network traffic, particularly in complex overlay environments like EVPN-VXLAN.

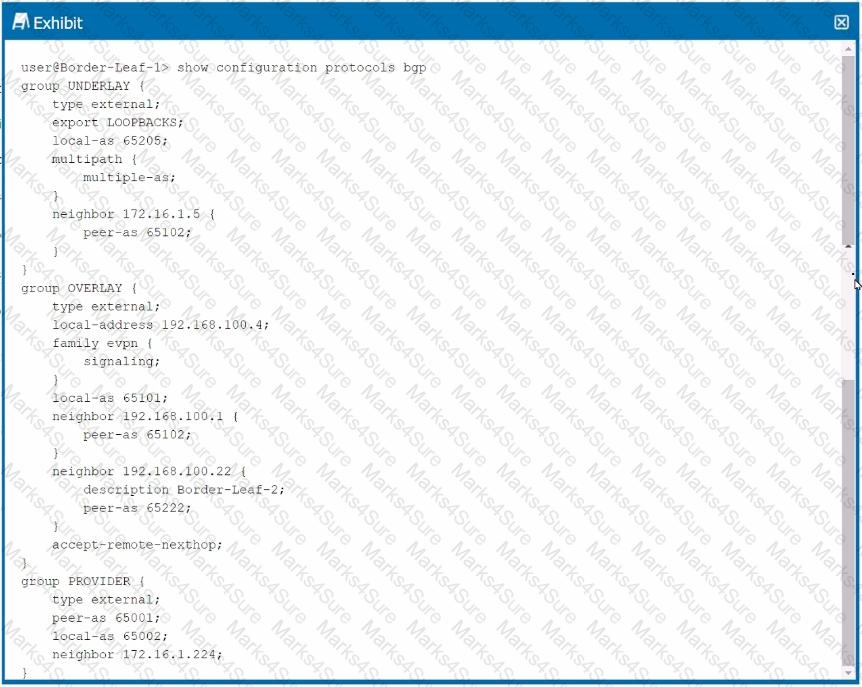

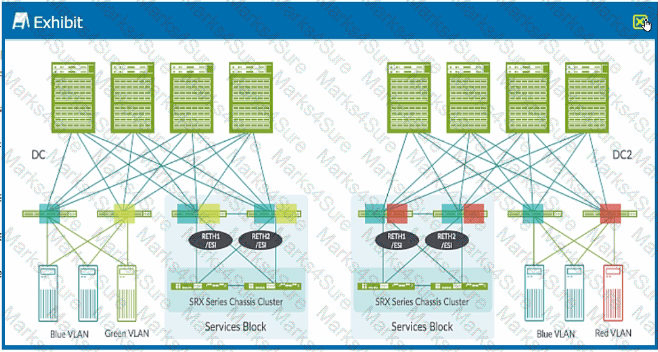

Requirement Analysis:

The scenario requires a solution to interconnect two data centers that supports EVPN Type 2 connectivity. The solution must be highly scalable and must minimize the number of VXLAN tunnels between border leaf devices.

Understanding Type 2 Seamless Stitching:

Option D: Type 2 seamless stitching is a method used in EVPN to provide Layer 2 connectivity (such as MAC address mobility) across different VXLAN segments. It is scalable because it allows only necessary tunnels to be established between border leaf devices, reducing the overhead of maintaining a full mesh of VXLAN tunnels.

Conclusion:

Option D: Correct—Type 2 seamless stitching satisfies the requirement by enabling scalable, efficient interconnection of two data centers with minimal VXLAN tunnels.

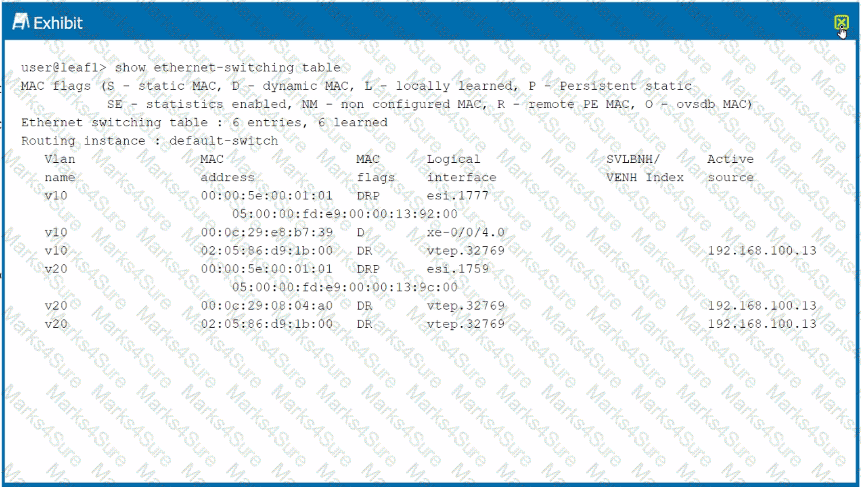

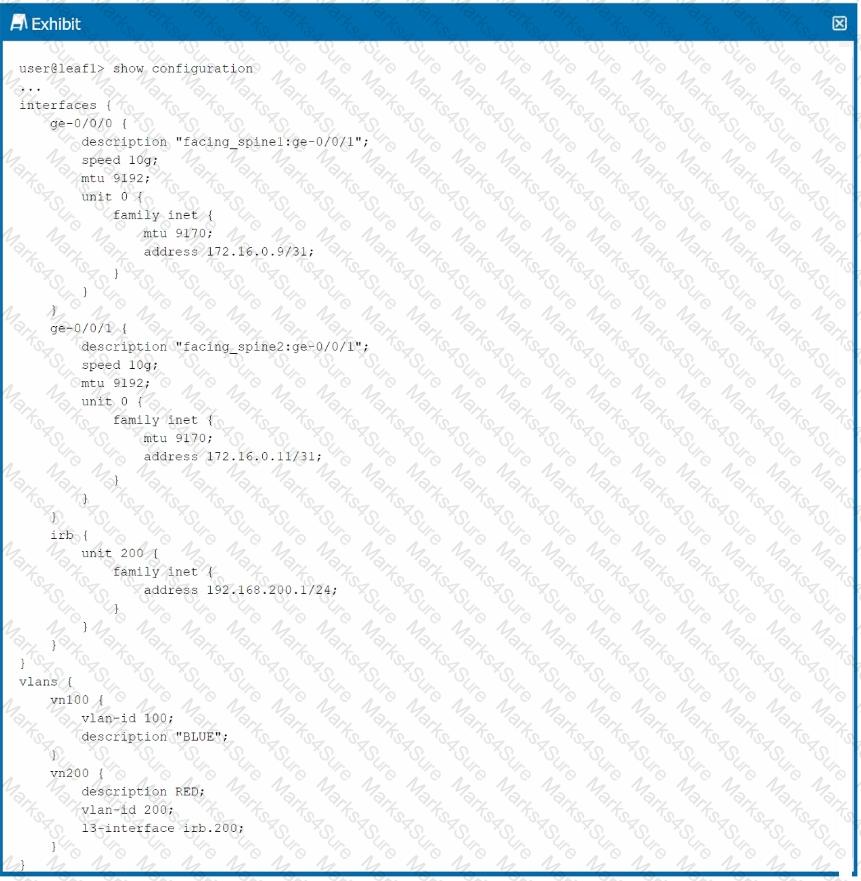

In the provided network configuration, Host A is in VLAN 100 and Host B is in VLAN 200. The issue arises because these two hosts are unable to communicate, which indicates that either the interfaces are not properly linked to their respective VLANs, or there is a missing static route required for inter-VLAN routing.

Step-by-Step Analysis:

VLAN Assignment:

The exhibit shows that irb.200 is correctly associated with VLAN 200 in the configuration. However, there is no corresponding irb.100 for VLAN 100. Without irb.100, the network lacks the logical interface to handle routing for VLAN 100. Thus, adding irb.100 to VLAN 100 is necessary.

Command to solve this:

set vlans vn100 13-interface irb.100

Static Route Configuration:

For inter-VLAN routing to occur, a static route needs to be configured that allows traffic to pass between different subnets (in this case, between VLAN 100 and VLAN 200). The command set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10 would add a static route that directs all traffic from VLAN 100 to the correct gateway (192.168.200.10), which is necessary to route traffic between the two VLANs.

Command to solve this:

set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10

Explanation of Incorrect Options:

Option A (delete vlans vn200 13-interface irb.200) : This would remove the logical interface associated with VLAN 200, which is not desired because we need VLAN 200 to remain active and properly routed.

Option B (set interfaces irb unit 100 family inet address 192-168.100.1) : This command would incorrectly assign an IP address that does not correspond with the subnet of VLAN 100 (192.168.200.1/24). This could create a misconfiguration, leading to routing issues.

Data Center References:

For a Data Center, proper VLAN management and static routing are crucial for ensuring that different network segments can communicate effectively, especially when dealing with separated subnets or zones like in different VLANs. This aligns with best practices in DCIM (Data Center Infrastructure Management) which stress the importance of proper network configuration to avoid downtime and ensure seamless communication between all critical IT infrastructure components.

Ensuring that the correct interfaces are associated with the correct VLANs and having the proper static routes in place are both essential steps in maintaining a robust and reliable data center network.

This detailed analysis reflects best practices as noted in standard data center design and network configuration guides​.
