MCPA-Level-1 MuleSoft Certified Platform Architect - Level 1 Questions and Answers

Explanation

Correct Answer: When server-side load-balanced TLS mutual authentication is required between API implementations and API clients

*****************************************

Fact/ Memory Tip: Although there are many benefits of CloudHub Dedicated Load balancer, TWO important things that should come to ones mind for considering it are:

> > Having URL endpoints with Custom DNS names on CloudHub deployed apps

> > Configuring custom certificates for both HTTPS and Two-way (Mutual) authentication.

Coming to the options provided for this question:

> > We CANNOT use DLB to perform cross-region load balancing between separate deployments of the same Mule application.

> > We can have mapping rules to have more than one DLB URL pointing to same Mule app. But vicevera (More than one Mule app having same DLB URL) is NOT POSSIBLE

> > It is true that DLB helps to setup custom DNS names for Cloudhub deployed Mule apps but NOT true for apps deployed to Customer-hosted Mule Runtimes.

> > It is true to that we can load balance API invocations across multiple CloudHub workers using DLB but it is NOT A MUST. We can achieve the same (load balancing) using SLB (Shared Load Balancer) too. We DO NOT necessarily require DLB for achieve it.

So the only right option that fits the scenario and requires us to use DLB is when TLS mutual authentication is required between API implementations and API clients.

Explanation

Correct Answer: Unit tests (Whitebox)

*****************************************

To monitor an application network and predict issues without custom scripts, policy violation metrics are critical. They provide insights into potential problems by tracking instances where API usage does not conform to defined policies. Here’s why this approach is suitable:

Predictive Monitoring :

Tracking API policy violations (such as rate limits or spike controls being hit) can indicate surges in traffic or misuse, which may lead to throttling or service degradation if not addressed.

By monitoring these violations, teams can proactively adjust limits or optimize API handling to prevent actual failures.

No Custom Scripting Needed :

Policy violation metrics are available within MuleSoft’s Anypoint Monitoring, meaning there’s no need to implement custom solutions or external tools to gather and interpret this data.

Explanation of Incorrect Options :

Option B (effectiveness based on reuse) does not directly predict failures.

Option C (past invocation counts) offers historical usage data but does not inherently identify issues.

Option D (ROI from API invocation) is a business metric and does not provide technical insights for failure prediction.

References For more details on leveraging policy violation metrics for proactive monitoring, refer to MuleSoft documentation on Anypoint Monitoring ​​.

Explanation

Correct Answer: API Consumer requests access to API > > API Client implementes logic to call an API > > API routes the request to > > API Implementation

*****************************************

> > API consumer does not implement any logic to invoke APIs. It is just a role. So, the option stating " API Consumer implementes logic to call an API " is INVALID.

> > API Implementation does not route any requests. It is a final piece of logic where functionality of target systems is exposed. So, the requests should be routed to the API implementation by some other entity. So, the options stating " API Implementation routes the request to > > API " is INVALID

> > The statements in one of the options are correct but sequence is wrong. The sequence is given as " API Client implementes logic to call an API > > API Consumer requests access to API > > API routes the request to > > API Implementation " . Here, the statements in the options are VALID but sequence is WRONG.

> > Right option and sequence is the one where API consumer first requests access to API on Anypoint Exchange and obtains client credentials. API client then writes logic to call an API by using the access client credentials requested by API consumer and the requests will be routed to API implementation via the API which is managed by API Manager.

Explanation

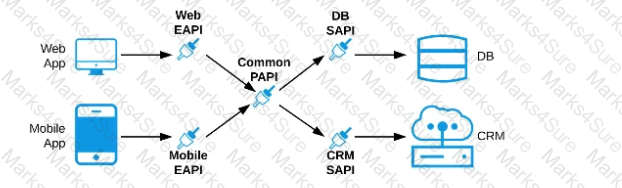

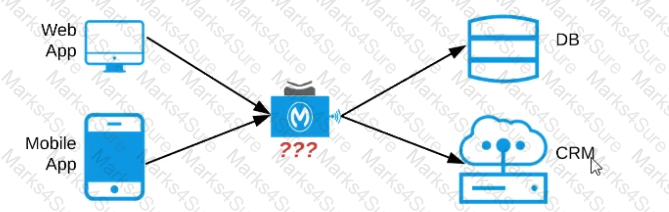

Correct Answer: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

*****************************************

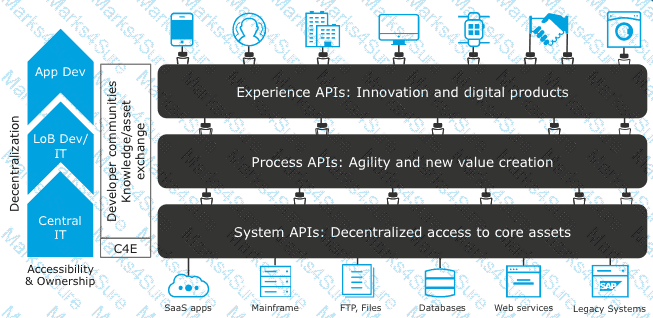

As per MuleSoft ' s API-led connectivity:

> > Experience APIs should be built as per each consumer needs and their experience.

> > Process APIs should contain all the orchestration logic to achieve the business functionality.

> > System APIs should be built for each backend system to unlock their data.

Explanation

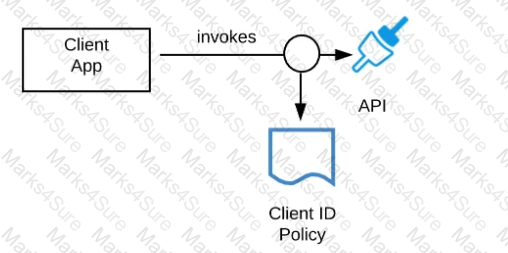

Correct Answer: The client ID and secret obtained from Anypoint Exchange for the API instance in the STAGING environment

*****************************************

> > We CANNOT use the client ID and secret of Anypoint Platform account or any individual environments for accessing the APIs

> > As the type of policy that is enforced on the API in question is " Client ID Enforcment Policy " , OAuth token based access won ' t work.

Right way to access the API is to use the client ID and secret obtained from Anypoint Exchange for the API instance in a particular environment we want to work on.

References:

Managing API instance Contracts on API Manager

https://docs.mulesoft.com/api-manager/1.x/request-access-to-api-task

https://docs.mulesoft.com/exchange/to-request-access

https://docs.mulesoft.com/api-manager/2.x/policy-mule3-clie nt-id-based-policies

Explanation

Correct Answer: When there is one CloudHub deployment of the API implementation to three CloudHub workers that must share the cache state.

*****************************************

Key details in the scenario:

> > Use the CloudHub Object Store via the Object Store connector

Considering above details:

> > CloudHub Object Stores have one-to-one relationship with CloudHub Mule Applications.

> > We CANNOT use an application ' s CloudHub Object Store to be shared among multiple Mule applications running in different Regions or Business Groups or Customer-hosted Mule Runtimes by using Object Store connector.

> > If it is really necessary and very badly needed, then Anypoint Platform supports a way by allowing access to CloudHub Object Store of another application using Object Store REST API. But NOT using Object Store connector.

So, the only scenario where we can use the CloudHub Object Store via the Object Store connector to persist the cache’s state is when there is one CloudHub deployment of the API implementation to multiple CloudHub workers that must share the cache state.

Explanation

Correct Answer: Option A

*****************************************

> > Anypoint API Manager and API policies are applicable to all types of HTTP/1.x APIs.

> > They are not applicable to WebSocket APIs, HTTP/2 APIs and gRPC APIs

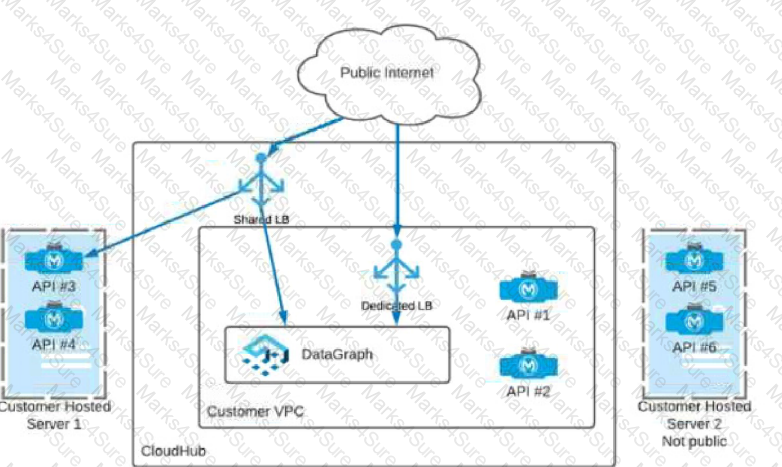

To create a unified schema in MuleSoft ' s DataGraph, APIs must be exposed in a way that allows DataGraph to pull and consolidate data from these APIs into a single schema accessible to consumers. DataGraph provides a federated approach, combining multiple APIs to form a single, unified API endpoint.

In this setup:

APIs 1, 2, 3, and 4 are suitable candidates for DataGraph because they are hosted within the Customer VPC on CloudHub and are accessible either through a Shared Load Balancer (LB) or a Dedicated Load Balancer (DLB) . Both of these load balancers provide public access, which is a necessary condition for DataGraph as it must access the APIs to aggregate data.

APIs 5 and 6 are hosted on Customer Hosted Server 2 , which is explicitly marked as " Not public " . Since DataGraph requires API access through a publicly reachable endpoint to aggregate them into a unified schema, APIs 5 and 6 cannot be used with DataGraph in this configuration.

APIs 3 and 4 on Customer Hosted Server 1 appear accessible through a Shared LB, implying public accessibility that meets DataGraph’s requirements.

By combining APIs 1, 2, 3, and 4 within DataGraph, you can create a unified schema that enables clients to query data seamlessly from all these APIs as if it were from a single source.

This setup allows for efficient data retrieval and can simplify API consumption by reducing the need to call multiple APIs individually, thus optimizing performance and developer experience.

References For more detailed information on setting up and managing unified schemas in DataGraph, refer to the DataWeave documentation and MuleSoft DataGraph resources which provide in-depth guidelines on schema aggregation and API federation​​.

Explanation

Correct Answer: The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance.

*****************************************

> > Once our API specifications are ready and published to Exchange, we need to visit API Manager and register an API instance for each API.

> > API Manager is the place where management of API aspects takes place like addressing NFRs by enforcing policies on them.

> > We can create multiple instances for a same API and manage them differently for different purposes.

> > One instance can have a set of API policies applied and another instance of same API can have different set of policies applied for some other purpose.

> > These APIs and their instances are defined PER environment basis. So, one need to manage them seperately in each environment.

> > We can ensure that same configuration of API instances (SLAs, Policies etc..) gets promoted when promoting to higher environments using platform feature. But this is optional only. Still one can change them per environment basis if they have to.

> > Runtime Manager is the place to manage API Implementations and their Mule Runtimes but NOT APIs itself. Though API policies gets executed in Mule Runtimes, We CANNOT enforce API policies in Runtime Manager. We would need to do that via API Manager only for a cherry picked instance in an environment.

So, based on these facts, right statement in the given choices is - " The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance " .

Understanding Control and Runtime Planes :

Control Plane : The control plane is responsible for managing, monitoring, and deploying Mule applications. In a Private Cloud Edition (PCE), this control plane is deployed on-premises within the customer’s infrastructure, meeting data residency and security requirements.

Runtime Plane : The runtime plane consists of Mule runtimes that execute Mule applications. By hosting these runtimes within the customer’s infrastructure, data and metadata can remain local, which complies with corporate policies regarding data residency.

Evaluating the Options :

Option A : Using Anypoint Platform Private Cloud Edition for the control plane and the MuleSoft-hosted runtime plane would not meet the requirement, as the runtime plane is hosted by MuleSoft and would not keep data local.

Option B : The MuleSoft-hosted control plane with Anypoint Runtime Fabric for the runtime plane would still mean that metadata is managed in MuleSoft’s cloud, which does not comply with the requirement to keep data and metadata on-premises.

Option C : A MuleSoft-hosted control plane and customer-hosted Mule runtimes also mean that metadata resides in the cloud, not on-premises, failing the residency requirement.

Option D (Correct Answer) : Anypoint Platform Private Cloud Edition (PCE) for the control plane and customer-hosted Mule runtimes fulfill both requirements, as both the control plane and runtime plane would be hosted within the customer’s data center.

Conclusion :

Option D is the correct answer, as it ensures that both the control plane and runtime plane are hosted on-premises, allowing data and metadata to reside locally per the corporate IT policy.

Refer to MuleSoft ' s documentation on Private Cloud Edition deployment and on-premise runtime configurations for further details.

Understanding Nonfunctional Requirements (NFRs) :

The NFRs in this context are related to security measures implemented for the Web API, such as rate limiting, LDAP-based authentication, JSON threat protection, and IP allowlist policies.

Evaluating the Options :

Option A (Correct Answer) : The IP allowlist policy restricts access to known subnets, ensuring that API invocations come from a defined range of IPs.

Option B (Correct Answer) : Basic Authentication with LDAP enforces a username/password validation, satisfying an NFR for identity verification.

Option C : Masking sensitive data is not part of the listed NFRs, as none of the mentioned policies address data masking.

Option D : XML threat protection is not mentioned, so this option is incorrect.

Option E : While rate-limiting implies performance control, it does not directly enforce a specific performance expectation.

Conclusion :

Options A and B are correct as they directly address the implemented security measures related to IP range restrictions and username/password authentication.

Refer to MuleSoft ' s documentation on API security policies for details on LDAP, rate limiting, and allowlist policies.

In MuleSoft CloudHub, autoscaling is essential to managing application load efficiently. CloudHub supports horizontal scaling based on CPU usage, which is well-suited to applications experiencing variable demand and needing responsive resource allocation.

Autoscaling on CloudHub :

Horizontal scaling increases the number of workers in response to CPU usage thresholds, allowing the application to handle higher loads dynamically. This approach improves performance without downtime or manual intervention.

Why Option C is Correct :

Setting up autoscaling based on CPU usage aligns with MuleSoft’s best practices for scalable and responsive applications on CloudHub, particularly in an environment with fluctuating load patterns.

Option C correctly leverages CloudHub’s autoscaling features based on resource metrics, which are part of CloudHub’s managed scaling solutions.

Explanation of Incorrect Options :

Option A (based on HTTP request thresholds) and Option B (separate policies for CPU and memory) do not represent CloudHub’s recommended scaling practices.

Option D suggests vertical scaling based on response time, which is not how CloudHub handles autoscaling.

References For more on CloudHub’s autoscaling configuration, refer to MuleSoft documentation on CloudHub autoscaling policies ​.

Explanation

Correct Answer: When a new required field is added to the method called by the API client

*****************************************

> > Generally, the logic on API clients need to be updated when the API contract breaks.

> > When a new method or a child method is added to an API , the API client does not break as it can still continue to use its existing method. So these two options are out.

> > We are left for two more where " datatype of the response if changed " and " a new required field is added " .

> > Changing the datatype of the response does break the API contract. However, the question is insisting on the " invocation " logic and not about the response handling logic. The API client can still invoke the API successfully and receive the response but the response will have a different datatype for some field.

> > Adding a new required field will break the API ' s invocation contract. When adding a new required field, the API contract breaks the RAML or API spec agreement that the API client/API consumer and API provider has between them. So this requires the API client invocation logic to also be updated.

When an API policy requiring a client ID and client secret is applied to an API instance in API Manager, API consumers must obtain these credentials through a registered client application. Here’s how it works:

Anypoint Exchange and Client Applications :

To access secured APIs, API consumers need to create or register a client application in Anypoint Exchange . This process involves requesting access to the specific API, and once approved, the consumer can retrieve the client ID and client secret associated with the application.

Why Option D is Correct :

Option D accurately describes the process, as the client ID and client secret are generated and managed within Anypoint Exchange . API consumers can use these credentials to authenticate with the TemperatureSensors API.

Explanation of Incorrect Options :

Option A (secrets manager) is incorrect because client credentials for API access are not managed via secrets manager.

Option B (API Manager) is incorrect as API Manager manages policies but does not provide client-specific credentials.

Option C (Access Management) does not apply, as Access Management is primarily used for user roles and permissions, not API client credentials.

References For further details on managing client applications in Anypoint Exchange, consult MuleSoft documentation on client application registration and API security policies ​.

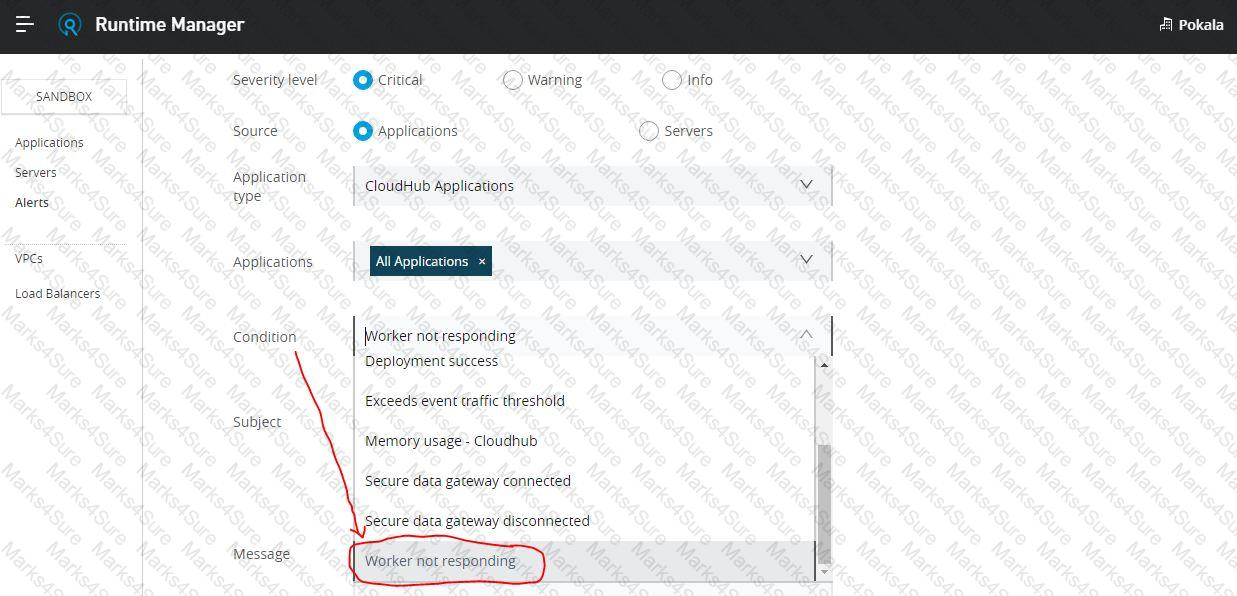

Explanation

Correct Answer: When the response time of API invocations exceeds a threshold

*****************************************

> > Alerts can be setup for all the given options using the default Anypoint Platform functionality

> > However, the question insists on an alert whose conditions depend on the end-to-end request processing of the API implementation.

> > Alert w.r.t " Response Times " is the only one which requires end-to-end request processing of API implementation in order to determine if the threshold is exceeded or not.

Understanding Circuit Breaker Policy :

A circuit breaker is a design pattern used to detect failures and prevent an application from continually trying to execute a failing operation. In this case, it will help improve response time and reduce demand on the downstream API.

The specified configuration includes conditions for opening, half-opening, and closing the circuit based on error rates over time:

Circuit Open : Triggered if there are more than 10 errors per minute for three consecutive minutes.

Circuit Half-Open : The circuit transitions to half-open if there is one error per minute.

Circuit Closed : The circuit closes if the error rate is less than one error per minute for five minutes.

Evaluating the Options :

Option A : Creating a custom policy with template expressions could work, but it would require custom development. Since the Anypoint Platform already has a Circuit Breaker policy available, this would be a less efficient and more complex solution.

Option B : Anypoint Monitoring alerts can be used for monitoring the API, but they do not provide circuit-breaking functionality. Additionally, implementing a retry strategy for the half-open state is not sufficient to achieve the required circuit breaker behavior.

Option C (Correct Answer) : Adding the Circuit Breaker policy to the API instance on Anypoint Platform allows you to set up circuit-breaking conditions directly. This approach uses the built-in Circuit Breaker policy, where you can configure parameters such as error thresholds and time intervals to match the requirements. This solution is efficient, reliable, and leverages Anypoint’s out-of-the-box capabilities.

Option D : Implementing the strategy within a Mule application with a YAML configuration could be complex and less manageable. Additionally, it does not leverage Anypoint Platform’s built-in Circuit Breaker policy, which is more suited to this scenario.

Conclusion :

Option C is the correct choice, as it leverages Anypoint Platform’s Circuit Breaker policy . This solution allows for configuring thresholds and time intervals as specified, improving response time and reducing demand on the downstream API while utilizing Anypoint ' s managed policy feature.

Refer to MuleSoft’s documentation on implementing the Circuit Breaker policy in API Manager for detailed configuration guidance.

Explanation

Correct Answer: Drive consumption as much as production of assets; this enables developers to discover and reuse assets from other projects and encourages standardization

*****************************************

> > The main motto of the new IT Operating Model that MuleSoft recommends and made popular is to change the way that they are delivered from a production model to a production + consumption model, which is done through an API strategy called API-led connectivity.

> > The assets built should also be discoverable and self-serveable for reusablity across LOBs and organization.

> > MuleSoft ' s IT operating model does not talk about SDLC model (Agile/ Lean etc) or MDM at all. So, options suggesting these are not valid.

References:

https://blogs.mulesoft.com/biz/connectivity/what-is-a-center-for-enablement-c4e/

https://www.mulesoft.com/resources/api/secret-to-managing-it-projects

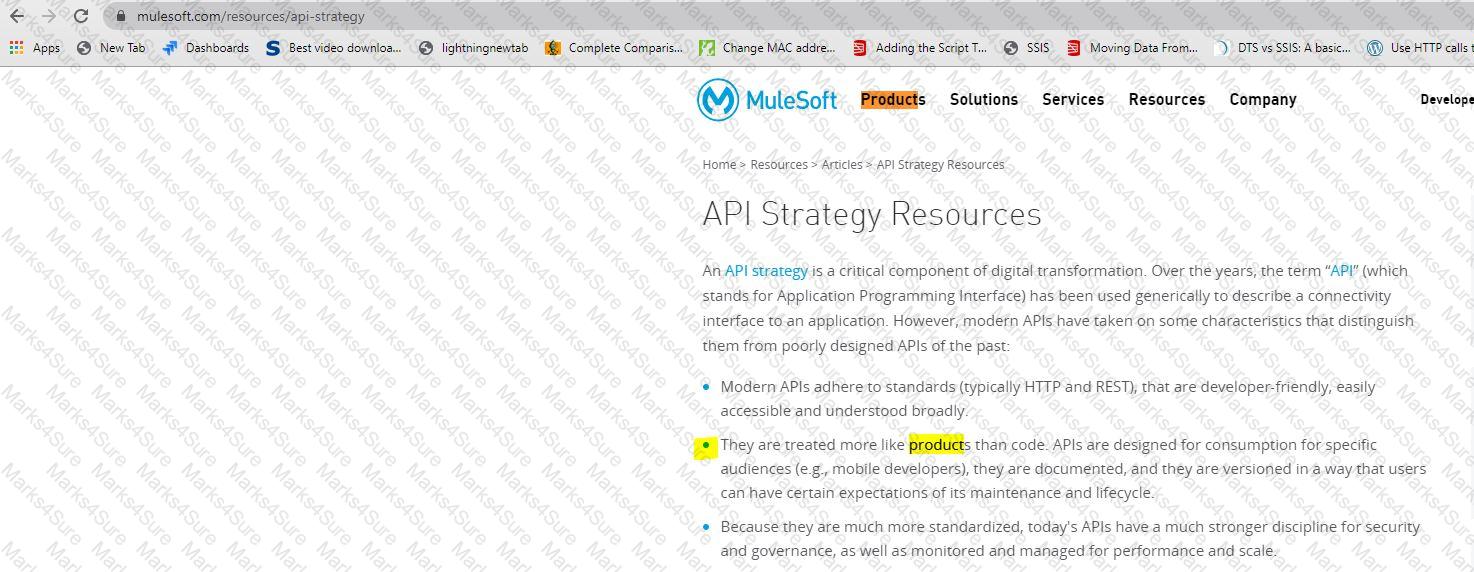

Explanation

Correct Answers :

1. Each modern API must be treated like a product and designed for a particular target audience (for instance mobile app developers)

*****************************************

Bottom of Form

Top of Form

Understanding Spike Control and Rate Limiting Policies :

Spike Control Policy : Limits the number of requests processed by the API in a short time to handle sudden bursts of traffic. It does not queue requests but rejects any request that exceeds the allowed burst rate.

Rate Limiting Policy : Sets a limit on the number of requests that an API can handle within a given timeframe. Once the limit is reached, additional requests are rejected.

Evaluating the Options :

Option A : Incorrect. In both Spike Control and Rate Limiting policies, requests are rejected once the limit is reached. Spike Control does not queue requests; it only controls the burst rate by rejecting excessive requests.

Option B (Correct Answer) : In a clustered environment , each node independently enforces the Rate Limiting and Spike Control policies, meaning that the limits apply to each node separately. This ensures that each node can control its own resource usage independently within the cluster.

Option C : This is partially correct, as Rate Limiting is often used to protect Experience APIs, but Spike Control could also be useful in limiting resource consumption under high burst conditions.

Option D : Incorrect. Although a contract is required to enforce client-specific policies, Rate Limiting and Spike Control do not require a contract to function for general traffic control.

Conclusion :

Option B is the correct answer because, in a clustered environment, Rate Limiting and Spike Control policies apply separately to each node, helping each instance to manage its own load.

For more information, refer to MuleSoft’s documentation on applying Rate Limiting and Spike Control policies in a clustered environment.

Explanation

Correct Answer: The number of API specifications in RAML or OAS format published to Anypoint Exchange

*****************************************

> > The success of C4E always depends on their contribution to the number of reusable assets that they have helped to build and publish to Anypoint Exchange.

> > It is NOT due to any factors w.r.t # of outages, Manual vs CI/CD deployments or Publicly accessible HTTP endpoints

> > Anypoint Platform APIs helps us to quickly run and get the number of published RAML/OAS assets to Anypoint Exchange. This clearly depicts how successful a C4E team is based on number of returned assets in the response.

Explanation

Correct Answer: The CloudHub shared load balancer

*****************************************

The scenario in this question can be split as below:

> > There are 3 CloudHub workers (So, there are already good number of workers to handle high volume of requests)

> > The workers are not using static IP addresses (So, one CANNOT use customer load-balancing solutions without static IPs)

> > Looking for most cost-effective component to load balance the client requests among the workers.

Based on the above details given in the scenario:

> > Runtime autoscaling is NOT at all cost-effective as it incurs extra cost. Most over, there are already 3 workers running which is a good number.

> > We cannot go for a customer-hosted load balancer as it is also NOT most cost-effective (needs custom load balancer to maintain and licensing) and same time the Mule App is not having Static IP Addresses which limits from going with custom load balancing.

> > An API Proxy is irrelevant there as it has no role to play w.r.t handling high volumes or load balancing.

So, the only right option to go with and fits the purpose of scenario being most cost-effective is - using a CloudHub Shared Load Balancer.

Explanation

Correct Answer: At the process and system tiers

*****************************************

> > Experience Layer APIs are modeled and designed exclusively for the end user ' s experience. So, the data models of experience layer vary based on the nature and type of such API consumer. For example, Mobile consumers will need light-weight data models to transfer with ease on the wire, where as web-based consumers will need detailed data models to render most of the info on web pages, so on. So, enterprise data models fit for the purpose of canonical models but not of good use for experience APIs.

> > That is why, EDMs should be used extensively in process and system tiers but NOT in experience tier.

Explanation

Correct Answer :  By refining the response definitions by adding the  x-ratelimit-*  response headers with description, type, and example

*****************************************

References :

https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling#response-headers

https://docs.mulesoft.com/api-manage r/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

In a CloudHub deployment with a single worker/replica located in a specific Availability Zone (AZ) , if an AZ experiences an outage, here’s what happens:

Worker Availability : Since the application is deployed in a single AZ, CloudHub does not automatically redeploy the application in a different zone or region during an outage. Thus, if the current AZ is unavailable, the application will be offline.

Auto-Restart upon AZ Recovery : Once the affected AZ is back online, CloudHub will auto-restart the worker in the same AZ without manual intervention. This ensures that as soon as the AZ is functional, the application resumes automatically.

Explanation of Correct Answer (B) :

Option B accurately describes the situation, as the API will remain unavailable until the original AZ is restored.

CloudHub does not currently support automatic failover across regions or other availability zones within the same region for single-worker deployments on the shared cloud.

Explanation of Incorrect Options :

Option A (auto-redeployment in the U.S. East region) is incorrect, as CloudHub does not migrate across regions automatically.

Option C (redeployment in another AZ within the U.S. West) is not a feature for single-worker deployments.

Option D (manual redeployment triggered by an admin) is unnecessary as CloudHub handles restarts automatically when the AZ is back online.

References Refer to MuleSoft CloudHub’s availability and disaster recovery documentation for more information on how CloudHub manages availability in shared environments​.

Explanation

Correct Answer: When regulatory requirements mandate on-premises processing of EVERY data item, including meta-data.

*****************************************

We need NOT require to use Anypoint Platform PCE or PCF for the below. So these options are OUT.

> > We can make ALL applications highly available across multiple data centers using CloudHub too.

> > We can use Anypoint VPN and tunneling from CloudHub to connect to ALL backend systems in the application network that are deployed in the organization ' s intranet.

> > We can use Anypoint VPC and Firewall Rules to make ALL APIs private and NOT exposed to the public cloud.

Only valid reason in the given options that requires to use Anypoint Platform PCE/ PCF is - When regulatory requirements mandate on-premises processing of EVERY data item, including meta-data.

Explanation

Correct Answer: Anypoint Runtime Fabric

*****************************************

> > When a customer is already having an Azure environment, It is not at all an ideal approach to go with hybrid model having some Mule Runtimes hosted on Azure and some on MuleSoft. This is unnecessary and useless.

> > CloudHub is a Mulesoft-hosted Runtime plane and is on AWS. We cannot customize to point CloudHub to customer ' s Azure environment.

> > Anypoint Platform for Pivotal Cloud Foundry is specifically for infrastructure provided by Pivotal Cloud Foundry

> > Anypoint Runtime Fabric is right answer as it is a container service that automates the deployment and orchestration of Mule applications and API gateways. Runtime Fabric runs within a customer-managed infrastructure on AWS, Azure, virtual machines (VMs), and bare-metal servers.

-Some of the capabilities of Anypoint Runtime Fabric include:

-Isolation between applications by running a separate Mule runtime per application.

-Ability to run multiple versions of Mule runtime on the same set of resources.

-Scaling applications across multiple replicas.

-Automated application fail-over.

-Application management with Anypoint Runtime Manager.

Explanation

Correct Answer: A CloudHub worker fails with an out-of-memory exception.

*****************************************

> > An AWS Region itself going down will definitely result in an outage as it does not matter how many workers are assigned to the Mule App as all of those in that region will go down. This is a complete downtime and outage.

> > Extended outage of API manager during initial deployment of API implementation will of course cause issues in proper application startup itself as the API Autodiscovery might fail or API policy templates and polices may not be downloaded to embed at the time of applicaiton startup etc... there are many reasons that could cause issues.

> > A network outage onpremises would of course cause the Order Management System not accessible and it does not matter how many workers are assigned to the app they all will fail and cause outage for sure.

The only option that does NOT result in a service outage is if a cloudhub worker fails with an out-of-memory exception. Even if a worker fails and goes down, there are still other workers to handle the requests and keep the API UP and Running. So, this is the right answer.

In the API-led connectivity approach, each layer (System, Process, and Experience) has a distinct purpose:

System APIs : These APIs connect directly to backend systems to expose and unlock data in a standardized way.

Process APIs : These are responsible for orchestrating and processing data across different systems, combining information where needed.

Experience APIs : These are designed for specific user interfaces or applications, often transforming data formats to fit the needs of each consumer application.

Why Option A is Correct :

Process APIs are designed to combine data from multiple systems, which aligns with the function of aggregating policy information from both the life and general insurance systems. This aggregation logic would ideally reside in the Process layer, separating data retrieval from data orchestration.

Moving this functionality to the Process layer enables reusability and modularity, as other Experience APIs or services could also leverage the combined policy data if needed.

Explanation of Incorrect Options :

Option B (Presenting the SOAP-based response) would be managed by the Experience layer, as this layer adapts data formats for specific interfaces.

Option C (Authenticating and maintaining backend connections) would typically be handled within the System layer, where backend integration and security handling occurs.

Option D (Querying data) is the function of System APIs, which access the backend systems directly and expose the raw data without additional processing.

References For further details on API-led architecture and the roles of each layer, refer to MuleSoft’s documentation on API-led connectivity and API layers ​​.

Scenario Analysis :

The eCommerce company’s Product Details feature requires low response time and consistent data for a feature where data rarely changes (only once or twice a year).

The database response time is slow due to high volume, so querying the database directly on each request would lead to poor performance and higher response times.

Optimal Solution Requirements :

Low Response Time : Data retrieval should be fast and not depend on database performance.

Fault Tolerance and Data Consistency : Cached or stored data should be consistent and resilient in case of database unavailability, as the product details data changes infrequently.

Evaluating the Options :

Option A : Using a Cache scope would temporarily store the product details in memory, which could improve performance but might not be suitable for infrequent updates (only twice a year), as cache expiration policies typically require shorter durations.

Option B : Storing product details in Anypoint MQ and then retrieving it through a subscriber is not suitable for this use case. Anypoint MQ is better for messaging rather than as a data storage mechanism.

Option C (Correct Answer) : Using an object store to store and retrieve product details is ideal. Object stores in MuleSoft are designed for persistent storage of key-value pairs, which allows storing data retrieved from the database initially. This provides quick, consistent access without querying the database on every request, aligning with requirements for low response time, fault tolerance, and data consistency.

Option D : Selecting data directly from the database for each request would not meet the performance requirement due to known slow response times from the database.

Conclusion :

Option C is the best answer, as using an object store allows caching the infrequently updated product details. This approach reduces the dependency on the database, significantly improving response time and ensuring consistent data.

Refer to MuleSoft documentation on Object Store v2 and best practices for data caching to implement this solution effectively.

Scenario Overview :

The API resides in Anypoint Virtual Private Cloud (VPC) on CloudHub 1.0, where it requires connectivity to both an AWS-hosted database server and an on-premises web server.

Both servers are isolated from the public internet: the database server is within the customer’s AWS VPC, and the web server is within the customer ' s on-premises corporate data center.

Connectivity Requirements :

To connect to the AWS database server from the API in Anypoint VPC, VPC peering is ideal. This would allow a private network connection between the MuleSoft Anypoint VPC and the customer’s AWS VPC, enabling secure, direct access to the database.

To connect to the on-premises web server, a VPN tunnel is suitable. This would establish a secure, encrypted connection from the Anypoint VPC to the customer’s corporate data center, allowing secure data flow between the API and the on-premises web server.

Analysis of Options :

Option A (Correct Answer) : Setting up VPC peering with AWS VPC enables private network connectivity with the database server, while a VPN tunnel to the on-premises data center allows secure access to the web server. This combination meets the requirements for secure, controlled access to both resources.

Option B : VPC peering alone would not suffice because it does not support a connection from the Anypoint VPC directly to an on-premises network. A VPN is necessary for on-premises access.

Option C : Setting up a transit gateway would provide connectivity within AWS but would not enable direct connectivity from CloudHub to the on-premises network.

Option D : VPC peering with the on-premises network is not possible because VPC peering is typically used to connect two VPCs, not a VPC with an on-premises network.

Conclusion :

Option A is the correct choice, as it provides a complete solution by using VPC peering for AWS VPC connectivity and a VPN tunnel for secure on-premises connectivity. This setup aligns with Anypoint Platform best practices for connecting Anypoint VPCs to both AWS-hosted and on-premises systems, ensuring secure, controlled access to both the database and web server.

For more detailed reference, MuleSoft documentation on Anypoint VPC peering and VPN connectivity provides additional context on best practices for setting up these connections within a hybrid network infrastructure.

Role of Process API in API-led Connectivity :

In MuleSoft’s API-led connectivity approach, a Process API is used to coordinate, aggregate, and orchestrate data from various System APIs . It is primarily responsible for implementing business logic that spans multiple backend systems or entities, transforming and combining data as needed to support business processes.

Process APIs are not directly exposed to end-user clients; rather, they work between System APIs and Experience APIs, providing business logic and orchestration capabilities.

Evaluating the Options :

Option A : Process APIs are not typically responsible for large data dumps or data synchronization. That function would be handled by a System API or a specialized batch process.

Option B : Managing direct, secure communication between back-end systems and end-user clients is typically the role of Experience APIs rather than Process APIs.

Option C (Correct Answer) : Process APIs are designed to coordinate and orchestrate calls to multiple other APIs in the network, which supports the automation of business processes.

Option D : Securing and managing communication with end-user clients is typically the role of Experience APIs, not Process APIs.

Conclusion :

Option C is the correct answer, as the main role of a Process API is to coordinate and orchestrate interactions between other APIs, enabling business processes to function seamlessly across multiple systems.

Refer to MuleSoft ' s API-led connectivity documentation for further explanation of the roles and responsibilities of Process APIs in an application network.

In MuleSoft’s ecosystem, when a Process API needs to consume a System API (published to Exchange and protected by OAuth 2.0), the recommended approach is to utilize the REST Connect Connector . Here’s how it aligns with best practices:

Automated Connector Generation :

When a RAML or OAS specification is published in Exchange, MuleSoft automatically generates a REST Connect Connector for that API. This connector simplifies integration as it abstracts the complexity of making HTTP requests and handling OAuth authentication.

Streamlined Integration :

The Process API can import this generated connector from Exchange and configure OAuth credentials, streamlining secure access to the System API without manual HTTP setup.

Why Option C is Correct :

Using the REST Connect Connector directly leverages MuleSoft’s automated tooling, minimizing manual configurations and ensuring a more maintainable integration.

Explanation of Incorrect Options :

Option A (importing an OAuth module) is unnecessary; OAuth is handled within the connector’s configuration.

Option B (property YAML files with HTTP requests) involves manual setup, which is more error-prone and not recommended.

Option D (manually updating POM file) does not directly aid in invoking an API through Exchange.

References For more information on using REST Connect Connectors and OAuth integration in MuleSoft, refer to the MuleSoft documentation on API Management and Connectors ​​.

Explanation

Correct Answer: SLA-based rate limiting

*****************************************

> > Client Id enforement policy is a " Compliance " related NFR and does not help in maintaining the " Quality of Service (QoS) " . It CANNOT and NOT meant for protecting the backend systems from scalability challenges.

> > IP Whitelisting and OAuth 2.0 token enforcement are " Security " related NFRs and again does not help in maintaining the " Quality of Service (QoS) " . They CANNOT and are NOT meant for protecting the backend systems from scalability challenges.

Rate Limiting, Rate Limiting-SLA, Throttling, Spike Control are the policies that are " Quality of Service (QOS) " related NFRs and are meant to help in protecting the backend systems from getting overloaded.

https://dzone.com/articles/how-to-secure-apis

Explanation

Correct Answer: Data on past API invocations to help identify anomalies and usage patterns across various APIs

*****************************************

API Invocation metrics provided by Anypoint Platform:

> > Does NOT provide any Return Of Investment (ROI) related information. So the option suggesting it is OUT.

> > Does NOT provide any information w.r.t how APIs are reused, whether there is effective usage of APIs or not etc...

> > Does NOT prodive any prediction information as such to help us proactively identify any future policy violations.

So, the kind of data/information we can get from such metrics is on past API invocations to help identify anomalies and usage patterns across various APIs.

When defining data models for System APIs without an established Enterprise Data Model, MuleSoft recommends mirroring the back-end systems ' data types to achieve quick and effective integration without adding complexity. This approach has several benefits:

Alignment with Backend Systems :

Mirroring data types ensures consistency with backend data sources, which simplifies integration, reduces mapping requirements, and minimizes potential data transformation issues.

Flexibility for Future Enhancements :

By retaining close alignment with backend data structures, System APIs can evolve to support an Enterprise Data Model in the future without immediate restructuring.

Explanation of Incorrect Options :

Option A (exposing misspellings) is not recommended as System APIs should still ensure a professional and coherent interface.

Option C (custom naming) complicates the API structure without adding immediate value in the absence of a clear data model.

Option D (exposing all fields) is unnecessary and can reduce performance and add complexity.

References Refer to MuleSoft best practices for data modeling in System APIs for additional information on mirroring backend systems​.

Security Guidelines Overview :

The production environment is hosted on a dedicated Virtual Private Cloud (VPC) on CloudHub 1.0, with a specific requirement from the security team that no traffic should occur over HTTP . This implies that only secure HTTPS traffic should be permitted, and HTTP access (port 8081, the default HTTP port in Mule applications) should be disabled.

Evaluating the Options :

Option A (Correct Answer) : Configuring the HTTPS protocol in the HTTP listener in the Mule application ensures that all traffic is encrypted and occurs over HTTPS (port 8092 by default for HTTPS on Mule applications). This directly aligns with the security guideline to prevent unencrypted HTTP traffic.

Option B : Creating a custom policy for incoming and outgoing HTTP requests could provide some control over access, but it does not enforce the use of HTTPS exclusively. This option does not disable HTTP traffic and, therefore, does not meet the guideline effectively.

Option C (Correct Answer) : Removing the entry for HTTP (port 8081) in the VPC firewall rule ensures that HTTP traffic is completely blocked at the firewall level. This prevents any HTTP requests from reaching the application, adding a layer of security that complies with the guidelines.

Option D : The IP Blocklist policy controls access based on IP addresses but does not enforce the use of HTTPS. This policy does not address the specific requirement of preventing HTTP traffic.

Option E : Adding a firewall rule entry for HTTP (port 8081) would enable HTTP traffic, which directly contradicts the security guidelines. Therefore, this option should be avoided.

Conclusion :

Option A and Option C are the correct choices. Configuring the HTTPS protocol in the Mule application’s HTTP listener ensures that only HTTPS traffic is allowed, and removing the firewall rule for HTTP (port 8081) blocks any HTTP traffic from reaching the application. Together, these options enforce secure traffic as required by the security guidelines.

Refer to MuleSoft documentation on configuring HTTP listeners and managing VPC firewall rules for further details on implementing these security controls.

Explanation

Correct Answer: Model all API resources and methods to closely mimic the operations of the backend system.

*****************************************

> > There are NO fixed and straight best practices while opting data models for APIs. They are completly contextual and depends on number of factors. Based upon those factors, an enterprise can choose if they have to go with Enterprise Canonical Data Model or Bounded Context Model etc.

> > One should NEVER expose the technical details of API implementation to their API clients. Only the API interface/ RAML is exposed to API clients.

> > It is true that the RAML definitions of APIs should be as detailed as possible and should reflect most of the documentation. However, just that is NOT enough to call your API as best documented API. There should be even more documentation on Anypoint Exchange with API Notebooks etc. to make and create a developer friendly API and repository..

> > The best practice always when creating System APIs is to create their API interfaces by modeling their resources and methods to closely reflect the operations and functionalities of that backend system.

Monitoring On-Premise Mule Applications :

For Mule applications deployed on an on-premises cluster, monitoring detailed performance metrics requires communication with the MuleSoft-hosted control plane. The control plane, when used with on-premises runtimes, relies on Anypoint Monitoring and requires a Monitoring Agent to gather and send detailed performance metrics.

Setting Up Monitoring :

To enable detailed metrics, the Monitoring Agent must be installed on each node in the cluster where Mule applications are deployed. This agent collects data on memory usage, CPU load, response times, and other metrics, and sends it to the control plane for aggregation and visualization.

Evaluating the Options :

Option A : Updating settings in the control plane alone does not enable detailed monitoring; the agent must be installed on each node to capture detailed metrics.

Option B (Correct Answer) : Installing the Monitoring Agent on each node ensures that each runtime node in the cluster can send its metrics to the control plane, enabling detailed monitoring.

Option C : Installing the agent on a separate server would not be effective, as each node in the cluster needs to independently report its metrics to ensure full visibility.

Option D : The on-prem runtime does not automatically send detailed metrics to the control plane without the Monitoring Agent installed.

Conclusion :

Option B is the correct answer, as installing the Monitoring Agent on each node is essential for detailed performance monitoring of on-prem applications in a cluster.

Refer to MuleSoft’s documentation on configuring Anypoint Monitoring for on-premises deployments and using the Monitoring Agent.

Processing Requirements and Storage Mechanism :

The Reservation Mule application will be deployed to multiple CloudHub workers/replicas, meaning that each worker must share state information to handle records exactly once. This requires a shared storage mechanism where state can be stored and accessed by multiple instances to avoid duplicate processing of the same records.

A Persistent Object Store in Anypoint Platform can be used to store records in a way that is accessible across multiple workers, providing a reliable mechanism for " exactly once " processing.

Evaluating the Options :

Option A (Correct Answer) : A Persistent Object Store is designed to retain data across different application instances and can be shared by all workers on CloudHub. It helps achieve idempotency by ensuring that a record is processed exactly once.

Option B : Runtime Fabric Object Store is used for applications deployed in Anypoint Runtime Fabric, not CloudHub. This option would not be compatible with the CloudHub deployment.

Option C : A Non-persistent Object Store does not retain data across application restarts or different instances, making it unsuitable for the requirement of synchronized storage for exactly-once processing.

Option D : An In-memory Mule Object Store is local to each worker and is not shared across instances, so it does not meet the requirement for a shared storage mechanism accessible to all CloudHub workers.

Conclusion :

Option A is the correct answer, as a Persistent Object Store allows data sharing across multiple CloudHub workers, enabling them to synchronize and achieve " exactly once " processing of passenger records with minimal development effort.

Refer to MuleSoft’s documentation on Object Store configurations and usage for best practices on handling state across distributed instances.
