MuleSoft-Integration-Architect-I Salesforce Certified MuleSoft Platform Integration Architect (Mule-Arch-202) Questions and Answers

When using MUnit's test recorder in Anypoint Studio to create unit tests, consider the following points:

A. Tests for flows cannot be created with Mule errors raised inside the flow or already existing in the incoming event:

Explanation: The test recorder cannot record flows if Mule errors are raised during the flow execution or if the incoming event already contains errors. This limitation requires users to handle or clear errors before recording the flow to ensure accurate test creation.

D. A recorded flow execution ends successfully but the result does not reach its destination because the application is killed:

Explanation: If the application is killed before the recorded flow execution completes, the recorder captures the flow up to the point of termination. However, the final result may not be reached or recorded. This scenario should be avoided to ensure complete and reliable test recordings.

These considerations help ensure the accuracy and reliability of tests created using the test recorder.

MUnit Documentation: https://docs.mulesoft.com/munit/2.2/

MUnit Test Recorder: https://blogs.mulesoft.com/dev/mule-dev/using-the-munit-test-recorder/

Explanation

* On Error Propagate halts execution and sends error to the client. In this scenario it's mentioned that "processing of other rows must not be affected" so Option B and C are ruled out.

* Scatter gather is used to club multiple responses together before processing. In this scenario, we need sequential processing. So option A is out of choice.

* Correct answer is For Each scope & On Error Continue scope Below requirement can be fulfilled in the below way

1) Using For Each scope , which will send each row from csv file sequentially. each row needs to be sent sequentially as requirement is to send the message in exactly the same way as it is mentioned in the csv file

2) Also other part of requirement is if any processing step for a row fails then it should log an error but should not affect other record processing . This can be achieved using On error Continue scope on these set of activities. so that error will not halt the processing. Also logger needs to be added in error handling section so that it can be logged.

* Attaching diagram for reference. Here it's try scope, but similar would be the case with For Each loop.

Explanation

We need to note few things about the scenario which will help us in reaching the correct solution.

Point 1 : The APIs are all publicly available and are associated with several mobile applications and web applications. This means Apply an IP blacklist policy is not viable option. as blacklisting IPs is limited to partial web traffic. It can't be useful for traffic from mobile application

Point 2 : The organization does NOT want to use any authentication or compliance policies for these APIs. This means we can not apply HTTPS mutual authentication scheme.

Header injection or removal will not help the purpose.

By its nature, JSON is vulnerable to JavaScript injection. When you parse the JSON object, the malicious code inflicts its damages. An inordinate increase in the size and depth of the JSON payload can indicate injection. Applying the JSON threat protection policy can limit the size of your JSON payload and thwart recursive additions to the JSON hierarchy.

Hence correct answer is Apply a JSON threat protection policy to all APIs to detect potential threat vectors

To ensure that non-functional requirements, such as rate limiting, are clearly communicated and enforced in the designed API definitions, the project team should use API fragments for the appropriate policy. Here's why option D is correct:

API Governance and Policies: Mulesoft's API governance framework allows the definition and enforcement of policies across APIs to ensure consistency and compliance with organizational standards. These policies can include security, rate limiting, logging, and more.

Policy Fragments: By updating API definitions with policy fragments, the team can encapsulate the non-functional requirements within the API specification itself. This approach ensures that these requirements are an integral part of the API design and are automatically applied whenever the API is deployed.

Publishing to Exchange: Publishing the updated API definitions with the policy fragments to Anypoint Exchange makes them available for reuse and ensures that all stakeholders have access to the latest, compliant API specifications.

Example of adding a rate limiting policy fragment to a RAML file:

#%RAML 1.0 title: Example API version: v1 baseUri: https://api.example.com/v1 ... /* Include the rate limiting policy fragment */ uses: rateLimitPolicy: !include rate-limit-policy.raml

The rate-limit-policy.raml fragment might define the specific rate limiting rules as per the service level agreements.

References

MuleSoft API Manager

Defining and Using API Fragments

In the context of Mule applications running on Runtime Fabric for Self-Managed Kubernetes (RTF-BYOKS) in a multi-cloud environment, understanding the thread pools used for communication between Agents and Runtime Manager is crucial:

Shared NIO Selector Pool: This pool is responsible for handling non-blocking IO operations, such as network communication. It ensures efficient handling of IO operations by using a small number of threads to manage multiple IO tasks simultaneously.

CPU_LITE: This thread pool is used for lightweight CPU operations. It is designed to handle tasks that do not require significant computational resources, ensuring that lightweight operations are processed efficiently without overwhelming the system.

The combination of the Shared NIO Selector Pool and CPU_LITE thread pool ensures efficient and reliable communication between Agents and Runtime Manager in the RTF environment.

MuleSoft Threading and Thread Pools

Runtime Fabric Architecture

When configuring the TLS context for an HTTP request to the Google Maps API, the primary goal is to ensure that the Mule application can establish a secure connection. Here’s a detailed explanation of the necessary steps:

Download Google Public Certificate:

Open a browser and navigate to the Google Maps API URL (e.g., https://maps.googleapis.com).

Click on the lock icon in the address bar and view the certificate details.

Export the certificate, usually in a .cer or .crt format.

Generate JKS File from Certificate:

Use a tool like keytool (which comes with the Java Development Kit) to import the downloaded certificate into a Java KeyStore (JKS) file.

keytool -importcert -file google.cer -keystore truststore.jks -alias google

Add JKS File to Truststore:

In your Mule application, configure the HTTP Request Connector with the generated JKS file as the Truststore in the TLS context.

Configure HTTP Request Connector:

Ensure the HTTP Request Connector references this Truststore configuration.

By completing these steps, your Mule application will trust the Google Maps API server’s certificate, allowing for secure communication.

References

MuleSoft Documentation: Configuring TLS

Google Maps API Documentation

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

Explanation

* Anypoint Runtime Fabric is a container service that automates the deployment and orchestration of your Mule applications and gateways.

* Runtime Fabric runs on customer-managed infrastructure on AWS, Azure, virtual machines (VMs) or bare-metal servers.

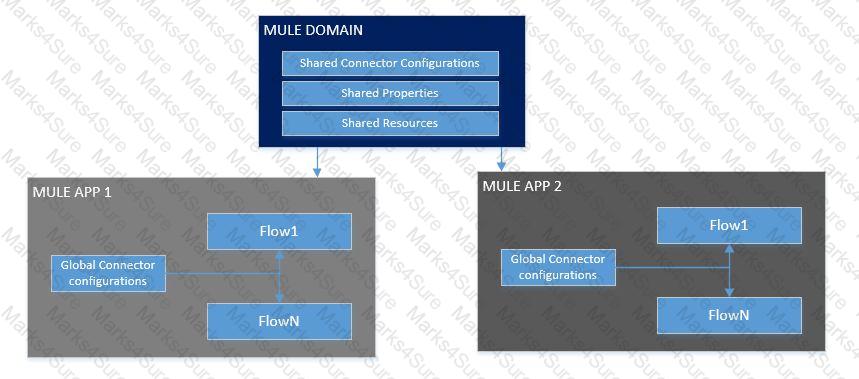

* As none of the Mule applications use Mule domain projects. applications are not required to be rewritten. Also when applications are deployed on RTF, by default ingress is allowed only on 8081.

* Hence port conflicts are not required to be managed by DevOps team

An Enterprise Architect would use a single enterprise-wide canonical data model (CDM) when designing an integration solution to achieve the following benefits:

Reduced Dependencies: By standardizing on a single data model, it simplifies the integration process between multiple systems that may use different data formats. This eliminates the need for numerous point-to-point transformations.

Consistency and Reusability: A CDM ensures consistent data representation across the enterprise, which promotes data integrity and reusability of integration components.

Simplified Maintenance: Having a single data model reduces the complexity of maintaining and updating integration solutions, as changes need to be made in only one place.

The CDM acts as an abstraction layer that decouples systems, facilitating easier integration and reducing the potential for errors.

References

MuleSoft Documentation on Canonical Data Models

Best Practices for Data Integration with MuleSoft

Explanation

Correct answer is Consistency as XA transactions are implemented to achieve this. XA transactions are added in the implementation to achieve goal of ACID properties. In the context of transaction processing, the acronym ACID refers to the four key properties of a transaction: atomicity, consistency, isolation, and durability. Atomicity : All changes to data are performed as if they are a single operation. That is, all the changes are performed, or none of them are. For example, in an application that transfers funds from one account to another, the atomicity property ensures that, if a debit is made successfully from one account, the corresponding credit is made to the other account. Consistency : Data is in a consistent state when a transaction starts and when it ends.For example, in an application that transfers funds from one account to another, the consistency property ensures that the total value of funds in both the accounts is the same at the start and end of each transaction. Isolation : The intermediate state of a transaction is invisible to other transactions. As a result, transactions that run concurrently appear to be serialized. For example, in an application that transfers funds from one account to another, the isolation property ensures that another transaction sees the transferred funds in one account or the other, but not in both, nor in neither. Durability : After a transaction successfully completes, changes to data persist and are not undone, even in the event of a system failure. For example, in an application that transfers funds from one account to another, the durability property ensures that the changes made to each account will not be reversed. MuleSoft reference: https://docs.mulesoft.com/mule-runtime/4.3/xa-transactions

Explanation

Correct answer is When server-side load-balanced TLS mutual authentication is required between API implementations and API clients CloudHub dedicated load balancers (DLBs) are an optional component of Anypoint Platform that enable you to route external HTTP and HTTPS traffic to multiple Mule applications deployed to CloudHub workers in a Virtual Private Cloud (VPC). Dedicated load balancers enable you to: * Handle load balancing among the different CloudHub workers that run your application. * Define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication. * Configure proxy rules that map your applications to custom domains. This enables you to host your applications under a single domain

In a clustered Mule runtime environment, when using a JMS listener to consume messages from a queue destination, it is essential to ensure that messages are appropriately received by all nodes in the cluster. The configuration must support high availability and scalability. Here's why option B is correct:

primaryNodeOnly="false": Setting this parameter to "false" ensures that the JMS listener is active on all nodes in the cluster, not just the primary node. This setting allows multiple instances of the JMS listener to run concurrently across different nodes, enabling them to consume messages from the JMS queue.

Shared Subscription: Using a shared subscription means that all nodes will share the consumption of messages from the queue. This approach prevents duplicate message processing, as each message is delivered to only one listener instance within the cluster. This configuration ensures that message processing is balanced across the nodes, improving throughput and reliability.

To configure the JMS listener in Mule, the XML configuration might look something like this:

xml

This setup ensures that all nodes in the cluster are involved in message processing, leveraging the high availability and load balancing capabilities of the cluster.

References

MuleSoft Documentation on JMS Listener

MuleSoft Clustering Guide

API Manager is a component of the Anypoint Platform's control plane. The control plane in Anypoint Platform is responsible for managing, securing, and monitoring APIs and integrations. API Manager specifically provides tools for API governance, including policy enforcement, analytics, security, and lifecycle management. It allows organizations to manage APIs centrally, ensuring they adhere to compliance and security standards while providing insights into API usage and performance.

Explanation

As the question says that data needs to be sent across multiple sftp serves , we cannot use non-repeatable streams. The non-repeatable strategy disables repeatable streams, which enables you to read an input stream only once.

You cant use in memory storage because with 0.2 vcore you will get only 1 GB of heap memory. Hence application will error out for file more than 1 GB.

Hence the correct option is file base repeatable stream

To automate the promotion and deployment of API Manager policies as part of a CI/CD process, an organization can use the Anypoint CLI (Command Line Interface). The Anypoint CLI provides a set of commands to interact with various components of the Anypoint Platform, including API Manager.

Using the Anypoint CLI, you can:

Apply policies to API instances.

Promote APIs and their associated policies across different environments.

Script these actions as part of the CI/CD pipeline to ensure consistency and automation in managing API policies.

Other tools like the MUnit Maven plugin, Mule Maven plugin, and Runtime Manager agent do not provide direct capabilities to manage API Manager policies.

References

MuleSoft Anypoint CLI Documentation

Automating API Management with Anypoint CLI

Anypoint MQ is a cloud-based messaging service provided by MuleSoft. It is designed to work within MuleSoft's cloud ecosystem, which can impose certain limitations that might prevent its use in some scenarios:

Message Broker Must Be Hosted On-Premises:

Anypoint MQ is a cloud service and cannot be hosted on-premises. If a company requires its message broker to be hosted within its own data center for security, compliance, or other reasons, Anypoint MQ would not be suitable.

Ability for a Third Party Outside the Company's Network to Consume Events from the Queue:

Anypoint MQ is designed to work primarily within the Anypoint Platform ecosystem. While it does support external consumers, it requires proper security configurations, and there may be limitations or additional steps needed to securely expose queues to third-party systems outside the company's network.

References

MuleSoft Documentation: Anypoint MQ

MuleSoft Anypoint MQ Overview

Explanation

Correct answer is "Compile, package, unit test, validate unit test coverage, deploy" Explanation : Anypoint Platform supports continuous integration and continuous delivery using industry standard tools Mule Maven Plugin The Mule Maven plugin can automate building, packaging and deployment of Mule applications from source projects Using the Mule Maven plugin, you can automate your Mule application deployment to CloudHub, to Anypoint Runtime Fabric, or on-premises, using any of the following deployment strategies • CloudHub deployment • Runtime Fabric deployment • Runtime Manager REST API deployment • Runtime Manager agent deployment MUnit Maven Plugin The MUnit Maven plugin can automate test execution, and ties in with the Mule Maven plugin. It provides a full suite of integration and unit test capabilities, and is fully integrated with Maven and Surefire for integration with your continuous deployment environment. Since MUnit 2.x, the coverage report goal is integrated with the maven reporting section. Coverage Reports are generated during Maven’s site lifecycle, during the coverage-report goal. One of the features of MUnit Coverage is to fail the build if a certain coverage level is not reached. MUnit is not used for integration testing Also publishing to Anypoint Exchange or to create associated API instances in API Manager is not a part of CICD pipeline which can ne achieved using mulesoft provided maven plugin

Explanation

Architecture mentioned in the question can be diagrammatically put as below. Persistent Object Store is the correct answer .

* Mule Object Stores: An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime. So we cant use in memory store in our scenario as we want to share watermark within all cloudhub workers

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent. Hence this watermark will be available even any of the worker goes down

Explanation

* Clustering is a group of servers or mule runtime which acts as a single unit.

* Mulesoft Enterprise Edition supports scalable clustering to provide high availability for the Mulesoft application.

* In simple terms, virtual servers composed of multiple nodes and they communicate and share information through a distributed shared memory grid.

* By default, Mulesoft ensures the High availability of applications if clustering implemented.

* Let's consider the scenario one of the nodes in cluster crashed or goes down and under maintenance. In such cases, Mulesoft will ensure that requests are processed by other nodes in the cluster. Mulesoft clustering also ensures that the request is load balanced between all the nodes in a cluster.

* Clustering is only supported by on-premise Mule runtime and it is not supported in Cloudhub.

Correct answer is External monitoring tools or log aggregators must be configured to recognize the new nodes

* Rest of the options are automatically taken care of when a new node is added in cluster.

SLAs and non-functional requirements to access the backend systems. Only this option actually speaks to design parameters and reqs. * Below two are technical implementations and not the part of design: - Snapshots of the Mule application’s flows, including their error handling - The credentials to access the backend systems and contact details for the administrator of each system * List of consumers is not relevant to the design

Explanation

By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. In CloudHub, you can disable the CloudHub provided Mule application log4j2 file. This allows integrating Mule application logs with custom or third-party log management systems

Anypoint Runtime Fabric is the appropriate choice for deploying Mule applications in an isolated Mule runtime within Docker containers on an Azure Kubernetes Service (AKS) infrastructure. This solution provides a containerized and orchestrated environment managed from the MuleSoft-hosted control plane. It enhances the availability, scalability, and robustness of Mule applications by allowing fine-grained control over deployments and providing built-in support for high availability and fault tolerance.

To minimize the risk of exposing sensitive data such as credit card information while still allowing it to be converted back to its original value when necessary, tokenization is the most effective approach. Tokenization replaces sensitive data with a non-sensitive equivalent, called a token, which has no exploitable value. This method ensures that the original sensitive data is stored securely and only accessible through a secure tokenization system.

In this scenario, applying a tokenization policy at the API Gateway ensures that sensitive information is replaced with tokens before the data leaves the trusted boundary. This minimizes the risk of matching sensitive data to the original. When the original data is needed, the tokenization system can detokenize the token back to its original value securely.

MuleSoft Documentation on Tokenization

Explanation

* To send message or receive JMS (Java Message Service) message no separate network connection need to be established. So option A, C and D are ruled out.

Correct Answer: The JMS connector supports both sending and receiving of JMS messages over the protocol determined by the JMS provider.

* JMS Connector enables sending and receiving messages to queues and topics for any message service that implements the JMS specification.

* JMS is a widely used API for message-oriented middleware.

* It enables the communication between different components of a distributed application to be loosely coupled, reliable, and asynchronous.

MuleSoft Doc Reference: https://docs.mulesoft.com/jms-connector/1.7/

A MuleSoft developer should use API Designer to create an API specification prior to building the API implementation. API Designer is a component of Anypoint Platform that provides a web-based interface for designing and documenting APIs. It supports API modeling languages such as RAML and OAS, enabling developers to define the structure, resources, and operations of an API before proceeding with implementation. This approach aligns with the design-first methodology, ensuring a well-defined contract for the API.

Explanation

* By default, Anypoint Platform performs its own user management

– For user management, one external IdP can be integrated with the Anypoint Platform organization (note: not at business group level)

– Permissions and access control are still enforced inside Anypoint Platform and CANNOT be controlled via the external Identity Provider * As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * You can map users in a federated organization’s group to a role which also gives the flexibility of controlling the business group within Anypoint Platform to which the user belongs to. Also user can nbe removed from external identity management system when they no longer work for the organization. So they wont be able to authenticate using SSO to login to Anypoint Platform. * Using external identity we can no change permissions of a particular role in Mulesoft Anypoint platform.

* So Correct answer is Assigning Anypoint Platform permissions to a role

Explanation

* Roles are business group specific. Configure identity management in the Anypoint Platform master organization. As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * Roles and permissions can be set up at business group and organization level also. But Identity Management setup is only done at Organization level * Business groups are self-contained resource groups that contain Anypoint Platform resources such as applications and APIs. Business groups provide a way to separate and control access to Anypoint Platform resources because users have access only to the busine

Explanation

Key to this question lies in the fact that Process API are not meant to be accessed directly by clients. Lets analyze options one by one. Client ID enforcement : This is applied at process API level generally to ensure that identity of API clients is always known and available for API-based analytics Rate Limiting : This policy is applied on Process Level API to secure API's against degradation of service that can happen in case load received is more than it can handle Custom circuit breaker : This is also quite useful feature on process level API's as it saves the API client the wasted time and effort of invoking a failing API. JSON threat protection : This policy is not required at Process API and rather implemented as Experience API's. This policy is used to safeguard application from malicious attacks by injecting malicious code in JSON object. As ideally Process API's are never called from external world , this policy is never used on Process API's Hence correct answer is JSON threat protection MuleSoft Documentation Reference : https://docs.mulesoft.com/api-manager/2.x/policy-mule3-json-threat

REST (Representational State Transfer) is an architectural style for designing networked applications. It supports multiple content types, including XML and JSON, making it suitable for APIs that need to handle requests from clients in both formats. RESTful APIs use standard HTTP methods (GET, POST, PUT, DELETE) and are designed to be stateless and scalable. REST's flexibility and wide adoption make it an appropriate choice for the integration architect’s requirements.

Explanation

Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application"

Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user’s request, and not with the server.

Such cases usually arise when a user’s access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public’s view.

In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user — either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are

400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated". That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently The URL of the requested resource has been changed permanently. The new URL is given in the response. ----------------------------------------------------------------------------------------------------------------------------------------------- In Lay man's term the scenario would be: API CLIENT —> MuleSoft API - HTTP request “Hey, API.. process this” —> External API API CLIENT <– MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <– (4XX) External API

Correct answer is Create WSDL specification using text editor SOAP services are specified using WSDL. A client program connecting to a web service can read the WSDL to determine what functions are available on the server. We can not create WSDL specification in Design Center. We need to use external text editor to create WSDL.

Explanation

* HTTP/1.1 keeps all requests and responses in plain text format.

* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos

* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x

SOAP API specifications are provided as WSDL. Design center doesn't provide the functionality to create WSDL file. Hence WSDL needs to be created using XML editor

Explanation

* When you create an Anypoint VPC, the range of IP addresses for the network must be specified in the form of a Classless Inter-Domain Routing (CIDR) block, using CIDR notation.

* This address space is reserved for Mule workers, so it cannot overlap with any address space used in your data center if you want to peer it with your VPC.

* To calculate the proper sizing for your Anypoint VPC, you first need to understand that the number of dedicated IP addresses is not the same as the number of workers you have deployed.

* For each worker deployed to CloudHub, the following IP assignation takes place: For better fault tolerance, the VPC subnet may be divided into up to four Availability Zones.

* A few IP addresses are reserved for infrastructure. At least two IP addresses per worker to perform at zero-downtime.

* Hence in this scenario 2048 IP's are required to support the requirement.

Explanation

* Object Store and VM Store is used for sharing data inter or intra mule applications in same setup. Can't be used with external Business Partner

* Also File connector will not be useful as the two companies currently have no shared IT infrastructure. It's specific for local use.

* Correct answer is SFTP connector. The SFTP Connector implements a secure file transport channel so that your Mule application can exchange files with external resources. SFTP uses the SSH security protocol to transfer messages. You can implement the SFTP endpoint as an inbound endpoint with a one-way exchange pattern, or as an outbound endpoint configured for either a one-way or request-response exchange pattern.

Anypoint Exchange is the Anypoint Platform component that helps integration developers discover and share reusable APIs, connectors, and templates. It acts as a central repository where developers can publish and access various assets, facilitating reuse and collaboration within the organization. By using Anypoint Exchange, developers can reduce duplication of effort, speed up development processes, and ensure consistency across integrations.

Other components like API Manager, Anypoint Studio, and Design Center serve different purposes, such as managing APIs, developing Mule applications, and designing API specifications, but they are not specifically focused on discovering and sharing reusable assets.

References

MuleSoft Documentation on Anypoint Exchange

Best Practices for Asset Reuse on Anypoint Platform

To migrate Mule applications from CloudHub to Runtime Fabric (RTF) while maintaining the same automated CI/CD deployment strategy, follow these steps:

Add runtimefabricDeployment Profile: Add a runtimefabricDeployment profile to the pom.xml file in all Mule applications. This profile will include the necessary configurations specific to RTF deployments.

Modify CI/CD Scripts: Update the CI/CD deployment scripts to use the new runtimefabricDeployment profile. This modification ensures that the deployment process will correctly reference the RTF-specific configurations when deploying applications.

Keep Configuration Files Unchanged: There is no need to change the pom.xml and Mule configuration YAML files other than adding the runtimefabricDeployment profile. This maintains consistency and reduces the risk of errors during the migration.

This approach ensures a smooth transition to RTF while leveraging existing CI/CD scripts with minimal changes, maintaining the automated deployment strategy.

References

MuleSoft Documentation on Runtime Fabric Deployment

Best Practices for CI/CD with MuleSoft

Anypoint MQ is a cloud-based messaging service provided by MuleSoft, and it cannot be deployed on-premises. If there is a requirement for the messaging broker to be deployed on-premises, Anypoint MQ would not be suitable. Other considerations such as payload format (XML), encryption, and point-to-point messaging are supported by Anypoint MQ, but the deployment environment requirement is a critical constraint.

References

MuleSoft Anypoint MQ Documentation

Cloud vs. On-Premises Messaging Solutions

In a distributed application architecture, a service mesh typically manages communication between services within the application. A service mesh provides a dedicated infrastructure layer that handles service-to-service communication, including service discovery, load balancing, failure recovery, metrics, and monitoring. This allows developers to offload these operational concerns from individual services, ensuring consistent and reliable inter-service communication.

The Salesforce API used to deploy, retrieve, create, update, or delete customization information, such as custom object definitions, using Mule Salesforce Connectors in a Mule application, is the Metadata API. The Metadata API enables programmatic access to the metadata of Salesforce organizations, allowing developers to manage customizations and configurations programmatically.

Using the Metadata API, Mule applications can automate the deployment and management of Salesforce customizations, facilitating continuous integration and deployment processes within Salesforce environments.

References

MuleSoft Documentation on Salesforce Connectors

Salesforce Metadata API Developer Guide

Before API developers implement the API specification, it is crucial for the API designer to publish the API specification to Anypoint Exchange and solicit feedback from the API's consumers. This step aligns with MuleSoft's recommended approach to full lifecycle API development, which emphasizes collaboration and feedback to ensure the API meets the needs and expectations of its consumers.

Generating test cases, creating an API portal, and versioning the API specification are important steps in the development lifecycle, but soliciting feedback ensures that any potential issues or improvements are identified early in the process. This collaborative approach helps in building a more effective and consumer-friendly API.

References

MuleSoft API Design Best Practices

Anypoint Platform Documentation on API Development Lifecycle

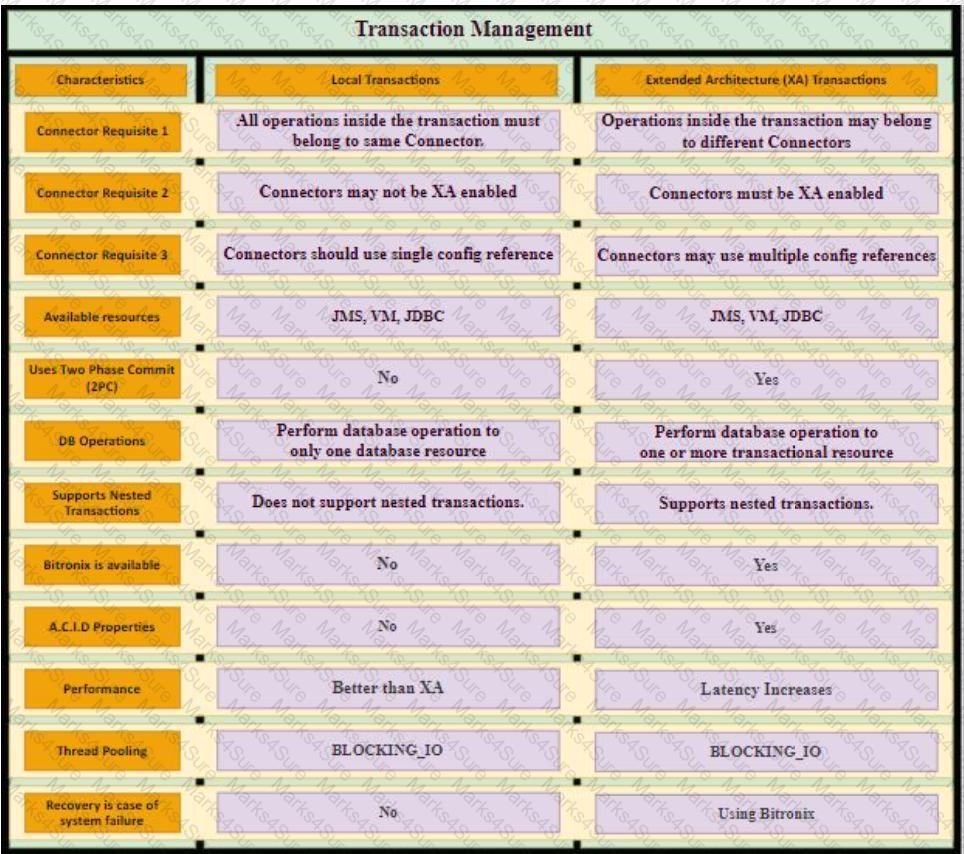

Explanation

* XA transaction add tremendous latency so "Reduce Latency" is incorrect option XA transactions define "All or No" commit protocol.

* Each local XA resource manager supports the A.C.I.D properties (Atomicity, Consistency, Isolation, and Durability).

---------------------------------------------------------------------------------------------------------------------

So correct choice is "Ensure consistency"

Explanation

Connected Apps

The Connected Apps feature provides a framework that enables an external application to integrate with Anypoint Platform using APIs through OAuth 2.0 and OpenID Connect. Connected apps help users delegate their access without sharing sensitive credentials or giving full control of their accounts to third parties. Actions taken by connected apps are audited, and users can also revoke access at any time. Note that some products do not currently include client IDs in this release of the Connected Apps feature. The Connected Apps feature enables you to use secure authentication protocols and control an app’s access to user data. Additionally, end users can authorize the app to access their Anypoint Platform data.

Mule Ref Doc : https://docs.mulesoft.com/access-management/connected-apps-overview

Explanation

* Semantic Versioning is a 3-component number in the format of X.Y.Z, where :

X stands for a major version.

Y stands for a minor version:

Z stands for a patch.

So, SemVer is of the form Major.Minor.Patch Coming to our question , minor version of the API has been changed which is backward compatible. Hence there is no change required on API client end. If they want to make use of new featured that have been added as a part of minor version change they may need to change code at their end. Hence correct answer is The API client code ONLY needs to be changed if it needs to take advantage of new features.

* "100% increase in the throughput of the API" might look correct, as the number of requests processed per second might increase, but is it guaranteed to increase by 100%? Using 4 nodes will definitely increase throughput of system. But it is cant be precisely said if there would be 100% increase in throughput as it depends on many other factors. Also it is nowhere mentioned in the description that all nodes have same CPU/memory assigned. The question is about the guaranteed behavior * Increasing number of nodes will have no impact on response time as we are scaling application horizontally and not vertically. Similarly there is no change in JVM heap memory usage. * So Correct answer is 50% reduction in the number of requests being received by each node This is because of the two reasons. 1) API is mentioned as stateless 2) Load Balancer is used

Explanation

Correct answer is By default, the Anypoint CLI and Mule Maven plugin are not included in the Mule runtime Maven is not part of runtime though it is part of studio. You do not need it to deploy in order to deploy your app. Same is the case with CLI.

Explanation

* Setting a transaction timeout for the Bitronix transaction manager

● Set the transaction timeout either

– In wrapper.conf

– In CloudHub in the Properties tab of the Mule application deployment

● The default is 60 secs. It is defined as

mule.bitronix.transactiontimeout = 120

* This property defines the timeout for each transaction created for this manager.

If the transaction has not terminated before the timeout expires it will be automatically rolled back.

---------------------------------------------------------------------------------------------------------------------

Additional Info around Transaction Management:

Bitronix is available as the XA transaction manager for Mule applications

● To use Bitronix, declare it as a global configuration element in the Mule application

● Each Mule runtime can have only one instance of a Bitronix transaction manager, which is shared by all Mule applications

● For customer-hosted deployments, define the XA transaction manager in a Mule domain

– Then share this global element among all Mule applications in the Mule runtime

Graphical user interface, table Description automatically generated with medium confidence

MuleSoft customers often favor a MuleSoft-hosted Anypoint Platform runtime plane over a customer-hosted runtime for the following reasons:

Reduced time-to-market for the first application (C): Using a MuleSoft-hosted runtime plane accelerates the deployment process because MuleSoft manages the infrastructure, allowing customers to focus on developing and deploying their applications quickly. This leads to faster time-to-market for the initial application and subsequent updates.

Reduced IT operations effort (E): By leveraging a MuleSoft-hosted environment, customers offload the operational responsibilities, such as infrastructure maintenance, updates, and scalability management, to MuleSoft. This reduces the IT operations workload and allows internal teams to focus on more strategic initiatives.

In contrast, other options like reduced application latency and increased application throughput are not directly influenced by whether the runtime plane is MuleSoft-hosted or customer-hosted.

References

MuleSoft Anypoint Platform Documentation

MuleSoft Hosted vs. Customer Hosted Deployment Guides

Explanation

Correct answer is Application A accesses the persistent object store via the Object Store REST API Application B uses the Object Store connector to access a persistent object * Object Store v2 lets CloudHub applications store data and states across batch processes, Mule components and applications, from within an application or by using the Object Store REST API. * On-premise Mule applications cannot use Object Store v2. * You can select Object Store v2 as the implementation for Mule 3 and Mule 4 in CloudHub by checking the Object Store V2 checkbox in Runtime Manager at deployment time. * CloudHub Mule applications can use Object Store connector to write to the object store * The only way on-premises Mule applications can access Object Store v2 is via the Object Store REST API. * You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

Explanation

* "Create a Mule domain project that maintains the credentials as Mule domain-shared resources" is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization’s data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized – and potentially malicious – use by anyone with access to the Mule application

To monitor Mule applications deployed to different customer-hosted Mule runtimes using Anypoint Monitoring, follow these steps:

Install Anypoint Monitoring Agent: Install an Anypoint Monitoring agent on each Mule runtime. This agent is responsible for collecting monitoring data from the Mule applications running on that runtime.

Data Transmission: Each Anypoint Monitoring agent sends the collected monitoring data directly to Anypoint Monitoring. This ensures that performance metrics, logs, and other relevant data are available for analysis and monitoring within the Anypoint Platform.

By using the Anypoint Monitoring agent, organizations can effectively monitor their Mule applications across various environments, ensuring visibility and operational efficiency.

References

MuleSoft Documentation on Anypoint Monitoring

Installing and Configuring Anypoint Monitoring Agent

A core pillar of the MuleSoft Catalyst delivery approach is focusing on business outcomes. This approach ensures that the integration and API strategies are aligned with the organization’s overall business objectives. By emphasizing business outcomes, MuleSoft Catalyst helps organizations realize measurable benefits such as increased efficiency, faster time to market, and improved customer experiences. This outcome-driven methodology ensures that IT initiatives deliver tangible value to the business.

Explanation

* Shared load balancers don’t allow you to configure custom SSL certificates or proxy rules

* Dedicated Load Balancer are optional but you need to purchase them additionally if needed.

* TLS is a cryptographic protocol that provides communications security for your Mule app. TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity.

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* Only a DLB allows the configuration of a custom TLS server certificate

* DLB enables you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a DLB in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

* MuleSoft Reference: https://docs.mulesoft.com/runtime-manager/dedicated-load-balancer-tutorial

Additional Info on SLB Vs DLB:

When deploying to Runtime Fabric, there are several tools available within the Anypoint Platform ecosystem that facilitate the deployment process. These include:

AnypointCLI: This command-line interface tool provides comprehensive capabilities for deploying applications to Runtime Fabric. Using AnypointCLI, you can script and automate deployments, which is useful for integrating into CI/CD pipelines.

Anypoint Platform REST APIs: These APIs allow for programmatic deployment and management of applications on Runtime Fabric. They provide flexibility for integrating deployment processes with other systems and tools.

Mule Maven Plugin: This plugin can be used within a Maven project to package and deploy Mule applications to Runtime Fabric as part of a build process.

However, directly uploading a JAR file from the Runtime Manager is not a supported method for deploying to Runtime Fabric.

Anypoint CLI Documentation

Mule Maven Plugin Documentation

When leveraging Anypoint MQ Audit Logs, it's important to note that they include logs for operations such as creating, deleting, modifying, and purging queues. These logs are crucial for auditing and monitoring the state and changes made to the message queues within Anypoint MQ. However, they do not include logs for individual message actions like sending, receiving, or browsing messages.

References

MuleSoft Documentation on Anypoint MQ Audit Logs

Anypoint Platform Audit Logging Overview

To ensure that data is encrypted both in-transit and at-rest, and to validate incoming requests to the Payment Processing API, the following approach is recommended:

TLS Inbound Policy: Apply a Transport Layer Security (TLS) - Inbound policy in API Manager. This policy ensures that the data is encrypted during transmission and can be decrypted by the API Manager before it reaches the Mule application.

Decryption: With the TLS policy applied, the message payload is decrypted when it is received by the API Manager.

JSON Validation: After decryption, the Mule application can use the JSON Validation module to validate the structure and content of the JSON data. This ensures that the payload conforms to the specified format and contains valid data.

This approach ensures that data is securely transmitted and properly validated upon receipt.

Transport Layer Security (TLS) Policies

JSON Validation Module

When migrating from an on-premises cluster to a Runtime Fabric (RTF) cluster, and needing to enable Mule applications to store and share data across application replicas and restarts, the use of Anypoint Object Store V2 is the most suitable option. Here’s why and how to implement it:

Understanding Object Store V2:

Object Store V2 is designed to store and retrieve key-value pairs in a scalable and highly available manner. It is particularly useful for sharing state and data between different instances of applications running on RTF.

Setting Up Anypoint Object Store V2:

First, ensure that your MuleSoft Anypoint Platform account has access to Object Store V2.

Configure your Mule application to use Object Store V2 by defining an object store in your Mule configuration file. This can be done using the objectstore element in your Mule flow.

Configuration Steps:

Add the Object Store connector to your Mule project.

Define the object store configuration in your Mule flow as follows:

xml

<objectstore:config name="ObjectStoreV2" doc:name="ObjectStoreV2"/>

Use the object store in your flows to store and retrieve data:

xml

<objectstore:store config-ref="ObjectStoreV2" key="#[key]" value="#[value]" /> <objectstore:retrieve config-ref="ObjectStoreV2" key="#[key]" target="variableName"/>

Deploying on RTF:

Deploy your Mule application to the RTF cluster. The RTF will handle scaling and ensure that the Object Store V2 is available to all instances of your application.

Benefits:

Object Store V2 ensures data is shared and persisted across different application replicas and restarts, which meets the requirement of storing and sharing data across application replicas in the RTF cluster.

MuleSoft Documentation on Object Store V2

MuleSoft Documentation on Runtime Fabric

To automate the API lifecycle in a CI/CD pipeline efficiently, leveraging Anypoint Platform's capabilities is crucial. Anypoint CLI (Command Line Interface) and Anypoint Platform REST APIs provide robust tools for managing various aspects of the API lifecycle, such as publishing, sharing, discovering, registering, applying policies, and deploying APIs. By using these tools with a scripting language like Groovy, you can script and automate these tasks to reduce manual intervention, ensuring consistency and efficiency.

Anypoint CLI allows you to interact with the Anypoint Platform from the command line, enabling automated deployments, management of APIs, and configuration of policies. The Anypoint Platform REST APIs provide comprehensive programmatic access to the platform’s functionalities, allowing for seamless integration into CI/CD pipelines. By combining these with a scripting language, you can create scripts that automate repetitive tasks, streamline processes, and ensure that your API lifecycle management is both efficient and reliable.

MuleSoft Documentation on Anypoint CLI

MuleSoft Documentation on Anypoint Platform REST APIs

Explanation

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

Below are the typical characteristics of unit testing.

-- Unit tests do not require deployment into any special environment, such as a staging environment

-- Unit tests san be run from within an embedded Mule runtime

-- Unit tests can/should be implemented using MUnit

-- For read-only interactions to any dependencies (such as other APIs): allowed to invoke production endpoints

-- For write interactions: developers must implement mocks using MUnit

-- Require knowledge of the implementation details of the API implementation under test

Explanation

An SLA for the upstream API CANNOT be provided.

Explanation

* Mule Domain Project is ONLY available for customer-hosted Mule runtimes, but not for Anypoint Runtime Fabric

* Mule domain project is available for Hybrid and Private Cloud (PCE). Rest all provide application isolation and can't support domain project.

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

Explanation

JMX Management Java Management Extensions (JMX) is a simple and standard way to manage applications, devices, services, and other resources. JMX is dynamic, so you can use it to monitor and manage resources as they are created, installed, and implemented. You can also use JMX to monitor and manage the Java Virtual Machine (JVM). Each resource is instrumented by one or more Managed Beans, or MBeans. All MBeans are registered in an MBean Server. The JMX server agent consists of an MBean Server and a set of services for handling Mbeans. There are several agents provided with Mule for JMX support. The easiest way to configure JMX is to use the default JMX support agent. Log4J Agent The log4j agent exposes the configuration of the Log4J instance used by Mule for JMX management. You enable the Log4J agent using the element. It does not take any additional properties MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/jmx-management

During the API implementation phase, the integration team should use the API specification to build the MuleSoft application. This involves leveraging the defined API contract to guide the development of the API’s actual implementation. By adhering to the specification, developers ensure that the API meets the agreed-upon requirements and behaviors. This phase includes coding, integrating with backend systems, and ensuring that the implementation aligns with the design and functional requirements outlined in the API specification.

Explanation

V2 Rest API is recommended for on premise applications to access Object Store. It also comes with overhead of encryption and security of using rest api. With Object Store v2, the API call is localized to the same data center as the Runtime Manager app.

But in this case requirement is to access the OS of other mule application and not the same mule application.

You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

However, Object Store v2 is not designed for app-to-app communication.

To hide sensitive data exchanged between API consumers and API implementations while allowing the conversion of tokenized fields back to their original values for other API requests or responses, the best approach is to use tokenization. This involves:

Tokenization Format: Create a tokenization format that will be used to apply a tokenization policy in the API gateway. This format ensures that sensitive fields in message payloads are replaced with tokenized values that maintain a similar format, making them less recognizable as sensitive data.

Tokenization Policy: Apply a tokenization policy in the API gateway that replaces sensitive data with tokenized values.

Detokenization Policy: Apply a corresponding detokenization policy in the API gateway to convert tokenized values back to their original values when required by other APIs.

This method does not require recoding the API implementations and ensures that sensitive data is protected while still being accessible in its original form when necessary.

References

MuleSoft Documentation on Tokenization Policies

API Gateway Security Best Practices

Explanation

* An X.509 certificate is a vital safeguard against malicious network impersonators. Without x.509 server authentication, man-in-the-middle attacks can be initiated by malicious access points, compromised routers, etc.

* X.509 is most used for SSL/TLS connections to ensure that the client (e.g., a web browser) is not fooled by a malicious impersonator pretending to be a known, trustworthy website.

* Coming to the question , we can not use SLB here as SLB does not allow to define vanity domain names. * Hence we need to use DLB and add certificate in there

---------------------------------------------------------------------------------------------------------------------

Hence correct answer is Add the X 509 certificate to the cloudhub Dedicated Load Balancer (DLB), not the Mule application. Create the CNAME for api.acme.com pointing to the DLB’s record

Explanation

Correct answer is Workers are randomly distributed across available AZs within that region. This ensure high availability for deployed mule applications Mulesoft documentation reference :

https://docs.mulesoft.com/runtime-manager/cloudhub-hadr

To close the IT delivery gap, MuleSoft recommends that IT organizations make their technology assets easily discoverable via a central repository. This approach ensures that existing assets, such as APIs, connectors, templates, and other reusable components, are accessible to all teams within the organization. By having a central repository, teams can quickly find and leverage these assets, reducing duplication of effort, speeding up project delivery, and fostering a culture of reuse and collaboration. This strategy aligns with the principles of an API-led connectivity approach, where reusable assets and APIs form the foundation for scalable and efficient IT delivery.

References

MuleSoft Documentation on API-led Connectivity

Anypoint Platform Best Practices for Asset Management

To support the company's goals of unlocking key systems and data, quickly deploying scalable APIs, and connecting to on-premises systems, while also preparing for future migrations, the best runtime deployment option is using Runtime Fabric on self-managed Kubernetes. Here's why:

Scalability: Kubernetes is designed to scale applications easily and efficiently. By deploying Mule runtimes on a self-managed Kubernetes cluster, the company can dynamically scale its APIs based on demand, ensuring performance and reliability.

Flexibility: Running on self-managed Kubernetes allows the company to have control over the infrastructure. They can customize the environment to meet their specific needs, integrate with existing on-premises systems, and support their microservices architecture running in Docker containers.

Future-Proofing: Kubernetes supports hybrid and multi-cloud deployments, making it easier to migrate workloads between different environments as needed. This aligns with the company's goal of being able to migrate their systems as part of their strategic approach.

Efficiency: By leveraging Kubernetes, the company can automate deployment, scaling, and management of containerized applications, reducing the burden on IT and DevOps teams.

MuleSoft Documentation on Runtime Fabric: https://docs.mulesoft.com/runtime-fabric/1.9/

Kubernetes Documentation: https://kubernetes.io/docs/home/

For handling large datasets in a Mule application, streaming is an effective strategy. Streaming allows the application to process large amounts of data in chunks, reducing memory usage and improving performance. Using a file storage repeatable strategy for reading records from the database ensures that the data is read in manageable chunks and stored temporarily in files, which can be re-read if necessary, enhancing reliability.

The batch aggregator with streaming to write to an FTPS server ensures that data is written in chunks, aligning with the processing capabilities of the application running in CloudHub with 0.2 vCore and 8 GB storage. This configuration optimizes performance by balancing the load and managing the dataset size effectively, ensuring that the high rate of records can be processed and written to the FTPS server without overwhelming the system.

MuleSoft Documentation on Streaming

MuleSoft Documentation on Batch Processing

Mule Tracing Module and MDC:

The Mule Tracing module enhances logging by adding context-specific information to logs using Mapped Diagnostic Context (MDC).

MDC allows including additional metadata in logs, making it easier to trace and debug issues in the application.

Set Logging Variable Operations:

In Mule flows, before any Core Logger components, add Set logging variable operations from the Mule Tracing module.

This ensures that the contextual information is set before logs are written.

Configuring log4j2.xml:

Update the log4j2.xml file to change the appender's pattern layout to include %MDC placeholders.

Assign the appender to either a Logger or the Root element to ensure that logs across the application include the MDC-enriched information.

Improving Throughput and Lowering Latency:

Using MDC with %MDC placeholders ensures that enriched logging does not significantly impact performance.

This setup improves logging detail while maintaining efficient message processing.

MuleSoft Documentation on Mule Tracing: Mule Tracing Module

Log4j2 Documentation on MDC: Log4j2 MDC

Explanation

Correct answer is Use a Batch job scope to bulk insert records into the database

* Batch Job is most efficient way to manage millions of records.

A few points to note here are as follows :

Reliability: If you want reliabilty while processing the records, i.e should the processing survive a runtime crash or other unhappy scenarios, and when restarted process all the remaining records, if yes then go for batch as it uses persistent queues.

Error Handling: In Parallel for each an error in a particular route will stop processing the remaining records in that route and in such case you'd need to handle it using on error continue, batch process does not stop during such error instead you can have a step for failures and have a dedicated handling in it.

Memory footprint: Since question said that there are millions of records to process, parallel for each will aggregate all the processed records at the end and can possibly cause Out Of Memory.

Batch job instead provides a BatchResult in the on complete phase where you can get the count of failures and success. For huge file processing if order is not a concern definitely go ahead with Batch Job

Explanation

Correct answer is Only MuleSoft provided certificates can be used for server side certificate

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* You would need to use dedicated load balancer which can enable you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

Additional Info on SLB Vs DLB:

Table Description automatically generated
