MuleSoft-Platform-Architect-I Salesforce Certified MuleSoft Platform Architect (Mule-Arch-201) Questions and Answers

Explanation

Correct Answer: When there is one CloudHub deployment of the API implementation to three CloudHub workers that must share the cache state.

*****************************************

Key details in the scenario:

> > Use the CloudHub Object Store via the Object Store connector

Considering above details:

> > CloudHub Object Stores have one-to-one relationship with CloudHub Mule Applications.

> > We CANNOT use an application ' s CloudHub Object Store to be shared among multiple Mule applications running in different Regions or Business Groups or Customer-hosted Mule Runtimes by using Object Store connector.

> > If it is really necessary and very badly needed, then Anypoint Platform supports a way by allowing access to CloudHub Object Store of another application using Object Store REST API. But NOT using Object Store connector.

So, the only scenario where we can use the CloudHub Object Store via the Object Store connector to persist the cache’s state is when there is one CloudHub deployment of the API implementation to multiple CloudHub workers that must share the cache state.

Explanation

Correct Answer: Set a timeout of 100ms; that leaves 400ms for other two downstream APIs to complete

*****************************************

Key details to take from the given scenario:

> > Upstream API ' s designed SLA is 500ms (median). Lets ignore maximum SLA response times.

> > This API calls 3 downstream APIs sequentially and all these are of similar complexity.

> > The first downstream API is offering median SLA of 100ms, 80th percentile: 500ms; 95th percentile: 1000ms.

Based on the above details:

> > We can rule out the option which is suggesting to set 50ms timeout. Because, if the median SLA itself being offered is 100ms then most of the calls are going to timeout and time gets wasted in retried them and eventually gets exhausted with all retries. Even if some retries gets successful, the remaining time wont leave enough room for 2nd and 3rd downstream APIs to respond within time.

> > The option suggesting to NOT set a timeout as the invocation of this API is mandatory and so we must wait until it responds is silly. As not setting time out would go against the good implementation pattern and moreover if the first API is not responding within its offered median SLA 100ms then most probably it would either respond in 500ms (80th percentile) or 1000ms (95th percentile). In BOTH cases, getting a successful response from 1st downstream API does NO GOOD because already by this time the Upstream API SLA of 500 ms is breached. There is no time left to call 2nd and 3rd downstream APIs.

> > It is NOT true that no timeout is possible to meet the upstream APIs desired SLA.

As 1st downstream API is offering its median SLA of 100ms, it means MOST of the time we would get the responses within that time. So, setting a timeout of 100ms would be ideal for MOST calls as it leaves enough room of 400ms for remaining 2 downstream API calls.

When setting up a custom domain for MuleSoft applications hosted on CloudHub 1.0 using a Dedicated Load Balancer (DLB), follow these steps:

Set Up the TLS Certificate: Configure the DLB (acme-dib-prod) with a TLS certificate that covers the custom domain api.acmecorp.com. This certificate will allow HTTPS traffic to be securely directed through the DLB to your Mule applications.

DNS Configuration with CNAME:

Create a CNAME record that points api.acmecorp.com to the DLB hostname acme-dib-prod.lb.anypointdns.net.

The CNAME record enables the custom domain to resolve to the DLB provided by MuleSoft ' s Anypoint Platform. This CNAME mapping directs all traffic to the correct DLB for processing and load distribution.

Why Option B is Correct:

A CNAME record provides the necessary aliasing to acme-dib-prod.lb.anypointdns.net, which is the endpoint managed by Anypoint Platform for your DLB.

Option B also correctly identifies the need to configure the DLB with a TLS certificate specifically for api.acmecorp.com rather than for the DLB ' s internal hostname.

Explanation of Incorrect Options:

Options that suggest configuring the DLB with a TLS certificate for the DLB’s internal hostname or using an A record are not suitable in this scenario. MuleSoft CloudHub 1.0 DLBs work with CNAME records to provide flexible and scalable domain management, and a direct IP (A record) is not supported for these load balancers.

ReferencesFor more information on configuring custom domains and DLBs on CloudHub 1.0, refer to the MuleSoft documentation on DLB setup and DNS configuration​​.

Explanation

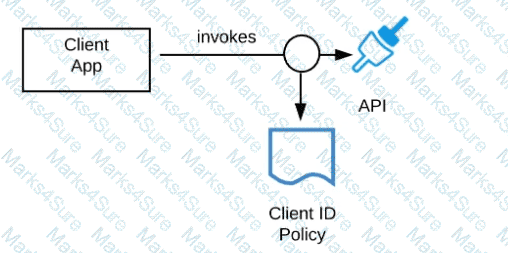

Correct Answer: API Consumer

*****************************************

> > API clients are piece of code or programs that use the client credentials of API consumer but does not directly interact with Anypoint Exchange to get the access

> > API consumer is the one who should get registered and request access to API and then API client needs to use those client credentials to hit the APIs

So, API consumer is the one who needs to request access on the API from Anypoint Exchange

Correct Answer: Persistent Object Store

*****************************************

> > Redis distributed cache is performant but NOT out-of-the-box solution in Anypoint Platform

> > File-storage is neither performant nor out-of-the-box solution in Anypoint Platform

> > java.util.WeakHashMap needs a completely custom implementation of cache from scratch using Java code and is limited to the JVM where it is running. Which means the state in the cache is not worker aware when running on multiple workers. This type of cache is local to the worker. So, this is neither out-of-the-box nor worker-aware among multiple workers on cloudhub. https://www.baeldung.com/java-weakhashmap

> > Persistent Object Store is an out-of-the-box solution provided by Anypoint Platform which is performant as well as worker aware among multiple workers running on CloudHub. https://docs.mulesoft.com/object-store/

So, Persistent Object Store is the right answer.

Explanation

Correct Answer: When a new required field is added to the method called by the API client

*****************************************

> > Generally, the logic on API clients need to be updated when the API contract breaks.

> > When a new method or a child method is added to an API , the API client does not break as it can still continue to use its existing method. So these two options are out.

> > We are left for two more where " datatype of the response if changed " and " a new required field is added " .

> > Changing the datatype of the response does break the API contract. However, the question is insisting on the " invocation " logic and not about the response handling logic. The API client can still invoke the API successfully and receive the response but the response will have a different datatype for some field.

> > Adding a new required field will break the API ' s invocation contract. When adding a new required field, the API contract breaks the RAML or API spec agreement that the API client/API consumer and API provider has between them. So this requires the API client invocation logic to also be updated.

Explanation

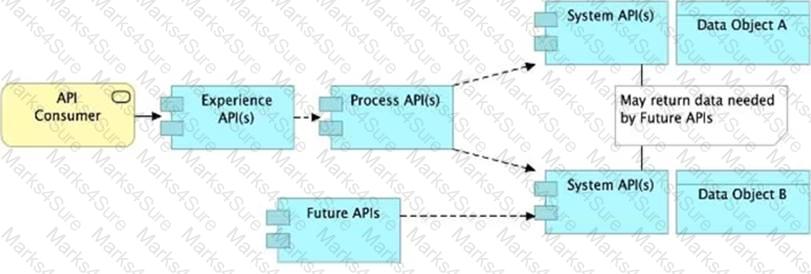

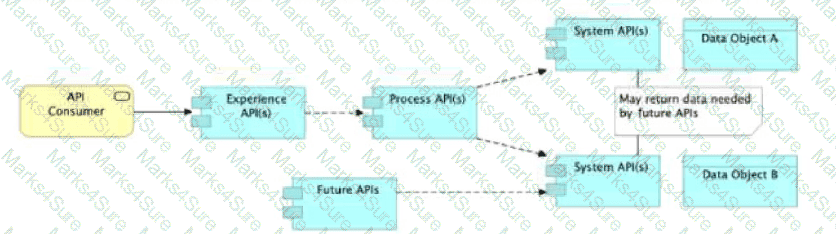

Correct Answer: Allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs.

*****************************************

> > All customizations for the end-user application should be handled in " Experience API " only. Not in Process API

> > We should use tiered approach but NOT always by creating exactly one API for each of the 3 layers. Experience APIs might be one but Process APIs and System APIs are often more than one. System APIs for sure will be more than one all the time as they are the smallest modular APIs built in front of end systems.

> > Process APIs can call System APIs as well as other Process APIs. There is no such anti-design pattern in API-Led connectivity saying Process APIs should not call other Process APIs.

So, the right answer in the given set of options that makes sense as per API-Led connectivity principles is to allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs. This way, some future Process APIs can make use of that data from System APIs and we need NOT touch the System layer APIs again and again.

Explanation

Correct Answer: Convince the development team of the product API to adopt the API data model of the Order API such that integration logic of the Order API can work with one consistent internal data model

*****************************************

Key details to note from the given scenario:

> > Power relationship between Order API and Product API is customer/supplier

So, as per below rules of " Power Relationships " , the caller (in this case Order API) would request for features to the called (Product API team) and the Product API team would need to accomodate those requests.

Given that the application is designed to handle only one process at a time to maintain data consistency, here’s why horizontal scaling won’t increase the processing limit:

Single-Process Constraint:

The application limits to processing one transaction at a time due to its design for consistency, meaning horizontal scaling (adding more workers) does not increase processing speed beyond this limit.

Execution Time:

Since each request takes 200 ms, five requests per second is the maximum processing threshold. Increasing the number of workers does not bypass this single-process limitation.

Explanation of Correct Answer (A):

The scalability remains at five requests per second, as this constraint is intrinsic to the application’s design.

Explanation of Incorrect Options:

Option B suggests a change in execution time, which horizontal scaling does not affect.

Option C assumes doubling the throughput, which isn’t possible due to the single-threaded nature of the application.

Option D suggests horizontal scaling cannot apply, which is incorrect; however, scaling does not increase throughput in this context.

ReferencesFor more on understanding scaling and concurrency in Mule applications, see MuleSoft’s documentation on application performance and scaling limitations​.

In API-led design, an Experience API is enhanced to improve how data is delivered to end-user applications. One primary reason to enhance an Experience API is when new data standards, such as a Canonical Data Model, are adopted. Here’s why:

Canonical Data Model (CDM):

Adopting a CDM standardizes data representations across the organization, making APIs more consistent and easier to consume across various services and applications.

Updating the Experience API ensures that it delivers data in this standardized format, improving interoperability and reusability.

Explanation of Correct Answer (D):

A CDM impacts the structure and types of data the API provides, and this update would be directly relevant to an Experience API, as it is the primary point of interaction for applications.

Explanation of Incorrect Options:

Option A involves adapting to consumer-specific standards, which is against API-led design principles.

Option B involves changes in System APIs, which don’t directly mandate changes to the Experience API unless data formatting adjustments are required.

Option C (IP Allowlist) relates to security rather than API design and would not motivate a functional enhancement of the API.

ReferencesFor more details on the use of Canonical Data Models in API-led architecture, refer to MuleSoft’s guidelines on data standardization and Experience API best practices​.

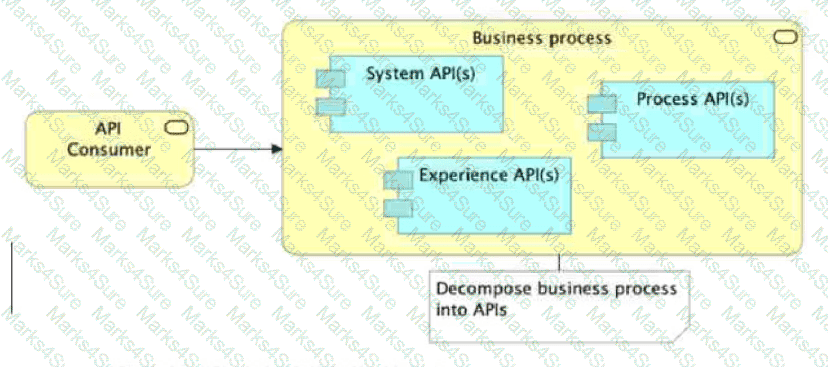

Understanding API-led Connectivity Layers:

In MuleSoft’s API-led connectivity approach, APIs are categorized into three layers:

Experience Layer: This layer is responsible for providing data to the end-user applications and is often customized to meet the needs of different user interfaces.

Process Layer: This layer is used to orchestrate and combine data from multiple System APIs. It acts as a mediator and business logic layer without directly interacting with the backend systems.

System Layer: This layer provides direct access to the backend systems (e.g., databases, ERPs) and is usually focused on exposing atomic data operations.

Evaluating the Architectural Constraints:

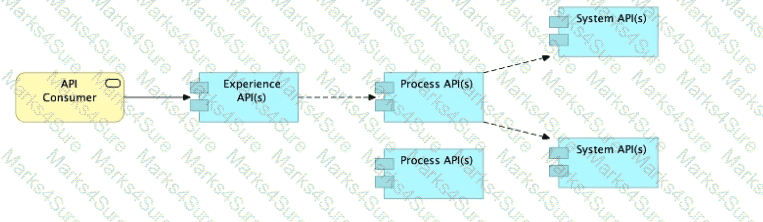

Option A: Always using a strict tiered approach by creating exactly one API per layer is not necessarily an architectural constraint of API-led connectivity. While a layered approach is recommended, it is common to have multiple APIs in each layer as needed for different functionalities.

Option B (Correct Answer): In API-led connectivity, Process APIs are generally responsible for orchestrating calls to System APIs and should not call other Process APIs. This maintains a clear separation of concerns, ensuring that Process APIs aggregate data from System APIs only and provide it to Experience APIs.

Option C: System APIs are generally designed to provide only the necessary data to meet current business requirements. Allowing them to return extra data that is not needed by Process or Experience APIs is not a best practice, as it can lead to inefficiencies.

Option D: Customizations specific to end-user applications are typically handled at the Experience Layer rather than the Process Layer, as the Experience Layer is intended to tailor the data to fit the needs of each specific client or front-end application.

Conclusion:

Option B is the correct answer as it aligns with the API-led connectivity principles. In this architectural style, Process APIs should orchestrate System APIs but should avoid interacting with other Process APIs to keep a clear separation of responsibilities across the layers.

For additional details, refer to MuleSoft documentation on API-led connectivity best practices, particularly around the roles of each layer in API orchestration and data handling.

Explanation

Correct Answer: They provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.

*****************************************

In API-led connectivity,

> > Experience APIs - allow for innovation at the user interface level by consuming the underlying assets without being aware of how data is being extracted from backend systems.

> > Process APIs - compose data from various sources and combine them with orchestration logic to create higher level value

> > System APIs - reduce the dependency on the underlying backend systems by helping unlock data from backend systems in a reusable and consumable way.

However, they NEVER promise that they provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.

https://dzone.com/articles/api-led-connectivity-with-mule

Explanation

Correct Answer:

1. Decrease the IT delivery gap

2. Meet various business demands without increasing the IT capacity

3. Make consumption of assets at the rate of production.

*****************************************

Explanation

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

> > Organization uses BOTH cloud-based and on-premises systems

> > On-premises systems can only be accessed from within the organization ' s intranet

Let us evaluate the given choices based on above key details:

> > CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition ' s control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

> > Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

> > Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS- based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Explanation

Correct Answer: Manually provisioned customer-hosted runtime plane and customer-hosted control plane

*****************************************

There are two key factors that are to be taken into consideration from the scenario given in the question.

> > Company requires both data and metadata to be resided within the corporate firewall

> > Company would like to go with customer-hosted infrastructure.

Any deployment model that is to deal with the cloud directly or indirectly (Mulesoft-hosted or Customer ' s own cloud like Azure, AWS) will have to share atleast the metadata.

Application data can be controlled inside firewall by having Mule Runtimes on customer hosted runtime plane. But if we go with Mulsoft-hosted/ Cloud-based control plane, the control plane required atleast some minimum level of metadata to be sent outside the corporate firewall.

As the customer requirement is pretty clear about the data and metadata both to be within the corporate firewall, even though customer wants to move to production as quickly as possible, unfortunately due to the nature of their security requirements, they have no other option but to go with manually provisioned customer-hosted runtime plane and customer-hosted control plane.

To create a unified schema in MuleSoft ' s DataGraph, APIs must be exposed in a way that allows DataGraph to pull and consolidate data from these APIs into a single schema accessible to consumers. DataGraph provides a federated approach, combining multiple APIs to form a single, unified API endpoint.

In this setup:

APIs 1, 2, 3, and 4 are suitable candidates for DataGraph because they are hosted within the Customer VPC on CloudHub and are accessible either through a Shared Load Balancer (LB) or a Dedicated Load Balancer (DLB). Both of these load balancers provide public access, which is a necessary condition for DataGraph as it must access the APIs to aggregate data.

APIs 5 and 6 are hosted on Customer Hosted Server 2, which is explicitly marked as " Not public " . Since DataGraph requires API access through a publicly reachable endpoint to aggregate them into a unified schema, APIs 5 and 6 cannot be used with DataGraph in this configuration.

APIs 3 and 4 on Customer Hosted Server 1 appear accessible through a Shared LB, implying public accessibility that meets DataGraph’s requirements.

By combining APIs 1, 2, 3, and 4 within DataGraph, you can create a unified schema that enables clients to query data seamlessly from all these APIs as if it were from a single source.

This setup allows for efficient data retrieval and can simplify API consumption by reducing the need to call multiple APIs individually, thus optimizing performance and developer experience.

ReferencesFor more detailed information on setting up and managing unified schemas in DataGraph, refer to the DataWeave documentation and MuleSoft DataGraph resources which provide in-depth guidelines on schema aggregation and API federation​​.

Center for Enablement (C4E) KPIs:

A Center for Enablement (C4E) in MuleSoft focuses on enabling self-service and reuse by providing APIs that can be consumed across the organization. A key metric of success is how many consumers are utilizing the published APIs.

The number of consumers who have requested and received access to an API indicates the level of adoption and reuse, which aligns with the goals of a C4E.

Evaluating the Options:

Option A: This metric could indicate deployment automation, but it is not a direct measure of C4E’s success in enabling API reuse and consumption.

Option B: Bandwidth usage per API implementation provides insight into API traffic but does not measure C4E enablement or consumer engagement.

Option C: The number of developers downloading an API specification can be an indicator of interest but does not confirm actual usage or enablement.

Option D (Correct Answer): The number of consumers who have requested and received access to an API in production is a key metric indicating API adoption and reuse, which aligns with C4E’s goals.

Conclusion:

Option D is the correct answer as it provides a direct measure of consumer engagement and adoption, indicating the success of the C4E in promoting API usage across the organization.

Refer to MuleSoft’s documentation on C4E KPIs and API usage metrics for additional insights.

Explanation

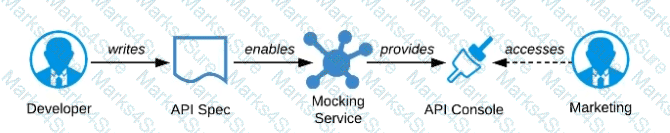

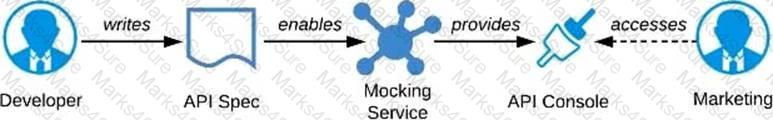

Correct Answer: Ask the Marketing Department to interact with a mocking implementation of the API using the automatically generated API Console.

*****************************************

As per MuleSoft ' s IT Operating Model:

> >  API consumers need NOT wait until the full API implementation is ready.

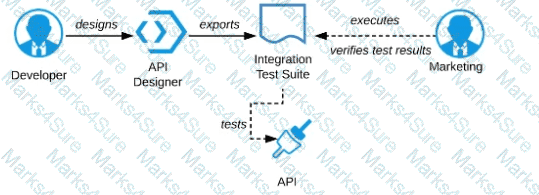

> >  NO technical test-suites needs to be shared with end users to interact with APIs.

> >  Anypoint Platform offers a mocking capability on all the published API specifications to Anypoint Exchange which also will be rich in documentation covering all details of API functionalities and working nature.

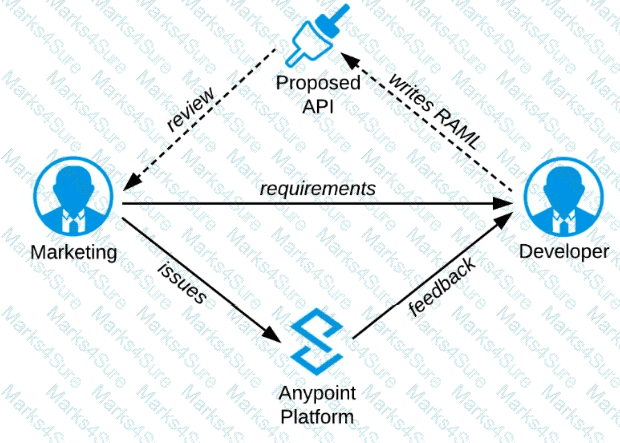

> >  No needs of arranging days of workshops with end users for feedback.

API consumers can use Anypoint Exchange features on the platform and interact with the API using its mocking feature. The feedback can be shared quickly on the same to incorporate any changes.

Explanation

Correct Answer: From the Mule runtime irrespective of the deployment model

*****************************************

> > Monitoring and Alerting metrics are always originated from Mule Runtimes irrespective of the deployment model.

> > It may seems that some metrics (Runtime Manager) are originated from Mule Runtime and some are (API Invocations/ API Analytics) from API Manager. However, this is realistically NOT TRUE. The reason is, API manager is just a management tool for API instances but all policies upon applying on APIs eventually gets executed on Mule Runtimes only (Either Embedded or API Proxy).

> > Similarly all API Implementations also run on Mule Runtimes.

So, most of the day required for monitoring and alerts are originated fron Mule Runtimes only irrespective of whether the deployment model is MuleSoft-hosted or Customer-hosted or Hybrid.

Explanation

Correct Answer: Bundle properties files for each environment into the Mule API implementation ' s deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIs

*****************************************

> > Anypoint Exchange is for asset discovery and documentation. It has got no provision to modify the properties of Mule API implementations at all.

> > API Manager is for managing API instances, their contracts, policies and SLAs. It has also got no provision to modify the properties of API implementations.

> > API policies are to address Non-functional requirements of APIs and has again got no provision to modify the properties of API implementations.

So, the right way and recommended way to do this as part of development practice is to bundle properties files for each environment into the Mule API implementation and just point and refer to respective file per environment.

Explanation

Correct Answer: When development is already organized into several independent initiatives or groups

*****************************************

> > It would require lot of process effort in an organization to have a single C4E team coordinating with multiple already organized development teams which are into several independent initiatives. A single C4E works well with different teams having at least a common initiative. So, in this scenario, federated C4E works well instead of centralized C4E.

In the API-led connectivity approach, APIs are categorized into Experience, Process, and System layers:

Enterprise Data Model Scope:

The Enterprise Data Model (EDM) generally supports System APIs and some Process APIs by defining standard data structures used across the organization. Experience APIs, however, are tailored to specific applications or interfaces and are less likely to be served directly by the EDM, as they may require customized data representations to meet the unique needs of each user interface.

Why Option C is Correct:

The Mobile Account Management EAPI serves mobile-specific needs and often requires data formatted differently from the standardized data models. Thus, it would be outside the direct scope of the EDM and might employ custom mappings to fit mobile application requirements.

Explanation of Incorrect Options:

Option A (Customer SAPI), Option B (Customer Lookup PAPI), and Option D (Service SAPI) would typically align with the EDM as they are closer to the core data and services the EDM supports.

ReferencesFor additional guidance, review MuleSoft ' s best practices on API-led connectivity and data modeling​.

Correct Answer: Use an SLA-based rate limiting policy and assign a client application to a matching SLA tier based on its type.

*****************************************

> > SLA tiers will come into play whenever any limits to be imposed on APIs based on client type

Default Alert Capabilities in Anypoint Platform:

Anypoint Platform provides out-of-the-box alerting capabilities for monitoring API invocation conditions, including setting thresholds for the number of invocations.

Alerts can be configured for conditions such as high or low traffic (invocations exceeding or falling below a defined threshold).

Evaluating the Options:

Option A: Anypoint Platform does not provide direct alerting based on DNS records.

Option B: Anypoint Platform does not provide default alerts based on whether invocations use TLS/SSL; this would require custom configuration.

Option C: Geolocation-based alerting is not natively supported in Anypoint Platform.

Option D (Correct Answer): Alerts based on API invocation thresholds (e.g., invocations falling below a set threshold) are supported and can be configured as part of the default Anypoint alerting functionality.

Conclusion:

Option D is correct, as Anypoint Platform allows configuring alerts based on the number of API invocations falling below or exceeding a threshold.

Refer to MuleSoft ' s documentation on Anypoint Monitoring and alert configurations for more details.

Scenario Analysis:

The eCommerce company’s Product Details feature requires low response time and consistent data for a feature where data rarely changes (only once or twice a year).

The database response time is slow due to high volume, so querying the database directly on each request would lead to poor performance and higher response times.

Optimal Solution Requirements:

Low Response Time: Data retrieval should be fast and not depend on database performance.

Fault Tolerance and Data Consistency: Cached or stored data should be consistent and resilient in case of database unavailability, as the product details data changes infrequently.

Evaluating the Options:

Option A: Using a Cache scope would temporarily store the product details in memory, which could improve performance but might not be suitable for infrequent updates (only twice a year), as cache expiration policies typically require shorter durations.

Option B: Storing product details in Anypoint MQ and then retrieving it through a subscriber is not suitable for this use case. Anypoint MQ is better for messaging rather than as a data storage mechanism.

Option C (Correct Answer): Using an object store to store and retrieve product details is ideal. Object stores in MuleSoft are designed for persistent storage of key-value pairs, which allows storing data retrieved from the database initially. This provides quick, consistent access without querying the database on every request, aligning with requirements for low response time, fault tolerance, and data consistency.

Option D: Selecting data directly from the database for each request would not meet the performance requirement due to known slow response times from the database.

Conclusion:

Option C is the best answer, as using an object store allows caching the infrequently updated product details. This approach reduces the dependency on the database, significantly improving response time and ensuring consistent data.

Refer to MuleSoft documentation on Object Store v2 and best practices for data caching to implement this solution effectively.

Explanation

Correct Answer: By default, the Anypoint CLI and Mule Maven plugin are NOT included in the Mule runtime, so are NOT available to be used by deployed Mule applications

*****************************************

> > We CANNOT apply API policies to the Anypoint Platform APIs like we can do on our custom written API instances. So, option suggesting this is FALSE.

> > Anypoint Platform APIs can be used for automating interactions with both CloudHub and customer-hosted Mule runtimes. Not JUST the CloudHub. So, option opposing this is FALSE.

> > Mule Maven plugin is NOT mandatory for deployment to customer-hosted Mule runtimes. It just helps your CI/CD to have smoother automation. But not a compulsory requirement to deploy. So, option opposing this is FALSE.

> > We DO NOT have any such special roles and permissions on the platform to separately control access for some users to have Anypoint CLI and others to have Anypoint Platform APIs. With proper general roles/permissions (API Owner, Cloudhub Admin etc..), one can use any of the options (Anypoint CLI or Platform APIs). So, option suggesting this is FALSE.

Only TRUE statement given in the choices is that - Anypoint CLI and Mule Maven plugin are NOT included in the Mule runtime, so are NOT available to be used by deployed Mule applications.

Maven is part of Studio or you can use other Maven installation for development.

CLI is convenience only. It is one of many ways how to install app to the runtime.

These are definitely NOT part of anything except your process of deployment or automation.

Explanation

Correct Answer: Option A

*****************************************

> > Anypoint API Manager and API policies are applicable to all types of HTTP/1.x APIs.

> > They are not applicable to WebSocket APIs, HTTP/2 APIs and gRPC APIs

Explanation

Correct Answers:

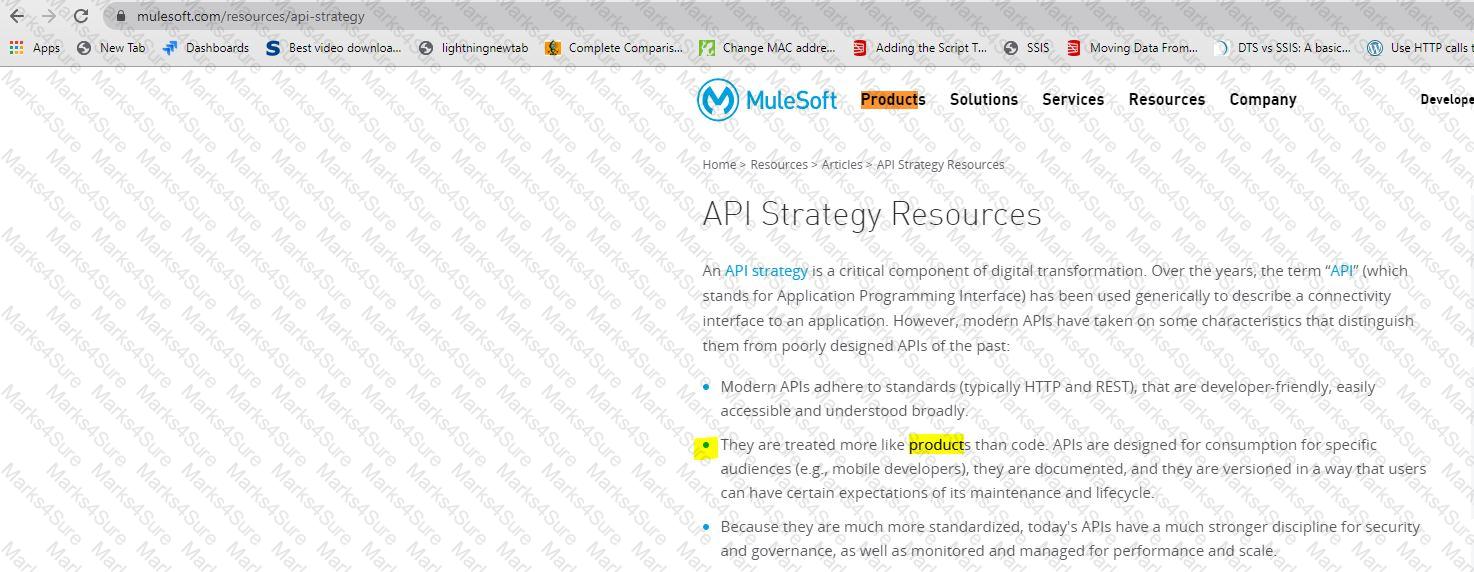

1. Each modern API must be treated like a product and designed for a particular target audience (for instance mobile app developers)

*****************************************

Bottom of Form

Top of Form

An Anypoint Virtual Private Cloud (VPC) provides a secure and private networking environment for MuleSoft applications, using specific architectural elements:

CIDR Blocks:

Anypoint VPCs utilize CIDR blocks to define IP ranges, allowing organizations to control and segment the VPC’s IP address space.

Port 6091 for HTTP Requests:

By default, HTTP requests can be made to workers on port 6091 from the public internet, providing an accessible entry point unless additional restrictions are applied.

Explanation of Correct Answers (B, E):

CIDR blocks enable IP range management for VPCs, and port 6091 is the default public entry port, which is part of Anypoint VPC’s default settings.

Explanation of Incorrect Options:

Option A (Ports 8081 and 8082) is incorrect; these are not default public ports for Anypoint VPC.

Option C (responsible for load balancing) is incorrect as load balancing requires a separate Dedicated Load Balancer (DLB).

Option D (round-robin load balancing) applies to DLBs, not directly to VPCs.

ReferencesFor more on VPC setup and networking, refer to MuleSoft documentation on VPC configurations and default port settings​.

Explanation

Correct Answer: In parallel, invoke the system API deployed to the primary environment and the system API deployed to the DR environment, and ONLY use the first response.

*****************************************

> > The API requirement in the given scenario is to respond in least possible time.

> > The option that is suggesting to first try the API in primary environment and then fallback to API in DR environment would result in successful response but NOT in least possible time. So, this is NOT a right choice of implementation for given requirement.

> > Another option that is suggesting to ONLY invoke API in primary environment and to add timeout and retries may also result in successful response upon retries but NOT in least possible time. So, this is also NOT a right choice of implementation for given requirement.

> > One more option that is suggesting to invoke API in primary environment and API in DR environment in parallel using Scatter-Gather would result in wrong API response as it would return merged results and moreover, Scatter-Gather does things in parallel which is true but still completes its scope only on finishing all routes inside it. So again, NOT a right choice of implementation for given requirement

The Correct choice is to invoke the API in primary environment and the API in DR environment parallelly, and using ONLY the first response received from one of them.

Explanation

Correct Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.

*****************************************

Below TWO are characteristics of Integration Tests but NOT unit tests:

> > They test the validity of input and output of source and target systems.

> > They must be triggered by an external client tool or event source.

It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.

MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.

https://dzone.com/articles/munit-framework

Understanding the Requirements:

The business needs to transfer daily data changes from the Salesforce Account and Case objects to AWS DynamoDB in a single JSON format.

Only a subset of attributes (5 from Account and 8 from Case) is required, so it is not necessary to include all 219 attributes of the Account object.

Design Approach:

A System API (SAPI) should be created for each Salesforce object (Account and Case), exposing only the required fields (5 attributes for Account and 8 for Case).

A Process API (PAPI) can be used to aggregate and transform the data from these SAPIs, combining the 13 selected attributes from Account and Case into a single JSON structure for DynamoDB.

Evaluating the Options:

Option A: Mimicking all attributes in the SAPI is inefficient and unnecessary, as only 13 attributes are required.

Option B: Replicating all attributes in DynamoDB is excessive and would result in higher storage and processing costs, which is unnecessary given the requirement for only a subset of attributes.

Option C: Implementing an Enterprise Data Model could be useful in broader data management but is not required here, as the focus is on a lightweight integration.

Option D (Correct Answer): Creating separate entities in SAPI for Account and Case with only the required attributes and using the PAPI to aggregate them into a single JSON is the most efficient and meets the requirements effectively.

Conclusion:

Option D is the best choice as it provides a lightweight, efficient design that meets the requirements by transferring only the necessary attributes and minimizing resource use.

Refer to MuleSoft ' s best practices for API-led connectivity and data modeling to structure SAPIs and PAPIs efficiently.

For organizations with established CI/CD practices, the Mule Maven plugin is the recommended tool for automating packaging and deployment across multiple environments, including CloudHub, on-premise Mule runtimes, and Anypoint Runtime Fabric. Here’s why:

Automation with Maven:

The Mule Maven plugin allows for CI/CD integration by supporting automated build and deployment processes. It is commonly used in CI/CD pipelines to handle application packaging and deployment directly through Maven commands, making it ideal for teams that want consistent deployment automation across different MuleSoft environments.

Supported Deployment Targets:

The Mule Maven plugin supports deployment to various targets, including CloudHub, Runtime Fabric, and on-premises servers, thus meeting the needs of environments with diverse deployment destinations.

Why Option B is Correct:

The Mule Maven plugin is specifically designed for CI/CD pipelines and integrates with Jenkins, GitLab, and other CI/CD tools to facilitate continuous deployment. It is the most efficient MuleSoft-provided tool for this purpose.

Explanation of Incorrect Options:

Option A (Anypoint Runtime Manager) provides deployment management but does not automate CI/CD processes.

Option C (Anypoint Platform CLI) can script deployments but lacks direct integration with CI/CD tools.

Option D (Anypoint Platform REST APIs) requires custom scripting for deployment, which can be more complex than using the Mule Maven plugin.

ReferencesFor more details, refer to MuleSoft documentation on using the Mule Maven plugin for CI/CD​​.

Explanation

Correct Answer: When the response time of API invocations exceeds a threshold

*****************************************

> > Alerts can be setup for all the given options using the default Anypoint Platform functionality

> > However, the question insists on an alert whose conditions depend on the end-to-end request processing of the API implementation.

> > Alert w.r.t " Response Times " is the only one which requires end-to-end request processing of API implementation in order to determine if the threshold is exceeded or not.

Understanding JSON Threat Protection Policies:

JSON Threat Protection policies are used to protect APIs from attacks that exploit JSON payloads, such as oversized payloads, deeply nested objects, and excessive array elements. This helps prevent Denial of Service (DoS) attacks and other malicious payload-related threats.

These policies are typically applied to safeguard APIs that are directly exposed to external clients, where the risk of receiving malicious payloads is highest.

API-led Connectivity Layers:

Experience Layer: This layer is designed to expose APIs to end-users or external API clients, often acting as the interface that interacts with users or applications.

Process Layer: This layer is used for orchestration and aggregation of data from various System APIs, typically operating within a trusted environment and not directly exposed to external clients.

System Layer: This layer provides access to backend systems and databases, often within the organization’s secure environment and not directly accessible to external clients.

Evaluating the Options:

Option A (All layers): While JSON Threat Protection can technically be applied to all layers, it is most commonly applied at the Experience layer, where APIs are exposed to external traffic and are more vulnerable to attacks.

Option B (System layer): The System layer is generally not exposed to external clients directly, so JSON Threat Protection is less critical here.

Option C (Process layer): Similar to the System layer, the Process layer is typically internal and not exposed directly to external clients, so JSON Threat Protection is less commonly applied.

Option D (Correct Answer): The Experience layer is the correct answer because it is the layer that directly interacts with external clients, making it the primary target for malicious payloads. Applying JSON Threat Protection here effectively protects the application network from external threats.

Conclusion:

Option D is the correct answer, as the Experience layer is the most common layer for applying JSON Threat Protection policies to protect against external attacks.

For further reference, consult MuleSoft ' s documentation on API security policies and best practices for securing APIs at the Experience layer.

Explanation

Correct Answer: Apply a basic authentication - LDAP policy; the internal Active Directory will be configured as the LDAP source for authenticating users.

*****************************************

> > IP Whitelisting does NOT fit for this purpose. Moreover, the users workstations may not necessarily have static IPs in the network.

> > OAuth 2.0 enforcement requires a client provider which isn ' t in the organizations system components.

> > It is not an effective approach to let every user create separate client credentials and configure those for their usage.

The effective way it to apply a basic authentication - LDAP policy and the internal Active Directory will be configured as the LDAP source for authenticating users.

Explanation

Correct Answer: Create separate Anypoint VPCs for non-production and production environments, then configure connections to the backend systems in the corresponding customer-hosted environments.

*****************************************

> >  Creating different Business Groups does NOT make any difference w.r.t accessing the non-prod and prod customer-hosted environments. Still they will be accessing from both Business Groups unless process network restrictions are put in place.

> >  We need to modify or couple the Mule Application Implementations with the environment. In fact, we should never implements application coupled with environments by binding them in the properties. Only basic things like endpoint URL etc should be bundled in properties but not environment level access restrictions.

> >  IP addresses on CloudHub are dynamic until unless a special static addresses are assigned. So it is not possible to setup firewall rules in customer-hosted infrastrcture. More over, even if static IP addresses are assigned, there could be 100s of applications running on cloudhub and setting up rules for all of them would be a hectic task, non-maintainable and definitely got a good practice.

> >  The best practice recommended by Mulesoft (In fact any cloud provider), is to have your Anypoint VPCs seperated for Prod and Non-Prod and perform the VPC peering or VPN tunneling for these Anypoint VPCs to respective Prod and Non-Prod customer-hosted environment networks.

 https://docs.mulesoft.com/runtime-manager/virtual-private-cloud

Bottom of Form

Top of Form

Understanding the Need for Cross-API Monitoring:

The Center for Enablement (C4E) needs to investigate potential technical issues across multiple APIs in the application network that may be causing customers to abandon their carts.

This requires a solution that allows viewing metrics across several APIs in real-time to identify any performance issues or bottlenecks.

Evaluating Anypoint Platform Features:

Built-in Dashboards: Anypoint Platform provides built-in dashboards in Anypoint Monitoring, allowing teams to view metrics from multiple APIs in a single interface. This feature is designed to monitor API performance, latency, errors, and throughput, and is ideal for tracking performance across all layers of the application network.

Custom Dashboards: While custom dashboards allow for more tailored views, the built-in dashboards already aggregate metrics for multiple APIs, making it unnecessary to build a custom solution for this scenario.

Functional Monitoring: This feature is used to set up tests to monitor specific API functionality and uptime but is not suited for tracking metrics across multiple APIs in real-time.

API Manager: API Manager primarily focuses on managing API policies, contracts, and access control rather than providing detailed, real-time metrics across the entire application network.

Conclusion:

Option B (Built-in dashboards) is the best choice because it provides a comprehensive view of metrics from all APIs involved, enabling the C4E team to quickly identify any issues that may be contributing to abandoned shopping carts.

Refer to MuleSoft’s documentation on Anypoint Monitoring and built-in dashboards for more details on configuring and using these dashboards effectively.

Explanation

Correct Answer: JSON threat protection

*****************************************

Fact: Technically, there are no restrictions on what policy can be applied in what layer. Any policy can be applied on any layer API. However, context should also be considered properly before blindly applying the policies on APIs.

That is why, this question asked for a policy that would LEAST likely be applied to a Process API.

From the given options:

> > All policies except " JSON threat protection " can be applied without hesitation to the APIs in Process tier.

> > JSON threat protection policy ideally fits for experience APIs to prevent suspicious JSON payload coming from external API clients. This covers more of a security aspect by trying to avoid possibly malicious and harmful JSON payloads from external clients calling experience APIs.

As external API clients are NEVER allowed to call Process APIs directly and also these kind of malicious and harmful JSON payloads are always stopped at experience API layer only using this policy, it is LEAST LIKELY that this same policy is again applied on Process Layer API.

Explanation

Correct Answer: Configure a “Worker not responding” alert in Anypoint Runtime Manager.

*****************************************

> >  All the options eventually helps to generate the alert required when the application stops responding.

> >  However, handling exceptions within calling API and then raising alert from API client is inappropriate and silly. There could be many API clients invoking the API implementation and it is not ideal to have this setup consistently in all of them. Not a realistic way to do.

> >  Implementing a health check/ heartbeat with in the API and calling from outside to detmine the health sounds OK but needs extra setup for it and same time there are very good chances of generating false alarms when there are any intermittent network issues between external tool calling the health check API on API implementation. The API implementation itself may not have any issues but due to some other factors some false alarms may go out.

> >  Creating an alert in API Manager when the API receives no requests within a specified time period would actually generate realistic alerts but even here some false alarms may go out when there are genuinely no requests from API clients.

The best and right way to achieve this requirement is to setup an alert on Runtime Manager with a condition " Worker not responding " . This would generate an alert AS SOON AS the workers become unresponsive.

Bottom of Form

Top of Form
