NCS-Core Nutanix Certified Services Core Infrastructure Professional (NCS-Core 6.8) Questions and Answers

To safely and successfully unregister the customer ' s former cluster from Prism Central (PC), the consultant should take the following steps as outlined in option D:

Login to the Prism Central Web UI, which provides a user-friendly interface for managing multiple clusters.

Navigate to the " Cluster Registrations " section found under the " Settings " in the " Admin Center " of the Prism Central interface.

Check the box next to the desired Prism Element (PE) cluster that needs to be unregistered.

Click the " Remove " button to unregister the cluster.

This method allows the consultant to cleanly and directly manage the cluster registration without needing to interact with command-line tools or scripts, making it a straightforward process that minimizes the risk of errors and ensures that the operation can be tracked and audited through the UI.

References : Nutanix Prism Central Guide, Nutanix Administration Documentation.

When installing a Nutanix cluster on hardware servers pre-loaded with an existing operating system such as DiscoverOS, the best approach is to re-image the bare metal nodes. This process involves using the Nutanix Foundation tool to install the required Nutanix software (such as AOS and Hypervisor) onto the nodes, replacing any pre-existing software. This ensures that the hardware is properly configured and optimized for the Nutanix environment. References :

Nutanix University - NCS-Core 6.8 Learning Path

The Nutanix Bible, Foundation chapter ( https://www.nutanixbible.com/ )

For a configuration that aims to utilize all available 10G links, achieve maximum throughput per VM, and ensure redundancy with fast reconvergence during link failure, the optimal setting would be to configure Balance-TCP on bridge br0 . This setting distributes the load across all available network paths based on the TCP session, maximizing the utilization of network interfaces and ensuring redundancy. This approach is particularly effective in environments with multiple network paths and ensures efficient network traffic management. References :

Nutanix University - NCS-Core 6.8 Learning Path

The Nutanix Bible, Network Configuration chapter ( https://www.nutanixbible.com/ )

Ref: https://next.nutanix.com/prism- infrastructure-management-26/disk-space-usage-high-alert-in-prism-38199

When deploying the latest AOS along with the latest Nutanix hardware, it is essential for the consultant to review multiple sources of information to ensure a successful installation. Release Notes provide details about new features, improvements, and known issues in the latest version of AOS. Software Product Interoperability outlines compatibility between different software versions, ensuring that the AOS and any integrated applications or environments will function correctly. Field & Security Advisories inform about potential security issues and recommended practices to avoid common pitfalls or security risks.

References :

Nutanix Bible: Documentation and Release Information

Nutanix University: Installation and Security Best Practices

During the Knowledge Transfer phase, providing the customer with the As-Built Guide, technical slides and checklists, along with links to documentation and resources, is optimal. This set of materials ensures the customer receives both detailed and high-level information, supporting a thorough understanding of the deployment and operational procedures, and it allows for easy reference to official resources for ongoing needs. References : The Nutanix Bible, NCS-Core 6.8 learning documentation, and best practices in IT project documentation.

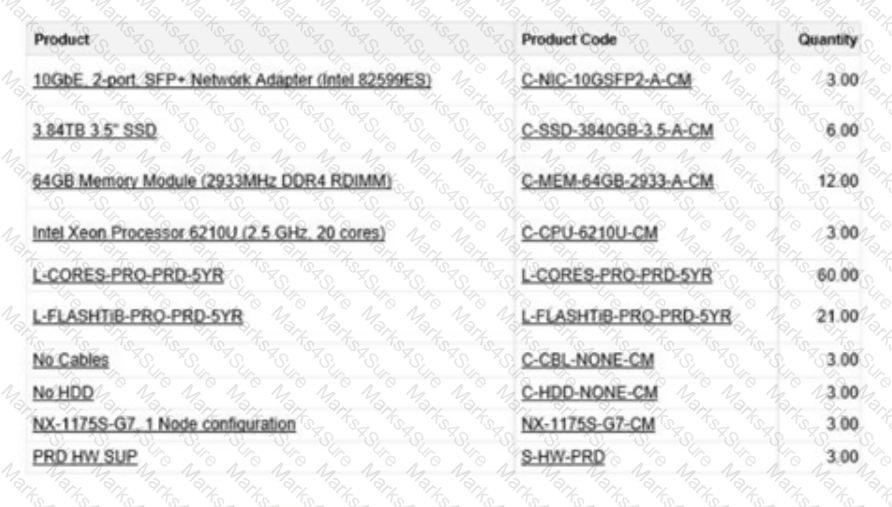

Given that the customer ' s ToR switches are 25GbE and are already operational, the most reliable and straightforward method for imaging these NX nodes with dual 25GbE and 10GbE ports is to use the 25GbE production switches. The appropriate hardware setup includes:

4 DAC (Direct Attach Cable) cables for connecting the 25GbE NICs on the nodes to the ToR switches.

5 Ethernet cables to manage connectivity between nodes and potentially to a flat Ethernet switch and a laptop for Foundation process control. This setup ensures the fastest and most reliable network performance during imaging, leveraging the existing high-speed infrastructure. References : Nutanix Hardware and Installation Guide, Best Practices for Network Configuration during Foundation.

After an onsite cluster deployment, the As-Built Guide is a crucial document that provides detailed information about the final configuration of the system. However, certain data in the As-Built Guide might require adjustment or might be missing completely.

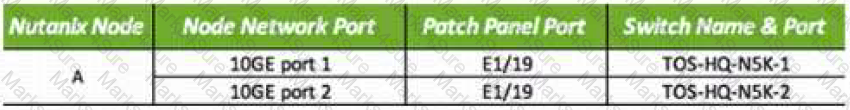

In this case, the Nutanix Node Port Layout (Option A) and the Physical Rack Layout (Option C) are two data that might require adjustment or might be missing completely. The Nutanix Node Port Layout provides a visual representation of the network connections for each node in the cluster, while the Physical Rack Layout provides a visual representation of the physical arrangement of the nodes in the rack. Both of these data are crucial for understanding the physical and network configuration of the cluster, and any inaccuracies or omissions in these data could lead to confusion or issues in the future.

Therefore, the consultant should ensure that the Nutanix Node Port Layout and the Physical Rack Layout in the As-Built Guide are accurate and complete.

References :

[Nutanix Support & Insights]

[Nutanix Community]

[Nutanix Documentation]

[Nutanix Certified services - core (NCS-Core) 6.8 - Nutanix University]

[Nutanix Bible]

[Nutanix Certified services - core (NCS-Core) 6.8 Playlist - YouTube]

If link aggregation is failing to pass traffic and is only showing a status of " configured, " the most likely cause is a failed negotiation due to a misconfiguration on the Top-of-Rack (ToR) switches. This typically occurs when the aggregation protocols (like LACP) or the settings on the ToR switches do not match the configuration on the hosts. Ensuring that both ends of the aggregated links are configured identically and properly for the expected protocols is critical for successful link aggregation. References : Nutanix Network Configuration Guide, Best Practices for Network Aggregation.

Ref: https://portal.nutanix.com/page/documents/details?targetId=Prism-Central-Gui de-Prism-v5_18:mul-storage-qos-pc-c.html

In a Nutanix environment, if the Foundation VM is not discovering the hardware, it could be due to issues with the IPMI (Intelligent Platform Management Interface) settings. IPMI is a set of computer interface specifications for an autonomous computer subsystem that provides management and monitoring capabilities independently of the host system’s CPU, firmware (BIOS or UEFI), and operating system.

In this scenario, the consultant should connect a crash cart to each node, log in to the pre-installed AHV hypervisor, and run the IPMITool commands to set the IPMI IP Address, subnet, and gateway for each node. After setting the IPMI settings, the consultant should run Foundation using the configured IPMI addresses that were just set.

This will ensure that the Foundation VM can communicate with the nodes via IPMI and discover the hardware, allowing the installation to proceed.

References :

[Nutanix Support & Insights]

[Nutanix Community]

[Nutanix Documentation]

[Nutanix Certified services - core (NCS-Core) 6.8 - Nutanix University]

[Nutanix Bible]

[Nutanix Certified services - core (NCS-Core) 6.8 Playlist - YouTube]

Within a Nutanix cluster, the subnet 192.168.5.0/24 is typically reserved for internal connectivity. This subnet is used for the internal communication between Nutanix Controller VMs (CVMs) and other cluster components. It ensures isolated and efficient network traffic management that is crucial for cluster operations.

References :

Nutanix Network Configuration Guide: Nutanix Networking Guide

Nutanix Best Practices for Network Configuration: Nutanix Community

To address critical alerts about components using default passwords in the Prism Element Web Console:

C. Check NCC results and review the associated KB : The Nutanix Cluster Check (NCC) tool can identify security vulnerabilities, including default password usage. Reviewing the results and associated knowledge base articles provides specific guidance on changing these passwords to secure the environment.

References :

Nutanix Bible ( https://www.nutanixbible.com ), specifically sections on cluster health checks and security practices.

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com ), which includes instruction on using NCC for cluster validation and security enhancements.

If the As-Built Tool cannot be run due to technical reasons, the next best action for the consultant is to manually create documentation using an As-Built document template. This approach ensures that documentation is still provided to the customer detailing the setup, configuration, and operational state of their environment, which is crucial for ongoing management and future audits. This method is proactive and ensures customer needs are met despite technical setbacks. References : Nutanix Technical Documentation Guidelines, Best Practices in Nutanix System Documentation.

To separate management and production traffic within a Nutanix AHV cluster, VLAN Tagging is the appropriate feature to configure. VLAN Tagging allows different types of traffic to be segregated onto different network segments over the same physical infrastructure, effectively isolating management traffic from production traffic at the network level. This setup enhances security and performance by reducing the possibility of network congestion affecting critical management operations.

References :

Nutanix Bible ( https://www.nutanixbible.com ), specifically the sections on networking and VLANs.

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com ), which covers advanced network configurations including VLAN Tagging.

When migrating an ESXi host to a vSphere Distributed Switch (vDS), it ' s crucial to correctly configure network adapters, including those for the Controller Virtual Machine (CVM). If the consultant migrated both the CVM backplane and the VM network adapter to the vDS, this could disrupt host-to-CVM connectivity if not configured correctly on the vDS. Such a setup requires precise configuration of network settings and VLAN tags to maintain seamless connectivity and avoid communication alerts in Prism Element.

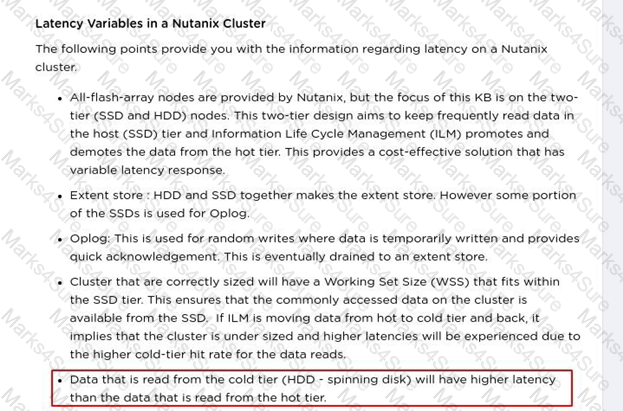

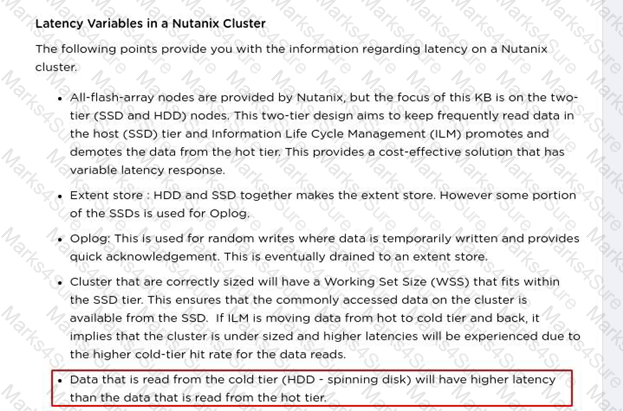

In a Nutanix cluster, I/O latency can be affected by several factors. Given the scenario where a 32-node hybrid cluster is experiencing I/O latency, one possible cause could be the Information Life Cycle Management (ILM) constantly moving data due to curator scans 1 .

In a Nutanix cluster, ILM is responsible for managing data placement across different storage tiers. It promotes frequently accessed data to higher-performance tiers (like SSDs) and demotes less frequently accessed data to lower-performance tiers (like HDDs) 1 . This process involves moving data around, which can cause I/O operations to take longer, leading to increased latency 1 .

If the working set size (WSS) exceeds the SSD tier capacity, ILM will have to constantly move data between the SSD and HDD tiers to accommodate new data. This constant data movement can lead to increased I/O latency 1 .

Therefore, if curator scans caused by ILM are constantly moving data, it could be the reason for the observed I/O latency in this scenario.

References :

Disk I/O Latency on a Nutanix Cluster | Nutanix Community

Nutanix Volumes - Recommendations And Best Practices

Nutanix Support & Insights

Expand Cluster with Nodes with Higher NIC SPEED (25 GBPS) | Nutanix …

[Scaling Up VM Storage Performance on AHV – Volume Group … - Nutanix]

[About support for Nutanix segmented iSCSI network | Managing AHV …]

The error encountered during the LCM operation suggests a failure in reading a file, which might be linked to the foundational services of the cluster. The genesis.out log file is essential for troubleshooting issues related to cluster initialization and fundamental operations. This file logs the activities of the Genesis service, which is responsible for managing and monitoring the lifecycle of cluster services, including LCM tasks. In case of errors during LCM operations, the genesis.out log provides detailed insight into what might have gone wrong during the process, making it the appropriate log to check in this scenario.

References :

Nutanix Bible: https://www.nutanixbible.com/

Nutanix University Videos on LCM and Genesis service: Nutanix Official YouTube Playlist

Regarding the Reserved Capacity parameter in a storage container:

C. Reserve capacity for a storage container only if the storage pool consists of a single storage container : This best practice ensures that dedicated space is guaranteed for the container, which is particularly important if the storage pool is not shared among multiple containers. This prevents space from being over-provisioned or unavailable when needed by critical applications.

References :

Nutanix Bible ( https://www.nutanixbible.com ), specifically sections on storage management and best practices for capacity planning.

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com ), which includes detailed discussions on storage container configuration and management.

For creating a Disaster Recovery Test plan for Nutanix environments, verifying that VMs receive the correct IP address after a failover is critical to validate VM availability across the network. This check is essential to ensure that network configurations and DHCP/Static IP settings are correctly applied post-failover, enabling proper network communications and access to services hosted on the VMs. Ensuring correct IP addressing is fundamental to the successful operation of DR strategies in virtualized environments. References : Nutanix Disaster Recovery Best Practices, Nutanix Network Configuration for DR environments.

When deploying Nutanix hardware, it is essential to ensure that all necessary components are included in the Bill of Materials (BOM). In this case, the BOM includes SFP+ modules but lacks the fiber cables needed for connectivity. The SFP+ modules indicate a requirement for fiber optic cables, and it ' s crucial for the consultant to ensure the client understands their responsibility to procure compatible cables. Nutanix typically does not provide fiber cables as these are considered network infrastructure components, which vary based on specific network requirements and setups. References :

Nutanix University - NCS-Core 6.8 Learning Path

The Nutanix Bible ( https://www.nutanixbible.com/ )

Nutanix TechTalks and Learning Videos ( https://www.youtube.com/playlist?list=PLAHgaS9IrJecs_AcQT3Y7vSsKT2mjz3Iu )

Ref:

In a typical Nutanix deployment using a flat switch, the Foundation VM, the CVM, and the Hypervisor should all be on the same subnet to facilitate seamless communication and management operations during the initial setup and operation. The IPMI, being a management interface, can be on a different subnet as it serves a different purpose primarily for remote management at the hardware level and does not need to be on the same subnet as the other components for cluster functionality. References :

Nutanix University - NCS-Core 6.8 Learning Path

The Nutanix Bible, Network Configuration chapter ( https://www.nutanixbible.com/ )

If the Foundation applet ' s progress bar webpage does not load after a refresh during a cluster creation, the consultant should verify if the Foundation process has completed by attempting to connect to any CVM (Controller Virtual Machine) IP address using a web browser. Accessing the CVM will confirm whether the nodes are operational and part of the cluster, thus indicating whether the Foundation process has successfully completed or not. References : Nutanix Bible, NCS-Core 6.8 official documentation on the Foundation process.

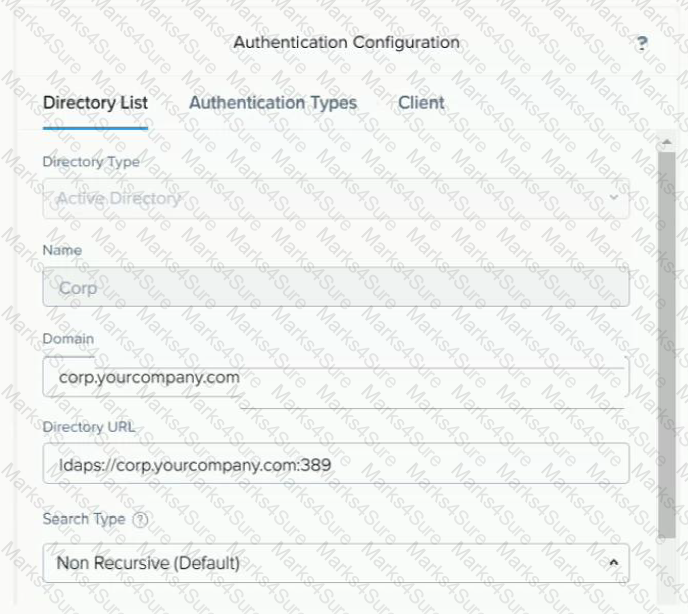

In a Nutanix environment, if the login process using an Active Directory (AD) user account takes more than a minute to complete, it could be due to the configuration of the AD lookups.

Active Directory lookups can be configured to use either Recursive or Non-Recursive mode. In Recursive mode, the system will look up each group that a user is a member of, then each group that those groups are members of, and so on.  This can lead to a large number of lookups and potentially slow down the login process 1 .

On the other hand, in Non-Recursive mode, the system only looks up the direct groups that a user is a member of.  This can significantly reduce the number of lookups and speed up the login process 1 .

Therefore, the administrator should confirm that Active Directory lookups are configured to use Non-Recursive mode to resolve this issue.

References :

Active Directory Authentication is slow - Takes minutes to Logon | Nutanix Community

Configuring Authentication | Nutanix Community

Solving Slow Logon Issues in Active Directory Environments

To foundation a cluster using ESXi as the hypervisor, the necessary components include:

ISO image for ESXi : This is required to install ESXi on the nodes within the cluster.

iso_whitelist.json : This file is crucial for the Foundation process as it lists the supported ISO images and their checksums to ensure the integrity and compatibility of the hypervisor ISO being used.

References :

Nutanix Bible ( https://www.nutanixbible.com ), specifically sections discussing hypervisor installation and compatibility.

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com ), covering Foundation processes and required files.

During the closeout of a cluster imaging engagement, a key action to include in the Closeout Checklist is:

Provide an overview of Nutanix Prism Central : This is crucial as Prism Central is the management and operations platform for Nutanix environments, providing visibility and control over clusters and workloads. Giving an overview of this tool is essential for the customer to manage their newly imaged clusters effectively.

References :

Nutanix Bible ( https://www.nutanixbible.com ), where management tools like Prism Central are discussed.

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com ), which includes training on using Prism Central for cluster management.

Ref: https://kb.vmware.com/s/article/1009465

The most likely cause for the failure in joining the Active Directory domain when setting up Nutanix Files, given the error message about the inability to connect to logon servers and valid credentials, points to network communication issues. The specific mention of " ads_connect: No logon servers " suggests that the File Server VMs (FSVMs) are unable to reach the domain controllers. This issue is often due to necessary network firewall ports not being open. Ensuring that all required ports for Active Directory communications are open between the FSVMs and the domain controllers would resolve this issue. References : Nutanix Files Administration Guide, Active Directory Services Network Configuration requirements.

The proper network configuration to solve the described issue involves using tagged VLANs for the CVM (Controller Virtual Machine) and host, allowing these components to correctly interact with the customer ' s VLAN-configured network. For the IPMI (Intelligent Platform Management Interface), which is used for out-of-band management and does not require connectivity to multiple VLANs, setting it to access mode is appropriate. This configuration ensures that the IPMI only communicates over a single, untagged VLAN, effectively isolating its traffic from the production network.

References :

Nutanix Bible ( https://www.nutanixbible.com ), particularly the sections on networking and VLAN configurations.

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com ), where VLAN and network settings are covered.

To ensure additional resiliency in a 20-node ESXi deployment capable of surviving the concurrent loss of two nodes, the consultant should configure the system with a storage reservation and HA (High Availability) admission control each set to 5%, combined with a cluster redundancy factor (RF) of 3. RF3 provides the capability to tolerate the failure of up to two nodes without data loss, thus enhancing the cluster ' s resilience. This configuration is optimal for maintaining cluster availability and integrity during multiple node failures. References : Nutanix Bible , Nutanix University

Given the constraint of a 16-port switch for a 20-node cluster, the consultant cannot physically connect all nodes to the network simultaneously. VLAN tagging allows multiple virtual networks to be carried over the same physical network. However, the challenge here is not about VLANs but the physical limitation of ports. The practical approach would be to manually create the cluster, potentially in stages, as the full network capacity required for all nodes is not available. References :

Nutanix University - NCS-Core 6.8 Learning Path

The Nutanix Bible, Networking chapter ( https://www.nutanixbible.com/ )

For expanding a Nutanix cluster with software-less Dell PowerEdge servers, the consultant should: A. Image nodes using Foundation VM/App. This tool is designed for initial imaging and configuration of Nutanix nodes, including software installation, which is necessary since the nodes arrived without any software. B. Use the Expand cluster functionality within the existing Nutanix environment once the nodes are imaged. This feature will integrate the newly imaged nodes into the existing cluster, enhancing the cluster ' s capacity and performance. Options C and D are not applicable as returning nodes to the factory for imaging is unnecessary with the availability of the Foundation tool, and " Expand cluster to image the nodes " is not a correct procedure as imaging must be completed before expansion. References : Nutanix Foundation Tool Documentation, Nutanix Cluster Expansion Guide.

The alert for Protection Policy PP-BCA-1HR indicating critical availability issues is most likely due to the workloads included in the policy no longer meeting their intended Recovery Point Objective (RPO). A 1-hour snapshot frequency implies a stringent RPO, which if not maintained, could result in data loss beyond acceptable business limits. This scenario typically generates a critical alert in Prism Central, especially when the snapshots required to meet the RPO are not completed as scheduled due to any number of issues such as resource constraints or network issues. References : Nutanix Prism User Guide, Nutanix Data Protection Best Practices.

When using the Nutanix cluster As Built Document generator, the necessary configuration elements to provide when running the run_as_built.exe command include the Cluster IP (B) and the Customer Name (D). The Cluster IP is required to properly identify and communicate with the cluster to gather configuration and operational data. The Customer Name is typically used to personalize the documentation, making it specific to the client ' s deployment, which is useful for record-keeping and future reference purposes. References : Nutanix As Built Documentation generator usage guidelines, Nutanix Best Practices for Documentation.

Ref: https://portal.nutan ix.com/page/documents/details?targetId=Prism-Central-Guide-Prism-v510:mul-security-authentication-pc-t.html

Nutanix best practices require:

CVM and AHV hosts to be on the same VLAN for seamless internal communication.

IPMI (Out-of-Band Management) on a separate VLAN to isolate management traffic.

In this scenario, the delay and packet loss during failover when one of the network cables is disconnected can be addressed by enabling " Portfast " on the switch ports connected to the Nutanix nodes. Portfast is a Cisco network switch feature that allows network switches to immediately bring ports into the forwarding state during connectivity changes, bypassing the usual listening and learning states of Spanning Tree Protocol (STP). This significantly reduces the time to re-establish network connectivity, thereby minimizing the packet loss during such failover events. Enabling Portfast is crucial for endpoints like servers where quick recovery from disconnections is necessary. References : Cisco Networking Academy materials on STP and Portfast, Nutanix Bible.

In a Nutanix cluster, when a Controller Virtual Machine (CVM) fails, the iSCSI targets for the volume groups managed by that CVM are not left inoperable. Instead, the volume group ' s iSCSI targets (vDisks) are automatically redirected to another operational CVM in the cluster. This failover mechanism ensures that there is no interruption in service or data availability. The redirection is seamless and does not require manual intervention, allowing for continuous access to the volume group by the SQL cluster.

References :

Nutanix Bible: Data Protection and High Availability

Nutanix University: Resiliency and Disaster Recovery

The customer ' s requirements for automatic failover and resource balancing in a new Hyper-V cluster can be met with the use of Failover Clustering and High Availability. Failover Clustering allows VMs to automatically failover to another host in the event of a host failure, fulfilling the requirement for resilience. High Availability ensures that VMs restart on available hardware in the cluster, maintaining service continuity and balancing CPU and memory resources across the hosts. References : Microsoft Hyper-V documentation, Nutanix Bible, and NCS-Core 6.8 course materials on virtualization platforms.

When deploying a multi-node Nutanix cluster, if one node fails to image and the Nutanix Foundation tool cannot configure the cluster automatically, the consultant can manually create the cluster with the nodes that were successfully imaged. The correct command to initiate this process is cluster create . This command starts the cluster services and allows for further expansion once the cluster is operational, which would include adding the node that initially failed to image.

References :

Nutanix Bible ( https://www.nutanixbible.com ), specifically the section on manual cluster creation.

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com ), videos on manual cluster operations.

To determine the correct answer, you must evaluate the requirements for installing a Nutanix NX-3460-G6 block. Each block typically occupies 2U of rack space. Since the customer has two blocks, a total of 4U is required, which fits within the available 5U rack space. Additionally, each block requires two power sockets (one for each node in the block), totaling four sockets. Since there are six available sockets, there is enough power availability. Therefore, the primary constraints are adequately met in terms of rack space and power sockets. The mention of network ports and their sufficiency is not required here, as it isn ' t the limiting factor based on the details provided.

References :

Nutanix Bible ( https://www.nutanixbible.com )

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com )

Nutanix Deployment Guide

Nutanix Hardware and Installation Guide

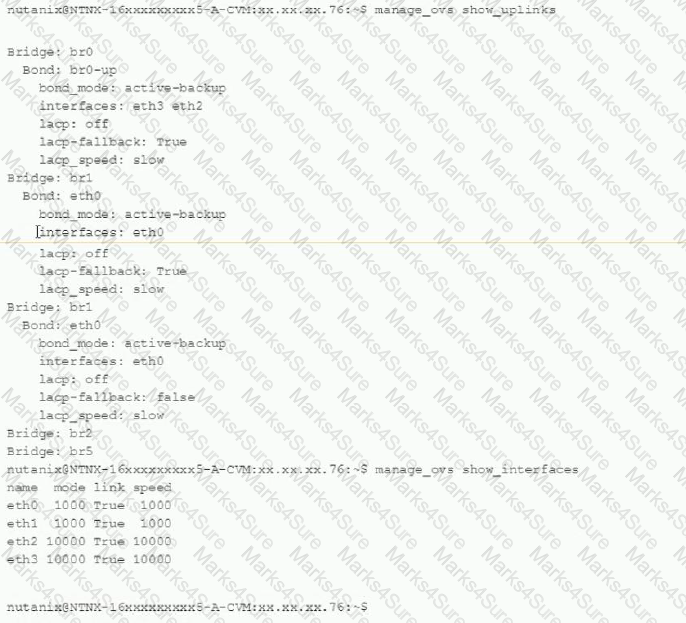

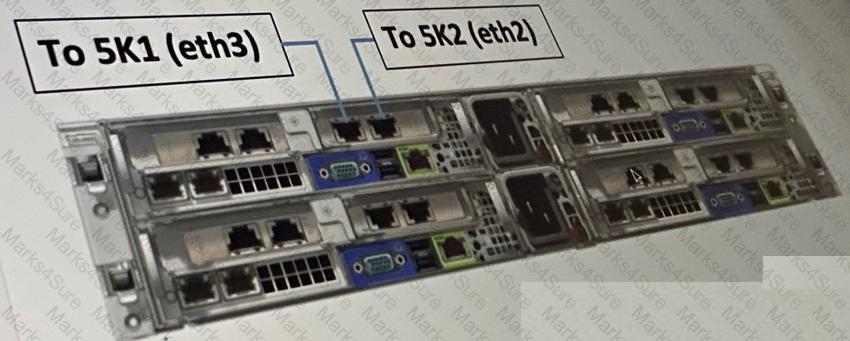

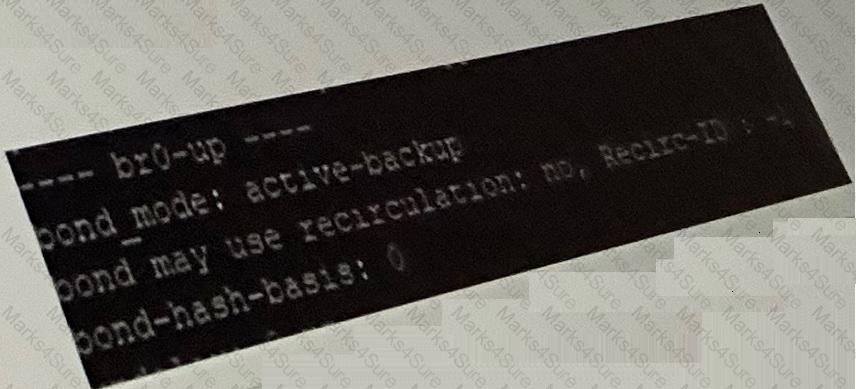

Upon reviewing the network configuration in the provided image and considering the setup in a Nutanix environment, the best action to improve network performance is to adjust the bonding mode for the bridge that includes multiple high-bandwidth interfaces.

Option C, " Configure balance-sib or balance-tcp mode for br0-up if switch configuration allows, " is the most effective choice. The bonding mode " balance-sib " (source IP-based load balancing) or " balance-tcp " (TCP/IP layer balancing) can optimize the distribution of network traffic across multiple interfaces, thereby enhancing throughput and redundancy.

This approach utilizes the capabilities of multiple network interfaces more efficiently, distributing the load to prevent any one interface from becoming a bottleneck while providing failover redundancy.

References : This configuration strategy aligns with best practices for network setup in high-performance virtualized environments, as detailed in Nutanix’s networking configuration guides and the Nutanix Bible, ensuring optimal performance and reliability.

Before going on-site to deploy a Nutanix cluster, the following prerequisites are crucial:

A. Complete the kickoff call and validate the BOM (Bill of Materials) : This ensures that all necessary components are accounted for and any discrepancies or missing items are addressed prior to installation.

C. Validate whether the cluster questionnaire is complete and if the physical switch configurations are complete : Ensuring that all relevant customer and network information is obtained and validated is critical to avoid delays or issues during the physical installation and configuration of the cluster.

References :

Nutanix Bible ( https://www.nutanixbible.com ), particularly sections on pre-deployment planning and validation.

Nutanix University: NCS-Core 6.8 Training ( https://university.nutanix.com ), covering the importance of thorough preparation and documentation before on-site engagements.

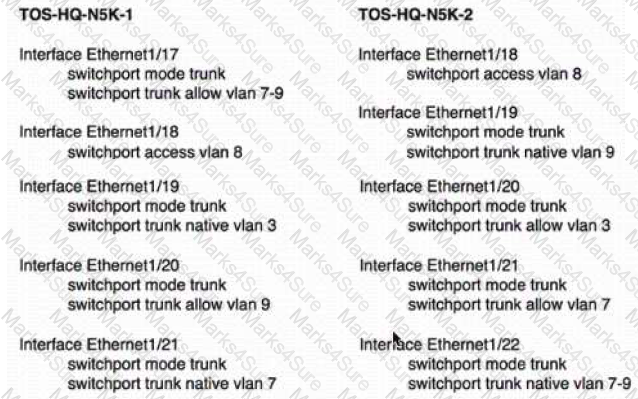

In this scenario, the connectivity issue arises because the VLAN settings require a specific configuration on the vSwitch settings when using LACP. When using LACP for load balancing network traffic, the vSwitch or Distributed Switch must be configured with the " Route based on IP hash " load balancing algorithm. This setting is necessary to properly distribute the traffic across the LACP bonded links. Not selecting this setting in vSwitch0 settings would result in improper handling of network packets over the LACP bonded links, thereby causing the hosts and CVMs to be unreachable. Adjusting the vSwitch settings to " Route based on IP hash " should resolve the connectivity issue. References : VMware vSphere Networking documentation, Nutanix Bible LACP configuration guidelines.

To meet the customer requirements for automatic failover and resource balancing in a vSphere environment, two specific features need to be enabled: vSphere High Availability (HA) and Distributed Resource Scheduler (DRS). vSphere HA ensures that VMs automatically restart on other hosts in the event of a host failure, providing high availability. vSphere DRS balances computing workloads with available resources in a vSphere environment, ensuring that resources are used efficiently and that new VMs are placed on hosts with the most available resources.

References :

Nutanix Bible: vSphere Integration

Nutanix University: Configuring vSphere Features

Ref: https://next.nutanix.com/installation-configuration-23/physical-relocation-of-nutanix-clusters-38403

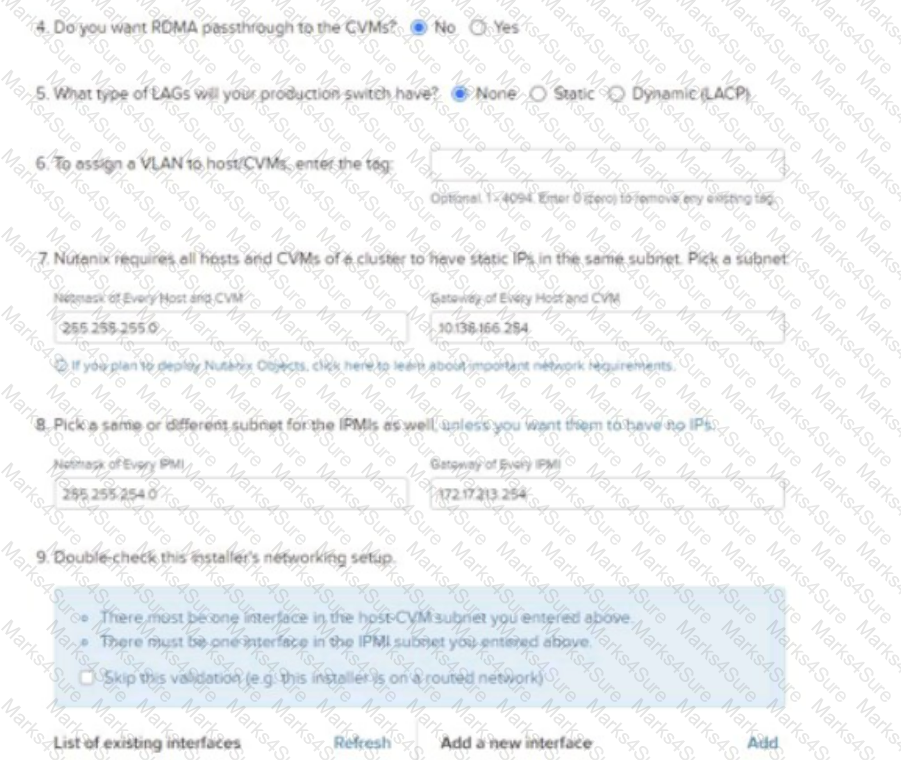

When facing connectivity issues between the host workstation and the Foundation VM, ensuring proper network configuration is crucial. Removing and re-importing the Foundation VM can help reset any configuration issues, particularly ensuring that the virtual NIC is set to the correct mode, such as Host-Only, to facilitate direct communication with the host. Confirming the IP addresses and subnet masks ensures that both the host and the VM are on the same network segment, which is essential for successful communication. This step verifies that there are no IP configuration errors causing the connectivity issue.

References :

Nutanix Bible: Foundation VM Setup and Configuration

Nutanix University: Foundation VM Networking Configuration

Considering the equipment setup with one Out-of-Band Management (OOBM) Ethernet switch and two 10GbE SFP+ Top of Rack (ToR) switches, the consultant should recommend six DAC (Direct Attach Cable) 10GbE cables and three Ethernet cables. The DAC 10GbE cables are suitable for connecting the nodes to the ToR switches to handle high-speed data transfers, while the Ethernet cables are necessary for connections related to management purposes, such as connecting to the OOBM switch for remote management tasks. This recommendation ensures adequate connectivity for both data and management networks. References : Nutanix Hardware and Installation Guide, Best Practices for Network Cable Management.

The alert regarding the heartbeat datastore in vCenter, despite setting das.ignoreInsufficientHbDatastore to true, suggests that HA has not acknowledged the updated configuration. The effective solution is to restart HA on the cluster, which involves turning off HA and then turning it back on. This reset will allow vCenter to re-evaluate the datastore configuration and recognize that the insufficient heartbeat datastore alert should be suppressed as per the updated setting.

References :

VMware Documentation on HA Configuration: VMware Support

Nutanix and VMware Integration Guide: Nutanix Documentation

For the scenario with memory usage warnings and VDI performance issues, the best approach is to analyze and understand the memory usage patterns and demands on the system. Option D focuses on reviewing the Analysis page to monitor memory use trends and patterns, which is crucial for identifying peak usage times or processes consuming excessive memory. The mention of alerting with VDI workload demand implies the need to monitor and possibly adjust the VDI workload to better fit within available resources. Finally, analyzing current and future workload in the Capacity Runaway tab helps in understanding if the cluster resources are sufficient for the demand, which is critical in planning for capacity management and ensuring that such issues are mitigated moving forward. References : Nutanix Prism User Guide, Nutanix Community resources, VDI performance troubleshooting practices.

Ref: https://next.nutanix.com/how-it-works-22/rf2-rf3-requirements-37206#:~:text=Controller%20VMs%20must%20be%20configured,for%20the%20feature)%20of%20memory .

To troubleshoot physical network mis-cabling without physical access to the data center and connected to Cisco Nexus 9k switches, the appropriate command to run from the Nutanix AHV host is lldpctl . This command allows the consultant to view the Link Layer Discovery Protocol (LLDP) information about directly connected devices. LLDP is supported on Nexus switches and provides detailed network topology information, which is crucial for identifying how the AHV nodes are connected to the switches, and to verify correct physical connections. References : Nutanix Command Reference Guide, Cisco Nexus 9000 Series documentation.

When receiving a field advisory from Nutanix support regarding a rare problem that could destabilize the cluster, the recommended action is to update AOS. This can be done via Prism Element by selecting " Upgrade Software. " This method ensures that any patches or updates that address the identified issue are applied directly to the AOS environment, mitigating any potential risks associated with the reported problem. Since the organization uses VMware vSphere, the update specifically targets the AOS to ensure the underlying infrastructure supporting vSphere remains stable. References : Nutanix Support Portal, Nutanix Field Advisories, Prism Element Guide.

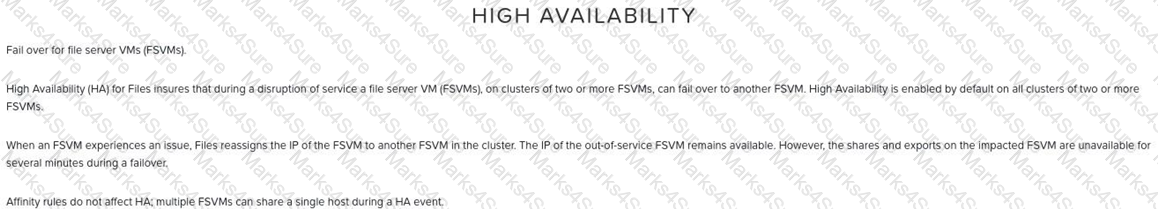

In a Nutanix Files deployment within a 20-node AHV cluster, the consultant can deploy a maximum of 16 FSVMs (File Server Virtual Machines). This limitation is based on Nutanix ' s best practices and design considerations for scalability and performance. The number of FSVMs that can be effectively managed and maintained without degrading the performance of the file-serving operations or the underlying storage infrastructure dictates this maximum.

References :

Nutanix Certified Services - Core (NCS-Core) Learning Documents

Nutanix Bible: https://www.nutanixbible.com

Nutanix University Videos: https://www.youtube.com/playlist?list=PLAHgaS9IrJecs_AcQT3Y7vSsKT2mjz3Iu

Given that the customer is using a Cisco Nexus 9k switch and wants to deploy ESXi with a vSphere Distributed Switch while using LACP, the consultant should ensure that the customer configures:

D. no lacp suspend-individual : This command ensures that LACP doesn ' t suspend the individual port if it does not receive LACP PDUs from the other side, which is crucial in environments where continuous connectivity is required for all member links of the port-channel to maintain uninterrupted network services.

References :

Nutanix Bible ( https://www.nutanixbible.com ), where it discusses ESXi configurations and switch settings.

Cisco Nexus configuration guides, referred through Nutanix’s training materials, which recommend settings for optimal integration with Nutanix environments.

Considering the network configuration requirements—where all trunk traffic is tagged and a native VLAN is not used—the consultant must set up the CVM and bridge to operate with a specific VLAN tag. The command change_cvm_vlan 10 configures the Controller VM (CVM) to communicate over VLAN 10. The command ovs-vsctl set port br0 tag=10 applies VLAN 10 tagging to the bridge interface br0 , ensuring all traffic through it is appropriately tagged. The command ovs-vsctl set port br0-up bond_mode=balance-tcp sets the bonding mode to balance-tcp , which is suitable for environments using LACP to optimize traffic distribution and redundancy across multiple physical links. References : Nutanix Community Documentation, Nutanix University Networking Best Practices.

Before starting the Foundation process, the consultant should prepare the network by:

On Nutanix NX Series, connect the IPMI port and any one of the data ports to the switch : This ensures that the IPMI (for management and remote access) and at least one data port (for cluster communication and data traffic) are connected and operational, facilitating a smooth foundation process.

References :

Nutanix Bible ( https://www.nutanixbible.com ), especially sections on initial hardware setup and network preparations.

Nutanix Hardware Setup Guide from Nutanix University ( https://university.nutanix.com ), detailing the specific steps for networking configurations during initial setup.

When upgrading ESXi hosts on a Nutanix cluster using One-Click Upgrade, it is crucial to verify that vSphere HA (High Availability) is enabled. This setting ensures that in the event of host failure during the upgrade process, VMs will be automatically restarted on other hosts in the cluster, maintaining availability and minimizing disruption. Verifying this setting is essential to ensure the resilience of the environment during the upgrade.

References :

VMware vSphere Upgrade Documentation

Nutanix Upgrade Guide

The failure to discover nodes during installation can often be attributed to the lack of IPv6 support on the network, especially if the Foundation process relies on IPv6 for node discovery. If IPv6 is not enabled on the customer’s switch, the discovery packets may not be properly routed, resulting in the nodes not being discovered. Enabling IPv6 on the switch could resolve this discovery issue.

References :

Nutanix Foundation Troubleshooting Guide: Nutanix Support Portal

Network Configuration and Troubleshooting Documentation

The correct container advanced setting to configure in order to prevent ISO container images from exceeding a 100GB limit is " Advertised Capacity. " This setting allows administrators to set a maximum storage capacity that is visible and available to the user, irrespective of the actual physical capacity available, thereby preventing over-allocation and management issues in environments where strict capacity limits are required.

References :

Nutanix Certified Services - Core (NCS-Core) Learning Documents

Nutanix Bible: https://www.nutanixbible.com

For ensuring that Nutanix storage containers can be mounted on non-Nutanix hosts for data migration workflows, the consultant should validate the configuration under: A. Prism Element - Settings - Filesystem Whitelist. This setting allows specific non-Nutanix hosts to access the Nutanix storage containers, which is essential for environments where data must be accessible to systems outside the Nutanix cluster. By whitelisting the IP addresses or hostnames of these external systems, they are granted the necessary permissions to mount and interact with the Nutanix file systems. References : Nutanix Prism Element User Guide, Nutanix Storage and Filesystem Configuration Best Practices.

To confirm that network traffic is traversing the 10G interfaces and not the 1G interfaces in a Nutanix environment, the consultant should run the allssh manage_ovs show interfaces command. This command allows for the inspection of all interface configurations and their current operational status across the cluster, effectively confirming which interfaces are actively managing traffic. References : Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

Ref: https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2071-AHV-Networking:top_ahv_networking_best_practices.html

In the scenario described, the configuration shown in the exhibit indicates that there is an " active-backup " bond mode. If a shut command is executed on the switchport that connects the node to the 5k1 switch (assuming it ' s the active link), the passive link should take over. This response ensures no loss of connectivity as the passive link becomes active in the absence of the primary (active) link. References : Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

For licensing reasons and to ensure compliance with software license terms, particularly for databases like SQL and Oracle RAC, VM-Host affinity policies are used. These policies help in pinning VMs to specific hosts. In this scenario, SQL Servers must be confined to specific hosts to manage licensing costs effectively, and similarly, Oracle RAC servers must be on separate hosts. The VM-Host affinity policy allows for such configuration by defining rules that keep VMs on specific hosts or separate them as needed. References :

Nutanix Bible

Nutanix University NCS-Core Materials

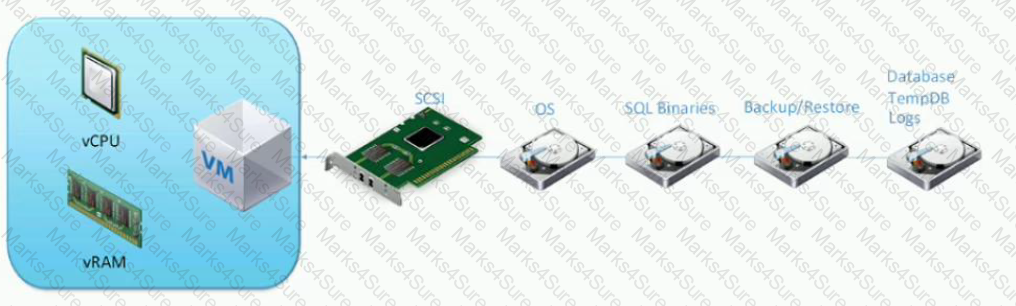

In the scenario where SQL queries are running slower post-migration, creating multiple TempDB data files is a recognized best practice for optimizing SQL Server performance, especially when dealing with high transaction rates or complex queries. This approach helps in distributing the I/O load across multiple files and drives, reducing the contention and wait times associated with TempDB, which is a common bottleneck in SQL Server environments. Enabling autogrowth ensures that these files can dynamically grow as needed, which helps in handling unexpected increases in database activity without manual intervention. References : Nutanix Best Practices for SQL Server, SQL Server performance tuning guidelines.

When nodes are mistakenly configured with incorrect IP addresses and are on a different network, the most effective way to address this is to re-run the Foundation process. By using Foundation, the nodes can be completely re-imaged with the correct network settings and then properly integrated into a new cluster. This ensures that all hardware and software configurations align with the intended network and cluster settings, avoiding potential conflicts and issues that might arise from manual adjustments.

References :

Nutanix Bible: Cluster Initialization and Foundation

Nutanix University: Using Foundation for Node Deployment

Ref: http://myvirtualcloud .net/nutanix-scma-the-security-feature-that-could-save-your-organization/

Erasure coding is a method of data protection in which data is broken into fragments, expanded and encoded with redundant data pieces, and stored across a set of different locations or storage media. The goal of erasure coding is to enable data that becomes corrupted at some point in the disk storage process to be reconstructed by using information about the data that’s stored elsewhere in the array 1 .

In the context of Nutanix, erasure coding increases the usable capacity on a cluster. Instead of replicating data, erasure coding uses parity information to rebuild data in the event of a disk failure 1 . The capacity savings of erasure coding is in addition to deduplication and compression savings 1 .

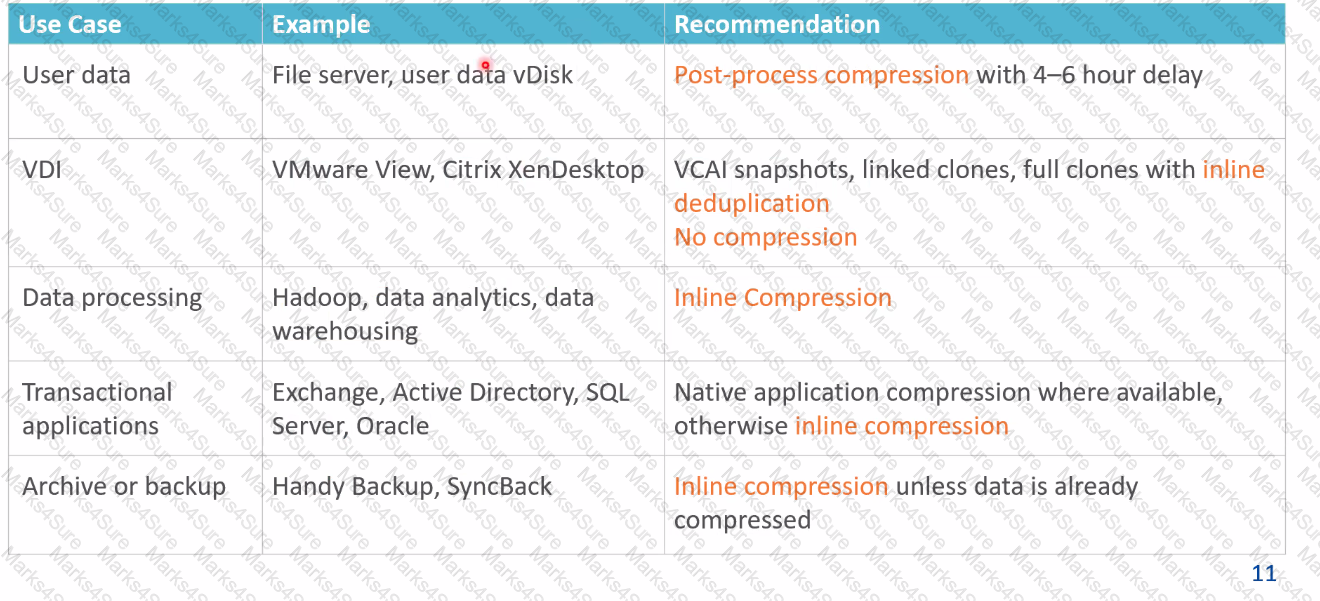

Given the characteristics of the VM in the question (large/sequential writes, data kept for years, data accessed only at the end of the year), Post-Process Compression would be the most suitable feature to utilize to save space. This is because Post-Process Compression, as the name suggests, compresses data after it has been written to the storage, which is suitable for data that is not accessed frequently 2 .

References :

Erasure Coding | Nutanix Community

Nutanix Support & Insights

Introducing AOS 6.6: Enhanced data services and simplified … - Nutanix

The error during LCM pre-checks in an ESXi-based Nutanix cluster with HA enabled is most likely due to the ESXi cluster admission control being enabled. Admission control is a feature in VMware ESXi that reserves resources for HA purposes to ensure that sufficient resources are available in the event of host failures. When admission control is enabled, it can interfere with Nutanix LCM operations, which may require resource reallocation or reconfiguration that conflicts with the reserved capacities set by admission control. Disabling admission control during LCM updates would typically resolve this issue. References : VMware documentation on HA and Admission Control, Nutanix LCM documentation.

In the scenario where a consultant is viewing an ESXi host via console without external network connectivity and needs to connect to the Controller Virtual Machine (CVM), the typical IP addresses used for such connections in a Nutanix environment are in the 192.168.5.x range. Specifically, the IP addresses for CVMs often set by default or during initial configuration, such as 192.168.5.253 and 192.168.5.254 (Options A and C), can be used. These addresses are generally reserved for internal CVM communications and can be accessed through the host ' s internal network configurations. References : Nutanix Cluster Installation Guide, Default Nutanix Network Configurations.

Ref: https://next.nutanix.com/installation-configuration-23/product-mixing-restr ictions-37231

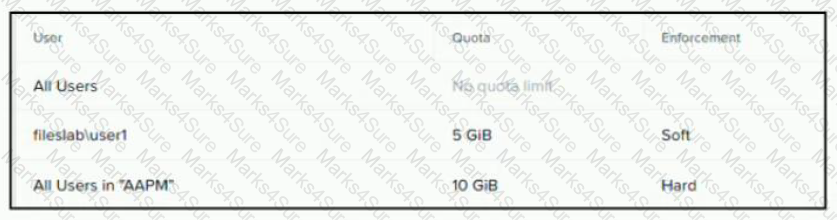

Ref: https://portal.nutanix.com/page/documents/details?targetId=Files-v3_6:fil-file-server-quotas-c.html#nconcept_amp_xsm_bx

When using the Foundation VM in a desktop virtualization environment and nodes are not being discovered, the first setting that the consultant should verify is the network adapter configuration, specifically ensuring it is set to a Bridged Adapter. This setting allows the virtual machine hosting the Foundation VM to connect directly to the physical network, making other network nodes visible and reachable during the discovery process. This direct network connection is critical for the Foundation tool to function correctly and discover other nodes. References : Nutanix Bible , Nutanix University

The Test Plan is the most appropriate resource for detailed information on network validation testing. This document typically outlines the specific tests to be conducted to ensure the network meets the required specifications and performance standards necessary for a stable and efficient Nutanix environment. The Test Plan provides a structured approach to validate each network component and interaction, ensuring all aspects are tested and meet design and operational requirements. References : Nutanix Installation and validation procedures as described in Nutanix official documentation and training modules from Nutanix University.

When adding a new node with a higher AOS version (5.9) into an existing cluster running an older version (5.8), the recommended method is to use Prism Element to expand the cluster and select the re-image option. This process involves re-imaging the new node to the AOS version currently running in the cluster (5.8), ensuring compatibility and stability across the cluster without requiring an overall upgrade to a newer version. This approach maintains the cluster ' s operational integrity while integrating the new hardware. References : Nutanix Bible, NCS-Core 6.8 official training materials, and Nutanix support documentation on cluster expansion.

If a VM deployed on the storage network cannot access a SMB standard share, the likely issue is that:

Clients on the same subnet as the storage network cannot access the shares : This scenario typically occurs due to network segmentation policies or firewall rules that restrict access to the storage network from clients within the same subnet, intended to segregate traffic types for security and performance reasons.

References :

Nutanix Bible ( https://www.nutanixbible.com ), specifically sections on network segmentation and Nutanix Files configurations.

Nutanix Technical Documentation on Nutanix Files, which covers network configuration and troubleshooting issues related to file access.

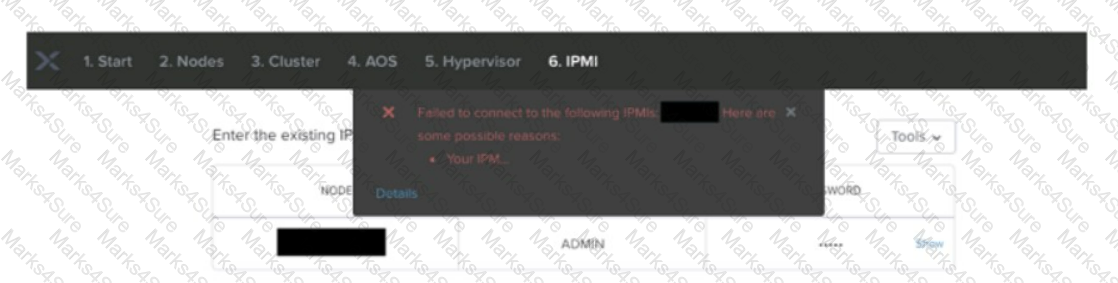

When preparing the cluster offsite in a safe room, the consultant should ensure that the Foundation VM is correctly configured to handle IPMI networking. Implementing a virtual switch dedicated to the IPMI network within the Foundation VM environment ensures that there is a segregated and controlled network path for IPMI traffic, which is crucial for initial hardware configuration and management. This setup facilitates the secure and efficient foundation process before the cluster is moved to the data center. References : Nutanix Foundation Tool Guide, Nutanix Network Configuration Best Practices.

Prior to the initial base system setup for a new cluster installation, the consultant needs to document several critical infrastructure details. Among the most important are the DNS and NTP IP addresses (C). These addresses are crucial because they ensure that all nodes within the cluster can resolve domain names properly and synchronize their clocks accurately, which is vital for cluster operations and management. Proper DNS and NTP configurations help prevent many common issues related to name resolution and time synchronization that could affect the performance and stability of the cluster. References : Nutanix Installation Prep Guide, Nutanix Network Configuration Requirements.
