NS0-185 NetApp Storage Installation Engineer - ONTAP Professional Exam Questions and Answers

When adding new nodes to an existing ONTAP cluster, proper cabling to the cluster interconnect switches is mandatory. The cluster interconnect network is a dedicated, private network used exclusively for internal cluster communication such as configuration synchronization, data movement, and quorum maintenance.

In AFF A400 systems, the cluster interconnect ports are fixed high-speed Ethernet ports that are clearly identified and reserved for cluster connectivity. These ports are typically 25GbE or 40GbE depending on configuration and are grouped together physically on the controller chassis.

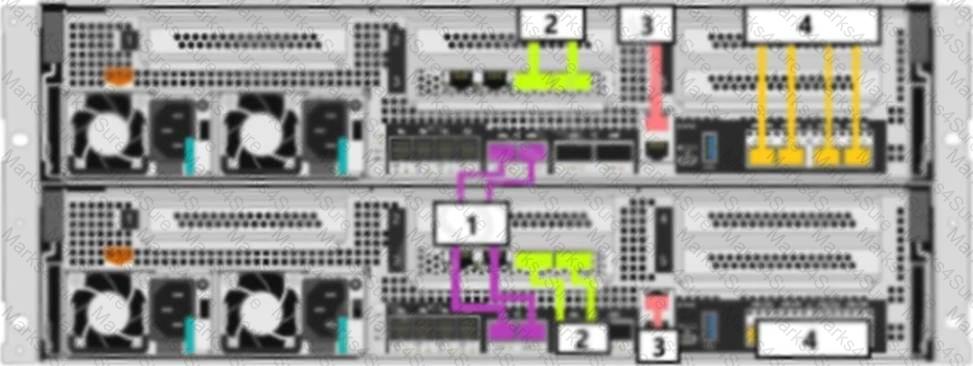

Referring to the exhibit, the ports labeled with number 2 correspond to the cluster interconnect ports. These are the only ports that must be connected to the cluster interconnect switches when adding nodes to an existing cluster. ONTAP requires that each node have redundant connections to both cluster switches to maintain high availability and cluster quorum.

Ports labeled as other numbers in the exhibit represent different functions, such as management ports, data ports, or shelf connectivity ports, none of which are valid for cluster interconnect cabling.

NetApp installation procedures emphasize that incorrectly cabling non-cluster ports to cluster switches can prevent nodes from joining the cluster or cause cluster instability. Therefore, identifying and using the correct cluster interconnect ports is a critical installation step.

As shown in the exhibit, number 2 clearly identifies the correct ports used to cable the new AFF A400 nodes into the existing cluster interconnect infrastructure.

NetApp SAS cabling rules define port sequencing. The second stack uses 9c and 1a , making B correct.

Within the ONTAP SAN implementation and configuration domain, automatic port placement is a key installation feature designed to simplify initial network setup during cluster deployment. In ONTAP 9.8, when controller data ports are discovered, ONTAP automatically analyzes physical port connectivity, speed, and role, and assigns those ports to appropriate broadcast domains and subnets .

Broadcast domains define Layer 2 boundaries and group ports that share the same network reachability. During installation, ONTAP automatically creates and assigns broadcast domains based on detected network topology and intended port usage. This behavior is explicitly described in NetApp installation objectives as part of reducing manual network configuration during initial setup.

Subnets are also automatically created and associated when automatic port placement is enabled. ONTAP uses subnets to manage pools of IP addresses for data LIF creation. By automatically configuring subnets, ONTAP enables rapid deployment of NAS and SAN data LIFs without requiring administrators to manually define IP address ranges during installation.

By contrast, routes are not automatically configured by automatic port placement. Routes must be explicitly defined by the administrator to control Layer 3 traffic flow between networks. Similarly, IPspaces are logical network containers that must be deliberately designed and created based on multi-tenancy or isolation requirements. IPspaces are never automatically created by ONTAP during installation because they have architectural implications that require administrator intent.

Therefore, the two ONTAP network settings that are automatically configured by automatic port placement are broadcast domains and subnets , making C and D the correct answers.

AFF A250 systems are not supported on CN1610 cluster switches. Therefore, they cannot be added to an existing cluster that uses those switches. Valid options are to either create a new switched cluster using the CN1610 switches (if supported for that configuration) or deploy the AFF A250 as a switchless 2-node cluster.

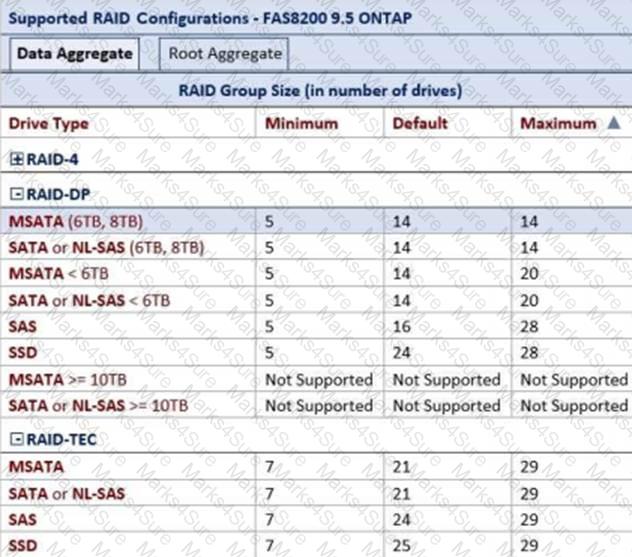

ONTAP automatically selects RAID-DP as the default RAID type for SSD-based aggregates, including 3.8 TB SSDs, in ONTAP 9.8.

RAID-DP provides double-parity protection, allowing the aggregate to withstand two simultaneous disk failures without data loss. RAID-TEC is reserved for very large aggregates and is not the default. RAID 4 and RAID 0 do not provide adequate protection for production systems.

Therefore, the correct answer is D (RAID DP) .

After installing a NetApp storage system, it is critical to validate the environment for configuration and cabling errors. Config Advisor is the NetApp-recommended tool specifically designed for this purpose.

Config Advisor performs automated checks against NetApp-supported configuration rules, including hardware cabling, HA setup, disk ownership, shelf connectivity, network configuration, and firmware compatibility. It identifies misconfigurations that could lead to operational issues if left unresolved.

FilerView and BNA are legacy or unrelated tools, and Synergy is not used for ONTAP installation validation.

Therefore, the correct answer is D (Config Advisor) .

In ONTAP SAN concepts, a Logical Interface (LIF) represents a logical network access point used by clients, hosts, or internal cluster services to communicate with storage. A LIF is not a physical port; rather, it is an abstraction that allows ONTAP to provide network resiliency and flexibility.

A LIF can be defined as either an IP address (used for NAS, management, and intercluster traffic) or a World Wide Port Name (WWPN) (used for SAN protocols such as FC and FCoE). Each LIF is associated with a physical port but can fail over to other ports based on defined policies, ensuring continuous access during failures or maintenance.

Broadcast domains define Layer 2 network groupings for ports, but they do not contain pools of IP addresses. IP address pools are defined in subnets , not broadcast domains. Physical ports provide connectivity, but they do not represent LIFs themselves. Separating network domains is handled by IPspaces , not LIFs.

Therefore, the correct description of a LIF is that it is an IP address or WWPN associated with a port , making option C correct.

A 2-node switchless cluster is limited to two nodes and uses direct connections for cluster LIFs. Before adding additional nodes, ONTAP requires converting the environment into a switched cluster .

This conversion involves installing cluster interconnect switches and migrating the cluster LIFs from direct connections to the new cluster interconnect switches. Data LIFs are not involved in cluster communication and do not need migration for cluster expansion.

Direct connect cannot support more than two nodes, and converting to a single-node cluster is invalid.

Therefore, the correct answer is C .

During cluster setup, nodes use cluster interconnect LIFs , which are automatically assigned link-local IP addresses in the 169.254.x.x range . Management IP addresses (192.168.x.x) are not used for node join operations.

The address 169.254.212.198 corresponds to node02’s cluster LIF and would therefore be used to join the cluster.

Broadcom BES-53248 cluster interconnect switches require a Reference Configuration File (RCF) to define supported port roles, speeds, breakout behavior, ISLs, and node-facing ports. By default, only a subset of ports is enabled for cluster connectivity. Ports 0/17 through 0/20 are not active for node connections unless explicitly configured by the correct RCF.

When new controllers are cabled to ports that are not enabled or correctly configured for cluster interconnect traffic, the ONTAP nodes cannot establish cluster LIF communication and therefore cannot join the cluster. Installing the correct RCF configures these ports with the required VLANs, MTU, flow control, and speed settings so that cluster traffic can pass.

A license file is not required for basic cluster interconnect functionality. The Cluster Switch Health Monitor (CSHM) configuration file enables monitoring, not port functionality. Rebooting controllers does not resolve switch-side configuration issues.

Therefore, installing the reference configuration file is the required corrective action.

ONTAP cluster networks support specific switch vendors validated by NetApp. Cisco is a supported and commonly used vendor for ONTAP cluster interconnect switches.

Other vendors listed are not supported for ONTAP cluster networks.

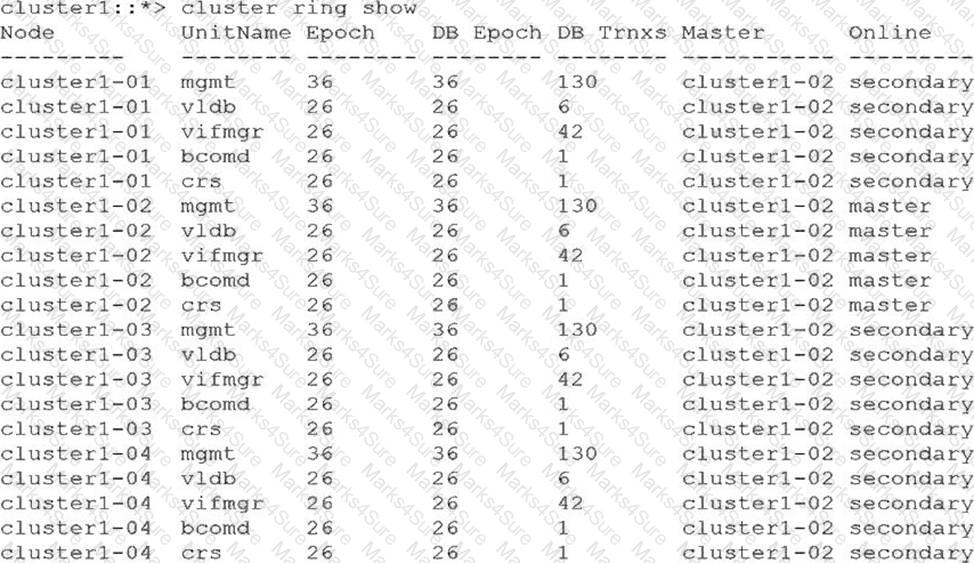

Before removing a node from an ONTAP cluster, NetApp installation procedures require several validation steps to ensure cluster quorum and availability are preserved. The exhibit shows cluster ring information indicating quorum status and master node assignment.

First, high availability must be confirmed . The node being removed must have an HA partner capable of taking over resources. This ensures nondisruptive operation during and after node removal, which is a mandatory prerequisite for the cluster remove-node command.

Second, the node must be marked as ineligible using the cluster modify -eligibility false command. This prevents ONTAP from attempting to assign cluster responsibilities or data ownership to the node while it is being removed. This step is explicitly required in NetApp removal workflows.

Moving Epsilon (the quorum tie-breaker) to the node being removed would be incorrect and dangerous, as Epsilon must remain on a stable node to maintain cluster quorum. Additionally, the cluster does not automatically re-elect a new master simply because a node is removed; mastership is determined before removal.

Therefore, the correct statements are A and B .

Cluster peering enables data replication and disaster recovery features such as SnapMirror and SnapVault. LIF configuration for cluster peering follows specific ONTAP SAN concepts.

Each cluster participating in a peer relationship must have at least one intercluster LIF per node . This ensures redundancy and allows ONTAP to balance replication traffic across nodes.

Additionally, intercluster LIFs must use the default intercluster service policy , which defines the permitted traffic types and security rules required for peering operations.

An MTU of 9000 is recommended but not mandatory. Dedicated broadcast domains or IPspaces are optional and depend on network design.

Therefore, the correct answers are B and D .

iSCSI uses IQNs (iSCSI Qualified Names) to identify initiators. When mapping LUNs for iSCSI access, ONTAP requires the initiator IQNs to create igroups and establish access control. WWNNs and WWPNs are used for Fibre Channel, not iSCSI.

Therefore, IQNs are required.

Mixing DS4243 and DS4246 shelves in the same stack is unsupported. New shelves must be added as a separate stack.

SAN LIFs (iSCSI, FC, NVMe) do not use LIF migration . Instead, host multipathing handles path redundancy. Therefore, iSCSI LIFs do not migrate during storage failover.

Graphical management of clustered Data ONTAP systems is performed using OnCommand System Manager , which provides a web-based interface for configuration, monitoring, and administration.

System Setup is used only for initial node setup, HostAgent is host-side software, and StorageGRID is an object storage platform unrelated to ONTAP cluster management.

OnCommand System Manager allows administrators to manage aggregates, volumes, LIFs, SAN objects, and system health through an intuitive GUI, making it the correct choice.

Therefore, the correct answer is B , as defined by NetApp .

NetApp rack unit (U) sizing is defined per shelf model:

DS2246 = 2U each → 2 × 2U = 4U

DS4243 = 4U each → 3 × 4U = 12U

DS4486 = 4U → 4U

Total: 4U + 12U + 4U = 20U

Therefore, the correct answer is 20U .

The question asks for manual methods a customer can use to open a new technical support case with NetApp Global Support. In NetApp operational/support concepts, there are multiple engagement paths, but only some are “manual case creation” mechanisms.

A web-based support site workflow is a standard manual case-creation path for customers. In NetApp support processes (including guidance in NetApp-managed support tooling for storage services), web ticketing/case creation is explicitly described as a supported way to open a case.

A second supported manual method is by telephone (“Call Us” / phone support), which is also described as a direct support option alongside web case creation. This matches option D .

A third manual method commonly provided for customers is a mobile application that supports support engagement (including case workflows). In contrast, AutoSupport is primarily an automated telemetry/notification mechanism; while AutoSupport can trigger automated case creation under certain conditions, it is not a customer-driven “manual open a new case” method. ONTAP documentation even discusses suppressing or resuming AutoSupport case generation, reinforcing that AutoSupport case behavior is automated and policy-driven rather than a manual “open a case” action. Thus option E does not meet the “manually open” requirement.

Option B (NetApp Field Portal) is generally a field/partner/internal operational portal used by NetApp personnel and partners rather than a standard customer manual case creation channel. From an installation knowledge-transfer perspective, the customer-facing paths that satisfy the requirement are the support website and phone, and the mobile app where available for case workflows.

Therefore, the three correct choices are A, C, and D .

As part of the ONTAP SAN solution assessment domain, NetApp defines strict rules governing cluster composition and scalability . ONTAP clusters support a maximum of 24 nodes , and within that limit, clusters can include different controller models , provided they are supported by the same ONTAP release and meet hardware compatibility requirements.

Both FAS8060 and FAS8080 controllers are supported within ONTAP clusters and can coexist in a single cluster configuration. NetApp installation documentation explicitly allows mixed-controller clusters as long as the controllers are compatible and running the same ONTAP version.

In this scenario, there are six total controllers available: three FAS8060 and three FAS8080. Since ONTAP supports heterogeneous clusters and there is no architectural limitation preventing all six controllers from participating, the largest possible cluster is achieved by including all six nodes .

Smaller cluster sizes—two, four, or five nodes—are technically valid but do not meet the requirement of providing the largest possible cluster . The assessment objective focuses on maximizing usable resources while staying within supported configuration guidelines.

Additionally, ONTAP automatically manages performance balancing and high availability across mixed-controller clusters. Each node pair forms an HA pair, and ONTAP ensures consistent data access across the entire cluster fabric.

Therefore, the correct answer is D , a cluster made up of six nodes.

Active IQ Digital Advisor provides telemetry analysis, predictive risk detection, and best-practice recommendations based on AutoSupport data. It is specifically designed for proactive monitoring and risk mitigation.

This question checks how ONTAP exposes LUN paths across nodes after cluster expansion. ONTAP SAN pathing is governed by Selective LUN Map (SLM) behavior. ONTAP documentation states that SLM reduces host-to-LUN paths by making a LUN accessible only through paths on the node owning the LUN and its HA partner (unless configured otherwise). That means that after you add nodes, hosts will not automatically gain paths through the new nodes for existing LUNs unless you intentionally adjust LUN reporting.

ONTAP provides the lun mapping add-reporting-nodes command for exactly this purpose: it is used before or after data mobility events that modify the owning node of the LUN, to add optimized nodes (and therefore paths) to the LUN mapping’s reporting-nodes list. In other words, if the administrator wants existing LUNs to “use paths on the new nodes,” the ONTAP-side requirement is to add those nodes (and their partners, as applicable) as reporting nodes for the relevant LUN mappings or volumes/aggregates that host those LUNs.

Options A and D (port/host rescans) are host-side discovery actions . They can only discover paths that ONTAP is already presenting. Without adding reporting nodes, ONTAP may not advertise those LUNs through the new nodes, so host rescans alone do not satisfy the requirement. Option C (“lun bind create”) is not the appropriate ONTAP mechanism for enabling additional node paths for existing LUNs and is not the documented workflow for SLM path expansion.

Therefore, the required step is B. Use the lun mapping add-reporting-nodes command.

Explanation (250–350 words):

Cluster peering authentication is a foundational ONTAP SAN concept that ensures secure trust between clusters before data replication can occur. Authentication is performed during the peering process and establishes mutual trust.

ONTAP supports passphrase-based authentication , where a passphrase is either user-defined or automatically generated by ONTAP . This passphrase is exchanged between clusters to authenticate the peer relationship. LDAP is not used for cluster peering authentication.

Administrators can verify the authentication and status of cluster peering relationships using the cluster peer show command, which displays peer state, availability, and authentication status.

Peering encryption can be enabled independently and does not require authentication to be completed first, making option C incorrect.

Therefore, the correct answers are A and D .

Flow control configuration is an important validation step in ONTAP SAN and NAS environments, especially in switchless cluster designs. NetApp documentation clearly differentiates flow control requirements between data networks and cluster networks.

For data network ports, full flow control must be enabled when hosts are configured with full flow control. This ensures proper congestion management and prevents packet loss during high-throughput NAS operations such as NFSv4.1 and SMB traffic. Matching flow control settings between hosts and storage data ports is a best practice explicitly stated in NetApp installation guidance.

In contrast, cluster network ports must have flow control disabled. The cluster network is highly sensitive to latency and congestion, and enabling flow control on cluster interconnect ports can introduce delays that negatively affect cluster quorum, node communication, and overall stability. NetApp explicitly requires flow control to be disabled on cluster network interfaces.

Enabling flow control on cluster ports or disabling it on data ports would violate NetApp-supported configurations and can lead to performance degradation or cluster communication issues.

Therefore, the two correct settings to verify are:

Data network ports have full flow control enabled

Cluster network ports have full flow control disabled

This makes C and D the correct answers.
