 Explanation : To support multiple mirroring relationships, each with different recovery point objectives (RPOs), the administrator should create multiple mirror pairs. Each pair can be configured with its own schedule and RPO, allowing for tailored data protection strategies that meet specific needs.

 Reference : NetApp SANtricity Storage Manager Configuration and Provisioning Guide.

Enable AutoSupport:

Step: Configure AutoSupport on the EF570 system with the option to store data locally.

Reason: This allows the system to generate and save support data without needing immediate Internet access.

Set Interval for Data Collection:

Step: Set AutoSupport to run at regular intervals.

Reason: Regular intervals ensure that up-to-date support data is available for NetApp.

Manual Data Transfer:

Step: Periodically transfer the collected support data from the local storage to a server with Internet access.

Reason: This server can then send the support data to NetApp.

Send Data to NetApp:

Step: Use the server with Internet access to forward the collected support data to NetApp's support systems.

Reason: This ensures NetApp receives the necessary support data for ongoing maintenance and troubleshooting.

References:

NetApp EF-Series AutoSupport Configuration Guide

NetApp Support Site for manual data upload procedures

Explanation :

The Hardware Universe is a NetApp tool that provides comprehensive information on the size, weight, acoustic noise, and power requirements of NetApp systems, including the E-Series.

This tool is essential for planning and managing the physical aspects of deploying NetApp hardware in a data center environment.

iSCSI Multipathing : Enables multiple paths for data to travel between the host and storage, providing redundancy and increased performance.

Steps to Enable :

iSCSI IP Setup : Configure IP addresses for the iSCSI interfaces on both the E-Series system and the Windows host to ensure proper network communication.

Host Utilities : Install NetApp E-Series Host Utilities on the Windows host to provide the necessary drivers and multipathing software.

References : NetApp E-Series SANtricity Software and Windows Host Utilities Installation and Configuration Guide.

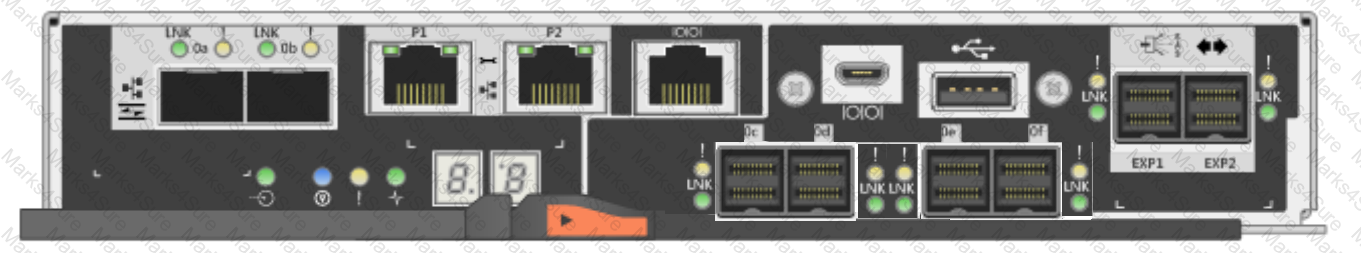

 Exhibit Analysis : The exhibit shows the rear view of an E-Series controller with various ports.

 SAS expansion ports : 2 ports (EXP1 and EXP2).

 SAS host ports : 6 ports.

 FC/iSCSI ports : 2 ports (these ports can be configured as either FC or iSCSI).

 References : NetApp E-Series hardware manual and port configuration guides.

Create the Disk Pool:

Step: Use the SANtricity System Manager to create a DDP with the eleven 12 TB disks.

Reason: The DDP automatically reserves space for reconstruction purposes.

Automatic Space Reservation:

Functionality: The system automatically reserves adequate space for reconstruction when a disk fails.

Access the Interoperability Matrix Tool (IMT):

Step: Open the NetApp Interoperability Matrix Tool.

Reason: The IMT provides a comprehensive list of supported configurations, including specific versions of drivers and firmware for HBAs.

Navigate to HBA Compatibility:

Step: Search for QLogic HBA compatibility with NetApp E-Series systems.

Reason: To find the exact versions of drivers and firmware that are validated and supported.

Verify the Information:

Step: Cross-reference the information provided by the IMT with the installed hardware.

Reason: Ensuring compatibility to avoid issues related to unsupported configurations.

To increase the throughput of an iSCSI host port on a NetApp E-Series system, you should change the maximum transmission unit (MTU) setting from its default value.

Maximum Transmission Unit (MTU): The MTU size determines the largest packet that can be sent over the network without needing to be fragmented. By increasing the MTU size, you can reduce the overhead associated with packet processing and improve throughput. For example, setting the MTU to 9000 bytes (Jumbo Frames) can enhance performance for iSCSI traffic.

References:

NetApp E-Series SANtricity Storage Manager User Guide

NetApp Best Practices for Configuring iSCSI with E-Series

Definition of Throughput : Throughput refers to the amount of data transferred from or to the storage system over a specific period. It is measured in units such as MB/s or GB/s.

Relevance to Performance Diagnosis : When diagnosing performance issues on an E-Series storage system, measuring throughput over an hour helps determine the data handling capacity of the system. This metric can reveal whether the system is processing data efficiently or if there are bottlenecks.

Methodology : Tools within the SANtricity System Manager can be used to monitor and log throughput, providing insights into the performance characteristics and potential areas needing optimization.

References :

NetApp E-Series SANtricity System Manager documentation on performance monitoring

NetApp Implementation Engineer - SAN Specialist - E-Series manuals

Identify the Orphaned Volume:

Step: Use SANtricity System Manager to identify the orphaned volume.

Reason: To determine which volume has lost its mirror relationship.

Remove the Mirroring Relationship:

Step: Access the mirroring settings for the orphaned volume and remove the existing relationship.

Reason: The current relationship is invalid and needs to be removed to reset the configuration.

Re-create the Mirroring Relationship:

Step: Establish a new mirroring relationship for the previously orphaned volume.

Reason: To restore the asynchronous mirroring setup with a valid configuration.

References:

NetApp SANtricity System Manager User Guide

NetApp Asynchronous Mirroring Best Practices Guide

To create a Dynamic Disk Pool (DDP), the minimum number of drives required is 12. This minimum requirement ensures that there is enough capacity and redundancy to maintain the performance and data protection characteristics that DDPs provide.

Dynamic Disk Pools are designed to optimize data distribution and rebuild times. By using 12 drives as a baseline, the system can efficiently distribute data and parity information across the drives, improving fault tolerance and rebuild performance compared to traditional RAID configurations.

References:

NetApp E-Series Storage System Documentation

SANtricity System Manager User Guide

 Verify that the E2812 host port SAS link up lights are illuminated

Explanation : The link up lights on the E2812 host port should be checked to confirm that the physical layer connection is established. If the lights are not illuminated, it indicates that there is no physical link between the host and the E2812 system, which would explain why the host cannot access the volumes.

EF570 Systems : The EF570 supports multiple host protocols simultaneously, including NVMe.

Connection Issue : The controller on-board ports not connecting while HIC ports are working fine suggests a potential configuration issue.

SFP Mismatch : The most likely cause is that the on-board ports have the wrong Small Form-factor Pluggable (SFP) modules installed for NVMe protocol.

Solution : Ensure that the correct SFPs for NVMe protocol are installed in the on-board ports.

References : NetApp E-Series Hardware Installation Guide, Host Protocol Configuration section.

Explanation :

When AutoSupport is not automatically sending reports to NetApp's ActiveIQ tool, you can manually collect the support data using SANtricity System Manager.

The manual collection involves generating a support bundle that includes all necessary logs and system information.

This data can then be reviewed locally or sent to NetApp support for analysis if needed.

Understanding Load Distribution : In a duplex E-Series system, load distribution between controllers can be manually set up to optimize performance based on specific workload characteristics.

Automatic Load Balancing : This feature automatically redistributes workloads between controllers to balance the load. However, in a highly tuned environment with manually configured load distribution, this automatic feature can disrupt the optimized settings.

Disabling Automatic Load Balancing : To maintain the manual load distribution over time, the Automatic Load Balancing feature should be disabled. This ensures that the workload remains distributed according to the specific manual configuration without interference from automatic adjustments.

References :

NetApp E-Series SANtricity System Manager documentation

NetApp Implementation Engineer - SAN Specialist - E-Series manuals

Brocade Switch Management : The native GUI switch tool for managing Brocade switches and directors is essential for network administrators to configure and monitor these devices.

Web Tools : Brocade Web Tools is a browser-based application that provides a graphical interface for managing Brocade switches and directors. It allows users to perform various management tasks such as zoning, firmware updates, and performance monitoring.

Features of Web Tools : The tool offers an intuitive interface, making it easier for administrators to perform complex tasks and troubleshoot issues effectively.

References :

Brocade Fabric OS Administrator's Guide

NetApp Implementation Engineer - SAN Specialist - E-Series manuals
