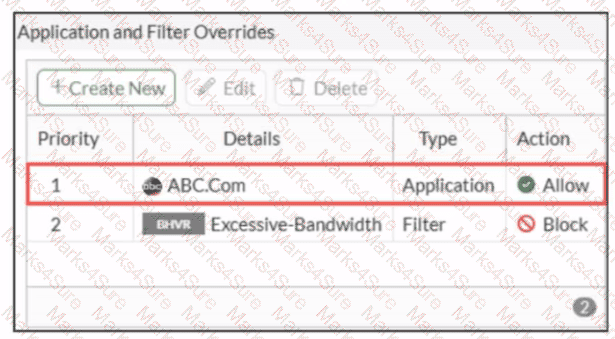

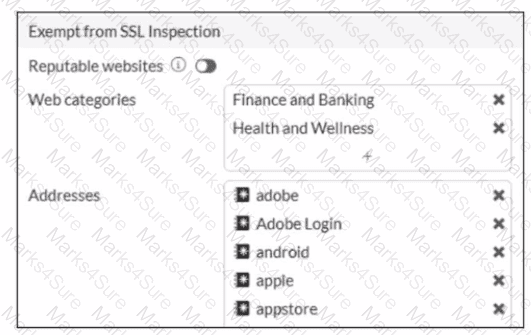

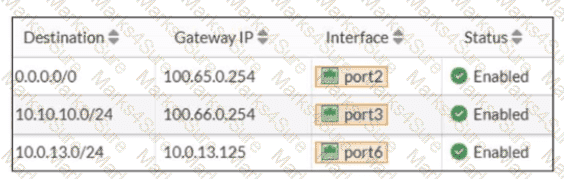

NSE4_FGT_AD-7.6 Fortinet NSE 4 - FortiOS 7.6 Administrator Questions and Answers

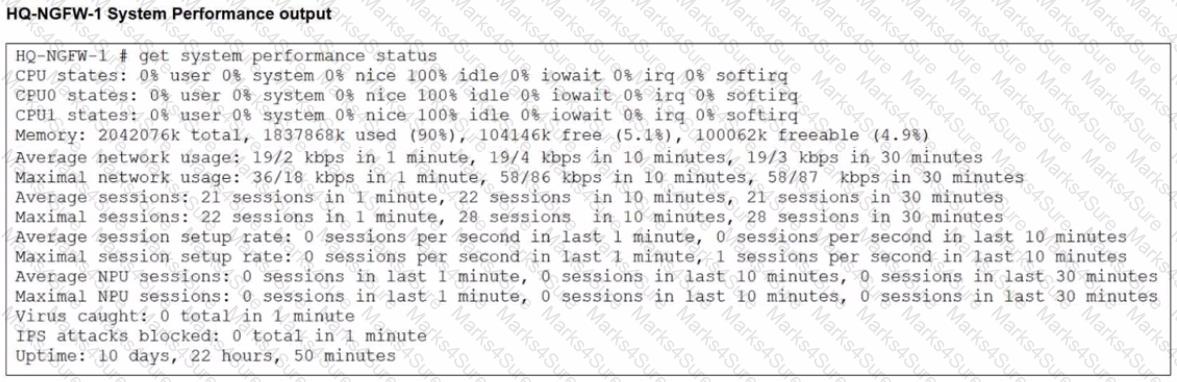

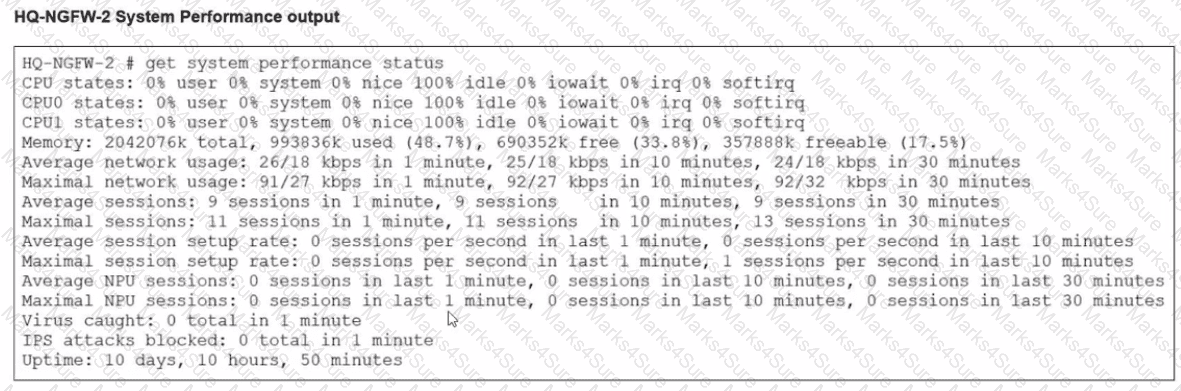

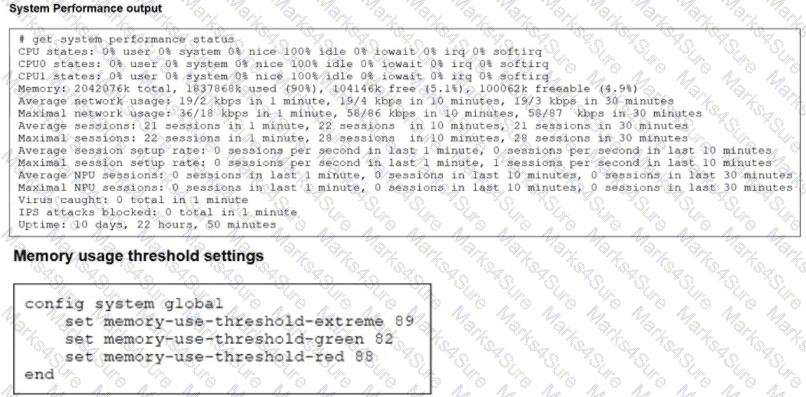

According to the FortiOS 7.6 Study Guide and technical documentation, conserve mode is a protective state triggered when memory utilization reaches the Extreme Threshold (typically 95% by default). When this occurs, the FortiGate implements several measures to prioritize system stability over new functionality. One of the primary restrictions is that the FortiGate refuses to accept configuration changes (Statement B). This prevents the system from initiating new processes or allocating additional memory that could lead to a total system crash.

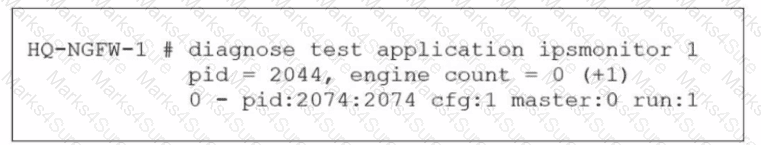

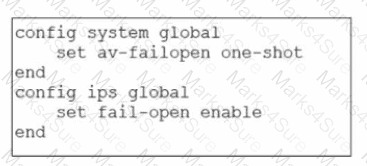

Regarding traffic handling, the behavior is determined by specific "fail-open" settings. For the IPS engine, if the fail-open global setting is enabled, the FortiGate continues to transmit packets without IPS inspection (Statement D). This ensures that network connectivity is maintained even when the system lacks the memory resources to perform deep packet inspection. In contrast, Statement A is incorrect because the system may skip non-essential actions to save memory. Statement C is incorrect because conserve mode is designed to avoid a system halt; the device remains operational and will automatically exit conserve mode once memory usage drops below the Release Threshold (typically 82%).

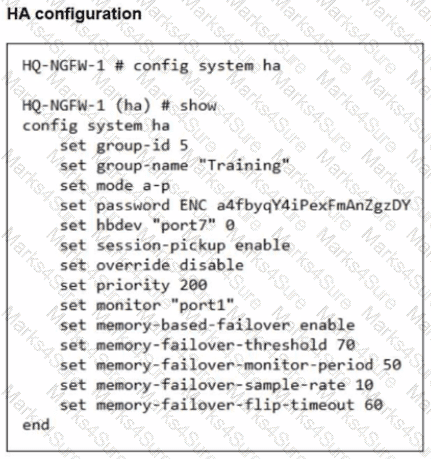

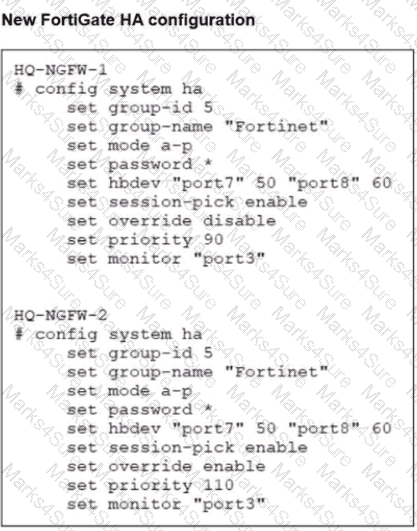

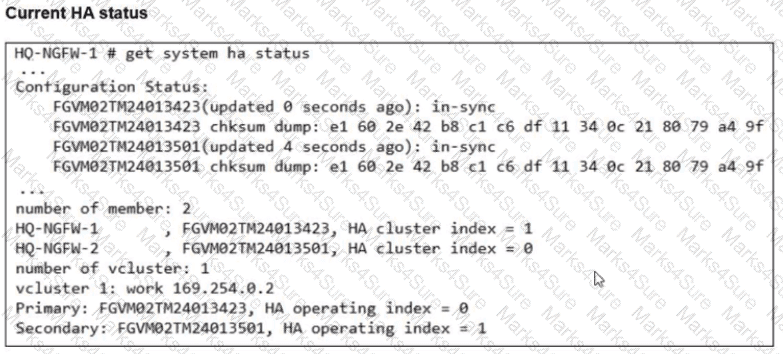

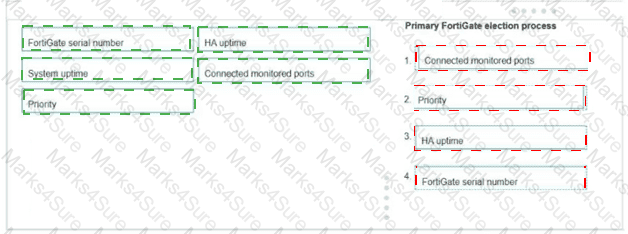

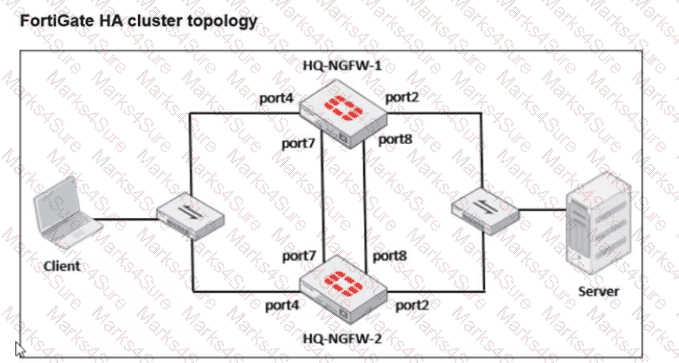

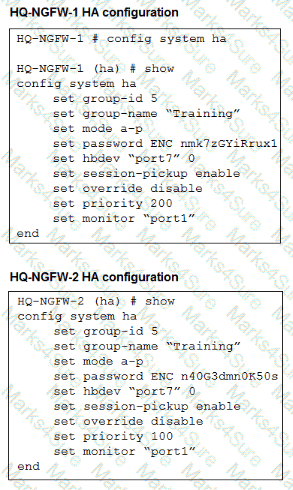

In FortiOS 7.6, HA cluster heartbeat IP addresses are automatically managed by FortiGate and play a critical role in cluster communication and synchronization.

Correct statements

A. Heartbeat IP addresses are used to distinguish between cluster members.

Correct

FortiGate assigns unique heartbeat IP addresses (link-local addresses in the 169.254.0.0/16 range) to each HA member.

These addresses are used for:

Cluster member identification

Health checks

Synchronization traffic

This allows FortiGate units to uniquely identify and communicate with each other inside the HA cluster.

C. A change in the heartbeat IP address happens when a FortiGate device joins or leaves the cluster.

Correct

Heartbeat IPs are dynamically assigned.

When:

A new FortiGate joins the cluster, or

A member leaves or fails,

FortiGate may reassign heartbeat IP addresses to maintain unique identification among members.

This behavior is documented in the FortiOS HA operation and troubleshooting guides.

Why the other options are incorrect

B. The heartbeat interface of the primary device is always assigned IP address 169.254.0.1.

Incorrect

There is no fixed or guaranteed heartbeat IP (such as 169.254.0.1) for the primary unit.

Heartbeat IP assignment is dynamic, not role-based.

D. Heartbeat interfaces have virtual IP addresses that are manually assigned.

Incorrect

Heartbeat IP addresses are:

Automatically assigned

Link-local

Administrators do not manually configure heartbeat IP addresses.

In FortiOS 7.6, SD-WAN Performance SLAs are used to measure link quality and influence SD-WAN rule decisions. The following three statements are true.

C. All the SLA targets can be configured.

True

SD-WAN Performance SLAs allow administrators to configure:

Latency

Jitter

Packet loss

Mean Opinion Score (MOS) (for voice)

Threshold values for these metrics are fully configurable per SLA.

This is explicitly documented in the SD-WAN Performance SLA configuration section.

D. They are applied in an SD-WAN rule lowest cost strategy.

True

Performance SLAs are commonly used with the Lowest Cost (SLA-based) strategy.

In this strategy:

FortiGate selects the lowest-cost link that meets the SLA requirements.

If a link violates the SLA, it is excluded from selection.

E. They can be measured actively or passively.

True

FortiOS supports:

Active probing (synthetic probes such as ping/HTTP)

Passive measurement (based on real traffic statistics)

Administrators can choose how SLAs are measured depending on the deployment and requirements.

Why the other options are incorrect

A. They rely on session loss and jitter.

Incorrect

SLAs measure packet loss, latency, and jitter.

Session loss is not an SLA metric in FortiOS.

B. They monitor the state of the FortiGate device.

Incorrect

Performance SLAs monitor link quality, not FortiGate system health or device state.

Based on the exhibit and FortiOS 7.6 Active Authentication (captive portal) behavior, the most likely reason the user is not presented with a login prompt is that DNS is missing from the firewall policy.

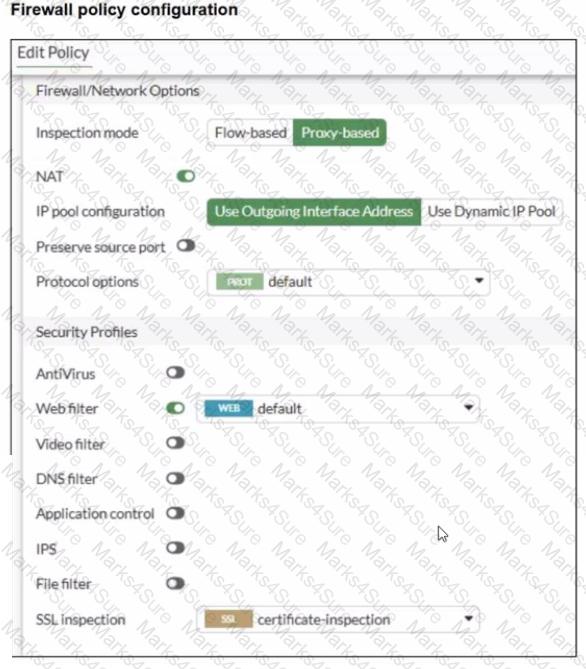

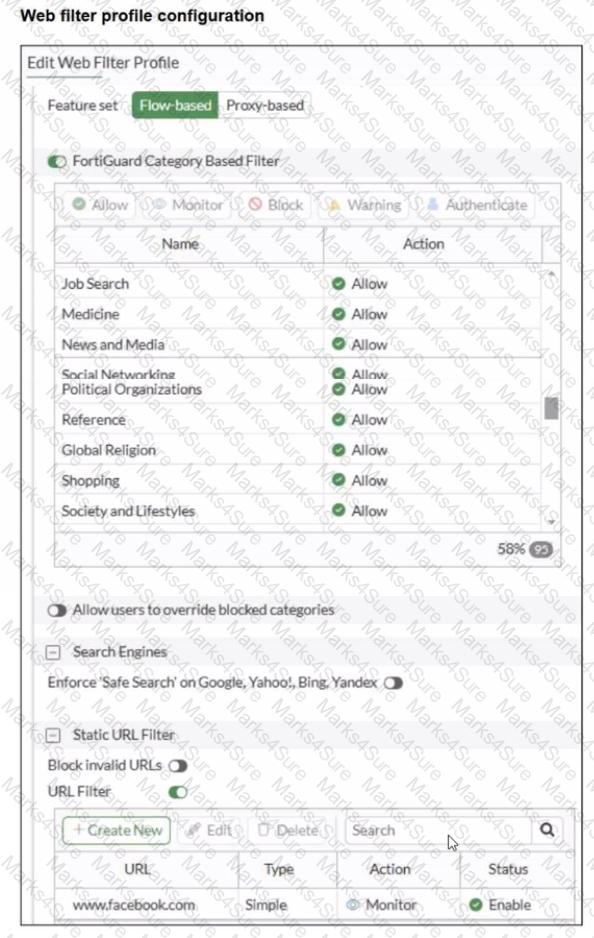

What the exhibit shows

The firewall policy configured for active authentication includes:

Source: HQ_SUBNET and Remote-users

Destination: all

Services:

HTTP

HTTPS

ALL_ICMP

Security Profiles: Web filter and SSL inspection enabled

Authentication: Active (user group referenced)

DNS is not included as a service in the policy.

Why DNS is required for active authentication

In FortiOS 7.6, active authentication (captive portal) works as follows:

The user attempts to access a website using a URL (for example, www.example.com).

The client must first perform a DNS lookup to resolve the domain name.

FortiGate intercepts the initial HTTP/HTTPS request and redirects the user to the authentication portal.

If DNS traffic is blocked or not allowed:

The hostname cannot be resolved.

The HTTP/HTTPS request never properly occurs.

FortiGate has nothing to intercept, so the login prompt is never triggered.

This is explicitly documented in the FortiOS 7.6 Authentication and Captive Portal requirements, which state that DNS must be permitted for captive portal–based authentication to function correctly.

Why the other options are incorrect

A. No matching user account exists for this user

Incorrect.

If the user account did not exist, the login page would still appear, but authentication would fail after credentials are entered.

B. The Remote-users group must be set up correctly in the FSSO configuration

Incorrect.

This policy is using active authentication, not FSSO.

FSSO configuration is irrelevant for active authentication login prompts.

C. The Remote-users group is not added to the Destination

Incorrect.

User groups are applied in the Source field for authentication-based policies.

Destination does not accept user groups.

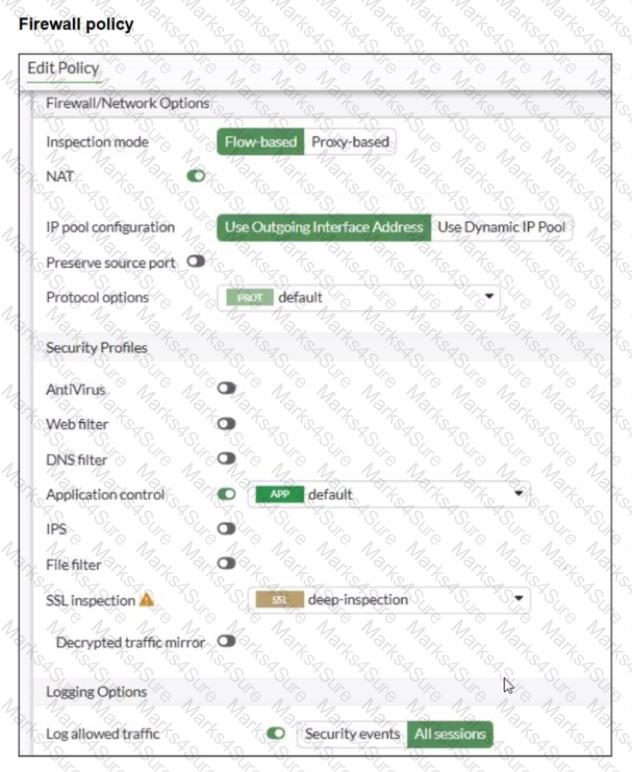

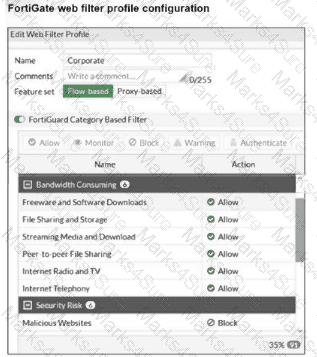

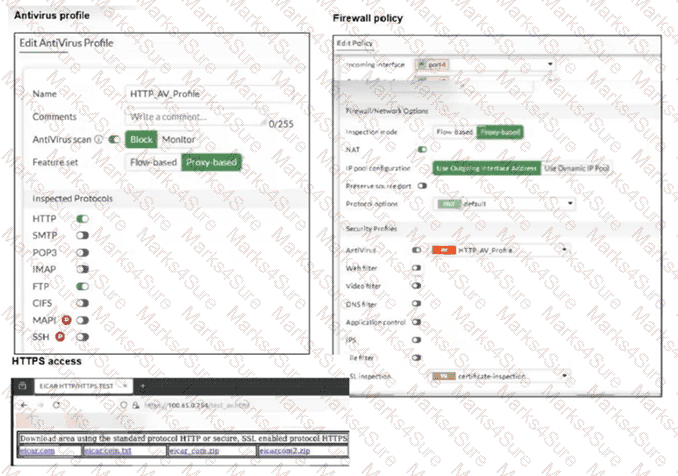

According to the FortiOS 7.6 Study Guide and Parallel Path Processing documentation, flow-based antivirus inspection is designed to provide security with minimal impact on performance.

First, a defining characteristic of modern flow-based AV (specifically in its "hybrid" mode) is that FortiGate buffers the whole file but transmits to the client at the same time (Statement A). This behavior allows the client to start receiving data immediately to prevent session timeouts, while the FortiGate reassembles the file in memory to perform a signature check before the final packet is released.

Second, starting with recent FortiOS versions including 7.6, flow-based inspection uses a hybrid of the scanning modes (Statement B). Previously, flow mode offered "Quick" or "Full" scans; now, it combines these techniques to offer a balance between the speed of stream-based scanning and the thoroughness of archive inspection.

Third, the primary motivation for selecting this mode is that flow-based inspection optimizes performance compared to proxy-based inspection (Statement D). It processes traffic in a single pass using the IPS engine, avoiding the overhead associated with the WAD (proxy) process. Statement C is incorrect because if a virus is detected, the last packet is withheld and the connection is reset to prevent the file from being completed. Statement E is less accurate as the IPS engine loads the AV engine to perform the task rather than acting as a "standalone" entity in the context of file scanning.

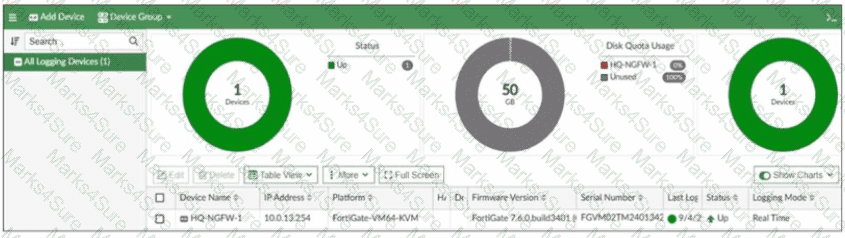

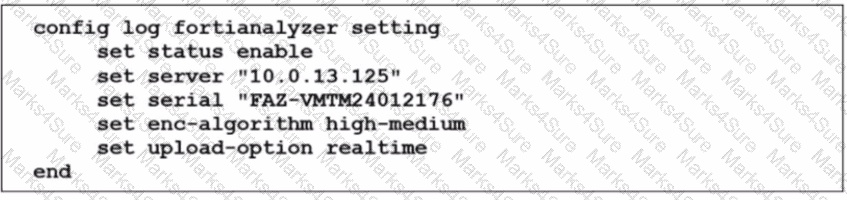

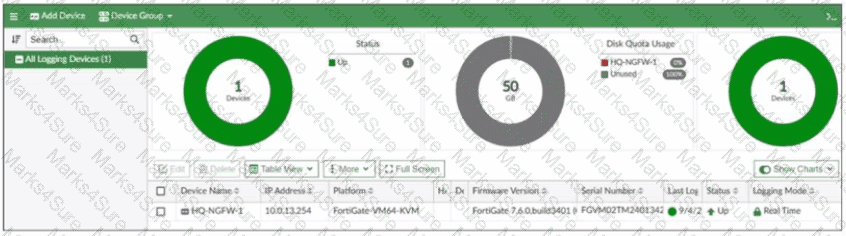

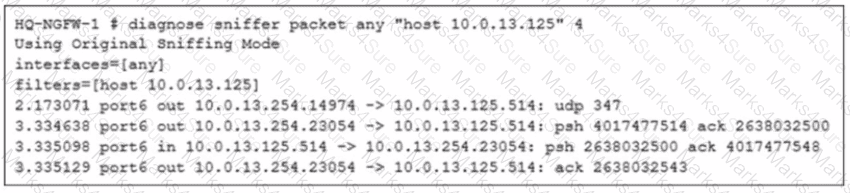

In FortiOS 7.6, when FortiGate is integrated with FortiAnalyzer and FortiManager, firewall policies rely on a Universally Unique Identifier (UUID) to ensure proper policy tracking, synchronization, and log correlation across devices.

Why the UUID is required

Every firewall policy in FortiOS has a UUID.

FortiManager uses the UUID to:

Track policies across managed FortiGate devices

Maintain policy consistency during installs and revisions

FortiAnalyzer uses the UUID to:

Correlate logs accurately to the correct firewall policy

Preserve log association even if policy order or policy ID changes

Without a UUID:

Policy-to-log mapping can break

FortiManager cannot reliably manage or synchronize policies

FortiAnalyzer log analysis becomes inconsistent

This is explicitly documented in Fortinet administration and logging architecture references.

Why the other options are incorrect

B. Policy IDPolicy ID can change when policies are moved and is not reliable for long-term correlation across FortiManager and FortiAnalyzer.

C. Sequence IDSequence ID reflects GUI ordering only and has no role in log correlation.

D. Log IDLog ID is generated per log event, not per firewall policy.

NetAPI: Polls temporary sessions created on the DC when a user logs on or logs off and calls the NetSessionEnum function on Windows. It’s faster than the WinSec and WMI methods; however, it can miss some logon events if a DC is under heavy system load. This is because sessions can be quickly created and purged form RAM, before the agent has a chance to poll and notify FG.

In FortiSASE Secure Internet Access (SIA) agent-based mode, traffic steering and security enforcement rely on components integrated with the FortiClient agent.

Components used in SIA agent-based mode

A. FortiSASE Firewall-as-a-Service (FWaaS)

Correct.

FWaaS is a core security component of FortiSASE.

It enforces firewall policies, security inspection, and access control for agent-based users.

All user traffic tunneled by the agent is inspected by FWaaS.

C. VPN policies

Correct.

In agent-based mode, the FortiClient establishes a secure tunnel to FortiSASE.

VPN policies define:

Authentication

Access control

Traffic steering

These policies are fundamental to agent-based connectivity.

Why the other options are incorrect

B. Proxy auto-configuration (PAC) filePAC files are used in agentless or proxy-based modes, not agent-based SIA.

D. FortiExtenderFortiExtender is a WAN extension device and is unrelated to FortiSASE SIA agent-based architecture.

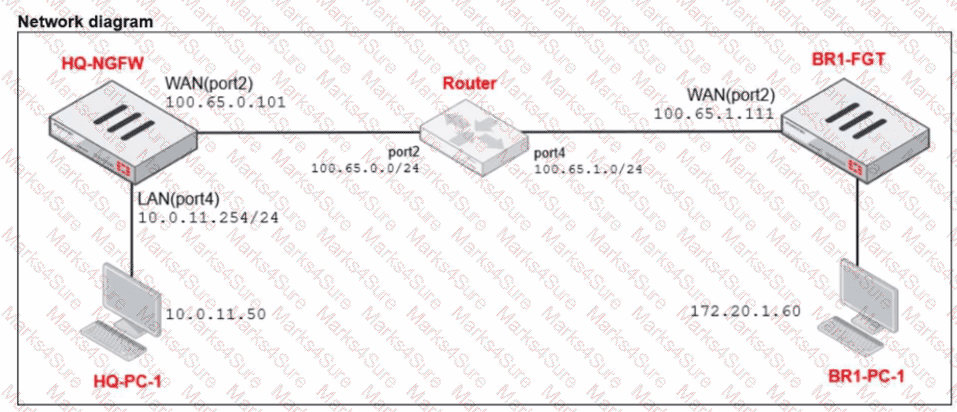

Phase 1 being up confirms the two FortiGate devices can authenticate and build the IKE SA. Phase 2 failing indicates the IPsec (Quick Mode) SA negotiation is failing due to mismatched Phase 2 parameters.

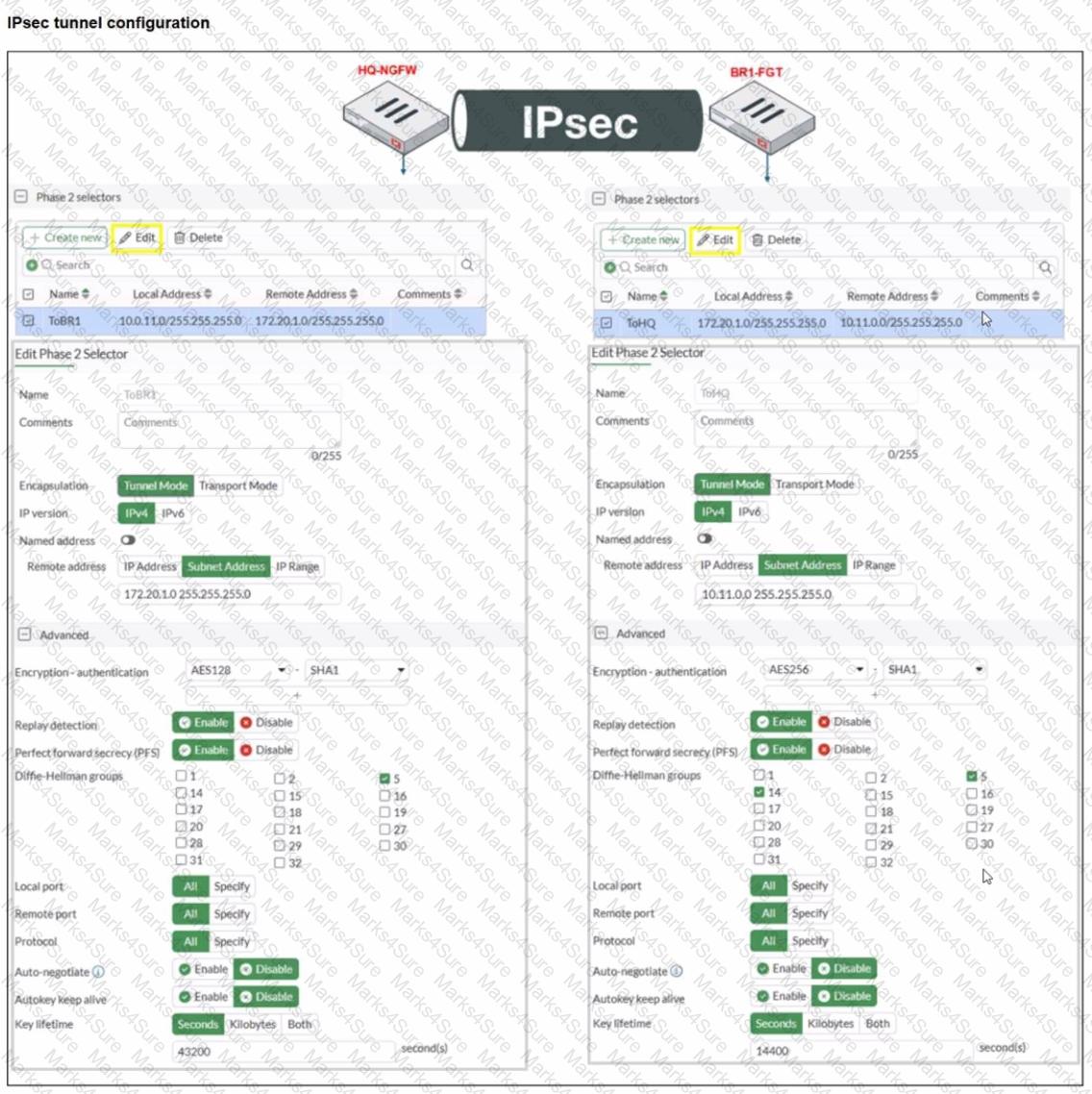

From the exhibit, the Phase 2 mismatches that would prevent SA establishment are:

1) Phase 2 selectors must mirror each other (Proxy IDs)

HQ-NGFW Phase 2 selector shows:

Local: 10.0.11.0/24

Remote: 172.20.1.0/24

BR1-FGT Phase 2 selector shows:

Local: 172.20.1.0/24

Remote: 10.11.0.0/24 ⟵ does not match HQ’s local subnet (10.0.11.0/24)

In FortiOS, Phase 2 comes up only when the peers’ selectors (proxy IDs) match as opposite pairs (local on one side = remote on the other).

✅ Fix: A. On BR1-FGT, set Remote Address to 10.0.11.0/255.255.255.0.

2) Phase 2 proposal must match (encryption/authentication)

HQ-NGFW shows encryption AES128 (with SHA1)

BR1-FGT shows encryption AES256 (with SHA1)

For Phase 2 to establish, both peers must have at least one common proposal (same encryption and authentication settings). With one side set to AES128 and the other to AES256, there is no match.

✅ Fix: D. On HQ-NGFW, set Encryption to AES256.

Why the other options are not correct

B. Enable Diffie-Hellman Group 2: The exhibit’s mismatch is not resolved by adding DH group 2, and DH group must match when PFS is enabled. This option does not align the peers based on what’s shown.

C. Set Seconds to 43200: Phase 2 lifetime mismatches typically do not prevent Phase 2 from coming up (the negotiated lifetime can be adjusted by the peers). The hard blockers here are the selectors and proposal mismatch.

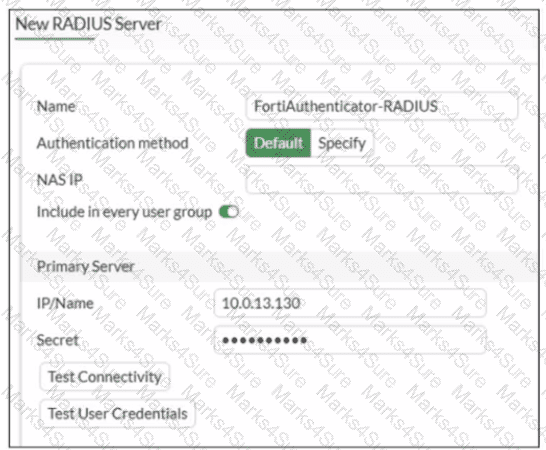

Based on the FortiOS 7.6 Authentication and User Group documentation, the correct answer is A.

Meaning of “Include in every user group” (FortiOS 7.6)

When configuring a RADIUS server on FortiGate, enabling Include in every user group has a very specific and documented effect:

The configured RADIUS server object is automatically added to all FortiGate user groups.

As a result, any user who successfully authenticates against that RADIUS server becomes a valid member of every FortiGate user group, unless additional group filtering (such as RADIUS attributes) is applied.

This simplifies configuration when the same external authentication source must be accepted across multiple firewall policies that reference different user groups.

This behavior is explicitly described in the FortiOS 7.6 Administrator Guide under RADIUS authentication servers and user groups.

Why Option A is Correct

FortiGate user groups can include:

Local users

LDAP servers

RADIUS servers

Enabling Include in every user group causes FortiGate to:

Insert the RADIUS server into all existing and future FortiGate user groups

Therefore, all users authenticating via this RADIUS server are implicitly allowed in every FortiGate user group.

This is exactly what option A describes.

Why the Other Options Are Incorrect

B: FortiGate does not push users or groups into the RADIUS server. Authentication is always initiated by FortiGate toward RADIUS.

C: FortiGate does not manage or modify RADIUS-side group definitions.

D: LDAP and RADIUS user groups are separate authentication mechanisms; this setting does not merge or affect LDAP groups.

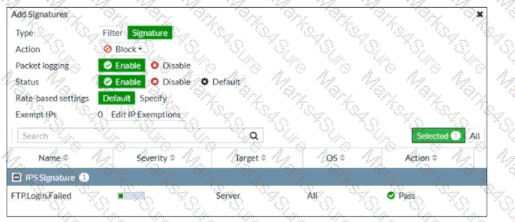

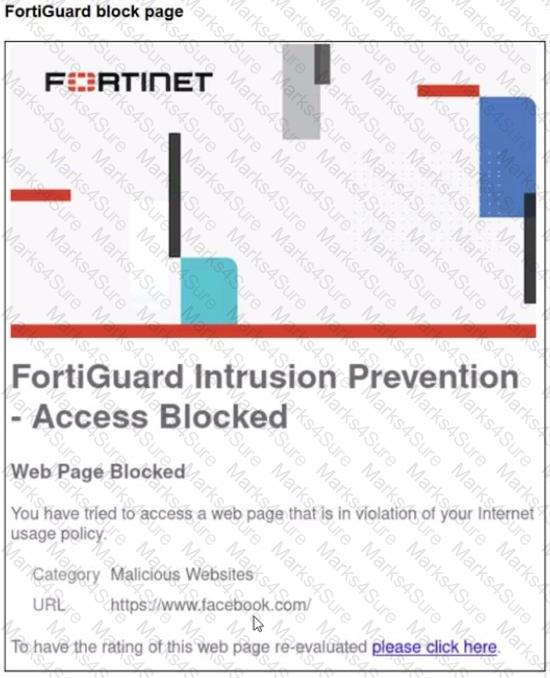

In FortiOS 7.6, if an administrator wants to block traffic only after an IPS signature is triggered a specific number of times within a defined time window, this must be done using IPS filters with rate-based settings.

Why option D is correct

IPS filters allow administrators to match signatures based on attributes such as:

Severity

Protocol

CVE

Signature ID

IPS filters support rate-based actions using:

rate-mode periodical

rate-count

rate-duration

With rate-mode periodical, FortiGate:

Counts how many times a signature is triggered

Within a defined time period

And applies the configured action (for example, block) once the threshold is exceeded

This directly matches the requirement:

“block traffic that triggers the signature set number of times during a specific time period.”

Why the other options are incorrect

A. IPS group signatures, set rate-mode 60Group signatures do not provide the required per-period rate-based blocking logic.

B. IPS packet logging optionLogging does not enforce blocking behavior.

C. IPS signatures, rate-mode periodical optionRate-based controls are applied via IPS filters, not directly on individual signature definitions.

In FortiOS 7.6, GUI session inactivity timeout behavior for administrators is controlled by admin profiles, not by general access permissions or profile ordering.

How GUI idle timeout works in FortiOS 7.6

FortiGate has a global admin timeout (admintimeout), but

Admin profiles can override this value using the Override idle timeout setting.

When Override idle timeout is enabled in an admin profile, the timeout value defined inside that profile takes precedence over the global setting.

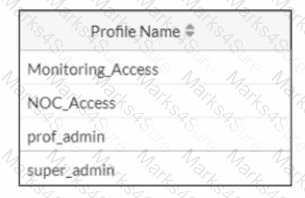

The exhibit shows that the NOC team logs in using the NOC_Access admin profile. Therefore, to prevent their GUI sessions from disconnecting too quickly during inactivity, the timeout must be adjusted within that specific admin profile.

Why option B is correct

B. Increase the value of the Override Idle Timeout parameter in the NOC_Access admin profile.

This directly controls how long GUI sessions remain active when users assigned to NOC_Access are idle.

It affects only the NOC team, which matches the requirement precisely.

This is the recommended and documented approach in FortiOS 7.6.

Why the other options are incorrect

A. Increase admintimeout under config system accprofileIncorrect. admintimeout is a global admin setting, not configured under accprofile, and it would affect all administrators, not just NOC users.

C. Move NOC_Access to the top of the listIncorrect. Admin profile order has no impact on session timeout behavior.

D. Assign super_admin roleIncorrect and insecure. Super_admin does not control idle timeout and would unnecessarily grant full privileges.

According to the FortiOS 7.6 Administrator Guide and the specific behavior of the SD-WAN GUI, here is the technical breakdown:

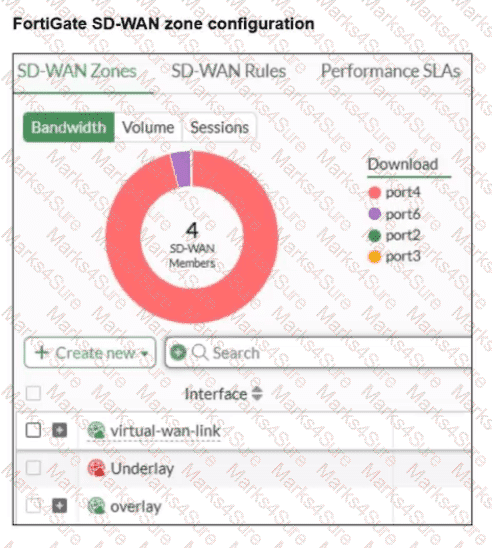

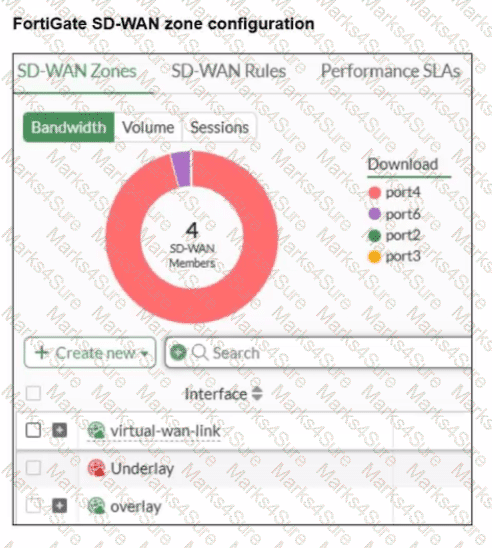

SD-WAN Zone Hierarchy and UI Elements: In the FortiGate GUI, SD-WAN zones that contain member interfaces are displayed with a plus (+) icon next to the checkbox. This icon allows administrators to expand the zone and view the specific physical or logical interfaces assigned to it.

Analysis of the "Underlay" Zone: In the provided exhibit, the virtual-wan-link and overlay zones both feature the plus (+) expansion icon, indicating they have active members. The Underlay zone, however, lacks this icon and displays a red status icon. This is the visual indicator in FortiOS that the zone is currently empty and contains no member interfaces.

Mandatory Zone Membership: In FortiOS 7.x, every SD-WAN member interface must be assigned to a zone. It is not possible for an interface to be an "SD-WAN member" (as shown in the legend with port2 and port3) without being assigned to a zone. Since port2 and port3 are listed in the legend, they are indeed assigned to one of the other expanded zones (likely virtual-wan-link or overlay), making Option D incorrect.

Default Zone Behavior: While FortiOS 7.6 often creates default zones like virtual-wan-link, underlay, and overlay during certain configuration wizards or by default in newer versions, they are distinct entities. There is no single "default" zone that acts as a global catch-all in the way Option C suggests.

Immutability of System Zones: While certain system-defined zones have restrictions, the primary focus of this specific exhibit is the current membership state, which clearly shows the Underlay zone is empty.
