NSE5_FNC_AD_7.6 Fortinet NSE 5 - FortiNAC-F 7.6 Administrator Questions and Answers

In a FortiNAC-F deployment, the configuration of the DHCP scope for isolation networks (Registration, Remediation, etc.) must perfectly align with the underlying network infrastructure to ensure that isolated hosts can communicate with the FortiNAC appliance. In the provided exhibits, there is a clear discrepancy between the DHCP configuration and the Network Topology .

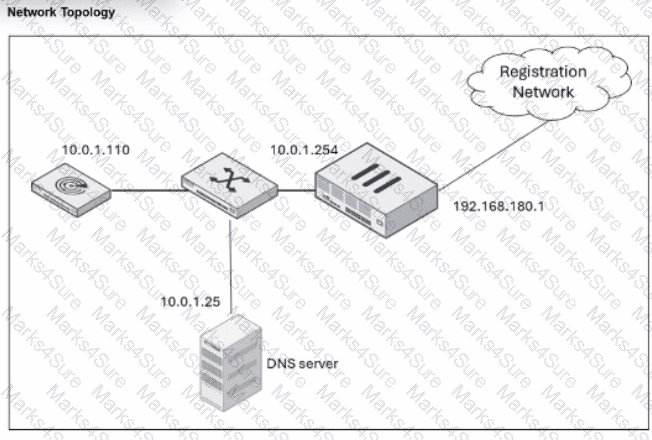

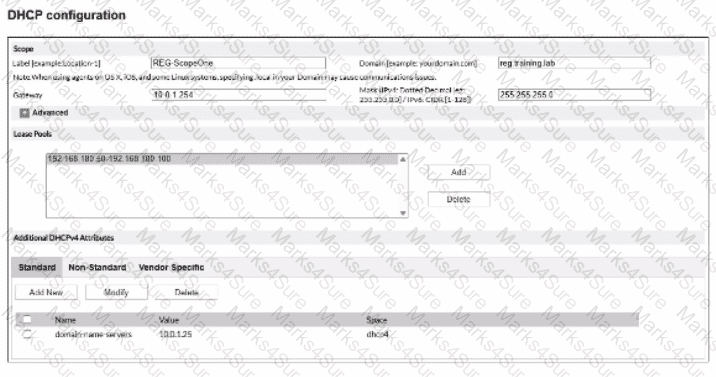

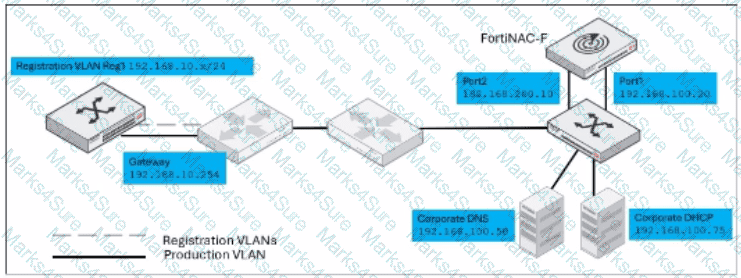

As shown in the "Network Topology" exhibit, the Registration Network resides on a router interface (or sub-interface) with the IP address 192.168.180.1 . This address represents the default gateway for any host placed into the Registration VLAN. However, the "DHCP configuration" exhibit shows the scope "REG-ScopeOne" configured with a Gateway of 10.0.1.254 . This 10.0.1.254 address belongs to the management/service network (port2 of FortiNAC), not the registration subnet. If a host in the Registration VLAN receives this incorrect gateway via DHCP, it will attempt to send all off-link traffic to an unreachable IP, preventing it from loading the Captive Portal or communicating with the FortiNAC server.

According to the FortiNAC-F Configuration Wizard Reference , when defining a Layer 3 network scope, the "Gateway" field must contain the IP address of the router interface that acts as the gateway for that specific isolation VLAN. The FortiNAC appliance itself usually sits on a different subnet, and traffic is directed to it via the router's DHCP Relay (IP Helper) and DNS redirection.

"When configuring scopes for a Layer 3 network, the Gateway value must be the IP address of the router interface for that subnet. This allows the host to reach its local gateway to route traffic. If the gateway is misconfigured, the host will be unable to reach the FortiNAC eth1/port2 interface for registration... Ensure the Gateway matches the network topology for the isolation VLAN." — FortiNAC-F Configuration Wizard Reference Manual: DHCP Scopes.

The N+1 High Availability (HA) architecture was introduced in FortiNAC-F version 7.6 to provide a more scalable and flexible redundancy model compared to the traditional 1+1 active/passive setup. In an N+1 configuration, a single secondary (standby) appliance can provide coverage for multiple primary (active) Control and Application (CA) appliances.

To set up an N+1 HA cluster, there are two fundamental structural requirements:

A FortiNAC-F Manager (FortiNAC-M): Unlike standard 1+1 HA, which can be configured directly between two CAs, N+1 management is centralized. The FortiNAC-M acts as the orchestrator that manages the failover groups, monitors the health of the primaries, and coordinates the promotion of the secondary server if a primary fails.

A FortiNAC-F device designated as a Secondary: The cluster must have one appliance explicitly configured with the Secondary failover role . This device remains in a standby state, receiving database replications from all N primaries in its group until it is called upon to take over the functions of a failed unit.

While a cluster can support multiple primaries (D), it does not strictly require "at least two" to function as an N+1 group; it simply requires N primaries (where N ≥ 1). Additionally, N+1 is typically a Layer 3 managed solution via the Manager, meaning it does not mandate a "dedicated VLAN" for synchronization like some Layer 2 HA deployments.

"In FortiNAC-F 7.6, FortiNAC-M functions as a manager to manage the N+1 Failover Groups... enabling N+M high availability for CAs. To create an N+1 Failover group, you should add the secondary CA to the FortiNAC-M first, then add the primary CAs. The secondary CA is designed to take over the functionality of any single failed primary component." — FortiNAC-F 7.6.0 N+1 Failover Reference Manual.

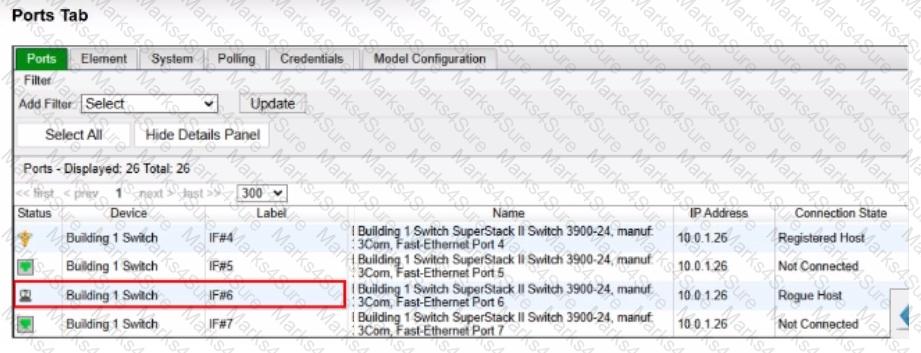

When troubleshooting network access in FortiNAC-F, it is often necessary to verify exactly why a host has been granted a specific level of access. Since FortiNAC-F evaluates policies from the top down and assigns access based on the first match, an administrator needs a clear way to see the results of this evaluation for a specific live endpoint.

The Policy Details (C) view is the designated tool for this purpose. By navigating to the Hosts > Hosts (or Adapter View) in the Administration UI, an administrator can search for the specific MAC address or IP of the host in question. Right-clicking on the host record reveals a context menu from which Policy Details can be selected. This view provides a real-time "look" into the policy engine's decision for that specific host, showing the Network Access Policy that was matched, the User/Host Profile that triggered the match, and the resulting Network Access Configuration (VLAN/ACL) currently applied.

While Policy Logs (A) provide a historical record of all policy transitions across the system, they are often too high-volume to efficiently find a single host's current state. The Connections view (B) shows the physical port and basic status but lacks the granular policy logic breakdown. The Port Properties (D) view shows the configuration of the switch interface itself, which is only one component of the final access determination.

"To identify which policy is currently applied to a specific endpoint, use the Policy Details view. Navigate to Hosts > Hosts , select the host, right-click and choose Policy Details . This window displays the specific Network Access Policy , User/Host Profile, and Network Access Configuration currently in effect for that host record." — FortiNAC-F Administration Guide: Policy Details and Troubleshooting.

In FortiNAC-F, MAC notification traps (also known as MAC Move or MAC Change traps) are essential for achieving real-time visibility of endpoint connections and disconnections. When a device connects to a switch port, the switch generates an SNMP trap that informs FortiNAC-F of the new MAC address on that specific interface. This allows FortiNAC-F to immediately initiate the profiling and policy evaluation process without waiting for the next scheduled L2 poll.

According to the FortiNAC-F Administration Guide and Switch Integration documentation, MAC notification traps should be configured on all ports except uplink ports . Uplink ports are the interfaces that connect one switch to another or to the core network. Because these ports see the MAC addresses of every device on the downstream switches, enabling MAC notification on uplinks would cause the switch to send a massive volume of redundant traps to FortiNAC-F every time any device anywhere in the downstream branch moves or reconnects. This can overwhelm the FortiNAC-F process queue and degrade system performance.

By only enabling these traps on "edge" or "access" ports—where individual endpoints like PCs, printers, and VoIP phones connect—FortiNAC-F receives precise data regarding exactly where a device is physically located. Uplinks should be identified in the FortiNAC-F inventory as "Uplink" or "Learned Uplink," which tells the system to ignore MAC data seen on those specific ports.

"To ensure accurate host tracking and optimal system performance, SNMP MAC notification traps must be enabled on all access (downlink) ports. Do not enable MAC notification traps on uplink ports , as this will result in excessive and unnecessary trap processing. Uplink ports should be excluded to prevent the system from attempting to map multiple downstream MAC addresses to a single infrastructure interface." — FortiNAC-F Administration Guide: SNMP Configuration for Network Devices.

The FortiNAC-F Manager is designed to centralize the management of multiple Control and Application (CA) appliances, ensuring consistent security posture across a distributed enterprise. To achieve this, the Manager allows administrators to define and distribute specific types of policies globally rather than configuring them on each individual CA.

According to the FortiNAC Manager Guide , the two primary policy types that are managed globally are:

Network Access Policies (D): These policies define the "If-Then" logic for network entry. By managing these at the global level, an administrator can ensure that a "Contractor" receives the same restricted access regardless of which branch office or campus they connect to.

Endpoint Compliance Policies (B): Global management of compliance policies—which consist of scans and configurations—allows for a unified security baseline. For example, a global policy can mandate that all Windows devices across the entire organization must have a specific antivirus version installed and active before gaining access to the production network.

While the Manager provides visibility into authentication events and can synchronize directory data, the specific Authentication (A) configurations (like local RADIUS secrets or specific LDAP server links) are often localized to the CA to account for site-specific infrastructure. Supplicant EasyConnect (C) is a feature set for onboarding, but the structural "Global Policy" engine focuses primarily on the Access and Compliance frameworks.

"The FortiNAC Manager enables Global Policy Management , allowing for the creation and distribution of policies across all managed CA appliances. This includes Network Access Policies , which control VLAN and ACL assignment, and Endpoint Compliance Policies , which define the security requirements for hosts. Centralizing these policies ensures that security standards are enforced uniformly across the global network fabric." — FortiNAC Manager Administration Guide: Global Policy Management Overview.

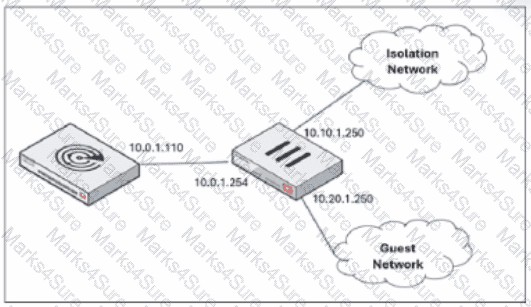

In FortiNAC-F, the Layer 3 Network type is specifically designed for deployments where the isolation networks—such as Registration, Remediation, and Dead End—are separated from the FortiNAC appliance's service interface ( port2 ) by one or more routers. This architecture is common in large, distributed enterprise environments where endpoints in different physical locations or branches must be isolated into subnets that are local to their respective network equipment.

The reason the Configuration Wizard allows for more than one DHCP scope for a single isolation network type (state) is that there can be more than one isolation network of each type across the infrastructure. For instance, if an organization has three different sites, each site might require its own unique Layer 3 registration subnet to ensure efficient routing and to accommodate local IP address management. By allowing multiple scopes for the "Registration" state, FortiNAC can provide the appropriate IP address, gateway, and DNS settings to a rogue host regardless of which site's registration VLAN it is placed into.

When an endpoint is isolated, the network infrastructure (via DHCP Relay/IP Helper) directs the DHCP request to the FortiNAC service interface. FortiNAC then identifies which scope to use based on the incoming request's gateway information. This flexibility ensures that the system is not limited to a single flat subnet for each isolation state, supporting a scalable, multi-routed network topology.

"Multiple scopes are allowed for each isolation state (Registration, Remediation, Dead End, VPN, Authentication, Isolation, and Access Point Management). Within these scopes, multiple ranges in the lease pool are also permitted... This configWizard option is used when Isolation Networks are separated from the FortiNAC Appliance's port2 interface by a router." — FortiNAC-F Configuration Wizard Reference Manual: Layer 3 Network Section.
