Free Practice Questions for the Fortinet NSE 6 Network Security Specialist NSE6_FMG_AD-7.6 Exam (2026 Updated)

The correct answer is A. This conclusion comes from the HA settings shown in the exhibit plus Fortinet’s HA behavior. In the exhibit, HQ-NGFW-1 has memory-based-failover enabled, memory-failover-threshold 70, memory-failover-monitor-period 50, and its memory usage is about 90%, while HQ-NGFW-2 is about 48.7%. Fortinet’s official documentation states that memory-failover-threshold is the memory percentage that triggers failover, and memory-failover-monitor-period is the duration high memory must persist before failover occurs. It also states that if utilization stays above the threshold for the entire monitor period, a failover is triggered, and the peer becomes primary. (Fortinet Document Library)

Because the condition was observed for 55 seconds, which is longer than the configured 50-second monitor period, the cluster would fail over from HQ-NGFW-1 to HQ-NGFW-2 due to the memory-failover-threshold condition. The priority setting does not explain this result here, because override is disabled, and flip-timeout governs subsequent memory-based failovers, not the initial trigger. (Fortinet Document Library)

=========

Adding and managing FortiAnalyzer from FortiManager is recommended for handling a high volume of logs, as FortiAnalyzer is designed specifically for centralized log management, analysis, and reporting, which offloads this workload from FortiManager.

The correct answer is D. The lab guide explains that when an installation fails, the installation log shows the commands that the managed device received and accepted, as well as the commands that the managed device did not accept.

From the exhibit, FortiGate accepted the policy creation commands for policy ID 2 such as set srcintf port3, set dstintf port1, set srcaddr all, set dstaddr all, set action accept, and set schedule always. However, the line set users student failed with “entry not found in datasource” and “value parse error before ' student ' ”. That shows the user reference was not accepted, while the rest of the policy commands were processed. Therefore, policy ID 2 is still created, but without the remote user student. This rules out A, B, and C.

=========

The correct answer is D. The FortiManager 7.6 Administrator Study Guide states: “You can revert to a previous configuration revision” and “Reverts only the device database to the previous revision”. It also states “Does not revert policies and objects—you must import them” and “You must install reverted changes on FortiGate.”

This exactly means a revert operation changes the device-level database on FortiManager, not the policy layer database. The guide further clarifies: “Performing a revert operation followed by an installation only reverts device-level changes and does not revert policy packages.”

So C is incorrect because both layers are not reverted together. A and B are also incorrect because the documented and verified effect is specifically a modification of the device database, followed by install and, if needed, policy re-import for synchronization.

=========

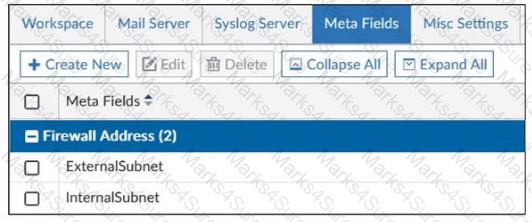

Meta fields in FortiManager can be added to objects as custom attributes, allowing administrators to categorize and add additional information to firewall objects for easier management and identification.

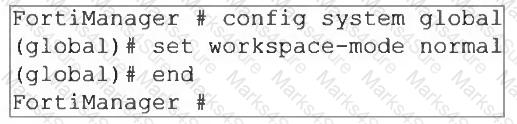

The command set workspace-mode normal enables Workspace (ALL ADOMs). The study guide explicitly states that with this mode, “Workspace (ALL ADOMs): All ADOMs can be locked” and that enabling workspace mode “Disables concurrent read/write access to locked items” with “Read/write access for only one administrator—all others have read-only access.” That directly proves D.

A is also verified by the lab guide, which states: “If an administrator locked one or more ADOMs, and then logs out of FortiManager, all of those ADOMs are unlocked.” The phrase “one or more ADOMs” confirms that the same administrator can lock more than one ADOM at the same time.

C is incorrect because approval is required only in workflow mode, not in workspace normal.

=========

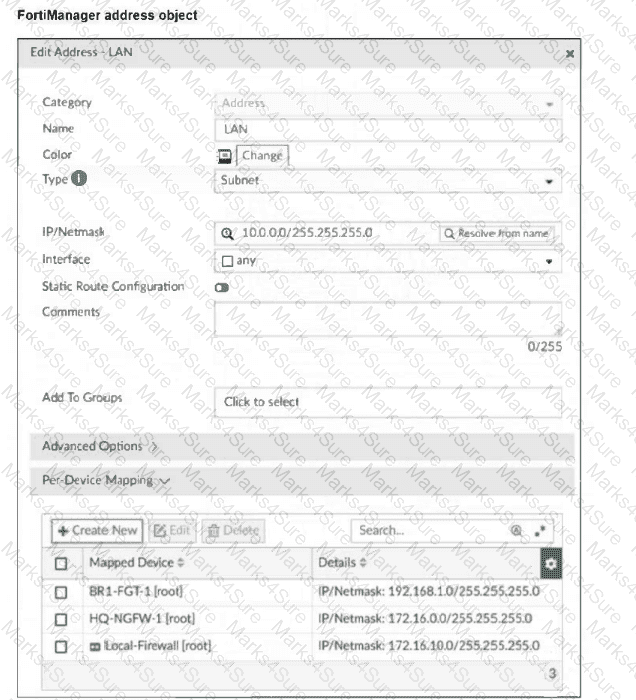

The correct answer is B. The LAN address object shown in the exhibit has a default value of 10.0.0.0/255.255.255.0, and it has per-device mappings only for BR1-FGT-1, HQ-NGFW-1, and Local-Firewall. There is no per-device mapping entry for Remote-Firewall.

The FortiManager 7.6 Administrator Study Guide gives the exact rule for this behavior: “The devices in the ADOM that do not have a dynamic mapping for LAN have a default value”. The same page also explains that dynamic objects let you map one logical object to unique values per device, but devices without a mapping use the object’s default definition.

Since Remote-Firewall is not listed in the Per-Device Mapping table, it inherits the default LAN value: 10.0.0.0/255.255.255.0.

=========

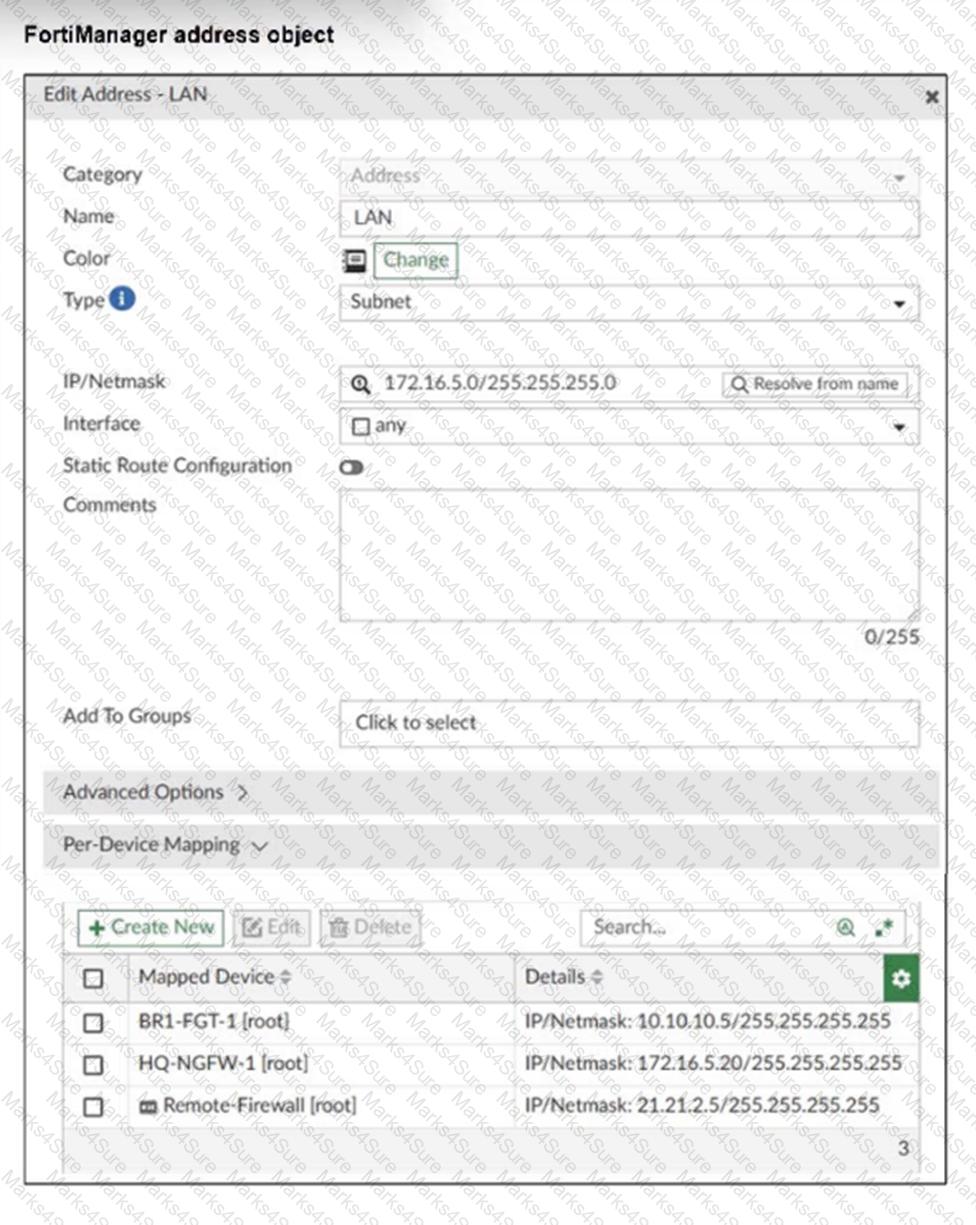

The exhibit shows the default value of the LAN address object as 172.16.5.0/255.255.255.0. It also shows Per-Device Mapping entries only for BR1-FGT-1 [root], HQ-NGFW-1 [root] , and Remote-Firewall [root]. There is no mapping shown for Remote-Firewall [VDOM1] .

The FortiManager 7.6 Administrator Study Guide gives the exact rule: “The devices in the ADOM that do not have a dynamic mapping for LAN have a default value.” It also states that dynamic mappings are configured per device in the Per-Device Mapping section.

Since Remote-Firewall [VDOM1] does not have its own mapping entry, it will use the object’s default value, which is 172.16.5.0/255.255.255.0.

FortiManager global policies and objects are shared across ADOMs, but they are not applied automatically to every package. The study guide states that when you create a global policy package, you can choose the ADOMs you want to apply it to, and you can even pick specific policy packages in individual ADOMs. That directly validates B.

A is also correct because the lab guide explicitly says you can promote ADOM objects to global objects by right-clicking an ADOM object and selecting Promote to Global.

C is incorrect because when Automatically Install Policies to ADOM Devices is enabled, FortiManager installs without giving you a preview/accept step first; the lab warns to use it only when you are sure of the changes.

D is incorrect because FortiManager imports device policies into an ADOM policy package, not into the global package for synchronization.

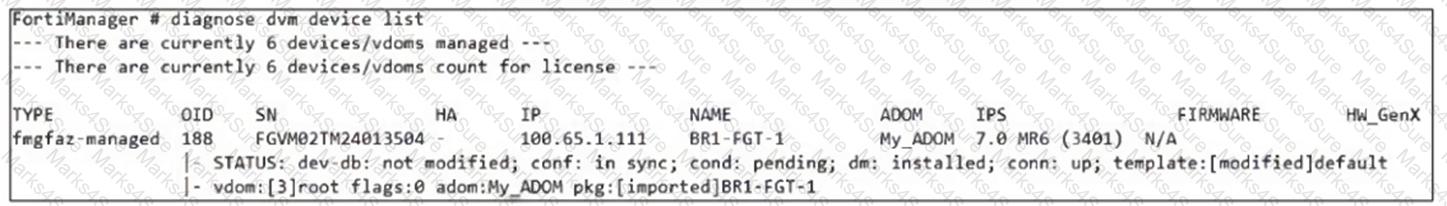

The output shows dev-db: not modified; conf: in sync, which means the device-level database is aligned with the latest revision history, so A is false. The study guide explains that “Synchronized / Auto-update: The latest revision history configuration entry … is aligned with the configuration on FortiGate,” and dev-db: not modified indicates the device-level settings are not changed on FortiManager.

For the policy layer, the output shows pkg:[imported]BR1-FGT-1. The study guide states “Imported: indicates that a policy package was successfully imported for a managed device,” so the policy package in FortiManager matches what was imported from the managed device context, making C correct.

D is also correct because the lab guide explicitly says “All Provisioning Templates applied on FortiGate devices have precedence over any configuration you apply on the device layer of the FortiManager.”

The correct answers are A and E. The study guide explicitly states under Database Integrity that scheduled backups “Automatically executes database integrity commands” and “Does not automatically make corrections”. That exactly verifies A.

It also states in Best Practices—Database Integrity: “Always follow the proper upgrade path” and “If you don’t, it may cause inconsistencies in the database.” That exactly verifies E.

B is incorrect because diagnose dvm check-integrity verifies and corrects device manager database issues such as device states, memberships, lock statuses, and duplicate VDOM entries, not a corrupted file system. C is incorrect because locked device status issues are listed under diagnose dvm check-integrity, not diagnose cdb check adom-integrity. D is not a stated FortiManager best practice in the uploaded guide.

In backup mode, FortiManager does not directly manage policy installation via the usual ADOM policy packages; instead, administrators use FortiManager scripts to push configuration changes, including policies, to FortiGate devices.

The command set workspace-mode normal enables Workspace (ALL ADOMs). The study guide states that in this mode “All ADOMs can be locked” and workspace mode lets administrators lock ADOMs, devices, policy packages, and objects. The lab guide then gives the exact behavior for ungraceful session closure: “If a session is not closed gracefully … FortiManager does not close the administrator session until it times out or the session is deleted. Until this time, the ADOM remains in a locked state.” That directly proves A.

C is also verified by the lab guide statement: “If an administrator locked one or more ADOMs, and then logs out of FortiManager, all of those ADOMs are unlocked.” The phrase “one or more ADOMs” confirms the same administrator can lock multiple ADOMs at once.

D is a workflow mode approval concept, not workspace normal.

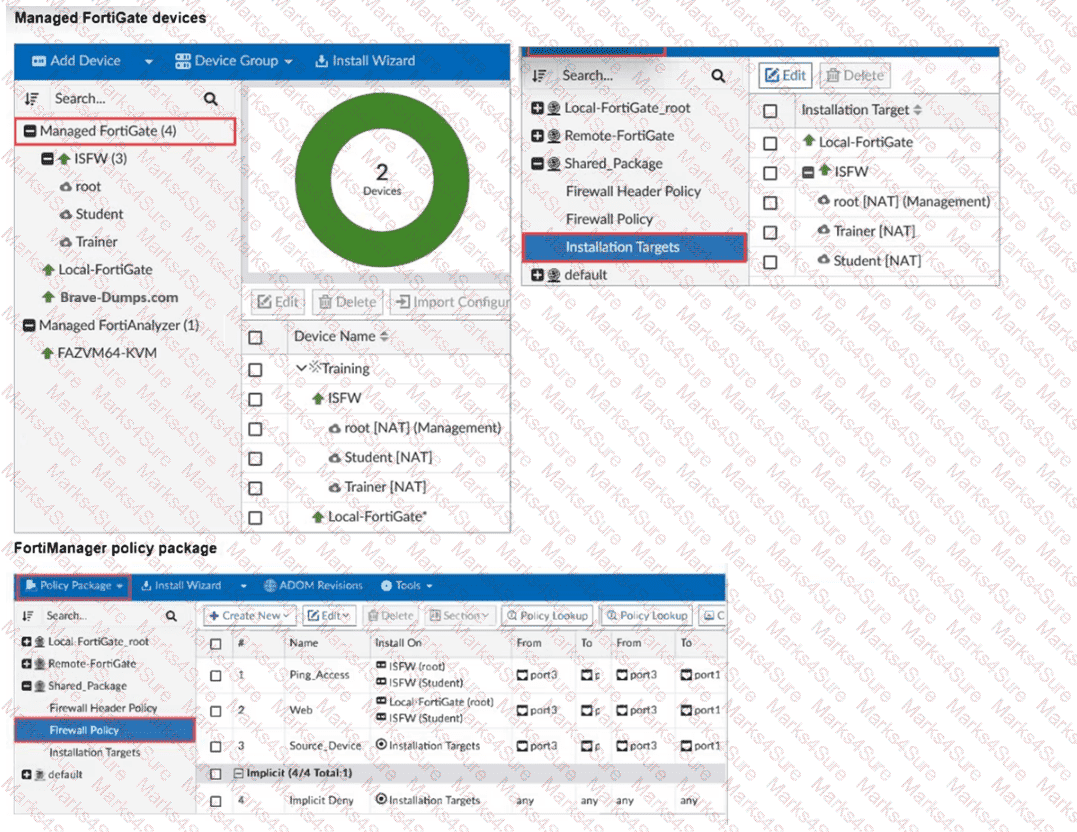

The best conclusion is A. From the exhibit, B is clearly incorrect because policy sequence #1 Ping_Access is targeted to ISFW root and ISFW Student, not to root NAT and Trainer NAT. Also, C is incorrect because FortiManager allows a rule to inherit Installation Targets. The study guide explains that a policy package can target one or more devices or VDOMs, and the Install On column is used only for per-rule exceptions in a shared policy package. A rule does not need explicit devices listed if it is meant to apply to the package’s installation targets.

D is also incorrect because global header policies are created in the Global Database ADOM and placed at the top only when a global package is assigned. The exhibit shows a shared policy package, not a global ADOM header-policy assignment.

=========

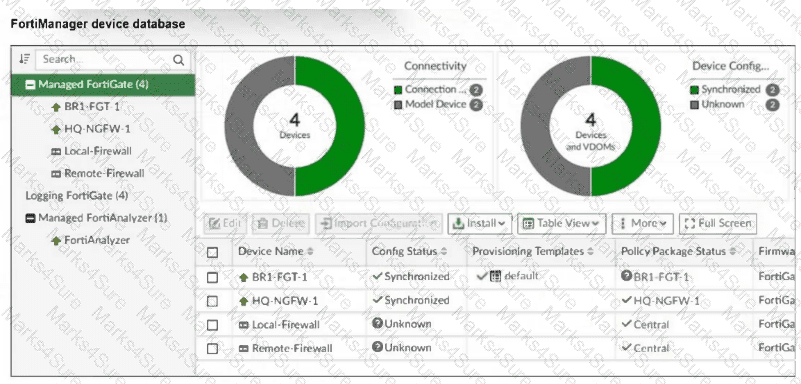

The correct conclusion is D. The FortiManager 7.6 Administrator Study Guide defines Never Installed as a state where the policy package was never created and was never imported for a managed device. That means FortiManager may already know the device itself at the device layer, but the firewall policy layer has not yet been built for that device.

The lab guide confirms this behavior directly: when you choose Import Later in the Add Device wizard, the policy package status becomes Never Installed because there is still no policy package created for the added FortiGate devices.

So this is not a revision-history issue, and it does not mean ADOM policy changes are merely waiting for first install. It means the policies still exist only on the managed device side until they are imported into a FortiManager policy package.

=========

FortiManager helps with mass provisioning by using templates that allow administrators to configure the same settings on multiple FortiGate devices simultaneously, streamlining deployment and management.
