Free Practice Questions for the Fortinet NSE 6 Network Security Specialist NSE6_FNC_AD-7.6 Exam (2026 Updated)

Questions no:9

Verified Answer: B

Comprehensive and Detailed 250 to 300 words each Explanation with Exact Matched Extract from FortiNAC-F Administrator library and documentation for current versions (including F 7.2, 7.4, and 7.6) documents:

In FortiNAC-F, the integration with FortiGate for Security Fabric and Single Sign-On (FSSO) allows the system to communicate the access level of an endpoint directly to the firewall usingfirewall tags. This eliminates the need for complex VLAN steering in some environments by allowing the FortiGate to apply policies based on these dynamic tags instead of just a physical or virtual network segment.

The actual assignment of the firewall tag value occurs within aLogical Network. In the FortiNAC-F architectural model, a Logical Network acts as a container for " Access Values " . When an administrator configures a Logical Network (located underNetwork > Logical Networks), they define what that network represents—such as " Corporate Access " or " Contractor Limited " . Within that definition, they assign the specificFirewall Tagthat matches the tag created on the FortiGate. Once a user or host matches aNetwork Access Policy, FortiNAC-F identifies the associated Logical Network and pushes the defined tag to the FortiGate via the FSSO connector.

It is important to note that whileNetwork Access Policies(and by extensionSecurity Rules) are the logic engines thattriggerthe assignment, they do not hold the tag value itself. They simply point to a Logical Network, which serves as the central repository for that specific access configuration.

" To assign firewall tags, navigate toNetwork > Logical Networks. Select the desired logical network and clickEdit. Under theAccess Valuesection, selectFirewall Tagas the type and enter the tag name exactly as it appears on the FortiGate. When a Network Access Policy matches a host, FortiNAC sends this tag to the FortiGate as an FSSO message. " —FortiNAC-F Administration Guide: Logical Networks and Security Fabric Integration.

In a1+1 High Availability (HA)deployment, FortiNAC-F supports two primary methods for management access: individual IP addresses or aShared IP Address(also known as a Virtual IP or VIP). The Shared IP option is part of aLayer 2 HAdesign, which simplifies administration by providing a single URL or IP that always points to whichever appliance is currently in the " Active " or " In Control " state.

For a Shared IP configuration to function correctly, thePrimary and Secondary administrative interfaces (port1) must be on the same subnet. This requirement exists because the Shared IP is a logical address that is dynamically assigned to the physical interface of the active unit. Since only one unit can own the IP at a time, both units must reside on the same broadcast domain (Layer 2) to ensure that ARP requests for the Shared IP are correctly answered and that the gateway remains reachable regardless of which unit is active. If the appliances were on different subnets (a Layer 3 HA design), a shared IP could not be used because it cannot " float " across different network segments; instead, administrators would need to manage each unit via its unique physical IP or use a FortiNAC Manager.

" For L2 HA configurations, click theUse Shared IP Addresscheckbox and enter the Shared IP Address information...If your Primary and Secondary Servers are not in the same subnet, do not use a shared IP address.The shared IP address moves between appliances during a failover and recovery and requires both units to reside on the same network. " —FortiNAC-F High Availability Reference Manual: Shared IP Configuration.

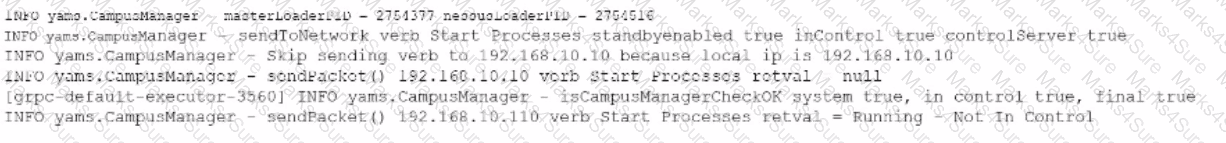

The correct answer is D . The log output shows the local IP address as 192.168.10.10 , which the question identifies as the primary FortiNAC-F server. In the same output, FortiNAC-F reports inControl true and controlServer true , which means the local primary server is currently the control server. The line showing communication to 192.168.10.110 returns Running - Not In Control , confirming that the secondary server is alive but is not the active controlling node.

This matches FortiNAC-F 1+1 HA behavior. The study guide describes a 1+1 HA pair as an active-passive deployment where one FortiNAC-F device is designated primary and the other secondary. Database and configuration synchronization keep the devices aligned, but only one server is in control at a time. If the primary fails, the secondary assumes control automatically; otherwise, the primary remains the active control server.

Option A is wrong because the secondary explicitly reports Not In Control . Option B is wrong because the output does not show database replication failure. Option C is wrong because failover is not in progress; the output shows a stable state where the primary is in control and the secondary is running as the passive node.

The correct answer is C . In FortiNAC-F Manager clustering, the active cluster management role is the leader role, and other cluster members operate as worker nodes. Fortinet’s FortiNAC-F 7.6 Manager Cluster Guide states that when a worker is promoted to leader during automatic transition, the original leader becomes a worker node when it comes back online. It also explains that a cluster has one leader and can have multiple workers, with leader/worker roles used for cluster management and heartbeat exchange.

So, if the cluster manager becomes non-responsive and another node takes over leadership, the recovered manager does not automatically reclaim the leader role. It rejoins as a worker node. Option A is wrong because recovery does not automatically remove it into a standalone group. Option B is wrong because automatic return to the previous manager/leader state would create instability and possible split-brain behavior. Option D is wrong because “standby” is not the role described for FortiNAC-F Manager clustering in this context; the documented cluster roles are leader and worker.

FortiNAC-F requires both source-device recognition and a parser capable of interpreting the vendor-specific syslog structure .

First, the sending device must be modeled in Network > Inventory using the IP address that FortiNAC-F will see as the source of the messages. The FortiNAC-F 7.6 Administrator Study Guide explicitly states that a security device sending alerts must be modeled in Inventory using the source IP address. This prevents FortiNAC-F from accepting arbitrary syslog/security-event traffic from unrecognized sources.

Second, because the vendor is unknown or unsupported, the administrator must create a custom Security Event Parser under System > Settings > System Communication > Security Event Parsers . The guide states that adding a new parser enables support for virtually any device producing CSV, CEF, or Tag/Value-formatted syslog .

After modeling the device, its Incoming Events setting is associated with the appropriate parser.

Option A is unrelated to security-device integration. Option C is incorrect because Log Receivers define external destinations that receive FortiNAC-F-generated logs; they do not configure inbound syslog processing.

Study Guide Reference: Security Device Integration and Automated Response – Integration Using Syslog Messages; Security Event Parsers , pp. 316–318, 338–339 .

The correct answer is A . In FortiNAC-F, device profiling rules are used primarily to classify unknown or untrusted devices when they are first discovered. The study guide explains that when a device does not already exist in the database, FortiNAC-F adds it, treats it as a rogue, and evaluates it against enabled device profiling rules. It also states that devices are initially evaluated against device profiling rules only if they do not already exist in the database, because this avoids unnecessary repeated evaluation of known devices.

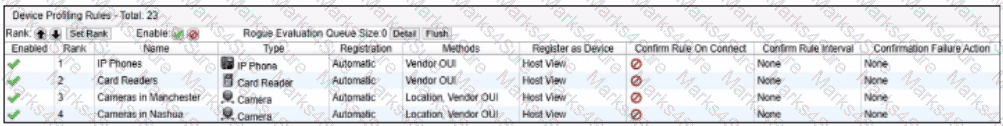

The exhibit also matters: the rules are enabled and set to Automatic registration, but Confirm Rule On Connect is not enabled and Confirm Rule Interval is set to None . That means FortiNAC-F will not automatically revalidate already-profiled or trusted devices every time they connect. Option B is wrong because trusted devices are not repeatedly evaluated unless rule confirmation is configured. Option C is too broad because all hosts are not processed through profiling rules on every connection. Option D is also wrong because changing location does not by itself force automatic device profiling; location can be used as a rule method, but the automatic evaluation described here applies when the rogue device is initially added to the database.

The process of moving a host from aRegistration VLANto aProduction VLAN(Access VLAN) is a fundamental part of the FortiNAC-F " VLAN steering " workflow. When a host successfully registers via the captive portal, FortiNAC-F evaluates its Network Access Policies to determine the correct VLAN. If the host remains stuck in the Registration VLAN despite a successful registration, it is typically due to port-level restrictions or the presence of other unregistered devices.

The two most common reasons for this behavior as per the documentation are:

The port default VLAN is the same as the Registration VLAN:If the " Default VLAN " field in the switch port ' s model configuration is set to the same ID as the Registration VLAN, the port will not change state because FortiNAC-F believes it is already in its " normal " or " forced " state.

There is another unregistered host on the same port:FortiNAC-F maintains the security posture of the physical port. If multiple hosts are connected to a single port (e.g., via a hub or unmanaged switch) and at least one host remains " Rogue " (unregistered), FortiNAC-F will generally keep the entire port in the isolation/registration VLAN to prevent the unregistered host from gaining unauthorized access to the production network.

Issues with agents (A, B) typically prevent a host from completing compliance or registration but do not usually result in a " stuck " statusafterregistration has already been marked as successful in the system.

" If a port is identified as havingMultiple Hosts, and those hosts require different levels of access, FortiNAC remains in the most restrictive state (Registration or Isolation) until all hosts on that port are authorized... Additionally, verify theDefault VLANsetting for the port; if the Default VLAN and Registration VLAN match, the system will not trigger a VLAN change upon registration. " —FortiNAC-F Administration Guide: Troubleshooting Host Management.

A FortiNAC-F port can belong to both Forced Registration and Forced Remediation system groups . These enforcement groups are not mutually exclusive and are not evaluated according to a ranking between the groups. Instead, FortiNAC-F determines the applicable enforcement according to the state of each host connected through that point of connection .

The Study Guide explicitly demonstrates overlapping enforcement membership: all Building 1 ports are members of Forced Registration , while second- and third-floor ports are additionally members of Forced Remediation .

FortiNAC-F then applies state-specific logic:

A rogue/unregistered host on the port satisfies Forced Registration and is moved to the Registration isolation network.

An at-risk host on the same port satisfies Forced Remediation and is moved to the Quarantine/Remediation isolation network.

The exhibit is particularly relevant because the highlighted port shows Multiple Hosts connected. Each host is evaluated independently according to its state, so different enforcement mechanisms can apply to different endpoints sharing that port.

Therefore, placing the port in both groups enables both types of enforcement , depending on the state of the connected hosts.

Study Guide Reference: State-Based Control → System Groups; Logic to Determine Isolation; Non-Normal Status Device Evaluation , pp. 212–214 .

Top of Form

Bottom of Form

In FortiNAC-F, theDevice Profileris a rule-based engine that evaluates unknown " rogue " devices and classifies them based on fingerprints and behavior. When a profiling rule matches a device, the administrator can configure the rule to automatically register that device. The registration process can place the device record in two primary locations: theTopology View(as a device) or theHost View(as a registered host).

According to theFortiNAC-F Administration Guide, registering a device in theHost Viewprovides significant advantages for identity management and historical tracking. First, the devices can beassociated with a user (C). In the FortiNAC database architecture, the Host View is the primary repository for endpoint identity; placing a profiled device here allows the system to link that hardware (MAC address) to a specific user account, whether that user is an employee, guest, or a system-level " owner " . This association is essential for Role-Based Access Control (RBAC) and for tracking accountability across the network fabric.

Second, devices registered in the Host View will haveconnection logs (B). FortiNAC-F maintains a detailed operational history for all host records, including every instance of the device connecting to or disconnecting from a port, its IP address assignments, and the specific policies applied during each session. These logs are invaluable for troubleshooting connectivity issues and for security forensic audits, as they provide a clear timeline of the device ' s lifecycle on the network. In contrast, devices managed only in the Topology View are typically treated as infrastructure components where the focus is on device availability rather than individual session history.

" Devices that are registered and associated with a user are placed in theHost Viewand removed from the Profiled Devices window... Placing a device in the Host View allows for the tracking ofconnection historyand the association of the device with a specificidentity or user recordwithin the FortiNAC database. " —FortiNAC-F Administration Guide: Device Profiler How it Works.

The correct answer is A . In a FortiNAC-F 1+1 HA deployment, failover from primary to secondary is automatic, but failback to the primary is not automatic . The study guide states that if the primary device or its network connectivity fails, the secondary assumes control automatically, but restoration of a failed-over HA deployment is a manual administrator-driven process. It further explains that after the cause of the failover is resolved, the administrator must use the Resume Control button to transfer control back to the primary server.

That means when the primary comes back online, it does not immediately take over again. The pair can resume HA communication, but the secondary remains the in-control node until an administrator deliberately returns control to the primary. Option B is wrong because FortiNAC-F 1+1 HA is active-passive, not load-balanced. Option C is wrong because the restored primary does not power itself down for maintenance. Option D is a trap: five failed heartbeats are used in failure detection and gateway validation logic, not as an automatic failback timer. The exam point is simple: automatic failover, manual failback .

The correct answer is C . The Port Changes view is the correct troubleshooting location when FortiNAC-F changes endpoint network access, such as moving a switch port into a different VLAN. The study guide states that any time FortiNAC-F changes network access for an endpoint, the change is documented in Network > Port Changes . This view shows the date and time of the change, whether a CLI configuration was executed, the reason for the change, the role or access policy that caused it, the port that was changed, and the VLAN the port was changed to.

This directly matches the troubleshooting requirement in the question: the administrator needs to know when the VLAN change happened and why FortiNAC-F made that network access decision. Option A , Security Event view, is used for security-related events, not detailed port-level VLAN-change history. Option B , Reports view, is too broad and not the operational audit trail for a specific access change. Option D , Admin Auditing, tracks administrative actions, but an automatic policy-driven VLAN assignment is documented under Port Changes, not primarily as an admin audit event.

In FortiNAC-F, the expiration of a guest or contractor account is determined by the configuration settings within theAccount Creation Wizardand the associatedGuest/Contractor Template. While a template can define a default " Account Duration " (as seen in the 12-hour setting in the second exhibit), theAccount Creation Wizardallows an administrator to manually specify or override the start and end parameters for a specific user session.

According to theFortiNAC-F Administration Guideregarding guest management, theAccount End Datefield in the creation wizard is the definitive timestamp for when the account object will be disabled or deleted from the system. In the provided exhibit (Account Creation Wizard), the administrator has explicitly set theAccount Start Dateto2025/09/12 08:00:00and theAccount End Dateto2025/09/13 17:00:00.

Even though the template indicates an " Account Duration " of 12 hours, this value typically serves as a pre-populated default. When a manual date and time are entered into the wizard, those specific values take precedence for that individual account. The account will remain active and valid until5:00 PM (17:00:00)on the following day,2025/09/13. It is also important to note the " Login Availability " from the template (8:00 AM - 7:00 PM); while the accountexistsuntil the 13th at 17:00:00, the user would only be able to authenticate during the active hours defined by the login schedule on both days.

" When creating an account, the administrator can select a template to provide default settings. However, specific values such as theAccount End Datecan be modified within theAccount Creation Wizard. The date and time specified in the ' Account End Date ' field determines the absolute expiration of the account. Once this time is reached, the account is moved to an expired state and the user ' s network access is revoked. " —FortiNAC-F Administration Guide: Guest and Contractor Account Management.

The correct answer is A . FortiNAC-F Manager provides global visibility by collecting user and endpoint visibility information from the FortiNAC-F devices it manages, creating a centralized repository of users, hosts, and adapters. The study guide describes this as a global visibility function where endpoint information received by the Manager includes the local FortiNAC-F device from which the information came, allowing administrators to search and filter endpoint records across managed systems.

The key point is that this is not a real-time host-status trigger. Fortinet’s FortiNAC-F Manager documentation states that FortiNAC Manager controls host and user record replication between managed FortiNAC CA servers and initiates synchronization every five minutes between servers. It also states that global object synchronization uses an interval-based process, not an administrator manually synchronizing each CA for endpoint visibility.

Option B is wrong because host status changes are not treated as immediate real-time updates to every managed FortiNAC-F database. Option C is wrong because manual synchronization applies to global/shared configuration objects, not routine endpoint visibility updates. Option D is wrong because the mechanism is not a CA-side scheduled push to the Manager; the Manager-controlled synchronization/collection process is what maintains the shared endpoint view.

The correct answer is A . FortiNAC-F passes firewall tags to FortiGate through Security Fabric integration so FortiGate can use those values as dynamic address groups in firewall policies. The study guide explains that firewall tags are administrator-defined string values and that FortiNAC-F dynamically assigns them based on a security policy or logical network. More specifically for network access enforcement, it states that the network access configuration defines the logical network , and the logical network defines the firewall tag through the device model configuration .

This is the same mechanism used in VPN and Fabric workflows: the FortiGate device model contains the mappings of logical networks to the actual tags or groups that FortiNAC-F sends to FortiGate. The guide states that FortiNAC-F network access policies and logical networks determine the group or tag information, while the FortiGate model configuration contains the mappings used for the values sent.

Option B is not the best answer because a device profiling rule can classify a device and may cause it to match a policy, but it does not directly define the FortiGate tag value sent for policy enforcement. Option C can apply firewall tags in security automation scenarios, but the standard FortiGate dynamic address group mapping is defined in model configuration. Option D is unrelated; RADIUS attributes are used in RADIUS access responses, not FortiGate Fabric tag propagation.

TheUser/Host Profileis the primary mechanism in FortiNAC-F for identifying and categorizing endpoints to determine their level of network access. According to theFortiNAC-F Administration Guide, a profile is built using a combination of criteria that define " Who " is connecting, " What " device they are using, and " Where " they are located on the network.

The three main categories of criteria available in the configuration are:

Host or User Attributes (B):This includes specific details such as the host ' s operating system, the user ' s role (e.g., Employee, Contractor), or custom attributes assigned to the record.

Host or User Group Memberships (A):Profiles can be configured to match endpoints that are members of specific internal FortiNAC groups or synchronized directory groups (like LDAP or Active Directory groups). This allows for broad policy application based on organizational structure.

Location (E):The " Where " component allows administrators to restrict a profile match to specific physical or logical areas of the network, such as a particular switch, a group of ports, or a specific SSID.

Criteria like an " applied access policy " (D) are theoutcomeof a profile match rather than a criterion used to define the profile itself. Similarly, the " Adapter current VLAN " (C) is a dynamic state that changes based on enforcement and is not a standard static identifier used for profile matching.

" User/Host Profiles are used to identify the hosts and users to which a policy will apply. Profiles are created by selecting various criteria in theWho/What(Attributes and Groups) andWhere(Locations) sections. Attributes can include Host Role, User Role, and OS. Group memberships allow matching based on internal or directory-based groups. Location criteria allow for filtering based on the device or port where the host is connected. " —FortiNAC-F Administration Guide: User/Host Profile Configuration.
