Understanding OSPF Roles:

In OSPF (Open Shortest Path First), routers can have different roles: Designated Router (DR), Backup Designated Router (BDR), and DROther. These roles help manage and optimize the OSPF network traffic.

DR and BDR are elected to minimize the number of adjacencies and reduce the amount of routing information exchange.

DROther routers are neither DR nor BDR but can still participate in the OSPF network by maintaining adjacencies with DR and BDR.

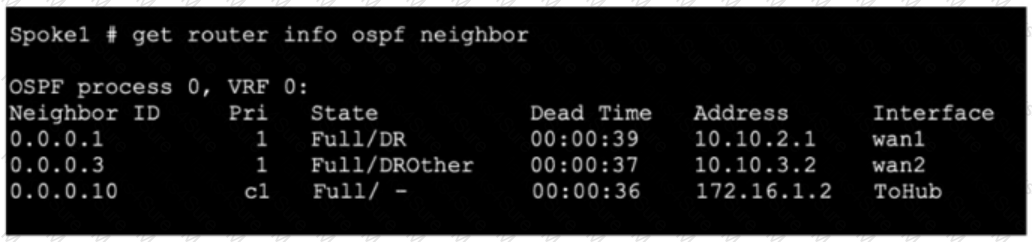

Analyzing the Exhibit:

The exhibit shows the OSPF neighbor states for the local FortiGate.

Neighbor ID 0.0.0.1 is in the state Full/DR (Designated Router).

Neighbor ID 0.0.0.3 is in the state Full/DROther (DROther).

Neighbor ID 0.0.0.10 has no specific designation, implying it is neither DR nor BDR.

Conclusion:

Since the local FortiGate shows neighbors in Full/DR and Full/DROther states and itself does not have a state of DROther, it can be concluded that the local FortiGate is not a DROther.

References:

Fortinet Community: Understanding OSPF roles and states​ ( Welcome to the Fortinet Community! ) ​​ ( cyruslab ) ​.

Fortinet Documentation: OSPF neighbor states and elections​ ( Fortinet Docs ) ​.

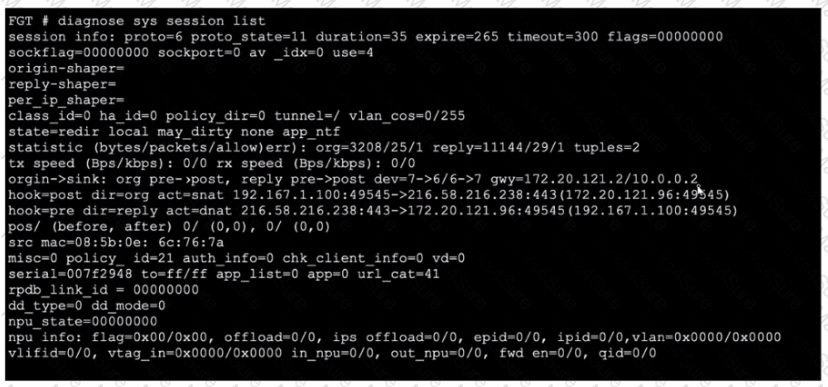

The session table entry provided shows detailed information about a specific network session passing through the FortiGate device. From the session details, we can see that the session has various attributes such as state, protocol, policy, and inspection details.

The session state ( proto_state=11 ) indicates that the session is being actively processed and inspected.

The npd_state=00000000 suggests that the session is being handled by the CPU rather than offloaded to a Network Processor (NP).

The session is marked for security profile inspection, evident from the detailed byte/packet counts and other session parameters.

From these indicators, it's clear that FortiGate is using its CPU to perform security profile inspection on this session rather than simply forwarding the traffic without inspection or relying solely on IPS inspection.

References

Fortinet Documentation on Session Table

Fortinet Community Discussion on Session Table

OSPF Interface Network Types :

The network types of the interfaces on both FortiGate devices must match. Common network types include broadcast, point-to-point, and non-broadcast multi-access (NBMA).

Authentication Settings :

Both devices must have matching authentication settings (if authentication is used). This includes the same authentication type (none, simple password, or MD5) and the same password or key.

OSPF Router IDs :

Each OSPF router must have a unique router ID within the OSPF domain. The router ID is typically an IPv4 address selected from one of the router's interfaces or manually configured.

Link Costs and Interface Priority :

While link costs and interface priorities are important for route selection and designated router (DR) elections, they do not prevent OSPF adjacency formation if they differ.

References

Fortinet Network Security 7.2 Support Engineer Documentation

OSPF Configuration Guides

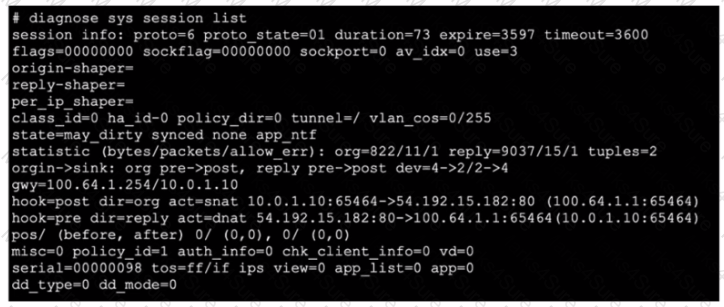

Session Synchronization:

FortiGate HA (High Availability) ensures that active sessions are synchronized between the primary and secondary devices. This synchronization allows for seamless failover and continuity of sessions.

Handling NAT Sessions:

The session in the exhibit has NAT applied, as indicated by the hook=post dir=org act=snat entry. FortiGate's HA setup is designed to handle such sessions, ensuring that traffic continues without interruption during failover.

Session Preservation:

Even with the presence of NAT, the session state is preserved across the HA devices. This means that ongoing sessions do not require re-establishment by the client, thus providing a seamless experience.

References:

Fortinet Documentation: HA session synchronization and failover

Fortinet Community: Understanding session synchronization in FortiGate HA

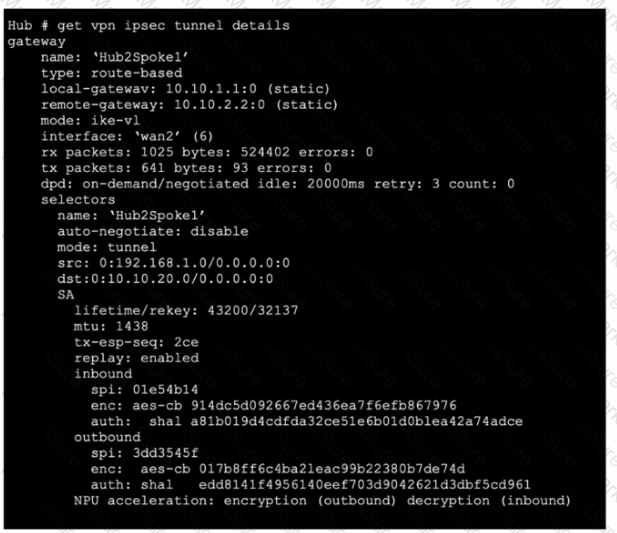

Anti-replay Enabled:

The exhibit shows replay: enabled , which confirms that anti-replay is enabled for this IPsec tunnel. Anti-replay is a security feature that prevents replay attacks by ensuring that packets are not duplicated or reused.

NPU Acceleration:

The NPU acceleration: encryption (outbound) decryption (inbound) line indicates that Network Processing Unit (NPU) acceleration is used.

The npu_flag for this tunnel is 02. This indicates that encryption and decryption are handled by the NPU, improving the performance of the VPN tunnel.

References:

Fortinet Community: Troubleshooting IPsec VPN Tunnels​ ( Welcome to the Fortinet Community! ) ​​ ( Welcome to the Fortinet Community! ) ​.

Fortinet Documentation: Verifying IPsec VPN Tunnels​ ( Fortinet Docs ) ​​ ( Fortinet Docs ) ​.

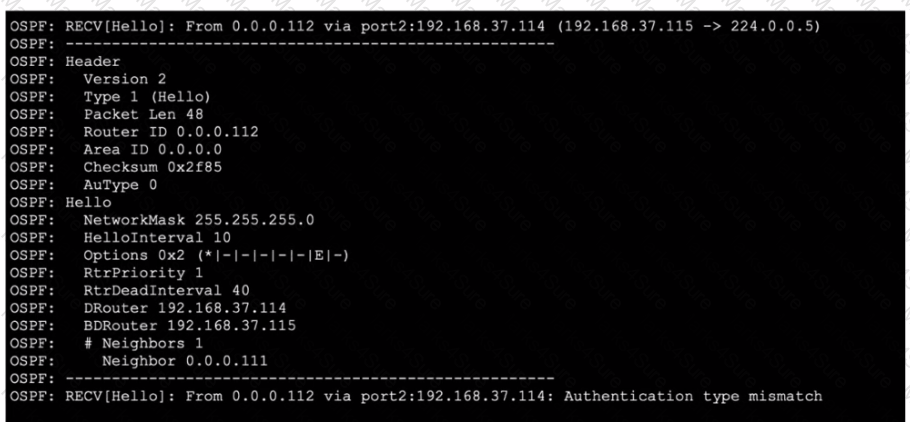

Examine the OSPF debug output :

The OSPF Hello packet debug output shows the Router ID as 0.0.0.112 .

It shows that the OSPF packet is being sent from 0.0.0.112 via port2:192.168.37.114 .

The OSPF Hello packet contains information such as the network mask ( 255.255.255.0 ), hello interval ( 10 ), router priority ( 1 ), dead interval ( 40 ), and designated router ( 192.168.37.114 ) and backup designated router ( 192.168.37.115 ).

Check the area configuration :

The area ID is shown as 0.0.0.0 , indicating that the two devices attempting adjacency are in area 0.0.0.0 .

Authentication mismatch :

The debug output indicates an "Authentication type mismatch". This means one device is configured to require authentication while the other is not.

Password configuration :

The statement claiming that "A password has been configured on the local OSPF router but is not shown in the output" is false because the output indicates an authentication mismatch, not the presence or absence of a password. The other statements are true based on the provided debug output.

References

Fortinet Network Security 7.2 Support Engineer Documentation

OSPF Configuration Guides

LDAP Authentication Process:

LDAP (Lightweight Directory Access Protocol) authentication involves several steps: Bind Request, Search Request, and Bind Response.

The Bind Request is used to authenticate the client to the LDAP server.

The Search Request is used to find the directory entry that matches the provided criteria.

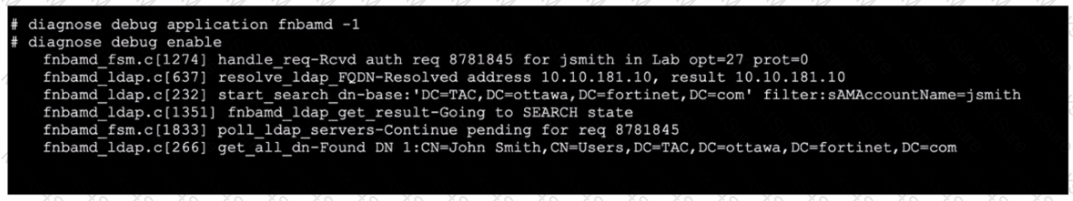

Analyzing the Exhibit:

The exhibit shows a real-time LDAP debug output.

The debug log includes a successful resolution of the LDAP FQDN, indicating that the LDAP server was reached.

The debug log also shows the start of a search using the distinguished name (DN) base and a filter to locate the user jsmith .

Conclusion:

Since FortiOS successfully resolved the LDAP server and initiated a search for the user jsmith , it indicates that the LDAP server was located, and the search request was performed.

References:

Fortinet Community: Understanding LDAP authentication steps and troubleshooting​ ( Fortinet Docs ) ​.

Fortinet Documentation: LDAP integration and debugging in FortiOS​ ( Welcome to the Fortinet Community! ) ​.

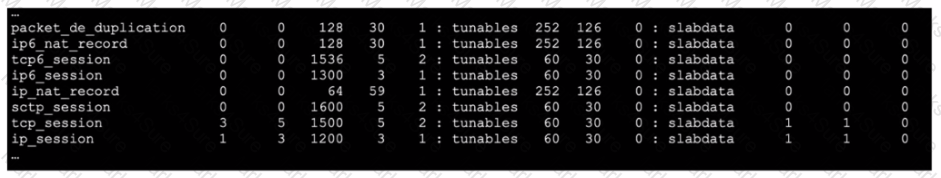

Kernel Slabs Overview:

The slab allocator in the Linux kernel is used for efficient memory management. It groups objects of the same type into caches, which are divided into slabs.

Each slab contains multiple objects and helps to minimize fragmentation and enhance memory allocation efficiency.

Interpreting the Exhibit:

The exhibit shows output related to various kernel slab caches.

The line for ip6_session indicates that there are 1300 kB allocated for this slab, which means the total memory size allocated for IPv6 session objects in the kernel is 1300 kB.

References:

Fortinet Community: Explanation of kernel slab allocation and usage​ ( Welcome to the Fortinet Community! ) ​​ ( Hammertux ) ​.

Linux Kernel Documentation: Slab Allocator details​ ( Hammertux ) ​.

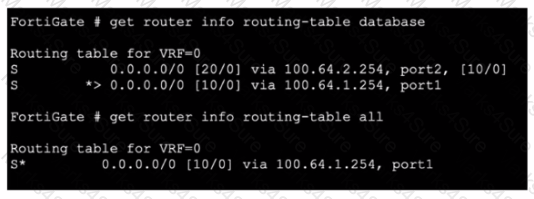

Routing Table Analysis:

The first command output ( get router info routing-table database ) shows two default routes:

One via port1 with a distance of 10 .

One via port2 with a distance of 20 .

The second command output ( get router info routing-table all ) only shows the route via port1 .

Administrative Distance:

The administrative distance (AD) is a measure used by routers to select the best path when there are multiple routes to the same destination. The lower the distance, the more preferred the route.

In this scenario, the route via port1 has a lower distance ( 10 ) compared to the route via port2 ( 20 ), making it the preferred route.

Route Selection:

Since the route via port1 has a lower distance, it is the only one installed in the active routing table, which is why it appears in the second command output, and the port2 route does not.

References:

Fortinet Community: Routing behavior depending on distance and priority​ ( Welcome to the Fortinet Community! ) ​​ ( Welcome to the Fortinet Community! ) ​.

Fortinet GURU: Route priority and administrative distance explanations​ ( Fortinet GURU ) ​.
