Free Practice Questions for the Fortinet NSE 7 Network Security Architect NSE7_SSE_AR-26 Exam (2026 Updated)

When referencing a zone in a static route, FortiGate’s behavior is described as: " Referencing a zone in a static route causes FortiGate to install a static route for each member interface of the zone. This enables ECMP (Equal-Cost Multi-Path) and load balancing where supported and ensures that traffic can be steered over any valid zone member according to SD-WAN rules or standard routing. " This mechanism is fundamental to Fortinet’s implementation of SD-WAN and simplifies large, multi-interface deployments.References: A deployment should preserve the distinction between the physical or logical WAN underlay, the IPsec overlay and the SD-WAN zone that groups forwarding members. These layers can have different routing and security-policy requirements. The configured architecture must also allow the required traffic paths and failover behavior rather than assuming every available interface is interchangeable. Before applying a topology change, review the interface dependencies, static and dynamic routing, security policies and provisioning templates. FortiGate can support multiple transport types, but routing and tunnel compatibility still determine whether the intended member is operationally eligible.

FortiSASE Secure Private Access enables protected communication between remote users, branch locations, and enterprise resources through FortiSASE security points of presence and FortiGate SPA hubs.

Option B is correct because SPA supports server-initiated communication from resources behind FortiGate SPA hubs to FortiClient agent-based remote users. This bidirectional capability requires appropriate From hubs security policies and routing.

Option D is correct because agent-based users can access private applications behind Fortinet Secure SD-WAN hubs. FortiSASE establishes IPsec overlays to the hubs, while BGP exchanges reachability information for protected networks.

Option E is correct because thin-edge locations and branch on-ramp devices can access private applications through FortiSASE. Fortinet explicitly documents access from FortiAP, FortiExtender, and branch on-ramp deployments to private networks through SPA.

Option A is incorrect because internet-bound traffic is principally associated with Secure Internet Access (SIA), rather than SPA.

Option C is not a standard SPA hub-to-hub service flow. SPA primarily connects FortiSASE users and edge locations with private resources behind SPA connectors. Inter-site traffic may use other supported SD-WAN or specifically configured inter-PoP paths.

The distinction is important: Fortinet documents thin-edge and branch-on-ramp access to private resources as a supported SPA use case.

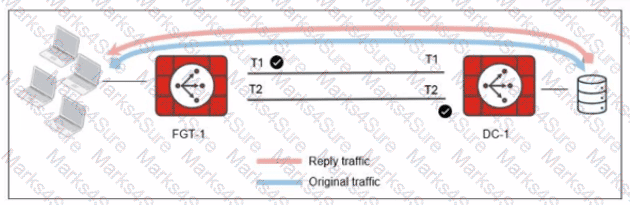

When asymmetric routing is observed (such as reply traffic not following the optimal path), the solution is: " The auxiliary-session feature, enabled under config system settings, allows FortiGate to consider multiple egress interfaces for reply traffic, not just the original ingress interface. This is crucial for SD-WAN environments where the best path may differ between forward and return directions, especially when performance or policy rules are dynamically evaluated. " Activating this ensures reply traffic is always sent on the member with the best real-time metrics.References: An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow. When troubleshooting, correlate the configured SD-WAN service with diagnose sys sdwan service4, the live session entry and the routing table. An application signature, an IP route and a health-check result describe different decision stages; treating them as interchangeable can produce incorrect conclusions about the egress interface.

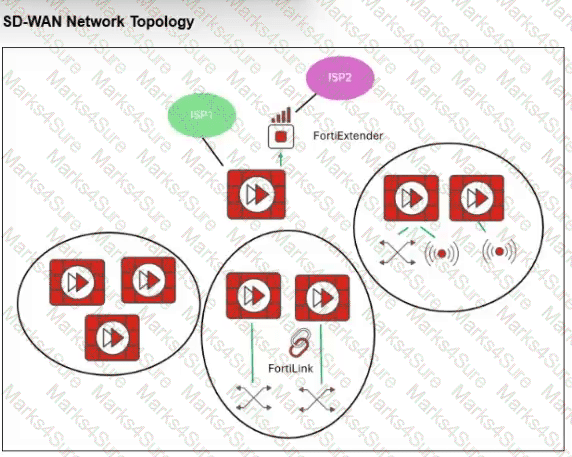

Fortinet Secure SD-WAN supports an integrated networking architecture in which FortiGate appliances provide routing, traffic steering, and security enforcement while extending connectivity through FortiSwitch, FortiAP, and FortiExtender devices.

Option C is correct because a FortiGate configured as an SD-WAN hub can also utilize FortiExtender connectivity. FortiExtender provides cellular WAN transport, including 4G and 5G connectivity, and can be integrated as a logical WAN interface and SD-WAN member.

FortiSwitch provides wired access-layer connectivity through FortiLink, while FortiAP extends wireless LAN access. These components are complementary and do not require separate SD-WAN topologies.

Option A is incorrect because FortiGate devices supporting multiple extension types remain eligible for inclusion in the SD-WAN architecture.

Option B is incorrect because SD-WAN topology design is not restricted to a single extension product category. Multiple Fortinet networking components can be centrally orchestrated within the same deployment.

Option D is incorrect because regional segmentation is determined by network architecture, geographical requirements, routing domains, and operational considerations—not simply the types of extensions attached to each FortiGate.

FortiManager can centrally manage FortiGate devices and associated extensions, applying consistent SD-WAN templates and provisioning policies across enterprise branches and hubs.

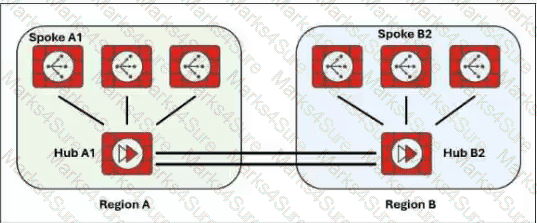

The described design is a multi-region SD-WAN architecture, where: According to Fortinet’s SD-WAN Architecture for Enterprise guidance, when deploying multiple ADVPN regions, eBGP is the recommended routing protocol between regions. Each region operates as an independent routing domain (typically iBGP within the region), while eBGP is used to exchange routes between regional hubs. This approach: This is explicitly documented in Fortinet guidance for “Using eBGP between regions with intra-region ADVPN”, which confirms that the architecture described in the question is valid and recommended when eBGP is used between regions. Why the other options are incorrect: Therefore, the correct and documented conclusion is that the plan is possible and eBGP should be used as the routing protocol between regions, which corresponds to Answer A. A deployment should preserve the distinction between the physical or logical WAN underlay, the IPsec overlay and the SD-WAN zone that groups forwarding members. These layers can have different routing and security-policy requirements. The configured architecture must also allow the required traffic paths and failover behavior rather than assuming every available interface is interchangeable.

FortiSASE proxy-based deployment provides cloud-delivered security inspection for browser traffic without requiring the full FortiClient endpoint agent.

Option C is a valid answer because SSL deep inspection allows FortiSASE to decrypt permitted HTTPS traffic and inspect the content for malicious files, suspicious destinations, and other security threats. Without TLS decryption, content-level inspection is limited because much of the application payload remains encrypted.

Option D is also valid because malware inspection and sandboxing capabilities help identify malicious files, including previously unknown threats. Antivirus inspection, cloud reputation analysis, and sandbox analysis contribute to preventing dangerous content from reaching protected endpoints.

Option A is not the intended answer because FortiSASE Secure Web Gateway is not a dedicated web application firewall. WAF primarily protects hosted applications against inbound application-layer attacks.

Option B requires an important qualification: Fortinet ' s official documentation confirms that FortiSASE also supports IPS. IPS is capable of identifying exploit signatures and blocking malicious traffic, including threats carried over web protocols.

Consequently, this question does not provide an entirely exclusive pair of technically valid capabilities. C and D are the intended answer combination, but B is also a genuine FortiSASE security capability. The wording is therefore insufficient to establish a unique pair purely from supported features.

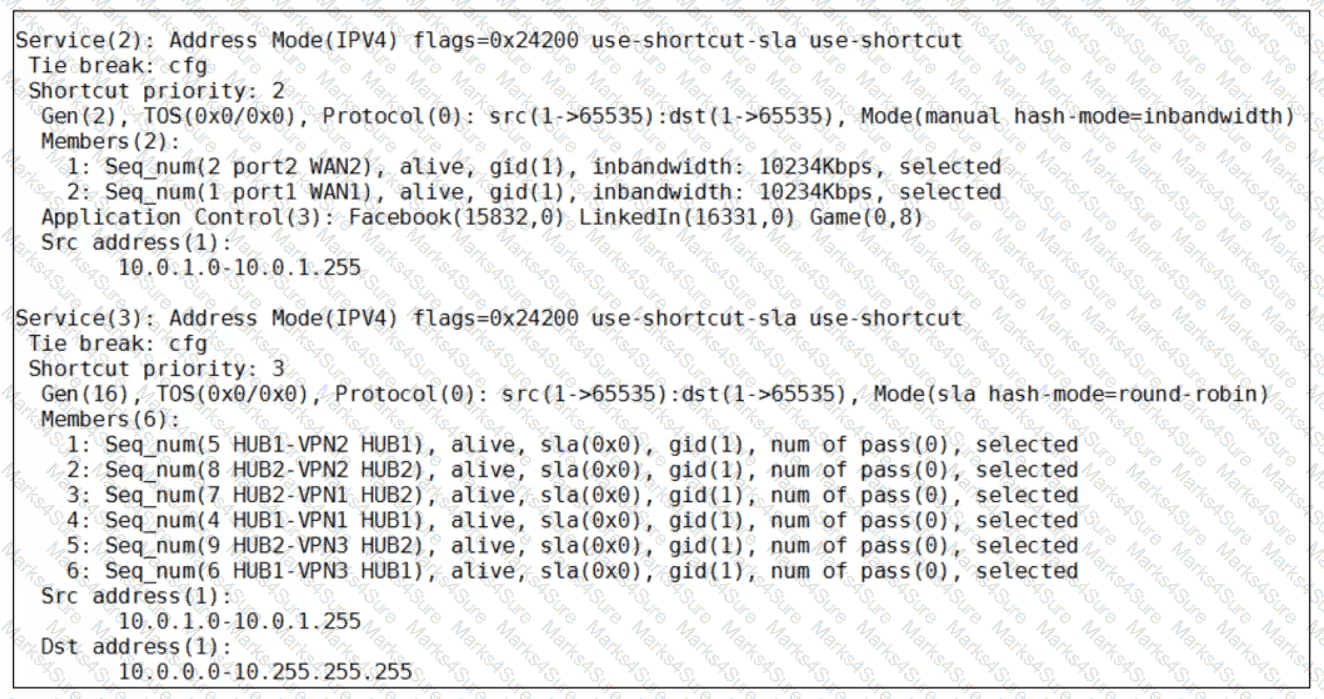

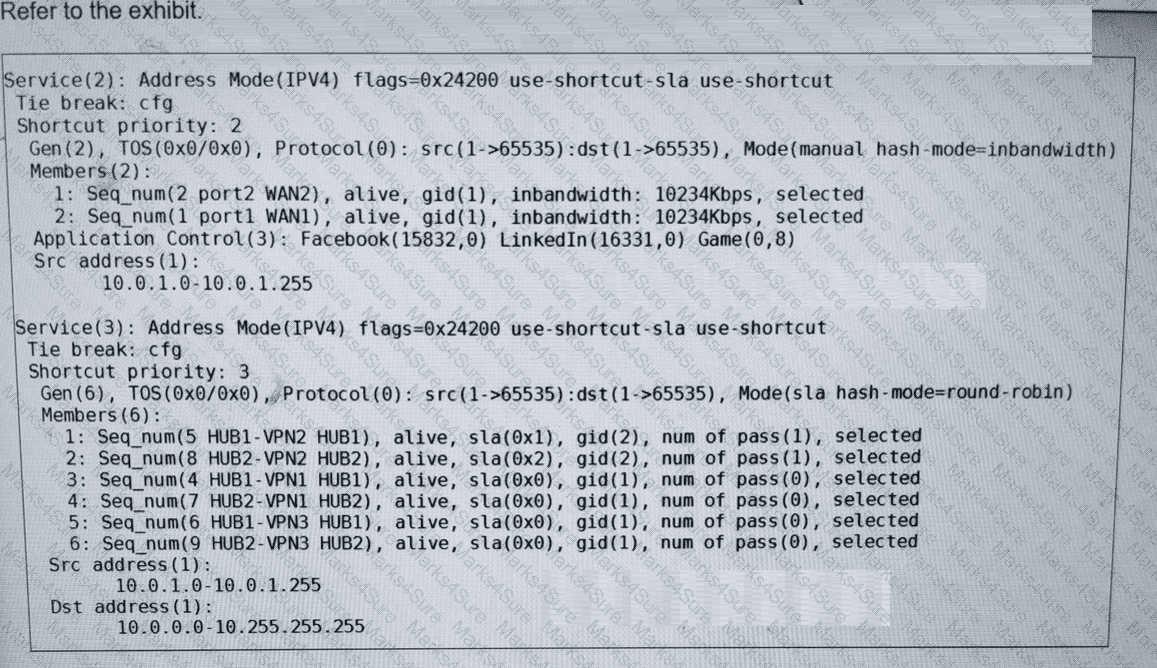

FortiGate evaluates SD-WAN traffic against configured service rules, considering source and destination addresses, application identification, performance SLA status, and eligible forwarding members.

Option D is correct because SMTP traffic matches SD-WAN service rule 3, which permits load balancing across six overlay interfaces belonging to the HUB1 and HUB2 zones.

Service 2: Although the source IP address 10.0.1.124 matches its configured source range, this rule specifies Facebook, LinkedIn, and gaming applications. SMTP traffic does not satisfy these application-matching criteria.

Service 3: The rule matches the following conditions:

Source: 10.0.1.0–10.0.1.255

Destination: 10.0.0.0–10.255.255.255

Strategy: Lowest Cost (SLA), with round-robin load balancing

Members: Six VPN interfaces across HUB1 and HUB2

The diagnostic output shows that all six members are alive and selected.

Although sla(0x0) and num of pass(0) indicate that none meets the configured SLA target, FortiOS can still load balance across the tied, operational members when all fail their SLA thresholds.

Therefore, FortiGate can distribute qualifying SMTP sessions among HUB1-VPN1, HUB1-VPN2, HUB1-VPN3, HUB2-VPN1, HUB2-VPN2, and HUB2-VPN3, assuming valid destination routes.

Options A and C incorrectly restrict the eligible interfaces, while option B disregards the matching SD-WAN service rule.

When using the diagnose sys session list command, SD-WAN-specific session steering is indicated by the presence of the sdwan_service_id field in the session data. This identifier ties the session directly to a specific SD-WAN rule or service. As noted in the Fortinet documentation: “Sessions that are handled according to SD-WAN rules will include a service ID tag (sdwan_service_id) in their session listing. This allows administrators to correlate live sessions with SD-WAN policy matches for troubleshooting and visibility.” This is a crucial diagnostic tool, as it distinguishes between traffic managed by traditional routing and that explicitly controlled by SD-WAN steering logic, aiding in operational insight and troubleshooting.References: FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault.

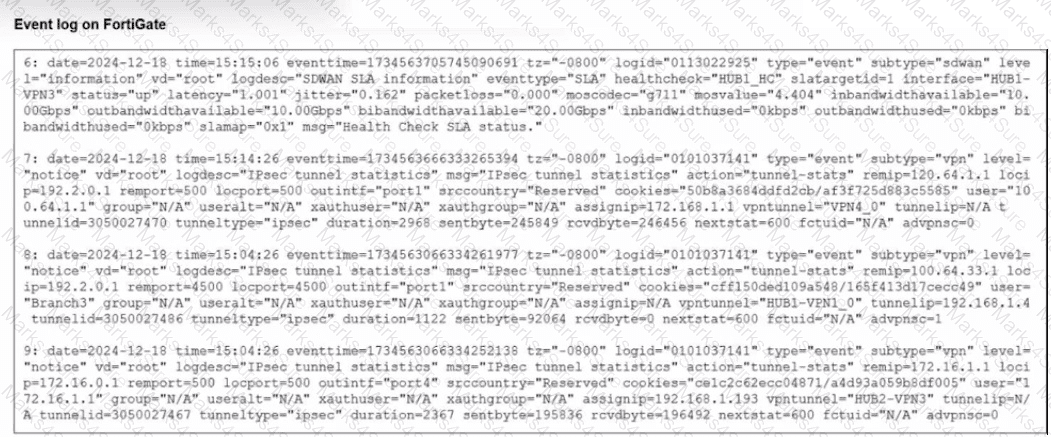

The event-log field advpnsc establishes whether the logged VPN tunnel is an ADVPN shortcut. The value advpnsc=1 identifies a shortcut, whereas advpnsc=0 identifies a non-shortcut event. The log for HUB1-VPN1_0 contains advpnsc=1, making the shortcut identification the directly supported conclusion. A different tunnel showing advpnsc=0 does not prove that its master tunnel cannot accept shortcuts. Application steering cannot be inferred from a VPN statistics event without the corresponding SD-WAN rule and session evidence. For ADVPN diagnostics, correlate vpntunnel, tunnelid, advpnsc and status messages. Reference: FortiOS 7.6 — ADVPN Shortcut Paths; Fortinet VPN log-field reference. FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault.

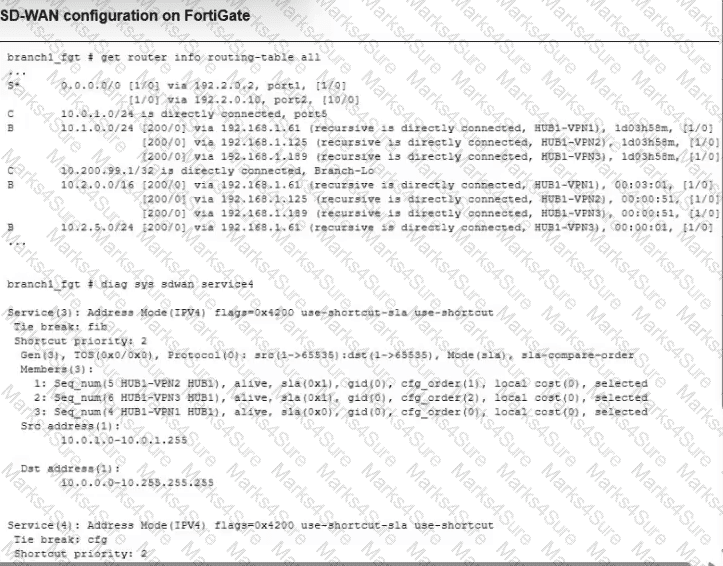

FortiGate SD-WAN traffic steering depends on both service-rule matching and routing-table reachability. A matching SD-WAN rule identifies eligible interfaces, but the selected member must also have a usable route toward the destination.

Option A is correct because service rule 3 matches the specified source and destination address ranges, and the routing table identifies HUB1-VPN3 as the route toward the corporate server subnet.

The source address 10.0.1.0/24 falls within the source range 10.0.0.0/8 , while destination 10.2.5.254 also falls within the configured destination range.

The exhibit identifies service rule 3 as an SLA-based service with multiple available overlay members. However, the route to 10.2.5.0/24 identifies HUB1-VPN3 as the reachable next-hop interface.

Although HUB1-VPN2 appears in the service ' s eligible member list, it does not provide the matching destination route shown in the routing table. Therefore, option B is incorrect.

Options C and D reference service rule 4 and physical WAN interfaces. They do not represent the selected corporate overlay path for the stated source and destination.

This demonstrates a fundamental SD-WAN behavior: matching a service rule does not eliminate the requirement for valid route resolution through its forwarding member.

According to the Fortinet SD-WAN 7.6 Core Administrator Study Guide, Routing and Sessions, page 193, FortiOS supports static routes referencing SD-WAN zones and individual member interfaces. However, duplicate destination routes cannot simultaneously reference a zone and one of its individual member interfaces.

Option A is correct: FortiOS requires the two static routes to have different destination prefixes. When a static route references an SD-WAN zone, FortiGate creates forwarding entries for the members belonging to that zone. Configuring an additional route with the identical destination prefix through an individual member creates a conflicting route definition.

Overlapping destination networks are permitted when their prefixes differ. For example, a zone-based route could reference 10.0.0.0/8, while a member-specific route references 10.2.0.0/16.

Option B is incorrect: Equal administrative distance does not resolve the duplicate-route restriction. ECMP is not a substitute for valid route configuration.

Option C is incorrect: FortiOS supports default static routes (0.0.0.0/0) referencing SD-WAN zones.

Option D is incorrect: SD-WAN members can include physical interfaces, VLAN interfaces, IPsec tunnels, and other supported interface types.

Therefore, the two static routes must have different destination prefixes, although overlapping networks are allowed.

Exact Source References:

Fortinet SD-WAN 7.6 Core Administrator Study Guide, pages 192–193 — Routing and Sessions.

FortiOS 7.6 Administration Guide — Adding a Static Route and SD-WAN Members and Zones.

After using the SD-WAN overlay template, two mandatory post-run tasks remain: " First, administrators must create and assign policy packages to branch devices, as security and access policies are not included in overlay templates. Second, SD-WAN rules must be configured so that traffic can be matched and steered appropriately through the established overlays. Neglecting either task results in ungoverned traffic or inefficient routing, undermining the benefits of SD-WAN. " Templates automate topology, but policy and rule definition are critical for operational effectiveness.References: FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault.

For FortiGate to steer traffic using SD-WAN rules, two foundational elements must be in place: available WAN paths (underlay links) and firewall policies that allow traffic to reach the SD-WAN interface. Underlay links (Option B) are mandatory because SD-WAN operates by selecting among multiple WAN transports (for example, broadband, MPLS, LTE, or IPsec tunnels). These links are configured as SD-WAN members and form the physical or logical paths over which traffic can be steered. Without underlay links, SD-WAN has no paths to evaluate or select. Firewall policies (Option E) are also mandatory because FortiGate only processes and forwards traffic that is explicitly permitted by a firewall policy. When SD-WAN is enabled, firewall policies must reference the SD-WAN interface or SD-WAN zone as the outgoing interface. If no such policy exists, traffic will not be forwarded and SD-WAN rules will never be evaluated. Why the other options are incorrect: Therefore, the two required features that must be configured before FortiGate can steer traffic according to SD-WAN rules are underlay links and firewall policies, which correspond to B and E.

FortiSASE supports federated identity authentication through Security Assertion Markup Language (SAML), enabling enterprises to integrate their existing identity providers into centralized secure access workflows.

Option C is correct because FortiSASE can function as a SAML service provider while delegating user authentication to an external identity provider such as Microsoft Entra ID, formerly Azure AD, Okta, or FortiAuthenticator.

During authentication, FortiSASE redirects or delegates the authentication exchange to the configured identity provider. After successful authentication, the identity provider issues a signed SAML assertion containing the identity information required by the service provider. FortiSASE validates the assertion and applies the appropriate access-control policies.

Option A is incorrect because SSO reduces repetitive authentication across supported services rather than requiring independent authentication for every security function.

Option B is incorrect because SSO does not eliminate identity verification. Authentication remains mandatory according to configured access requirements, and zero-trust policies may additionally assess endpoint posture and contextual conditions.

Option D is incorrect because the principal purpose of federated authentication is to leverage an established identity system rather than duplicate enterprise passwords within FortiSASE.

SSO simplifies administration while maintaining centralized identity governance, supporting secure internet and private application access.

FortiSASE Branch On-ramp provides a cloud-integrated connectivity method for branch networks that require centralized security enforcement without building a traditional enterprise WAN infrastructure at every location.

Option B is correct because Branch On-ramp enables supported branch routers and FortiGate devices to establish secure IPsec tunnels to FortiSASE security points of presence.

After establishing the connection, branch traffic can be inspected using cloud-delivered firewall and security services. The architecture reduces the need to deploy and maintain a complete set of security inspection capabilities at each remote site.

Branch endpoints generally forward traffic through their local IPsec device, which serves as the default gateway. FortiClient installation is not required solely for branch on-ramp connectivity.

Option A is incorrect because the primary architecture forwards selected branch traffic toward FortiSASE rather than limiting connectivity to direct local internet breakout.

Option C is incorrect because Branch On-ramp does not universally replace endpoint protection software. Endpoint security remains an independent requirement.

Option D is incorrect because application performance optimization is associated primarily with SD-WAN path selection and digital experience monitoring rather than the principal Branch On-ramp function.

The architectural objective is to simplify branch deployment while maintaining consistent security inspection and access policies across geographically distributed sites.

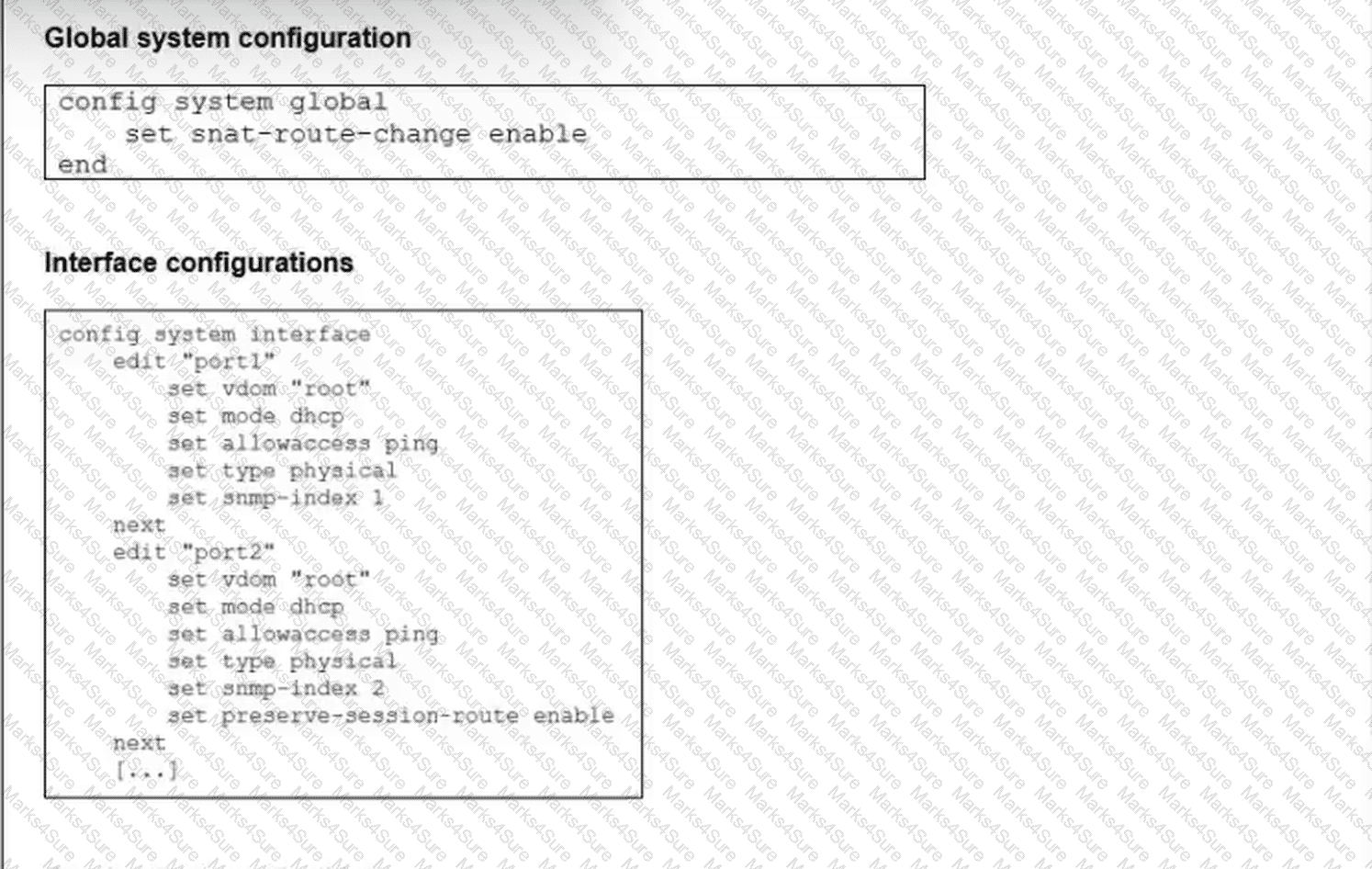

The exhibit combines static-route priority changes with interface-specific session-route preservation.

Initially, port2 provides the preferred default route with priority 1, while port1 has priority 10. Increasing port2 ' s route priority to 20 makes port1 the preferred path for new route selections.

Option C is correct because newly created sessions use the current routing table. Since port1 now has the better route priority, traffic matching the default route is forwarded through port1.

Option E is correct because the port2 interface has preserve-session-route enable configured. This setting preserves the original egress routing information associated with existing sessions, allowing them to continue through port2 while the previously selected route remains valid.

The global setting snat-route-change enable enables reevaluation of SNAT session routing when applicable routing changes occur. However, the configured session-route preservation requires special consideration and prevents the simplistic assumption that all established sessions must immediately migrate.

Option A incorrectly assumes that every SNAT session is necessarily moved to port1. Option B introduces an IP-pool dependency that does not determine the stated behavior. Option D incorrectly assumes all sessions are marked dirty and rerouted regardless of session preservation.

The key architectural distinction is between forwarding new sessions according to the revised route priority and preserving eligible established sessions on their original egress path.

The implicit SD-WAN rule serves as the final catch-all. In FortiOS operation: " Sessions matching the implicit SD-WAN rule do not have an SD-WAN service id, as they are not associated with any specific user-defined SD-WAN rule. Additionally, this occurs only when traffic fails to match any entry in the policy route table. This default handling guarantees connectivity while minimizing the risk of blackholed traffic. " Administrators can observe this in diagnostic outputs for troubleshooting. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow. When troubleshooting, correlate the configured SD-WAN service with diagnose sys sdwan service4, the live session entry and the routing table. An application signature, an IP route and a health-check result describe different decision stages; treating them as interchangeable can produce incorrect conclusions about the egress interface.

Fortinet ' s unified SASE architecture supports multiple methods of securing private application access, including identity-based Zero Trust Network Access and connectivity through Secure SD-WAN.

Option B is correct because ZTNA provides an application-centric alternative to traditional remote-access VPN architectures. Instead of providing broad network connectivity, ZTNA authenticates users, evaluates device security posture, and grants access only to explicitly authorized applications.

Fortinet ZTNA integrates identity verification, endpoint posture assessment, and application-specific security policies to reduce implicit trust.

Option C is correct because Secure SD-WAN enables encrypted and centrally managed connectivity between enterprise locations, cloud environments, and private resources. When integrated with FortiSASE, existing SD-WAN hubs can provide secure private application access through cloud security points of presence.

Option A is incorrect in this scenario because SD-WAN Branch On-ramp is primarily an ingress method for connecting branch networks to FortiSASE. Although it can participate in a broader private-access architecture, it is not the general VPN-replacement technology being tested.

Option D is incorrect because SWG and CASB primarily address internet and SaaS application security rather than providing the private network connectivity and application-specific access control required here.

ZTNA delivers granular access enforcement, while Secure SD-WAN supplies resilient and secure enterprise connectivity.

FortiSASE integrates FortiClient with its Endpoint Management Service (EMS) to provide centralized configuration, security enforcement, and remote-access connectivity. Managed endpoints receive configuration information through the Zero Trust Telemetry communication channel.

Option A is correct. FortiSASE supports automatic installation of its certificate authority certificate on managed FortiClient endpoints when SSL deep inspection is enabled. This allows endpoints to validate certificates issued during TLS inspection without requiring administrators to distribute the CA certificate manually. The important qualification is that automatic certificate deployment is associated with deep inspection; the default inspection mode is certificate inspection.

Option B is correct because FortiSASE centrally manages endpoint connection profiles, including the FortiSASE Cloud Security tunnel. FortiClient obtains the relevant connection parameters from its assigned endpoint profile, providing consistent VPN configuration and reducing administrative overhead.

Option C is incorrect because FortiSandbox integration requires appropriate endpoint-protection settings and licensing. The question does not establish that sandbox configuration is automatically deployed.

Option D is incorrect in the stated default configuration. Security posture tagging rules can be distributed to endpoints, but they must first be defined and enabled; their creation is not an automatic default onboarding action.

This distinguishes the standard connectivity provisioning workflow from optional advanced endpoint security configuration.

Hosting the hub at the MSSP centralizes installation, security, and ongoing management while each site (spoke) keeps local DIA. This can be done multi-tenant with a shared hub using a dedicated VDOM or with a fully dedicated hub per customer for stricter isolation and control, both meeting the requirement to delegate administration to the MSSP and support high inter-site traffic. A deployment should preserve the distinction between the physical or logical WAN underlay, the IPsec overlay and the SD-WAN zone that groups forwarding members. These layers can have different routing and security-policy requirements. The configured architecture must also allow the required traffic paths and failover behavior rather than assuming every available interface is interchangeable. Before applying a topology change, review the interface dependencies, static and dynamic routing, security policies and provisioning templates. FortiGate can support multiple transport types, but routing and tunnel compatibility still determine whether the intended member is operationally eligible.

FortiGate SD-WAN uses traffic-classification criteria to identify application flows and apply appropriate forwarding strategies based on business priorities and link-performance requirements.

Option C is correct because application categories can be used to identify traffic belonging to defined application groups. This capability enables administrators to steer business-critical applications through preferred WAN paths while directing less-sensitive traffic through alternative links.

Application-aware SD-WAN rules can use FortiGuard application identification to make forwarding decisions without relying exclusively on destination IP addresses or transport ports.

Option D is correct because the Internet Service Database provides predefined classifications for cloud services and internet applications. FortiGate can use ISDB objects in SD-WAN service rules to steer traffic toward destinations associated with services such as Microsoft 365 and other cloud applications.

Option A is incorrect because physical interface type is not one of the application or destination matching criteria represented by this question. SD-WAN members identify eligible forwarding interfaces, which is distinct from the traffic-classification criteria.

Option B is incorrect because BGP attributes influence routing decisions and route selection but are not directly equivalent to the application and ISDB matching criteria used by these service rules.

Together, application-category and ISDB matching provide granular, application-aware steering.

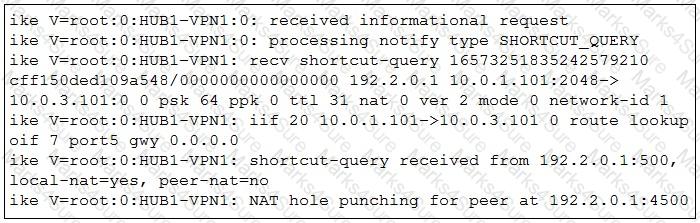

The IKE debug shows a receiving SHORTCUT_QUERY event and NAT hole punching, without an explicit forward shortcut-query record. This is consistent with a spoke receiving the shortcut-discovery query relayed by its hub over the existing spoke-to-hub tunnel. A hub-forwarder log would ordinarily include forwarding messages; the exhibit does not prove that a final spoke-to-spoke shortcut is already established. NAT hole punching is part of preparing connectivity when at least one endpoint is behind address translation, not proof that two established peers have completed negotiation. Therefore, the supported role is the destination spoke receiving a query via its hub. Reference: FortiOS 7.6 — ADVPN Shortcut Discovery and NAT Traversal. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow.

The exhibit shows the runtime details of two SD-WAN services (rules): Service(2) Service(3) Traffic from 10.0.1.124 to 10.0.0.254 matches Service(3) because the destination IP 10.0.0.254 falls within the destination range 10.0.0.0– 10.255.255.255. Within Service(3), the member list shows SLA results per interface: This indicates that, for Service(3), only HUB1-VPN2 and HUB2-VPN2 are currently meeting the SLA requirements (passing), and because the rule uses hash-mode=round-robin, FortiGate load-balances sessions across the passing members. Therefore, FortiGate will steer the traffic using HUB1-VPN2 or HUB2-VPN2, which corresponds to Option B. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow. When troubleshooting, correlate the configured SD-WAN service with diagnose sys sdwan service4, the live session entry and the routing table. An application signature, an IP route and a health-check result describe different decision stages; treating them as interchangeable can produce incorrect conclusions about the egress interface.

Verification qualification: SLA eligibility and routing-table reachability need confirmation; the two-member outcome depends on those conditions.

When you enable ADVPN (auto-discovery VPN) in the overlay template, FortiManager automatically updates both the IPsec and BGP templates on the hub so that shortcut tunnels can be established dynamically. ADVPN can be activated in the SD-WAN overlay template for any supported topology, including dual-hub primary–primary, not just single hub. A deployment should preserve the distinction between the physical or logical WAN underlay, the IPsec overlay and the SD-WAN zone that groups forwarding members. These layers can have different routing and security-policy requirements. The configured architecture must also allow the required traffic paths and failover behavior rather than assuming every available interface is interchangeable. Before applying a topology change, review the interface dependencies, static and dynamic routing, security policies and provisioning templates. FortiGate can support multiple transport types, but routing and tunnel compatibility still determine whether the intended member is operationally eligible. In the relevant Fortinet FortiOS documentation, the applicable feature should be verified against the deployed software version, the selected configuration mode and the live operational state before the answer is treated as a definitive implementation requirement.

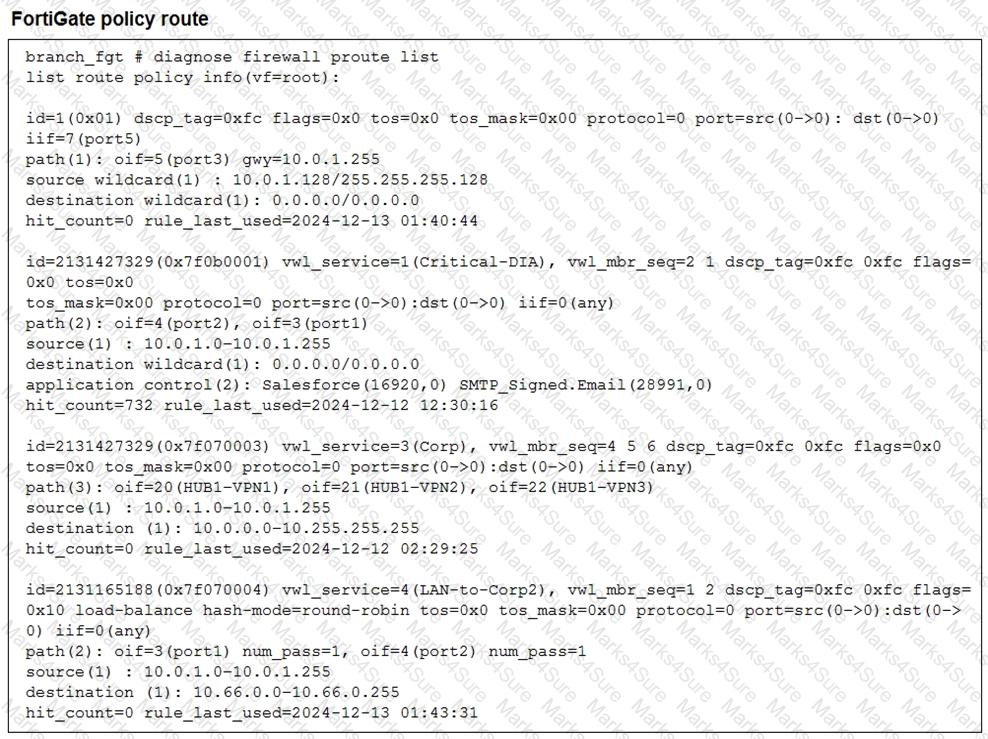

The policy-route output shows the matching SD-WAN service for destination 10.66.0.0/24 is vwl_service=4 (LAN-to-Corp2) with vwl_mbr_seq=1 2 and paths oif=3(port1) and oif=4(port2). Therefore, traffic from 10.0.1.133 to 10.66.0.125 is steered via SD-WAN member ID 1 or 2. FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault. In the relevant Fortinet FortiManager documentation, the applicable feature should be verified against the deployed software version, the selected configuration mode and the live operational state before the answer is treated as a definitive implementation requirement.

ADVPN enables dynamic spoke-to-spoke IPsec shortcuts that eliminate unnecessary transit through hub devices after the initial discovery and negotiation process. In this scenario, spokes A1 and B2 belong to separate hub-and-spoke groups, interconnected through redundant IPsec tunnels.

Option A is correct because spoke devices use auto-discovery-receiver on their hub-facing IPsec Phase 1 interfaces. This enables the spokes to receive ADVPN shortcut discovery information needed to establish a direct tunnel to another spoke. Fortinet ' s ADVPN configuration examples explicitly demonstrate this receiver role.

Option D is correct because the interconnected hubs must forward the relevant ADVPN discovery messages across their inter-hub IPsec tunnels. Enabling auto-discovery-forwarder allows discovery signaling to traverse the hub-to-hub connections so that spokes belonging to different regions can discover one another.

Option B reverses the standard spoke and hub discovery roles. The hub normally performs the sender role on its spoke-facing tunnels, whereas the spoke uses the receiver role.

Option C similarly assigns the receiver role to the wrong side of the hub-to-spoke relationship.

The essential distinction is between receiving shortcut discovery at the spokes and forwarding discovery information between the hubs.

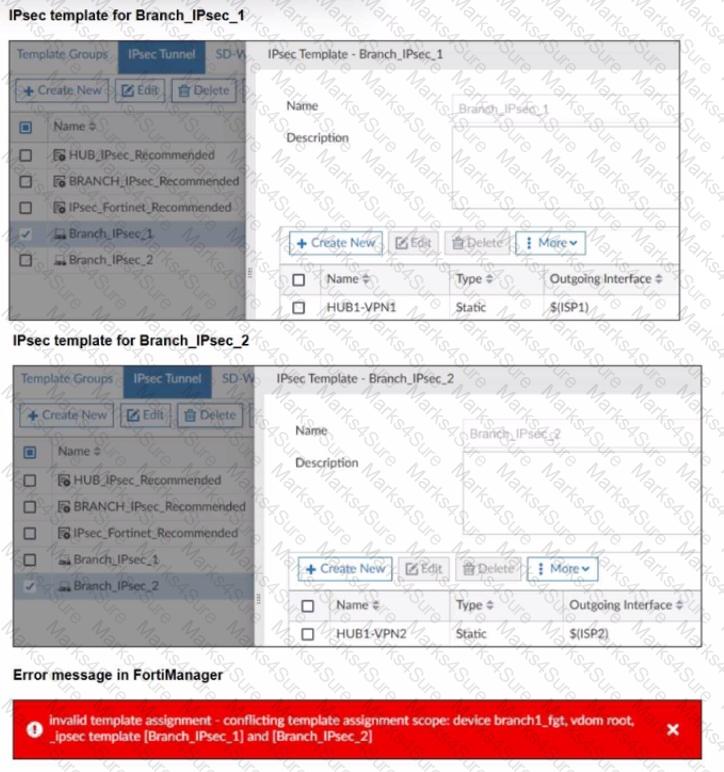

The FortiManager SD-WAN overlay system allows only one IPsec template to be assigned to each device per overlay operation. The guide clarifies: " If you attempt to assign more than one IPsec template to a FortiGate device for the same overlay type, FortiManager will display an error, preventing duplicate or conflicting tunnel configurations. This limitation ensures a one-to-one mapping between device and overlay template per operation, maintaining configuration integrity and preventing routing issues. " This prevents complex troubleshooting scenarios and enforces best practices for overlay design. FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault.

Security posture tags are a fundamental component of FortiSASE zero-trust access control. They allow administrators to classify endpoints dynamically according to security conditions and use those classifications in access policies.

Option B is correct because security posture tags can be referenced in policies that permit or deny access to applications and network resources. For example, an organization can allow access to a sensitive application only when an endpoint has an approved antivirus configuration and meets defined compliance requirements.

Option C is correct because posture tagging rules assess endpoint security attributes, including operating system information, installed software, antivirus status, running processes, and vulnerability conditions.

The evaluation process involves FortiSASE distributing tagging rules to FortiClient, FortiClient evaluating those rules locally, and the results being reported to FortiSASE. FortiSASE then dynamically applies the corresponding tags to the endpoint.

Option A is incorrect because posture tags are not primarily designed for continuous CPU, memory, or system resource monitoring.

Option D is incorrect because assigning endpoint profiles to user groups is a separate endpoint-management mechanism. Security posture tags classify device conditions rather than simply representing endpoint profile assignments.

This architecture enables continuous, context-sensitive policy enforcement without requiring administrators to manually update policies whenever an endpoint ' s compliance state changes.

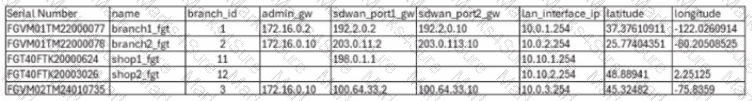

The CSV import process for FortiManager model devices requires the fields ' Serial Number ' , ' Device Blueprint ' , and ' Name ' . These are the mandatory identifiers used to create model devices and apply the appropriate initial provisioning configuration. In the exhibit, the missing device-blueprint field and an empty name for one device prevent a complete import. Options A and B are therefore the required corrections. Metadata values for addresses or user-defined variables may be included as additional columns, but they are not universally mandatory to import a model device. Consequently, options C and D impose requirements that depend on a subsequent provisioning template, not the CSV import itself. The selected blueprint must also be compatible with the target hardware platform. When deploying large numbers of devices, administrators should ensure serial numbers are unique, device names are valid and blueprint assignments resolve to templates and packages within the correct ADOM. The definitive FortiManager 7.6 import specification lists precisely those three required CSV columns; it does not impose a blanket requirement for every metadata variable to contain a value at import time.

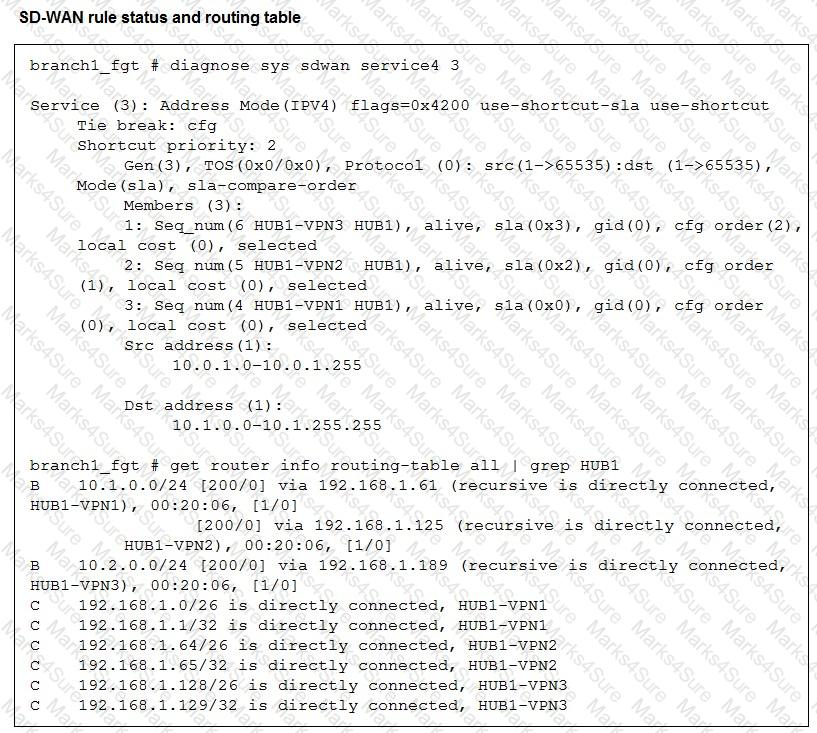

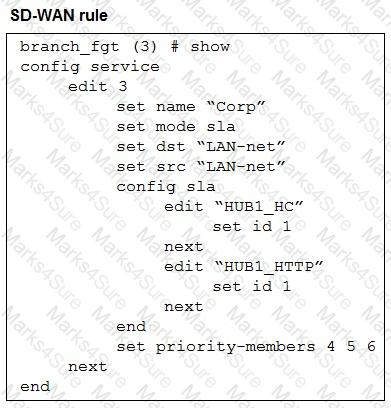

The rule is in SLA mode with two SLAs. From the status, HUB1-VPN2 and HUB1-VPN3 meet the SLA (sla(0x2) and sla(0x3)), while HUB1-VPN1 does not (sla(0x0)). Among members that meet SLA, FortiGate uses the configured order (priority-members 4 5 6) to pick the first eligible one—HUB1-VPN2—so traffic is routed over HUB1-VPN2. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow. When troubleshooting, correlate the configured SD-WAN service with diagnose sys sdwan service4, the live session entry and the routing table. An application signature, an IP route and a health-check result describe different decision stages; treating them as interchangeable can produce incorrect conclusions about the egress interface.
