OMG-OCEB2-FUND100 OMG-Certified Expert in BPM 2 - Fundamental Questions and Answers

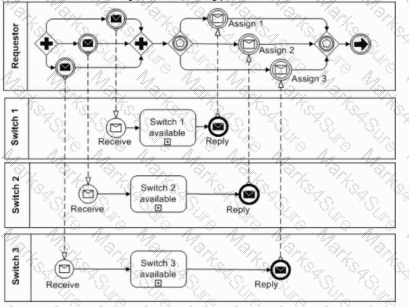

In the first diagram:

TheRequestorprocess sends a request message tomultiple switches(Switch 1, Switch 2, Switch 3), typically modeled using aparallel gatewayto broadcast the request.

EachSwitchlane has a process that:

Receivesthe request

Evaluates “Switch X available”

Sends areplymessage back to the Requestor if it is available

In the Requestor lane, anevent-based gateway(or similar construct) waits for thefirst replyindicating availability. Once one switch responds as available, the process assigns the work to that switch, and the other potential selections are effectively ignored or cancelled.

This structure—parallel requests out, first acceptable reply wins—is a classic“race for the first available resource”pattern in BPMN, where the goal is toroute the incoming request to whichever resource (switch) indicates availability first.

Evaluating the choices:

A.“Designate the unassigned switch…” – too vague and not specific to “first available”.

B.Emphasizes planning workloads, which is not modeled here.

C.Talks about a switch “allocated to a pending project,” which is not shown.

E.Focuses on status reporting back to the office, not on assigning work.

OnlyDcorrectly captures the intent of the process:assigning the incoming message to the first available switch.

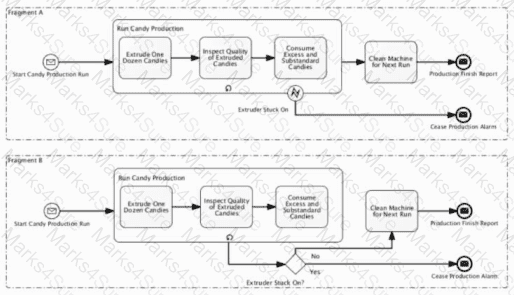

InFragment A,Run Candy Productionis a subprocess with aboundary eventlabeledExtruder Stuck Onattached to it.

According to BPMN 2.0:

A boundary event attached directly to an activity/subprocess is evaluatedwhile that activity is executing.

When it triggers (here, when the “Extruder Stuck On” condition occurs), itinterruptsthe subprocess (for an interrupting boundary event) and the normal internal flow stops. Control is redirected along the boundary-event’s outgoing sequence flow (toward the alarm/handling path).

So, in Fragment A, the first time the extruder gets stuck during the execution ofRun Candy Production, that subprocess is interrupted and the alternate flow (e.g., cease production alarm, possibly skipping remaining steps inside the subprocess) is taken.

InFragment B, the “Extruder Stuck On?” is modeled as anExclusive Gatewayafter the internal tasks (afterConsume Excess and Substandard Candies). That means:

The condition ischecked only when the token reaches that gateway, i.e., after finishing the last internal task.

If “Yes”, we follow the alarm/cease path; if “No”, we continue to the normal completion/cleaning path.

This is exactly what optionDstates.

Options A and C say the fragments have the same or inverted behavior, which contradicts the execution semantics of boundary events vs. gateways.

Option B incorrectly assumes the boundary event is specifically an Error Event and misstates the validity of Fragment A. The fragment is valid BPMN; the key difference iswhen and howthe stuck-extruder condition is handled, captured correctly only by optionD.

In BPMN, apublic (abstract) processshows only theexternal, message-based interactionsbetween a private (internal) business process and another participant. It hides the internal detailed flow and exposes just the communication behavior. That is exactly what optionBdescribes.

In BMM, the key nouns involved here are:

Influencer– something that can impact the organization (e.g., “rising jet fuel prices”).

Assessment– the organization’sevaluationorinterpretationof influencers (e.g., “this will hurt the airline’s business”).

Risk– a specific kind of negative potential impact identified by an assessment.

The scenario says:

“The chief economist… projects increasing costs for jet fuel andbelieves those costs will hurt the airline's business.”

Theincreasing jet fuel coststhemselves are theInfluencer.

Thebelief about its impact(“will hurt business”) is theevaluation of that influencer, which is precisely a BMMAssessment.

So, this belief is modeled as:An assessment.

(Option A,Risk, is related but more specific; the question focuses on the belief/evaluation itself, which is BMM’sAssessmentconcept.)

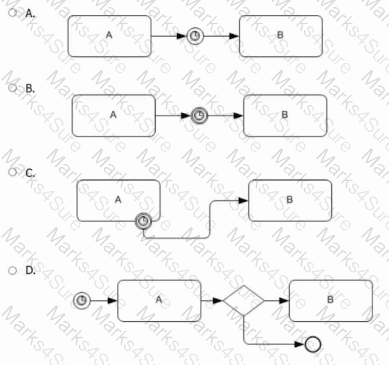

The requirement is:“after completing task A, wait one hour before starting task B.”

In BPMN:

ACatching Intermediate Timer Eventplacedin the normal sequence flowbetween two activities means:

Activity A completes.

The token arrives at the Timer Intermediate Event.

The timer waits for its specified duration (here, one hour).

Once the timer condition is satisfied, the token proceeds to Activity B.

Option Ashows exactly this pattern:

Task A → (Intermediate Timer Event) → Task B.

Why the others are not correct:

Option Bvisually suggests the timer isbeforeA or attached differently, not clearly expressing “after A, then wait, then B.”

Option Cuses aboundary timer eventon A. A boundary timer on A represents atimeout during A’s execution(e.g., if A takes longer than one hour, do something), not a guaranteed wait period after A finishes.

Option Dintroduces a gateway and an end event, implying alternate paths rather than a simple fixed delay between A and B.

Thus, the diagram that correctly models “after completing A, wait one hour, then start B” isOption A.

Smith and Fingar describe human-system interaction components as:

Workflow(routing, sequencing of human tasks)

Automation / work allocation

Task management(task lists, inboxes, lifecycle mgmt.)

Form-based data entry(human data interaction layer)

Option D is theexact matchto the classification provided inThe Third Wave.

The other options include unrelated BPMN elements or organizational metrics not used by Smith & Fingar.

As an enterprise becomesprocess-oriented, itsvalues and cultureshift in a way that aligns closely with OMG-style BPM principles and enterprise models:

The focus moves from“my job / my department”to“our end-to-end process and its performance”.

Performance recognition and incentives increasingly emphasizeprocess outcomes(cycle time, quality, customer satisfaction, compliance) rather than justindividual heroics or departmental metrics.

This is exactly whatOption Ccaptures:

From individual recognition to process excellence

The organization values:

Cross-functional collaboration

Shared ownership of process outcomes

Continuous improvement of processes themselves

Why the other options are incorrect:

A. From horizontal to vertical process structures– Process orientation is about goingfrom vertical (functional) to horizontal (process), not the other way around.

B. From process improvement to structured policies– Process orientation strengthens both, but the shift is towardcontinuous process improvement, not away from it.

D. From root cause analysis to individual department performance– This reverses the BPM logic; process organizations use root-cause analysis and deprioritize narrow departmental optimization.

So, the key value shift is towardprocess excellence over individual recognition, makingCcorrect.

===============

TheSarbanes–Oxley Act (SOX)of 2002 was enacted to restore public confidence in corporate financial reporting after major accounting scandals.

Itskey objectiveis:

To ensureexecutive accountabilityfor accurate financial reporting

CEOs and CFOs mustcertify the accuracyof financial statements

Internal controls must be documented, tested, and auditable

Thus, the correct answer isD.

In theOMG Business Motivation Model (BMM), aBusiness Ruleis explicitly defined as atype of Directive.

Within BMM:

Directiveis a concept underMeansand represents guidance or constraints on how the business operates.

Directives are divided into two main types:

Business Policy

Business Rule

So, aBusiness Rule is not a Tactic, Strength, or Guideline, but aspecialization of the concept “Directive”. It is the most formal, detailed, and directly actionable form of guidance in the BMM structure, derived from Business Policies and used to govern operational behavior and processes.

Therefore, in BMM,Business Rule is a component of the concept “Directive.”

This question refers toMartyn Ould’sprinciple inBusiness Process Management: A Rigorous Approach, where he distinguishes between:

What people actually do– theconcreteview of the process, including all the messy, detailed activities (paper handling, phone calls, chasing, checking, etc.).

What they effectively do– theabstractorintentview of the process, i.e., what the process isreally aboutin terms of business purpose (for example: “extracting payment for goods and services supplied”).

Ould’s guidance is:

Donottry to “merge” or forcibly reconcile these into one model.

Recognize them astwo different but valid views of the same process:

Aconcrete model(what people actually do).

Anabstract model(what the process is effectively doing).

He explicitly says the answer isnotto reconcile them, but to model both views.

Therefore, the correct interpretation is:

An analyst should not try to reconcile them. These are two different views of the same thing.

So, the correct answer isD.

In OMG standards (such asBPMNandBMM),semanticsrefers to themeaningof modeling constructs. A notation withclear semanticsensures that whoever reads the model will interpret it the same way.

Therefore, a notation with clear semantics provides:

Aunique, shared meaningfor the model elements and diagrams across stakeholders (business, IT, analysts).

This is crucial in BPM so different people don’t “read” the diagram differently.

Why other options are incorrect:

A. Correct sequencing– that’s about control flow, not semantics.

B. A clear, simple diagram– that’s about notation clarity, not semantic rigor.

D. A straightforward, logical depiction– may be true visually but does not guarantee shared meaning.

So, clear semantics primarily providea unique, shared meaning.

Within the OMG BPMN framework,Level 3 – Executable modelingrepresents a process definition that is detailed enough to bedirectly executed by a BPM engine. This level includes:

Implementation-specific details (data mappings, transaction boundaries, technical error handling)

Engine- or vendor-specific extensions and attributes

Bindings to services, message formats, and integration mechanisms

Because these details depend on how a specificvendor toolorexecution platforminterprets BPMN,executable models are somewhat vendor-tool dependent. Different engines support different subsets of BPMN and add their own extensions, making the executable level less portable than descriptive or analytical models.

The other options do not represent OMG’s three levels of BPMN:

Pattern modelingandsource-code modelingare not standard BPMN levels.

Descriptive modelingis tool-independent and used for communication, not execution.

Thus,executable modelingis the level that is somewhat vendor-tool dependent.

The diagram shows:

ActivityA

Followed by agateway(a plain diamond – the defaultexclusive data-based gatewayin BPMN)

With two outgoing flows, one toBand one toC, and no join afterward.

Anexclusive gateway(XOR) means:

Exactly oneoutgoing branch is taken based on a condition.

So the semantics:

First doA,

Then evaluate a condition,

Then executeeither B or C (but not both)depending on that condition.

Mapping to the choices:

A. Wait for an event→ would require anevent-based gateway, not shown.

B. B and C in any order→ would require aparallel gateway.

C. B or C depending on a condition→ matches anexclusive data-based gateway.

D. B or C or both→ that is aninclusive (OR) gateway, which uses a circle marker, not shown here.

Thus, the correct scenario isC: First do A, then B or C depending on a condition.

The diagram shows two Participants (A and B) connected by adashed line with an open circle at the source and an arrow at the target. In BPMN this is aMessage Flow.

Semantics of a Message Flow:

It indicates thatone participant sends a message to another(cross-pool communication).

Mapping options:

A. “Pushes data”describes data association, not a BPMN message flow.

B. “Associated with”refers to BPMNAssociation, which is also dashed, but used between artifacts and flow objects without the open circle/arrow message notation.

C. “Performed before”would be asequence flow, which is solid, not dashed.

D. “A sends a message to B.”exactly describes a Message Flow.

So, the correct interpretation isD.

In BPMN,Activityis a generic term that covers:

Task– an atomic unit of work.

Sub-Process– a compound activity that contains a process within it.

AProcessisnotan Activity; it is a container of flow elements. “Action” is not a BPMN element at all. Therefore, the only correct list that consists solely of BPMN Activities is:

Task, Sub-Process

So the correct answer isB.

TheAs-Is processis used as a basis for To-Be modeling when thecurrent process exists and is still relevant, even if it needs modification—for example, whennew regulatory rules require adjustments. Regulatory changes mean the process structure stays largely valid, but must be updated to meet compliance requirements.

Options A and D are incorrect because if a process is new or undefined, no As-Is model exists.

Option B is incorrect becauseradically changed requirementstypically justify designing a fresh To-Be process without depending on the existing one.

The Supply-Chain Council’sSCOR modelprovides a common framework for describing supply chains usingstandard, predefined process descriptions(Plan, Source, Make, Deliver, Return, etc.). These standard descriptions enable comparison, benchmarking, and communication across organizations, which is exactly what option C states.

In BPMN, a task box with asmall envelope iconin its corner represents aMessage-related Task. In the standard notation, that icon on a plain task (like A) is used most commonly for aSend Task:

ASend Task: when executed, itsends a messageand then completes, allowing the process to continue along the outgoing sequence flow.

The following activity (here,B) begins after A completes.

There is no indication of additional work after the message within A beyond what’s included in that send action itself; and there is no separate incoming Message Flow that would indicate a Receive Task.

Evaluating the options:

A. Send a message, then immediately perform B.This matches the behavior of aSend Task followed by another taskvia a sequence flow.

B. Receive a message, then immediately perform B.That would normally be modeled as aReceive Taskwith message flow from an external participant; the diagram only indicates an internal message task.

C. Send a message and perform some work in A, then perform B.In BPMN, the “work in A”isthe sending itself; extra work would typically be modeled as separate tasks.

D. Receive a message and perform some work in A, then perform B.Combines the incorrect assumption of a Receive Task with extra unspecified work.

Thus, the diagram depicts:Task A sends a message, then the process continues with B, which is optionA.

BPMN distinguishes between:

Embedded (non-reusable) Sub-Processes

Event Sub-ProcessesandCall Activities

For anEmbedded Sub-Process:

Its life cycle iscontrolled by the parent process; the subprocess starts when the token enters it.

Therefore, itsStart Event (if drawn) must be of type “None”. No Message, Signal, Timer, or other trigger types are allowed for the start of a normal embedded subprocess; those trigger types are reserved forEvent Sub-Processesand top-level processes.

So, “All Start Events for an Embedded Sub-Process must be of which type?” →None.

Options A, B, and C are valid Start Event trigger types, butnotfor a standard embedded subprocess.

Chang states clearly thatInformation Technology (IT)is thekey enablerof Business Process Re-engineering (BPR), as it allows radical redesign of processes rather than incremental improvement.

HenceCis correct.

James F. Chang states clearly that“Business processes are assets of the organization.”

This means organizations must treat processes asmanaged, optimized, and valuable resources, similar to financial or physical assets.

Option B is a reasonable statement butnot the specific principle defined by Chang.

Option C inverts the relationship—processes do not depend on IT, nor does Chang state that IT depends on processes.

Option D is the opposite of BPM thinking; BPM iscontinuous, not a one-time improvement event.

COBIT (Control Objectives for Information and related Technology) is widely recognized as aframework of best practicesfor governing and managing enterprise IT. It provides a structured set of processes, control objectives, practices, and metrics that organizations can adopt to ensure that IT supports business goals, manages risks appropriately, and complies with relevant regulations.

From the perspective of Object Management Group (OMG) Business Process Management and enterprise architecture:

COBIT is used as agovernance and control frameworkthat sits above or alongside operational business processes modeled with BPMN.

It provideswhat must be controlled and measuredin IT-related processes, while BPM and OMG standards describehow those processes are modeled, executed, and improved.

COBIT defines domains and processes (e.g., plan and organize, acquire and implement, deliver and support, monitor and evaluate) which organizations can map to their BPMN-modeled IT and support processes, thereby aligning IT operations with business objectives.

Why the other options are incorrect:

Option A – “a set of rules that providers of IT solutions must comply with”: COBIT is not a mandatory rule set imposed on solution providers; it is avoluntary, best-practice frameworkadopted by organizations to improve IT governance.

Option B – “a set of regulations”: COBIT itself is not a law or regulation. Rather, it helps enterprises design controls and processes that support compliance with multiple regulations.

Option C – “a set of industry standards that promote the use of IT technologies”: COBIT is not a technical standard promoting specific technologies; it is amanagement and control frameworkdescribing what good IT governance looks like.

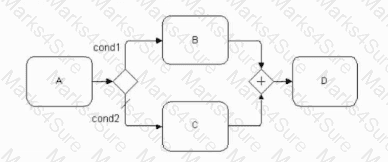

In the given diagram:

After activityA, there is anexclusive gateway(with conditionscond1andcond2), soeither B or Cis chosen—never both.

AfterBandC, their flows go into a gateway with aplus sign, which is aParallel Gateway (AND-join)in BPMN.

AParallel Joinwaits fora token fromeveryincoming branchbefore it can release a token onward toD. But due to the earlier exclusive split,only oneof the two branches (B or C) ever receives a token. The other branch never activates, so the parallel join never gets all required tokens.

Consequences:

The join gateway willnever be satisfied,

Therefore, the flownever proceeds to activity D.

So the defect is exactly what optionBsays:

The activity D can never be reached.

That is the correct answer.

InBPMN, a rounded rectangle with adashed borderaround activities is aGroupartifact.

Key BPMN semantics for aGroup:

It ispurely documentary: used to visually group related activities (for example, labeling them “Process Payment” or “Deliver Product”).

Itdoes not affect execution semantics—sequence flow, data flow, and transaction behavior areexactly the same as if the group were not drawn.

Looking at the diagram:

The sequence is:Verify Credit → Process Payment → Deliver Product → Notify Customer, each connected by normal sequence flows.

The two dashed rectangles just visually cluster the first two and last two activities; there are no special events or gateways.

Now the options:

A. Activities that are in the dashed rectangle must exchange data.BPMN Groups say nothing about data exchange; this is incorrect.

B. The activities are executed as if the dashed rectangles do not exist.This matches the BPMN definition of a Group artifact and is correct.

C. Canceling "Notify Customer" will cancel the result of "Deliver Product".That would require atransaction subprocess with cancel behavior, not just a Group.

D. "Verify Credit" and "Process Payment" are executed in parallel. "Deliver Product" and "Notify Customer" are executed in parallel.Parallelism requires a parallel gateway or similar construct; here, a simple sequence flow shows they are executedsequentially.

Therefore, the correct statement is that thedashed rectangles have no execution effect: optionB.
