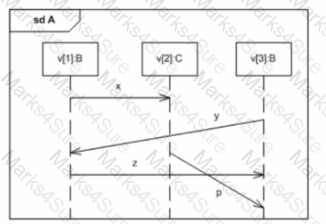

The diagram shows a UML Sequence Diagram where two messages are being exchanged between lifelines representing instances of objects: m(C) is being sent from v1 to v2 , and m(D) is being sent back from v2 to v1 .

In a sequence diagram, the vertical order of message arrows shows the sequence of interactions, with time proceeding down the page. Since the message m(C) is shown above m(D) , this means that m(C) occurs before m(D) . The receipt of m(C) by v2[B] must therefore occur before v2[B] can send m(D) back to v1[B] .

Therefore, the statement "Receiving m(C) must come before sending m(D) " is always true in this diagram.

B, C, and D are not necessarily true based on the diagram alone: B) "Sending m(D) is the first occurrence of this scenario" is not depicted. C) "Receiving m(D) is the last occurrence of this scenario" is also not depicted. D) "All occurrences of v[1] will happen before all occurrences of v[3] " is not something we can infer from this diagram since v[3] is not involved in the interactions shown.

Therefore, the correct answer is:

A. Receiving m(C) must come before sending m(D).

UML 2 Foundation concepts for activity diagrams, there are three valid action notations shown. Here's a breakdown of the elements and why answer D is the most accurate:

The diagram displays an activity diagram with a main flow and a fork followed by a join.

Main Flow:  This starts with an action labeled "Fill Order".

Fork:  The path splits into two branches after "Fill Order".

Branch 1:  This branch leads to an action labeled "Print Paycheck".

Branch 2:  This branch leads to an action labeled "Send Invoice".

Join:  The two branches converge into a join element.

Following the Join:  An action labeled "End" is present after the join.

Explanation for Valid Actions:

Fill Order:  This clearly represents an action within the activity diagram.

Print Paycheck:  This is another valid action on a separate branch.

Send Invoice:  Similarly, this is an action on the other branch.

Explanation for Why Other Options are Incorrect:

A. 0:  There are clearly multiple actions depicted in the diagram.

B. 1:  There are more than one valid action shown.

C. 2:  While there are actions before the fork, there's also a valid action ("End") after the join.

E. 4:  Counting the join element as an action results in an overcount. Joins represent control flow elements to synchronize multiple paths, not actions themselves.

References

UML 2.5.1 Specification (Superstructure) : Sections on Activity Diagrams and Actions  https://www.omg.org/spec/UML/2.5.1/

In the development of a domain model, the prime responsibility for decision-making should ideally rest with the users, as they are the ones who will be using the system operationally. Users have the most direct and frequent interactions with the system, making them best positioned to provide relevant insights into what the system should do and how it should behave to meet their needs effectively. While other stakeholders such as customers, project managers, and developers play significant roles, the users’ intimate knowledge of the domain processes and their requirements make them key contributors to ensuring that the domain model aligns closely with real-world application and utility.

The diagram displays an activity labeled "Account Authentication".

There are two main paths branching from the start of the activity:

One path leads to an activity named "Validate Password".

The other path leads to an activity named "Send OTP".

Both paths converge into a decision diamond labeled "Authentication Successful?".

Depending on the outcome of the decision (Yes/No), the flow continues to either a "Grant Access" or "Deny Access" activity.

Explanation of why Option B is Correct:

This diagram accurately represents the scenario of account authentication where there are two alternative paths for validation: using a password or an OTP (One-Time Password). The decision point after these paths merges the flow for a final decision on granting or denying access based on successful authentication.

Comparison with Other Options:

Option A, C, and D show different activity sequences that don't align with the two initial validation paths (password vs. OTP) and the subsequent decision point based on authentication success.

References

UML 2.5.1 Specification (Superstructure) : Sections on Activity Diagrams  https://www.omg.org/spec/UML/2.4/Superstructure/PDF

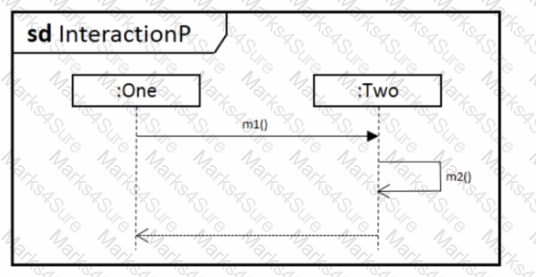

An execution occurrence specification in UML sequence diagrams is represented by a thin rectangle on a lifeline. It shows that an instance is performing an action over a period of time.

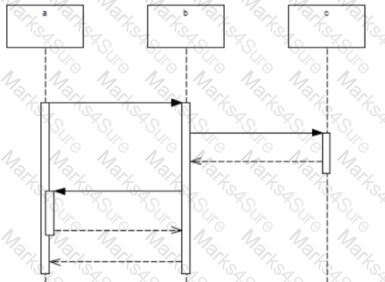

In the provided sequence diagram, we can see three such thin rectangles on lifeline 'b', which indicates that there are three execution occurrence specifications.

One for the message that comes from 'a' to 'b'.

Another one for the message that 'b' sends to 'c'.

And the last one for the return message from 'c' to 'b'.

There are no execution occurrence specifications on lifelines 'a' and 'c'.

Therefore, the correct answer is:

D. 3

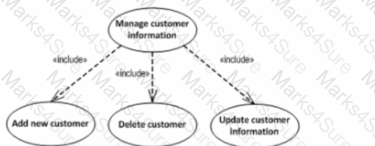

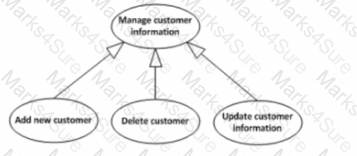

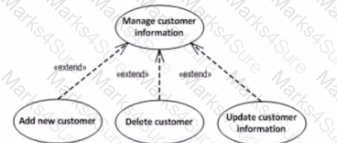

The most appropriate use of UML during software development is to capture the essential characteristics and design decisions of a planned or existing system. UML (Unified Modeling Language) is primarily utilized to visually represent the architecture, design, and behavior of a system, which includes detailing the components, relationships, and interactions within the system. This makes it a critical tool for understanding complex systems and making informed design decisions that align with project requirements and constraints. UML facilitates clear communication among development team members and stakeholders, ensuring that design decisions are well-understood and accurately implemented.

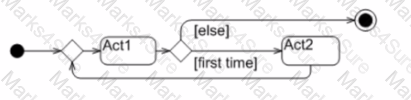

The correct answer is Option B. This diagram accurately depicts the scenario where activity Act1 is carried out first, followed by activity Act2, and then Act1 is performed again.

Here's why the other options are incorrect:

Option A: This diagram shows Act1 followed by Act2, but Act1 is not repeated.

Option C: Similar to Option A, this diagram depicts Act1 followed by Act2, without a repetition of Act1.

Option D: This diagram has conditional branches, which is not part of the given scenario where the activities are carried out sequentially.

Following the logic from the prompt: Act1 - > Act2 - > Act1, Option B visually represents this sequence with arrows connecting the activities in the specified order.

Having all the UML diagrams of a model maintain the same level of detail is typically required by tools that automatically transform the model into other forms, such as code or other types of models. Consistency in the level of detail across different diagrams ensures that automated tools can reliably interpret and convert the UML diagrams without encountering discrepancies that could lead to errors or misrepresentations in the generated outputs. This consistency is crucial for maintaining the integrity of the transformations and for ensuring that the resultant products accurately reflect the intended design and specifications.

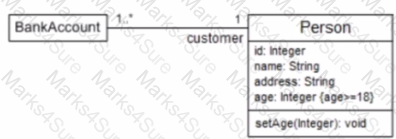

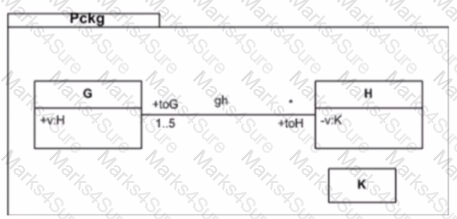

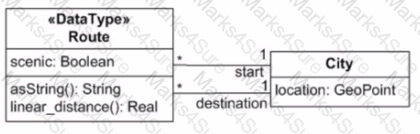

In UML 2, a class diagram is used to depict the structure of a system by showing the system's classes, their attributes, operations (or methods), and the relationships among the classes. The constraint {age > = 18} in the Person class diagram indicates a condition that must hold true for the instances of the Person class whenever they are used in the context of a BankAccount . This constraint is an invariant of the Person class that specifies the rule for the attribute age .

Now, let's consider the provided options and explain why option B is correct:

A. The preferred age to open a bank account is 18 years old or older – This statement is incorrect because the diagram does not indicate a preference; it indicates a constraint or a rule.

B. Only customers who are 18 years old or older can open a bank account – This is the correct statement. The {age > = 18} constraint next to the age attribute of the Person class signifies that any instance of Person associated with a BankAccount must be at least 18 years old. Since Person is connected to BankAccount with the role name customer , this implies that only persons who are at least 18 can be customers of a bank account.

C. The age condition should only hold when the setAge(Integer) function is called – This statement is incorrect because the constraint {age > = 18} is not a condition that applies only when the setAge operation is invoked. Instead, it is a class invariant that must always hold true for any instance of Person .

D. An object of Customer with age set to 18 or greater will raise an exception – This is incorrect because the UML diagram specifies a constraint, not an exception condition. The constraint ensures validity, not the raising of an exception.

The answer is verified according to the UML 2 Foundation documents, such as the UML 2.5 specification, where class diagrams and constraints are defined. The specification states that constraints are semantic conditions or restrictions expressed in natural language text or in a machine-readable language that must hold true for the system being modeled (UML 2.5 specification, section 7.9).

State machines are ideal for modeling systems or objects that exhibit distinct states and transitions between them based on events or conditions. Let's analyze why option D is the best fit and why others are less suitable:

D - Transitions in a Physical System: The transitions between different states of matter (ice, water, steam) are governed by well-defined conditions (changes in temperature and pressure). State machines can effectively represent these states and the rules governing the changes between them.

Other Options:

A - Control of a Digital Watch:  While a state machine could model some aspects of a watch (e.g. time display mode, set mode), interactions with buttons are better represented by event-driven models or user interface flow diagrams.

B - Client-Server Messaging:  Sequence diagrams or communication diagrams are more suitable for modeling message exchanges, as they focus on the interaction between different components.

C - Office Automation Workflows:  Business process modeling notations (BPMN) or data flow diagrams would be more appropriate for capturing the processes and data movements in an office system.

E - Distributed Medical Insurance System:  A combination of sequence diagrams (for message exchanges), activity diagrams (for processes), and state machines (for behavior within individual system components) would likely be needed to model a complex system like this.

References:

UML Specification (Superstructure) Version 2.5.1:  The section on state machines is a primary reference for their capabilities ( https://www.omg.org/spec/UML/2.5.1 ).

Modeling Guides:  Various resources on UML modeling techniques often provide insights into when different diagram types are most appropriate.

For projects involving complex and strategic systems, a key advantage of developing models before starting implementation is that models help to establish a consensus among all the project stakeholders. Creating UML models in the early stages of a project provides a visual and conceptual representation of the system that can be easily understood by various stakeholders, including developers, managers, and clients. This facilitates discussions and negotiations about the system’s design and functionality, helping to ensure that all parties have a shared understanding and agreement on the project’s objectives and solutions before significant resources are invested in implementation.

In UML 2, the dashed arrow with an open arrowhead represents a dependency relationship. In the context of class diagrams, a dependency relationship indicates that changes to one class (the independent class) may cause changes in the other class (the dependent class). The direction of the arrow specifies which class is dependent on which. In the given diagram, the arrow points from class A to class B, which means that class A is dependent on class B. This could manifest as class A using some services or functions of class B, for example.

References:

UML 2.5 Specification Document: The official document by the Object Management Group (OMG), which defines the syntax and semantics of UML.

UML Distilled: A Brief Guide to the Standard Object Modeling Language, Third Edition by Martin Fowler: This book provides a clear guide to UML and includes examples of dependency relationships.

ML 2 Foundation concepts for activity diagrams, there are eight object nodes in total. Here's a breakdown of the elements:

Object Nodes:

Order:  This rectangle near the start of the diagram represents an object node.

Cust Name:  This rectangle following the "Get Customer Details" action is another object node.

Order Details:  This rectangle after the "Get Order Details" action is an object node as well.

New Order:  The rectangle positioned after the decision diamond (approved) is an object node.

Repeat  (text near the decision diamond): This is not an object node. It likely indicates a loopback or repetition, but it doesn't represent an object itself.

Cust Order:  The rectangle after the "Place Order" action is an object node.

Invoice:  The rectangle following the "Create Invoice" action is an object node.

OrderAck:  The rectangle at the end signifies another object node.

Counting the Nodes:

There are eight rectangles that represent object nodes in the diagram (Order, Cust Name, Order Details, New Order, Cust Order, Invoice, OrderAck).

References

UML 2.5.1 Specification (Superstructure) : Sections on Activity Diagrams and Object Nodes  https://www.omg.org/spec/UML/2.5.1/

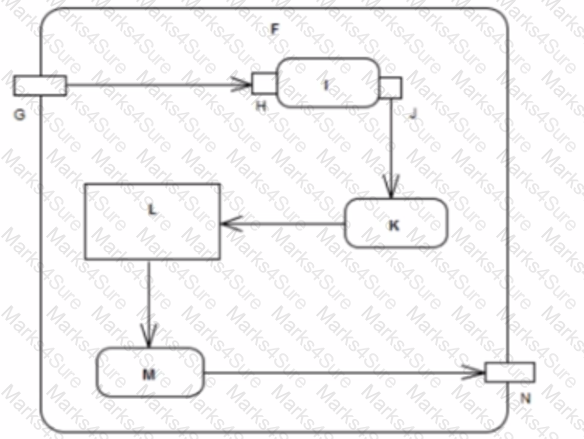

Here's a breakdown of why option A is correct and why the other options are not:

Activity Parameter Nodes:

Object Nodes:  Activity Parameter Nodes are specialized Object Nodes in UML activity diagrams. They provide a mechanism to pass inputs to an activity or receive outputs from an activity.

Parameters:  They represent parameters connected to the activity.

Analysis of Other Options

B. It is used to model a data store:  Data stores are distinct modeling elements, often used in combination with Activity Parameter Nodes. An Activity Parameter Node itself does not represent a persistent data store but rather an entry or exit point for data in the flow of an activity.

C. It is equivalent to an action input or output pin:  While similar in concept, Activity Parameter Nodes are a distinct modeling element with additional properties. Action input/output pins are part of the structured actions within an Activity. Activity Parameter Nodes function on the boundary of the Activity itself.

D. It can hold only input parameters, not output parameters:  Activity Parameter Nodes can represent both input and output parameters. The direction (in, out, inout) is a property of the Parameter associated with the node.

References

UML 2.5.1 Specification (Superstructure) : Sections on Activity Diagrams, Object Nodes, Activity Parameter Nodes and Parameters.  https://www.omg.org/spec/UML/2.5.1

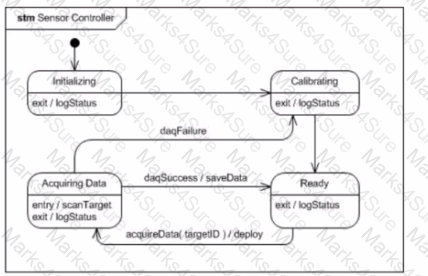

The provided image depicts a block diagram of a sensor controller represented as a state machine. The state machine transitions between the following states:

Initializing

Calibrating

Ready

Acquiring Data

The question specifies the state machine starts in the Ready state and the acquireData event triggers the transition.

Analyzing the image, we can identify the following behaviors for the scenario:

logStatus : This behavior is depicted in the diagram as the first action upon exiting the Ready state. It most likely logs the current state of the sensor controller.

deploy : The transition from Ready to Acquiring Data triggers the  deploy  behavior. This likely involves preparing the sensor for data acquisition.

scanTarget : Upon entering the Acquiring Data state, the  scanTarget  behavior is initiated. This suggests the sensor controller is actively collecting data from the target.

Therefore, the complete sequence of behaviors is logStatus , followed by deploy , and lastly scanTarget , before reaching the Acquiring Data state.

Justification for excluding other options:

Option A (deploy only) excludes the initial state logging and target scanning actions.

Option B (logStatus.deploy) excludes the target scanning upon entering the Acquiring Data state.

Option C (deploy, scanTarget) omits the initial state logging.

Option E (logStatus.deploy.scanTarget.logStatus) includes an extra  logStatus  action after target scanning, which is not supported by the diagram.

In conclusion, based on the state machine diagram and the behavior descriptions, option D (logStatus.deploy.scanTarget) accurately reflects the sequence of actions that occur before the sensor controller arrives at the Acquiring Data state.

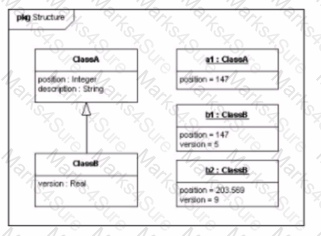

In UML, when specifying the value of an attribute in an instance specification (which is what each of these boxes represents), the notation used is generally:

attributeName: Type = Value

Looking at each option provided, we see that they are different representations of numerical values for an attribute named salary of type Real . Here's how to interpret each representation:

A) -salary: Real = “$10,000.00” - This uses a string representation of the number, which is generally not how numerical values are assigned in UML, especially with the explicit type Real .

B) -salary: Real = $20,000.00 - This is more typical for showing a real number in UML, though the dollar sign is not part of the actual numerical value and should not be included.

C) -salary: Real = 30000.00 - This is a correct numeric representation of a real number without unnecessary symbols.

D) -salary: Real = 40,000.00 - This is also a correct representation and indeed has the highest numeric value among the options provided.

E) -salary: Real = 500 E 02 - This is scientific notation, which is also a valid representation of real numbers in UML. The value represented here is 500 * 10^2, which equals 50,000.00.

After examining each option, the correct answer is D. Option D, because the instance four:Employee has the highest value properly assigned to a salary slot according to the standard UML notation. However, there's a point to be clarified: while UML does not specify formatting of numbers with commas for thousands or currency symbols, it does accept scientific notation. So, if we were strictly interpreting the values as real numbers, Option E would represent the highest numerical value. But considering proper UML formatting and assuming the intent is to use standard decimal notation without currency symbols or commas, Option D is the best answer.

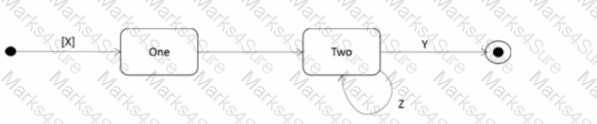

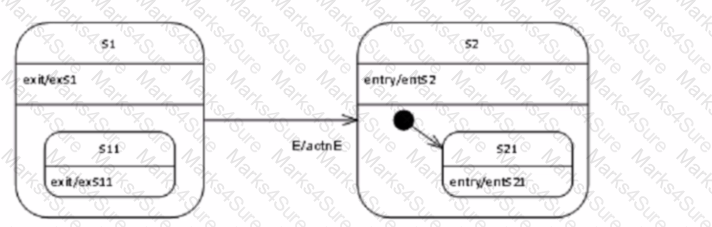

The provided image depicts a state machine fragment containing an invalid transition. The state machine has a single state labeled "S1" with an incoming and outgoing transition labeled "e".

According to the UML 2 Foundation documents, a transition in a state machine cannot originate from and target the same state. This type of loopback transition within a single state is not permitted.

Here's a breakdown of why other options are incorrect:

Option A (A transition requires a trigger or guard) is not necessarily true. Transitions can exist without explicit triggers or guards, although their presence is often recommended for clarity and modeling complex behavior.

Option B (A guard condition is not allowed on the initial transition) is valid. Guard conditions are indeed not allowed on the initial transition of a state machine, but the issue in the diagram is the loopback, not the presence or absence of a guard.

Option C (A trigger is not allowed on the transition to the final state) is not always true. Final states can have outgoing transitions with triggers under specific circumstances (e.g., for hierarchical state machines). However, the error here concerns the loopback nature of the transition.

References:

UML Specification (Superstructure) Version 2.5.1, specifically sections covering state transitions (Section 14.2.3.7). You can find it on the OMG website:  https://www.omg.org/spec/UML/2.5.1

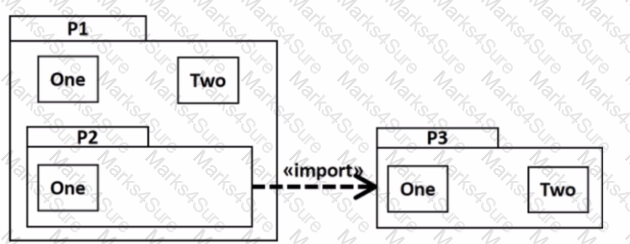

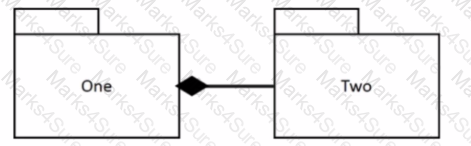

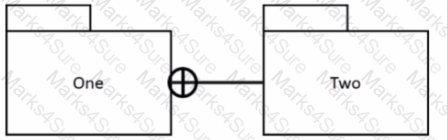

In UML, when you need to reference an element from another package while inside a different package, you use the qualified name. A qualified name includes the package name followed by two colons and then the element name. This ensures that the reference is clear and unambiguous, especially when different packages may have elements with the same name.

The correct syntax for referring to element One of Package P1 from inside Package P2 is P1::One , where :: is the scope resolution operator used to separate the package name from the element name.

Therefore, the correct answer is:

D. P1::One

In UML sequence diagrams, an execution specification is represented by a thin rectangle along a lifeline. It shows where in time the execution takes place, starting with the initiation of an operation or process and ending when that process is complete.

In the interaction diagram provided, we can see an execution specification on the lifeline p1: P that starts after the message corresponding to point 3 is received and ends just before the message corresponding to point 5 is sent. This means the execution specification is bracketed by points 3 and 5.

Points 1 and 2 represent message sends, 1 and 4 could represent a message send and receive for the same message, which doesn't typically represent the full execution specification. Points 2 and 3 don't represent a logical start and end of an execution specification because they're on different lifelines.

Therefore, the correct answer is:

D. 3, 5

A key characteristic that should apply to any useful model, including those created with UML, is that it abstracts away irrelevant details. This abstraction is crucial for managing complexity by focusing on the essential aspects of the system that are relevant to the current perspective or analysis task. By removing unnecessary information, the model remains understandable and manageable, even as the underlying system grows in complexity. This principle helps maintain a clear and concise representation of the system, enabling stakeholders to focus on strategic decisions without being overwhelmed by details.

The dashed arrow with an open arrowhead in the UML diagram represents a dependency relationship. In UML, a dependency is a relationship that signifies that one element, or set of elements, requires another element (or set of elements) for its specification or implementation. This means that changes to the target element(s) (the element(s) that the arrow points to) may cause changes to the source element(s).

The statement "One or more of the elements in Package G depends on one or more of the elements in Package F" correctly describes the nature of a dependency relationship in UML. It indicates that there is at least one element in Package G that requires some element(s) from Package F. This does not necessarily imply that all elements from Package G depend on all elements from Package F.

Therefore, the correct answer is:

C. One or more of the elements in Package G depends on one or more of the elements in Package F.

Abstraction in UML and software modeling often incorporates the technique of information hiding. Information hiding is a principle that supports abstraction by ensuring that unnecessary details about software components are not exposed to other parts of the system. This encapsulation strengthens modularity and keeps various parts of the program independent of one another, which simplifies complexity in large systems. Abstraction and information hiding are closely related; abstraction focuses on the high-level structure of the system, while information hiding protects the internal states and functionality of components, allowing changes without extensive impact on other system parts.

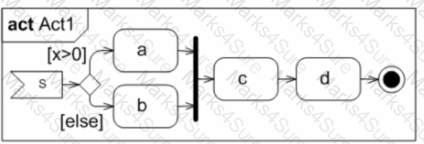

Start Node:  Represented by a black circle, indicating the starting point of the activity.

Action a:  Represented by a rounded rectangle, signifying an action or step within the activity.

Action READY:  Another rounded rectangle representing an action.

End Node:  A circle with a black dot inside, marking the end point of the activity.

Based on the common elements in both Act1 and Act2:

The activity starts at the designated start node.

It proceeds to action "a".

Then it moves to action "READY".

Finally, it reaches the end node, signifying completion.

There are no additional branches or loops that would allow for re-starting the activity or re-executing action "a" multiple times.

Analysis of Other Options:

B. Initial and final nodes are optional...  While it's true that initial and final nodes can be implicit in some cases, well-formed activity diagrams typically include them for clarity. Here, both diagrams have them explicitly.

C. In diagram Act1. action a can get executed once...  There's no basis to claim a difference in the number of executions of action "a" between the two diagrams.

D. Diagram Act2 is incomplete...  Both diagrams seem complete as they have proper start and end nodes, and the flow goes from start to finish without any ambiguity.

Therefore, considering the structure and execution flow, both Act1 and Act2 will end after the "READY" action, and no further signals will be accepted, making answer A the most accurate description.

A valuable model in UML and systems design is characterized by its usefulness rather than its complexity or how "correct" it is in an engineering sense. A model's primary objective is to effectively communicate the key aspects of a system or process, and simplicity often enhances this communication by making the model easier to understand and use. The value of a model thus comes from its ability to facilitate decision-making, problem-solving, and understanding among stakeholders. This perspective aligns with the principle of Occam's Razor in modeling, which suggests that simpler solutions are preferable when all other factors are equal. In UML, a model that provides clear insights with minimal complexity is considered more valuable because it is accessible to a wider audience and can be more readily applied to solve real-world problems.
