Professional-Cloud-Network-Engineer Google Cloud Certified - Professional Cloud Network Engineer Questions and Answers

Understanding VPC Flow Logs :

VPC Flow Logs is a feature that captures information about the IP traffic going to and from network interfaces in a VPC. It helps in monitoring and analyzing network traffic, ensuring security, and optimizing network performance.

Current Configuration :

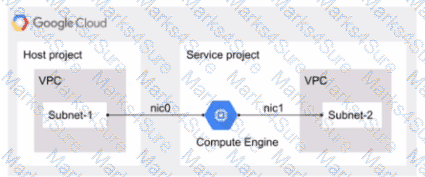

According to the diagram, VPC Flow Logs is already configured for Subnet-1 in the host VPC. This means that traffic information for Subnet-1 is being captured and logged.

Requirement for Subnet-2 :

The goal is to monitor flow logs for Subnet-2, which is in the service project VPC.

Correct Configuration for Subnet-2 :

To monitor the flow logs for Subnet-2, you need to configure VPC Flow Logs within the service project VPC where Subnet-2 resides. This is because VPC Flow Logs must be configured in the same project and VPC where the subnet is located.

Implementation Steps :

Go to the Google Cloud Console.

Navigate to the service project where Subnet-2 is located.

Select the VPC network containing Subnet-2.

Enable VPC Flow Logs for Subnet-2 by editing the subnet settings and enabling the flow logs option.

Cost and Performance Considerations :

Enabling VPC Flow Logs may incur additional costs based on the volume of data logged. Ensure to review and understand the pricing implications.

Analyze and manage the data collected to avoid unnecessary logging and costs.

Overview By creating and managing SSH keys, you can let users access a Linux instance through third-party tools. An SSH key consists of the following files: A public SSH key file that is applied to instance-level metadata or project-wide metadata. A private SSH key file that the user stores on their local devices. If a user presents their private SSH key, they can use a third-party tool to connect to any instance that is configured with the matching public SSH key file, even if they aren ' t a member of your Google Cloud project. Therefore, you can control which instances a user can access by changing the public SSH key metadata for one or more instances. https://cloud.google.com/compute/docs/instances/adding-removing-ssh-keys#addkey

For private connectivity with at least 1 Gbps bandwidth and without using the public internet, Partner Interconnect is the suitable choice if you do not require the 10 Gbps minimum of Dedicated Interconnect. With Partner Interconnect, you create a VLAN attachment and work with a service provider that facilitates the connection between your on-premises network and Google Cloud. This solution supports connections as low as 50 Mbps and up to 10 Gbps.

" Google ' s recommended practices for production-level applications " and then see overview of these 2 pages- https://cloud.google.com/network-connectivity/docs/interconnect/tutorials/production-level-overview and https://cloud.google.com/network-connectivity/docs/interconnect/tutorials/non-critical-overview .

By default, GKE uses SNAT (Source Network Address Translation) for pod egress traffic to destinations outside the cluster ' s IP ranges but within RFC 1918 private IP ranges (10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16). This means that traffic from pods leaving the cluster for these private IP destinations will have their source IP address translated to the node ' s IP address.

To ensure pods can reach VMs in the 192.168.0.0/24 subnet using the source IP of the GKE nodes, you want the default SNAT behavior to apply to this destination. The default SNAT rule applies when the destination is an RFC 1918 address and the source is a pod IP that is not within the same RFC 1918 range as the destination (e.g., if your pods are in a 10.x.x.x range and the destination is 192.168.x.x).

Therefore, you should:

Set a GKE pod IP address range that fits in 10.0.0.0/8: This ensures that the pod IPs are within an RFC 1918 range different from 192.168.0.0/24.

Do NOT configure the --disable-default-snat flag: If you disable default SNAT, pods would use their own IP addresses as source IPs, which might not be routable to the 192.168.0.0/24 subnet unless specific routes are configured. The goal is to use the node ' s IP.

The combination of having pod IPs in a different RFC 1918 range and not disabling default SNAT ensures that GKE performs SNAT, making the node ' s IP the source for traffic destined for the 192.168.0.0/24 subnet.

Exact Extract:

" By default, GKE performs SNAT (Source Network Address Translation) for egress traffic from pods to destinations outside the cluster ' s IP address ranges but within the private IP address ranges defined in RFC 1918 (10.0.0.0/8, 172.16.0.0/12, and 192.168.0.0/16). When SNAT occurs, the source IP address of the egress packets is the node ' s IP address instead of the pod ' s IP address. "

" The --disable-default-snat flag, when used, disables this default SNAT behavior. If you want traffic to use the node ' s IP as the source when reaching internal RFC 1918 destinations, do not set this flag. " Reference: Google Kubernetes Engine Documentation - IP masquerade agent, Private IP addresses for GKE Pods and Services

When enabling Cloud CDN, for caching behavior to follow the application-defined caching headers, you need to configure the USE_ORIGIN_HEADERS caching mode. This setting ensures that the Cloud CDN respects the cache control headers specified by the backend, allowing the application-defined caching rules to dictate what content gets cached. This is often required when specific caching directives are already set by the application.

The correct answer is B. From the Cloud CLI, run gcloud compute --project_ID router get-status mycloudrouter --region REGION and review the results.

This command will show you the BGP session status, the advertised and learned routes, and the last error for each VLAN attachment. You can use this information to troubleshoot the asymmetric traffic flow and identify any issues with the BGP configuration or the Interconnect connections.

The other options are not correct because:

Option A will only show you the BGP session status, but not the advertised and learned routes or the last error for each VLAN attachment.

Option C will only show you the VPC Flow Logs, which are useful for monitoring and troubleshooting network performance and security issues within your VPC network, but not for your Interconnect connections.

Option D will only show you the basic information about the Cloud Router, such as its name, region, network, and BGP settings, but not the detailed status of each VLAN attachment.

Explanation : The 404 error is occurring because there is no default backend defined for requests to the root URL. Defining the default backend in the Ingress YAML file ensures that requests to www.mountkirkgames.com are routed to the correct service.

https://cloud.google.com/load-balancing/docs/url-map#configuring_url_maps

Path matcher constraints Path matchers and path rules have the following constraints: A path rule can only include a wildcard character (*) after a forward slash character (/). For example, /videos/* and /videos/hd/* are valid for path rules, but /videos* and /videos/hd* are not. Path rules do not use regular expression or substring matching. For example, path rules for either /videos/hd or /videos/hd/* do not apply to a URL with the path /video/hd-abcd. However, a path rule for /video/* does apply to that path. https://cloud.google.com/load-balancing/docs/url-map-concepts#pm-constraints

Before disabling DNSSEC for a managed zone you want to use, you must deactivate DNSSEC at your domain registrar to ensure that DNSSEC-validating resolvers can still resolve names in the zone.

Comprehensive and Detailed In Depth Explanation:

Granting more permissions than necessary violates the principle of least privilege, a fundamental security best practice. While option A grants the necessary permissions (as subsets exist in two predefined roles), it might also grant more permissions than the Operations team strictly requires for their tasks on GKE and Cloud SQL. Option D is too broad; ' Admin ' roles grant extensive permissions that likely exceed the specific needs.

Google Cloud ' s best practices strongly recommend adhering to the principle of least privilege. Creating a custom role allows you to precisely define the set of permissions the Operations team needs for their specific tasks on the GKE cluster and the Cloud SQL instance, without granting any unnecessary permissions. This minimizes the potential blast radius in case of accidental or malicious actions.

Google Cloud Documentation References:

IAM best practices: https://cloud.google.com/iam/docs/best-practices - This document explicitly recommends granting the minimum necessary permissions.

Creating and managing custom roles: https://cloud.google.com/iam/docs/creating-managing-custom-roles - This explains how to create roles tailored to specific job functions.

Understanding roles: https://cloud.google.com/iam/docs/understanding-roles - This outlines the concepts of predefined and custom roles and their use cases.

===========

To control internet access on a per-URL basis (including hostname and path), you should deploy Secure Web Proxy with global access enabled. The Secure Web Proxy will allow policy-based filtering of web traffic, allowing control over which URLs can be accessed based on the URL list defined in the policy. Unlike Cloud NAT, which does not support FQDN filtering, Secure Web Proxy is designed to provide such control, especially for scenarios with sensitive or controlled internet access requirements.

https://cloud.google.com/interconnect/docs/ how-to/dedicated/using-interconnects-other-projects

Using Cloud Interconnect with Shared VPC You can use Shared VPC to share your VLAN attachment in a project with other VPC networks. Choosing Shared VPC is preferable if you need to create many projects and would like to prevent individual project owners from managing their connectivity back to your on-premises network. In this scenario, the host project contains a common Shared VPC network usable by VMs in service projects. Because VMs in the service projects use this network, Service Project Admins don ' t need to create other VLAN attachments or Cloud Routers in the service projects. In this scenario, you must create VLAN attachments and Cloud Routers for a Cloud Interconnect connection only in the Shared VPC host project. The combination of a VLAN attachment and its associated Cloud Router are unique to a given Shared VPC network. https://cloud.google.com/network-connectivity/docs/interconnect/how-to/enabling-multiple-networks-access-same-attachment#using_with

https://cloud.google.com/vpc/ docs/shared-vpc

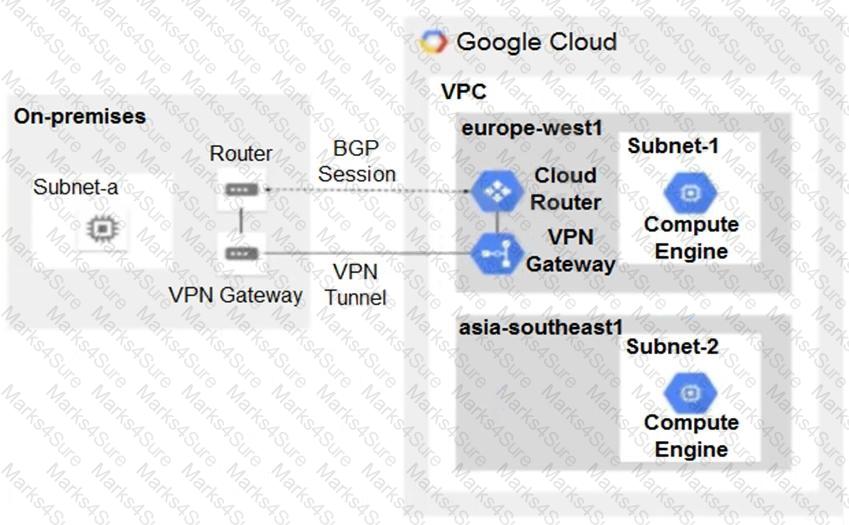

Explanation : To dynamically exchange routes between Google Cloud and your on-premises gateway, you need to create a Cloud Router and configure BGP sessions after adding VPN tunnels. BGP allows for dynamic route exchange, which is essential for establishing proper communication between the environments.

https://cloud.google.com/solutions/tcp-optimization-for-network-performance-in-gcp-and-hybrid

https://cloud.google.com/solutions/tcp-optimization-for-network-performance-in-gcp-and-hybrid https://cloud.google.com/blog/products/gcp/5-steps-to-better-gcp-network-performance?hl=ml

Weighted traffic splitting allows you to gradually route a percentage of traffic to the new GKE application while still serving the majority of requests through the Compute Engine instance. This gradual transition minimizes risks and ensures seamless traffic distribution during migration.

A: Using VPC Flow Logs VPC Flow Logs records a sample of network flows sent from and received by VM instances, including instances used as GKE nodes. These logs can be used for network monitoring, forensics, real-time security analysis, and expense optimization. https://cloud.google.com/vpc/docs/using-flow-logs (B): Firewall Rules Logging overview Firewall Rules Logging allows you to audit, verify, and analyze the effects of your firewall rules. For example, you can determine if a firewall rule designed to deny traffic is functioning as intended. Firewall Rules Logging is also useful if you need to determine how many connections are affected by a given firewall rule. You enable Firewall Rules Logging individually for each firewall rule whose connections you need to log. Firewall Rules Logging is an option for any firewall rule, regardless of the action (allow or deny) or direction (ingress or egress) of the rule. https://cloud.google.com/vpc/docs/firewall-rules-logging

Creating custom learned routes at the hub’s Cloud Router is required for advertising VPC spokes’ subnets to the on-premises environment. This centralizes route configuration and ensures that all spoke subnet routes are propagated to the hybrid network.

Global load balancer will proxy the connection . thus no trace of session origin IP. you should use Cloud Armor to geofence your service.

https://cloud.google.com/load-balancing/docs/https

https://docs.aws.amazon.com/AmazonCloudFront/latest/DeveloperGuide/Invalidation.html

The correct answer is C. Create a single Shared VPC and attach each Google Cloud project as a service project.

This answer is based on the following facts:

A Shared VPC allows you to share one or more VPC networks across multiple Google Cloud projects 1 . This simplifies the deployment and management of the network infrastructure, as you only need to create and maintain one VPC network for all your internal projects.

A Shared VPC consists of a host project that owns the VPC network and one or more service projects that use the VPC network 2 . You can attach and detach service projects as needed, depending on the lifecycle of your internal projects. You can also delete service projects without affecting the host project or other service projects.

A Shared VPC allows you to delegate administrative roles to different project owners 3 . You can grant the Shared VPC Admin role to the owner of the host project, who can manage the VPC network and its subnets. You can also grant the Service Project Admin role to the owners of the service projects, who can manage the Google Cloud resources in their own projects.

The other options are not correct because:

Option A is not suitable. Creating a single project and additional VPCs for each internal project will increase the complexity and cost of the network infrastructure. You will need to create and maintain multiple VPC networks, firewall rules, routes, and VPN tunnels. You will also have a limit on the number of VPC networks per project 4 .

Option B is not feasible. Creating a single project and single VPC for each internal project will not meet the requirement of having separate project owners for each internal project. You will have only one project owner who can manage all the Google Cloud resources in the same project.

Option D is not optimal. Creating a Shared VPC and service project for each internal project will not meet the requirement of having a simple and reusable code with centralized management. You will need to create and maintain multiple Shared VPCs, which will increase the complexity and cost of the network infrastructure. You will also have more Terraform code to write and manage for each Shared VPC.

https://cloud.google.com/vpc/docs/using-vpc-peering

Using separate Shared VPCs for production and non-production environments in different host projects (Option D) meets all requirements. This design allows network administrators to centrally manage resources within each Shared VPC while ensuring isolation between environments and separate billing. By associating service projects with each host project, developers can manage resources within their project without affecting the overall VPC network structure.

Explanation : The solution requires creating internal passthrough load balancers for both VPCs, with custom static routes pointing to each load balancer. This ensures connectivity between the on-premises environment and the Trusted VPC via the Untrusted VPC.

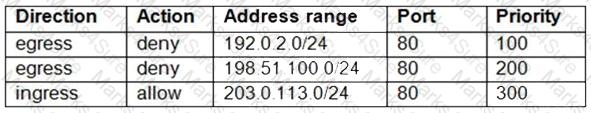

https://cloud.google.com/vpc/docs/firewall-rules-logging#egress_deny_example

You can only enable Firewall Rules Logging for rules in a Virtual Private Cloud (VPC) network. Legacy networks are not supported. Firewall Rules Logging only records TCP and UDP connections. Although you can create a firewall rule applicable to other protocols, you cannot log their connections. You cannot enable Firewall Rules Logging for the implied deny ingress and implied allow egress rules. Log entries are written from the perspective of virtual machine (VM) instances. Log entries are only created if a firewall rule has logging enabled and if the rule applies to traffic sent to or from the VM. Entries are created according to the connection logging limits on a best effort basis. The number of connections that can be logged in a given interval is based on the machine type. Changes to firewall rules can be viewed in VPC audit logs. https://cloud.google.com/vpc/docs/firewall-rules-logging#specifications

The correct answer is C. Configure a target instance, and create a protocol forwarding rule for each external IP address to be mapped to the instance.

This answer is based on the following facts:

A target instance is a Compute Engine instance that handles traffic from one or more forwarding rules 1 . You can use target instances to forward traffic to a single VM instance from one or more external IP addresses 2 .

A protocol forwarding rule specifies the IP protocol and port range for the traffic that you want to forward 3 . You can use protocol forwarding rules to forward traffic of any IP protocol, including ESP 4 .

The other options are not correct because:

Option A is not possible. You cannot create protocol forwarding rules for a target pool. A target pool is a group of instances that receives traffic from a network load balancer 5 .

Option B is not suitable. You do not need to create an external network load balancer for each external IP address. An external network load balancer distributes traffic among multiple backend instances based on the destination IP address and port. You can use a single load balancer with multiple forwarding rules to map multiple external IP addresses to the same backend service.

Option D is not feasible. You cannot add multiple external IP addresses to a single network interface of a Compute Engine instance. Each network interface can have only one external IP address that is either ephemeral or static. You can use alias IP ranges to assign multiple internal IP addresses to a single network interface, but not external IP addresses.

https://cloud.google.com/vpc/docs/private-access-options#pga Private Google Access VM instances that only have internal IP addresses (no external IP addresses) can use Private Google Access. They can reach the _external IP addresses_ of Google APIs and services.

The correct answer is B and C. You must create firewall rules for health checks and reserve a static IP address for the load balancer before creating the internal HTTP(S) load balancer.

The other options are not correct because:

Option A is not a prerequisite task. You can choose a region when you create the load balancer, but you do not need to do it beforehand.

Option D is not a prerequisite task. You can determine the subnet mask for a proxy-only subnet when you create the subnet, but you do not need to do it beforehand.

Option E is not related to the internal HTTP(S) load balancer. Serverless VPC Access is a feature that allows you to connect your serverless applications to your VPC network, but it is not required for the load balancer.

https://cloud.google.com/cdn/docs/invalidating-cached-content

Comprehensive and Detailed In Depth Explanation:

Let ' s evaluate each option based on the requirement of sub-millisecond latency for globally stored IoT data:

A. Spanner with Caching: While Spanner offers strong consistency and global scalability, the base latency might not consistently be sub-millisecond for all read/write operations globally. Introducing caching adds complexity and doesn ' t guarantee sub-millisecond latency for all initial reads or cache misses.

B. Bigtable: Bigtable is a highly scalable NoSQL database service designed for low-latency, high-throughput workloads. It excels at storing and retrieving large volumes of time-series data, which is typical for IoT sensor data. Its architecture is optimized for single-key lookups and scans, providing consistent sub-millisecond latency, making it a strong candidate for this use case.

C. BigQuery: BigQuery is a fully managed, serverless data warehouse designed for analytical queries on large datasets. While it ' s excellent for analyzing IoT data in batch, it ' s not optimized for the low-latency, high-throughput ingestion and retrieval required for real-time IoT applications with sub-millisecond latency needs.

D. Cloud Storage with Cloud CDN: Cloud Storage is object storage and is not designed for low-latency transactional workloads. Cloud CDN is a content delivery network that caches content closer to users for faster delivery, but it ' s not suitable for the primary storage of rapidly incoming IoT sensor data requiring sub-millisecond write latency.

Google Cloud Documentation References:

Cloud Bigtable Overview: https://cloud.google.com/bigtable/docs/overview - This document highlights Bigtable ' s suitability for low-latency and high-throughput applications, including IoT. It mentions its ability to handle massive amounts of data with consistent performance.

Spanner Overview: https://cloud.google.com/spanner/docs/overview - While Spanner offers low latency, Bigtable is generally preferred for extremely high-throughput, low-latency use cases like raw sensor data ingestion due to its optimized architecture for such workloads.

BigQuery Overview: https://cloud.google.com/bigquery/docs/introduction - This emphasizes BigQuery ' s analytical capabilities rather than low-latency operational workloads.

Cloud Storage Overview: https://cloud.google.com/storage/docs/overview - This describes Cloud Storage as object storage, not ideal for sub-millisecond latency reads and writes required for real-time IoT data.

===========

To configure Cloud CDN for an application hosted outside of Google Cloud (e.g., in AWS), you need to use an internet network endpoint group (NEG). An internet NEG allows you to point to external endpoints using their FQDN or IP address. Cloud CDN works with external HTTP(S) Load Balancers, and you enable CDN on the backend service associated with the load balancer. A Network Load Balancer (passthrough) does not support Cloud CDN.

Exact Extract:

" To enable Cloud CDN for content hosted outside of Google Cloud, you must use an external HTTP(S) Load Balancer with an internet network endpoint group (NEG). "

" An internet NEG specifies one or more external endpoints that can be reached by an external HTTP(S) Load Balancer. You can specify endpoints using an IP address and port, or a fully qualified domain name (FQDN) and port. "

" Cloud CDN is enabled on the backend service of an external HTTP(S) Load Balancer. " Reference: Google Cloud CDN Documentation - Caching external content, Internet NEGs overview

Comprehensive and Detailed In Depth Explanation:

Let ' s analyze each option:

A. Using gsutil: While gsutil can transfer data to Cloud Storage, for 150 TB of infrequently accessed data, direct transfer over the network might be slow and consume significant bandwidth, potentially impacting other network operations. It also lacks built-in mechanisms for filtering files based on age.

B. Using Cloud Interconnect and Filestore: Cloud Interconnect provides a dedicated connection, but Filestore is a fully managed NFS service primarily designed for high-performance file sharing for applications running in Google Cloud. Migrating 150 TB of infrequently accessed data to Filestore would be cost-inefficient compared to Cloud Storage and doesn ' t directly address the requirement of moving older than one year files.

C. Using Transfer Appliance: Transfer Appliance is suitable for very large datasets (petabytes) or when network connectivity is poor or unreliable. While it addresses bandwidth concerns, it involves a physical appliance and might be an overkill for 150 TB of data, especially if network connectivity is reasonable.

D. Using Storage Transfer Service: Storage Transfer Service is specifically designed for moving large amounts of data between online storage systems, including on-premises file systems and Cloud Storage. It offers features like filtering by file age, scheduling transfers, and bandwidth control, directly addressing all the requirements of the question: migrating infrequently accessed files older than one year to Cloud Storage, minimizing costs (by using appropriate Cloud Storage classes for infrequent access), and controlling bandwidth usage.

Google Cloud Documentation References:

Storage Transfer Service Overview: https://cloud.google.com/storage-transfer-service/docs/overview - This page details the capabilities and use cases of Storage Transfer Service, including transferring from on-premises.

Storage Transfer Service for on-premises data: https://cloud.google.com/storage-transfer-service/docs/on-prem-overview - This specifically covers transferring data from on-premises file systems.

Cloud Storage Classes: https://cloud.google.com/storage/docs/storage-classes - Understanding the different storage classes (Standard, Nearline, Coldline, Archive) is crucial for cost optimization of infrequently accessed data. Storage Transfer Service can be configured to move data to a cost-effective class like Nearline or Coldline.

===========

Explanation : The correct approach is to create an HA VPN gateway and associate it with the encrypted VLAN attachments. The same Cloud Router used for BGP sessions with Cloud Interconnect can be used for the HA VPN. This configuration ensures encryption of the traffic passing over the Cloud Interconnect links.

Comprehensive and Detailed In Depth Explanation:

Let ' s analyze each option to find the one that meets the requirements of no startup time for new traffic, two idle instances, and minimal administrative overhead:

A. Unchecking " Serve this revision immediately " and using a traffic simulation tool: Unchecking " Serve this revision immediately " does prevent the new revision from receiving traffic immediately. However, manually using a traffic simulation tool adds administrative overhead. It also doesn ' t guarantee that two idle instances will be ready before traffic is shifted; you would need to monitor and adjust traffic manually based on the simulation.

B. Configuring service autoscaling and setting the minimum number of instances to 2: Service-level autoscaling applies to all revisions of the service. Setting the minimum instances at the service level would ensure at least two instances are running across all active revisions, not specifically for the new revision before traffic shift.

C. Configuring revision autoscaling for the new revision and setting the minimum number of instances to 2: This is the correct approach. By configuring revision autoscaling specifically for the new revision and setting the minimum number of instances to 2, Cloud Run will ensure that at least two instances of the new version are running and ready to serve traffic before you redirect any traffic to it. This eliminates startup latency when you do shift traffic. It also minimizes administrative overhead as Cloud Run manages the instance scaling based on this configuration.

D. Configuring revision autoscaling for the existing revision and setting the minimum number of instances to 2: This would ensure the existing version has at least two idle instances, which doesn ' t directly address the requirement of having idle instances ready for the new version before traffic redirection.

Google Cloud Documentation References:

Cloud Run Autoscaling: https://cloud.google.com/run/docs/configuring/min-instances - This document explains how to configure minimum and maximum instances for Cloud Run services and revisions. It clarifies that you can set minimum instances at the revision level to ensure instances are always ready.

Cloud Run Traffic Management: https://cloud.google.com/run/docs/managing/traffic - This describes how to deploy new revisions and gradually shift traffic between them. Combining minimum instances on the new revision with traffic splitting allows for zero-downtime deployments with pre-warmed instances.

===========

The correct answer is C because it meets the requirement of protecting the application from potential application-level attacks.  Google Cloud Armor security policies are sets of rules that match on attributes from Layer 3 to Layer 7 to protect externally facing applications 1 .  Web application firewall (WAF) rules are predefined rules that detect and mitigate common web attacks such as cross-site scripting (XSS), SQL injection, remote file inclusion, and more 2 . By applying a Google Cloud Armor security policy with WAF rules to the backend service, you can filter out malicious requests before they reach your application.

Option A is incorrect because Cloud CDN is a content delivery network that caches static content at the edge of Google’s network, but it does not provide any protection against application-level attacks 3 .  Option B is incorrect because firewall rules are applied at the VPC network level, not at the load balancer level 4 .  Firewall rules also only match on Layer 3 and 4 attributes, not on Layer 7 attributes that are relevant for application-level attacks 4 . Option D is incorrect because VPC Service Controls perimeter is a feature that helps you secure your data from unauthorized access by users outside your organization, but it does not protect your application from external attacks.

https://cloud.google.com/armor/docs/security-policy-concepts#preview_mode

When diagnosing latency issues that are suspected to be a Google Cloud platform issue, the Network Intelligence Center Performance Dashboard is the recommended tool. It provides visibility into network performance metrics across Google Cloud, including inter-region latency, which can help confirm if the increased latency is due to a platform-wide issue rather than specific to your VPC or application. While Connectivity Tests are useful for verifying reachability and basic network configurations, and tcpdump is for in-instance packet analysis, neither provides the broad, platform-level visibility needed to assess general Google Cloud network performance trends and baselines.

Exact Extract:

" The Performance Dashboard in Network Intelligence Center helps you visualize network performance metrics for your Google Cloud network, including inter-region latency and packet loss. It provides insights into the health of the Google Cloud network and can help you identify if performance degradations are due to the underlying platform. "

" The Performance Dashboard provides an aggregated view of network performance across Google Cloud, allowing you to compare your current latency with historical trends and Google Cloud ' s overall network performance. " Reference: Google Cloud Network Intelligence Center Documentation - Performance Dashboard

Explanation : To apply Layer 7 (L7) inspection for intrusion prevention, you must create a firewall endpoint within the zone where the traffic inspection is required. This endpoint is then associated with the VPC network, and a firewall policy rule is applied for the L7 inspection.

Google Cloud VPC Network Peering allows internal IP address connectivity across two Virtual Private Cloud (VPC) networks regardless of whether they belong to the same project or the same organization.

Create Packet Mirroring Policies :

You need to create three packet mirroring policies, one for each zone (us-west2-a, us-west2-b, and us-west2-c). This ensures that each zone ' s traffic is mirrored appropriately without unnecessary cross-zone traffic.

Create Collector Instances :

Set up one group of collector instances for the us-west2 region. Having a single group of collector instances for the entire region minimizes the number of instances required and simplifies the management while keeping egress costs low since the collectors are within the same region.

Configuration of Policies :

Each packet mirroring policy should be configured to match traffic for its specific zone. Use instance-tags to identify and match the relevant instances within each zone. This helps in correctly capturing the traffic from the appropriate sources.

Filter for TCP Traffic :

Create a filter for TCP traffic (ports 80 and 443). This step ensures that only the relevant web application traffic is mirrored, reducing the amount of data processed and improving efficiency.

Cost Efficiency :

By having packet mirroring policies specific to each zone and a regional collector group, you reduce inter-zonal network egress costs. The data remains within the same region, avoiding extra charges associated with cross-zone traffic.

https://cloud.google.com/network-connectivity/docs/vpn/how-to/creating-static-vpns#creating_a_gateway_and_tunnel
