RCWA RUCKUS Certified Wi-Fi Associate Exam Questions and Answers

ChannelFlyis RUCKUS’s patentedmachine-learning-based dynamic channel selectionalgorithm. Unlike static or simple noise-based channel assignments, ChannelFly continuously measuresactual throughputand learns the performance potential of each available channel.

According to theRUCKUS One Online Help – ChannelFly OverviewandRUCKUS AI documentation, ChannelFly usesreal-time capacity analysisinstead of noise floor alone to choose channels that yield the highest throughput under current interference and load conditions.

BeamFlex+manages antenna patterns,SmartCasthandles QoS and traffic shaping, andPD-MRCenhances reception diversity—none perform dynamic channel learning.

MIMO (Multiple Input, Multiple Output)is a fundamental wireless technology that enhances Wi-Fi throughput and reliability by transmitting multiple data streams simultaneously using multiple antennas on both the transmitter and receiver. It wasintroduced in the IEEE 802.11n standard, which marked the beginning of high-throughput (HT) Wi-Fi.

According toRUCKUS One Online Helpand theRUCKUS Analytics 3.5 User Guide, MIMO enablesspatial multiplexing,diversity gain, andbeamforming, allowing higher data rates and improved signal quality in multipath environments. Subsequent standards (802.11ac and 802.11ax) expanded this concept toMU-MIMO (Multi-User MIMO), allowing simultaneous communication with multiple clients.

MIMO requiressupport on both the AP and clientfor full functionality; otherwise, the connection falls back to single-stream operation. It is used in bothuplink and downlinkdirections (especially in Wi-Fi 6 and later). Thus, optionB—introduced in 802.11n—is correct, while options A, C, and D are incorrect.

Expanding aVLAN Poolbeyond 32 VLANs in SmartZone requires access points that support the802.11ac Wave 2 standard or higher.

According toRUCKUS One Online Help – VLAN Pooling and Dynamic VLAN Assignment, older AP platforms (prior to 802.11ac Wave 2) are limited to 32 VLANs due to hardware constraints in VLAN ID indexing and memory allocation. Wave 2 and newer models (including Wi-Fi 6 and 6E APs) supportexpanded VLAN pools up to 64 or more entries.

This capability enables more granular segmentation of large user groups, especially in high-density enterprise or education environments where dynamic VLAN assignment distributes clients evenly across multiple subnets.

User roleandtraffic profileshandle authentication and QoS mapping, not VLAN scalability. 802.11k and 802.11r improve roaming, not VLAN allocation.

Therefore,802.11ac Wave 2 and abovehardware is required to support VLAN pools beyond 32 entries.

TheControl Planein aSmartZone architecturehandles allmanagement and configuration communicationbetween the controller and connected devices (APs and switches).

PerRUCKUS One Online Help – SmartZone Plane Architecture Overview, the Control Plane is responsible for:

Pushingconfiguration data, firmware updates, and policy settings to APs.

Receiving telemetry, performance metrics, and operational status from devices.

Managing secure communication channels viaLWAPP or HTTPS/SSH tunnels.

In contrast, theData Planeforwards user traffic, theCluster Planesynchronizes data among controller nodes, and theManagement Planesupports administrator access (GUI/CLI).

This division enhances scalability and fault tolerance—especially invSZ-Hmulti-node clusters where data and control functions can be distributed.

ForVoice-over-Wi-Fi (VoWiFi)deployments, RUCKUS recommends maintainingairtime utilization under 50%and ensuring aminimum RSSI of –65 dBmat the edge of coverage areas to guarantee clear call quality and low latency.

According toRUCKUS One Online Help – WLAN Design for Real-Time ApplicationsandRUCKUS AI Documentation – VoIP Quality Optimization, these thresholds ensure aSignal-to-Noise Ratio (SNR)above 25 dB, keeping jitter under 30 ms and packet loss below 1%.

RUCKUSSmartCast QoSautomatically prioritizes voice packets (802.11e WMM Voice AC) to further protect call performance, but maintaining low channel congestion remains critical.

RUCKUS Analytics 3.5 User Guide – Airtime and Voice Traffic Metricsemphasizes monitoring airtime utilization through dashboards to verify compliance with design thresholds.

Client Load Balancingin RUCKUS WLANs is designed to optimize client distribution among nearby access points, preventing over-association to a single AP and improving overall airtime efficiency.

According to theRUCKUS One Online Help – Load Balancing and Band SteeringandRUCKUS Analytics 3.5 User Guide – Client Distribution Analysis, SmartZone load balancing can be configured using two key parameters:

Client RSSI (B):The system evaluates the signal strength of a client device relative to multiple APs to ensure that it connects to the most suitable AP, not necessarily the strongest or first one detected.

Client Count (C):Balances client connections by redistributing associations when one AP exceeds a configured threshold compared to its neighbors.

AP capacityanddevice typeare not direct load-balancing criteria, andproximityis implicitly derived from RSSI measurements rather than configured explicitly.

Therefore, the correct answers areB (Client RSSI)andC (Client count).

ARUCKUS Application Policyallows administrators to control network performance and user experience by classifying, prioritizing, and managing traffic based on the type of application detected on the network.

According toRUCKUS One Online Help – Application Control and Policy Management, andRUCKUS AI documentation, Application Policies can:

Apply rate limiting (A):Control the bandwidth allocated to specific applications or application groups (e.g., limit video streaming or social media traffic).

Apply Quality of Service (E):Mark or prioritize application traffic using DSCP or internal QoS levels to ensure latency-sensitive applications such as voice or conferencing receive higher priority.

RUCKUS leveragesDeep Packet Inspection (DPI)for identifying over 2,500+ applications, enabling precise enforcement per SSID or per user.

Other options—URL filtering,VLAN assignment, andpacket capture—are handled through separate mechanisms (Web filtering, Device Policy, and diagnostic tools, respectively), not via Application Policies.

Therefore, the correct answers areA (Rate limiting)andE (Quality of Service).

TheRule of 10s and 3sis a quick mental calculation used to convert betweendBm (decibel-milliwatts)andmilliwatts (mW), which represent power levels. The rule states that:

Every10 dB increasecorresponds to a10× increase in power.

Every3 dB increasecorresponds to approximately a2× increase in power.

Starting from0 dBm = 1 mW:

+10 dBm = 10 mW

+20 dBm = 100 mW

Add 3 dB → 23 dBm = 100 mW × 2 ≈200 mW

Thus,23 dBm converts to approximately 200 mW. This principle is used throughout RUCKUS documentation for understandingEIRP (Effective Isotropic Radiated Power)and ensuring compliance withregulatory transmit power limits.

According toRUCKUS One Online HelpandRUCKUS AI user documentation, administrators often use this conversion when optimizing transmit power settings to balance coverage and interference. The rule helps design engineers translate dB settings into physical power outputs during Wi-Fi tuning and planning.

RUCKUS Analyticsprovideshistorical and AI-driven insightsinto network health and client connectivity trends. It identifieschronic connectivity issues, such as repeated association failures, high retry rates, or roaming delays, over extended timeframes.

According to theRUCKUS Analytics 3.5 User Guide – Client Troubleshooting and Service Assurance, the platform uses machine learning to analyze large volumes of telemetry data from APs, automatically flagging recurring issues per client or SSID.

TheSmartZone Trace Toolcaptures short-term packet traces, whileCluster DiagnosticsandSmartMesh Dashboardfocus on infrastructure health—not client behavior.

When two access points operate onoverlapping channelsin the same frequency band—such aschannel 7 and channel 8in the 2.4 GHz range—they createAdjacent Channel Interference (ACI). Unlikeco-channel interference (CCI), which occurs when APs share the exact same channel,ACIresults from partial channel overlap that causes energy spillover between adjacent frequencies.

According toRUCKUS One Online Help – Radio Configuration and Channel Planning, adjacent channels in 2.4 GHz are only 5 MHz apart, while each Wi-Fi channel occupies 20–22 MHz of bandwidth. As a result, channels like 7 and 8 significantly overlap, creating degraded performance, retransmissions, and reduced throughput.

RUCKUS’sChannelFlytechnology in bothRUCKUS AIandRUCKUS Analyticshelps automatically select non-overlapping channels (such as 1, 6, and 11) to minimize ACI and optimize network capacity.

Therefore, the correct answer isA – Adjacent interference, which directly applies to overlapping channel configurations.

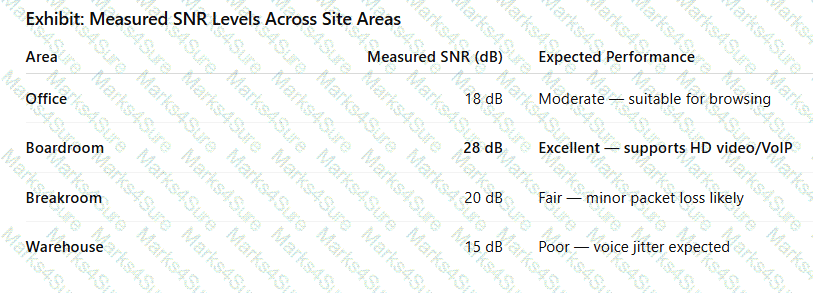

Signal-to-Noise Ratio (SNR)directly influences themodulation and coding scheme (MCS)that can be used between a Wi-Fi client and AP. A higher SNR allows the AP to select higher-order modulations (e.g., 256-QAM or 1024-QAM), which increases throughput efficiency.

According toRUCKUS One Online Help – RF Signal and SNR Concepts, an SNR of around 25 dB or greater is typically required for high-rate modulation such as MCS 9 or above.

RUCKUS Analytics 3.5 User Guide – PHY Metricsconfirms that RUCKUS APs continuously adapt MCS levels based on SNR, optimizing link performance dynamically.

Lower SNR conditions force modulation downshifts (e.g., QPSK or BPSK), reducing data rates for reliability.

When a valid SSL certificate is installed onSmartZone, it is not automatically applied to all services. TheWISPr (Wireless Internet Service Provider roaming) portalmust have the certificate explicitlymappedto it in theWeb Authentication settings.

According toRUCKUS One Online Help – Certificate Management and Portal Configuration, SSL certificates must be bound to individual services such asWISPr,SmartZone GUI, orAP web services. If a certificate is uploaded but not mapped, the portal continues using the default system certificate, leading to trust or validation errors for guest users.

The certificate does not need to be a wildcard, and WISPr can share a certificate with other services as long as it’s properly assigned.

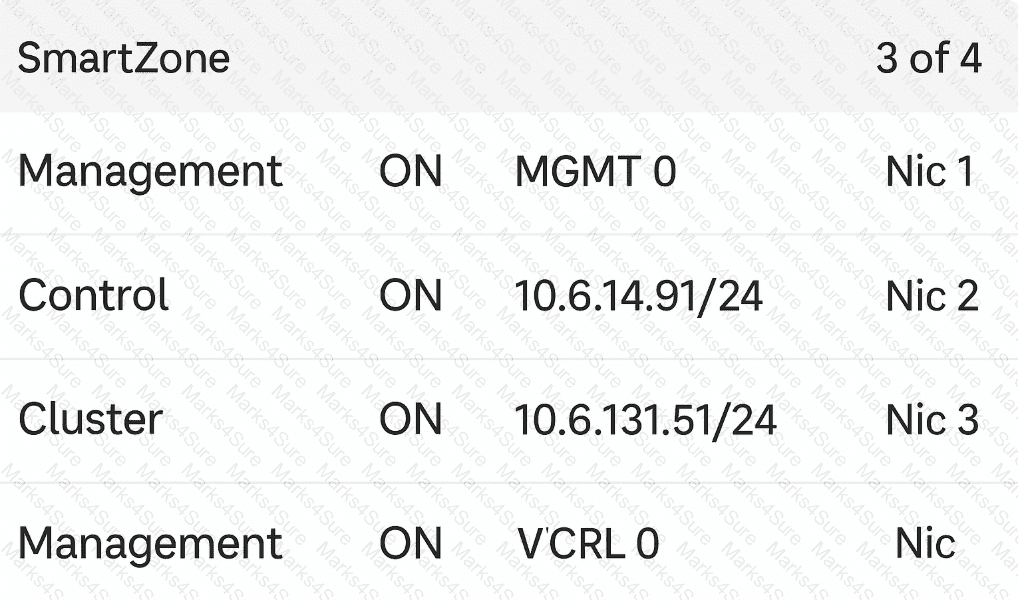

The exhibit shows avirtual SmartZone (vSZ)configuration running in a VMware environment withthree separate virtual NICs (vNICs), each mapped to a different port group:Management,Control, andCluster.

According toRUCKUS One Online Help – SmartZone Interface ConfigurationandRUCKUS AI Documentation – SmartZone High-Scale Architecture, this design is specific tovSZ-H (High-Scale)deployments, which requirethree distinct network interfacesfor distributed control, management, and cluster synchronization.

Thethree NIC mappingsconfirm physical or virtual separation of traffic for scalability and redundancy (AandE).vSZ-E(Essentials) requires onlytwo interfaces(Management and Control) and does not use a dedicated cluster interface, distinguishing it from vSZ-H (D).

There is no indication of a four-node cluster in the exhibit, and SmartZone appliances typically show node counts under the Cluster Dashboard, not at the NIC configuration stage.

Thus, based on the configuration, this is avSZ-Hsystem withthree NICs and three port groups, each serving a dedicated function.

To minimizeco-channel interference (CCI)in multi-floor Wi-Fi environments, planners should assigndifferent non-overlapping 2.4 GHz channels per floor—typically channels 1, 6, and 11.

According toRUCKUS One Online Help – RF Planning Best Practices, overlapping floors can cause vertical signal leakage, leading to channel contention and performance degradation. TheRUCKUS Wi-Fi Plannerallows layer-based channel mapping to simulate floor separation and interference.

While reducing transmit power can complement this strategy,channel segregationremains the primary CCI mitigation method. Increasing AP density or enabling SmartMesh does not resolve channel reuse conflicts in vertical topologies.

OFDMA (Orthogonal Frequency Division Multiple Access)is one of the core features introduced inIEEE 802.11ax (Wi-Fi 6). It divides a channel into smaller subcarriers calledResource Units (RUs), allowing an AP to communicate with multiple clients simultaneously, both on uplink and downlink.

According to theRUCKUS One Online Help – Wi-Fi 6 Features Overview, OFDMA improves spectrum efficiency, reduces latency, and increases throughput in high-density environments. RUCKUS APs such as theR750andR850use OFDMA in coordination withRUCKUS AI’s client traffic analysisto allocate resources dynamically.

In contrast,MU-MIMOalso supports multi-user communication but only in one direction (downlink for 802.11ac Wave 2, both for 11ax).QAM256enhances modulation efficiency but doesn’t enable concurrent multi-client service.

TheWireless Intrusion Prevention System (WIPS)in SmartZone continuously monitors the RF environment to detect and mitigate rogue or malicious behavior.

According toRUCKUS One Online Help – WIPS Policy Configuration, availablerule typesinclude:

(B) High RSSI:Detects potentialrogue APs or clientsbroadcasting at unusually strong signal levels that suggest proximity or spoofing attempts.

(C) NAV Abuse:Identifies devices misusing theNetwork Allocation Vectorfield to monopolize airtime, degrading performance for other users.

(E) SSID Spoofing:Detects devices broadcasting identical SSIDs to legitimate WLANs, often used in man-in-the-middle or phishing attacks.

Other listed options, such asShort GI (Guard Interval)andSame Network, are PHY or configuration settings, not WIPS rules.Excessive Powerdetection is handled indirectly viaHigh RSSIthresholds.

SmartMeshis RUCKUS’s adaptive wireless backhaul technology that allows access points to interconnect without relying on Ethernet cabling. When Ethernet uplinks are not available, a designatedRoot APprovides upstream connectivity whileMesh APsconnect wirelessly to extend coverage.

According toRUCKUS One Online Help – SmartMesh NetworkingandRUCKUS AI Documentation – Mesh Optimization, SmartMesh automatically selects optimal paths based on link quality, latency, and throughput. The feature supports self-healing and automatic rerouting if a mesh link fails.

UnlikeSmartCast(QoS management),ChannelFly(dynamic channel selection), orBeamFlex+(antenna pattern optimization), SmartMesh is dedicated to resilient wireless backhaul formation.

Innon-proxy RADIUS mode, theSmartZone controller does not act as an intermediaryfor authentication requests. Instead, eachaccess point (AP)communicatesdirectly with the RADIUS serverfor client authentication.

According toRUCKUS One Online Help – WLAN Authentication Modes (Proxy vs Non-Proxy), the key requirement is thateach AP must be defined as a RADIUS clientin the RADIUS server configuration. If not, authentication requests from the APs are rejected because the server does not recognize their source IPs or shared secrets.

This behavior differs fromproxy mode, where only the SmartZone controller needs to be added as a RADIUS client. Port numbers (1812/1813) and encryption types remain standard, and both802.1XandMAC authenticationare supported.

Therefore, authentication failure in this scenario occurs becauseeach AP must be authorized individuallyin the RADIUS server when non-proxy mode is used.

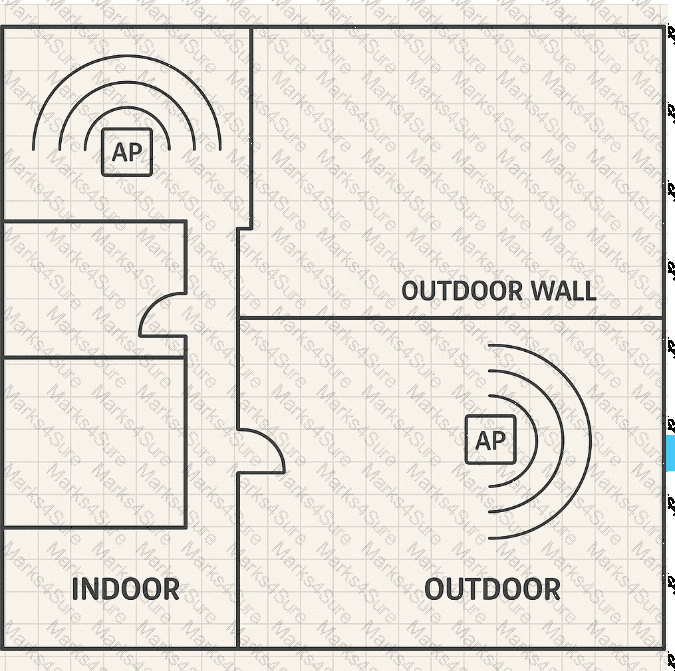

Weak client connectivity at the edge of coverage is typically caused byinsufficient received signal strengthrather than AP transmit power limitations. Increasing AP power does not help if theclient device cannot transmit back effectively.

According toRUCKUS One Online Help – Outdoor RF Design and Antenna Optimization, the best corrective action is to usehigher-gain directional or sector antennas (D), which focus RF energy toward client areas to improvelink budgetandtwo-way communication.

RUCKUS Analytics 3.5 User Guide – RF Link Quality Metricsconfirms that directional gain antennas improve downlink and uplink SNR, enhancing stability without increasing interference footprint.

RTS/CTShelps mitigate collisions, andpolarity alignmentapplies to point-to-point backhaul, not client coverage.

TheData Interfaceis unique tophysical SmartZone (SZ) hardware appliancessuch as theSmartZone 100 (SZ-100)orSmartZone 300 (SZ-300). This interface handlesuser traffic data forwardingin hardware-based deployments and isnot presentin virtualized versions such as thevSZ (Virtual SmartZone).

According to theRUCKUS One Online HelpandSmartZone system architecture descriptions, the physical controller includes four main interfaces:

Management Interface:Handles GUI, CLI, and administrative access.

Control Interface:Manages control-plane communications with access points.

Cluster Interface:Manages synchronization and redundancy between cluster members.

Data Interface:Dedicated for data-plane traffic processing and forwarding (exclusive to physical appliances).

Virtual SmartZone controllers usetunnel-based data forwarding(via GRE or VXLAN) instead of a dedicated hardwareData Interface. Hence, theData interfaceexists only on physical appliances, makingAthe correct answer.
