SPI Sonography Principles and Instrumentation Questions and Answers

Comprehensive and Detailed Explanation From Exact Extract:

Persistence is a frame averaging function that combines multiple sequential frames to smooth random noise and reduce speckle, particularly effective in stationary or slow-moving structures.

According to official Principles and Instrumentation guidelines:

" Persistence reduces random noise by averaging multiple frames over time, improving image clarity but potentially reducing temporal resolution. "

Increasing frequency improves resolution but may increase attenuation.

Sector width affects frame rate.

Depth affects penetration but not noise reduction.

Therefore, the correct answer is D: Persistence.

—

QUESTION NO22

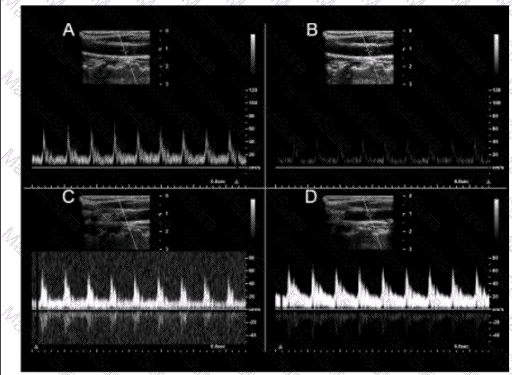

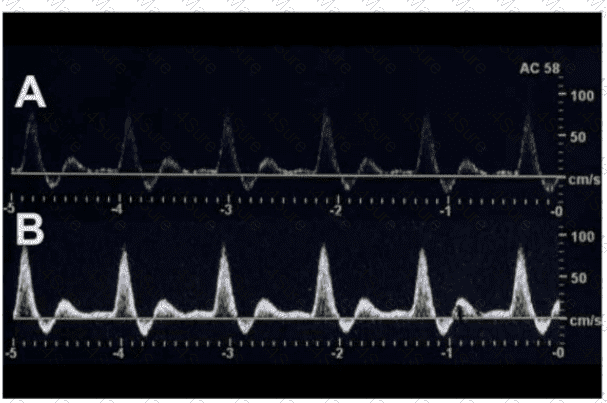

Which adjustment produced the change from waveform A to waveform B?

A close-up of a graph Description automatically generated

A. Increased Doppler gain

B. Decreased Doppler gain

C. Increased wall filter

D. Decreased wall filter

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

Comparing waveform A to waveform B:

In image B, the Doppler spectral waveform is brighter, with stronger signal amplitude and more clearly visible Doppler shifts.

This indicates that the Doppler gain was increased, amplifying the strength of the returning Doppler signals displayed on the spectral waveform.

According to official sonography Principles and Instrumentation:

" Doppler gain controls the amplification of returning Doppler signals. Increasing the gain enhances signal amplitude, making weaker Doppler signals more visible. "

Decreasing gain (B) would have produced a dimmer waveform.

Changes in wall filter (C and D) would primarily affect low-velocity signal display, not overall brightness.

Therefore, the correct answer is A: Increased Doppler gain.

QUESTION NO23

Which aspect(s) would best explain why the amplitude of the signal from reflector B in this diagram is less than that from reflector A?

A diagram of a transducer Description automatically generated

A. Attenuation

B. Elasticity of the medium

C. Propagation speed differences

D. Acoustic impedance differences

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

As ultrasound travels through tissue, it experiences attenuation — a reduction in signal amplitude due to absorption, scattering, and reflection. The deeper the reflector, the greater the attenuation. Therefore, the signal from reflector B (deeper structure) is weaker than from reflector A (shallower structure) primarily due to attenuation.

According to Principles and Instrumentation:

" Attenuation is the reduction in ultrasound beam strength as it propagates through tissue, resulting in decreased signal amplitude from deeper structures. "

Elasticity affects stiffness but not amplitude directly.

Propagation speed differences cause refraction or displacement, not amplitude changes.

Acoustic impedance differences cause reflection strength variations at interfaces but do not account for depth-dependent amplitude reduction.

Therefore, the correct answer is A: Attenuation.

QUESTION NO24

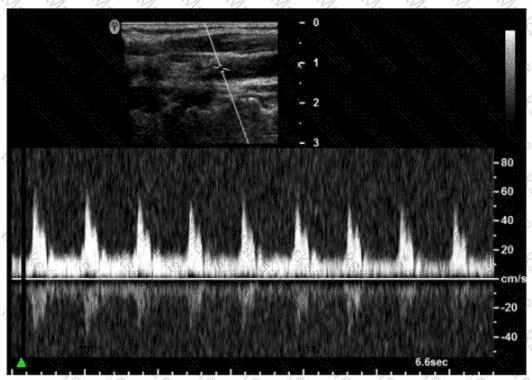

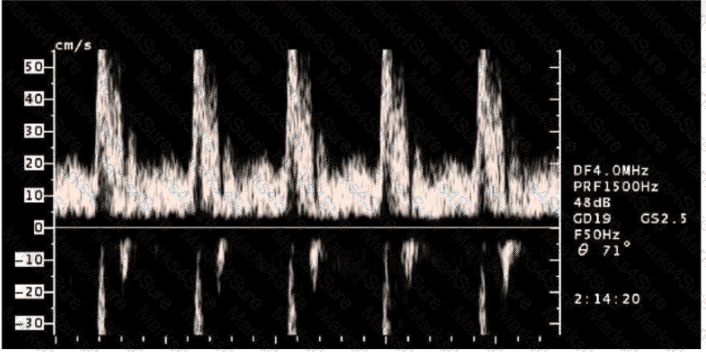

Which adjustment would eliminate aliasing in the Doppler waveform in this image?

A close-up of an ultrasound Description automatically generated

A. Decrease Doppler gain.

B. Decrease wall filter.

C. Increase velocity scale.

D. Increase sample size.

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

Aliasing occurs when Doppler frequency shifts exceed the Nyquist limit (which equals half the pulse repetition frequency). Increasing the velocity scale (which increases PRF) raises the Nyquist limit, reducing or eliminating aliasing.

Principles and Instrumentation state:

" Aliasing in pulsed-wave Doppler can be corrected by increasing the pulse repetition frequency (velocity scale), allowing higher velocities to be displayed without wraparound. "

Decreasing gain affects amplitude, not aliasing.

Wall filter adjustments remove low-velocity signals, not aliasing.

Increasing sample size affects spatial resolution and may reduce frame rate but does not address aliasing.

Therefore, the correct answer is C: Increase velocity scale.

—

Comprehensive and Detailed Explanation From Exact Extract:

Mechanical Index (MI) estimates the likelihood of non-thermal bioeffects such as cavitation (formation of microbubbles).

Principles and Instrumentation state:

" Mechanical Index reflects the risk of cavitation. Higher MI values increase cavitation potential. "

Attenuation coefficient (A) refers to energy loss.

Thermal index (C) reflects potential heating.

Frame rate (D) relates to temporal resolution.

Therefore, the correct answer is B: Mechanical index.

—

QUESTION NO42

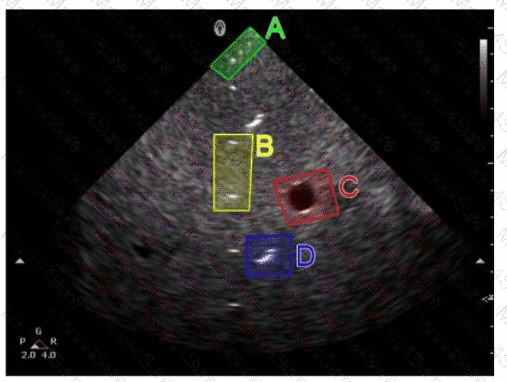

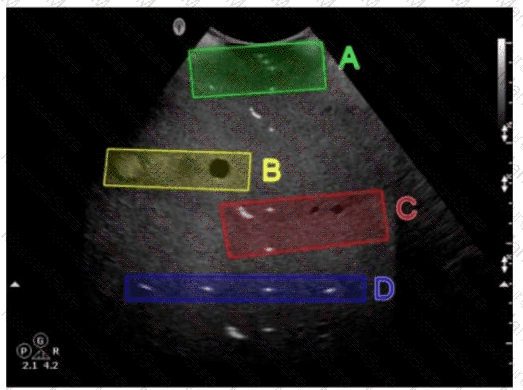

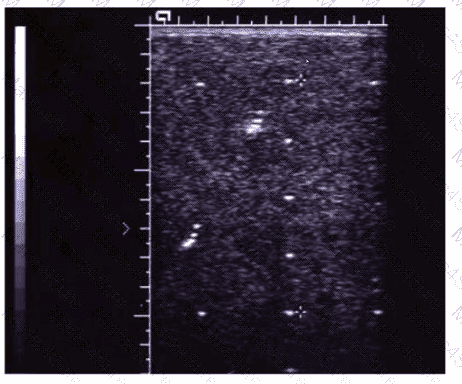

Which target group is used to evaluate transverse distance measurement accuracy in this tissue-mimicking phantom image?

A ultrasound image of a baby Description automatically generated with medium confidence

A. A

B. B

C. C

D. D

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

In a tissue-mimicking phantom, the group of targets aligned side-by-side (horizontally) is used to evaluate transverse (lateral) distance measurement accuracy. In the image, target group C (in red) represents the lateral spacing targets.

Principles and Instrumentation state:

" Transverse distance accuracy is evaluated using laterally spaced targets in the phantom to verify correct lateral measurement calibration. "

Group A (top) is typically for near field assessment.

Group B may be for axial resolution or cyst evaluation.

Group D (deep) may assess depth calibration or sensitivity.

Therefore, the correct answer is C: C.

—

Dynamic range in ultrasound imaging affects the number of gray shades displayed in a 2-D image. Adjusting the dynamic range changes how echo signals are mapped to grayscale. A higher dynamic range means more shades of gray are displayed, providing a more detailed and softer image, which is useful for differentiating subtle tissue textures. Conversely, a lower dynamic range increases contrast by displaying fewer shades of gray, making the image appear more black and white. This adjustment is crucial for optimizing image quality based on the specific diagnostic needs.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Temporal resolution refers to the ability of the ultrasound system to distinguish events occurring closely in time. In color flow imaging, temporal resolution is affected by the frame rate, which can be increased by decreasing the width of the color field of view. This is because a narrower color field requires fewer scan lines to be processed, allowing for more frames to be captured per second.

ARDMS Sonography Principles and Instrumentation guidelines

Edelman, S. K. (2017). Understanding Ultrasound Physics.

The backing material, also known as damping material, in an ultrasound transducer serves to dampen the vibrations of the piezoelectric crystal.

This damping reduces the number of cycles in each pulse, leading to a shorter spatial pulse length (SPL).

Shorter SPL improves axial resolution by allowing the system to better distinguish between two closely spaced structures along the axis of the ultrasound beam.

Improved axial resolution is crucial for producing clearer, more detailed images.References:

ARDMS Sonography Principles and Instrumentation guidelines on transducer design and the role of backing material in image quality.

Reject: This control eliminates low-level noise and weak signals, affecting image quality but not primarily used for contrast resolution.

Output Power: This adjusts the intensity of the transmitted ultrasound waves but does not directly change contrast resolution.

Gain: This control amplifies all signals equally, affecting brightness but not specifically the contrast resolution.

Dynamic Range: Adjusting the dynamic range changes the range of grayscale that the ultrasound system displays, which directly affects the contrast resolution by altering how many shades of gray are visible between the black and white extremes.

When utilizing multiple transmit focal zones, the ultrasound system must perform multiple transmissions at each focal depth. This process requires more time for data acquisition, which in turn decreases the frame rate. A lower frame rate directly impacts temporal resolution, which is the ability to accurately depict moving structures over time. Thus, using multiple focal zones improves lateral resolution but degrades temporal resolution.

To avoid exceeding the Nyquist limit and prevent aliasing in Doppler ultrasound, the pulse repetition frequency (PRF) should be increased. The Nyquist limit is half of the PRF, so by increasing the PRF, the Nyquist limit is raised, allowing the system to accurately measure higher velocities without encountering aliasing artifacts.

ARDMS Sonography Principles and Instrumentation guidelines

Zwiebel, W. J., & Pellerito, J. S. (2017).Introduction to Vascular Ultrasonography. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

The key advantage of pulsed wave Doppler is range resolution, meaning the operator can select a specific depth (sample volume) for measuring velocities. Continuous wave Doppler does not provide this capability, as it samples velocities along the entire beam path.

According to sonography instrumentation reference:

“Pulsed wave Doppler allows selection of sample volume depth, providing range resolution which continuous wave Doppler lacks.”

Therefore, the correct answer is B: Ability to select sample depth.

105

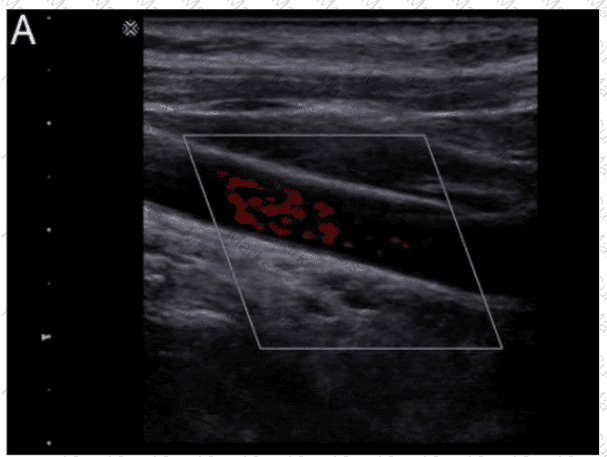

What adjustment is needed to optimize the image below?

A close-up of a medical scan Description automatically generated

A. Increase wall filter

B. Steer the box

C. Decrease scale

D. Raise focal zone

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In the displayed image, the color box is not aligned parallel to the direction of blood flow in the vessel. Color Doppler is angle-dependent; when the color box is not properly steered to align with flow, the Doppler shift is reduced, and less color filling occurs. Steer the box to align the ultrasound beam more parallel to flow to maximize Doppler shift and improve color filling.

According to sonography instrumentation reference:

“Steering the color box aligns the Doppler beam with blood flow direction, optimizing the Doppler angle and improving flow visualization.”

Therefore, the correct answer is B: Steer the box.

—

—

The purpose of using a spectral Doppler wall filter is to eliminate lower velocity signals. Wall filters are designed to remove low-frequency Doppler shifts caused by the motion of the vessel walls or surrounding tissues, which are generally of no diagnostic value. By eliminating these lower velocity signals, the wall filter helps to clean up the Doppler signal and reduce clutter, allowing for a clearer and more accurate display of blood flow velocities.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

" Diagnostic Ultrasound: Principles and Instruments " by Frederick W. Kremkau

Damping in a pulsed-wave transducer primarily affects the pulse duration. Damping refers to the process of reducing the vibration of the transducer crystal after the initial excitation. When damping is applied, it shortens the length of the ultrasound pulse by quickly reducing the vibration. This results in a shorter pulse duration, which is important for improving axial resolution. Damping does not directly affect the pulse repetition frequency, beam focus, or beam penetration, although it can have indirect effects on image quality and resolution.References:

ARDMS Sonography Principles and Instrumentation guidelines

" Diagnostic Ultrasound: Principles and Instruments " by Frederick W. Kremkau

Ensemble length, also known as packet size or Doppler packet, refers to the number of pulses used to calculate each Doppler measurement. Increasing the number of pulses in an ensemble length improves the accuracy of velocity measurements by providing more data points for the Doppler shift analysis. This leads to better estimation of mean velocities and reduces the variability of the measurements, although it may slightly decrease temporal resolution due to the longer time required to acquire the data.

ARDMS Sonography Principles and Instrumentation guidelines

Edelman, S. K. (2017). Understanding Ultrasound Physics.

Comprehensive and Detailed Explanation From Exact Extract:

Ensemble length, also known as packet size, refers to the number of ultrasound pulses sent along each scan line when performing color Doppler or power Doppler imaging. Increasing the ensemble length allows for more accurate velocity estimation and improved sensitivity to low flow but comes at the expense of decreased frame rate.

Official sonography instrumentation reference states:

“Ensemble length refers to the number of pulses per scan line used in color Doppler imaging. A larger ensemble improves sensitivity to slow flow and provides more accurate frequency (velocity) estimates but reduces temporal resolution.”

Thus, the correct answer is B: Number of pulses along a scan line.

—

Comprehensive and Detailed Explanation From Exact Extract:

Interpolation estimates pixel values between scan lines by averaging adjacent data, filling in gaps to create a smoother, more complete image without additional scanning.

According to sonography instrumentation reference:

“Interpolation is a post-processing technique that fills gaps between scan lines by estimating values based on surrounding echoes, improving image smoothness.”

Therefore, the correct answer is D: Interpolation.

—

Attenuation in ultrasound is directly proportional to the path length. If the path length is doubled, the amount of attenuation is also doubled. Attenuation refers to the reduction in the amplitude and intensity of the ultrasound wave as it travels through tissue, primarily due to absorption, reflection, and scattering. The relationship is linear, so doubling the distance the sound wave travels will result in twice the amount of attenuation.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

The imaging depth is limited by the frequency of the transducer because higher frequency sound waves attenuate more rapidly as they penetrate tissue, reducing maximum depth capability.

According to Principles and Instrumentation:

" Higher frequencies provide better resolution but have increased attenuation, limiting penetration depth. Lower frequencies penetrate deeper but at the cost of resolution. "

Propagation speed is relatively constant in soft tissue (~1540 m/s), amplitude affects signal strength but not depth limit directly, and focal depth is an adjustable beam parameter.

Therefore, the correct answer is B: Frequency.

QUESTION NO15

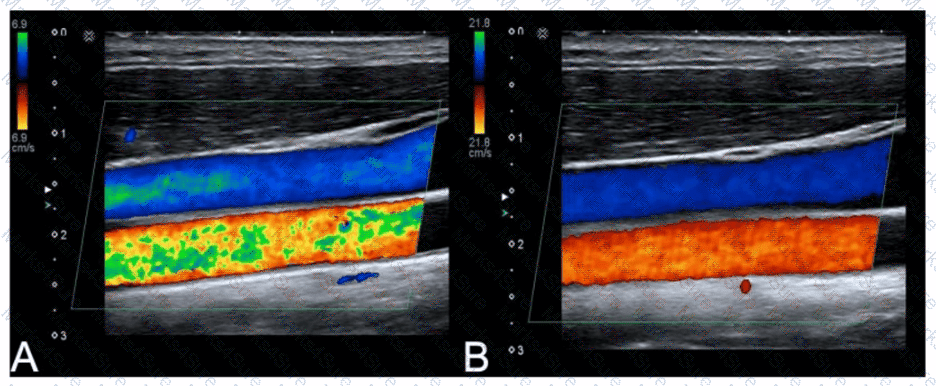

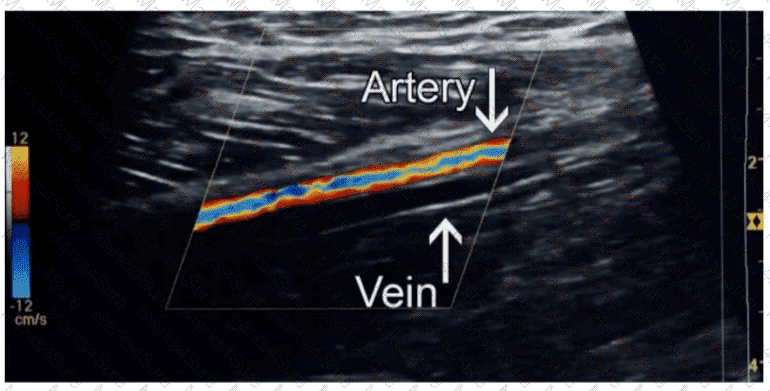

Which color Doppler setting adjustment would likely demonstrate color flow in the normal vein seen in this image?

An ultrasound image of veins and veins Description automatically generated

A. Decreasing scale

B. Increasing scale

C. Decreasing persistence

D. Increasing persistence

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

Veins generally exhibit low-velocity flow. The color scale (or velocity range) must be low enough to detect these slow flows. Decreasing the scale lowers the Nyquist limit, allowing the machine to display lower velocities that may otherwise be undetectable.

Principles and Instrumentation state:

" Reducing the scale increases sensitivity to low-velocity flows such as venous flow, while high scales may suppress these signals. "

Therefore, the correct answer is A: Decreasing scale.

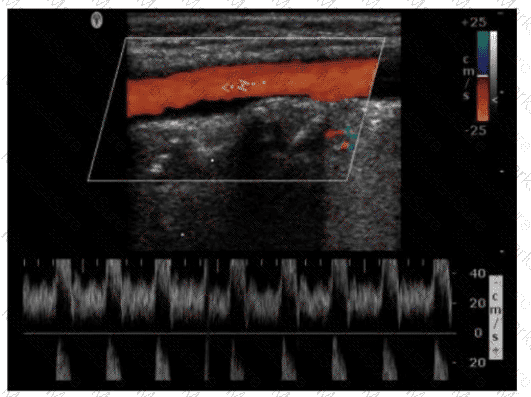

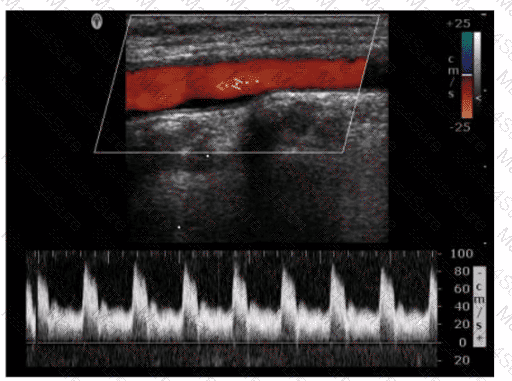

In the provided image, data below the baseline represents blood flow moving away from the transducer, which can indicate retrograde flow. When using spectral Doppler, the baseline separates flows towards and away from the transducer. Aliasing occurs when the velocity of blood flow exceeds the Nyquist limit, causing the display to wrap around and appear on the opposite side of the baseline. This phenomenon is common in high-velocity flow situations and results in part of the flow being displayed below the baseline. Retrograde flow further supports this, as it shows blood moving in the opposite direction to the expected flow.

Comprehensive and Detailed Explanation From Exact Extract:

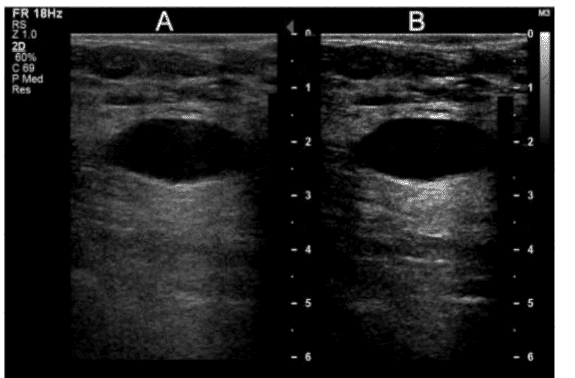

An anechoic structure (such as a cyst or fluid-filled space) allows ultrasound waves to pass through with minimal attenuation. As a result, more sound energy reaches tissues distal to the structure, producing a bright area known as posterior acoustic enhancement or increased echogenicity.

The sonography Principles and Instrumentation documents state:

" Posterior acoustic enhancement occurs distal to fluid-filled structures due to reduced attenuation through the anechoic medium, allowing increased beam intensity to reach deeper tissues. "

Reduced penetration (A) and increased attenuation (B or C) would not produce enhancement.

Reduced attenuation (D) is the correct mechanism.

Therefore, the correct answer is D: Reduced attenuation through the structure.

—

Comprehensive and Detailed Explanation From Exact Extract:

Temporal resolution reflects how quickly frames are updated (frame rate). Reducing the number of scan lines per frame (low line density) decreases acquisition time, thus increasing frame rate and improving temporal resolution.

According to sonography instrumentation reference:

“Lower line density allows for faster frame rates, improving temporal resolution at the expense of spatial resolution.”

Therefore, the correct answer is D: Low line density.

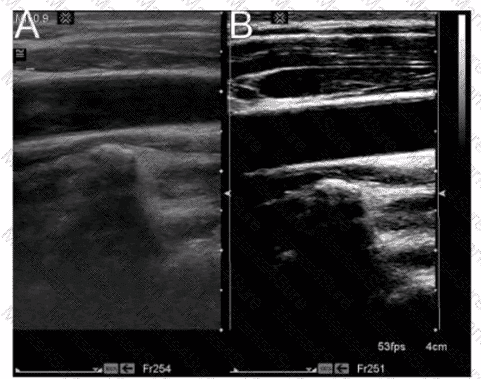

The primary difference between Image A and Image B is the overall gain setting. Gain controls the amplification of the received echoes. A lower gain setting results in a darker image with less overall brightness, which is evident in Image A compared to Image B. Image B appears brighter, indicating a higher gain setting that amplifies the echoes more, making the structures appear more prominently.

ARDMS Sonography Principles and Instrumentation guidelines

Hedrick, W. R., Hykes, D. L., & Starchman, D. E. (2005).Ultrasound Physics and Instrumentation.

Comprehensive and Detailed Explanation From Exact Extract:

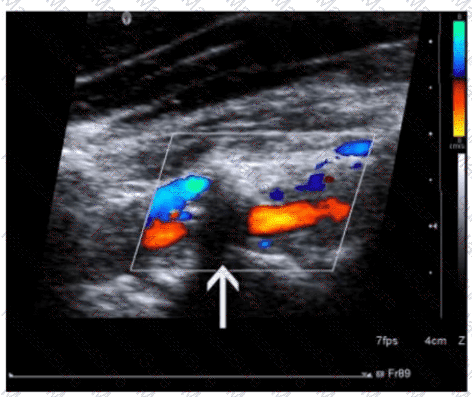

Color Doppler detects flow based on the Doppler shift, which is dependent on the cosine of the angle between the ultrasound beam and the direction of blood flow. At 90 degrees, the cosine value is zero, resulting in no Doppler shift and therefore no detectable color flow signal.

According to sonography instrumentation reference:

“When the insonation angle is 90 degrees, the Doppler frequency shift is zero because the cosine of 90 degrees equals zero. As a result, no flow is displayed.”

Therefore, the correct answer is D: 90 degrees.

—

Comprehensive and Detailed Explanation From Exact Extract:

At greater depths, pulse repetition frequency (PRF) is automatically reduced due to longer pulse travel times, lowering the Nyquist limit and increasing the likelihood of aliasing.

Principles and Instrumentation state:

" As sample depth increases, PRF decreases, lowering the Nyquist limit and increasing the risk of aliasing in pulsed-wave Doppler. "

Doppler shift depends on flow velocity and angle, not depth.

Actual velocity measurements do not increase with depth.

Signal strength typically decreases (not increases) due to attenuation.

Therefore, the correct answer is A: Increased aliasing.

Compression in ultrasound imaging adjusts the range of grayscale displayed, affecting the contrast resolution.

This function allows sonographers to enhance the differentiation between structures of varying echogenicities.

By modifying the contrast resolution, sonographers can better visualize subtle differences in tissue composition and improve the diagnostic quality of the images.

Increasing contrast resolution is particularly important in differentiating between fluid-filled cysts and solid masses.References:

ARDMS Sonography Principles and Instrumentation guidelines on image processing and contrast resolution.

Comprehensive and Detailed Explanation From Exact Extract:

Harmonic imaging operates by transmitting at the fundamental frequency and receiving echoes at the second harmonic frequency (which is twice the fundamental frequency). Therefore, the transducer must have a broad enough bandwidth to include both frequencies.

According to sonography instrumentation reference:

“For harmonic imaging, the transducer bandwidth must accommodate both the transmitted fundamental frequency and the received second harmonic frequency.”

Therefore, the correct answer is A: Fundamental and second harmonic frequencies.

—

Comprehensive and Detailed Explanation From Exact Extract:

Attenuation increases with both frequency and depth. The highest attenuation occurs at the highest frequency and greatest depth. 7.5 MHz attenuates faster than 5 MHz, and 5 cm represents deeper tissue penetration.

Principles and Instrumentation state:

" Attenuation is directly proportional to frequency and path length: Attenuation = Frequency × Depth × Attenuation Coefficient. "

Therefore, the correct answer is D: 7.5 MHz at 5 cm.

—

Comprehensive and Detailed Explanation From Exact Extract:

Axial resolution improves with shorter spatial pulse length, which is directly related to higher frequency. At shallow depths (such as 2 cm), higher frequency can be used effectively since attenuation is minimal.

Principles and Instrumentation state:

" Axial resolution improves with increasing frequency due to shorter wavelength and pulse length. "

Turning off spatial compounding (A) affects speckle reduction.

Harmonics (B) help with resolution but primarily lateral contrast.

Gain (C) affects brightness, not resolution directly.

Therefore, the correct answer is D: Increase frequency.

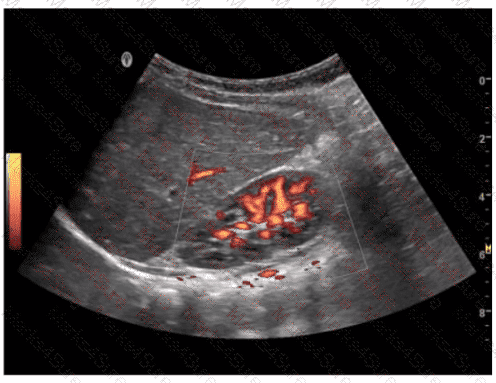

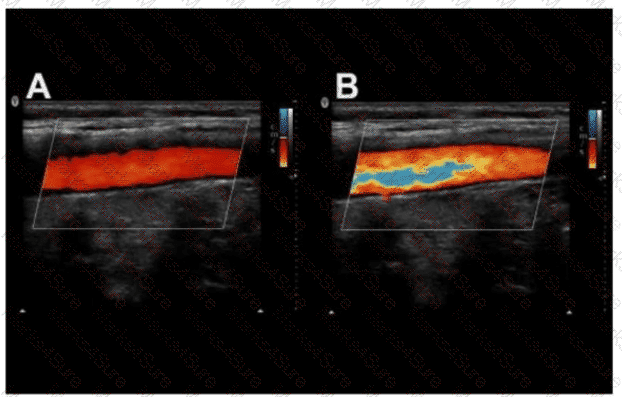

Color flash artifact occurs due to tissue motion. This artifact is a type of color Doppler artifact that happens when there is movement of tissue or transducer, which causes the Doppler system to incorrectly interpret the motion as blood flow. This results in a flash of color appearing on the image where there is actually no flow. Tissue motion affects the Doppler signal, leading to misinterpretation by the system, and hence the artifact appears as a flash of color.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

" Diagnostic Ultrasound: Principles and Instruments " by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Lateral resolution depends on beam width, which is narrowest at the focal zone. Therefore, positioning the focal zone at the area of interest improves lateral resolution.

According to sonography instrumentation reference:

“Lateral resolution is primarily determined by beam width, which is narrowest at the focus. Optimal lateral resolution occurs at the focal zone.”

Therefore, the correct answer is B: Focal zone.

—

Comprehensive and Detailed Explanation From Exact Extract:

Each additional focal zone requires extra transmissions per scan line, which slows down frame acquisition, thereby reducing the frame rate.

Principles and Instrumentation state:

" Increasing the number of focal zones lowers frame rate because multiple pulses are needed per scan line for each focal depth. "

Increasing PRF (B) allows faster data acquisition.

Decreasing depth (C) shortens round-trip time, increasing frame rate.

Decreasing sector width (D) reduces scan lines, increasing frame rate.

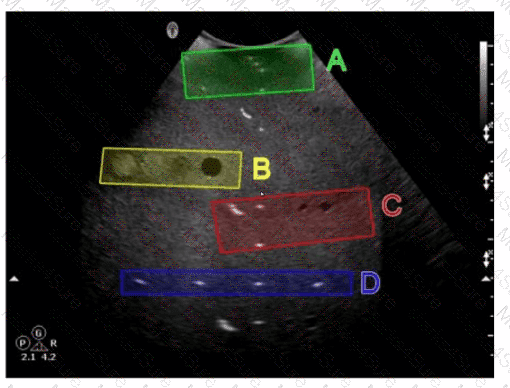

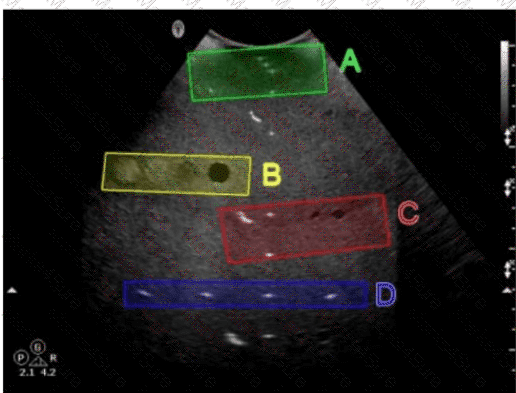

In the tissue-mimicking phantom image, Option D (blue box) is used to evaluate transverse distance measurement accuracy. Phantoms are used to simulate human tissue and provide a standardized way to test the accuracy and precision of ultrasound machines. Transverse distance measurement accuracy is assessed by measuring known distances between targets in the phantom. The blue box (Option D) typically contains targets positioned to specifically test the accuracy of transverse measurements, ensuring that the ultrasound system provides reliable and precise distance readings.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

" Quality Assurance for Ultrasound Imaging Systems " by AAPM (American Association of Physicists in Medicine)

Comprehensive and Detailed Explanation From Exact Extract:

Aliasing happens in Doppler ultrasound when the Doppler shift frequency exceeds half of the pulse repetition frequency (the Nyquist limit). When PRF is too low for the measured Doppler shift, the signal wraps around, producing aliasing.

According to sonography instrumentation reference:

“Aliasing occurs when the Doppler shift frequency exceeds one-half the pulse repetition frequency (Nyquist limit). This results in incorrect display of flow direction and velocity.”

Therefore, the correct answer is C: Aliasing.

—

Comprehensive and Detailed Explanation From Exact Extract:

Damping reduces the number of cycles per pulse, shortening pulse duration and spatial pulse length, which directly improves axial resolution.

Principles and Instrumentation:

" Axial resolution improves with shorter spatial pulse length, achieved by damping, which limits ringing of the transducer. "

Lateral resolution (A) depends on beam width.

Contrast resolution (B) relates to dynamic range.

Temporal resolution (C) is tied to frame rate.

Therefore, the correct answer is D: Axial.

Comprehensive and Detailed Explanation From Exact Extract:

When sound passes through a structure that attenuates less than surrounding tissue (e.g., fluid-filled cyst), more sound reaches the tissues behind it, causing them to appear brighter. This artifact is called enhancement (or posterior acoustic enhancement).

According to sonography instrumentation reference:

“Posterior enhancement appears as increased echogenicity distal to a weakly attenuating structure due to greater beam intensity reaching deeper tissues.”

Therefore, the correct answer is A: Enhancement.

—

Comprehensive and Detailed Explanation From Exact Extract:

Damping material is applied to the back of the piezoelectric crystal to absorb energy and shorten the pulse duration. Shorter pulse durations reduce spatial pulse length, which directly improves axial resolution by enabling better separation of structures along the beam path.

According to sonography instrumentation reference:

“Greater transducer damping results in shorter pulse duration and improved axial resolution but reduces sensitivity.”

Therefore, the correct answer is D: Improved axial resolution.

Comprehensive and Detailed Explanation From Exact Extract:

Continuous wave (CW) Doppler utilizes two separate crystals: one constantly transmitting and one constantly receiving. This setup allows CW Doppler to measure very high velocities without aliasing, but at the cost of losing range specificity (no depth resolution).

According to sonography instrumentation reference:

“Continuous wave Doppler uses two separate elements for continuous transmission and reception of sound waves, allowing for detection of very high velocities but without depth specificity.”

Therefore, the correct answer is D: Dedicated transmit and receive crysta

82

What artifact is indicated by the arrows in the image below?

An ultrasound image of a fetus Description automatically generated

A. Ring down

B. Grating lobe

C. Enhancement

D. Refraction

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

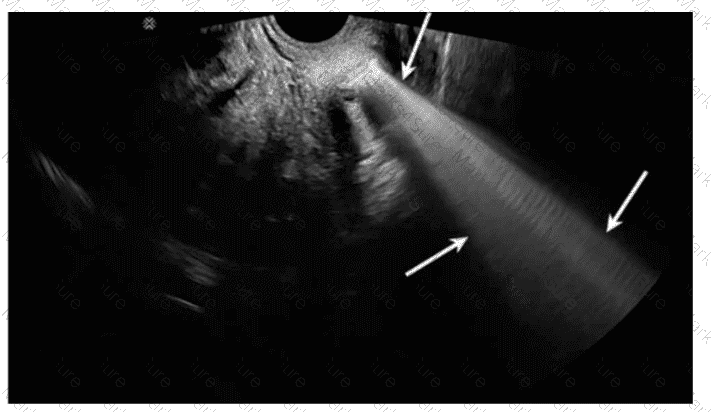

The image shows a bright, continuous, vertical band extending from a gas-containing structure (seen at the top). This is characteristic of ring down artifact, which occurs when multiple small gas bubbles resonate and create continuous echoes below the structure.

According to sonography instrumentation reference:

“Ring down artifact results from resonance of gas bubbles, producing a continuous series of echoes distal to the source. It appears as a bright, vertical band that does not fade with depth.”

Therefore, the correct answer is A: Ring down.

—

Frame rate in color flow Doppler is influenced by several factors, including the imaging depth. Decreasing the depth reduces the time it takes for sound waves to travel to the imaging area and back to the transducer. This allows for more frames to be captured per second, thereby increasing the frame rate. Higher frame rates improve temporal resolution, making it easier to visualize moving structures.

Comprehensive and Detailed Explanation From Exact Extract:

The wall filter in Doppler ultrasound is designed to eliminate low-frequency signals, typically associated with motion artifacts such as vessel wall or tissue motion. These low-frequency signals are not part of the desired blood flow signal and can interfere with accurate Doppler display.

When the wall filter setting is increased, it removes these low-frequency signals from the Doppler spectrum. However, increasing the wall filter too much can also eliminate true low-velocity flow information, leading to a loss of clinically relevant data.

This principle is described in official sonography Principles and Instrumentation references:

" Increasing the wall filter will reduce the display of low-frequency Doppler shifts, which are typically associated with slow-moving structures. These low-frequency signals can represent either slow blood flow or tissue motion artifacts. "

Therefore, the correct answer isD: Reduced display of low-frequency shifts.

Low persistence is best used for visualizing dynamic structures. Persistence is a setting that controls the averaging of successive frames to reduce noise and improve image quality. While high persistence can be beneficial for imaging static structures by providing a smoother image, it can blur or smear moving structures, making it difficult to visualize motion accurately. Low persistence settings allow for better temporal resolution and are therefore ideal for observing dynamic or moving structures such as the heart or blood flow.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

" Diagnostic Ultrasound: Principles and Instruments " by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

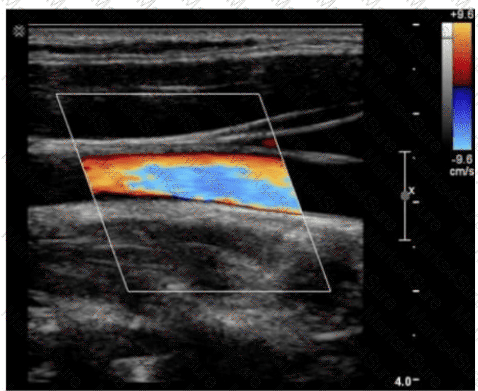

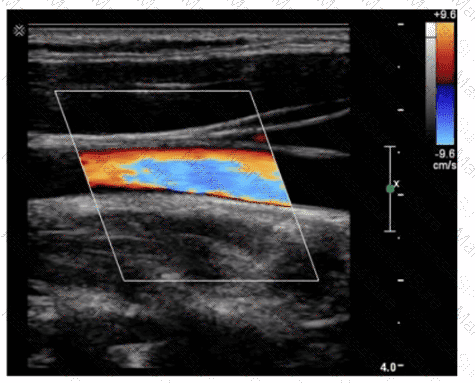

When color " bleeds " outside vessel walls, it often results from motion artifacts or noise from slow tissue motion being displayed as flow. Increasing the wall filter eliminates low-frequency Doppler shifts caused by motion, improving color accuracy within vessel boundaries.

According to sonography instrumentation reference:

“Raising the wall filter eliminates low-velocity signals from vessel wall motion, reducing the appearance of color outside the vessel lumen.”

Therefore, the correct answer is C: Increasing wall filter.

—

Comprehensive and Detailed Explanation From Exact Extract:

Axial resolution depends on spatial pulse length (SPL), which is determined by the number of cycles per pulse. Fewer cycles per pulse shorten the SPL, thereby improving axial resolution and allowing better separation of closely spaced structures along the beam axis.

According to sonography instrumentation reference:

“Axial resolution improves with fewer cycles per pulse, which decreases the spatial pulse length and allows better discrimination of structures along the beam path.”

Therefore, the correct answer is B: Reducing the number of cycles per pulse.

—

Write magnification, or pre-processing zoom, involves rescanning the region of interest (ROI) with more scan lines, thus acquiring new data for that specific area. This process increases the spatial resolution of the image in the magnified area because it gathers more detailed data by adjusting the scan parameters, resulting in improved image quality. This is different from read magnification (post-processing zoom), which simply enlarges the existing image data without increasing resolution.

Comprehensive and Detailed Explanation From Exact Extract:

The Doppler equation demonstrates that the Doppler shift frequency is directly proportional to the velocity of the moving reflector (typically red blood cells).

The Doppler shift formula is:

Doppler shift = (2 × transducer frequency × reflector velocity × cos θ) / propagation speed

According to sonography instrumentation references:

“The Doppler shift frequency increases as the velocity of the moving reflector increases. This relationship is linear when all other factors remain constant.”

Therefore, the correct answer is D: Velocity of the moving reflector.

—

Comprehensive and Detailed Explanation From Exact Extract:

In pulsed-wave transducers, the thickness of the piezoelectric element primarily determines the fundamental operating frequency. Thinner elements produce higher frequencies, while thicker elements produce lower frequencies.

According to sonography instrumentation reference:

“The operating frequency of a pulsed-wave transducer is primarily determined by the thickness of the piezoelectric crystal. Thinner crystals vibrate at higher frequencies.”

Therefore, the correct answer is A: Element thickness.

—

—

Contrast agents used in ultrasound imaging typically consist of microbubbles filled with gas. The significant mismatch in acoustic impedance between the gas in the microbubbles and the surrounding blood creates strong reflectors of the ultrasound waves, enhancing the echogenicity of blood and improving the visibility of blood flow and tissue perfusion. The high contrast provided by the gas-filled microbubbles makes them particularly effective as ultrasound contrast agents.

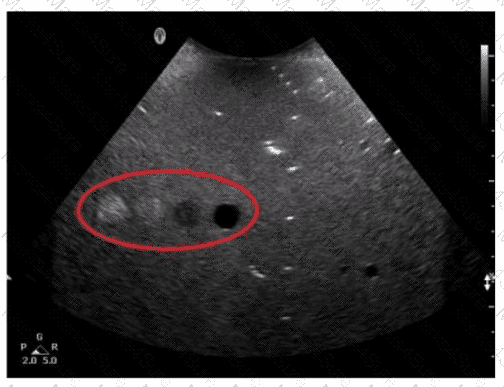

The tissue-equivalent phantom image with the red oval indicates an area where axial resolution can be evaluated. Axial resolution refers to the ability to distinguish between two structures that are close together along the axis of the ultrasound beam. It is determined by the spatial pulse length (SPL) of the ultrasound wave. In phantoms, this is typically tested by observing the ability to separate closely spaced targets along the beam ' s path.

When the depth of imaging is increased, the time it takes for the ultrasound pulses to travel to and from the deeper structures also increases, which can reduce the frame rate. To maintain the same frame rate, one effective adjustment is to decrease the image width. Narrowing the image width reduces the number of scan lines required to create each frame, allowing the system to maintain a higher frame rate despite the increased depth.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

Noise in the Doppler waveform can often be attributed to excessive gain settings. Decreasing the Doppler gain reduces the amplification of both the signal and the noise, thus providing a clearer and more accurate Doppler waveform. Excessive gain can cause speckling and clutter, which obscure the true Doppler signals. By reducing the gain, the noise level is minimized, resulting in a cleaner Doppler signal representation.

Comprehensive and Detailed Explanation From Exact Extract:

In color Doppler, frequency shifts can be displayed either above or below the baseline in spectral Doppler. In spectral Doppler, a positive shift is displayed above the baseline by default (unless inverted). In color Doppler, red/blue assignments depend on color map orientation.

Principles and Instrumentation state:

" A positive Doppler shift (flow toward the transducer) is displayed above the baseline in spectral Doppler. "

Red color (B) does not always correspond to positive shift; it depends on color map.

Negative shift (C) does not always indicate venous flow.

Wall filter settings (D) affect low-velocity signals, not shift direction.

Therefore, the correct answer is A: A positive shift is always above the baseline.

—

Aliasing in color Doppler occurs when the velocity of blood flow exceeds the Nyquist limit, which is half the PRF. To reduce aliasing, the PRF must be increased. This raises the Nyquist limit, allowing higher velocities to be measured without wrapping around the baseline. Increasing PRF reduces the occurrence of aliasing artifacts by expanding the range of detectable velocities before aliasing occurs.

Comprehensive and Detailed Explanation From Exact Extract:

Spatial compounding uses multiple scan angles to create an image. By combining information from different angles, it can reduce shadowing artifacts caused by highly attenuating structures.

According to sonography instrumentation reference:

“Spatial compounding reduces artifacts such as posterior shadowing by averaging images acquired from multiple insonation angles.”

Therefore, the correct answer is A: Increasing spatial compounding.

—

Comprehensive and Detailed Explanation From Exact Extract:

Reflection is maximized when the ultrasound beam strikes a tissue interface at 90 degrees (perpendicular). This angle provides optimal return of echoes for imaging.

According to sonography instrumentation reference:

“Maximal reflection occurs when the sound beam strikes a boundary at 90 degrees.”

Therefore, the correct answer is D: Reflection.

—

Refraction is the change in direction of a sound wave as it crosses a boundary between two different tissues at an oblique angle, where there is a difference in propagation speeds between the tissues. This bending of the sound wave path occurs due to the change in speed, causing the wave to change direction according to Snell ' s law. Refraction can result in artifacts such as edge shadowing and displacement of structures in an ultrasound image.

Comprehensive and Detailed Explanation From Exact Extract:

Slice thickness (elevational resolution artifact) occurs when the ultrasound beam partially includes surrounding tissue above or below the scan plane, falsely appearing as internal echoes within an otherwise anechoic cyst.

Principles and Instrumentation:

" Slice thickness artifact occurs when off-axis echoes are included in the imaging slice, falsely creating internal echoes in cystic structures. "

Refraction (A) causes displacement.

Enhancement (B) causes posterior brightening.

Range ambiguity (D) produces incorrect depth placement.

Therefore, the correct answer is C: Slice thickness.

—
