UiPath-ADPv1 UiPath (ADPv1) Automation Developer Professional Exam(2023.10) Questions and Answers

A background process is a type of automation that can run in parallel with one foreground process on the same robot, without requiring user interaction. A foreground process is a type of automation that requires user interaction and runs on the visible desktop. A background process can transition to foreground by using the Use Foreground activity, which moves the current background process into the foreground, executing all the activities it contains. After the execution is complete, the process is moved back into the background.

The other options are not activities that can be used to transition a background process to foreground. Option B, Activate, is an activity that activates a specified UI element by bringing it to the foreground. Option C, Maximize Window, is an activity that maximizes a specified window. Option D, Set Focus, is an activity that sets the keyboard focus to a specified UI element.

The type of error that should be thrown according to best practices for queue items that contain partial numbers is Business Exception. A Business Exception is an exception that occurs due to an incorrect or incomplete input data or an expected business rule violation. A Business Exception indicates that the transaction item cannot be processed successfully and should be marked as failed in the queue. A Business Exception can be thrown by using the Throw activity in UiPath Studio, with the exception type set to UiPath.Core.BusinessRuleException. Alternatively, a Business Exception can be thrown by using the Set Transaction Status activity in the REFramework, with the status set to Failed and the exception type set to Business Exception. References: [Business Exception vs Application Exception], [Throw] , [Set Transaction Status]

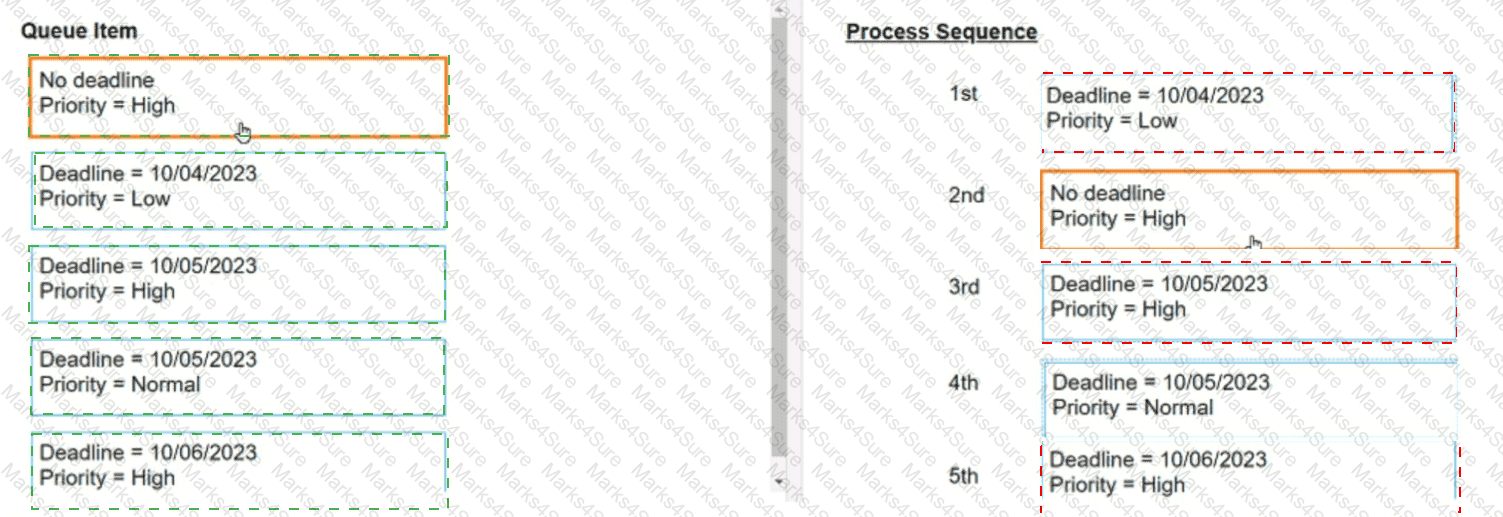

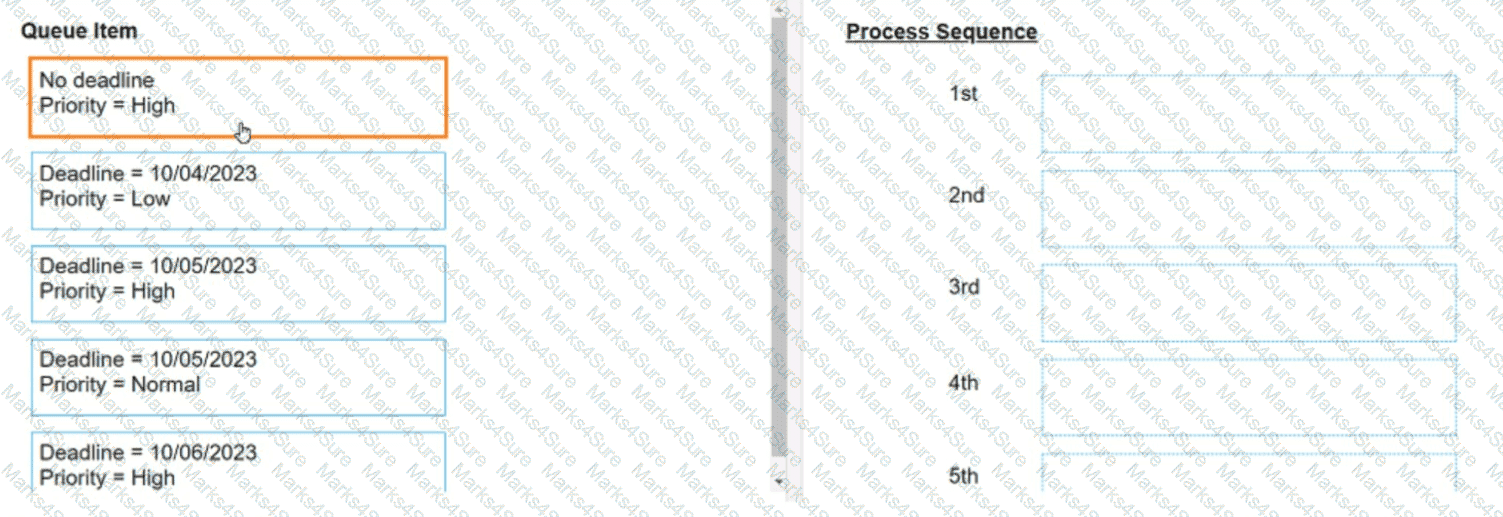

To ensure the Queue Items are processed in the correct order, the Postpone property of the Add Queue Item activity should be used. The Postpone property allows you to specify the date and time after which the queue item can be processed. This property can be used to prioritize the queue items based on the order of the emails received. For example, if the email was received at 10:00 AM, the Postpone property can be set to 10:00 AM or later, so that the queue item will not be processed before that time. The Postpone property can be set to a DateTime value, a variable, or an expression that returns a DateTime value. For example, the following expression sets the Postpone property to the current date and time plus one hour:

VB DateTime.Now.AddHours(1)

The UiPath Remote Runtime component is a component that facilitates the communication between a remote application or desktop, such as Citrix Virtual Apps, and the dedicated UiPath extension – the UiPath Extension for Citrix, the UiPath Extension for Windows Remote Desktop and Apps, or the UiPath Extension for VMware Horizon1. It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension, so that selectors are natively generated in UiExplorer1. The UiPath Remote Runtime component is required to establish the connection between an application or desktop server and a corresponding UiPath extension installed on a client machine, where Studio is installed1. This way, selectors are natively generated on the client machine, without having to rely on OCR and image recognition activities1. .

When creating aCoded Automationproject in UiPath Studio, adefault namespace is automatically generatedusing theproject name. This helps organize classes and methods and ensures that the structure aligns with best practices for .NET-based development in UiPath.

The Object Repository in UiPath organizes elements in a hierarchical structure that reflects the logical arrangement of user interfaces and elements as they are captured and used in automation projects.

The correct hierarchy for elements in the Object Repository tree structure is:

A. Version, Application, Screen, UI Element.

This hierarchy starts with the ' Version ' , which could refer to the specific version of the application you are automating. Under each version, there could be multiple ' Applications ' that you have elements for. Within each application, you might have captured various ' Screens ' or dialogs, and within each screen, there are individual ' UI Elements ' like buttons, text fields, dropdown menus, etc., that the automation interacts with.

However, it ' s important to note that in practice, when you are working with UiPath Studio and its Object Repository, the hierarchy usually starts with the ' Application ' , then under it, you have different ' Screens ' of the application, and under each screen, you have the ' UI Elements ' . The ' Version ' is typically managed separately and is not a level in the hierarchy tree but rather a property or attribute of the application or element. Therefore, the most practical answer reflecting the usage in UiPath Studio would be:

C. Application, Screen, UI Element, Version.

The ' Version ' here would be understood not as a layer in the hierarchy but rather as an attribute that can be associated with the ' Application ' or ' UI Element ' .

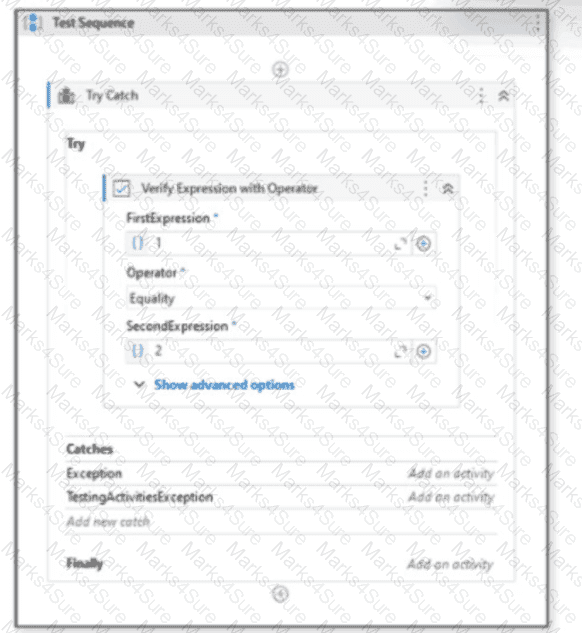

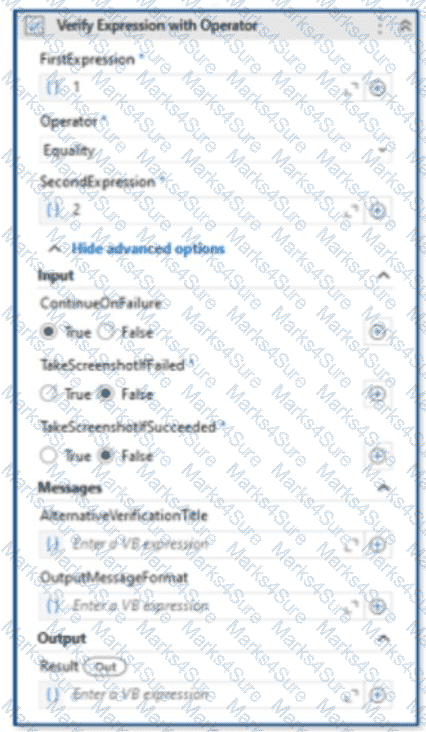

The Verify Expression with Operator activity is used to verify an expression by asserting it in relation to a given expression with an operator1. The expressions tested with this activity must be inserted in their respective property fields. In this case, the activity is configured to verify if the expression “1” is equal to the expression “2”. The result of this verification is stored in the Result property, which reflects the state of the verification activity1. If the verification fails, the activity throws a TestingActivitiesException, which is a custom exception type defined by the UiPath.Testing.Activities package2.

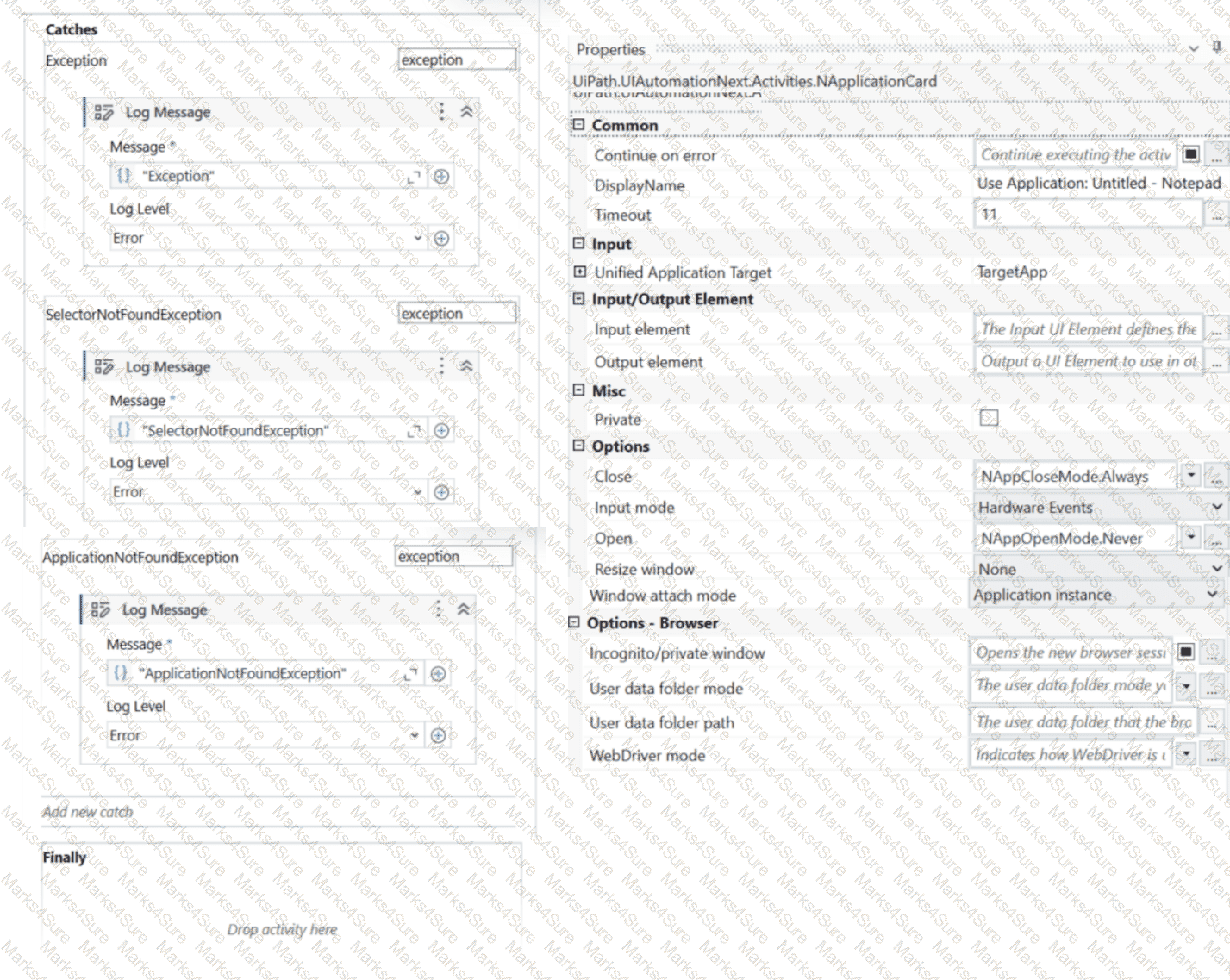

The Try-Catch activity is used to catch a specified exception type in a sequence or activity, and either displays an error notification or dismisses it and continues the execution3. The activity has three main sections: Try, Catches, and Finally. The Try section holds the activity or set of activities that could throw an exception. The Catches section indicates the exception type and holds the activity or set of activities to be performed when the specified exception is thrown. The Finally section holds the activity or set of activities to be performed after the Try and Catches blocks are executed, regardless of the result3.

In this scenario, the Verify Expression with Operator activity is placed in the Try section of the Try-Catch activity. The Catches section has two exceptions caught: System.Exception and TestingActivitiesException. The Finally section is empty. During the execution of the sequence, the Verify Expression with Operator activity will throw a TestingActivitiesException, because the expressions 1 and 2 are not equal. The Try-Catch activity will catch this exception and enter the TestingActivitiesException sequence from the Catches section, where the appropriate actions can be performed to handle the error. Therefore, the correct answer is C. The Exception sequence from the Catches block within the Try-Catch activity will be entered first, after the Verify Expression with Operator activity is executed.

The other options are incorrect because:

Option A is incorrect because the Try-Catch activity will execute one of the blocks within the Catches section, depending on the type of exception thrown by the Verify Expression with Operator activity. In this case, the TestingActivitiesException sequence will be executed.

Option B is incorrect because the Finally block within the Try-Catch activity will be executed only after the Try and Catches blocks are executed, not before. The Finally block is used to perform any cleanup or final actions that are needed regardless of the outcome of the Try and Catches blocks3.

Option D is incorrect because the TestingActivitiesException sequence from the Catches block within the Try-Catch activity will be entered second, not first, after the Verify Expression with Operator activity is executed. The first block to be entered is the Try block, where the Verify Expression with Operator activity is placed.

The role of Triggers in the UiPath Integration Service is to provide a mechanism for subscribing to specific events from third-party applications, automatically starting processes in Orchestrator. The UiPath Integration Service is a cloud-based service that enables seamless integration between UiPath and various external applications, such as Salesforce, ServiceNow, Workday, and more. The Integration Service allows the developer to create Triggers that define the conditions and actions for starting processes in Orchestrator based on events that occur in the external applications. For example, a Trigger can be created to start a process that updates a customer record in UiPath when a case is closed in Salesforce. The Triggers can be configured and managed from the UiPath Integration Service portal or from the UiPath Studio.

LINQ (Language Integrated Query) is a feature of .NET that allows you to write queries to manipulate data from various sources, such as arrays, collections, databases, or XML files. LINQ provides a set of methods that can be used to perform different operations on the data, such as filtering, sorting, grouping, aggregating, or transforming.

The LINQ method that is used to filter data in a List or DataTable based on a condition is Where. The Where method returns a new collection that contains only the elements that satisfy the specified condition. The condition is usually a lambda expression or a delegate that takes an element as a parameter and returns a Boolean value. For example, if you have a List of integers called numbers, you can write:

var evenNumbers = numbers.Where (x = > x % 2 == 0);

This expression returns a new List that contains only the even numbers from the original List. Similarly, if you have a DataTable called employees, you can write:

var highSalary = employees.AsEnumerable ().Where (row = > row.Field < decimal > (\ " Salary\ " ) > 100000);

This expression returns a new DataTable that contains only the rows where the Salary column is greater than 100000. The AsEnumerable () method is used to convert the DataTable into an IEnumerable < DataRow > , which is required for using LINQ methods.

The other options are not LINQ methods that are used to filter data in a List or DataTable based on a condition. Option A, Select, is a LINQ method that is used to project or transform data from one form to another. It returns a new collection that contains the result of applying a function to each element of the source collection. Option B, GroupBy, is a LINQ method that is used to group data by a common key or attribute. It returns a new collection that contains groups of elements that share the same key value. Option C, OrderBy, is a LINQ method that is used to sort data in ascending order by a specified criterion. It returns a new collection that contains the elements of the source collection in sorted order.

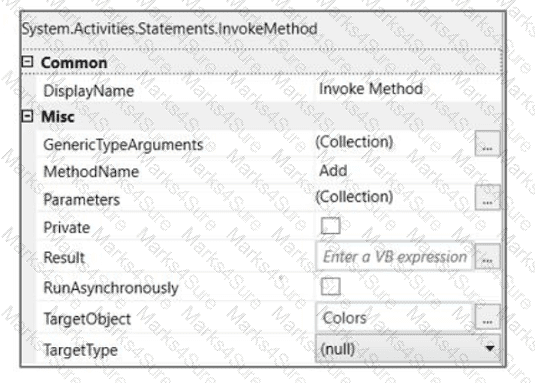

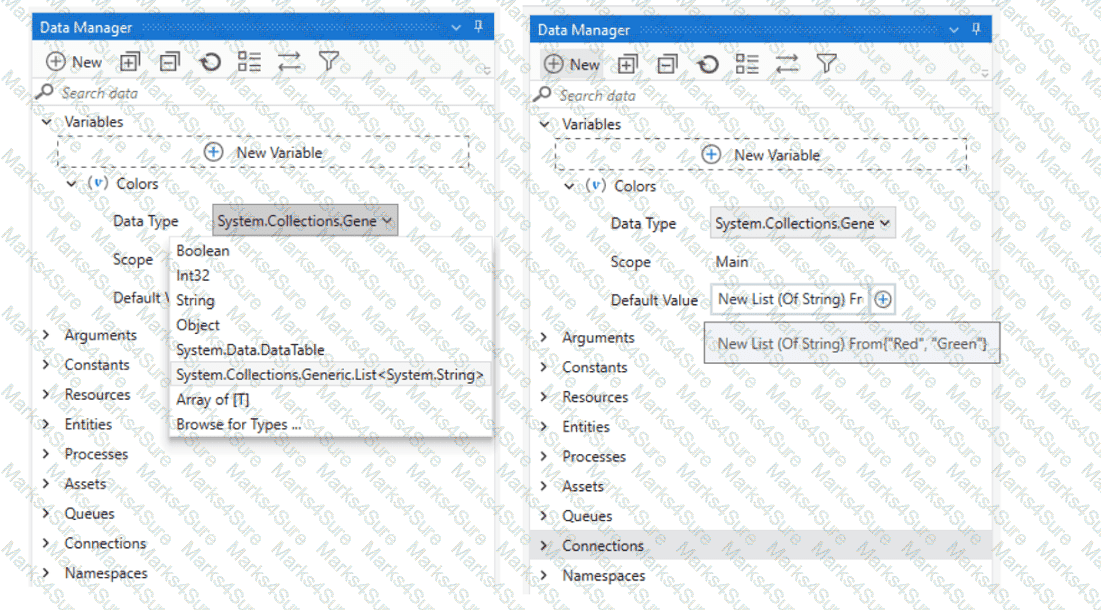

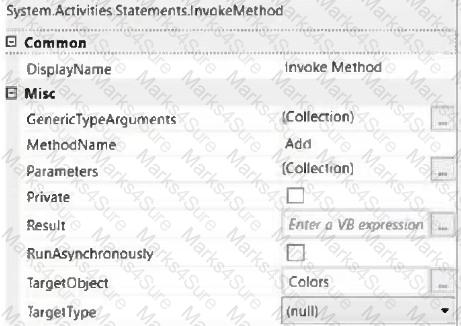

The Invoke Method activity is used to invoke a method of a class or an object. In this case, the developer wants to add items to a list of strings using the Invoke Method activity. The list is declared as follows:

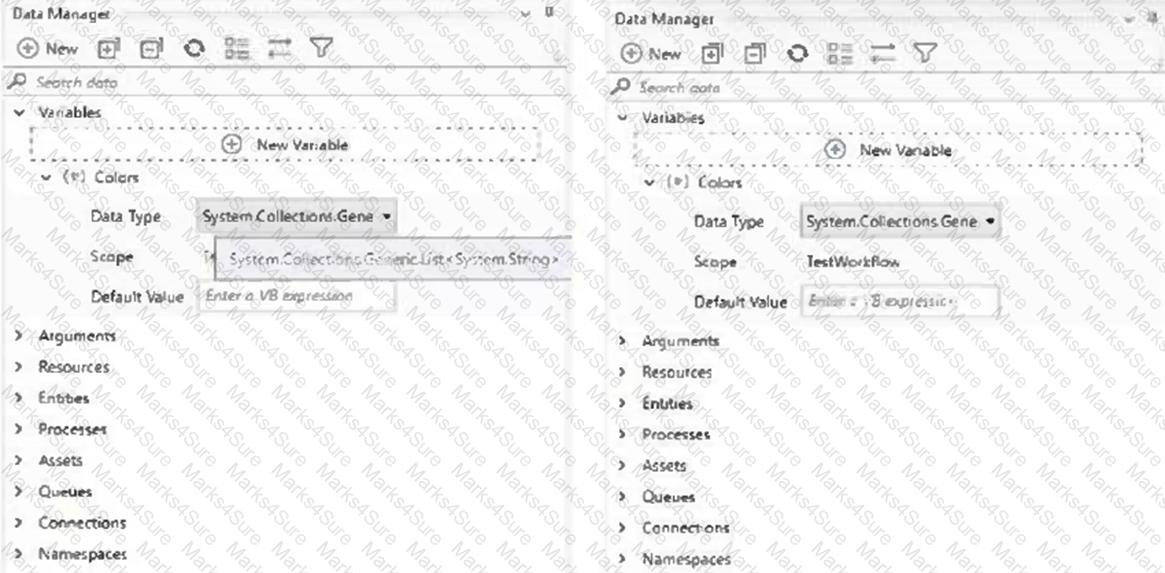

Dim Colors As New List(Of String)

This means that the list is named Colors and it can store strings. The Invoke Method activity has the following properties:

TargetType: System.Collections.Generic.List`1[System.String]. This means that the target type is a generic list of strings.

TargetObject: Colors. This means that the target object is the list named Colors.

MethodName: Add. This means that the method name is Add, which is a method of the list class that adds an item to the end of the list.

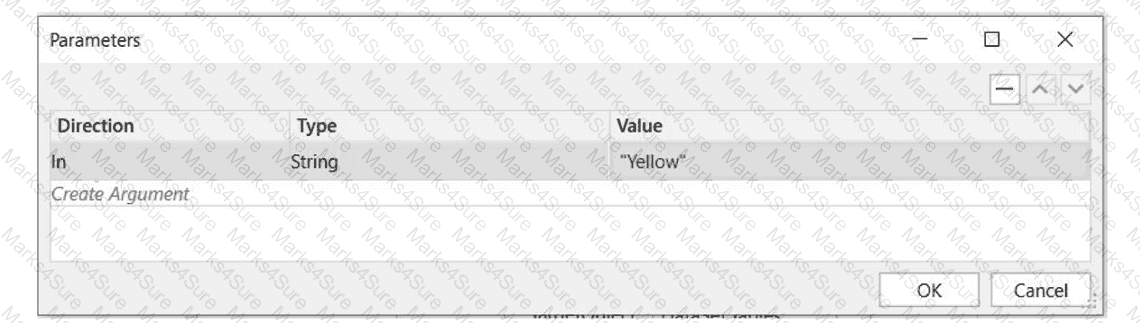

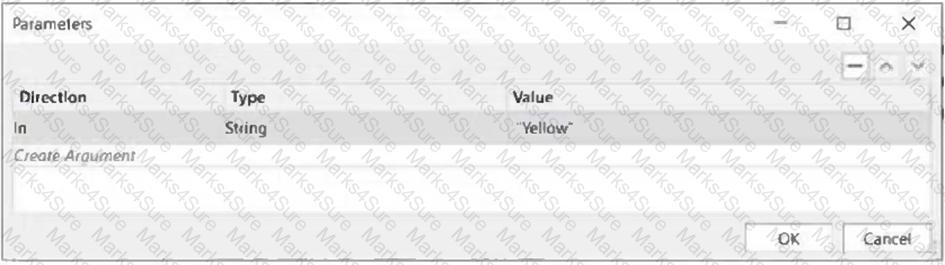

Parameters: In, String, Yellow. This means that the parameter direction is In, which means that the value is passed to the method. The parameter type is String, which means that the value is a string. The parameter value is Yellow, which means that the value is the string “Yellow”.

Based on the information shown in the exhibits, the outcome of the Invoke Method activity is that Colors will contain an item with the value “Yellow”. This is because the Invoke Method activity will add “Yellow” to the list of strings declared as Colors.

o retrieve all Outlook emails with the word “UiPath” in the subject, the developer should use the Filter property and the filter schema “@SQL=”“urn:schemas:httpmail:subject” " like ‘%UiPath%’“. The Filter property allows the developer to specify a condition for retrieving the emails based on the email properties. The filter schema is a string that follows the SQL syntax and uses the urn:schemas:httpmail namespace to access the email properties. The subject property is accessed by using “urn:schemas:httpmail:subject”. The like operator is used to match the value of the subject property with a pattern that contains the word “UiPath”. The percent sign (%) is a wildcard that matches any sequence of characters. Therefore, the filter schema “@SQL=”“urn:schemas:httpmail:subject”” like ‘%UiPath%’ " will match any email that has the word “UiPath” anywhere in the subject. References: Get Outlook Mail Messages

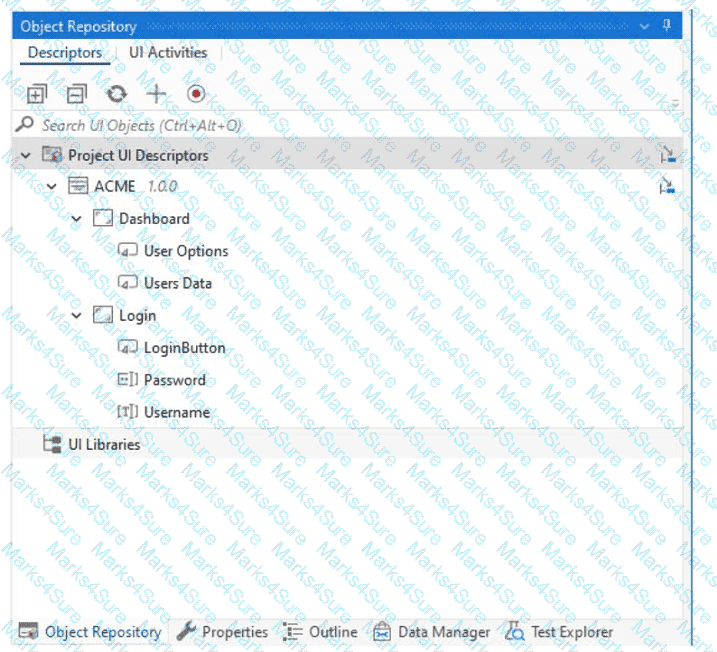

Based on the provided screenshot of the Object Repository tree structure in UiPath, the correct hierarchy and count of elements are as follows:

There is one Application, which is " ACME 1.0.0 " .

Within this application, there are two Screens: " Dashboard " and " Login " .

Under the " Dashboard " screen, there are three UI Elements: " User Options " , " Users Data " .

Under the " Login " screen, there are two UI Elements: " LoginButton " , " Password " , " Username " .

Therefore, the correct option regarding the tree structure displayed would be:

C. One Application Two Screens Five UI Elements

This option correctly identifies one application (ACME 1.0.0), two screens (Dashboard, Login), and five UI elements (User Options, Users Data, LoginButton, Password, Username).

UiPath Integration Service is a feature of UiPath Automation Cloud that allows you to connect to various external applications and systems using predefined connectors. A connector is a component that provides the logic and interface for interacting with a specific application or system. A connection is an instance of a connector that is configured with the credentials and parameters required to access the application or system.

UiPath Integration Service benefits automation developers by standardizing authorization and authentication, managing API connections, and enabling faster integration into SaaS platforms. By using UiPath Integration Service, automation developers can:

Use a consistent and secure way of authenticating and authorizing access to different applications and systems, such as OAuth 2.0, API keys, or basic authentication.

Manage and reuse connections across multiple automation projects, and share them with other developers using UiPath Orchestrator folders and permissions.

Integrate with popular SaaS platforms, such as Microsoft Outlook 365, Salesforce, Google Sheets, and more, using the built-in connectors and activities that are available in UiPath Studio and other products.

Trigger automations based on events or actions that occur in the external applications or systems, such as receiving an email, creating a record, or updating a spreadsheet.

Build custom connectors for any system integration using the Connector Builder, which allows you to create and publish connectors based on third-party APIs.

The correct answer is B. By standardizing authorization and authentication, managing API connections, and enabling faster integration into SaaS platforms. This statement accurately describes how UiPath Integration Service benefits automation developers.

The other options are not correct statements. Option A is incorrect, because UiPath Integration Service does not substitute the requirement for API automation with UI automation capabilities, but rather combines them and allows both capabilities to be centrally accessed within the same integration design environment. Option C is incorrect, because UiPath Integration Service does not offer a comprehensive, unified platform dedicated solely to UI automation, but rather a component of the UiPath Platform that makes the automation of third-party applications easier by using both UI and API automation. Option D is incorrect, because UiPath Integration Service does not enable developers to create custom UI elements for applications without using APIs, but rather to create custom connectors for applications using APIs.

A pre-requisite for running functional test cases in REFramework is to invoke the InitAIISettings XAML file. This file is responsible for initializing the AI Fabric settings and connecting to the Orchestrator. It also checks if the AI Fabric environment is ready and if the ML skills are deployed and available. Without invoking this file, the functional test cases that use AI Fabric features will not work properly. References: [REFramework for AI Fabric]

UiPath Orchestrator provides integration capabilities with various credential stores to securely store and manage credentials such as usernames and passwords, API keys, and other secrets. The built-in support for credential stores in Orchestrator includes:

•Azure Key Vault: A cloud service provided by Microsoft that safeguards cryptographic keys and other secrets used by cloud applications and services.

•CyberArk Credential Provider (CCP): CyberArk ' s enterprise-grade solution designed to secure, manage, and monitor privileged accounts and credentials.

•HashiCorp Vault: A tool for secrets management, encrypting sensitive data, and access control across dynamic infrastructure.

•Thycotic Secret Server: An enterprise-level solution for privileged account management and protection of critical enterprise passwords and secrets.

•BeyondTrust: A privileged access management platform that secures and manages access to critical assets, passwords, and endpoints.

•CyberArk: In addition to the CCP, Orchestrator supports integration with other CyberArk solutions for secure credential management.

These integrations allow Orchestrator to retrieve credentials securely at runtime for use in automation workflows, enhancing the security posture by avoiding hard-coded or plaintext credentials in automation scripts.

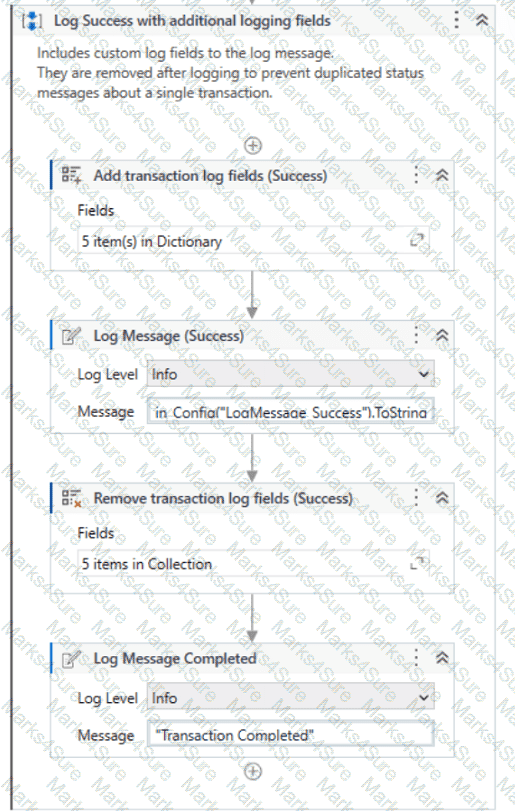

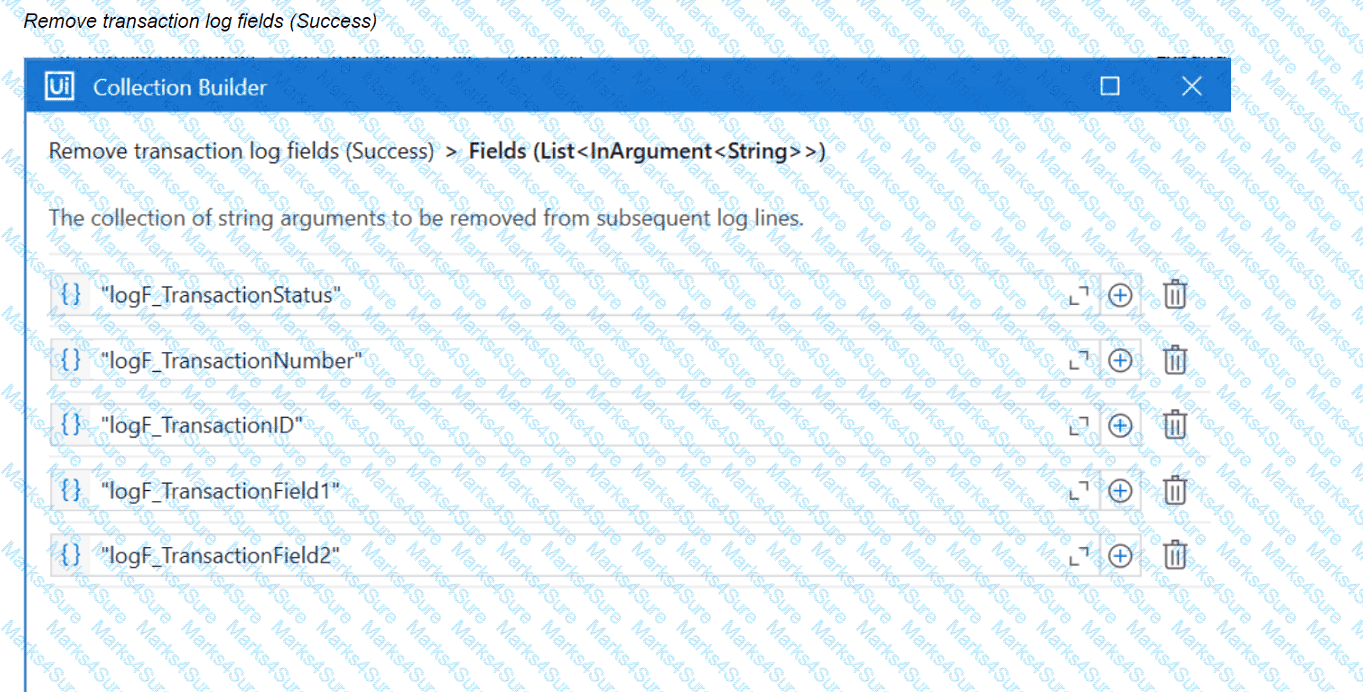

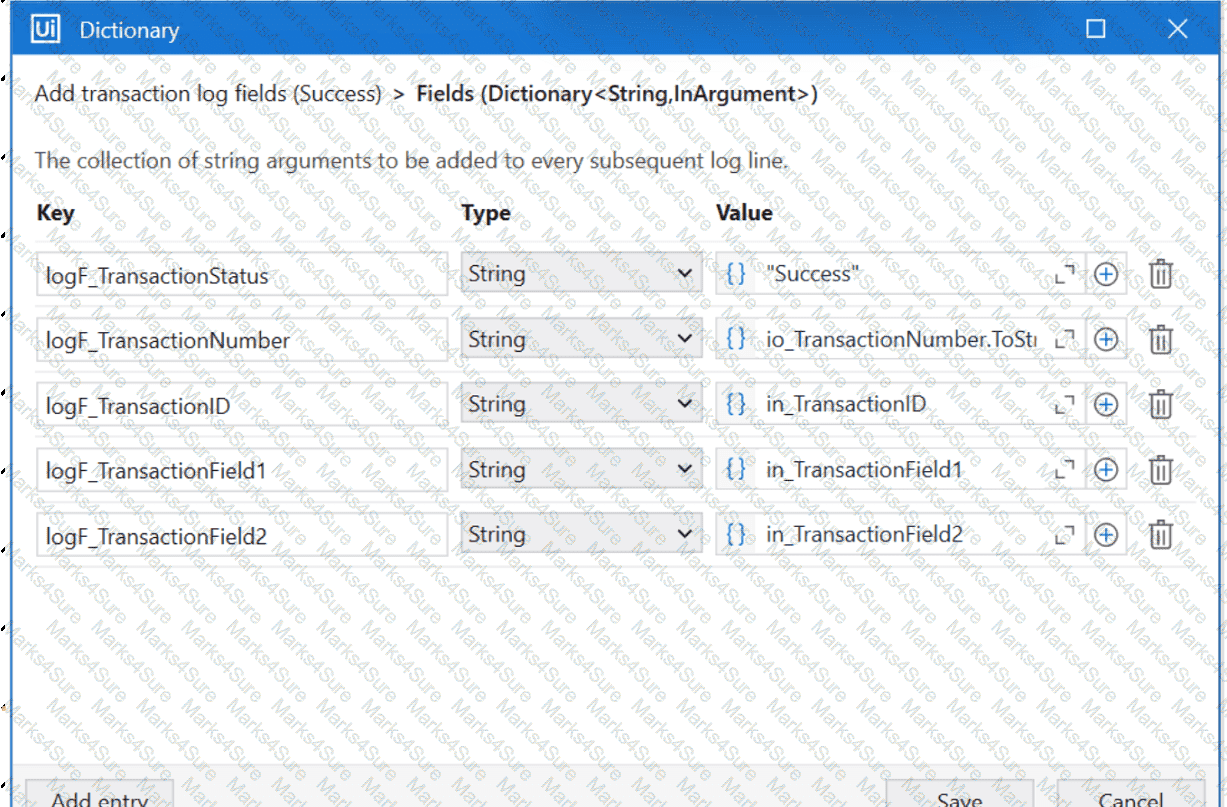

Custom log fields are additional fields that can be added to the Robot Execution Logs using the Add Log Fields activity1. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type2. The REFramework leverages the custom log fields feature to include more information about each transaction in the log messages, such as the transaction number, the transaction item, the business process name, etc. This helps to improve the reporting and troubleshooting capabilities of the automation project, as the custom log fields can be easily viewed and filtered in the Output panel, the Orchestrator Logs page, or any external logging tool3.

Option A is incorrect, because custom log fields are not used to automatically retry failed transactions, but rather to provide more details about them. The REFramework uses the Retry Scope activity and the Set Transaction Status activity to handle the retry mechanism for failed transactions4. Option B is incorrect, because custom log fields are not used to store sensitive information, but rather to enhance the log messages. Storing sensitive information like credentials and personal data of users in the logfields is not recommended, as it may pose a security risk. Option C is incorrect, because custom log fields are not used to define the variable types for transactions, but rather to add more data about them. The REFramework uses the TransactionItem argument to store the transaction data, which can be of any type, such as QueueItem, DataRow, String, etc.

The correct option about a State Machine layout is that it can have only one initial state and multiple final states. A State Machine is a type of workflow that consists of a set of states, transitions, and triggers. A state represents a stage of the process, a transition represents a change from one state to another, and a trigger represents a condition or an event that activates a transition. A State Machine can have only one initial state, which is the starting point of the workflow, and one or more final states,which are the end points of the workflow. A State Machine can also have intermediate states, which are the states between the initial and the final states. A State Machine can have multiple paths and branches, depending on the logic and the triggers of the workflow.

When you create a new connection and set up an event trigger on that connection, the default polling interval is set to 5 minutes. This means that the event trigger checks for new object events every 5 minutes. You can customize this interval using the Adjustable Polling Interval feature, which allows you to choose the interval on which event triggers check for new object events. The polling interval can be changed in two ways: from a specific connector’s page or from the Connections tab. The polling interval is displayed only for connections with added triggers. Updating the polling interval affects all the associated triggers on a connection

The Monitoring pages in UiPath Orchestrator are pages that provide information and statistics about the performance and health of your robots, processes, queues, and jobs. You can access the Monitoring pages from the left menu in Orchestrator, under the Monitoring section.

The Include Subfolders filter in the Monitoring pages is a filter that allows you to select whether the contents of the selected folder’s subfolders are displayed in the Monitoring pages. This filter is available when a modern folder is selected from the Folder drop-down list. A modern folder is a type of folder in Orchestrator that supports dynamic and fine-grained permission management, as well as folder-level isolation of data, processes, and execution.

When the Include Subfolders filter is checked, the Monitoring pages display the data for the selected folder and all its subfolders. For example, if you select a modern folder called Sales and check the Include Subfolders filter, the Monitoring pages will show the data for the Sales folder and all its subfolders, such as Sales-East, Sales-West, Sales-North, and Sales-South. This way, you can get a comprehensive view of the performance and health of your robots, processes, queues, and jobs across multiple subfolders.

When the Include Subfolders filter is unchecked, the Monitoring pages display the data only for the selected folder. For example, if you select a modern folder called Sales and uncheck the Include Subfolders filter, the Monitoring pages will show the data only for the Sales folder, excluding its subfolders. This way, you can get a focused view of the performance and health of your robots, processes, queues, and jobs within a specific folder.

The correct answer is B. It allows you to select whether the contents of the selected folder’s subfolders are displayed. This statement accurately describes the functionality of the Include Subfolders filter in the Monitoring pages when a modern folder is selected.

The other options are not correct statements. Option A is incorrect, because the Include Subfolders filter does not allow you to choose between background and foreground processes for the displayed data. Background and foreground processes are types of processes that run in the background or foreground of the robot machine, respectively. You can filter the displayed data by process type using the Process Type filter in the Monitoring pages. Option C is incorrect, because the Include Subfolders filter does not enable you to sort the displayed data based on job priorities. Job priorities are levels of importance that are assigned to jobs when they are created or triggered, such as High, Normal, or Low. You can sort the displayed data by job priority using the Sort By drop-down list in the Monitoring pages. Option D is incorrect, because the Include Subfolders filter does not allow you to allocate licenses per machine for the displayed data. Licenses are resources that are consumed by robots, processes, or users when they perform certain actions in Orchestrator. You can allocate licenses per machine using the License Allocation page in Orchestrator.

Converting a process into a background process in UiPath is accomplished by ensuring the process does not contain UI interaction and setting the " Starts in Background " toggle to Yes in the Project Settings. This is crucial for processes meant to run without user interface interaction.

To work with a web application in Firefox without relying on visual elements, the developer should use the ' Input mode = Chromium API ' . This option enables the robot to interact with the web elements directly, without the need for visual screen elements.

The TransactionNumber is incremented only in the SetTransactionStatus.xaml workflow, which is invoked at the end of each transaction. This workflow updates the status of the current transaction item in Orchestrator and increments the TransactionNumber by one. The TransactionNumber is used to keep track of the number of transactions processed by the robot and to get the next transaction item from the queue. References: [SetTransactionStatus.xaml]

Given the array " arrayOfPointsGainedByParticipant " with values { " 7 " , " 4 " , " 1 " }, at runtime, ' arrayOfPointsGainedByParticipant(1) ' would return the value ' 4 ' with the data type ' String ' . Arrays in .NET, which UiPath uses, are zero-indexed.

The UiPath Integration Service supports two types of events: Generic and Predefined. Generic events are customizable, while Predefined events are specific to certain integrations and come with predefined configurations.

The Extract PDF Page Range activity is used to extract a specific set of pages from a PDF file and save them as a new PDF file1. The activity has the following properties:

•Common

oDisplayName: The display name of the activity1.

•File

oFileName: The path of the PDF file you want to extract a range of pages from. This field supports only strings and String variables1.

oOutputFileName: The name you want to use for the file that is generated from the extracted range of pages. This field supports only strings and String variables1.

oPassword: The password of the PDF file, if necessary. This field supports only strings and String variables1.

•Input

oRange: The range of pages that you want to retrieve. You can specify a single page (e.g. “7”), a range of pages (e.g. “7-12”), or a complex range, (e.g. “2-5, 7, 15-End” or “All”). Only string variables and strings are supported. By default, this field is cleared1.

•Misc

oPrivate: If selected, the values of variables and arguments are no longer logged at Verbose level1.

The statement that correctly describes this activity is B. Range argument accepts complex range values or “All”. This statement is true because the Range property allows you to specify the pages that you want to extract from the PDF file using different formats, such as single pages, ranges, or complex ranges1. You can also use the keyword “All” to extract all the pages from the PDF file1.

The other statements are incorrect because:

•A. Password-protected PDF files cannot be processed with this activity. This statement is false because the activity has a Password property that allows you to enter the password of the PDF file, if necessary1. This enables the activity to process password-protected PDF files1.

•C. OutputFileName argument is optional. This statement is false because the OutputFileName property is required for the activity to work1. This property specifies the name of the file that is generated from the extracted range of pages1. If this property is not provided, the activity will throw an exception1.

•D. PageCount argument outputs the number of extracted pages. This statement is false because the activity does not have a PageCount argument1. The activity does not output the number of extracted pages, but only the new PDF file that contains the extracted pages1.

The statement that is true about the existing UiPath Studio installation packages is that the Attended Robot installation package installs only the UiPath Robot. The UiPath Robot is the component that executes the automation workflows designed in UiPath Studio. The Attended Robot installation package is intended for scenarios where the Robot works on the same machine as a human user and requires human input or supervision. The Attended Robot installation package does not include UiPath Studio or UiPath Assistant. UiPath Studio is the component that allows the developer to design and debug the automation workflows. UiPath Assistant is the component that allows the user to manage and run the automation workflows on their machine. The Unattended Robot installation package and the Automation Developer installation package both include UiPath Studio, UiPath Assistant, and UiPath Robot, but they are intended for different scenarios. The Unattended Robot installation package is for scenarios where the Robot works on a dedicated machine and does not require human input or supervision. The Automation Developer installation package is for scenarios where the developer needs to create and test the automation workflows on their machine. References: [UiPath Installation Guide], [UiPath Robot] , [UiPath Studio], [UiPath Assistant]

The collection variable type that will cause an error when adding a new filename to the collection is System.Array. This is because System.Array is a fixed-size collection that cannot be resized or modified once it is initialized. Therefore, if the collection is initialized with a single filename, it cannot accommodate any more filenames. To add a new filename to the collection, the developer should use a dynamic collection type, such as System.Collections.Generic.List or System.Data.DataTable, that can grow or shrink as needed. Alternatively, the developer can use System.Collections.Generic.Dictionary if the filenames need to be associated with some keys or values. References: [Array Class], [Collection Classes]

The DataTable object in UiPath is a representation of a table with rows and columns that can store data of various types. It has a Columns property that returns a collection of DataColumn objects that describe the schema of the table1. To extract the column names from a DataTable and store them in a list, you can use the following query:

dt.Columns.Cast(Of Datacolumn).Select(function(x) x.ColumnName).ToList()

This query does the following:

It casts the Columns collection to a generic IEnumerable(Of DataColumn) using the Cast(Of T) extension method2. This is necessary because the Columns collection is a non-generic IEnumerable that cannot be used with LINQ methods directly3.

It selects the ColumnName property of each DataColumn object using the Select extension method and a lambda expression4. The ColumnName property returns the name of the column as a string5.

It converts the resulting IEnumerable(Of String) to a List(Of String) using the ToList extension method6.

The other options are incorrect because:

Option B does not cast the Columns collection to a generic IEnumerable(Of DataColumn), which will cause a runtime error.

Option C uses the AsEnumerable extension method, which returns a collection of DataRow objects, not DataColumn objects7. Therefore, the ColumnName property will not be available.

Option D selects the whole DataColumn object instead of its ColumnName property, which will result in a list of DataColumn objects, not strings.

The recommended approach for handling tabular data when building a REFramework transactional project in UiPath is to utilize a DataTable variable to store and process the tabular data. A DataTable variable can hold data in a tabular format, with rows and columns, and can be easily manipulated using built-in activities such as Read Range, Write Range, Filter Data Table, For Each Row, etc. A DataTable variable can also be used as the input for the Get Transaction Data state in the REFramework, which retrieves each row of data as a transaction item for processing. References: [UiPath Studio Guide - Data Tables], [UiPath Studio Guide - The REFramework]

The correct syntax for using the Vb.Net If operator is If(condition1, valueIfTrue, valueIfFalse). The If operator is a ternary operator that returns one of two values, depending on whether the condition is true or false. The condition must be a Boolean expression or a data type that can be implicitly converted to Boolean. The valueIfTrue and valueIfFalse arguments can be any data type, but they must be the same or implicitly convertible to a common type. The If operator uses short-circuit evaluation, which means that it only evaluates the argument that corresponds to the result of the condition. For example, thefollowing expression returns “Positive” if the variable number is greater than or equal to zero, and “Negative” otherwise:

VB Dim result As String = If(number > = 0, “Positive”, “Negative”) References: [If Operator], [Ternary Operator]

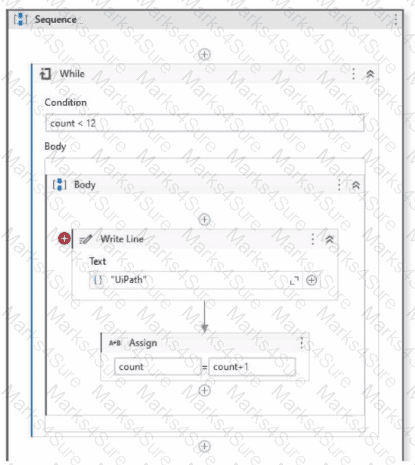

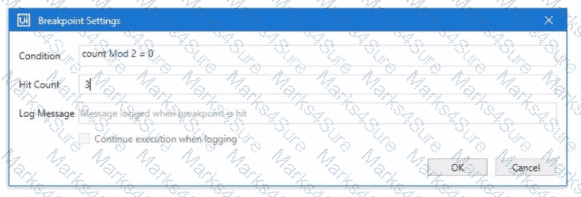

The Log Message option in the Breakpoint Settings allows the user to log custom information at each breakpoint while executing a process in Debug mode. This option can be accessed by right-clicking on a breakpoint and selecting Breakpoint Settings. The user can then enter a message that will be logged in the Output panel when the breakpoint is hit. The message can include variables, arguments, and pseudovariables, such as $PID, $TID, $FUNCTION, etc1

Option B is not recommended, because it requires the user to insert a Log Message activity before each activity with a breakpoint, which can be tedious and clutter the workflow. Option C is not relevant, because it enables or disables logging for all activities in the project, not just the breakpoints. Option D is not related, because it shows the execution flow of the process, not the custom information at each breakpoint.

 The project structure that is best-suited for complex processes in UiPath Studio, following UiPath best practices, is State Machine. A State Machine is a type of workflow that consists of a set of states, transitions, and triggers. A state represents a stage of the process, a transition represents a change from one state to another, and a trigger represents a condition or an event that activates a transition. A State Machine is suitable for complex processes because it can handle multiple paths and branches, depending on the logic and the triggers of the workflow. A State Machine can also handle loops and retries, as well as parallel execution of states. A State Machine can be created by using the StateMachine activity in UiPath Studio, or by using the REFramework template, which is based on a State Machine structure. References: [State Machines] , [REFramework]

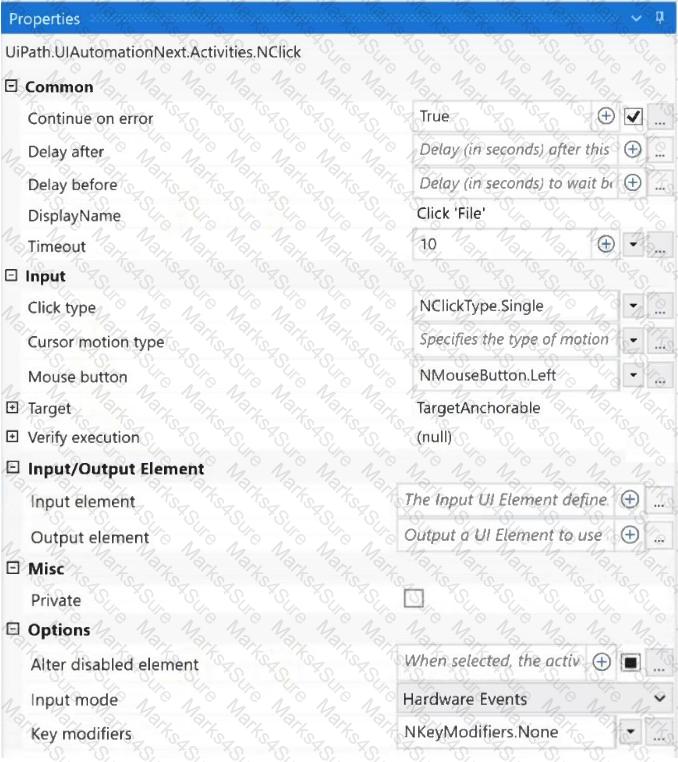

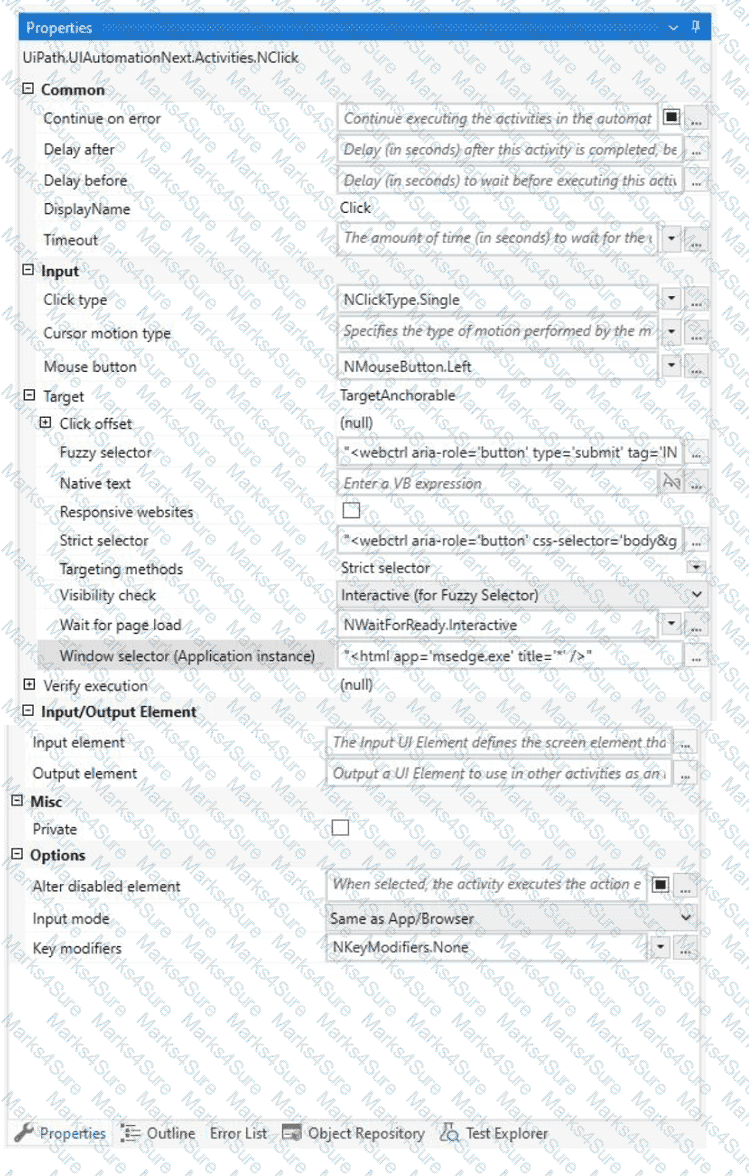

The Click activity has a property called TimeoutMS. This property specifies the amount of time (in milliseconds) to wait for the activity to be executed before an error is thrown. In this case, the TimeoutMS property is set to 10000 milliseconds (10 seconds). Therefore, if the activity cannot find its target at runtime, an exception will be thrown after 10 seconds.

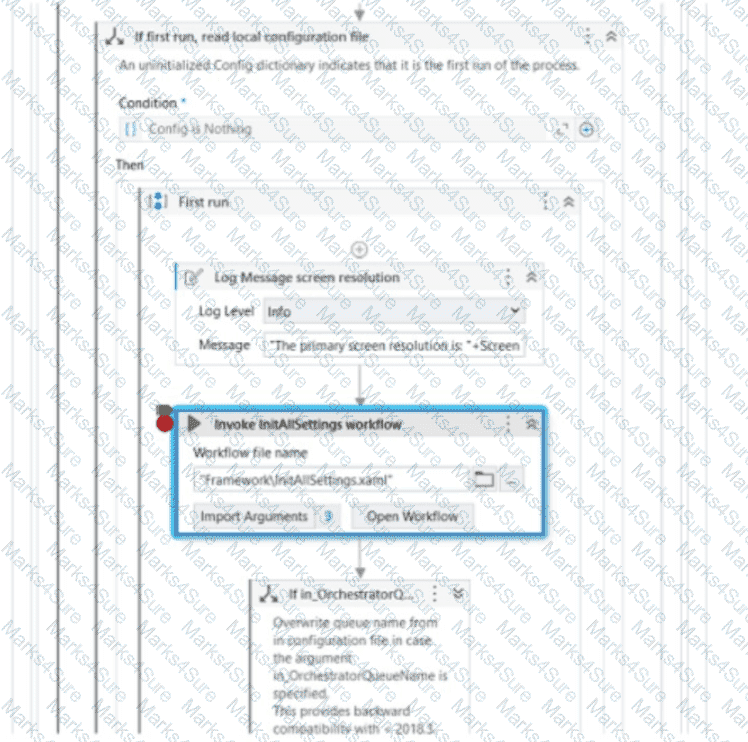

When a breakpoint is placed at a particular activity within the workflow and the Step Over function is used, the Executor will move to the next activity in the sequence. Given the context of the REFramework, after stepping over the " Invoke InitAllSettings " workflow, the next activity that would execute is the " If in_OrchestratorQueueName ... " activity, assuming there are no activities in between within the " InitAllSettings " workflow itself. Step Over will not go into the invoked workflow but will move to the next activity at the same level of the workflow where the breakpoint was placed.References:

UiPath Studio Guide: Debugging

In UiPath Studio, you can use DateTime and TimeSpan variables to store and manipulate date and time values. A DateTime variable represents a specific point in time, such as the current date and time, or a date in the past or future. A TimeSpan variable represents a time interval, such as one hour, two days, or three weeks.

To subtract a specific amount of time from the current date using DateTime and TimeSpan variables in VB.NET, you can use the Add method on the DateTime variable and pass a negative TimeSpan value. For example, if you have a DateTime variable called Today that stores the current date and time, and a TimeSpan variable called Span that stores the time interval you want to subtract, you can write:

Today.Add(-Span)

This expression returns a new DateTime value that is the result of subtracting the Span value from the Today value. For example, if Today is 2024-02-08 10:51:49 and Span is 1.02:10:04, then the expression returns 2024-02-07 08:41:45.

The other options are not correct ways of subtracting a TimeSpan value from a DateTime value in VB.NET. Option A is invalid, because you cannot multiply a TimeSpan value by a number. Option B is incorrect, because the Subtract method on the DateTime variable returns a TimeSpan value, not a DateTime value. Option D is incorrect, because the Now property is not a method, and it cannot take a TimeSpan value as an argument.

on the prerequisite for performing Remote Debugging using an Unattended Robot connection:

The prerequisite is that Studio and the remote robot must be connected to the same Orchestrator tenant. This ensures that Studio can communicate with the remote robot for debugging purposes. While having the same version and TCP/IP connectivity is beneficial, the key requirement for remote debugging is the connection to the same Orchestrator tenant.

A mock file is a copy of a workflow file that is used for testing purposes, where some activities are replaced by mock activities that simulate the expected behavior1. A mock file can be created by selecting Mock workflow under test in the Create Test Case window2. The mock file is stored in the Project > Mocks folder, and it has the same name as the original workflow file, with the suffix “_mock” added2. For example, if the original workflow file is named “MySequence.xaml”, the mock file will be named “MySequence_mock.xaml”.

When a mock file is created, the changes made in the original workflow file are automatically applied to the mock file when the project is saved2. This means that any new activities or modifications in theoriginal workflow file are reflected in the mock file, except for the activities that are surrounded by mock activities2. The mock activities are not affected by the changes in the original workflow file, and they can only be edited within the mock file2.

Therefore, if you update “MySequence” and add a Log Message activity and a Verify Expression activity, and then save the project, the changes will be applied to the mock file, assuming that the file is closed. This means that the mock file will also have the Log Message activity and the Verify Expression activity added, unless they are inside a mock activity

The UiPath Integration Service is a feature of Automation Cloud that allows you to connect to various external applications and systems using predefined connectors. A connector is a component that provides the logic and interface for interacting with a specific application or system. A connection is an instance of a connector that is configured with the credentials and parameters required to access the application or system.

The role of connections in the UiPath Integration Service is to establish tasks and exchanges between users and external applications using the authentication process of the API provider. An API provider is a service that exposes an application programming interface (API) for accessing and manipulating data and functionality of an application or system. For example, Microsoft Outlook 365, Salesforce, and Google Sheets are some of the API providers that have connectors in the UiPath Integration Service.

To create a connection, you need to select a connector and provide the authentication details for the API provider. The authentication process may vary depending on the type and security level of the API provider. For example, some API providers may use OAuth 2.0, which is a standard protocol for authorizing access to resources on behalf of a user. Other API providers may use API keys, which are unique identifiers that are used to authenticate requests to the API.

Once you create a connection, you can use it to perform various tasks and exchanges with the external application or system. For example, you can use the Microsoft Outlook 365 connector to send and receive emails, create and update calendar events, and manage contacts. You can use the Salesforce connector to create and update records, execute queries, and invoke actions. You can use the Google Sheets connector to read and write data, format cells, and manage worksheets.

You can use the connections in your automation workflows in UiPath Studio, UiPath Apps, UiPath Assistant, and UiPath Test Suite. You can also manage and share your connections in UiPath Orchestrator, using the folder structure and permission system.

The REFramework (Robotic Enterprise Framework) is a template that provides a standard structure and best practices for building automation projects using UiPath Studio1. It uses the State Machine workflow type to handle different scenarios and exceptions in a robust and scalable way2. One of the states in the REFramework is the Get Transaction Data state, which is responsible for fetching the next transaction item from the Orchestrator queue and assigning it to a variable3. The Orchestrator queue is a data structure that stores multiple items that need to be processed by the robots4. The queue can be organized into folders, which are logical containers that help group and manage the queues and other Orchestrator entities5.

If a developer implemented a process using the REFramework and an Orchestrator queue, they need to specify the name of the queue and the folder where it is located in the Config.xlsx file, which is an Excel workbook that stores the configuration settings and constants for the project6. The name of the queue should be entered in the Settings sheet, under the OrchestratorQueueName key, and the name ofthe folder should be entered in the Constants sheet, under the OrchestratorQueueFolder key6. These values are then read by the InitAllSettings workflow, which is invoked in the Init state of the REFramework, and assigned to the in_Config argument, which is a dictionary that holds all the configuration data7.

At runtime, the Get Transaction Data state invokes the GetTransactionData workflow, which takes the in_Config argument as an input and uses it to get the queue item from the Orchestrator queue8. The workflow uses the Get Queue Items activity, which requires the QueueName and FolderPath properties to be specified9. The QueueName property is set to in_Config(“OrchestratorQueueName”).ToString, and the FolderPath property is set to in_Config(“OrchestratorQueueFolder”).ToString8. If the folder specified in the Config.xlsx file does not exist in Orchestrator, the Get Queue Items activity will throw an exception with the message “Folder does not exist” and the process will be stopped10. Therefore, the correct answer is B. The process throws an exception in the “Get Transaction Data” state because the queue folder is not found, and then the process is stopped.

The other options are incorrect because:

Option A is incorrect because the process will not continue if the queue folder is missing. The Get Queue Items activity will fail and the exception will be caught by the Try Catch block in the GetTransactionData workflow, which will set the out_TransactionItem argument to Nothing and the out_TransactionID argument to " No more data " 8. This will cause the transition condition from the Get Transaction Data state to the Process Transaction state to evaluate to False, and the transition condition from the Get Transaction Data state to the End Process state to evaluate to True3. The End Process state will invoke the SetTransactionStatus workflow, which will log the exception message and the process will be stopped11.

Option C is incorrect because an exception will be thrown and a message will be logged if the queue folder is missing. The exception will be thrown by the Get Queue Items activity, as explained above, and the message will be logged by the SetTransactionStatus workflow, which uses the Log Message activity to write the exception message to the Output panel and the Orchestrator logs11.

Option D is incorrect because the process will not reach the Process Transaction state if the queue folder is missing. The Process Transaction state is responsible for executing the business logic for each transaction item and invoking the SetTransactionStatus workflow to update the status of the item in the Orchestrator queue12. However, if the queue folder is missing, the Get Queue Items activity will throw an exception and the out_TransactionItem argument will be set to Nothing, which will prevent the transition from the Get Transaction Data state to the Process Transaction state83.

In aState Machine, every state—including theFinal State—can contain anEntryand anExitsection. However, theFinal Statedoesnot include Transitions, as it ' s meant to mark theend of execution. Once entered, no further transitions occur from this state.

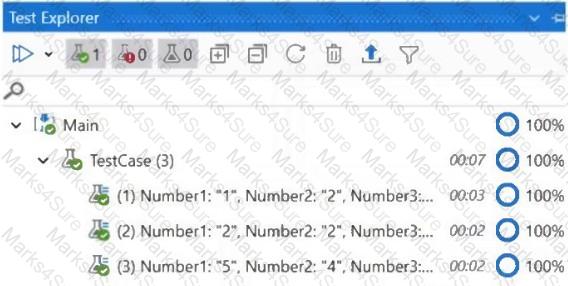

The percentages from the Test Explorer panel represent the passing percent of the test cases that are executed. The Test Explorer panel shows the status of each test case, the total number of test cases, the number of passed test cases, the number of failed test cases, and the passing percent. The passing percent is calculated by dividing the number of passed test cases by the total number of test cases and multiplying by 100. For example, if there are 10 test cases and 8 of them pass, the passing percent is 80%. References: Test Explorer

An Application Exception typically refers to errors arising from technical issues with applications, such as non-responsiveness or crashes. These exceptions are not related to the logic or data used by the application but are due to the application ' s functioning itself.

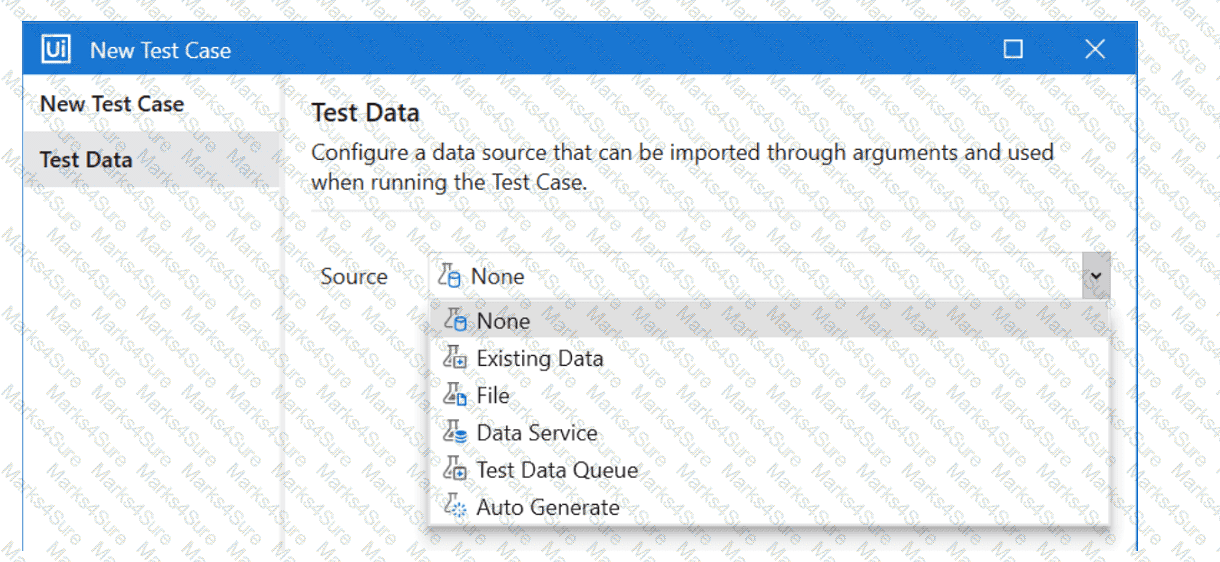

When creating a new test case in UiPath Studio, you can configure a data source that can be imported through arguments and used when running the test case. You can choose from different options for the data source, such as File, Data Service, Test Data Queue, and Auto Generate. Each option has different implications for how the test data is updated in UiPath Orchestrator once the test case is published.

The option that restricts dynamic data update in UiPath Orchestrator once the test case is published is File. This option allows you to use Excel and CSV files as data sources for your test cases. When you import a file as a data source, a JSON file is created in the Test Data folder of your project, which contains the test data values. When you publish the test case, the JSON file is also published and stored in Orchestrator. The test data values are not updated dynamically in Orchestrator, unless you manuallyupdate the test data by choosing the Update Test Data option in Studio or Test Explorer. This option is useful when you want to use static or predefined test data that does not change frequently.

The other options do not restrict dynamic data update in UiPath Orchestrator once the test case is published. Option A, Test Data Queue, allows you to use a queue in Orchestrator as a data source for your test cases. You need to configure a JSON schema and add a test data queue in Orchestrator before using this option. The test data values are updated dynamically in Orchestrator, as the queue items are processed by the test case. This option is useful when you want to use queue items as test data and track their status and progress. Option B, Data Service with Filter, allows you to use Data Service entities as data sources for your test cases. Data Service is a feature of Automation Cloud that lets you create and manage data entities and relationships. You need to select an entity and apply a filter using the Query Builder before using this option. The test data values are updated dynamically in Orchestrator, as the entity records are modified by the test case or other processes. This option is useful when you want to use data entities as test data and perform CRUD operations on them. Option D, Auto Generate, allows you to use test data that is automatically generated by UiPath Studio to cover as many paths as possible during execution. You need to select a test data generation strategy and a number of test data sets before using this option. The test data values are updated dynamically in Orchestrator, as the test case is executed with different data sets. This option is useful when you want to use random or diverse test data that can increase the test coverage and quality.

In UiPath Orchestrator, the Job Priority Levels feature allows operators to assign priority to jobs in a queue, thereby dictating their execution sequence based on their importance.

The Alerts panel in UiPath is a feature designed to notify users about different types of alerts or events that occur within the UiPath ecosystem, especially within the Orchestrator. These can range from job failures, trigger notifications, to queue item alerts.

The best description of the Alerts panel, considering typical functionality within such systems, would be:

B. A panel that displays summaries of the alerts you subscribed to, received as error reports every ten minutes, or as daily reports.

This option suggests that the Alerts panel provides a curated view of alerts based on subscriptions, which can be configured for error reports at specified intervals or for aggregate daily reports, making it a more proactive and user-specific feature.

The other options either describe a panel with too broad a scope (A), suggest real-time alerting without the context of user subscriptions (C), or limit the display to only the most severe alerts without mention of subscription or reporting features (D).

TheAdd Attachmentoption is available in theUiPath.WebAPI.Activities.HttpClientactivityonly when using POST or PUT methods, as these methods are designed for sending data (such as files or form data) to the server. GET, DELETE, HEAD, and OPTIONS methods do not support body content in the same way and are typically used for retrieval or metadata operations.

Mock Testing is a concept that allows you to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Mock Testing enables you to create a mock file of your workflow by selecting Mock workflow under test in the Create Test Case window. This creates a copy of your workflow with the name workflowName_mock and stores it in Project > Mocks. This folder mirrors the source workflow file tree structure. In the mock file, you can use the Surround with mock option to insert a mock activity that replaces the original input activity. For example, instead of asking the user to input a specific token, you can use a mock activity that assigns a predefined token value to a variable. This way, you can test the specific function of the process without having to enter the token manually every time. Mock Testing is useful for tests that have permanent effects in production or require special resources1.

The other options are incorrect because:

Option A is incorrect because Application Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Application Testing is a type of testing that focuses on verifying the functionality, usability, performance, and security of an application2.

Option B is incorrect because Data-Driven Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Data-Driven Testing is a type of testing that uses external data sources, such as Excel files or databases, to provide input values and expected results for the test cases3.

Option D is incorrect because RPA Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. RPA Testing is a type of testing that involves using robots to automate the testing of other robots or applications.

The best approach for data consolidation is toaggregate all customer data into a single entity or structure, such as a dictionary, object, or entity (especially when usingData Service). This allows forcentralized review, validation, and manipulationbefore being processed into the CRM system. It ensuresdata consistency, reusability, and easier error handling.

The Strict Selector is a targeting method that uses the selector information of a UI element to identify it on the screen. It is one of the four targeting methods available in UiPath Studio, along with Fuzzy Selector, Image, and Computer Vision1. The Strict Selector is considered to be the most reliable and stable targeting method, as it uses the attributes and properties of the UI element that are unlikely to change2.

At indication time, the Strict Selector has the following functionalities available:

Open in UiExplorer: This option opens the UiPath Explorer window, where you can inspect and edit the selector information of the indicated UI element, as well as use advanced features such as anchors, wildcards, variables, and regex3.

Copy to clipboard: This option copies the selector information of the indicated UI element to the clipboard, so you can paste it elsewhere, such as in a text editor or another activity.

Show all matches: This option highlights all the UI elements on the screen that match the selector information of the indicated UI element. This helps you to check if there are any duplicates that might cause the automation to fail at runtime. You can also use the Ignore text option to exclude the text attribute from the selector information, which might reduce the number of matches4.

The other options are incorrect because:

Option A is incorrect because it does not include the Show all matches option, which is available for the Strict Selector.

Option B is incorrect because it does not include the Open in UiExplorer option, which is available for the Strict Selector.

Option D is incorrect because it includes the Accuracy option, which is not available for the Strict Selector. The Accuracy option is only available for the Image targeting method, which allows you to adjust the similarity threshold between the indicated image and the target image5.

The REFramework (Robotic Enterprise Framework) is a template that provides a standard structure and best practices for developing UiPath automation projects. It uses the concept of transactions to process items from a data source, such as an Excel table, a queue, or a database. A transaction is a single unit of work that can be executed by the robot. The REFramework has a variable called TransactionItem, which stores the current transaction to be processed.

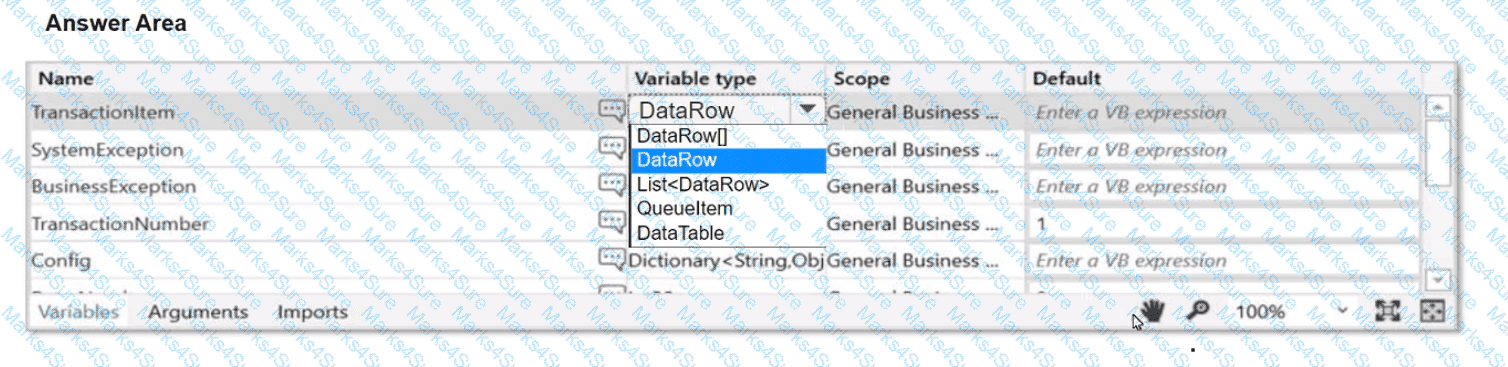

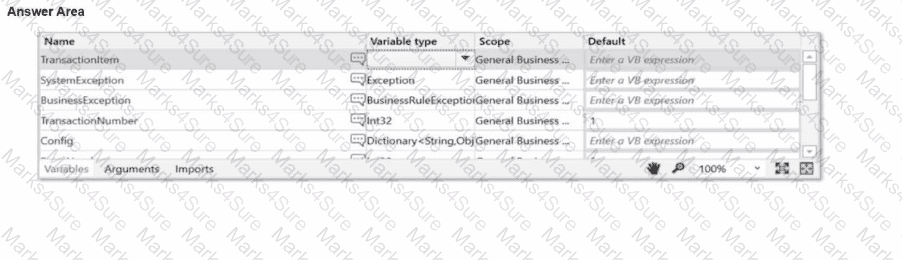

The variable type of TransactionItem depends on the type of data source that is used for the transactions. If the data source is an Orchestrator queue, then the TransactionItem should be of type UiPath.Core.QueueItem, which represents an item from the queue. If the data source is an Excel table, then the TransactionItem should be of type System.Data.DataRow, which represents a row from the table. A DataRow object contains the values of a single row in a DataTable object, which represents the entire table.

In this scenario, the developer needs to use the REFramework to automate a business process that involves processing transactions within an Excel table. Each transaction in the table should follow the same steps for processing and queues cannot be used as there is no Orchestrator in the environment.Therefore, the best variable type for TransactionItem in this scenario is System.Data.DataRow, as it can store a single row from the Excel table as a transaction.

The other options are not suitable variable types for TransactionItem in this scenario. Option A is incorrect, because UiPath.Core.QueueItem is used for queue items, not Excel rows. Option B is incorrect, because System.Data.DataRow[] is an array of DataRow objects, not a single DataRow object. Option C is incorrect, because System.Data.DataTable is a table of DataRow objects, not a single DataRow object.

The outcome of converting a personal workspace into a folder in UiPath Orchestrator is that the owner of the initial workspace is added by default to the newly created folder and assigned the Folder Administrator role. A personal workspace is a special type of folder that is created automatically for each user in Orchestrator and allows them to work on their own automation projects without affecting other users or folders. A personal workspace can be converted into a regular folder if the user wants to share their work with other users or move it to another folder. When a personal workspace is converted into a folder, the owner of the workspace becomes the owner of the folder and gets the Folder Administrator role, which gives them full permissions to manage the folder and its contents. The folder also inherits the permissions and settings of the parent folder, which is the Default folder by default. The admin user is not added to the folder by default, but they can access the folder as a Tenant Administrator if they have that role. References: [Personal Workspaces] , [Convert Personal Workspace to Folder]

In UiPath Studio, you can use DateTime and TimeSpan variables to store and manipulate date and time values. A DateTime variable represents a specific point in time, such as the current date and time, or a date in the past or future. A TimeSpan variable represents a time interval, such as one hour, two days, or three weeks.

To show what hour was 12 hours prior to the date from the variable, you can use the AddHours method on the DateTime variable and pass a negative value. For example, if you have a DateTime variable called CurrentDate that stores a date and time value, you can write:

CurrentDate.AddHours(-12).Hour

This expression returns an integer value that is the hour component of the DateTime value that is 12 hours before the CurrentDate value. For example, if CurrentDate is 2024-02-08 10:51:49, then the expression returns 22.

The other options are not correct expressions for showing what hour was 12 hours prior to the date from the variable. Option A is invalid, because the DateTime class does not have an AddHours method. Option C is incorrect, because the DateTime variable does not have a SubtractHours method. Option D is incorrect, because the DateTime class does not have a SubtractHours method.

To use UI Automation activities in a scenario where the destination remote computer is reached by jumping through multiple RDP connections, the following prerequisites are required:

Machine A - install the RDP extension. This extension enables the robot to generate native selectors over RDP connections and interact with the UI elements on the remote machines.

Machine B - install the RDP extension and the RemoteRuntime.msi. The RDP extension allows the robot to connect to Machine C from Machine B, while the RemoteRuntime component enables the communication between the robot and the UI elements on Machine B.

Machine C - install the RemoteRuntime.msi. This component enables the communication between the robot and the UI elements on Machine C, where the automation must be performed. References: [Remote Runtime Architecture], [Multiple RDP Connections] , [UiPath Extension for Microsoft Remote Desktop and Apps]
