2V0-41.24 VMware NSX 4.X Professional V2 Questions and Answers

Core Files should be excluded when collecting support bundles through NSX Manager because they may contain sensitive information, such as memory dumps that could reveal sensitive data from processes at the time of an issue. Excluding core files helps ensure that potentially sensitive data is not unintentionally shared.

In NSX, BGP is the only supported dynamic routing protocol on a Tier-1 Gateway. OSPF is not supported at the Tier-1 level; it is only available on Tier-0 Gateways. This limitation means that for dynamic routing on a Tier-1 Gateway, administrators can configure BGP to exchange routing information with connected Tier-0 Gateways.

A screenshot of a computer application Description automatically generated

https://docs.vmware.com/en/VMwa re-NSX-Intelligence/4.0/user-guide/GUID-DC78552B-2CC4-410D-A6C9-3FE0DCEE545B.html

The Network Engineer role in NSX is a built-in role that provides permissions to apply configuration changes on NSX components , including NSX Edge. It is the most restrictive role that still allows users to make changes, whereas roles like Network Operator are typically limited to read-only access.

According to the VMware NSX Documentation, this is the NSX feature that can be leveraged to achieve consistent policy configuration and simplicity across sites:

NSX Federation: This feature allows you to create and manage a global network infrastructure that spans across multiple sites using a single pane of glass. You can use this feature to synchronize policies, segments, gateways, firewalls, VPNs, load balancers, and other network services across sites.

Switch Visualization in the NSX UI provides a clear mapping between virtual NICs (vNICs) and the physical adapters on the host. This feature allows administrators to see how virtual network interfaces connect to the underlying physical network infrastructure, which is essential for troubleshooting connectivity issues on transport nodes.

In NSX, the FABRIC message ID is used to capture and export syslog events related to host preparation and other fabric-related activities. These events are important for tracking and troubleshooting the setup and configuration of NSX components across the fabric, including host preparation events.

If Distributed Firewall Rule hit counts are not being logged, it is likely because Distributed Firewall Rule logging is not enabled. For hit counts to appear in the logs, logging must be explicitly enabled on each firewall rule where tracking is required. Without enabling logging at the rule level, no hit count information will be recorded in syslog.

To configure a firewall rule based on the domain name of a specific application, the administrator needs to use the Profile field in a distributed firewall rule. The Profile field allows the administrator to select a context profile that contains one or more attributes for filtering traffic. One of the attributes that can be used is Domain (FQDN) Name, which specifies the fully qualified domain name of the application. For example, if the administrator wants to filter traffic to *.office365.com, they can create a context profile with the Domain (FQDN) Name attribute set to *.office365.com and use it in the Profile field of the firewall rule.

References :

Filtering Specific Domains (FQDN/URLs)

FQDN Filtering

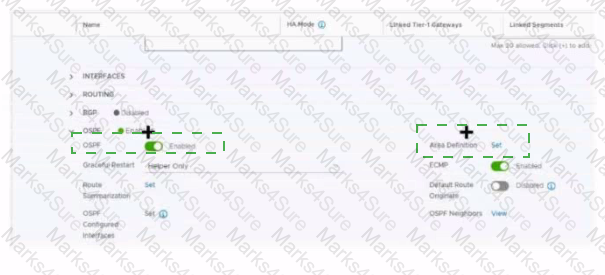

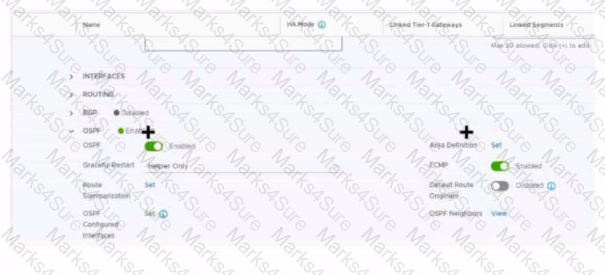

The correct answer is to enable the  OSPF  toggle and to add an  Area Definition  for the Tier-0 gateway in the image.  These two items are required to configure OSPF on the Tier-0 gateway, as explained in the web search results 1 2 3 .

To mark your answers by clicking twice on the image, you can double-click on the toggle switch next to  OSPF  to turn it on. The switch should change from gray to blue, indicating that the option is enabled. Then, you can double-click on the  Set  button next to  Area Definition  to add an area definition. A pop-up window should appear where you can specify the area ID and type.

1. Click the OSPF toggle to enable OSPF 2. In the Area Definition field, click Set to add an area definition https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-5BEC626C-5312-467D-B873-8E117349E9FC.html

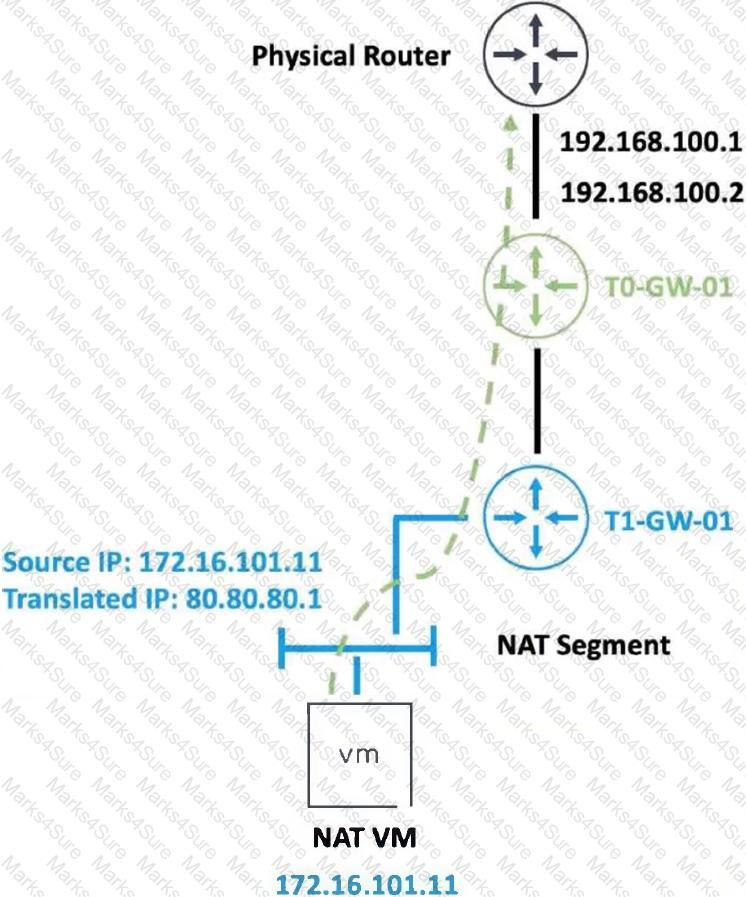

Source NAT (SNAT) is used to translate the private IP address (172.16.101.11) of the NAT VM to a public IP address (80.80.80.1) as the packets leave the NAT-Segment network. SNAT changes the source IP of outbound packets, allowing private IP addresses within the internal network to be mapped to public IP addresses for communication with external networks.

Using a Transport Node Profile allows the administrator to apply configuration changes, such as specifying an NTP server, across multiple Edge Transport Nodes efficiently. This method is scalable and avoids the need for manual configuration on each individual node. Once the Transport Node Profile is updated, the configuration can be pushed to all associated nodes.

According to the VMware NSX Documentation, these are two of the ways that you can use to configure Distributed Firewall on VDS:

NSX API: This is a RESTful API that allows you to programmatically configure and manage Distributed Firewall on VDS using HTTP methods and JSON payloads. You can use tools such as Postman or curl to send API requests to the NSX Manager node.

NSX UI: This is a graphical user interface that allows you to configure and manage Distributed Firewall on VDS using menus, tabs, buttons, and forms. You can access the NSX UI by logging in to the NSX Manager node using a web browser.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-0DEF9F18-608D-4B5C-9175-5514750E901B.html

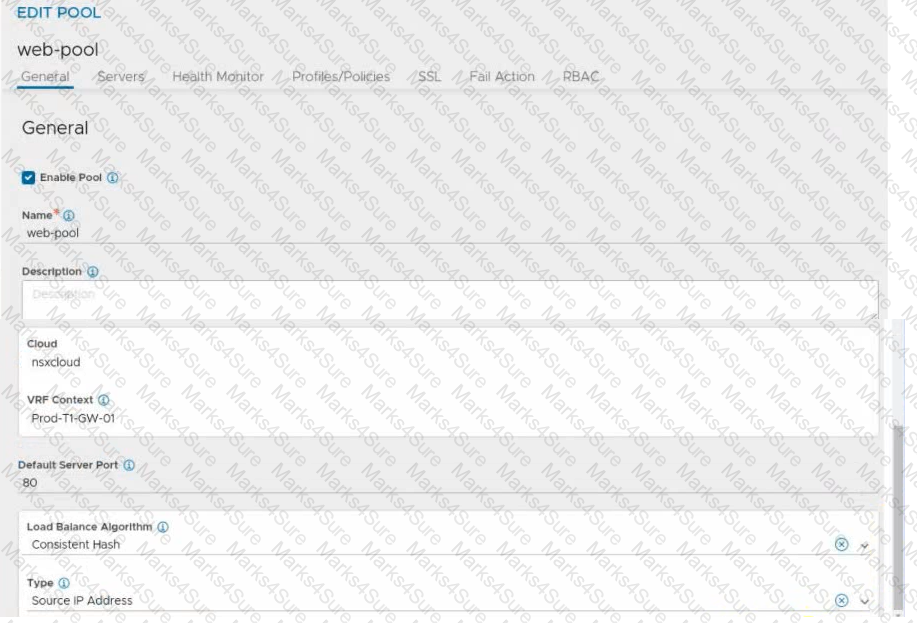

Load Balancing Algorithm

You specify the following parameters during the creation of a server pool:

• Name: A unique name for the server pool.

• Cloud: The cloud connector details for the NSX environment.

• VRF Context: Virtual Routing Framework (VRF) is a method to isolate traffic in a system. VRF is also called a route domain in the load balancer community. A global VRF context is created by default. Network administrators might create custom VRF contexts to isolate traffic between different tenants or subsets.

• Default Server Port: New connections to servers will use this destination service port. The default port is 80.

• Load-balancing algorithm: The selected load-balancing algorithm controls how the incoming connections are distributed among the servers in the pool.

• Tier-1 gateway (logical router): Specify the Tier-1 gateway that you want to attach the server pool to. This value matches the Tier-1 gateway specified for the virtual service and VIP.

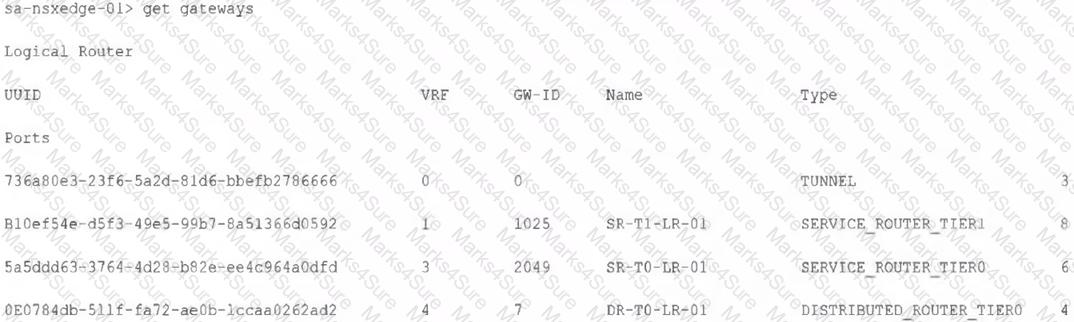

To validate the BGP connection status between the Tier-0 Gateway and the upstream physical router on an NSX Edge node, the correct sequence involves enabling the specific logical router (Tier-0 Gateway), checking the VRF (Virtual Routing and Forwarding) context, and then using the show bgp neighbor command to view the BGP session status.

enable < LR-D > : This command enables the logical router interface (Tier-0 Gateway) to access its configuration.

get vrf < ID > : This command checks the specific VRF (used for routing separation) to see the associated routing table.

show bgp neighbor: This command displays the status of the BGP connection, including details about the neighbor relationships and their state.

An NSX Edge Cluster can contain a mix of edge node types, meaning it can have both virtual machine (VM) and bare-metal edge nodes within the same cluster.

An NSX Edge Cluster supports a maximum of 8 edge nodes, allowing for scalability while adhering to the NSX design limitations for edge clusters.

The ifconfig command is used to display the network configuration of interfaces, including the Tunnel Endpoint (TEP) IP on a bare metal transport node. This command provides details about IP addresses, subnet masks, and other network settings for each interface on the node.

In an NSX environment, a Punting Traffic Group for the NSX Edge uplinks must be configured before enabling stateful active-active Source NAT (SNAT). This configuration ensures that traffic is appropriately handled and forwarded between the NSX Edge nodes in an active-active setup, allowing stateful connections to be maintained across multiple Edge nodes.

The esxcli network firewall ruleset set -r syslog -e true command is used to enable the firewall ruleset for syslog on an ESXi host. Setting the -e flag to true allows syslog traffic through the ESXi firewall, enabling remote logging for syslog messages from the transport node.

TEP (Tunnel Endpoint): TEPs (Tunnel Endpoints) are configured on transport nodes to handle the encapsulation and decapsulation of the Geneve protocol. TEPs are responsible for creating the overlay network by encapsulating traffic in the Geneve protocol when it moves between transport nodes and decapsulating it upon arrival.

To verify that VMware Identity Manager integration is successful with NSX, the administrator should check the NSX UI for the integration status. If it is configured correctly, the status should be marked as " Enabled, " indicating that the integration is active and functioning.

When a stateful service (such as NAT or firewall) is enabled for the first time on a Tier-0 Gateway, the Service Router (SR) is instantiated on the NSX Edge node and automatically connected with the Distributed Router (DR). This connection enables the Tier-0 Gateway to handle stateful services by routing traffic through the SR, which manages stateful packet processing, while the DR provides distributed routing functionality.

Both TCP and UDP are commonly used protocols for transferring log messages in syslog configurations. TCP is preferred when reliability is needed, while UDP is used for faster, connectionless transmission.

TLS can be used to secure the log messages being sent over TCP, ensuring encrypted transmission to the remote log server.

AS-Path Prepend: This attribute allows you to prepend one or more AS numbers to the AS path of a route, making it appear longer and less preferable to other BGP routers. You can use this attribute to manipulate the inbound traffic from your BGP peers by advertising a longer AS path for some routes and a shorter AS path for others.

MED: This attribute stands for Multi-Exit Discriminator and allows you to specify a preference value for a route among multiple exit points from an AS. You can use this attribute to manipulate the outbound traffic to your BGP peers by advertising a lower MED value for some routes and a higher MED value for others.

When logging is enabled for a firewall rule in NSX, the logs are stored on the ESXi transport node in the /var/log/vmware/nsx/firewall.log file. This file contains information about firewall rule hits and is useful for monitoring and troubleshooting firewall activity on the transport node.

The insertion point for East-West network introspection in NSX is at the Guest VM vNIC (virtual Network Interface Card). By inspecting traffic at the vNIC level, NSX can monitor and apply security policies to traffic between virtual machines (East-West traffic) within the same network segment or data center, providing detailed security controls for VM-to-VM communication.

An L2 VPN (Layer 2 VPN) in an NSX 4.x environment allows you to extend a Layer 2 network across different sites or data centers. This enables the connected environments to share the same broadcast domain, meaning that broadcast traffic can be transmitted between sites as if they were on the same local network. This is particularly useful for scenarios where you need to maintain Layer 2 connectivity across geographically dispersed locations.

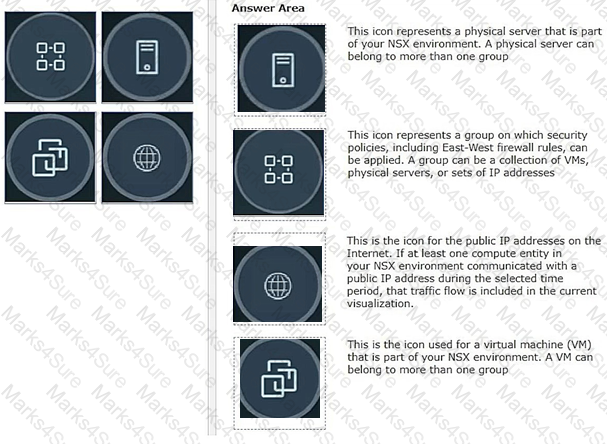

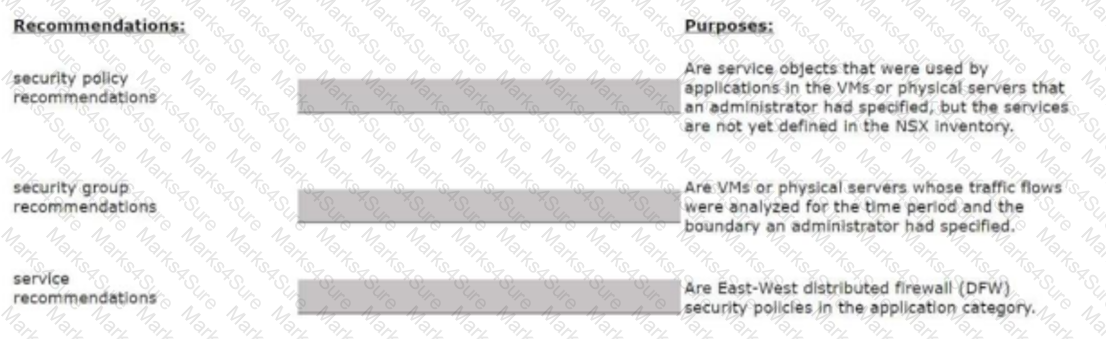

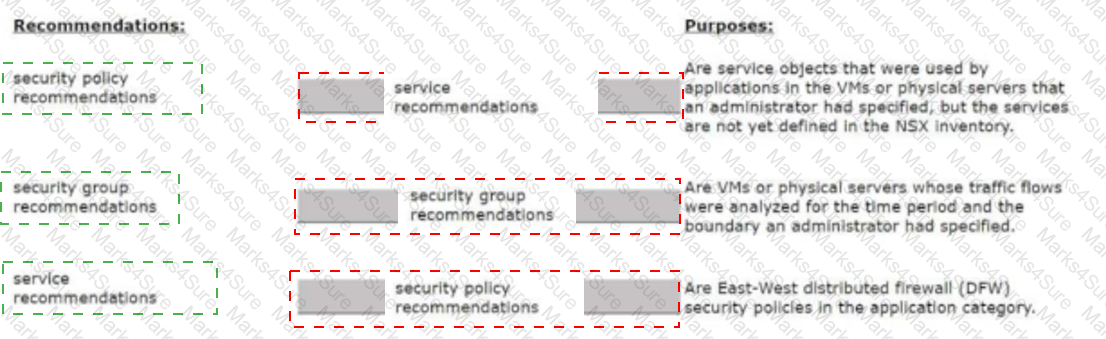

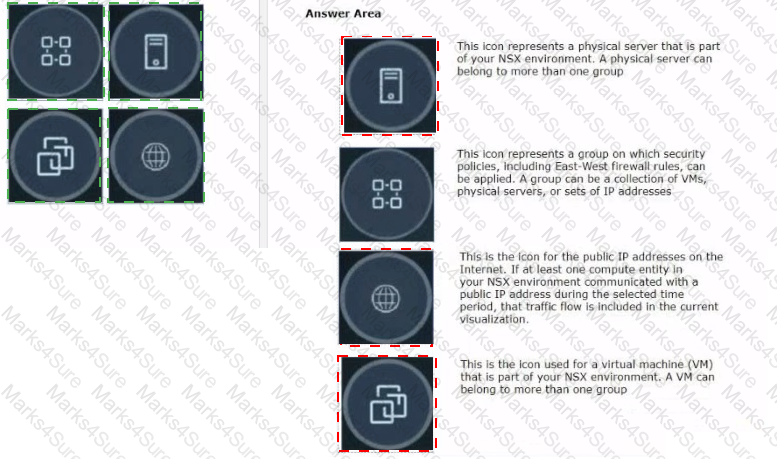

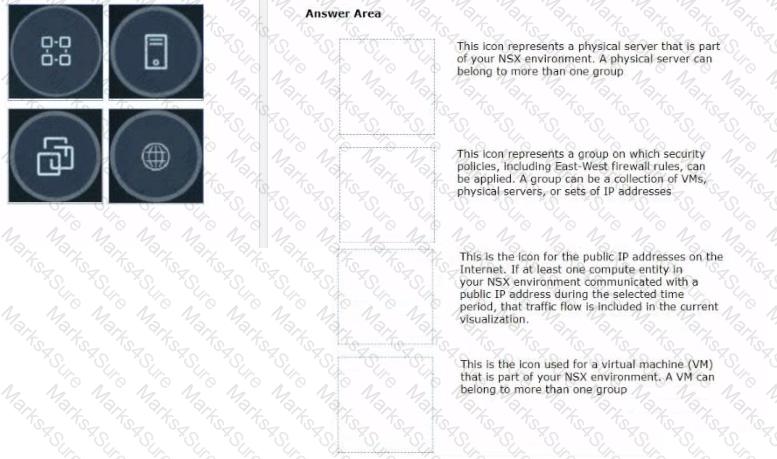

Security policy recommendations : Are East-West distributed firewall (DFW) security policies in the application category 1 2 .

Security group recommendations : Are VMs or physical servers whose traffic flows were analyzed for the time period and the boundary you had specified 1 2 .

Service recommendations : Are service objects that were used by applications in the VMs or phys ical servers that you had specified, but the services are not yet defined in the NSX inventory 1 2 .

https://docs.vmware.com /en/VMware-NSX-Intelligence/4.1/user-guide/GUID-BA3B0D67-4AA8-439E-A845-4598DAD6B9D0.html

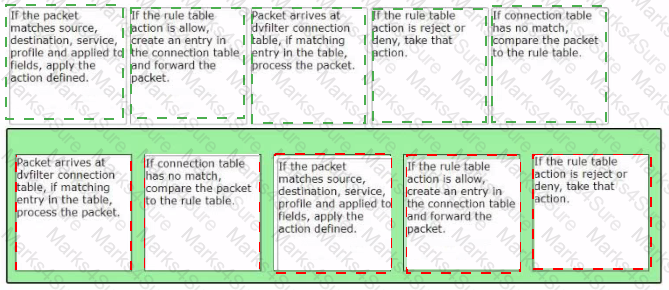

The correct order of the rule processing steps of the Distributed Firewall is as follows:

Packet arrives at vfilter connection table. If matching entry in the table, process the packet.

If connection table has no match, compare the packet to the rule table.

If the packet matches source, destination, service, profile and applied to fields, apply the action defined.

If the rule table action is allow, create an entry in the connection table and forward the packet.

If the rule table action is reject or deny, take that action.

This order is based on the description of how the Distributed Firewall works in the web search results 1 . The first step is to check if there is an existing connection entry for the packet in the vfilter connection table, which is a cache of flow entries for rules with an allow action. If there is a match, the packet is processed according to the connection entry. If there is no match, the packet is compared to the rule table, which contains all the security policy rules. The rules are evaluated from top to bottom until a match is found. The match criteria include source, destination, service, profile and applied to fields. The action defined by the matching rule is applied to the packet. The action can be allow, reject or deny. If the action is allow, a new connection entry is created for the packet and the packet is forwarded to its destination. If the action is reject or deny, the packet is dropped and an ICMP message or a TCP reset message is sent back to the source.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-C5CD87FD-8095-49F3-97CE-E606AB89162E.html?hWord=N4IghgNiBcIGYEcAmA7ABGFkCeBnAlriAL5A
