300-430 Implementing Cisco Enterprise Wireless Networks (300-430 ENWLSI) Questions and Answers

 Link-Local Service (LSS) filtering for mDNS (Multicast Domain Name System) is used to control the propagation of mDNS services across the network. To enable LSS for the AppleTV mDNS service only when ORIGIN is set to Wired, the correct action is to set ORIGIN to Wired and enable LSS specifically for the AppleTV service. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Local EAP (Extensible Authentication Protocol) allows wireless LAN controllers to directly authenticate clients using an internal database, which can be useful when external RADIUS servers are unreachable. By enabling local EAP, client devices can still connect to wireless networks even if communication with RADIUS servers fails, ensuring continuous network access for users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

In Cisco Prime Infrastructure, the report that must be created to present a list of all rogue APs with a high severity score to senior management is the “Rogue APs” report. This report provides detailed information about rogue access points detected in the network, including their severity score, which helps in assessing the potential risk they pose to the network security. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 When configuring Cisco OfficeExtend Access Points (OEAPs), enabling NAT IP only for office-extend is necessary if the APs are behind a NAT device and need to communicate with the Wireless LAN Controller (WLC) using the internal IP management address. The command config flexconnect office-extend nat-ip-only enable allows the APs to discover and associate with the WLC when the management interface is configured with a NAT address.

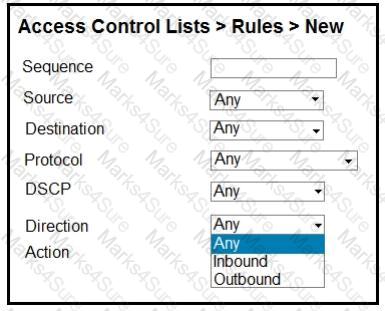

For guests to reach a Web Authentication Redirect page while blocking web management traffic to the controller, guest client HTTPS traffic must be allowed to a specific IP address that does not interfere with management access. The virtual interface IP on a Cisco Wireless LAN Controller serves as a DHCP relay and is used for web authentication processes. Therefore, allowing HTTPS traffic to this IP enables guests to reach the redirect page without granting them access to manage the controller. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When using FlexConnect Smart AP Image Upgrade without a configured FlexConnect Master AP, the WLC will transfer the image to one indoor AP and one outdoor AP separately. Each AP model needs a different firmware image due to hardware differences. Therefore, there will be two image transfers from the WLC: one for the 2702i APs and another for the 1532i APs.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on FlexConnect Smart AP Image Upgrade

In a Cisco Wireless LAN Controller (WLC), AP groups are used to manage the distribution of WLANs to different access points (APs). By configuring AP groups, an engineer can specify which WLANs are broadcasted by which APs. This allows for the creation of multiple WLANs across different APs without the need to create new interfaces for each WLAN. AP groups provide the flexibility to control WLAN availability based on location or other criteria, ensuring that only the intended WLANs are available through specific APs.

 To resolve the issue of changing the Cisco Hyperlocation detection threshold, the engineer should shut down all radios on the controller, change the Cisco Hyperlocation detection range, and then enable the radios again. This process ensures that the new threshold settings are applied correctly across the network.

Graphical user interface Description automatically generated

To load balance the data coming through NMSP from the WLCs and spread the load between multiple CMX servers, the configuration cmxctl config feature flags nmsplb.cmx-ap-grouping true should be used. This enables the load balancing feature and helps optimize the data flow for APs in a large network environment. References: The configuration for load balancing in CMX is explained in the certification guide, which outlines the commands and flags necessary to manage data flow efficiently.

The Cisco OfficeExtend Access Point (OEAP) feature is enabled on a Cisco Catalyst 9800 Series Wireless Controller through the Flex Profile. The Flex Profile allows for the configuration of various settings specific to FlexConnect deployments, including OEAP settings, which enable remote workers to connect to the corporate network securely.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on Catalyst 9800 Series Wireless Controllers

 Configuring an AVC profile for the Jabber traffic and applying it to the WLAN ensures that voice traffic from Cisco Jabber receives Platinum QoS while keeping other WLAN traffic at Silver class. AVC allows for deep packet inspection which can identify Jabber application packets so they can be given priority over other types of traffic.

 The issue described indicates that authentication requests from the wireless network to the RADIUS server are being dropped. This problem is often due to a mismatch in shared-secret keys between the wireless controller and the RADIUS server. The shared secret is a password-like value that must be configured on both sides to ensure secure communication. By configuring both sides with matching shared-secret keys, it ensures that authentication messages are properly encrypted and decrypted by each party, allowing for successful user connection. References: (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 For a startup company without LDAP, using the internal database of the RADIUS server is a viable solution to authenticate wireless users. This approach allows the company to maintain a directory of users within the RADIUS server itself, providing similar security and user experience as LDAP would. Users can be authenticated against this internal database, ensuring secure access to the wireless network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 For a wireless network supporting voice and video applications for Apple devices, especially with Fastlane implementation, the QoS profile to configure on the user WLAN for iPhones updated to version 14.5.432302546 is Platinum. This profile provides the highest level of QoS, ensuring priority for voice and video traffic. References:= (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 The customizable security report in Cisco Prime Infrastructure that shows rogue access points (APs) detected since a point in time is the “New Rogue APs” report. This report is specifically designed to track and list all newly detected rogue APs within the network from a specified time, allowing network administrators to quickly identify unauthorized devices. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 When configuring an autonomous Access Point (AP) for 802.1x authentication using an external authentication server like RADIUS, it’s essential that AP knows where to send authentication requests and has a secure method of communicating with it. The RADIUS server’s IP address must be configured on AP so it knows where to forward user credentials for verification. Additionally, a shared secret must be set up between AP and RADIUS server as part of their secure communication protocol; without this shared secret, they cannot trust each other’s communications. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To integrate the Mobility Services Engine (MSE) with Cisco Prime Infrastructure for tracking the location of clients and rogues on maps, it is essential to add the MSE to Cisco Prime Infrastructure using the communication credentials specific to Cisco Prime Infrastructure. This ensures that both systems can communicate effectively. Additionally, a valid license for location tracking must be applied to enable the MSE’s location services capabilities. Without this license, the MSE would not be able to provide client and rogue location tracking functionalities. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 To prevent honeypot attacks most efficiently, the wireless network engineer should set the auto containment level to 4 and select the Using Our SSID containment option (D). This configuration allows the system to automatically contain rogue APs that are spoofing the organization’s SSID, which is a common tactic in honeypot attacks. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To segregate iOS-connected devices onto a guest SSID on VLAN 101 and the rest of the clients on VLAN 102, specific configurations are needed on the Cisco Catalyst 9800 Wireless LAN Controller (WLC). The correct configurations required are:

Add local profiling policy under global security policy settings (Option B): This allows the WLC to profile devices based on their operating system. By identifying iOS devices, a local profiling policy can then direct these devices to the appropriate VLAN.

Enable device classification on global wireless settings (Option E): Device classification is necessary for the WLC to differentiate between device types. Once enabled, it can apply different policies based on whether a device is recognized as an iOS device or not.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The correct command to configure the controller to update Cisco CMX every 5 seconds for rogue devices is “config nmsp notification interval rssi rogues 5”. NMSP (Network Mobility Services Protocol) is used by Cisco wireless controllers to manage and communicate with connected services such as Cisco CMX. The command structure “config nmsp notification interval” followed by the specific type of device or metric, in this case, ‘rssi rogues’, and the desired interval time ‘5’ seconds, sets the frequency of NMSP notifications for RSSI updates related to rogue devices.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

To meet the requirement of allowing employees to easily onboard their personal devices and visitors to connect without reception desk intervention, configuring a self-registration guest portal on Cisco ISE is the appropriate solution. This feature enables guests to create their own accounts and gain network access, streamlining the process for both employees’ personal devices and visitors. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

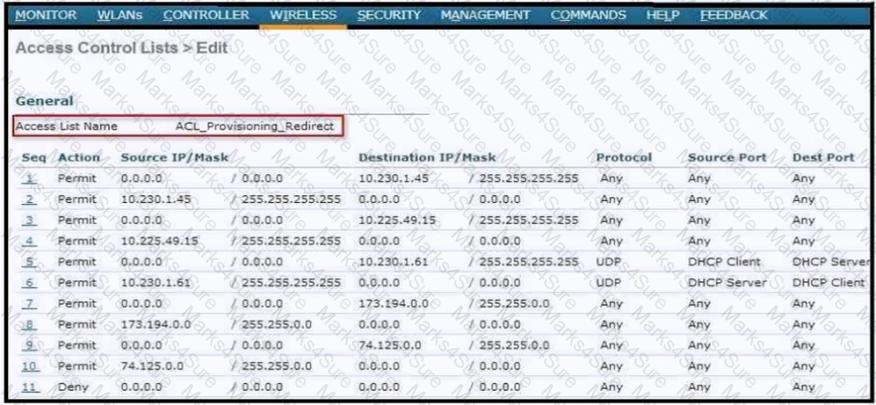

An ACL configured for BYOD clients to redirect to a guest portal must allow access to the RADIUS server and Cisco ISE. The RADIUS server is crucial for authentication services, a core component of network access control for BYOD. Cisco ISE integrates with the network infrastructure to provide comprehensive security, including guest access management, thus its accessibility is essential for the redirection process to function correctly. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

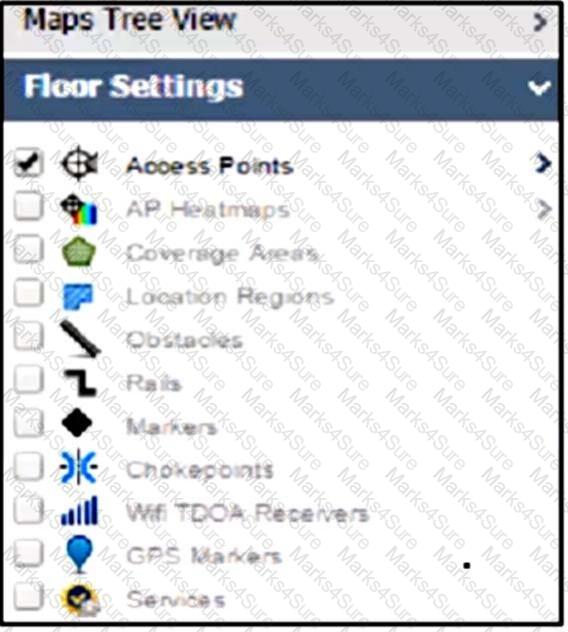

The absence of rogue AP options in the navigation menu under Maps in Cisco Prime Infrastructure (PI) version 3.0 indicates that there is an issue with integrating location services, which are provided by Mobility Services Engine (MSE). Without adding MSE to PI, location-based services such as tracking rogue access points cannot be utilized or displayed within PI’s interface. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

With the implementation of a BYOD policy, the security director should be concerned about malware and lost and stolen devices. Malware can compromise the corporate network if infected devices connect to it. Lost and stolen devices pose a risk of unauthorized access to corporate data and resources, potentially leading to data breaches. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

A Public-Signed SAN (Subject Alternative Name) certificate allows multiple domain names to be protected with a single certificate. This is useful in a distributed environment like a guest portal on Cisco ISE, where there may be multiple nodes with different Common Names (CNs). Using a SAN certificate can prevent CN mismatch errors during SSL/TLS handshakes. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

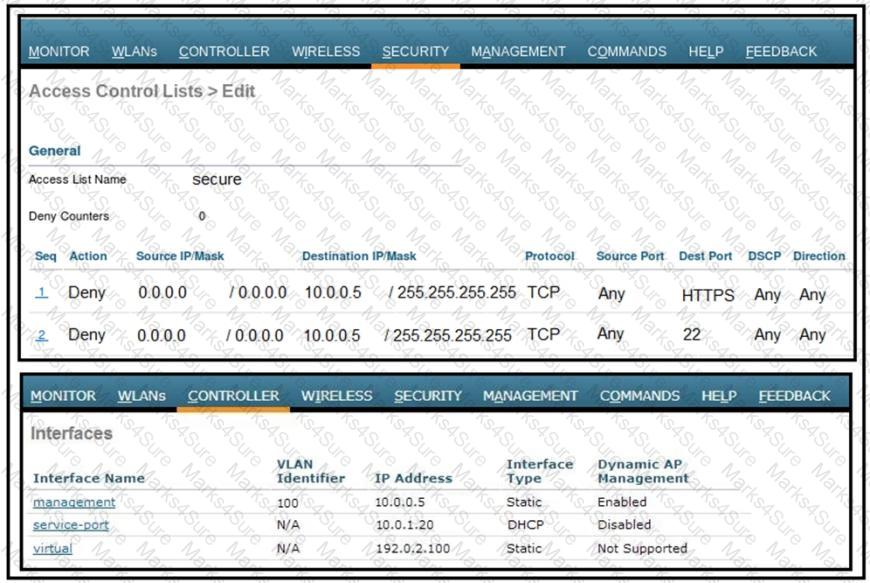

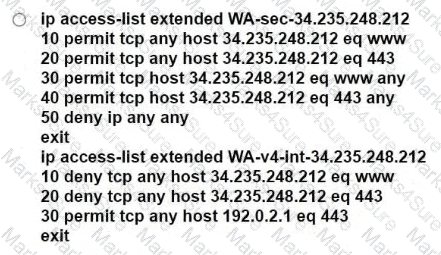

To ensure that only admins have access to network device management while allowing guest users to reach the web portal, access to Cisco ISE must be permitted on the pre-authentication ACL. This configuration allows guests to interact with the portal without granting them broader network access.

When upgrading a Cisco AireOS WLC from version 7.3 to 8.9, it’s crucial to configure ACLs that allow necessary traffic for Cisco Central Web Authentication (CWA). The correct ACLs to configure are:

B. Permit 0.0.0.0 0.0.0.0 UDP DNS any: This ACL allows DNS queries from any source to any destination, which is essential for resolving domain names during the upgrade process.

E. Permit 0.0.0.0 0.0.0.0 UDP any any: This ACL permits all UDP traffic from any source to any destination, ensuring that services relying on UDP can continue to function during the upgrade.

These ACLs ensure that critical services like DNS resolution are not interrupted during the upgrade process, which could otherwise lead to system instability or failure to access network resources. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The OfficeExtend Access Point (OEAP) split tunnel feature allows the separation of corporate and local traffic. By implementing a split tunnel, remote workers can maintain wireless connectivity to the corporate network while simultaneously accessing local network resources such as printers. This solution ensures that local traffic does not have to traverse the corporate network, which can cause connectivity issues like the ones reported by the users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The command cmxha convert backup is used on the backup Cisco CMX server to designate it as the secondary server in a high-availability deployment. This command helps to resolve the issue where both servers are considered primary. References: Cisco CMX high-availability documentation will provide more details on this command.

 The issue described occurs when the fallback feature is disabled on the Cisco AireOS controller. When fallback is disabled, the controller does not attempt to reconnect to the primary TACACS+ server after it becomes available again following a failure. Instead, it continues to use the secondary server until it fails or the controller is rebooted. Enabling fallback would allow the controller to periodically attempt to reconnect to the primary server. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

If PEAP authentication is failing and the server is sending an Access-Reject message, one possible action to resolve the issue is to disable the server certificate validation on the client. This means that the client device will not check the authenticity of the RADIUS server’s certificate, which can sometimes resolve connection issues, especially if there is a problem with the certificate chain or trust settings. However, this should be done with caution as it reduces the security of the authentication process. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The primary change to the network when adding APs for location-based services, such as VolMLAN, would be the AP footprint. This refers to the physical coverage area of the access points. Increasing the AP footprint enhances the ability to perform location-based services by improving the accuracy of triangulation and location tracking of devices. This is because a denser AP footprint allows for more precise determination of a device’s location within the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, specifically the sections discussing location-based services and AP deployment strategies for optimal coverage and location tracking.

 FlexConnect is a wireless solution for branch office and remote office deployments. It allows APs to switch client data traffic locally and perform client authentication locally when they are disconnected from the WLC. For WLAN A to work in FlexConnect mode and WLAN B to work in local mode, the APs need to be part of a FlexConnect group with proper WLAN-VLAN mappings. This ensures that the correct VLAN is used for each WLAN, which is essential when the APs are operating in FlexConnect mode. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 To control administrative access to the WLC using Active Directory without concern for RBAC post-authentication, the engineer would configure a RADIUS server (option D) and a TACACS server (option E). These servers can integrate with Active Directory to authenticate users, and once authenticated, the admin user’s access level can be determined without the need for additional role-based access control configurations within the WLC. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, focusing on the integration of WLC with RADIUS and TACACS servers for administrative access control.

 To provide guests access using social media authentication, the engineer must configure the “Social Connect” service. This service allows guests to use their Facebook credentials, among other social media platforms, to authenticate and gain network access. It simplifies the guest access process by leveraging existing social media accounts for authentication. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The bronze QoS level is typically recommended for guest services in a wireless network environment. This level prioritizes basic internet access, which is suitable for guest services that do not require high bandwidth or low latency. It ensures that more critical services are not impacted by guest traffic, which is often less sensitive to performance fluctuations. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The remote LAN (RLAN) feature on the OfficeExtend Access Point (OEAP) is used to extend the wired network through more than one port. This allows the creation of a wired interface on the OEAP that can be associated with a specific VLAN, providing connectivity for wired devices at remote locations. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To segregate all iPads on the guest WLAN to a separate VLAN without using Cisco ISE, the engineer can create a local policy on the WLC (option A). This local policy can be configured to identify iPad devices and assign them to a specific VLAN based on their device profile or other identifying characteristics. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, especially the sections that cover local policies and device profiling on the WLC.

The output observed in Prime Infrastructure suggests that there is at least one strong interferer impacting connectivity at this site. This conclusion is drawn from observing areas marked with intense red coloring indicating high levels of RF interference which could degrade wireless performance significantly if not addressed.

To enable VLAN tagging for wireless Identity-Based Networking on a WLAN, an engineer must enable AAA override, which allows for dynamic VLAN assignment. Additionally, the RADIUS server attributes need to be updated to include tunnel type 64, medium type 65, and tunnel private group type 81, which are necessary for VLAN tagging information. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When upgrading a Cisco AireOS WLC from version 7.3 to 8.9, it’s crucial to configure ACLs that allow necessary traffic for Cisco Central Web Authentication (CWA). The correct ACLs to configure are:

B. Permit 0.0.0.0 0.0.0.0 UDP DNS any: This ACL allows DNS queries from any source to any destination, which is essential for resolving domain names during the upgrade process.

E. Permit 0.0.0.0 0.0.0.0 UDP any any: This ACL permits all UDP traffic from any source to any destination, ensuring that services relying on UDP can continue to function during the upgrade.

These ACLs ensure that critical services like DNS resolution are not interrupted during the upgrade process, which could otherwise lead to system instability or failure to access network resources. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

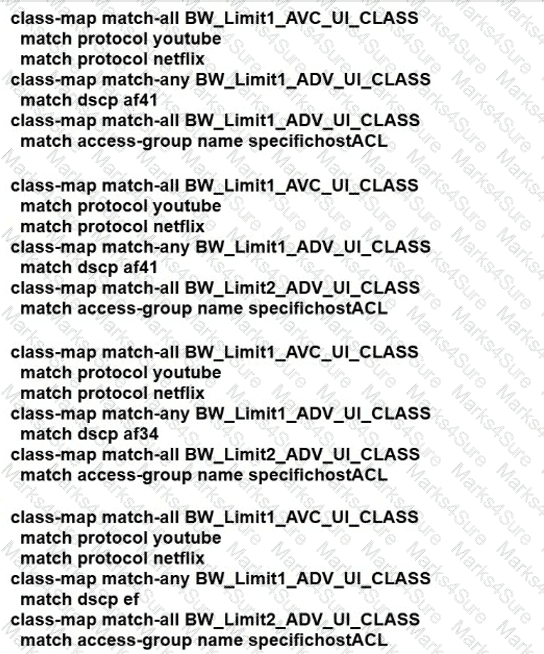

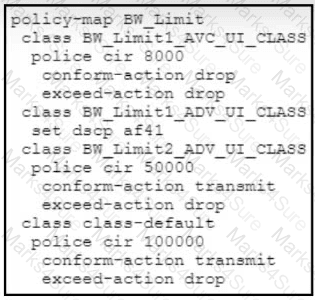

 The correct configuration for limiting Internet bandwidth for each guest client on a Cisco Catalyst 9800 WLC is through a policy map. A policy map allows the creation of policies that can manage traffic within a network. By setting a bandwidth limit within the policy map, the WLC can enforce the required QoS for guest clients. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The OfficeExtend Access Point (OEAP) split tunnel feature allows the separation of corporate and local traffic. By implementing a split tunnel, remote workers can maintain wireless connectivity to the corporate network while simultaneously accessing local network resources such as printers. This solution ensures that local traffic does not have to traverse the corporate network, which can cause connectivity issues like the ones reported by the users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The Extensible Authentication Protocol (EAP) is an authentication framework frequently used in wireless networks and Point-to-Point connections. During the EAP authentication process, EAP Request and EAP Response packets are exchanged between the supplicant (client device) and the authenticator (network). These packets are used to transport messages for the authentication process. An EAP Request packet is sent by the authenticator requesting identity information from the supplicant, while an EAP Response packet is sent by the supplicant in reply to the request. The other options, such as EAP complete, EAP failure, and EAP reply, are not standard EAP packet types. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To offer indoor directions to patient rooms using the existing wireless infrastructure, the hospital would need to install Cisco MSE (B) and Cisco CMX Visitor Connect ©. Cisco Mobility Services Engine (MSE) provides advanced location services, including tracking for Wi-Fi clients, which is essential for indoor navigation. Cisco CMX Visitor Connect, part of the Cisco Connected Mobile Experiences (CMX) solutions, allows for the customization of visitor experiences, such as indoor navigation. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

FastLocate technology enhances location updates’ frequency by utilizing probe requests from clients for real-time location tracking. This method increases the refresh rate of client locations significantly compared to other methods that rely on data packets or RSSI measurements of associated clients only. By implementing a probe-based technique, an engineer can achieve higher location refresh rates as required for location services in an office environment. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The default NMSP echo interval between Cisco MSE and a Wireless LAN Controller is 15 seconds. This interval determines how frequently the MSE sends echo messages to the WLC to maintain the NMSP connection and ensure that the link is active and operational. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

If the Cisco 5520 Series Wireless LAN Controller is no longer manageable via the network after implementing a CPU ACL, permit statements must be added to the top of the ACL in both directions (A). These statements should specify the network from which management is allowed and the virtual interface of the controller to ensure proper management access. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 In Cisco CMX, to view active RFID tags, the engineer needs to enable the tracking of these tags within the system settings. This is typically done by selecting an option that allows for RFID tag tracking, which makes them visible on location-based services like the Detect and Locate window of Cisco CMX. By enabling this feature, the system starts to interpret signals from RFID tags and displays their location accordingly. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Protocol Independent Multicast (PIM) sparse mode and dense mode are two different multicast routing mechanisms. Sparse mode uses distribution trees and is designed for networks where multicast groups are sparsely distributed across the network, minimizing unnecessary traffic. In contrast, dense mode floods the network with multicast traffic and then prunes back the branches where there are no interested receivers, which can lead to inefficient use of bandwidth. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The correct URL to be used in the configuration as the external redirection URL for guests to view the company’s Facebook page before accessing the network is http:// :8083/fbwifi/forward (B). This URL is associated with the Cisco MSE’s Facebook Wi-Fi feature, which facilitates the redirection process. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To establish connectivity between a Wireless LAN Controller (WLC) and Cisco’s Connected Mobile Experiences (CMX) through Network Mobility Services Protocol (NMSP), it is essential to enable NMSP on the WLC, which facilitates communication with location-based services like CMX. Additionally, for secure communication, it is necessary to add the MAC address of the Cisco CMX server to the WLC along with its SSC (Self-Signed Certificate) key, ensuring that both devices can authenticate each other and establish a trusted connection. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The default IEEE 802.1x AP authentication configuration on a Cisco Catalyst 9800 Series Wireless Controller is EAP-FAST with CAPWAP DTLS (Option D). This method uses EAP-FAST for authentication within a secure tunnel established by Datagram Transport Layer Security (DTLS) over CAPWAP, which provides both security for authentication credentials and encryption for wireless management frames. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

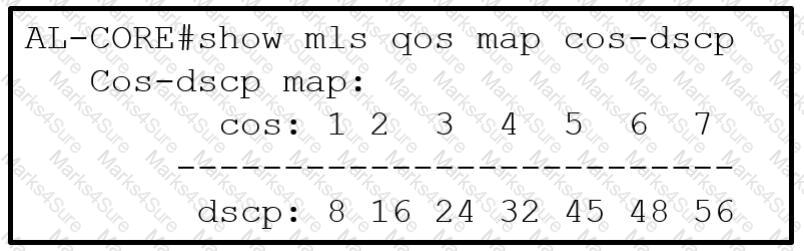

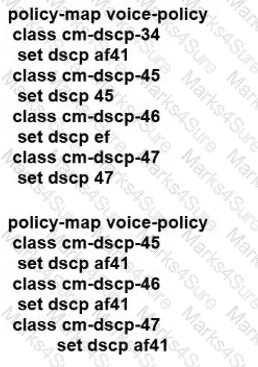

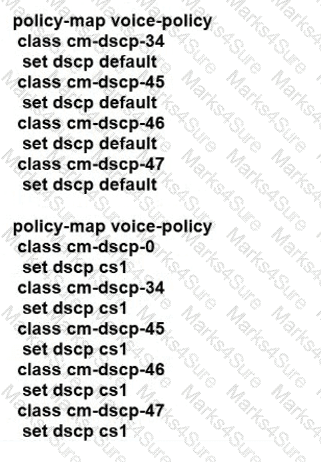

Trusting DSCP is essential for maintaining the QoS markings across the wired and wireless network in a FlexConnect deployment. By trusting DSCP, the WLC and APs will preserve the QoS markings set by applications and devices, ensuring consistent QoS treatment throughout the network. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

Enabling unicast AP multicast mode can correct the issue of increased controller CPU overhead and overall network utilization after multicast is enabled. This mode allows the controller to send multicast traffic to the APs as unicast, which is more efficient for the wireless medium and reduces the load on the controller’s CPU.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

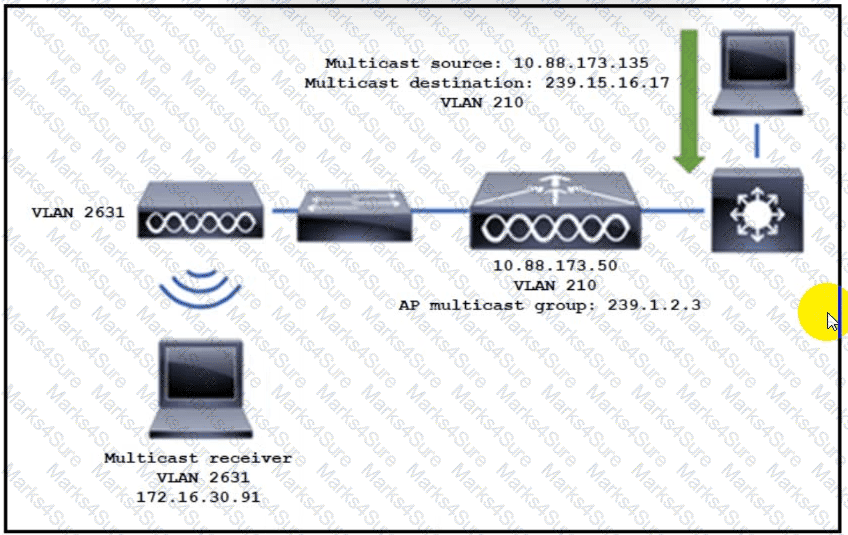

When configuring multicast for two WLCs in different physical locations, each handling around 500 wireless clients, it is important to assign a unique multicast group address to each WLC. This ensures that multicast traffic is properly segregated and managed within each controller’s network.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The feature that must be enabled to ignore non-802.11 interference is “Avoid Persistent Non-WiFi Interference.” This setting allows the Radio Resource Management (RRM) to not react to non-802.11 noise and interference, which can be crucial in environments where such interference is common but does not significantly impact wireless performance. By enabling this feature, RRM will not change the channel in response to non-IEEE 802.11 interferers, thus maintaining a stable channel plan. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The command in question is typically used to configure the switch to interact with a RADIUS server for session tracking purposes. The RADIUS server keeps track of authenticated sessions, ensuring that they are still active and monitoring for any changes in status. This is crucial for maintaining network security and ensuring that only authorized users have access to network resources.

To track guest traffic flow using the WLAN infrastructure, the ‘detect and locate’ feature of Cisco CMX must be configured and used. This feature allows the engineer to monitor the location and movement of guests within the WLAN coverage area.

TACACS+ (Terminal Access Controller Access-Control System Plus) is recommended for managing device access as it provides a more granular level of control over user authentication and authorization than RADIUS. It allows for different levels of access based on user identity by interfacing with external repositories such as Active Directory or LDAP. This protocol helps in distinguishing between different users and assigning appropriate access rights based on their roles within an organization. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 Bluetooth Low Energy (BLE) is renowned for its ability to provide precise location services, especially in the context of indoor positioning systems. BLE beacons can be strategically placed throughout a facility, and when used in conjunction with a mobile application, they can deliver the high level of location accuracy required for various use cases, including navigation, asset tracking, and contextual marketing.

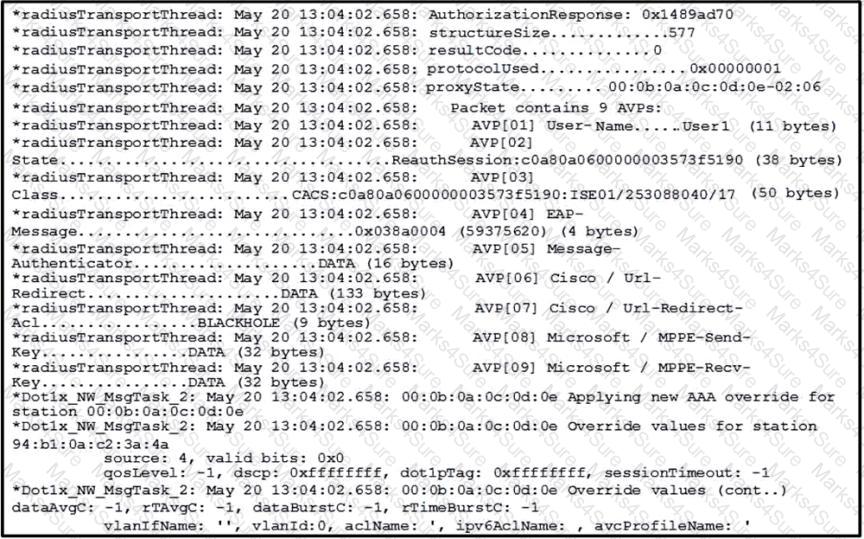

When a client is authenticated but cannot pass traffic in the RUN state, it indicates that an ACL may be blocking the traffic post-authentication. Disabling or modifying this ACL to allow traffic can resolve the connectivity issue, ensuring that the client’s traffic flows correctly after authentication with Cisco ISE.

When setting up identity-based networking with ISE and configuring AAA override on the WLAN, the attributes that can be used to change the client behavior from the default settings include the DNS server and DSCP value. The DNS server attribute allows for the specification of a DNS server per client, which can be essential for directing traffic through specific network paths or applying policies based on domain name resolutions. The DSCP value attribute is used to mark the packets with a specific Quality of Service (QoS) level, which can prioritize or deprioritize traffic as needed. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 The issue described indicates that the Angle of Arrival (AoA) data is not being transmitted between the Cisco Wireless LAN Controller (WLC) and the virtual CMX server. To resolve this, the network administrator must ensure that port 2003 is allowed for AoA packets to flow through between the CMX appliances, which is necessary for Hyperlocation data transmission. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 FlexConnect is a wireless solution for branch office and remote office deployments. It allows APs to switch data traffic locally and perform client authentication locally when their connection to the controller is interrupted. For the scenario described, where a corporation is spread across different countries and wants to minimize delays while ensuring strong connectivity, FlexConnect with central switching enabled is appropriate. This configuration allows traffic to be switched locally at the AP, reducing the amount of traffic traversing the MPLS network to the central WLC, thus minimizing delays. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To ensure reliable streaming of video content on the wireless network between Cisco FlexConnect APs, Multicast Direct must be enabled. This feature allows for efficient multicast traffic delivery by converting multicast streams into unicast streams for each client, which guarantees delivery even in environments where reliable multicast is not feasible. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To rename access points and add them to the correct AP groups on a wireless controller, the minimum custom attributes required using Cisco ISE TACACS is role1=WIRELESS. This role provides the necessary permissions for read/write access to wireless-related configurations. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The ‘aaa session-id common’ command is essential when implementing Cisco Identity Based Networking Services (IBNS) with downloadable ACLs on a Cisco Catalyst 3850 Series Switch. This command configures the switch to use a common session identifier for all AAA (Authentication, Authorization, and Accounting) transactions. This is important for downloadable ACLs because it ensures that the correct policies are applied consistently across different sessions and services.

To separate different types of client authentication on a Cisco ISE deployment, policy sets and policy groups can be used. Policy sets allow the creation of policies based on conditions such as device type, while policy groups categorize clients for the application of specific policies. References: Cisco ISE documentation on policy sets and policy groups will have detailed information.

 LDAP (Lightweight Directory Access Protocol) is a protocol used for accessing and maintaining distributed directory information services over an IP network. In the context of Cisco ISE (Identity Services Engine), LDAP can be utilized as a directory service to authenticate and authorize users during local web authentication processes. LDAP supports a wide range of directory services, including Microsoft Active Directory, which is commonly used in enterprise environments.

When deploying Cisco Hyperlocation, it is important to enable the feature on both the wireless LAN controller and Cisco CMX to ensure proper functionality and data accuracy. Additionally, if the Cisco CMX server is a VM, a high-end VM is required to handle the processing demands of Cisco Hyperlocation deployments. References: The considerations for deploying Cisco Hyperlocation are covered in the certification guide, which emphasizes the importance of enabling the feature on both the controller and CMX, as well as the hardware requirements for the CMX server.
