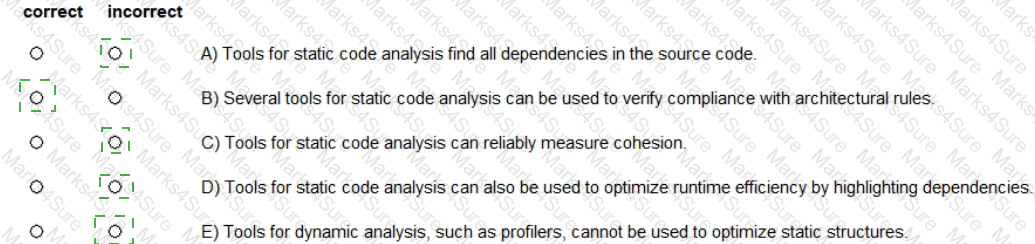

A) Incorrect B) Correct C) Incorrect D) Incorrect E) Incorrect

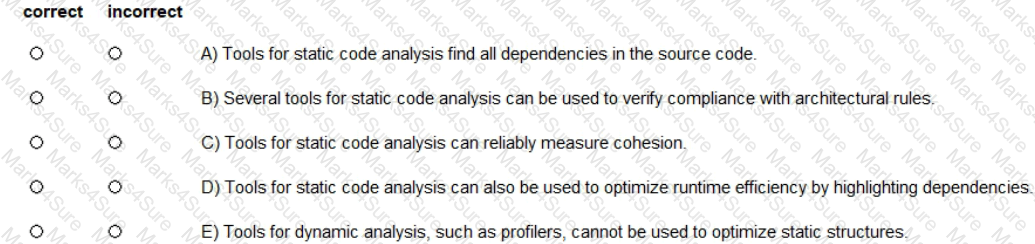

In the context of building a tool chain for continuous architecture evaluation and analysis, the following statements can be assessed:

A) Tools for static code analysis do not find all dependencies in the source code. They can find many, but not necessarily all, especially if dynamic programming techniques are used 1 .

B) Several tools for static code analysis can be used to verify compliance with architectural rules. This is one of the primary uses of static code analysis tools 1 .

C) Tools for static code analysis cannot reliably measure cohesion because cohesion is a qualitative aspect of modules that depends on the context and design intent, which static analysis alone cannot fully capture 1 .

D) Tools for static code analysis are not typically used to optimize runtime efficiency . They are more focused on code quality, security, and compliance with coding standards 1 .

E) Tools for dynamic analysis, such as profilers, can be used to optimize static structures . They provide runtime information that can inform decisions about the static structure of the code 1 .

These assessments are based on the iSAQB® SOFTWARE ARCHITECTURE – FOUNDATION LEVEL documents, which provide guidelines on the selection and use of tools for software architecture evaluation and analysis 1 .

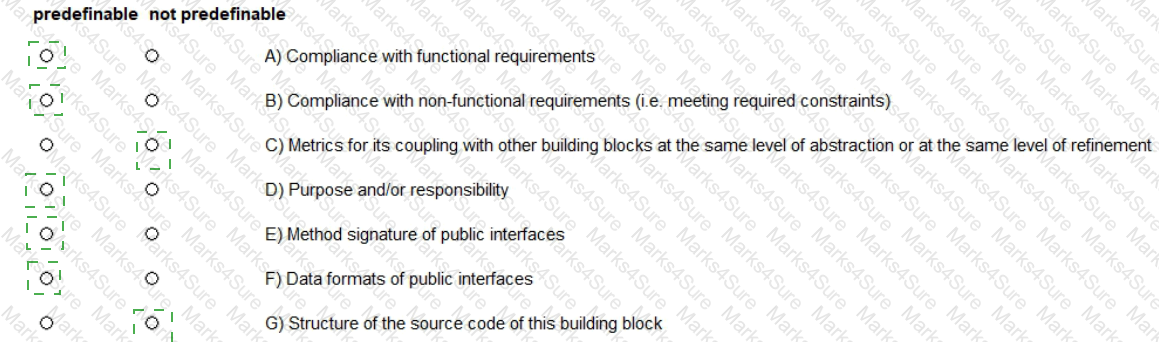

As an architect, you can specify the following characteristics of a black-box building block:

Compliance with functional requirements (A)

Compliance with non-functional requirements (B)

Purpose and/or responsibility (D)

Method signature of public interfaces (E)

Data formats of public interfaces (F)

In software architecture, a black-box building block is a component whose internal structure is not exposed to or understood by other components. It is defined only by its provided functionality and the services it offers. Here’s a detailed explanation of each characteristic:

Compliance with Functional Requirements (A) : This refers to the ability of the building block to perform the functions it was designed to do, which are often captured in a functional specification document.

Compliance with Non-functional Requirements (B) : These are criteria that can be used to judge the operation of a system, rather than specific behaviors. This includes requirements related to scalability, performance, security, and reliability.

Purpose and/or Responsibility (D) : This defines the role the building block plays in the overall system architecture, including its responsibilities and the services it provides.

Method Signature of Public Interfaces (E) : The method signature defines the interface that other components can use to interact with the building block. It includes the method name, parameters, and return type.

Data Formats of Public Interfaces (F) : This specifies the format and structure of the data that is accepted or returned by the building block’s public interfaces.

These characteristics are essential for ensuring that the building block can be effectively integrated into a larger system and interact with other components as expected.

References:

Bass, L., Clements, P., & Kazman, R. (2012). Software Architecture in Practice (3rd ed.). Addison-Wesley Professional.

Martin, R. C. (2003). Agile Software Development: Principles, Patterns, and Practices. Prentice Hall.

Fowler, M. (2002). Patterns of Enterprise Application Architecture. Addison-Wesley.

Appropriate statements about crosscutting concepts in software architecture include: A. The definition of appropriate concepts ensures the conceptual integrity of the architecture. - Consistent use of concepts across an architecture ensures that the system is cohesive and maintains integrity. B. Concepts are a means to increase consistency. - By defining and following common patterns and strategies, consistency is achieved throughout the system. D. Uniform exception handling is most easily achieved when architects agree with developers upon a suitable concept prior to implementation. - Establishing a common approach to exception handling before development starts can ensure uniformity and reduce errors. G. A concept can define constraints for the implementation of many building blocks. - Concepts often set rules or guidelines that impact how multiple components or building blocks should be implemented, helping to maintain a unified approach to solving architectural problems.

These answers are derived from established principles and patterns in the field of software architecture, focusing on best practices and common methodologies.
