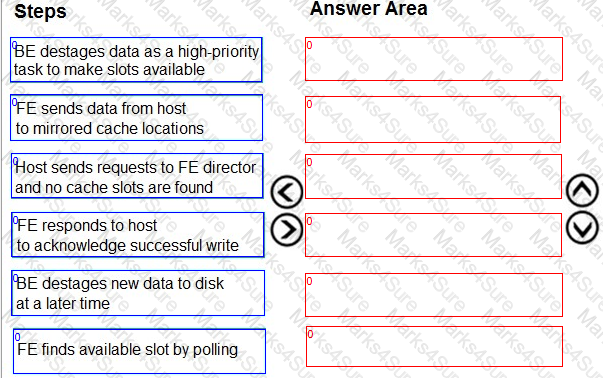

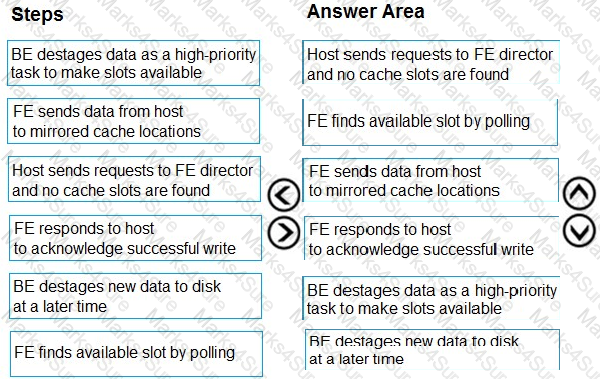

The correct sequence of actions that take place on a Write Miss is as follows:

• Host sends requests to FE director and no cache slots are found.This happens when the cache is full or the desired cache slot is locked by another request1.
• FE finds available slot by polling.This involves the FE director scanning the cache for an available slot or waiting for a slot to be freed by the BE director2.
• FE sends data from host to mirrored cache locations.This involves the FE director writing the data from the host to two mirrored locations in the cache, one on each engine2.
• FE responds to host to acknowledge successful write.This involves the FE director sending a signal to the host that the write operation is completed, even though the data is not yet written to disk2.
• BE destages data as a high-priority task to make slots available.This involves the BE director flushing some of the existing write pending data from the cache to the disk, in order to free up some cache slots for new write requests2.
• BE destages new data to disk at a later time.This involves the BE director writing the new data from the cache to the disk, according to the destaging algorithm and priority2.

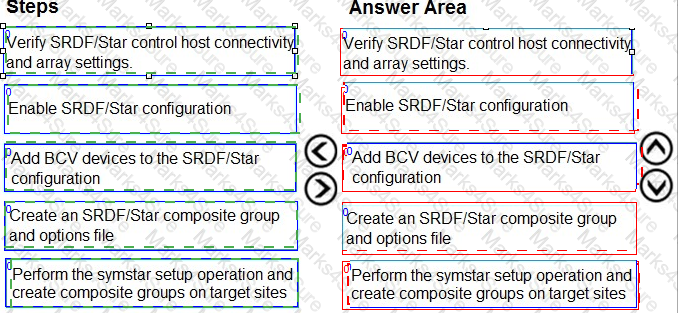

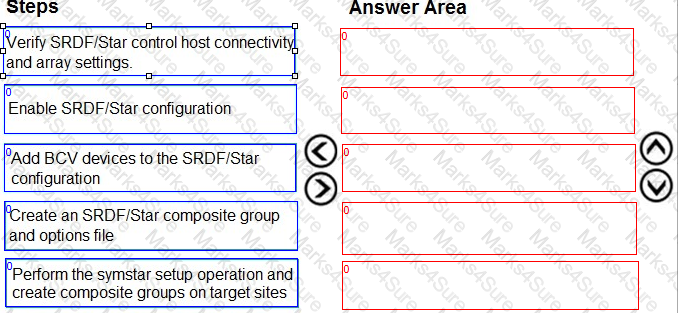

The correct sequence of steps to configure and bring up an SRDF/Star environment is as follows:

• Verify SRDF/Star control host connectivity and array settings. This step involves checking the network connectivity between the control host and the three arrays involved in the SRDF/Star configuration, as well as verifying the array settings such as RDF mode, RDF consistency, and RDF emulation. The control host is the host that runs the Solutions Enabler SYMCLI commands to manage the SRDF/Star configuration.The three arrays are the primary array, the secondary array, and the tertiary array.1
• Enable SRDF/Star configuration. This step involves enabling the SRDF/Star feature on the primary array using the symstar enable command. This command also creates a STAR control device group on the primary array, which contains a single device that acts as a control point for the SRDF/Star configuration.The STAR control device group must have a unique name and number across all arrays.1
• Add BCV devices to the SRDF/Star configuration. This step involves adding Business Continuance Volume (BCV) devices to the STAR control device group on the primary array using the symstar add bcv command. BCV devices are local copies of data that can be used for backup, restore, or testing purposes. BCV devices are required for SRDF/Star configurations to enable fast recovery in case of a disaster.The number of BCV devices must match the number of R1 devices in the SRDF/Star configuration.1
• Create an SRDF/Star composite group and options file. This step involves creating an SRDF/Star composite group on the control host using the symstar create command. An SRDF/Star composite group is a logical grouping of devices that span across three arrays and have different SRDF roles: R11, R21, and R22. An R11 device is an R1 device that is paired with another R1 device in a different SRDF group. An R21 device is an R2 device that is paired with another R1 device in a different SRDF group. An R22 device is an R2 device that is paired with another R2 device in a different SRDF group.The symstar create command also creates an options file that contains various parameters for the SRDF/Star configuration, such as RDF mode, RDF consistency, RDF emulation, and bias setting.1
• Perform the symstar setup operation and create composite groups on target sites. This step involves performing the symstar setup operation on the control host using the symstar setup command. This command establishes the SRDF/Star configuration by creating RDF pairs between devices in different arrays, creating RDF groups on each array, creating composite groups on each array, and synchronizing data across all devices.The symstar setup command also creates composite groups on the secondary and tertiary arrays using the same name and number as the composite group on the primary array.1

References:

• Dell EMC Solutions Enabler 9.2 SRDF Family CLI User Guide

 When the cache space fills up, I/O will be queued until an empty cache slot is available. This is because PowerMax operates as a cache-centric architecture, where all data is passed through cache before being stored on disk. Cache is used to buffer incoming and outgoing data, as well as to support various functions such as replication and data reduction. When cache is full, the array cannot accept any more data until some cache slots are freed up by flushing data to disk or invalidating stale data. Therefore, answer B is correct.

A, C, and D are incorrect because they do not describe what happens when cache space fills up. I/O will not be serviced at the speed of the destination device (A), as this would bypass the cache and degrade performance. Cache is not permanently flushed © or temporarily disabled (D), as this would result in data loss or corruption.
