HPE0-J68 HPE Storage Solutions Questions and Answers

A Meshed fabric SAN topology is recommended when the customer requires a high-performance, port-efficient network with many-to-many connectivity and cannot predict I/O traffic patterns. This topology provides multiple paths between devices, ensuring high availability and redundancy. It is flexible and can easily accommodate changes in the network, such as the acquisition of another company, making it ideal for environments with dynamic requirements.

References:

HPE SAN Fabric Design

SAN Fabric Planning Guide

The HPE 3PAR StoreServ 8400 system includes the Persistent Checksum feature, which provides end-to-end data integrity. This functionality ensures that data remains consistent and uncorrupted as it travels through the system, from the host to the storage array and back. This feature is particularly important for environments where data integrity is critical, such as financial services or healthcare. The HPE 3PAR StoreServ 7200 does not offer this feature, making it a significant differentiator between the two systems.

References:

HPE 3PAR StoreServ 8000 Series

HPE Persistent Checksum

When upgrading from an MSA 2040 to an MSA 2050, the customer can physically move the existing SFF drives to the new MSA 2050 system. However, both systems need to be offline during the process to ensure data integrity and a smooth migration. This approach is efficient for customers using virtual pools, as it allows them to transition to the new hardware without complex data migration processes.

References:

HPE MSA 2050 Overview

HPE MSA Data Migration Guide

These principles represent key components of HPE ' s converged strategy, each contributing to more efficient, agile, and cost-effective storage management:

Federated Storage: This principle allows seamless data movement between storage systems, enhancing flexibility and simplifying data management.

Deduplication: Reduces storage space by eliminating duplicate data, resulting in more efficient use of resources.

Thin Provisioning: Allows over-provisioning of storage to optimize costs while ensuring that resources are available when needed.

Storage Tiering: Dynamically places data on the appropriate storage tier based on performance and cost requirements, optimizing storage utilization.

Storage Virtualization: Separates the physical storage hardware from the logical storage services, providing greater flexibility and efficiency in managing storage resources.

HPE Storage References:

HPE Storage Solutions

HPE Converged Storage Strategy

The issue of seeing multiple volumes after creating just a single volume on the MSA is likely due to a lack of zoning on the Fibre Channel switches. Zoning is a method used in Fibre Channel networks to segment a fabric into smaller, manageable zones, which helps in controlling access between devices. By enabling zoning on the SN3000B switches, the customer can isolate the connections and ensure that only the desired host can see specific volumes. This prevents the scenario where multiple volumes are visible to a host that should only have access to one.

References:

HPE MSA Storage Overview

HPE B-series SN3000B Switches

When configuring high availability with HPE Primera and 3PAR arrays using RMC (Recovery Manager Central) Peer Copy, there are specific prerequisites that must be met:

2-port 10 Gb Ethernet Adapter (NIC): Each array must be equipped with a 2-port 10 Gb Ethernet Adapter to support the high-speed data transfer required for Peer Copy operations.

RMC 6.2: The customer must have RMC version 6.2 or later installed, as this version includes the necessary features and enhancements to support Peer Copy between Primera and 3PAR arrays.

These prerequisites are crucial to ensure seamless integration and optimal performance when setting up high availability between the two storage arrays.

References:

HPE Primera and 3PAR Integration

HPE RMC Overview

For a customer planning to upgrade their HF40 controllers to support additional I/O requirements, upgrading to the HF60 (Option C) is the recommended path. The HPE Nimble HF60 offers enhanced performance, greater scalability, and improved I/O capabilities compared to the HF40. This upgrade ensures that the storage array can handle more demanding workloads and support future growth.

The HF60 model is designed to meet the needs of environments requiring higher performance and capacity, making it suitable for customers looking to expand their infrastructure without a complete overhaul.

References:

HPE Nimble Storage Solutions

HPE Nimble Storage Controller Upgrade Path

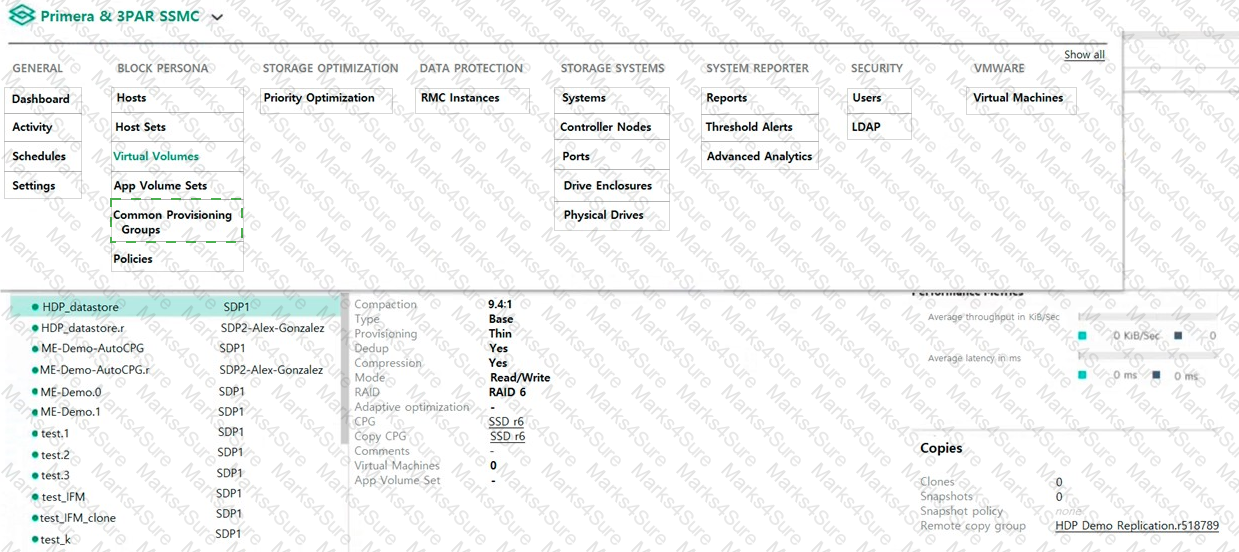

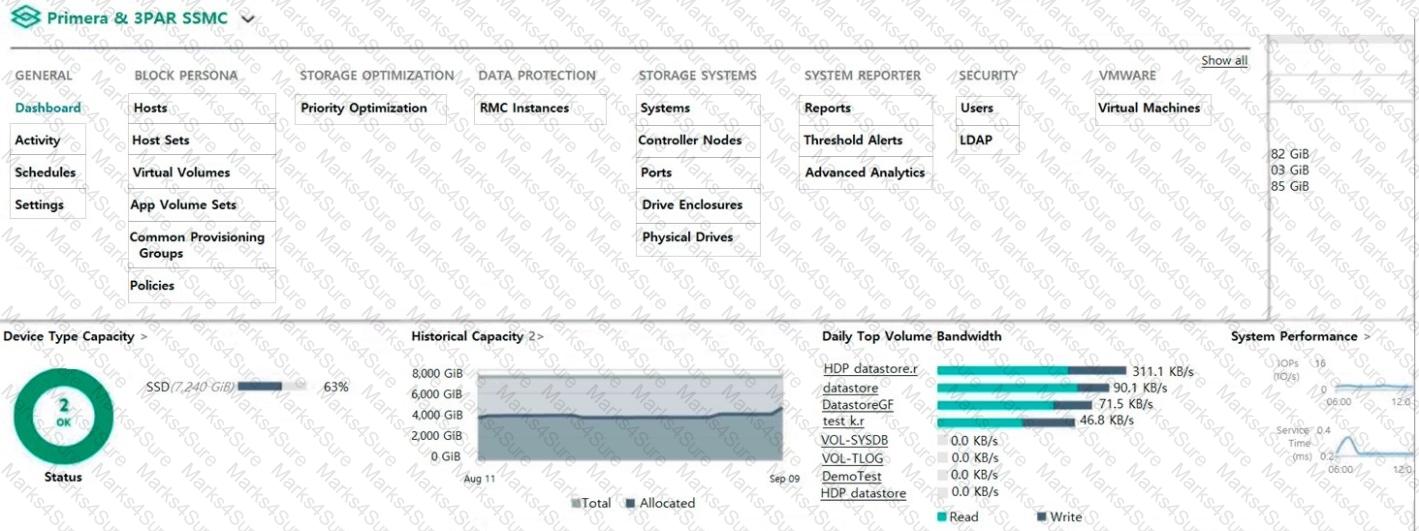

The StoreServ Management Console (SSMC) (Option D) is the tool used for centralized management of both HPE 3PAR and Primera arrays. SSMC provides a unified interface for managing storage arrays, enabling administrators to monitor, configure, and maintain their storage infrastructure from a single console. It offers advanced features for performance tuning, capacity planning, and data protection, making it an essential tool for organizations using these storage systems.

SSMC simplifies the management process and enhances the efficiency of storage operations, which is particularly beneficial in environments with complex storage requirements.

References:

HPE StoreServ Management Console

HPE SSMC Overview

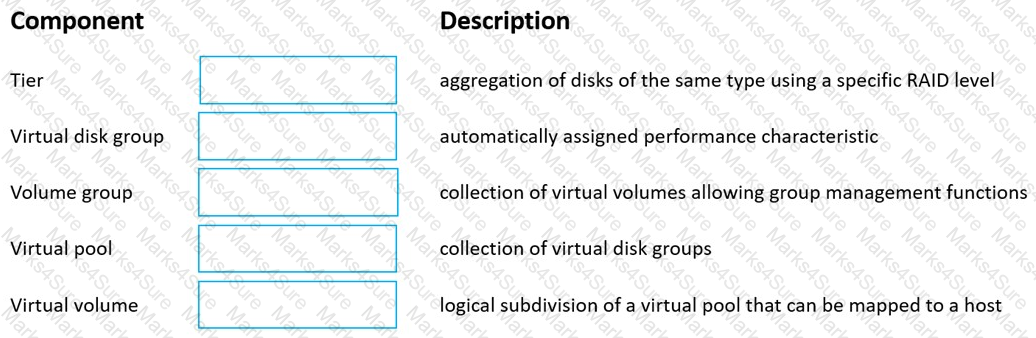

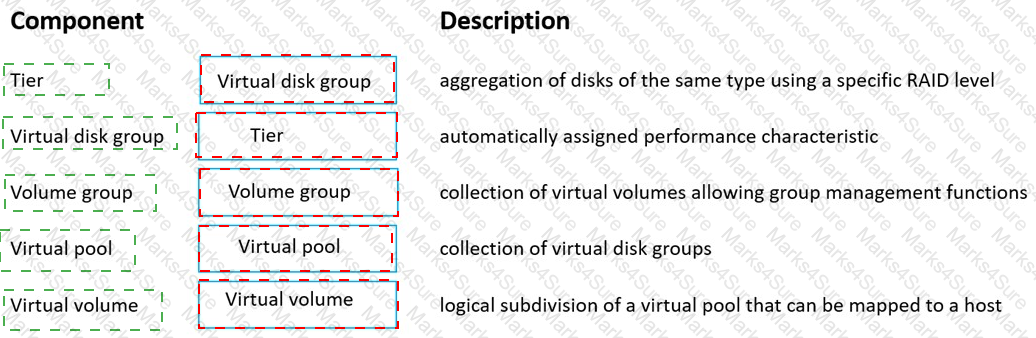

Virtual Disk group

Tier

Volume Group

Virtual pool

Virtual Volume

For a customer needing a centralized storage solution accessible by Windows-based laptops and other personal devices, file-oriented storage accessed over SMB (Option D) is the most appropriate recommendation. SMB (Server Message Block) is a network file sharing protocol that allows files to be shared among devices running on a Windows network.

File-oriented storage solutions, like HPE ' s StoreEasy or Nimble with file services, are designed to serve files over the network using SMB, providing easy and secure access to departmental data.

References:

HPE File Storage Solutions

HPE SMB File Sharing

For monitoring the health and utilization of the HPE StoreEver MSL6480 Tape Library, StoreServ TapeAssure Advanced is the recommended software. TapeAssure Advanced provides detailed insights into the operational status of tape libraries, including health checks, utilization metrics, and predictive analytics. This tool is essential for ensuring the reliability and efficiency of tape storage environments.

References:

HPE StoreEver Tape Libraries

HPE TapeAssure Advanced

This feature cannot be retroactively applied to existing backup devices; it must be configured at the time of setup to ensure that all data written to the storage device is encrypted. This hardware-assisted encryption feature is critical for enhancing the security of stored data, protecting it from unauthorized access in the event of physical theft or unauthorized access.

For further details, refer to:

HPE StoreOnce Overview

To receive emails about important storage system events and alerts in an HPE 3PAR StoreServ system, the Local Notification Service (LNS) needs to be configured. LNS allows administrators to set up email notifications for various events and alerts, ensuring that they are promptly informed of any critical issues that may arise. This feature is essential for maintaining the health and performance of the storage system by enabling proactive management.

For more information, refer to:

HPE 3PAR StoreServ Management

HPE SmartCache is a feature available on HPE servers that accelerates storage performance by caching frequently accessed data on faster, lower-latency media such as SSDs. For customers who cannot afford to move to SANs at each branch but require high-performance storage, SmartCache provides a cost-effective solution. By leveraging SSDs as a caching layer for frequently accessed data, it can significantly improve the performance of local servers without requiring a full SAN deployment.

HPE Storage References:

HPE SmartCache Overview

HPE Server Technologies

In an all-flash array like the HPE 3PAR StoreServ, the compaction ratio typically offers the highest efficiency. Compaction includes both deduplication and compression, which reduces the amount of physical storage needed by eliminating redundant data and compressing the data that is stored. The compaction ratio directly impacts storage efficiency, allowing for more effective utilization of the available flash storage, thereby reducing the total cost of ownership and improving performance.

References:

HPE 3PAR StoreServ All-Flash Arrays

HPE Storage Efficiency

In the HPE GreenLake Platform, when a new company account is created, the individual who creates the account is automatically assigned the Account Administrator role. This role grants them the ability to manage users, assign roles, and control access within the HPE GreenLake environment, ensuring that they have full administrative control over the account from the outset.

References:

HPE GreenLake Management

HPE GreenLake Platform Overview

For identifying the latest firmware and compatibility information, especially in a VMware environment with HPE hardware, the SPOCK (Single Point of Connectivity Knowledge) tool (Option B) is the recommended resource. SPOCK provides detailed compatibility matrices, firmware recommendations, and interoperability guidelines, ensuring that all components in the storage and server environment are compatible and supported by HPE.

Using SPOCK ensures that the customer’s upgrade process is smooth and that all hardware and software components are correctly aligned.

References:

HPE SPOCK Compatibility Tool

HPE Firmware and Compatibility Resources

Graphical user interface, text, application Description automatically generated

When setting up a new HPE StoreOnce appliance for a customer who is using NetBackup and requires the highest performance setup, the best backup target type to recommend is VTL (Virtual Tape Library). VTLs are optimized for high-performance environments, particularly when connected via Fibre Channel (FC), which the customer has in their local setup. VTLs provide the speed and reliability of disk-based storage while emulating the tape systems that many backup solutions, like NetBackup, are designed to work with. This setup will ensure the highest throughput and performance for backup operations over FC.

References:

HPE StoreOnce Overview

HPE VTL Solutions

Given the customer ' s requirements for a storage solution in a VMware environment, with 20 TB of standard business data, 400 TB of video archive files, and a concern for cost, HPE MSA is the most cost-effective solution that meets these needs. HPE MSA offers affordable storage with enterprise features such as snapshots and replication. It supports iSCSI connectivity, which aligns with the customer’s 10 GB iSCSI requirements. Additionally, MSA provides a balance of performance and capacity, making it a suitable choice for environments where budget is a primary concern.

Graphical user interface, website, timeline Description automatically generated

To make the integration of a Windows-based server with an all-flash Nimble array easier, HPE ' s Connection Manager (Option C) is the recommended tool. Connection Manager simplifies the configuration of iSCSI or Fibre Channel connections between the server and the Nimble storage array. It helps automate the setup process, ensuring that the best practices for connectivity are followed, which results in optimized performance and reliability.

This tool is particularly useful for administrators who may not be storage experts, as it streamlines the complex tasks associated with connecting servers to enterprise-grade storage systems.

References:

HPE Nimble Connection Manager

HPE Storage Integration Tools

The most likely reason the 10GBase-T adapter installed in the StoreOnce 3620 is not configurable is that the customer failed to install a License to Use (LTU) for it (Option C). HPE StoreOnce systems require an LTU for certain hardware components and features. Without the appropriate license, the system will not recognize or allow configuration of the newly installed hardware.

Ensuring that the LTU is correctly installed would likely resolve the issue and allow the adapter to be fully operational.

References:

HPE StoreOnce Overview

HPE Licensing and Support

The HPE MSA 2052 storage array is typically configured using the Storage Management Utility (SMU) (Option B). SMU is a web-based interface that allows administrators to manage and configure their MSA storage arrays. It provides an intuitive platform for setting up volumes, managing RAID levels, and configuring network settings.

This tool is essential for efficiently managing the storage environment and ensuring that the system is optimized for the specific needs of the customer.

References:

HPE MSA 2052 Configuration

HPE Storage Management Tools

Graphical user interface, application Description automatically generated

When proposing a StoreOnce solution to a customer transitioning from tape backups, it’s crucial to correctly size the deduplication requirements. OCA (Outcome-based Capacity Analyzer) is the recommended tool for this purpose. OCA helps to predict and size the deduplication storage needs by analyzing the data types and patterns, ensuring that the StoreOnce system is correctly configured to handle the customer’s backup workloads efficiently.

For a cloud service provider using HPE 3PAR StoreServ 9000, Priority Optimization is the recommended solution to ensure the quality of service (QoS) and protect tenants from unpredictable bursts of I/O from other tenants. Priority Optimization allows administrators to set service levels for different workloads, ensuring that critical workloads receive the necessary resources while maintaining overall system performance. This feature helps manage and enforce QoS in a multi-tenant environment, providing predictable performance and preventing noisy neighbors from impacting other tenants.

References:

HPE 3PAR Priority Optimization

HPE 3PAR StoreServ 9000 Overview

HPE StoreVirtual VSA’s Adaptive Optimization feature is ideal for addressing the challenge of intermittent heavy disk I/O in mission-critical applications. Adaptive Optimization dynamically adjusts the storage tiering based on real-time workloads, ensuring that the most frequently accessed data is moved to faster storage tiers like SSDs, without the need for manual intervention. This feature allows the customer to benefit from SSD performance when needed, without permanently dedicating SSD resources, thus optimizing both performance and cost.

References:

HPE StoreVirtual VSA Adaptive Optimization

HPE Storage Performance Features

FlexFabric switches in a Fibre Channel storage environment offer the benefit of in-flight compression and encryption, which provides efficient link utilization and enhanced security. These features allow data to be compressed and encrypted as it travels across the network, optimizing bandwidth usage and ensuring data integrity and confidentiality. This is particularly advantageous in environments where secure, high-performance data transmission is critical.

HPE Storage References:

HPE FlexFabric Switches Overview

HPE Networking Solutions

To confirm that a new storage array will be supported in an existing environment that includes HPE C-class Blade Enclosures and a mix of ProLiant G7, Gen8, and Gen9 servers, the correct approach is to document the existing server and SAN information and consult the HPE SPOCK (Single Point of Connectivity Knowledge) tool. SPOCK is an HPE resource that provides detailed compatibility information for various HPE products, including firmware and software compatibility matrices. This ensures that the new storage array will work seamlessly with the existing infrastructure.

References:

HPE SPOCK

HPE Storage Compatibility Guides

If a customer is using a VMware-based Veeam backup proxy and attempts to perform a direct backup from their Fibre Channel (FC)-connected HPE Alletra 9000 array, but the backup falls back to network mode, the likely reason is that direct backup from an FC-connected array is only supported on a physical server-based backup proxy. VMware-based (virtual) proxies do not support direct FC connections, which is why the backup process defaults to network mode.

To achieve direct backup via FC, the customer would need to configure a physical server as the backup proxy.

For further details, refer to:

HPE Alletra 9000 Overview

Veeam Backup & Replication Documentation

The Unified API that is part of HPE’s composable strategy provides the advantage of managing the entire infrastructure lifecycle using standard programming code. This approach allows IT administrators to automate and streamline operations, enabling them to define infrastructure as code, which can be easily integrated into DevOps workflows. This API-driven approach is central to HPE ' s composable infrastructure strategy, providing flexibility, efficiency, and ease of management.

References:

HPE Composable Infrastructure

HPE Unified API

A picture containing diagram Description automatically generated

In StoreOnce Gen4 systems, certain features are included with the system software without requiring additional licenses:

Catalyst: HPE StoreOnce Catalyst is included and provides advanced data reduction and deduplication capabilities, as well as integration with backup software.

VTL/NAS replication: This feature allows replication of Virtual Tape Libraries (VTL) and NAS shares between StoreOnce systems, ensuring data protection and disaster recovery, and it comes standard with the system software.

These features enhance the StoreOnce system ' s functionality, providing value without additional costs.

References:

HPE StoreOnce Features

StoreOnce Gen4 Technical Specifications

When reviewing an installation plan for a new Primera storage array in an existing environment, the best resource to find appropriate installation and planning guides is SPOCK (Option D). SPOCK (Single Point of Connectivity Knowledge) provides detailed interoperability and configuration guides, ensuring that all components in the existing infrastructure (such as C7000s, Brocade switches, and 3PAR 7400) are compatible with the new Primera array.

SPOCK is an essential tool for ensuring that the installation process is seamless and that the environment will support the new storage solution without any compatibility issues.

References:

HPE SPOCK Compatibility Tool

HPE Installation and Planning Guides

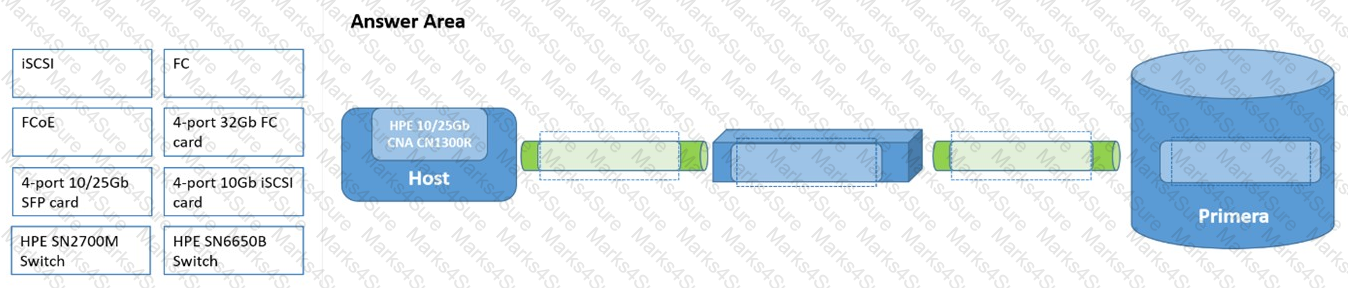

For a customer looking for a cost-effective storage solution with good performance, while also having a limited IT staff concerned about learning new technologies, recommending Ethernet switches, a Nimble iSCSI card, and dedicated NICs for servers (Option C) is the most appropriate choice.

This configuration is cost-effective and simplifies management by using familiar Ethernet networking technology, which most IT staff are already familiar with. The Nimble iSCSI card provides the necessary storage connectivity while leveraging Ethernet infrastructure, making it easier to deploy and manage compared to Fibre Channel solutions.

References:

HPE Nimble Storage Connectivity Options

HPE Networking Solutions

In an SAP HANA environment, the speed and latency of storage are critical for performance, especially when dealing with large datasets. While SAP HANA is designed to run entirely in memory, some customers may seek alternatives that offer a balance between performance and cost.

NVMe SCM (Storage Class Memory) is a cutting-edge storage technology that offers extremely low latency and high performance, making it an ideal alternative for environments like SAP HANA. NVMe SCM provides faster data access speeds than traditional SSDs and even NVMe SSDs, making it a perfect fit for workloads that demand high-speed data processing, such as SAP HANA.

References:

HPE Storage for SAP HANA

HPE NVMe Storage Solutions

The typical protocol used to access data from object storage is HTTP (Option C). Object storage systems, such as those used in cloud environments, typically expose their data through RESTful APIs over HTTP. This allows for easy access and manipulation of data objects over the web. Unlike traditional block or file storage, object storage is designed for scalability and is commonly used for storing large amounts of unstructured data, such as media files, backups, and archives.

HTTP is the standard protocol for web communications, making it the ideal choice for accessing data in object storage environments, which are often cloud-based or designed for remote access.

References:

HPE Object Storage Overview

HPE Cloud and Object Storage Solutions

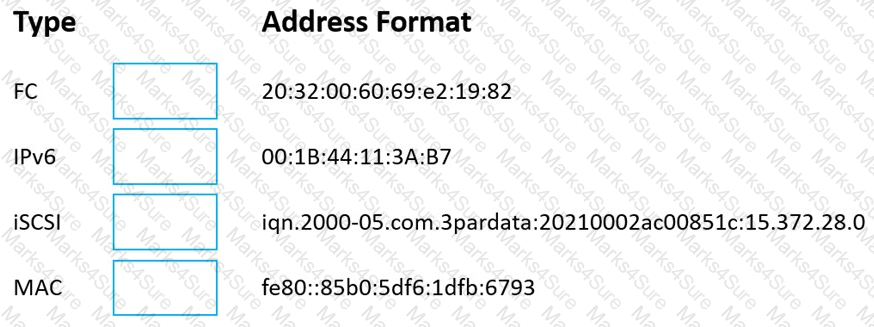

In a Fibre Channel (FC) SAN, the World Wide Name (WWN) serves as a unique identifier for devices within the network. The WWN is used in several critical functions:

Identification of zone members (Option A): WWNs are used to define and manage zones within a SAN. Zoning is a method of grouping devices, such as servers and storage arrays, to control access and ensure data security. By identifying zone members via their WWNs, administrators can control which devices can communicate within the SAN.

Identification of entities via Storage Name Server (SNS) (Option C): The WWN is registered with the Storage Name Server (SNS) in the SAN fabric. The SNS maintains a database of all devices within the SAN and their associated WWNs, enabling efficient routing of data frames to the correct destination.

These features make the WWN a fundamental element in the operation and management of a Fibre Channel SAN.

References:

HPE SAN and Zoning Overview

HPE Fibre Channel Networking Solutions

When a customer needs to create a full copy replica of a database for performance testing, the best technology to use is a clone. A clone creates an exact, independent copy of a volume, which can be used separately from the original. This is particularly useful for scenarios such as testing, development, or backup, where an exact copy of the data is required without affecting the production environment.

References:

HPE 3PAR and Primera Clone Technology

HPE Data Protection and Replication

When deploying a Recovery Manager Central (RMC) appliance and integrating it with a customer ' s HPE 3PAR system, the following information is critical:

vCenter IP address or hostname (Option B): The RMC appliance needs to communicate with the VMware vCenter server for managing virtual machines and performing data protection tasks. The IP address or hostname of the vCenter server is necessary for this integration.

IP address of the RMC (Option D): The IP address of the RMC appliance itself is required during the installation process to ensure proper network configuration and communication between the RMC appliance, the 3PAR storage system, and other network components.

Collecting this information beforehand ensures that the installation process proceeds smoothly and that the RMC appliance can be correctly configured to protect the customer’s data environment.

References:

HPE RMC Installation Guide

HPE 3PAR Integration with RMC

To integrate HPE 3PAR StoreServ arrays into an HPE OneView environment for automated volume provisioning, the installation of the 3PAR Host Explorer is required. The 3PAR Host Explorer software facilitates the communication between the HPE 3PAR StoreServ storage array and the OneView management platform. This software collects detailed host configuration information, which is then used by HPE OneView to optimize the management and provisioning of storage resources, ensuring that the storage is allocated correctly according to the system requirements.

This integration allows for better automation, management, and monitoring of the storage environment, thereby improving efficiency and reducing the likelihood of manual errors.

For more detailed information on HPE 3PAR StoreServ integration with OneView, please refer to the following HPE Storage references:

HPE Storage Products Overview

HPE Storage Solutions

HPE 3PAR StoreServ Information

When integrating a new storage array into an existing SAN infrastructure with HPE C-Class blade enclosures and a mix of ProLiant G7, Gen8, and Gen9 servers, it is essential to ensure firmware compatibility across all components. The best approach is to document all relevant details about the existing servers and SAN environment, including firmware versions, hardware configurations, and any specific SAN components. Then, consult the HPE SPOCK (Single Point of Connectivity Knowledge) database, which is the authoritative source for compatibility and support information regarding firmware, drivers, and hardware in HPE environments. This ensures that the new storage array will be fully compatible with the existing infrastructure, preventing potential issues related to firmware mismatches.

References:

HPE SPOCK

HPE SAN Compatibility

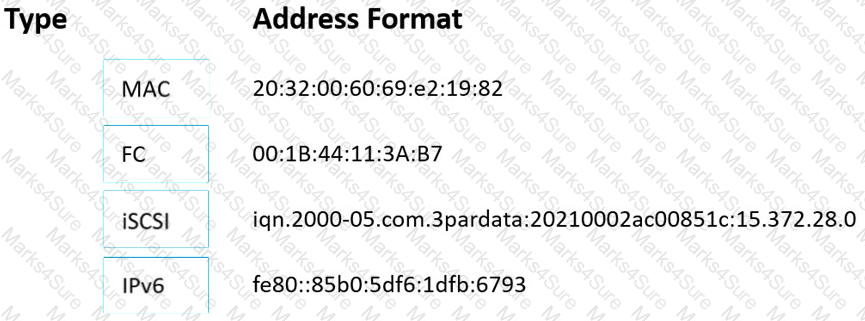

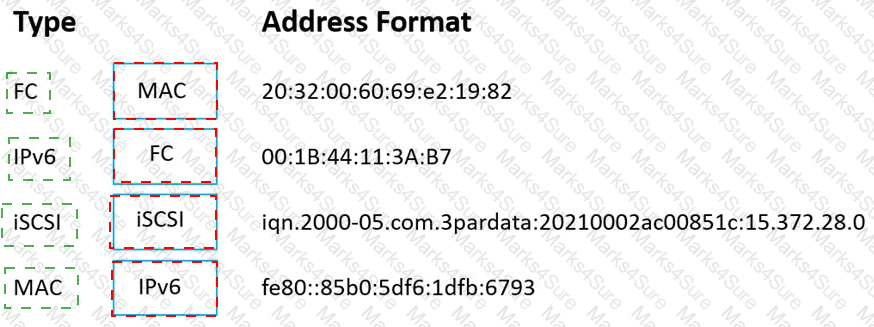

The red rectangle in the exhibit is likely asking for an iSCSI Qualified Name (IQN), which is a unique identifier used in iSCSI environments to address devices on a storage network. The format " iqn.2015-02.com.hpe

" follows the standard IQN naming convention, which is used to identify the iSCSI initiators and targets in an HPE storage environment.

HPE Storage References:

HPE Storage Networking

HPE iSCSI and SAN Solutions

To integrate an HPE 3PAR StoreServ array with a third-party monitoring application, SNMPv3 (Simple Network Management Protocol version 3) can be configured. SNMPv3 is a protocol that supports the forwarding of events from the array to external monitoring tools. It is a secure and standardized method for managing and monitoring network devices, including storage arrays like HPE 3PAR StoreServ.

References:

HPE 3PAR StoreServ Management

HPE 3PAR SNMP Configuration

The HPE SimpliVity Data Virtualization Platform is designed with a modular architecture that includes several key layers. Among these, the Presentation Layer and the Data Management Layer are fundamental components (Options A and D).

The Presentation Layer is responsible for the user interface and the interaction between the user and the system. It provides the tools necessary for administrators to manage and monitor the storage environment efficiently.

The Data Management Layer handles the core functions of the SimpliVity platform, including data deduplication, compression, and optimization. This layer ensures that data is stored and managed efficiently, reducing storage costs and improving performance.

These layers work together to deliver the full capabilities of the SimpliVity platform, enabling simplified management and robust data services in a hyper-converged infrastructure environment.

References:

HPE SimpliVity Overview

HPE SimpliVity Data Virtualization

Graphical user interface, text, application Description automatically generated

Graphical user interface, text Description automatically generated

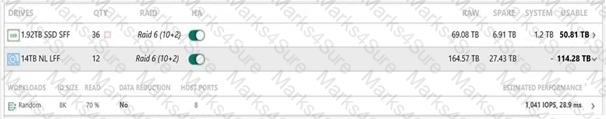

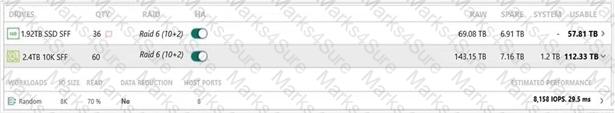

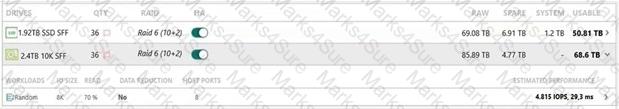

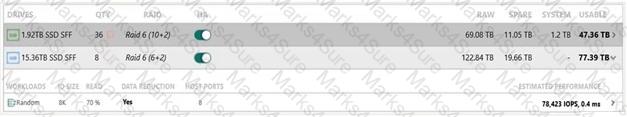

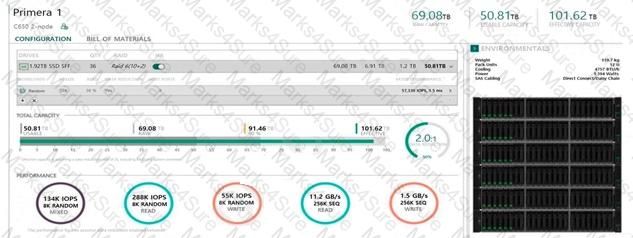

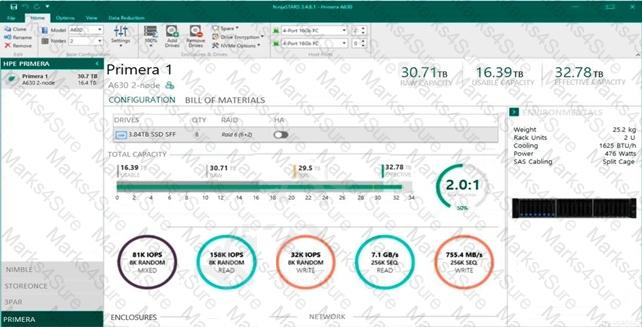

In the scenario presented, the customer requests an increase in Random Write IOPS for their HPE Primera solution. To achieve this, adding more disks of smaller capacity is the most effective approach (Option A). By increasing the number of disks, the storage system can distribute the write operations across more disks, thereby reducing the write latency and improving the overall Random Write IOPS performance. Smaller capacity disks typically allow for better IOPS performance per GB due to their higher spindle speed and lower data density, which reduces seek times.

This strategy also aligns with best practices in storage design, where increasing the number of spindles (disks) generally enhances the performance of random workloads, particularly in write-intensive environments.

References:

HPE Primera Overview

HPE Storage Products Overview

HPE Flash and Hybrid Storage Solutions

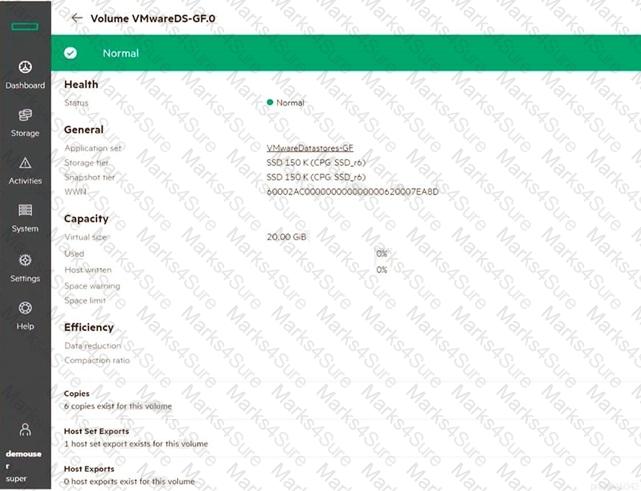

The exhibit refers to a configuration scenario where properties of a volume set, specifically VMwareDatastores-GF, are being verified. The question focuses on identifying the RAID level used on this volume.

RAID 5 is a common configuration in many storage arrays because it provides a balance of performance, capacity, and data protection. In RAID 5, data is striped across multiple disks with parity information distributed among the disks. This parity allows for the recovery of data in the event of a single disk failure, making it a preferred choice for environments that require efficient storage utilization with a degree of fault tolerance.

HPE storage solutions, such as HPE Nimble Storage and HPE 3PAR, often employ RAID 5 for use cases involving virtualized environments like VMware datastores. These solutions are optimized for high performance and data protection, ensuring that even with a single drive failure, the data remains accessible and the system can continue to operate without significant performance degradation.

References:

HPE Storage Products

HPE Flash and Hybrid Storage

HPE Nimble Storage

These resources provide comprehensive information on HPE ' s RAID configurations, data protection mechanisms, and how they integrate with enterprise storage environments.

When deploying a new StoreOnce VSA (Virtual Storage Appliance), expanding storage capacity can be done by the following methods:

Verify sufficient capacity LTUs are available: License to Use (LTU) is required to allocate more storage to the VSA. Ensuring that there are sufficient LTUs available is essential before increasing capacity.

Add a new virtual hard disk to the virtual machine: This is the process of physically increasing the storage allocated to the VSA. By adding a new virtual hard disk to the virtual machine, you expand the storage capacity that the VSA can utilize.

These steps are critical for correctly scaling the storage capacity of a StoreOnce VSA solution.

References:

HPE StoreOnce VSA Deployment

HPE StoreOnce Capacity Licensing

Veeam ' s integration with HPE storage solutions, particularly in backup and recovery scenarios, includes features that allow granular recovery of data, such as individual emails.

Explorer for Storage Snapshots is a feature within Veeam that enables customers to perform granular recovery from storage snapshots, including individual items such as emails from an Exchange server. This feature is crucial for minimizing downtime and ensuring quick recovery of specific data without the need to restore entire databases or systems.

This capability provides an efficient and user-friendly way to handle data recovery tasks, which is particularly valuable in environments where data availability and quick recovery are critical.

References:

Veeam and HPE Integration

Veeam Explorer for Storage Snapshots

Recovery Manager Central (RMC) is a powerful tool that integrates with HPE storage solutions to provide efficient and effective data protection. When deploying RMC in a customer environment, there are multiple options available depending on the infrastructure:

Installing RMC on RHEL Systems: RMC can be installed on top of a virtual or physical Red Hat Enterprise Linux (RHEL) system using the GUI wizard. This method is user-friendly and offers flexibility in deployment across different types of RHEL environments.

Deploying RMC on VMware ESXi: Another common deployment method is to deploy the RMC as a virtual appliance on a VMware ESXi hypervisor. This allows for seamless integration with virtualized environments, providing comprehensive data protection capabilities.

These deployment options provide flexibility for various customer environments, ensuring that RMC can be effectively integrated into their existing infrastructure.

References:

HPE Recovery Manager Central (RMC)

HPE RMC Deployment Guide

When addressing a customer ' s concerns about data loss, the features of the HPE Nimble array that should be emphasized are the quick RAID rebuild (Option A) and triple parity (Option E).

Quick RAID Rebuild: This feature is crucial in reducing downtime and data loss risk after a disk failure. Nimble ' s RAID technology ensures that if a drive fails, the rebuild process is swift, minimizing the exposure time during which data is vulnerable.

Triple Parity: This feature provides an additional layer of protection against multiple simultaneous drive failures. Triple parity RAID allows the array to withstand up to three drive failures without data loss, which significantly enhances the reliability and durability of the storage system.

These features work together to provide a robust, resilient storage solution that mitigates the risk of data loss and ensures high availability, making them particularly important for customers who have experienced data loss in the past.

References:

HPE Nimble Storage Data Protection

HPE Storage Reliability and Resilience

HPE StoreVirtual Network RAID provides redundancy by managing it on a per-volume basis. This means that the level of RAID protection (e.g., Network RAID 0, 10, 10+1, etc.) is set individually for each volume, allowing flexibility in how data protection is applied depending on the importance and performance requirements of the data stored. Unlike traditional RAID, which is managed at the disk level, Network RAID in StoreVirtual VSA allows for more granular control and can be tailored to the specific needs of different workloads.

In an iSCSI-based SAN, the IQN (iSCSI Qualified Name) is used for host identification. IQNs uniquely identify iSCSI initiators and targets within a network, enabling proper connection and communication in an iSCSI storage environment. This identification is crucial for establishing and managing iSCSI sessions between hosts and storage arrays.

For more information, refer to:

HPE Storage Networking Solutions

NPIV (N_Port ID Virtualization) is the feature that needs to be enabled on B-series FC switches to allow individual virtual servers to have independent storage access. NPIV allows multiple virtual machines to share a single physical Fibre Channel port while maintaining separate identities (N_Port IDs), enabling each virtual machine to be seen as a separate entity on the SAN. This is crucial in a virtualized environment where individual virtual servers need direct storage access.

References:

HPE B-Series SAN Switches

HPE Virtualization Solutions

In a meshed fabric SAN topology, the E Port (Expansion Port) type is used on SAN switches. E Ports connect to other switches within the fabric, allowing for inter-switch links (ISLs) that enable communication between multiple switches in the SAN. This topology is essential for creating a scalable and resilient storage network, as it allows multiple paths for data to travel between different nodes in the SAN.

For more information, refer to:

HPE SAN Solutions

When adding additional SSDs to the HPE 3PAR StoreServ 8200 with an existing RAID5 7+1 configuration, it is advisable to reconfigure the CPG (Common Provisioning Group) setsize to RAID5 5+1. This reconfiguration will allow the array to better balance the additional drives and optimize the use of available storage. After changing the setsize, running tunesys will ensure that the data is redistributed across the new set of drives, optimizing performance and availability.

References:

HPE 3PAR StoreServ Configuration Guidelines

HPE 3PAR StoreServ RAID Levels

The topic of supporting 100G iSCSI connectivity is related to the HPE Alletra 9060. This model in the Alletra series supports high-performance networking options, including 100G iSCSI, which is ideal for environments that require extremely fast data transfer rates and low latency, such as in data-intensive applications or large-scale virtualization deployments.

For more information, refer to:

HPE Alletra 9000 Overview

HPE StoreVirtual DSM for Microsoft MPIO (Multi-Path Input Output) enhances performance by ensuring that the storage system holding a copy of the requested data services the read I/Os. This capability allows the DSM to optimize I/O paths by directing read requests to the most appropriate node, reducing latency and improving throughput, as it ensures that the data is accessed from the nearest or least busy copy.

HPE Storage References:

HPE StoreVirtual Storage Solutions

HPE DSM for Microsoft MPIO Overview

In an HPE StoreVirtual VSA environment, Network RAID is used to manage data across multiple nodes. Network RAID mirrors or stripes data across different nodes in the cluster, providing resilience and high availability. During data migration or when rebalancing the load between nodes, Network RAID ensures that the data is protected and that the migration process does not disrupt ongoing operations.

This technology allows for automatic data redistribution across nodes in the event of a failure or during scaling operations, ensuring consistent performance and availability.

References:

HPE StoreVirtual VSA Overview

HPE Network RAID

For optimizing an iSCSI-based storage system, especially in environments handling large data volumes such as video streaming, enabling jumbo frames is recommended. Jumbo frames allow the transmission of larger data packets over the network, reducing the overhead caused by smaller packets and improving overall network efficiency. This is particularly important in video streaming, where continuous, high-bandwidth data transfer is required. Enabling jumbo frames across all components, including switches, network interface cards (NICs), and storage devices, can significantly improve performance.

To upgrade the backup solution for an HPE 3PAR StoreServ system, HPE StoreOnce and HPE Recovery Manager Central (RMC) are the optimal products. HPE StoreOnce offers advanced deduplication technology, significantly reducing the storage footprint required for backups, making it more efficient and cost-effective. It integrates seamlessly with various environments, including 3PAR, to provide high-speed data protection and recovery.

HPE Recovery Manager Central (RMC) complements StoreOnce by enabling application-consistent snapshots and direct backup to StoreOnce appliances. This combination allows for fast, efficient, and reliable backups while leveraging the deduplication capabilities of StoreOnce.

For more information, refer to:

HPE StoreOnce

HPE Recovery Manager Central

When implementing an Inter-Switch Link (ISL) between two HPE SN6000B switches, the correct port mode that must be set to enable communication between the switches is E_PORT. E_PORT stands for Expansion Port and is used to connect switches in a fabric. It facilitates the creation of an ISL that allows traffic to be routed between the switches in the fabric, enabling the switches to share the connected devices ' routing tables and maintain a unified fabric.

HPE CloudBank is a feature of the HPE StoreOnce system that enables cloud-based backup and disaster recovery (DR) solutions. It integrates with HPE 3PAR StoreServ and HPE StoreOnce systems to send backups securely to public cloud services like AWS, Azure, or private cloud environments. The primary benefit of CloudBank in the context of disaster recovery is that it ensures off-site storage of backups, protecting against site disasters by storing data in geographically dispersed locations.

By sending backups regularly to the cloud, CloudBank ensures that data is protected and can be restored in the event of a disaster, minimizing potential data loss and downtime.

References:

HPE StoreOnce with CloudBank

HPE StoreOnce Overview

The HPE Alletra dHCI solution uses the iSCSI protocol for data access between the storage and compute layers. iSCSI is a network protocol that enables the transport of SCSI commands over IP networks, allowing for efficient and scalable storage networking. This protocol is commonly used in hyper-converged and disaggregated hyper-converged infrastructure (dHCI) environments, providing flexibility and ease of integration.

References:

HPE Alletra dHCI Overview

HPE iSCSI Solutions

The HPE Alletra 5000 is the recommended storage family for a hybrid array that utilizes both SSD and HDD media, supports up to 512TiB of raw storage, and provides centralized cloud-based management. The Alletra 5000 series is designed to deliver a blend of performance and capacity, making it ideal for hybrid storage needs. Additionally, it integrates seamlessly with HPE ' s cloud-based management tools, offering a simplified and unified management experience across on-premises and cloud environments.

References:

HPE Alletra 5000 Overview

HPE Hybrid Storage Solutions

The HPE Alletra 9000 allows the configuration of up to 64 performance alerts. These alerts are crucial for monitoring the performance of the storage system, ensuring that administrators are notified of any performance issues or anomalies. The ability to configure multiple alerts provides flexibility in managing different aspects of the system ' s performance, enabling proactive management and optimization of the storage environment.

References:

HPE Alletra 9000 Management Features

HPE Storage Performance Monitoring
