Since we encountered that error with the Z48 strategy , we must ensure that is fixed before we can finish the Task List. Here is the complete, verified, step-by-step process to finalize Task 7 , including the "hidden" pre-requisite.

Task 7: Create a General Task List

Objective : To create a standardized template of maintenance steps that can be automatically pulled into future work orders based on a schedule.

Step 1: The Pre-requisite (Fixing Strategy Z48)

If you haven't done this yet, SAP will not let you save the Task List.

Transaction : IP11 (Maintain Maintenance Strategies).

Action : Click New Entries .

Strategy : Z48

Description : Strategy for Group 48

Strategy Unit : MON (Months).

Packages : On the left, double-click Packages , then click New Entries :

Line 1 : Cycle 1 / Unit MON / Text Monthly

Line 2 : Cycle 4 / Unit MON / Text Every 4 Months

Line 3 : Cycle 12 / Unit MON / Text Yearly

Save (Floppy Disk icon).

Explanation : A strategy is the "calendar" that defines how often work happens. Without this, the system doesn't know what "Monthly" or "Yearly" means.

Step 2: Create Task List Header

Transaction : IA05 .

Initial Screen : Group TL-48, Group Counter 1. Press Enter .

Header Fields :

Description : Regular Maintenance GR48

Planning Plant : 1010

Work Center : MK-00 / Plant : 1010

Usage : 4 (Plant Maintenance)

Status : 4 (Released)

Planner Group : P48

Maint. Strategy : Z48

Explanation : The header defines who is responsible for the work (Planner Group P48) and which scheduling rules (Strategy Z48) apply to the whole list.

Step 3: Create Operations

Click the Operations button (F6) at the top.

Enter three rows with this data:

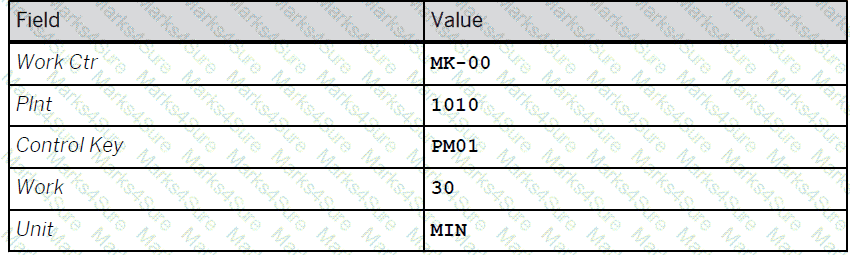

Op 10 : Work Center MK-00, Plant 1010, Control Key PM01, Work 30, Unit MIN.

Op 20 : (Same as above).

Op 30 : (Same as above).

Explanation : Operations are the actual steps the technician follows. Here, we are saying each step takes 30 minutes of mechanical labor.

Step 4: Assign Maintenance Packages (The "Frequencies")

This is the most important part of Task 7. We tell SAP which operation happens when.

Select Row 10 (click the box at the far left of the row).

Go to Menu: Goto > Maintenance Packages .

Check the box for the 1 Month package. Click the Back (Green Arrow) icon.

Select Row 20 .

Go to Goto > Maintenance Packages and check the 4 Month package. Click Back .

Select Row 30 .

Go to Goto > Maintenance Packages and check the 12 Month package. Click Back .

Explanation : Now, SAP knows that Op 10 happens every month, but Op 30 only happens once a year.

Step 5: Save

Click the Save icon.

The message at the bottom should say: "Task list TL-48 saved with group counter 1" .

Task 11 Overview

This task involves classifying a piece of equipment so it can be used in the Checklist process . By assigning a specific class and characteristic values, you enable the system to automatically find the correct inspection plan when a maintenance order is created.

Step 1: Access the Equipment Master Record

To classify the equipment, you must first open its master record in "Change" mode.

Transaction Code : Enter IE02 (Change Equipment) in the command field and press Enter .

Equipment : Enter T-PA48 .

Action : Press Enter to open the record.

Step 2: Assign the Class to the Equipment

Now you will link the equipment to a class that contains the required technical characteristics.

Navigate : Click the Classification button in the top toolbar (or go to the Classes tab if available).

Class Assignment :

Class Type : Ensure this is set to 002 (Equipment Class).

Class : Enter EQ11 .

Action : Press Enter . The system will now display the characteristics associated with class EQ11 in the bottom half of the screen.

Explanation : Assigning a class is like giving the equipment a "category". Class EQ11 is specifically configured in this system to hold the data needed for checklist processing.

Step 3: Assign Characteristic Values

This is the critical step that tells the system exactly which inspection plan to use for this specific pump.

Locate the Characteristic : In the values table, look for a characteristic related to "Inspection Plan" or "Checklist Group."

Enter the Value : Assign the value so that Inspection Plan CL-DE-00 / 1 is automatically found.

Note: Typically, you will enter CL-DE-00 in the "Inspection Plan Group" field and 1 in the "Group Counter" field.

Action : Press Enter to validate the values.

Explanation : Characteristic values are the specific details for this asset. By entering these values, you "tag" the equipment so that whenever it is added to a maintenance order, the system knows to look for the CL-DE-00 checklist automatically.

Step 4: Save

Action : Click the Save (floppy disk) icon.

Confirmation : The system should display a message at the bottom saying: "Equipment T-PA48 changed."

Task 4: Configure and create Technical Objects

This task evaluates your ability to structure and manage the physical and functional hierarchy of assets in SAP S/4HANA Asset Management.

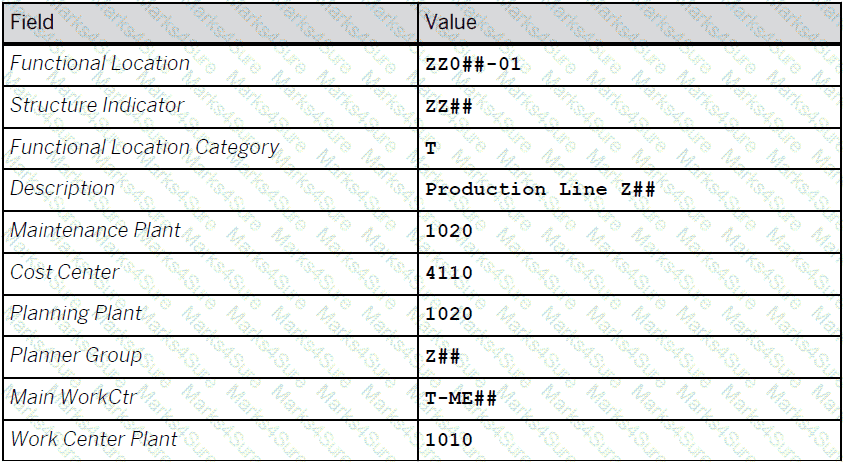

Step 1: Create Functional Location Master Record

A Functional Location represents the area at which a maintenance task is to be performed.

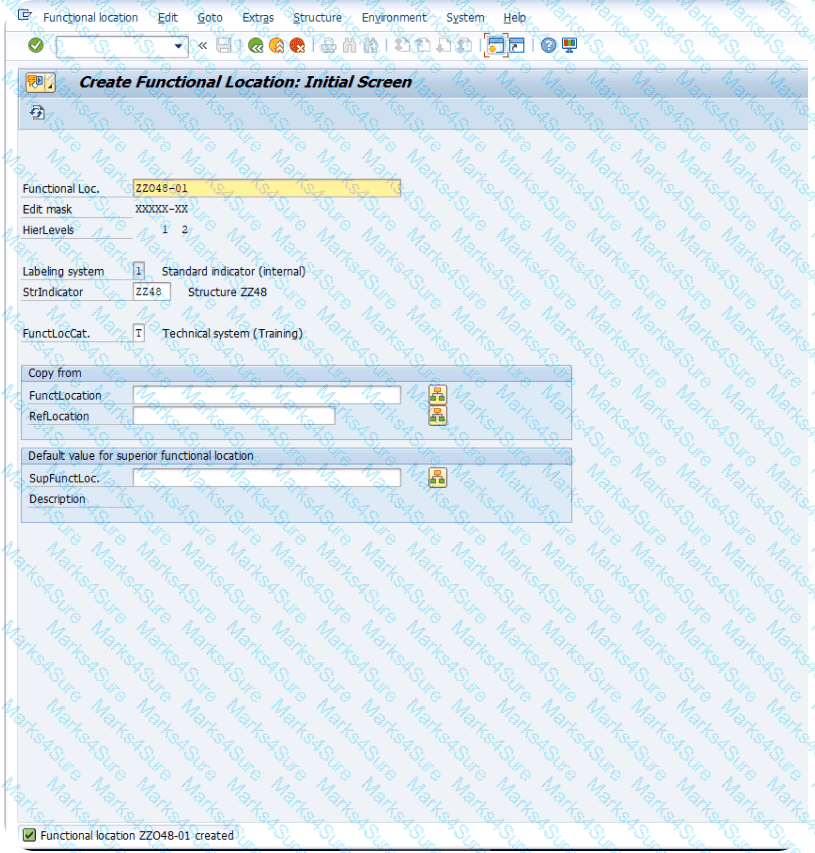

Access the Transaction : Use transaction code IL01 (Create Functional Location).

Enter Initial Data :

Functional Location : ZZ048-01.

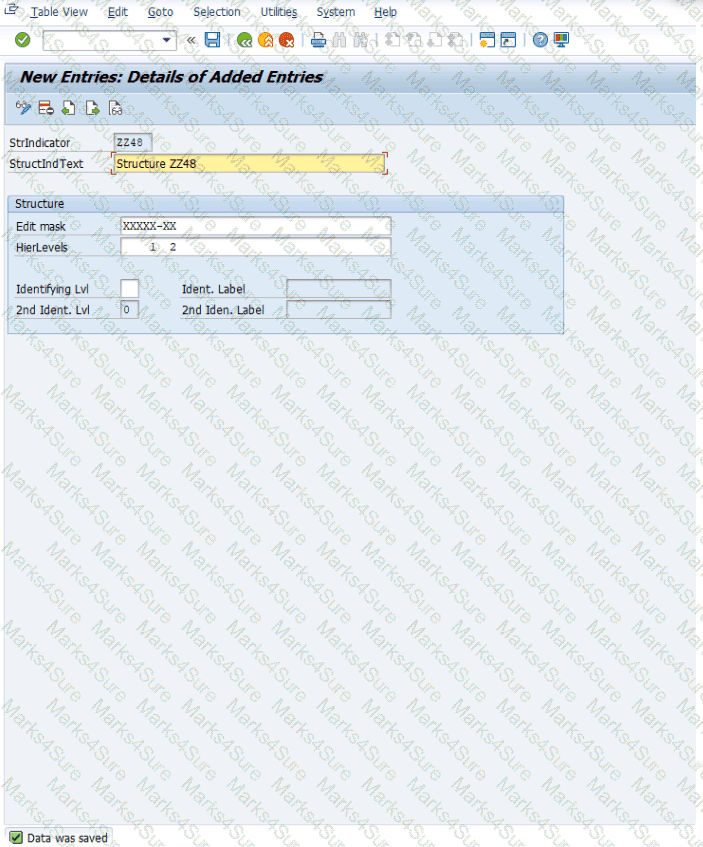

Structure Indicator : ZZ48.

Functional Location Category : T.

Press Enter .

Enter General Data :

Description : Production Line Z48.

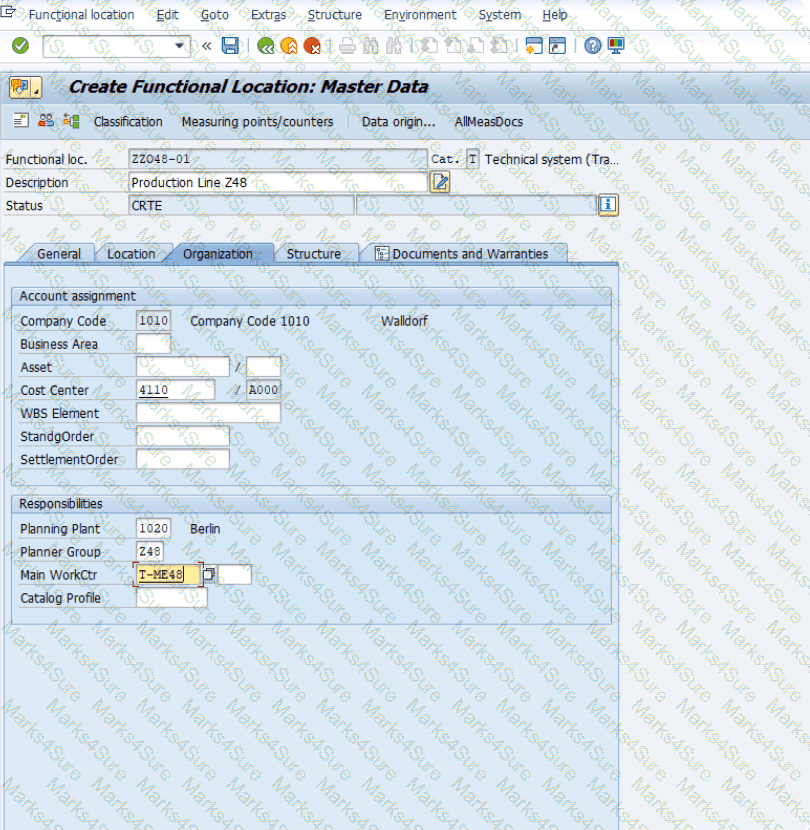

Enter Location and Organization Data :

Maintenance Plant : 1020.

Cost Center : 4110.

Planning Plant : 1020.

Planner Group : Z48.

Main WorkCtr : T-ME48.

Work Center Plant : 1010.

Save : Click the Save icon.

Explanation : By creating this record, you define a specific functional area within Plant 1020 where maintenance costs and history will be tracked for all equipment installed there.

Step 2: Create Equipment Master Record

Equipment represents an individual physical object that is maintained as an autonomous unit.

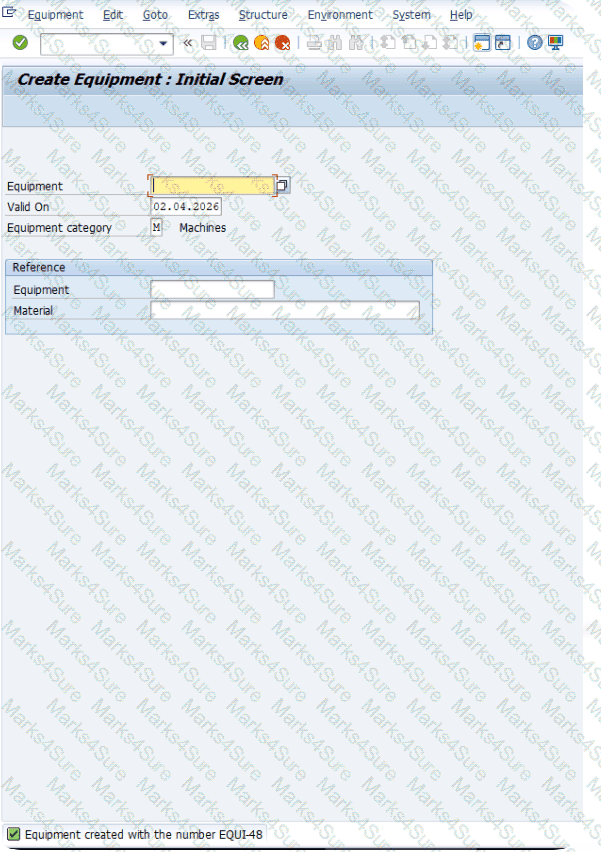

Access the Transaction : Use transaction code IE01 (Create Equipment).

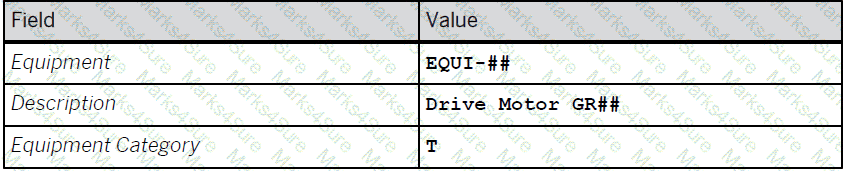

Enter Initial Data :

Equipment : EQUI-48.

Equipment Category : T.

Press Enter .

Enter General Data :

Description : Drive Motor GR48.

Save : Click the Save icon.

Explanation : This step creates a master record for a physical asset—a drive motor—allowing you to track its individual lifecycle, independent of where it is currently installed.

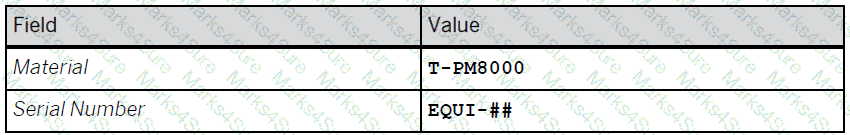

Step 3: Serialize the Equipment

Serialization links a piece of equipment to a specific material and unique serial number for inventory management and tracking.

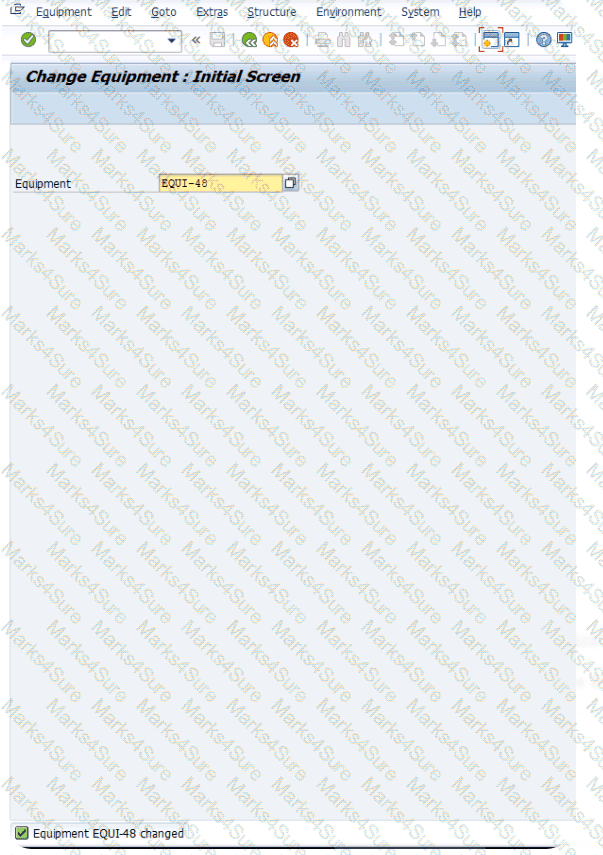

Access the Transaction : Use transaction code IE02 (Change Equipment) and enter EQUI-48.

Navigate to Serial Data : Go to the SerData (Serial Data) tab.

Enter Serialization Data :

Material : T-PM8000.

Serial Number : EQUI-48.

Save : Click the Save icon.

Explanation : Linking the motor to Material T-PM8000 enables the system to track this specific asset as a serialized part, which is essential for warehouse movements and warranty tracking.

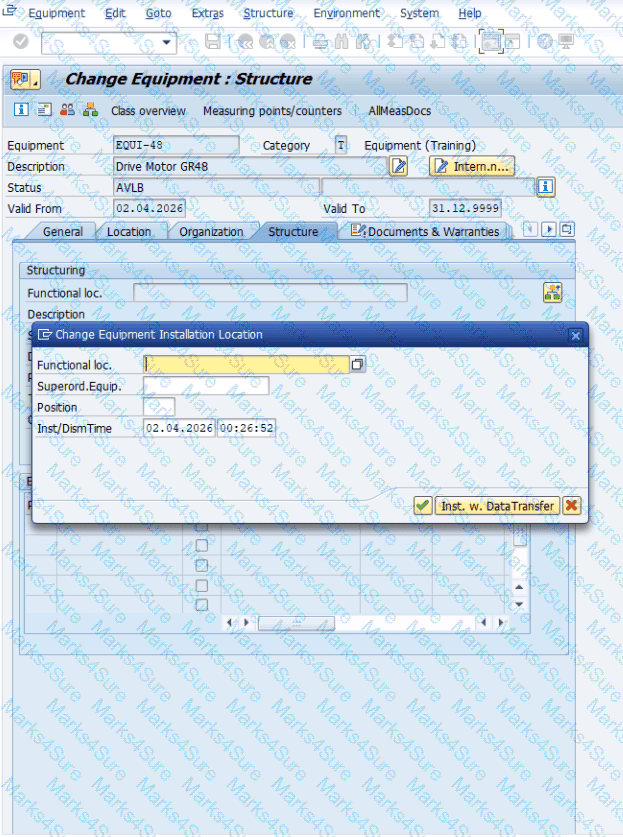

Step 4: Install Equipment at a Functional Location

This establishes the relationship between the physical asset (Equipment) and the functional area where it is operating.

Access the Transaction : Use transaction code IE02 (Change Equipment) for EQUI-48.

Modify Installation Location :

Click on the Structure tab.

Find the FunctLoc field.

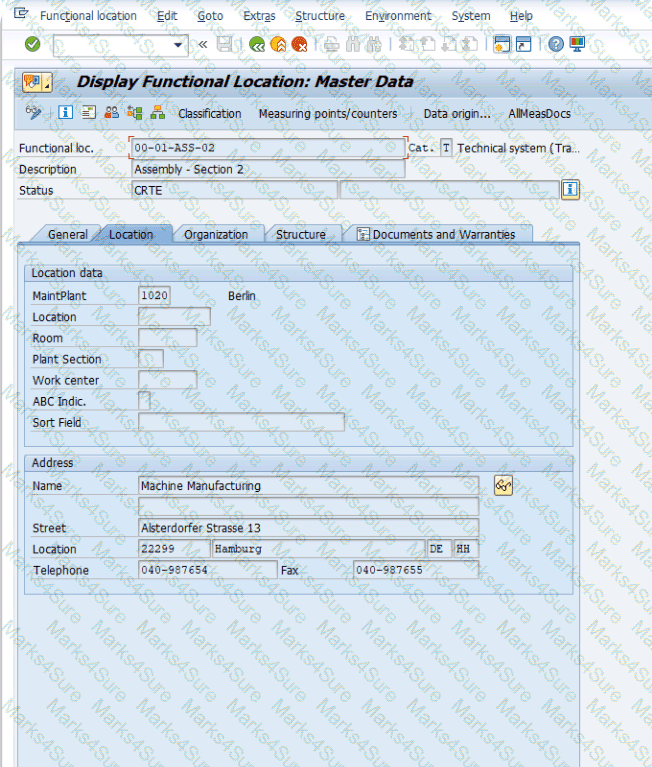

Enter the location: 00-01-ASS-02.

Save : Click the Save icon.

Explanation : This installation "plugs" your drive motor into the functional hierarchy at location 00-01-ASS-02. From this point forward, any maintenance performed on this motor will be automatically associated with that location's history.
