Fortinet NSE5_SSE_AD-7.6 Dumps Questions Answers

According to theFortiSASE 7.6 Administration GuideandFCP - FortiSASE 24/25 Administratorcurriculum, security posture tags (often referred to as ZTNA tags) are the fundamental building blocks for identity-based and posture-based access control.

Multiple Tag Assignment: A single endpoint can be assigned multiple tags at the same time. For example, an endpoint might simultaneously have the tags"OS-Windows-11","AV-Running", and"Corporate-Domain-Joined".

Evaluation Logic: During the policy evaluation process (for both SIA and SPA), FortiSASE or the FortiGate hub considers all tags assigned to the endpoint. Security policies can be configured to use these tags as source criteria. If an administrator defines a policy that requires both "AV-Running" and "Corporate-Domain-Joined," the system evaluates both tags to decide whether to permit the traffic.

Dynamic Nature: Contrary to Option C, these tags are highly dynamic. They are automatically applied or removed in real-time based on the telemetry data sent by theFortiClientto the SASE cloud. If a user disables their antivirus, the "AV-Running" tag is removed immediately, and the endpoint's access is revoked by the next policy evaluation.

Scalability: While the system supports many tags, documentation recommends a baseline of custom tags for optimal performance, though it confirms that multiple tags are standard for reflecting a comprehensive security posture.

Why other options are incorrect:

Option A: This is incorrect because the system does not pick just one tag; it evaluates the collection of tags against the policy's requirements (e.g., matching any or matching all).

Option C: This is incorrect because tags are dynamic and change as soon as the endpoint's status (like vulnerability count or software presence) changes.

Option D: This is incorrect because the architectural advantage of ZTNA is the ability to layer multiple security "checks" (tags) for a single user.

According to theSD-WAN 7.6 Core Administratorstudy guide andFortiOS 7.6 Administration Guide, the "implicit rule" is the default rule at the bottom of the SD-WAN rule list (ID 0). It is only evaluated if traffic does not match any manually configured SD-WAN rules.

Policy Route Table Context (Option B): SD-WAN rules are technically a specialized form of policy-based routing. For a packet to match theimplicit rule, it must first pass through the routing hierarchy. If traffic matches the implicit rule, it indicates that it did not match any higher-priority user-defined SD-WAN rules or any specific entries in the manualpolicy route tablethat would have intercepted the traffic earlier.

Session Information (Option E): When you use the CLI to inspect an active session (e.g., diagnose sys session list), the output contains a field for theSD-WAN Service ID. If traffic is steered by a user-defined rule, it displays the ID of that rule (e.g., service_id=1). However, when traffic falls through to theimplicit rule, the session information displaysno SD-WAN service ID(it often shows as 0 or is omitted), because the implicit rule does not function as a "service" in the same way user-defined rules do.

Routing Behavior: The implicit rule follows the standard routing table (RIB/FIB) logic. It uses thepriorityanddistanceof the static routes to determine the path. If multiple paths have the same distance and priority, it uses the algorithm set by v4-ecmp-mode, but this is a function of the routing engine, not the SD-WAN engine itself.

Why other options are incorrect:

Option A: While v4-ecmp-mode (e.g., source-ip-based) is used for ECMP routing, this is part of the general FortiOS routing behavior for equal-cost paths in the FIB, whereas the implicit rule simply "hands over" the decision to that routing table.

Option C: When traffic matches the implicit rule, the session is actually flagged with vwl_id=0 and potentially dirty if a route change occurs, but vwl_default is not the standard flag name used in this specific context in the curriculum.

Option D: This is incorrect because the implicit ruledoes respect weight, distance, and priorityas defined in the static routes within the routing table; it does not distribute traffic "regardless" of these values.

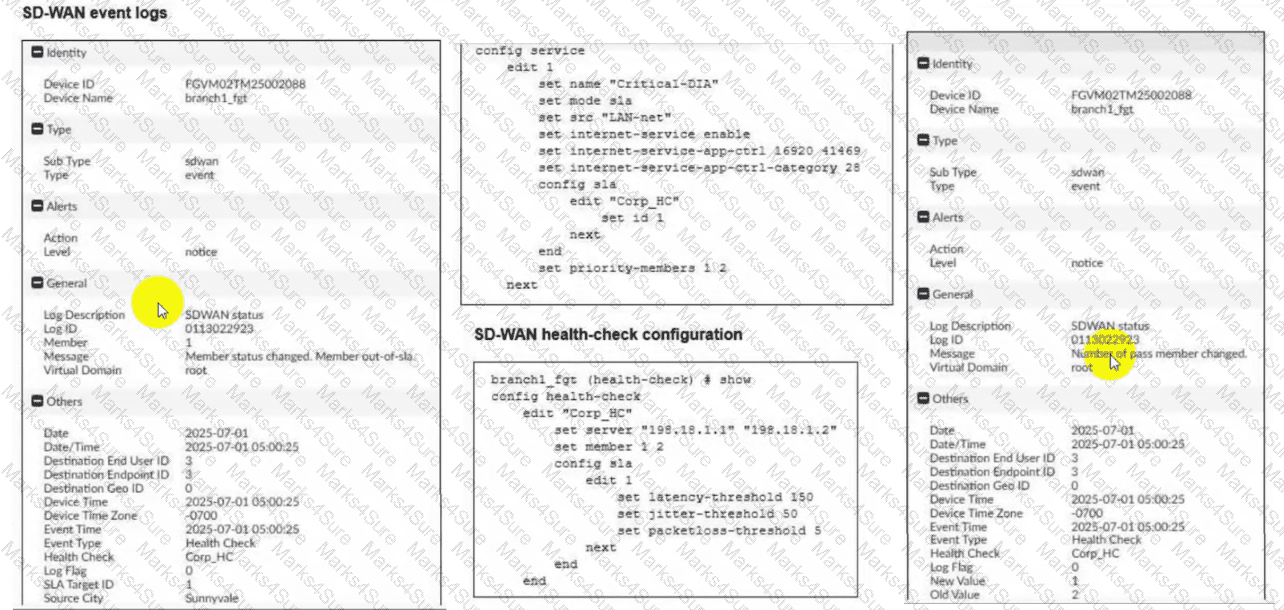

According to the SD-WAN 7.6 Core Administrator curriculum and the provided exhibits, the traffic steering decision is determined by the interaction between the Lowest Cost (SLA) strategy and the link health status reported in the event logs.

Rule Strategy (Lowest Cost SLA): The SD-WAN rule configuration for ID 1 (named Critical-DIA) is set to mode sla. In this mode, the FortiGate will only steer traffic through member interfaces that satisfy the assigned Performance SLA targets.

Member Preference: The rule defines priority-members 1 2. This means that under normal conditions (where both links are healthy), Member 1 (port1) is the preferred interface because it is listed first.

Event Log Analysis:

The first log message explicitly states: "Member status changed. Member out-of-sla." for Member 1. This indicates that port1 has exceeded one of the thresholds (latency, jitter, or packet loss) defined in the Corp_HC health check.

The second log confirms: "Number of pass member changed. New Value: 1, Old Value: 2". This verifies that while there were previously two links passing the SLA, now only one link (Member 2/port2) remains in a passing state.

Steering Decision: Because the rule strategy is mode sla and the primary preferred member (port1) is now out-of-sla, the FortiGate immediately disqualifies Member 1 from the selection pool for this specific rule. It then moves to the next available member in the priority list that does satisfy the SLA, which is Member 2 (port2).

Why other options are incorrect:

Option A: FortiGate will not load balance or choose between both links because port1 is currently ineligible due to the SLA failure.

Option B: Steering to port1 would violate the "Lowest Cost (SLA)" rule logic, as that link is no longer meeting the required health standards.

Option D: FortiGate does not "skip" the rule unless no members meet the SLA and there is no fallback configured; in this scenario, port2 is still passing and available.
